TDU-MDAS10Driving Assistant System

(Movon Driver Assistance System – 10) Thank you for purchasing Movon Advanced Driver Assistance-10(MDAS-10). Pl ease read the manual car efully befor e installing and using MDAS-10. MDAS-10 is a single camera-based driver assistance system. The product focuses on assisting driver s by preventing drowsy or reckles s driving, and rec or ding driving information with the three functions listed below Entering calibration mode Lane departure warning(LDW) Pr ovides Lane Departure Warning (LDW) for safe driving. It alerts the driver with sound and visual warnings and helps to regain direction if the driver departs lanes unintentionally. (*activat ed at 60 km/h (38 mph)) 2 Channel HD Dash cam Rec or ds scenes befor e and after an accident along with imminent crash situations based on gravity sensor and 720P rec or ding performance. MADS-10 can rec or d rearview scenes (480P) with an ext ernal back-up camera and the screen can be used as a rearview display. Digital Tac ograph Logs 10 types of data related to driving information such as speed, break usage, RPM, GPS loc ation, ac cumulated mileage, daily mileage, etc. Can benefit fleet managements and improve driver s’ driving behavior as a result of reducing accidents and saving fuel. 1) Introduction 1. About MDAS-10 2. Specification 3. Components 4. Part description 2) Installation1. Cabling overview 2. Installing 2.1 Installing rear-view cameras 3. Calibration 3) Function 1. Lane departure warning 2. Dash cam 3. Digital tachograph 4) Operation 1. Set-up menu 5) Warranty information Any inappropriate or illegal activities or violation of traffic rules on the roads are driver s’ responsibility. Movon Corp. will not compensate any damage nor accept responsibility related to behaviors mentioned. After attaching the optional rear camera to pref erred loc ation on the rear windshield, c onnect camera cable to the main cable’s 2.5ø slot. pres s Calibration icon after MOVON logo disappearsAfter the car engine’s on, Initial calibration screen is the same as the picture on left. Pr es s Calibration once more to proc eed to configuration. If the rear screen converts into the full screen in the PIP situation, LDWS should be not activat ed. Users can change rec or ding time in DVR Setting. Caution Befor e inserting or separating micro SD car d, please turn off MDAS-10. If you do not, the rec or ding images can become corrupted. It is rec ommended for micro SD car d’s reliability to low-level format the SD Card periodically (approximatel y every 3-4 months). Caution :If using an ext ernal rear camera outside of the car, ensure that the ext ernal rear camera’s connector is following MDAS-10’s cable pin specification indicat ed on the picture. In addition, if the camera’s power consumption exceeds 5V, it will be power ed from a separat e power source(eg. rear lamp cables) Pl ease be aware of Movon’s policy that privat e information and traffic related laws are users' responsibility. MDAS-10 only gives warnings to drivers. The final decision to maneuver/control shall be made by drivers themselves. Customer service incurred by controlling while driving or damaging/revamping will not be guaranteed by Movon’s policy. The manual can be modified without notification. Explanations and images may not be up-to-date on the user manual for upgrading or editing purposes. The product software is able to be modified for upgrading for better performance without informing in advanced. Pl ease ref er to the http://www.movon.co.kr or http://www.mdas.co.kr for lates t updated information. Copyright ⓒ 2005 by Movon Corporation. All Rights Reserved. Table of contents 1 1.Introduction - 2) Specification 1.Introduction - 4) Part description1.Introduction - 3) Components 1.Introduction - 1) Introduction Major functions CPUCortex A8 Series MDAS camera Screen4.3 inch, 480x272 pixel, touch screen panel Camera1M pixel, Diagonal 103.2°C Power Video Audio MP4(H.264 codec: Front-720P, 30fps, Rear: 480P, 15~30fps) AAC/MP3 Format Camera Lens Angle adjuster Speed Distances between the wheels Double sided tape Camera cable Body 110 x 85 x 70 mm 135 x 85 x 20 mm Size St or age DC 12V/24V support (Consumption: 900mA) 4~32GB Micro SD car d support Operating Temperature -20~65 ̊C Et cBuilt-in G-sensor, Mic, Speaker, Wi-Fi(Option), External GPS, InputPower port (Micro USB or Rear Connector), Camera port(micro USB) MDAS mainUser manual GPS module (Option) Univer sal 4-pin mount (Option) Rear-view camera (Option) Micro SD card 8G & reader MDAS cable 2.Installation - 1) Cabling overview 2.Installation - 3) calibration 2.Installation - 3) calibration 2.Installation - 3) calibration Lane Departure Warning 1. LDW alerts the driver with sound and visual warnings when the vehicle departs from its lane unintentionally when driving over 60km/h(38 mph). 2. When MDAS-10 rec ognizes the lane markings in the environment while driving over 60km/h, the LCD of main body displays green lines when the car stays in its lane and displays red lines when the car departs its lane. 3. You can change the distance between the vehicle and the lane markings through sensibility adjustment. (Ref er to Set-up menu in Operation chapter) 4. If you want to turn off a function of LDW, you can disable in ADAS mode in Set-up menu in Operation. 5. LDW will not be activat ed if you turn on left or right blinker s. (If the LDW is activat ed, please read the direction light connection of FAQ) 1. Normal mode: Rec or ds front and rear driving scenes simultaneously in real-time and rec or ded videos can be found in ory_rec folder. 2. Event mode: When the impact is detected by G-Force sensor, the videos 10 seconds befor e and after of the event are saved in evt_rec folder. 3. Manual mode: If you pres s on the screen, the videos are rec or ded for 30 seconds from the time and saved urs_rec folder. 4. Rear camera: Rear scene can be checked through optional camera and the rear screen can be checked by PIP (Picture in Picture) through button on the …

Text truncated - open the document above for the full version.

MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-Dong, Gangnam-Gu, Seoul, Korea Date: April 04, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Timco Engineering, Inc. Certification Division 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA To whom it may concern: I, the undersigned, hereby authorize Technical Manager Issac Jin of MOVON CORPORATION and hereafter referred to as MOVON CORPORATION , to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these m atters. Any and all acts carried out by Technical Manager Issac Jin of MOVON CORPORATION on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing MOVON CORPORATION as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-Dong, Gangnam-Gu, Seoul, Korea e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Tim ryu / Manager MOVON CORPORATION REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-Dong, Gangnam-Gu, Seoul, Korea Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: TDU-MDAS10 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operation Description Parts List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely Yours, Tim ryu / Manager MOVON CORPORATION

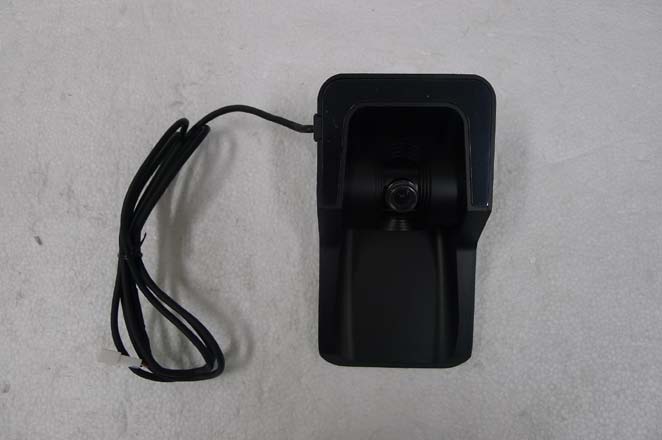

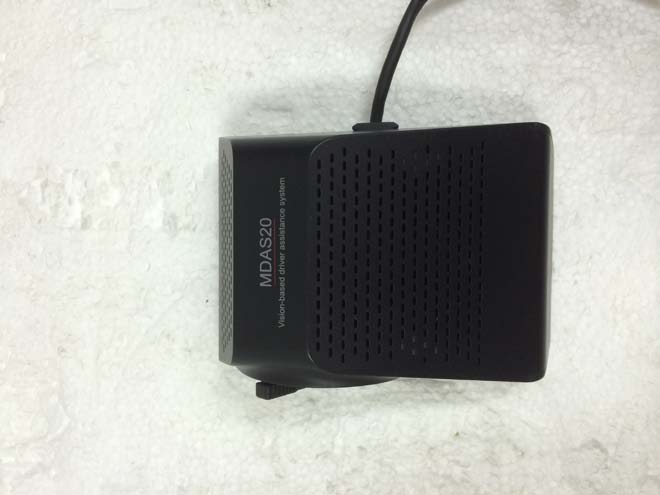

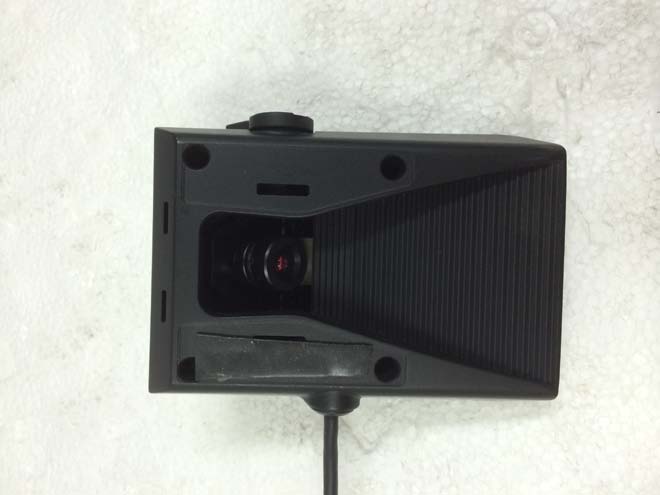

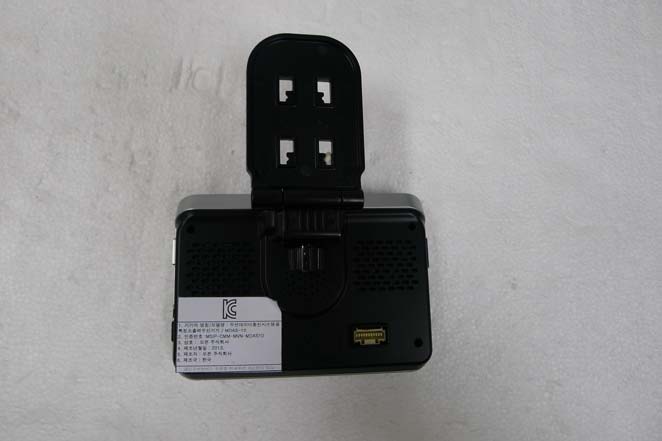

External photos of EUT TDU-MDAS10 Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT Front view of MDAS-10 Camera Rear view of MDAS-10 Camera Front view of MDAS-20 Camera Rear view of MDAS-20 Camera

Internal photos of EUT Main module board PCB Antenna Top view of Main PCB Bottom view of Main PCB Top view of module board Bottom view of module board MDAS-10 Top view of Camera module Bottom view of Camera module Top view of Camera board Bottom view of Camera board MDAS-20 Top view of Camera module Bottom view of Camera module Top view of Camera board Bottom view of Camera board

客户名称： (CUSTOMER) Movon 产品名称 APPELLATION： DAS system 产品型号 MODEL： MDAS10 客户料号 No.： 泓淋料号 No.： G009-410012-A 生 产 方 工艺审核 TECHNICAL 品质审核 QUALITY 项目审核 PROJECT 开发审核 DEVELOPING 客 户 方 设计工程师 Engineer 主管审批 Approval 研发体系 R & D System 供应商：深圳市泓淋通讯科技 地址： 深圳市宝安区松岗镇沙浦围村第二工业区六栋 电话：0755-27090678 27091658 传真：0755-27091458 邮编：518000 E- mail：[email protected] 承 认 书 目录 一． --------------------------------------------------------- 天线规格表 二． --------------------------------------------------------- 成品图 三． --------------------------------------------------------- 测试报告 四． -------------------------------------------------------- SGS报告 一.天线规格表 Specification 1. Electrical Properties 1.1 Frequency Range---------------------2.4GHz~2.5GHz 1.2 Impedance-----------------------------50Ω 1.3 VSWR---------------------------------1.92:1 1.4 Return Loss--------------------------- -10dB or Less 1.5 Radiation------------------------------Omni-directional 1.6 Gain------------------------------------0dBi 1.7 Polarization ---------------------------Linear,Vertical 1.8 Admitted Power----------------------1W 2. Physical Properties 2.1 Antenna Body ----------------------------------Copper 2.2 Color-----------------------------------White 二.成品图 三.测试报告 VSWR 3D、2DRaditation Pattern: 2.4GHz Gain: -0.25dBi Efficiency:40.1% 2.45GHz Gain:0.23dBi Efficiency:52.2% 2.5GHz Gain:0.19dBi Efficiency:43.5% 四.SGS报告 （注：SGS测试报告以电子档形式传给贵司）

CAM350 V 9.5.2 : Tue Jun 26 14:21:39 2012 - (Untitled) : art001 .pho CAM350 V 9.5.2 : Tue Jun 26 14:21:39 2012 - (Untitled) : art02. pho CAM350 V 9.5.2 : Tue Jun 26 14:21:39 2012 - (Untitled) : art03. pho CAM350 V 9.5.2 : Tue Jun 26 14:21:39 2012 - (Untitled) : art04. pho CAM350 V 9.5.2 : Tue Jun 26 14:21:40 2012 - (Untitled) : dd0124 .pho CAM350 V 9.5.2 : Tue Jun 26 14:21:40 2012 - (Untitled) : sm0125 .pho CAM350 V 9.5.2 : Tue Jun 26 14:21:40 2012 - (Untitled) : sm0426 .pho CAM350 V 9.5.2 : Tue Jun 26 14:21:40 2012 - (Untitled) : smd012 9.pho CAM350 V 9.5.2 : Tue Jun 26 14:21:40 2012 - (Untitled) : smd043 0.pho CAM350 V 9.5.2 : Tue Jun 26 14:21:40 2012 - (Untitled) : sst001 027.pho CAM350 V 9.5.2 : Tue Jun 26 14:21:40 2012 - (Untitled) : sst004 028.pho CAM350 V 9.5.2 : Tue Jun 26 14:21:40 2012 - (Untitled) : drl00. drl

MOVON CORPORATION Report Number: MOV-14-RF-I011 Page : (1) of (70) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. FCC Part 15 Subpart C §15.247 Test Report Equipment Under Test Driving Assistant System Model Name MDAS10 Applicant Movon Cororation FCC ID TDU-MDAS10 Manufacturer Shin-oh electronics Date of Test(s) 2014. 03. 13 ~ 2014. 03.21 Date of Issue 2014. 04.10 In the configuration tested, the EUT complied with the standards specified above. Issue to Issue by MOVON CORPORATION 140-28 SAMSUNG DONG, GANGNAM GU, SEOUL, KOREA Te l . : +82-2-2050-4632 Fax: +82-2-2050-4666 MOVON CORPORATION 194-1, Geumeo-ri, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea, 449-812 Tel.: +82-31-338-8837 Fax: +82-31-338-8847 MOVON CORPORATION Report Number: MOV-14-RF-I011 Page : (2) of (70) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Revision history Revision Date of issue Description Revised by -- APR 10, 2014 Initial -- MOVON CORPORATION Report Number: MOV-14-RF-I011 Page : (3) of (70) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Table of contents 1. GENERAL INFORMATION ............................................................................................. 4 2. EUT DESCRIPTION ........................................................................................................ 5 3. MEASUREMENT EQUIPMENT ...................................................................................... 6 4. TRANSMITTER RADIATED SPURIOUS EMISSIONS AND CONDUCTED SPURIOUS EMISSIONS .................................................................................................................. 7 5 6㏈ BANDWIDTH ........................................................................................................ 39 6. MAXIMUM PEAK OUTPUT POWER MEASUREMENT ............................................... 48 7. POWER SPECTRAL DENSITY MEASUREMENT ....................................................... 57 8. ANTENNA REQUIREMENT ......................................................................................... 66 9. RF EXPOSURE EVALUATION .................................................................................... 67 10. TEST SETUP PHOTO OF EUT .................................................................................. 69 MOVON CORPORATION Report Number: MOV-14-RF-I011 Page : (5) of (70) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. EUT Description Kind of product Driving Assistant System Model Name MDAS10 Serial Number N/A Power supply DC 12V~24V Frequency range 2412 ㎒ ~ 2462㎒ Modulation technique 802.11b, 802.11g, 802.11n20, 802.11n40 Number of channels 802.11b, 802.11g, 802.11n20 : 11 802.11n40 : 9 Antenna gain 0.23㏈i (Max.) Test S ite R egistration Number FCC(670686) 2.1. Declarations by the manufacturer None 2.2. Details of modification None MOVON CORPORATION Report Number: MOV-14-RF-I011 Page : (6) of (70) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 3. Measurement equipment Equipment Manufacturer Model Serial number Calibration Interval Calibration due. EMI Test Receiver R&S ESIB26 100196/026 1 year 2014-12-14 Signal Generator R&S SMR27 100089 1 year 2014-12-13 Spectrum Analyzer R&S FSV-40 100832 1 year 2014-10-04 Power Meter Agilent E4416A GB41290645 1 year 2014-10-04 Power Sensor Agilent 9327A US40441490 1 year 2014-10-04 Double Ridge Horn Antenna R&S HF906 100236 2 year 2015-02-28 Horn Antenna AH Systems SAS-572 269 2 year 2015-09-06 Bi - Log Antenna AH Systems SAS-521-7 128 2 year 2015-10-04 Power Amplifier MITEQ AM-1431 1497315 1 year 2014-10-04 Power Amplifier MITEQ AFS43-01002600 1374382 1 year 2014-10-04 High Pass Filter Wainwright WHK3.0/18G-10SS 508 1 year 2014-10-04 DC Power Supply HP 6674A 3637A01351 1 year 2014-10-04 Controller INNCO CO2000 co200/064/6961003/L N/A N/A Antenna Master INNCO MA4000 MA4000/038/6961003/L N/A N/A ※ Remark; Support equipment Description Manufacturer Model Serial number Notebook computer LG R450-M240K 910PALP000344 MOVON CORPORATION Report Number: MOV-14-RF-I011 Page : (7) of (70) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 4. Transmitter radiated spurious emissions and conducted spurious emissions 4.1.1. Transmitter radiated spurious emissions 4.1. Test setup The diagram below shows the test setup that is utilized to make the measurements for emission from 9kHz to 30MHz Emissions. The diagram below shows the test setup that is utilized to make the measurements for emission from 30 ㎒ to 1 ㎓ emissions. MOVON CORPORATION Report Number: MOV-14-RF-I011 Page : (8) of (70) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. The diagram below shows the test setup that is utilized to make the measurements for emission from 1 ㎓ to 40 ㎓ emissions. 4.2. Limit According to §15.247(d), in any 100 ㎑ bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentio…

Text truncated - open the document above for the full version.

Test setup photo of EUT A. Setup photo of EUT Photo of radiated spurious emission at below 30㎒ Photo of radiated spurious emission at 30㎒ ~ 1 000㎒ Photo of radiated spurious emission at above 1 000㎒
