TDU-ONYXBLUETOOTH STEREO SPEAKER

What’s in the box? ONYX AC adapt er 3.5mm stereo cable User manual Getting to know the ONYX -1- ※ Please, use provided adapter only. Speaker Volume Control Wheel MIC LED MFB (Multi Function Button) AUX IN Port ON/OFF Switch Using your Speaker TURING ON/OFF CHARGE THE BATTERY Before using speaker, charge the battery completely. To charge the battery, connect the power supply to the speake r and plug it into a live AC outlet. The Red LED remains on while the speaker is charging and Red LED will be off when charging is completed. -2- Turning ON Turning OFF CHECKING THE BATTERY LEVEL The battery status indicator will be shown on iPhone or iPad LOW BATTERY ALARM When battery is low, speaker will alarm with beep every 1 minu te. Once you hear beep alert, please charge immediately. TO BEGIN PAIRING WITH A BLUETOOTH DEVICES 1. Turn the ONYX on. When turned on for the first time, ONYX will go to pairing mode automatically. Or Press the MFB button for 3 seconds until LED blinks as Blue. -3- -4- 2. Set you Mobile phone or Bluetooth device to Bluetooth discovera ble mode. (Visibility on) 3. Set your Mobile phone or Bluetooth device to discover the ONYX, then locate the Bluetooth device list. 4. From the Bluetooth device list, select the device named “O NYX” 5. If your devices asks for a passkey, enter digits 0000 (fou r zeros) and press OK. 6. Your Bluetooth devices indicates when pairing is completed . The ONYX speaker announce as “Connected” when pairing is competed and Blue LED remains. ※ Auto Reconnection ONYX will try to re-connect to the latest connected B luetooth device when you turn on ONYX. ※ Simple Pairing If your devices support Bluetooth v2.1 or higher vers ion, you don’t need to passkey to pair. ※ Easy Pairing The ONYX goes into pairing mode automatically for the first time you use it. TO ADD ANOTHER SOURCE You can use another audio device with ONYX. This requires usin g an 3.5mm stereo cable with a 3.5mm plug on one end to connect with the AUX port on ONYX. PLAYING MUSIC Play / Pause Music: Press the MFB button shortly MAKING A CALL Last call redialing: Press MFB button twice. Voice dialing : To activate or deactivate voice dialing, press the MFB button for 1 second. [NOTE] Make sure your mobile phone is supported voice dialing functio n (Check your mobile phone instruction manual) -5- -6- ANSWER / END A CALL Press the MFB button. DECLINE AN INCOMING CALL Press the MFB button for 1 second. Transfer a call from ONYX to Mobile phone (or Mobile phone to ONYX) Press the MFB button for 1 second. VOLUME CONTROLS Increase and Decrease the volume using volume control wheel. There will be beep sound on minimum and maximum volume level. MUTING Mute or Unmute the built-in microphone by holding MFB button for 3 seconds. RESET THE ONYX Press MFB button for 3 seconds on pairing mode stage. Status LED Lighting Beep / Voice announcement Power On LED flashes in Blue 3 times Power ON Pairing mode LED flashes in Blue rapidly Disconnected mode LED flashes in Blue every 5 seconds Disco nnected Connected mode LED flashed in Blue 2 times every 5 seconds Connected Making a call LED flashed in Blue 3 times every 5 seconds Incoming call LED flashes in Blue 2 times every 2 seconds Ring Playing a music LED flashes in Blue 3 times every 5 seconds Mute Beep in every 10 seconds Reset LED flashes in Blue 5 times Beep Low battery Charging Steadily RED LED on Charging complete Red LED is turned off Status -7- -8- Specification Model Name ONYX Bluetooth Core Spec Bluetooth Specification 3.0 Profile HSP/HFP1.6(Wide Band Speech), A2DP, AVRCP Bluetooth Class Class 2 Coverage Range 10 Meters Continuous Play Time approx. 10 Hours Standby Time approx. 500 Hours Weight 1100g Charging Voltage DC 5.0 V Charging Time approx. 3 Hours Operating Temperature -10° to +50°C Storage Temperature -20° to +70°C Output Power 6 W (2 CH, 3 W x 2) Battery Lithium Polymer 3.7V 1500mAh SAFET Y AND GENERAL INFORMATION1. Please read this guidebook carefully and follow the instruction.2. To avoid any damage or malfunction of the unit, do not drop it from high place.3. Keep away unit from humidity, water and any other liquid. And if the unit is exposed by water, moisture and other liquid dir ectly, then do not operate it normally to avoid any electrical shock, explosion and damage of the unit.4. Do not place or keep the unit near the heat sources such as direct sun light, radiators, stoves or other apparatus which pro duce heat. It may cause explosion, degrade of performance and reduce battery life.5. Do not modify, repair & disassemble unit at discretion (especially battery: it may cause an explosion.6. Do not place the heavy objects on the unit.7. Use only supplied and approved charger.8. Replacement or service must be done at a qualifi ed service center or manufacturer.9. Unplug this unit when unused for long period of time or during lightening storms. [ CAUTIONS ] ELECTRIC SHOCK HAZARD The battery used in this device may present a risk of fi re or chemical burn if mis-treated. FCC WARNINGThis equipment may generate or use radio frequency energy. Changes or modifi cations to this equipment may cause harmful interfe rence unless the modifi cations are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modifi cation is made. [ NOTE ] This equipment has been tested and found to comply with the limits for a Class B digital device, purchant to Part 15 of the F CC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential ins tallation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructio ns, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular ins tallation. If this equipment does cause harmful interference by one or more of the following measures: Reori…

Text truncated - open the document above for the full version.

MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-Dong, Gangnam-Gu, Seoul, Korea Date: April 3, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Timco Engineering, Inc. Certification Division 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA In re : MOVON CORPORATION FCC Application for FCC ID: TDU-ONYX To Whom It May Concern: This product(Model name : ONYX) used USB port This USB port is supposed only to supply operating power to the device Sincerely Yours, Dominic So / Manager MOVON CORPORATION

MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-Dong, Gangnam-Gu, Seoul, Korea Date: February 27, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Timco Engineering, Inc. Certification Division 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA To whom it may concern: I, the undersigned, hereby authorize Technical Manager Issac Jin of MOVON CORPORATION and hereafter referred to as MOVON CORPORATION , to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these m atters. Any and all acts carried out by Technical Manager Issac Jin of MOVON CORPORATION on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing MOVON CORPORATION as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-Dong, Gangnam-Gu, Seoul, Korea e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Dominic So / Manager MOVON CORPORATION REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-Dong, Gangnam-Gu, Seoul, Korea Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: TDU-ONYX To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operation Description Parts List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely Yours, Dominic So / Manager MOVON CORPORATION

":-=_.:* FEDERAL COMMT]NICATIONS Laboratory Division 7435 Oakland Mills Road Columbia, MD 21046 September 03, 2010 COMMISSION Regisration Number: 670686 MOVON Corporation 194-l Geumeo-ri, Pogok-myeon, Yongin-si, Gyeonggi-do, Yongin, M9-812 South Korea Attention: Re: Danny Kirn" technical manager Measurement facility located at Yongin-si Anechoic chamber A (3 meters) Date of Renewal: September 03, 2010 Dear Sir or Madam: Your request for renewal of the regisfration of the subject measurement facility has been received. The information submitted has been placed in your file and the regisfration has been renewed. The name of your organization will remain on the list of facilities whose measurement data will be accepted in conjunction with applications for Certification under Parts 15 or 18 of the Commission's Rules. Please note that the file must be updated for any changes made to the facility and the registration must be renewed at least every three years. Measurement facilities that have indicated that they are available to the public to perform measurement services on a fee basis may be found on the FCC website www.fcc.gov under E-Filing, OET Equipment Authorization Elecfronic Filing, Test Firms. M.fur/"q Industry Analyst d )- -r oJ 7V-|oio, q I SiL /O -of-o/ trL trl Eto i4 8l 11 (=% q q] 4 ) 2F ^1 ^l

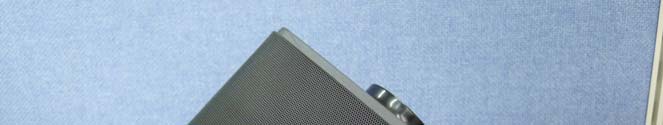

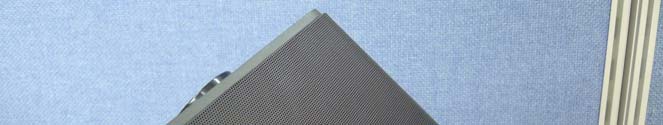

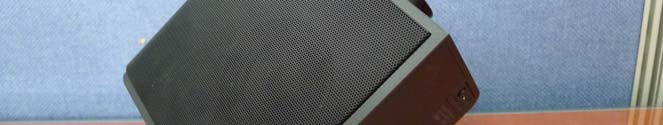

External photos of EUT TDU-ONYX Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

4 PANTONE Cool Gray 9C Print Specification-4_Black MOVON ONYX Design Team 이창호(Will.LEE) 2013.02.14담당 수 신 발 신 팀장담당 팀장 인증용 Scale 100% TEXT_SIDE 4 NONAMECOLOR

Internal photos of EUT Main module board PCB Antenna Top view of Main PCB Bottom view of Main PCB

ANTENNA DOCUMENT Model : MPA-001 Production information Copyright 2012©Movon Corporation 1. SECIFICATIONS 1.1 Electrical Specifications ITEM SPEC UNIT Center Frequency 2.4~2.485 GHz Gain -1.5(MAX) dBi VSWR 1.8:1 Azimuth Beam Pattern Omni-directional Impedance 50 Ω 1.2 Mechanical Specification ITEM SPEC UNIT Size mm Radiator Material Brass(Gold coating) Operation Temperature -40~+90 °C 1.3 Appearance and Dimensions GND 5.10 35.20 14.00 1.80 1.51.51.5 2.02.02.0 0.5 4.40 TOP BOTTOM GND ANTENNA DOCUMENT Model : MPA-001 Production information Copyright 2012©Movon Corporation 2. EASUREMENT (Bluetooth matching on the reference test board) Freq.[MHz] Polarization Beam Peak Beam Null Gain[dBi] Efficiency Value Phi ThetaValue Phi Theta 2400 3.568 -11090 -13.702 65 15 -1.773 66.485% 2450 3.744 -90 90 -18.227 -90 150 -1.622 68.836% 2500 3.847 -85 90 -19.752 -130 165 -1.989 63.263%

MOVON CORPORATION Report Number:MOV-13-RF-I005(2) Page : (1) of (43) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. FCC Part 15 Subpart B&C §15.247 Test Report Equipment Under Test Bluetooth Stereo Speaker Model Name ONYX Applicant MOVON CORPORATION FCC ID TDU-ONYX Manufacturer QINGDAO MOVON ELECTRONIC CORPORATION Date of Test(s) 2013. 03. 15 ~ 2013. 03. 25 Date of Issue 2013. 04. 03 In the configuration tested, the EUT complied with the standards specified above. Issue to Issue by MOVON CORPORATION 140-28 SAMSUNG DONG, GANGNAM GU, SEOUL, KOREA Tel.: +82-2-2050-4632 Fax: +82-2-2050-4666 MOVON CORPORATION 194-1, Geumeo-ri, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea, 449-812 Tel.: +82-31-338-8837 Fax: +82-31-338-8847 MOVON CORPORATION Report Number:MOV-13-RF-I005(2) Page : (2) of (43) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Revision history RevisionDate of issue DescriptionRevised by -- Mar 29, 2013 Initial -- 1 Apr 2, 2013 Add Photo of Conducted emission Raymond Kim 2 Apr 3, 2013 Add Band-edge comment for page 17,19 Raymond Kim MOVON CORPORATION Report Number:MOV-13-RF-I005(2) Page : (3) of (43) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Table of contents 1.ATTESTATION OF TEST RESULTS ............................................................................. 4 2.EUT DESCRIPTION ........................................................................................................ 5 3.INFORMATION ABOUT THE FHSS CHARACTERISTICS ............................................ 5 4.MEASUREMENT EQUIPMENT ...................................................................................... 6 5.TRANSMITTER RADIATED SPURIOUS EMISSIONS AND CONDUCTED SPURIOUS EMISSIONS .................................................................................................................. 7  6.CONDUCTED POWER LINE TEST .............................................................................. 20 7.20໒ BANDWIDTH MEASUREMENT ........................................................................ 23 8.MAXIMUM PEAK OUTPUT POWER MEASUREMENT ............................................... 26 9.HOPPING CHANNEL SEPARATION ........................................................................... 29 10.NUMBER OF HOPPING FREQUENCY ...................................................................... 31 11.TIME OF OCCUPANCY(DWELL TIME) ..................................................................... 33 12.ANTENNA REQUIREMENT ....................................................................................... 38 13.RF EXPOSURE EVALUATION .................................................................................. 39 14.TEST SETUP PHOTO OF EUT .................................................................................. 41 MOVON CORPORATION Report Number:MOV-13-RF-I005(2) Page : (5) of (43) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 2. EUT Description Kind of product Bluetooth Stereo Speaker Model Name ONYX Serial Number N/A Power supply DC 3.70 V Frequency range 2 402 ໬ ~ 2 480 ໬ Modulation technique GFSK(1Mbps) Number of channels 79 Antenna gain 3.847໒i (Max.) TEST SITE REGISTRATION NUMBER FCC(670686) 2.1. Declarations by the manufacturer The EUT is does not do anything at charging mode (Power is turned off when it is charging) 2.2. Details of modification None 3. Information about the FHSS characteristics 3.1. Pseudorandom frequency hopping sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. Example of a 79 hopping sequence in data mode: 40,21,44,23,42,53,46,55,48,33,52,35,50,65,54... 3.2 Equal Hopping Frequency Use All Bluetooth units participating in the piconet are time and hop-synchronized to the channel. 3.3 System Receiver Input Bandwidth The input bandwidth of the receiver is 1໬. In every connection one Bluetooth device is the master and the other one is slave. The master determines the hopping sequence. The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single of multisport (packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence. 3.4 Equipment Description 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of The regulations in Section15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h):In accordance with the Bluetooth Industry Stand…

Text truncated - open the document above for the full version.

Test setup photo of EUT A. Setup photo of EUT Photo of radiated spurious emission at below 30㎒ Photo of radiated spurious emission at 30㎒ ~ 1 000㎒ Photo of radiated spurious emission at above 1 000㎒ Photo of Conducted emission at below 30㎒
