TDU-1307010Bluetooth car kit with FM Transmitter

HANDSFREE CARKIT MK70 Handsfree CARKIT with FM Transmitter & TTS User Manual 1. Carkit 2. Metal Clip [This clip plays a role of the antenna for FM transmitter] 3. Car charger 4. Manual 5.Optional items [AC/DC adapter] Before using your handsfree, charge the battery for at least 3 hours. Charging the battery completely (and keeping it charged) will help you get the longest possible talk and standby time out of the battery. (On average, the battery provides about 12 hours of talk time, 6 hours of playing time and about 400 hours of standby time.) Connect an adapter to the power connector on the side of handsfree and plug it into automobile (or any standard 12V~24V) power outlet. When charging is completed, charging status icon is turned off . [Note] Use only the power adapter supplied with handsfree. Using any other adapter could damage your handsfree, create a fi re hazard, or cause a risk of electric shock. Low Battery Warning When the battery requires charge, handsfree triggers a low battery alert; you’ll hear a melody every 30 seconds.. TURNING ON/OFF TURNING ON : Please slide the cover up. TURNING OFF : Please slide the cover down. PAIR THE KIT TO YOUR BLUETOOTH PHONE 1. Please slide the cover up to turn on. 2. You hear the voice announcement “Please pair phone now” and the Bluetooth status icon [ ] will blink. 3. Set your Bluetooth mobile phone to discover handsfree. For the most mobile phones, you can fi nd Bluetooth mode by selecting Setting/Tools- Connections- Bluetooth (For further information, please refer to your mobile phone’s manual) 4. When your mobile phone fi nds handsfree, confi rm it by selecting “yes” or “ok”. . 5. Enter PIN number “0000”(4 zeros) AUTO PHONEBOOK DOWNLOAD 1. If your mobile supports PBAP, handsfree will be automatically disconnected with your phone after pairing.. 2. Handsfree is automatically reconnected with the voice announcement “loading phone book”, and starting download phone book. (If you can hear a beep sound instead of the voice “loading phone book”, it is failed to download phonebook) ENCLOSURES HOW TO USE Product Components Hands-Free Unit CHARGING 1. 2.3.4. 5. Multifunction button Volume up button Charging, FM, Bluetooth status icons Charging port Sun visor metal clip Sliding switch (Power On/Off ) Volume down button Speaker MIC FM button Active Dev List Model Name Device Name Input PIN Code 0000 -1--2- EnglishEnglish 4.reference 5.reference 3. You will hear the voice announcement “loading phone book successful” with fi nishing download. 4. Then, handsfree will connect with your phone automatically. THE PROCESS OF PHONEBOOK DOWNLOADS MANUALLY [Note] This function is to update handsfree’s phonebook. 1. After connect MK70 with your phone, press FM button for 2 seconds. 2. If your mobile supports PBAP, the phone automatically disconnect with your phone. 3. Handsfree is automatically reconnected with the voice announcement “loading phone book”, and starting download phone book. (If you can hear a beep sound instead of the voice “loading phone book”, it is failed to download phonebook.) 4. You will hear the voice announcement “loading phone book successful” with fi nishing download. 5. Then, handsfree will connect with your phone automatically. [Note] Stopping phonebook downloads: Phonebook download takes some seconds depending on your mobile. To stop download phonebook, press the FM button. (It takes about 15sec at least from starting download phone book) AUTOMATIC CONNECTION: Handsfree supports auto connection that makes it possible to be automatically connected to the last connected device after turning on. EASY PAIRING: Handsfree goes into the Pairing Mode automatically when it is turned on for the fi rst time. [Note] If you want to go to “pairing mode” manually, at fi rst, make handsfree stand by state (not connected with your phone), and press Multi-Function button for about 4sec until you hear a beep sound. SIMPLE PAIRING: You can pair handsfree with your mobile phone without entering the pin number (0000), if your mobile phone supports Bluetooth version 2.1. MAKING A CALL 1. Last call-Redialing Press the Multi-Function button[ ]. 2. Voice Dialing Press the Multi-Function button[ ] for 2 seconds until you hear a beep sound, then voice dialing is activated on handsfree. If you want to cancel voice dialing, press the Multi-Function button[ ] during the voice dial Mode. [Note] Please make sure that your phone supports the Voice Recognition fi rst. (See your phone’s manual for detailed instructions) RECEIVING A CALL You can hear the ring tones with the caller name from handsfree. Press the Multi-Function button[ ] to receive call. REJECTING A CALL Press the Multi-Function button[ ] for 2 seconds. ENDING A CALL Press the Multi-Function button[ ] during the call or just press the “End” button on the phone. TRANSFERRING A CALL To transfer a call from handsfree to your mobile phone and vice versa, press the Multi-Function button[ ] on handsfree during the call for 2 seconds until you hear a beep. ADJUSTING A VOLUME You can adjust the volume by pressing the volume up (+) or down (-) button during the call or incoming calls. [Note] In FM mode, volume control is only available from your car audio. [Note]TTS volume can be changed during hearing TTS announcement, and will be adjusted from the next voice announcement. -3--4- EnglishEnglish you have an incoming call. When a call is ended, it will start to play again. [Note] The auto connection between calling and playing music depends on the user’s phone. FULL NAME TTS(TEXT TO SPEECH) via PHONE BOOK DOWNLOADING Handsfree automatically will start downloading process when it is paired with mobile phone. When incoming call, handsfree will announce the Caller’s Name. [Note] For activating the name TTS, you should download the phone book from your phone book fi rst. [Note]For deactivating or activating the TTS function, press and hold Multi-function and volume down (-) until you hear a beep (about 2 seconds). Y…

Text truncated - open the document above for the full version.

MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-dong, Gangnam-Gu, Seoul, 135-090 Korea TEL: +82-2-2050-4654, FAX: +82-2-2050-4666 http://www.movon.co.kr April 13, 2010 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN ATTESTATION: I attest that the product, model MK70, has a USB port for charging the battery; that the USB port has Parallel (SPI) interface which is used in the industry during fabrication; and that the USB port can not be used by the End-User for data exchange as a computer peripheral device. There is no intention to use the USB port in future for data exchange. FCC ID Number Product Product description (Model) TDU-1307010 Bluetooth Car kit with FM Transmitter(MK70) Sincerely, Dominic So/ General Manager

MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-dong, Gangnam-Gu, Seoul, 135-090 Korea TEL: +82-2-2050-4654, FAX: +82-2-2050-4666 http://www.movon.co.kr April 7, 2010 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 RE: LETTER OF AGENT AUTHORIZATION We, the undersigned, hereby authorize SK TECH Co., Ltd.(Mr. Jongsoo, Yoon) to act on our behalf in all matters relating to application for equipment authorization. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, Dominic So/ General Manager

MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-dong, Gangnam-Gu, Seoul, 135-090 Korea TEL: +82-2-2050-4654, FAX: +82-2-2050-4666 http://www.movon.co.kr April 7, 2010 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R) and Section §552(b)(4) of the Freedom of Information Act, MOVON CORPORATION requests confidentiality for the following products: FCC ID Number Product Description (Model) TDU-1307010 Bluetooth Car kit with FM Transmitter(MK70) The requested Permanent and Short-Term Confidential exhibits art listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Part List No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain MOVON CORPORATION trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our products. This material is not customarily available to the general public and we request that it be withheld from public inspection. Sincerely, Dominic So/ General Manager

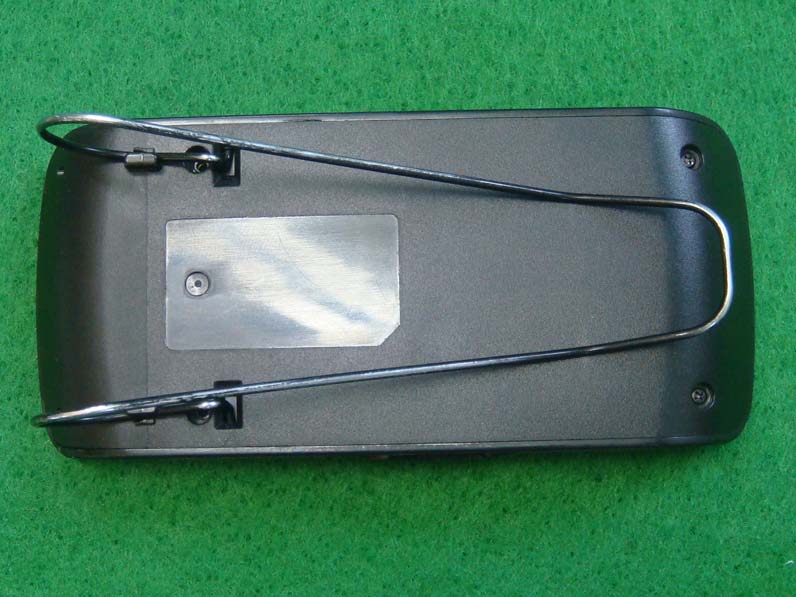

SK TECH CO., LTD. Page 1 of 3 SKTRFC-100407-007 FCC ID: TDU-1307010, IC: 6432A-1307010 External Photographs of EUT <Photograph 1: Front View> <Photograph 2: Rear View> SK TECH CO., LTD. Page 2 of 3 SKTRFC-100407-007 FCC ID: TDU-1307010, IC: 6432A-1307010 <Photograph 3: Left-Side View (DC input port)> <Photograph 4: Left-Side View (Side button)> SK TECH CO., LTD. Page 3 of 3 SKTRFC-100407-007 FCC ID: TDU-1307010, IC: 6432A-1307010 <Photograph 5: Accessory Cigar jack adaptor>

ID Label Location & Sample LABEL LOCATION: ID Label will be attached on the Rear of the product LABEL Drawing:

SK TECH CO., LTD. Page 1 of 3 SKTRFC-100407-007 FCC ID: TDU-1307010, IC: 6432A-1307010 Internal Photographs <Photograph 1: Cover removed> SK TECH CO., LTD. Page 2 of 3 SKTRFC-100407-007 FCC ID: TDU-1307010, IC: 6432A-1307010 <Photograph 2: Front view> SK TECH CO., LTD. Page 3 of 3 SKTRFC-100407-007 FCC ID: TDU-1307010, IC: 6432A-1307010 <Photograph 3: Rear view>

SK TECH CO., LTD. Page 2 of 41 SKTRFC-100407-007 FCC ID: TDU-1307010, IC: 6432A-1307010 >> CONTENTS << 1. GENERAL ···························································································4 2. TEST SITE ···························································································4 2.1 Location ·························································································4 2.2 List of Test and Measurement Instruments ·················································5 2.3 Test Date ·························································································5 2.4 Test Environment ···············································································5 3. DESCRIPTION OF THE EQUIPMENT UNDER TEST ··································6 3.1 Rating and Physical Characteristics ·························································6 3.2 Equipment Modifications ·····································································6 3.3 Submitted Documents ·········································································6 4. MEASUREMENT CONDITIONS ······························································7 4.1 Description of test configuration ·····························································7 4.2 List of Peripherals ··············································································7 4.3 Type of Used Cables ···········································································7 4.4 Uncertainty ······················································································7 5. TEST AND MEASUREMENTS (Part 15.247) ···············································8 5.1 ANTENNA REQUIREMENT ······························································8 5.1.1 Regulation ··················································································8 5.1.2 Result ·······················································································8 5.2 MAXIMUM PEAK OUTPUT POWER ·················································9 5.2.1 Regulation ··················································································9 5.2.2 Test Procedure ·············································································9 5.2.3 Test Results ················································································9 Table 1: Measured values of the Maximum Peak Output Power (Conducted)····························9 Figure 1: Plot of the Maximum Peak Output Power (Conducted) ········································· 10 5.3 CARRIER FREQUENCY SEPARATIONS and 20 dB BANDWIDTH ·········· 12 5.3.1 Regulation ················································································ 12 5.3.2 Test Procedure ··········································································· 12 5.3.3 Test Results ·············································································· 12 Table 2: Measured values of the Carrier Frequency Separation and 20 dB Bandwidth ·············· 12 Figure 2: Plot of the Carrier Frequency Separation ························································ 13 Figure 3: Plot of the 20dB Channel Bandwidth ····························································· 15 5.4 NUMBER OF HOPPING CHANNELS ················································ 17 5.4.1 Regulation ················································································ 17 5.4.2 Test Procedure ··········································································· 17 5.4.3 Test Results ·············································································· 17 Table 3: Measured values of the Number of Hopping Channels ········································ 17 Figure 4: Plot of the Number of Hopping Channels ························································ 18 SK TECH CO., LTD. Page 3 of 41 SKTRFC-100407-007 FCC ID: TDU-1307010, IC: 6432A-1307010 5.5 TIME OF OCCUPANCY (DWELL TIME) ··········································· 19 5.5.1 Regulation ················································································ 19 5.5.2 Test Procedure ··········································································· 19 5.5.3 Test Results ·············································································· 19 Table 4: Measured values of the Time of Occupancy ····················································· 19 Figure 5: Plot of the Time of Occupancy ···································································· 20 5.6 SPURIOUS EMISSION, BAND EDGE, AND RESTRICTED BANDS ········· 22 5.6.1 Regulation ················································································ 22 5.6.2 Test Procedure ··········································································· 22 5.6.3 Test Results ·············································································· 24 Table 5: Results for the final radiated measurements of the field strength of spurious emission····· 24 Figure 6: Plot of the Band Edge (Conducted) ································································ 25 Figure 7: Plot of the Band Edge (Radiated) ··································································· 26 Figure 8: Spurious RF conducted emission ··································································· 28 Figure 9: Emission plot for the preliminary radiated measurements ······································ 31 5.7 Receiver Spurious Emissions ····························································· 33 5.7.1 Regulation ················································································ 33 5.7.2 Test Results ·············································································· 33 Table 6: Receiver Spurious Emissions (Radiated) ·························································· 33 5.8 RF EXPOSURE ·············································································· 34 5.8.1 Regulation ················…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 5 SKTRFC-100407-007 FCC ID: TDU-1307010, IC: 6432A-1307010 Test set up photos(Bluetooth) <Radiated Emissions - Front View> <Radiated Emissions - Rear View> SK TECH CO., LTD. Page 2 of 5 SKTRFC-100407-007 FCC ID: TDU-1307010, IC: 6432A-1307010 <Radiated Emissions - below 30 MHz> <Radiated Emissions - below 1 GHz> SK TECH CO., LTD. Page 3 of 5 SKTRFC-100407-007 FCC ID: TDU-1307010, IC: 6432A-1307010 <Radiated Emissions - above 1 GHz> SK TECH CO., LTD. Page 4 of 5 SKTRFC-100407-007 FCC ID: TDU-1307010, IC: 6432A-1307010 Test set up photos(FM Transmitter) <Radiated Emissions - Front View> <Radiated Emissions - Rear View> SK TECH CO., LTD. Page 5 of 5 SKTRFC-100407-007 FCC ID: TDU-1307010, IC: 6432A-1307010 <Radiated Emissions - below 30 MHz> <Radiated Emissions - below 1 GHz>
