MK110 User Manual HANDSFREE CARKIT 1. Carkit 2. Visor Clip 3. Car charger 4. Manual 5.Optional items[AC/DC adapter] PRODUCT COMPONENTS HANDS-FREE UNIT CHARGING Connect an adapter to the charging port on Carkit and plug it into automobile (or any standard 12V~24V) or home power outlet. When charging is completed, charging indication OLED will be turned off . [NOTE] Please use supplied power adaptor only. LOW BATTERY ALARM When the battery is low, Carkit will alarm with beep sound every 30sec. Once you hear beep alert, please charge immediately. FYI, it will be turned off about 10 minutes. OLED DISPLAY [NOTE] OLED screen will be turned off 30sec. after your last action. You can turn on OLED screen by touch any button. HOW TO USE TURNING ON/OFF Turning ON : Slide the on/off button up. Turning OFF : Slide the on/off button down. VOICE COMMAND You can make voice command for following functions. Please simply push “Voice command button” and make following command after listening “Say Command” [NOTE] If you want to cancel the Voice Command mode, please simply press “Voice command button” “Say command”“Pairing mode” Voice Command Explanation “PAIRING MODE” Device will be on pairing mode “ANSWER” You can takes incoming calls. “CHECK” You can check received E-mail & SMS . “IGNORE” You can reject calls, check E-mail & SMS as you receive. “CHECK message” You can check last received text message. Carkit will read out it. “CHECK E-mail” You can check last received E-mail. Carkit will read sender & title only. “CHECK schedule” You can check today's schedule which updated at your Google Calendar. “CHECK weather” You can check today’s weather. “What can I say” You can check available command list. ENCLOSURES -1--2- EnglishEnglish ON 1 234 5 BLUETOOTH CONNECTION STATUS BATTERY STATUS MK110 OFF MK110 TALK/END/MULTIFUNCTION BUTTON VOLUME BUTTON SPEAKER CHARGING PORT VOICE COMMAND BUTTON [A] VISOR CLIP OLED DISPLAY ON/OFF SWITCH MIC “CHECK” Commands are only available if you install “MOVON MK110 Application” on your mobile phone and set up details. Please refer details from next Application section. PARING WITH YOUR MOBILE PHONE FULL AUTOMATIC PAIRING 1. Please set your mobile phone in Bluetooth discoverable mode. 2. Please turn your carkit on to put in pairing mode 3. Please locate your mobile phone near to (Within 10cm) the carkit then it will try to connect to mobile phone. 4. Connection confi rmation message will be appeared on mobile phone then confi rm to pair [NOTE] Please make sure that your mobile phone support Bluetooth version 2.1 or higher version. This feature is only available when you pair for the fi rst time. If not, please reset your unit and try again. VOICE PAIRING 1. Please turn on unit and push voice command button shortly. 2. As you hear “Say command” Please commands “PAIRING MODE”. 3. Set your mobile phone in discoverable mode and search unit to connect. For the most mobile phones, you can fi nd Bluetooth mode by selecting Setting/Tools - Connections – Bluetooth. (For further information, please refer to your mobile phone’s manual) 4. When your mobile phone fi nds carkit, confi rm it by selecting “yes” or “ok”. PIN number “0000”(4 zeros) AUTO CONNECTION Carkit supports auto connection. And it will try to re-connect to the last connected mobile phones when you turn on carkit. CALLER NAME ANNOUNCE & DISPLAY When there is an incoming call, carkit will announce & display caller’s name [NOTE] For this function, you should download phonebook data from your phones to carkit. If you do not download phonebook data, carkit will announce & display caller’s number only. PHONEBOOK DOWNLOAD You can manually download phonebook. Please press volume up (+) button for 3 seconds. Then carkit will start to download phone book data from your mobile phone automatically. It will take more than 1min. or more based on your phone book data size. [NOTE] To cancel phonebook download, press Volume down (-) button for 3 seconds. APPLICATION You can check E-mail, SMS, today’s schedule & weather with our application. Please go to Android market and search “MOVON MK110”. Please download and install it on your mobile phone and activate. Once you install it, please go to setting menu and check required service as you like. Please check the box as you like. SMS Setting Email Mail Setting Calender Weather TTS SMS Setting Mail Setting Calender Setting Weather Setting Text to Speech Setting SMS Message Read On/Off Email Message Read Setting Mail POP3 / IMAP Setting Calender Reading On / Off Weather Reading On / Off TTS Setting All this service is powered by Google TTS. And currently available languages are UK/US English, French, Spanish, Germany and Italian. [NOTE] For using the TTS (Text to Speech) function, please activate the TTS option on your mobile phone’s Voice or TTS setting menu. MAKING A CALL 1. Last call-Redialing Press the Multi-Function button. 2. Voice Dialing Press the Multi-Function button for 1 second until you hear a beep sound, -3--4- EnglishEnglish then voice dialing is activated on handsfree unit. If you want to cancel voice dialing, press the Multi-Function button for 1 second during the voice dial Mode. [NOTE] Please make sure that your phone supports the voice dialing feature. (See your phone’s manual for detailed instructions) RECEIVING A CALL When you receive phone calls, carkit will announce “PLEASE SAY ANSWER or IGNORE”. Then please say “ANSWER” to receive call. Simply you can take call at any time by push multifunction button. REJECTING A CALL When you receive phone calls, carkit will announce “PLEASE SAY ANSWER or IGNORE”. Then please say “IGNORE” to reject call. Simply press the Multi-Function button for over 1 second. ENDING A CALL Press the Multi-Function button during the call or just press the “End” button on the phone. TRANSFERRING A CALL To transfer a call from handsfree unit to your mobile phone and vice versa, press the Multi-Function button on handsfree unit during the call for 1 seco…

Text truncated - open the document above for the full version.

MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-Dong, Gangnam-Gu, Seoul, Korea Date: Mar. 31, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Timco Engineering, Inc. Certification Division 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA To whom it may concern: I, the undersigned, hereby authorize Technical Manager Issac Jin of MOVON CORPORATION and hereafter referred to as MOVON CORPORATION , to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these m atters. Any and all acts carried out by Technical Manager Issac Jin of MOVON CORPORATION on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing MOVON CORPORATION as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-Dong, Gangnam-Gu, Seoul, Korea e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Dominic So / Manager MOVON CORPORATION REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-Dong, Gangnam-Gu, Seoul, Korea Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: TDU-1311011 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operation Description Parts List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Dominic So MOVON CORPORATION March. 31, 2011

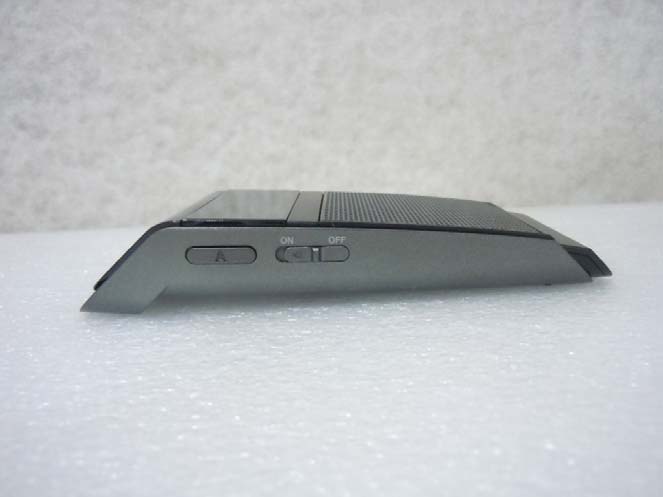

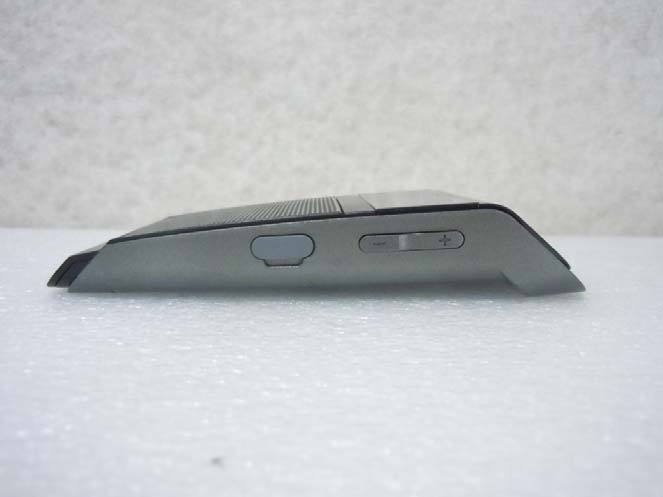

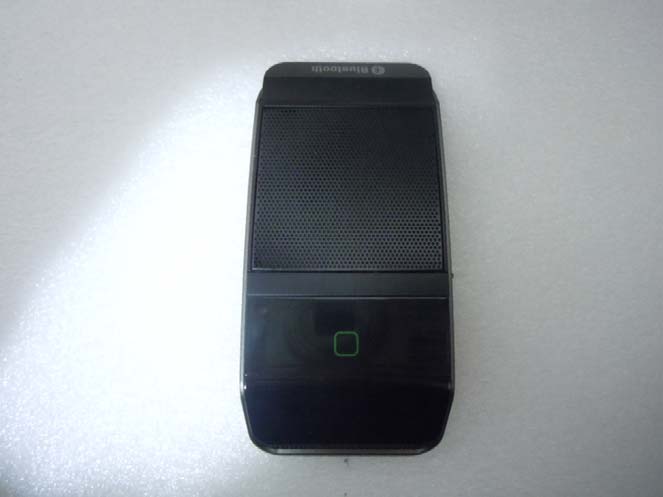

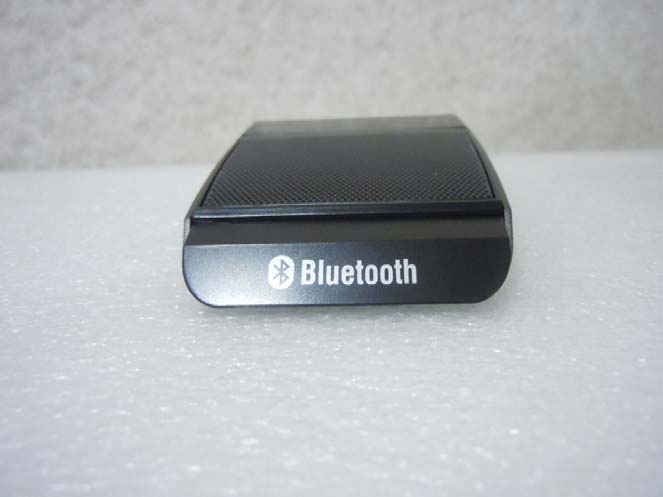

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

Internal photos of EUT Antenna view of EUT Internal view of EUT Chip Antenna Top view of Main PCB Bottom view of Main PCB

uP/N : ABP6020A2 ØFeatures üThese ABP6020A2is specially designed for Bluetooth. üHigh dielectric, Low lossantenna was achieved by new material. üBy utilizing PCB assembly line, it can be mass produced at low cost ØPart Numbering(P/N) ABP6020A2 ①②③④⑤⑥ Chip Antenna Real Product ØMechanical Dimension ( unit : mm , tolerance : ±0.1) L6 W2 T1.2 A3.6 B1.2 C2 B'1.3 C'2.2 Top Bottom Chip Antenna Dimension Chip Antenna Soldering Pad Dimension ①Product company : A-ARRO ②Application : B -Bluetooth ③Antenna type : P-PIFA ④Chip antenna size : 6020 -6.0x 2.0 ⑤Product thickness : A -1.2 T ⑥Revision number : 2 –Second edition VSWR & SMITH CHART 3D RADIATION PATTERN ØSpecification ØElectrical Characteristics ItemSpecification Frequency range2400~2483G VSWR2:1 under PolarinzationLinear RadiationOmni-directional Impedance50Ω Frequency [MHz]24002420244024602480 Gain[dBi] Peak1.92.01.61.11.2 Average-0.9-0.7-1.1-1.3-1.4 Efficiency(%)81.585.077.774.073.2 0.75pF 2.7nH < Default Condition Equivalent Circuit > A9 B3.5 C0.9 D0.2 E1 F2 TOP Bottom ØStandard PCB Design & Matching Circuit üMatching Circuit üStandard PCB Design( unit : mm , tolerance : ±0.05)

MOVON CORPORATION Report Number: MOV-11-RF-0006 Page : (37) of (39) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 13. RF exposure evaluation 13.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) Limits for maximum permissible exposure (MPE) 13.2. Friis transmission formula Pd = (Pout G)/(4 pi R 2 ) Where Pd = power density in / Pout = output power to antenna in G = gain of antenna in linear scale Pi = 3.141 6 R = distance between observation point and center of the radiator in Pd the limit of MPE, 1 / . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency range () Electric field strength(V/m) Magnetic field strength (A/m) Power density (/) Average time (A) Limits for Occupational / Control Exposures 300 – 1 500 -- -- F/300 6 1 500 – 100 000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300 – 1 500 -- -- F/1 500 6 1 500 – 100 000 -- -- 1 30 MOVON CORPORATION Report Number: MOV-11-RF-0006 Page : (38) of (39) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 13.3. Test result of RF exposure evaluation Test Item ： RF Exposure evaluation data Test Mode ： Normal operation 13.4. Output power into antenna & RF exposure evaluation distance Operating mode Frequency () Output average power to antenna (m) Antenna gain (i) Power density at 20㎝ (/) Limit (/) GFSK 2 402 1.80 2.00 0.000 48 1 2 441 1.72 2.00 0.000 47 2 480 1.39 2.00 0.000 43 Remark The power density Pd (5th column) at a distance of 20 ㎝ calculated from the friis transmission formula is far below the limit of 1 / .

MOVON CORPORATION Report Number: MOV-11-RF-006 Page : (1) of (39) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. FCC Part 15 Subpart B&C §15.247 RSS-210 Issue 7, RSS-Gen Issue 2 Test Report Equipment Under Test HANDSFREE CARKIT Model Name MK110 Applicant MOVON CORPORATION FCC ID TDU-1311011 IC Certification 6432A-1311011 Manufacturer QINGDAO MOVON ELECTRONICS CO., LTD. Date of Test(s) 2011.03.18 ~ 2011.04.04 Date of Issue 2011.04.05 In the configuration tested, the EUT complied with the standards specified above. Issue to Issue by MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-Dong, Gangnam-Gu, Seoul, Korea, 135-090 Tel.: +82 2 2050 4663 Fax: +82 2 2050 4666 MOVON CORPORATION 194-1, Geumeo-ri, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea, 449-812 Tel.: +82 +31 338 8837 Fax: +82 +31 338 8847 MOVON CORPORATION Report Number: MOV-11-RF-006 Page : (2) of (39) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Revision history Revision Date of issue Description Revised by -- April. 5, 2011 Initial -- MOVON CORPORATION Report Number: MOV-11-RF-006 Page : (3) of (39) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Table of contents 1. ATTESTATION OF TEST RESULTS ............................................................................. 4 2. EUT DESCRIPTION ........................................................................................................ 5 3. INFORMATION ABOUT THE FHSS CHARACTERISTICS ............................................ 5 4. MEASUREMENT EQUIPMENT ...................................................................................... 6 5. TRANSMITTER RADIATED SPURIOUS EMISSIONS AND CONDUCTED SPURIOUS EMISSIONS .................................................................................................................. 7 6. RECEIVER RADIATED SPURIOUS EMISSIONS ........................................................ 17 7. 20 ㏈ BANDWIDTH MEASUREMENT & 99 % BANDWIDTH MEASUREMENT ........ 19 8. MAXIMUM PEAK OUTPUT POWER MEASUREMENT ............................................... 24 9. HOPPING CHANNEL SEPARATION ........................................................................... 28 10. NUMBER OF HOPPING FREQUENCY ...................................................................... 30 11. TIME OF OCCUPANCY(DWELL TIME) ..................................................................... 32 12. ANTENNA REQUIREMENT ....................................................................................... 36 13. RF EXPOSURE EVALUATION .................................................................................. 37 14. TEST SETUP PHOTO OF EUT .................................................................................. 39 nr( nv1ngg MoVoN CORPORATION '-1 I ":.Y-:,: Report Number: MOV-11-RF-006 1. Attestation of test results 1.1. Details of applicant Applicant : MOVON CORPORATON Address . 6F1., Hyunjuk Bldg., 140-28, Samseong-Dong, Gangnam-Gu, Seoul, Korea, 1 35-090 Contact Person : Tim Ryu Telephone : +8222050 4663 Fax : +82 2 539 9666 1.2. Summary of test results The EUT has been tested according to the following specifications; X Abbreviation C Complied N/A Not applicable F Fail Approval Signatories Page : (4) of (39) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPOMTION. ..Std.=e.ti,itl-,i. F,.G.G---=5--66,105; Descripfu RCsult $15.205(a) s15.209 815.247(d) A8.5 Transmitter radiated spurious emissions, Conducted spurious emission c $15.1Oe(a) RSS-Gen 6Receiver radiated spurious emission c $15.2a7(a)(1) A8.1(1)20dB bandwidth and 99 % bandwidthc s15.247(bX1) 48.4(2) Maximum peak output power c $15.2a7(a)(1) A8.1(2) Frequency separation c $15.247(a)(1X iii)A8.1(4) Number of hopping frequency C $15.247(a)(1Xiii) A8.1(4) Time of occupancy(Dwell time) c s15.247(i) s1 .1307(bX1) RSS-Gen 5.5 RSS-102 RF exposure evaluation c Test and Report Gompleted by :Report Approval by : Swen Lim Test Engineer MOVON CORPORATION lssac Jin Technical Manager MOVON CORPORATION MOVON CORPORATION Report Number: MOV-11-RF-006 Page : (5) of (39) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 2. EUT Description Kind of product HANDSFREE CARKIT Model MK110 Serial Number N/A Power supply DC 3.70 V Frequency range 2 402 ㎒ ~ 2 480 ㎒ Modulation technique GFSK Number of channels 79 Operating conditions - 20 °C ~ + 70 °C Antenna gain 2.00㏈i ( M a x . ) 2.1. Details of modification None 3. Information about the FHSS characteristics 3.1. Pseudorandom frequency hopping sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 3.2. Medium access protocol The manufacturer declares that the device uses Bluetooth protocol. It confirmed that Medium access protocol is implemented. 3.3. Occupied hops while the equipment is operating While the equipment is operating (transmitting and/or receivin…

Text truncated - open the document above for the full version.

Test setup photo of EUT A. Setup photo of EUT
