TDU-I151Bluetooth Stereo Dongle

iLuv i151 MANUAL Turning iLuv i151 On/Off 1. Turning i151 On : Press and hold the button for approximately 3 seconds until you see a Blue light flashing, then release it 2. Turning i151 Off : Press and hold the button for approximately 5 seconds until you see Red light flashing, then release it * When iPod is off, i151 power is off “Pair” to your Bluetooth Stereo Headset Before you use your i151 for first time, ensure that it must be paired to use with Bluetooth Stereo Headset 1. Put the Stereo Headset into pairing mode 2. Ensure the i151 is off -> Press and hold the button until you see blinking Blue and Red light. (approximately 5 seconds), then release it -> i151 will find and connect to the Stereo headset 3. Pairing time is 180 seconds * i151 automatically tries to connect the Bluetooth device if the Bluetooth device is already paired * If there isn’t any pairing information stored, it automatically enters into the pairing mode Using the iLuv i151 1. Play Music 2. Pause Music 3. Stop Music 4. Track Forward 5. Track Backward * These function will work when the Stereo headset you are connected to supports Bluetooth Remote Control Profile(AVRCP) LED status indicator 1. In the power on mode, blue light blinking 2. In the power off mode, red light blinking 3. In the pairing mode, blue and red light blinking 4. In the standby mode (when this device is paired and connected properly), the blue light flash 2 time every 3 seconds 5. In the standby mode (when this device is not paired or not connected properly), the blue light flash 2 time every 3 seconds 6. In the music stream mode, the blue light flash 3 time every 3 seconds MODE INDICATORS Power on mode Blue light blinking Power off mode Red light blinking Paring mode Blue and Red light blinking Standby mode Blue light flashing 2 times every 3 seconds Streaming mode Blue light flashing 3 times every 3 seconds . FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IMPORTANT NOTE: To comply with RF exposure requirements, this device may not be co- located with any other transmitter or antenna.

MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-dong, Gangnam-Gu, Seoul, 135-090 Korea TEL: +82-2-2050-4654, FAX: +82-2-2050-4666 http://www.movon.co.kr Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R) and Section §552(b)(4) of the Freedom of Information Act, MOVON CORPORATION requests confidentiality for the following products: FCC ID Number Product Title / Model TDU-I151 Bluetooth Stereo Dongle/ i151 For the product stated above, we request that the following information be held confidential: 1) Schematic diagrams 2) Bill of materials (Part List) No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain MOVON CORPORATION trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our products. This material is not customarily available to the general public and we request that it be withheld from public inspection. Sincerely, Jai Ho, Lee/ Staff Engineer

SK TECH CO., LTD. Page 1 of 2 SKTTRT-070918-022 FCC ID: TDU-I151 External Photographs of EUT <Photograph 1: Front View> <Photograph 2: Rear View> SK TECH CO., LTD. Page 2 of 2 SKTTRT-070918-022 FCC ID: TDU-I151 <Photograph 3: External Interface>

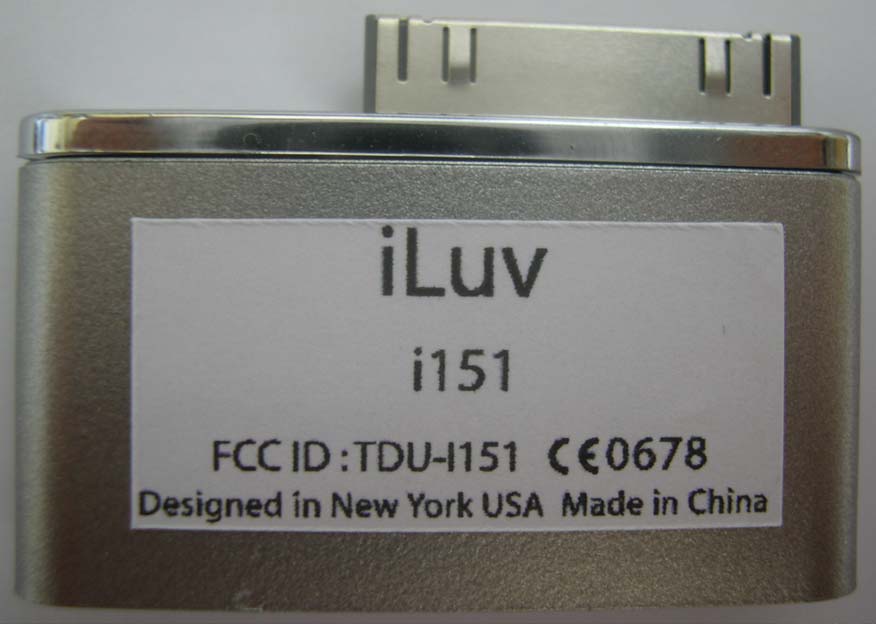

ID Label Location & Sample LABEL LOCATION: Label will be printed on the REAR of the product LABEL Drawing:

SK TECH CO., LTD. Page 1 of 1 SKTTRT-070918-022 FCC ID: TDU-I151 Internal Photographs of EUT <Photograph 1: Front View> <Photograph 2: Rear View>

Antenna Test results Sheet - 1- SPECIFICATION Model No. i151 APP. Type Bluetooth Stereo Dongle Antenna i151TH_REV1.0 TYPE PIFA Maker MOVON COPORATION July, 27, 2007 DESIGNED CHECKED APPROVED MOVON MOVON CORPORATION Research & Development Laboratory Contact : LEE TAE HYUNG : [email protected] Antenna Test results Sheet - 2- 1. MEASUREMENT For the antenna measurement, Frequency and VSWR is measured by using Network Analyzer after setting, while Gain is measured in the shield room Antenna Test results Sheet - 3- 2.ELECTRICALLY CHARACTERISTIC ITEM SPEC Frequency Range[MHz] 2402~2480 V.S.W.R. 2.0 Max Gain[dBi] 0 Bandwidth[MHz] 100 [Picture-1 VSWR] Antenna Test results Sheet - 4- 3. Measure results for Radiation pattern Antenna radiation coordinates Test condition Parameters condition Unit Chamber size 6*10*4 M Temperature 21.5 °C Humidity 55 % Measurement S21(network Analyzer) 8510C System software Midas(Orbit/FR) Version 3.0 - E,H 는 linear horn antenna : E plane(roll=0deg.)과 H plane(roll=90deg.). x y z φ θ Antenna Test results Sheet - 5- 4.Dimension Antenna Test results Sheet - 6- [Azimuth XY] Antenna Test results Sheet - 7- [Elevation XZ]

Operational Description General This product, i151, is a Bluetooth device. The product operates in 2400 to 2483.5 MHz band. The channel is represented by a pseudo-random hopping sequence through the 79 channels. The channel is divided into time slots, with a nominal slot length of 625μs, where each slot corresponds to different RF hop frequencies. The nominal hop rate is 1600 hops/s. The control signals and data in the Bluetooth Chipset are modulated and processed and then pass the PA in it. They will be transmitted from ANT through the BALUN FILTER to another Bluetooth device. The RF signal from other Bluetooth devices is received via ANT. And they go through internal BALUN FILTER into the chip. They are magnified by internal LNA in the chip. The power settings and crystal trim are stored in internal flash. The product is powered from a Li-ion battery and uses an integral chip antenna. No external ground is required. Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organized in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from it’s BD address which is unique for every Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 Equally average use of frequencies in data mode and short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronization with other units, only the offsets are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR-operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions, the Bluetooth system has the following behavior: The first connection between the two devices is established, a hopping sequence is generated. For transmitting the wanted data, the complete hopping sequence is not used and the connection ends. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. Receiver input bandwidth, synchronization and repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every connection, one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multi-slot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing is according to the packet type of the connection. Also, the slave of the connection uses these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence.

자재 외화 원화 사급여부 1 GRM1555C1H3R3CZ01D MURATA 삼우에레코 EA 1 2 GRM1555C1H100JZ01D MURATA 삼우에레코 EA 1 3 GRM1555C1H150JZ01D MURATA 삼우에레코 EA 3 4 GRM15C0G1E180J MURATA 삼우에레코 EA 2 5 GRM1555C1H390JZ01D MURATA 삼우에레코 EA 1 6 GRM1555C1H221JZ01D MURATA 삼우에레코 EA 1 7 GRM1555C1H102JZ01D MURATA 삼우에레코 EA 1 8 GRM1555C1H103JZ01D MURATA 삼우에레코 EA 3 9 GRM1555C1H473JZ01D MURATA 삼우에레코 EA 4 10 GRM1555C1H104JZ01D MURATA 삼우에레코 EA 4 11 GRM1555C1H105JZ01D MURATA 삼우에레코 EA 1 12 GRM21BR60J225KE19L MURATA 삼우에레코 EA 3 13 TEESVP0J106M8R NEC VINATECH EA 5 14 LRB551V-30T1G LRC 금오트로닉스 EA 3 15 AOT0603P-R01 AOT 블루위즈 EA 1 16 AOT0603P-B01 AOT 블루위즈 EA 1 17 AVLC18S 02 015 AMOTECH AMOTECH EA 1 18 HI-1005-1B8N2SMT ACX 휴택상사 EA 4 19 BDS-2810E BUJEON 강서이에스티 EA 1 20 DD1P030A2 JWIN EA 1 21 MCR01MZSJ_000J ROHM 시스플러스 EA 2 22 MCR01MZSJ_2R2J ROHM 시스플러스 EA 1 23 MCR01MZSJ_101J ROHM 시스플러스 EA 2 23 MCR01MZSJ_331J ROHM 시스플러스 EA 2 25 MCR01MZSJ_222J ROHM 시스플러스 EA 2 26 MCR01MZSJ_472J ROHM 시스플러스 EA 2 27 MCR01MZSJ_103J ROHM 시스플러스 EA 6 28 MCR01MZSJ_104J ROHM 시스플러스 EA 11 29 MCR01MZSJ_154J ROHM 시스플러스 EA 2 30 MCR01MZSJ_5493F UNIOHM 시스플러스 EA 1 31 MCR01MZSJ_105J ROHM 시스플러스 EA 2 32 LMUN5213DW1T1G LRC 금오트로닉스 EA 1 33 CTS1197A ALPS JOYTECH EA 1 34 BC352239A CSR 아파치코리아 EA 1 35 MX29LV800CTXBI-90G STC STC EA 1 36 XC9216A18CMR TOREX 엘에스전자 EA 1 37 NJM2072 LRC 진텍 EA 1 38 LFB212G45BA1A220 MURATA 삼우 EA 1 39 JYD3AF1D2-8.4-26 정원전자 정원전자 EA 1 40 IPOD_DONGLE_V03 마우스써킷 마우스써킷 EA 1 MOVON 4ARRAY DC/DC CONVERTER_1.8V U3R34,R44 DUAL TR-SOT363RES, 549KΩ 0402J SMD 1%RES, 1MΩ 0402J SMDRES, 2.2KΩ 0402J SMD R35,R45 RES, 100Ω 0402J SMD R62,R66C1,C2,C64,C68 CAP, CER 18pF 0402J SMD C3,C4XT3 PCB_FR4_1T_6 층 A-TYPE CRYSTAL 26MHzTACT SWITCHBC03 EXTERNAL FLASH MEMORY 작성 검토 승인 작성일자 C40C43,C44,C46,C47C67 Location C31C5,C14,C41C7,C45,C48C8C65D1,D6,D7TC1,TC2,TC3,TC4,TC5 NEO TANTAL 10uF/6,3V/P(2012)ESD_VARISTOR_POWER(0402)RES, 2.2Ω 0402J SMD D4 IPOD_30P_CONNECTORRES, 10KΩ 0402J SMD D9R4 BLUE LED D5L5R9,R11,R15,R17,R40,R49 POWER INDUCTOR(4.7uH)Inductor 8.2nH 0402J SMD 2007.7.04. 기타 비고 MC_기준수량 : 10K 단위 수량 제조사 PART NUMBER 공급사 규 격 BOM IPOD_DONGLE 통신연구소 품 명 작 성 자 Bluetooth Dongle 유재호 모 델 명 VER 0.3 i151 LEVEL 품 명 CAP, CER 1uF 0402J SMDCAP, CER 2.2uF 0805J SMDCAP, CER 220pF 0402J SMDCAP, CER 10pF 0402J SMDCAP, CER 0.047uF 0402J SMD U4 BALUN FILTERVOICE DETECT R42,R50 작성부서 Page : 1/1 제품코드 NO CAP, CER 3.3pF 0402J SMDCAP, CER 0.1uF 0402J SMDCAP, CER 0.01uF 0402J SMD L1,L2,L4,L6 RES, 0Ω 0402J SMD R3,R6J6 수삽 R32R1,R83 RES, 330Ω 0402J SMDRES, 4.7KΩ 0402J SMD R18,R19 RES, 150KΩ 0402J SMDRES, 100KΩ 0402J SMD R5,R7,R8,R10,R14,R30,R33,R43,R51,R61,R82 CAP, CER 15pF 0402J SMD C30C23,C26,C66 CAP, CER 39pF 0402J SMDCAP, CER 0.001uF 0402J SMD SST39VF800A 2ND VE N RED LEDSCHOTTKY DIODE(500mA) U1Q4U10SW1U2 F. F-0100-07(REV.0) 모본 주식회사

SK TECH CO., LTD. Page 1 of 29 SKTTRT-070918-022 FCC ID: TDU-I151 Certificate of Compliance Test Report No.: SKTTRT-070918-022 KOLAS No.: KT191 Applicant: MOVON CORPORATION Applicant Address: 6Fl. Hyunjuk Bldg., 140-28, Samsung-dong, Gangnam-Gu, Seoul, 135-090 Korea Manufacturer: QINGDAO MOVON ELECTRONICS CO.,LTD. Manufacturer Address: South-end,HaierRoad,Qingdao Economic&Technical Dev.Zone, Shandong,CHINA Device Under Test: Bluetooth Stereo Dongle FCC ID: TDU-I151 Model Name: i151 Brand/Trade Name: MOVON Receipt No.: SKTEU07-0829 Date of receipt: August 14, 2007 Date of Issue: September 18, 2007 Location of Testing: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Procedure: ANSI C63.4, FCC Public Notice DA 00-705 (March 2000) Test Specification: 47CFR, Part 15 Rules FCC Equipment Class: IC Equipment Category: DSS - Part 15 Spread Spectrum Transmitter Test Result: The above-mentioned device has been tested and passed. Tested & Reported by: Seong-Baek, Ko 2007. 09. 18 Approved by: Jong-Soo, Yoon 2007. 09. 18 Signature Date Signature Date Other Aspects: - Abbreviations: · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ ¾ This test report is not permitted to copy partly and entirely without our permission. ¾ This test result is dependent on only equipment to be used. ¾ This test result is based on a single evaluation of submitted samples of the above mentioned. ¾ This test report is the accredited testing items by Korea Laboratory Accreditation Scheme, which signed the ILAC-MRA. SK TECH CO., LTD. Page 2 of 29 SKTTRT-070918-022 FCC ID: TDU-I151 >> CONTENTS << 1. GENERAL ··························································································································· 4 2. TEST SITE ··························································································································· 4 2.1 Location ······················································································································ 4 2.2 List of Test and Measurement Instruments ································································· 5 2.3 Test Date ····················································································································· 5 2.4 Test Environment ········································································································ 5 3. DESCRIPTION OF THE EQUIPMENT UNDER TEST ·············································· 6 3.1 Rating and Physical Characteristics ··········································································· 6 3.2 Equipment Modifications ··························································································· 6 3.3 Submitted Documents ································································································· 6 4. MEASUREMENT CONDITIONS ··················································································· 7 4.1 Description of test configuration ················································································ 7 4.2 List of Peripherals ·······································································································7 4.3 Type of Used Cables ··································································································· 8 4.4 Uncertainty ················································································································· 8 5. TEST AND MEASUREMENTS ························································································ 9 5.1 ANTENNA REQUIREMENT ··················································································· 9 5.1.1 Regulation ············································································································ 9 5.1.2 Result ···················································································································9 5.2 MAXIMUM PEAK OUTPUT POWER ································································ 10 5.2.1 Regulation ·········································································································· 10 5.2.2 Test Procedure ··································································································· 10 5.2.3 Test Results ········································································································ 10 Table 1: Measured values of the Maximum Peak Output Power (Conducted) ································· 10 Figure 1: Plot of the Maximum Peak Output Power (Conducted) ····················································· 11 5.3 CARRIER FREQUENCY SEPARATION ···························································· 12 5.3.1 Regulation ·········································································································· 12 5.3.2 Test Procedure ··································································································· 12 5.3.3 Test Results ········································································································ 12 Table 2: Measured values of the Carrier Frequency Separation (Conducted) ································· 12 Figure 2: Plot of the Carrier Frequency Separation (Conducted) ····················································· 13 5.4 20dB CHANNEL BANDWIDTH ············································································ 14 5.4.1 Regulation ·········································································································· 14 5.4.2 Test Procedure ··································································································· 14 5.4.3 Test Results ········································································································ 14 Table 3: Measured values of the 20dB Channel Bandwidth (Conducted)········································ 14 Figure 3: Plot of the 20dB …

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 1 SKTTRT-070918-022 FCC ID: TDU-I151 Test set up photos <Radiated Emissions - Front View> <Radiated Emissions - Rear View>
