TDU-MC710SMART CONTROLLER

MC710 User Manual SMART CONTROLLER ENCLOSURE 1. SMART CONTROLLER 2. Micro USB charger 3. Manual PRODUCT COMPONENTS OF SMART CONTROLLER UNIT Indication LED Power On / Off 3.5 audio jack Charging port Navigation button Play/Pause/OK button Up / Volume Up Down / Volume Down Left / Previous/ REW Right / Next/ FF Home button Option button Microphone Call End button Mode Switching button Speaker Call button Previous (Cancel) button -1- CHARGING Connect a micro USB charger to the charging port and plug it into USB port of PC. Before using the unit, charge the battery completely. The LED blinks in RED while charging and will be off when charging is completed. Low battery alarm : When the battery is low, the LED will blink in RED three time and beep sound every 30 seconds. Once MC710 alerts, please charge immediately, otherwise MC710 will be powered off within approx. 10 minutes. PAIRING WITH YOUR BLUETOOTH DEVICES TURN ON/OFF Turning On: LED blinks in Blue PAIRING 1) Put your device in pairing mode. 2) Press the OK button and slide power button up simultaneously, the LED blinks in BLUE rapidly. 3) Your device will fi nd the “Smart Controller”. 4) Accepting by pressing “Yes” or “Okay” . (PIN or passkey: 0000) [Note] In case of unsuccessful pairing, please repeat the step 1 ~ 4. -2- Turning On Turning Off Auto Reconnection : MC710 will try to re-connect to the last connected devices when you turn on the MC710. HOW TO UES MULTIMEDIA MODE Play/Pause: press [] button Next / FF : Press [ ] button / Hold [] Button Previous / REW: press [ ] button / Hold [] Button Volume Up / Down: press [ ] / [] button NAVIGATION MODE Direction Key: Up / Down / Left / Right & Selection Home button Option button Previous button KEYPAD US QWETRY Keyboard with backlighting [Note] To convert from English to your own language, please press button or button+ button [Note] To using the Keyboard function, your device should support Bluetooth HID profi le. -3- HANDS-FREE CALL Making a call: Press button for 2 seconds Receiving a call: Press button Rejecting a incoming call: Press button Ending a call: Press button Call waiting : press two seconds and you will be connected to the waiting call. Transferring a call : To transfer a call from your device to MC710 and vice versa, press button for 2 seconds HOW TO SWITCH THE MODE You can switch from Navigation Mode to Multimedia mode and vice versa by pressing button on Keypad. -4- STATUS INDICATION STATUS LED STATUS BEEP ON Blue LED light blinks twice Pairing mode Blue LED light blinks quickly. Beeps twice continuously Connectable mode Blue LED light blinks every 5 seconds Connected mode Blue LED light blinks twice every 5 seconds Active on a call Blue LED light blinks three times every 5 seconds Receiving a call Blue LED light blinks twice every 2 seconds Backlight on Melody Charging Red LED light on Fully charged Red LED light off Require charging Red LED light blinks three times every 30 seconds Beeps every 30 seconds SPECIFICATIONS Model MC710 Bluetooth version Bluetooth 2.1 + EDR Profi le HSP, HFP, A2DP, AVRCP, HID Coverage range 10 m Talk time 20 Hours Playback time 15 Hours Stand-by Time 400 Hours Size 44.1(W) x 106.1(H) x 11.99(D) mm Weight 45 g Charging time 3 Hours(MAX) Battery Lithium polymer 3.7V 500mAh Operating temperature -20°C ~ +55°C Storage temperature -20°C ~ +80°C -5- SAFET Y AND GENERAL INFORMATION 1. Please read this guidebook carefully and follow the instruction. 2. To avoid any damage or malfunction of the unit, do not drop it from high place. 3. Keep away unit from humidity, water and any other liquid. And if the unit is exposed by water, moisture and other liquid directly, then do not operate it normally to avoid any electrical shock, explosion and damage of the unit. 4. Do not place or keep the unit near the heat sources such as direct sun light, radiators, stoves or other apparatus which produce heat. It may cause explosion, degrade of performance and reduce battery life. 5. Do not modify, repair & disassemble unit at discretion (especially battery: it may cause an explosion. 6. Do not place the heavy objects on the unit. 7. Use only supplied and approved charger. 8. Replacement or service must be done at a qualifi ed service center or manufacturer. 9. Unplug this unit when unused for long period of time or during lightening storms. [CAUTIONS] ELECTRIC SHOCK HAZARD : The battery used in this device may present a risk of fi re or chemical burn if mis-treated. FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received , including interference that may cause undesired operation. [NOTE] The manufacturer is not responsible for AzNY interference, for example RADIO or TV interference, caused by unauthorized modifi cations to this equipment. Such modifi cations could void the user’s authority to operate the equipment. FCC WARNING This equipment may generate or use radio frequency energy. Changes or modifi cations to this equipment may cause harmful interference unless the modifi cations are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modifi cation is made. [NOTE] This equipment has been tested and found to comply with the limits for a Class B digital device, purchant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. -6- If this equipment does cause harmful interference by one or more of the following measures: Reorient or relocate…

Text truncated - open the document above for the full version.

MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-Dong, Gangnam-Gu, Seoul, Korea Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: TDU-MC710 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operation Description Parts List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Wood Park MOVON CORPORATION March. 31, 2011

MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-Dong, Gangnam-Gu, Seoul, Korea Date: Mar. 31, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Timco Engineering, Inc. Certification Division 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA To whom it may concern: I, the undersigned, hereby authorize Technical Manager Issac Jin of MOVON CORPORATION and hereafter referred to as MOVON CORPORATION , to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these m atters. Any and all acts carried out by Technical Manager Issac Jin of MOVON CORPORATION on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing MOVON CORPORATION as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-Dong, Gangnam-Gu, Seoul, Korea e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Dominic So / Manager MOVON CORPORATION REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

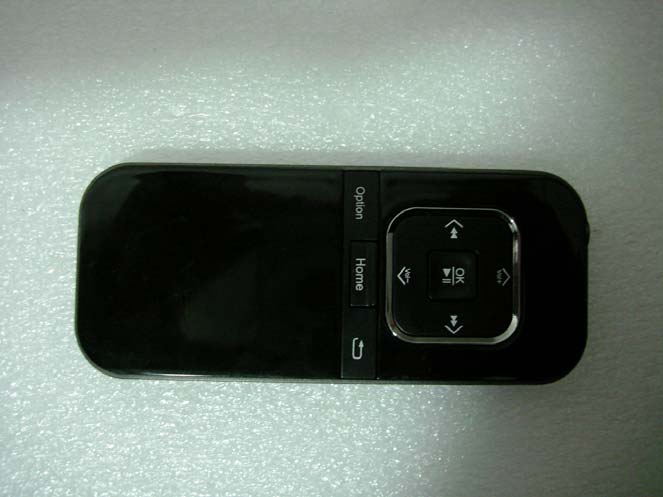

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

Internal photos of EUT Antenna view of EUT Internal view of EUT Chip Antenna Top view of Main PCB Bottom view of Main PCB

ADSBTF0702-A05 VER 1.0(101011) I [LEAD FREE] MSL Level 1 Approval ApprovalApproval Approval Sheet SheetSheet Sheet 20 2020 2010 1010 10. .. . 10 1010 10. .. . 11 1111 11 M MM MicroRF Co., Ltd icroRF Co., LtdicroRF Co., Ltd icroRF Co., Ltd. .. . TEL. 82-2-6406-5590 FAX. 82-2-6406-5591 Product DIELECTRIC CHIP ANTENNA Customer MOVON CORPORATION Model MC-710 Customer Code Supplier MicroRF Co., LTD. Supplier Code ADSBTF0702-A05 Customer Designed by Checked by Approved by MicroRF Designed by By checked By approved R&D QC R&D Hyunjoo.Park Sunmo,Kang Seungyun,Kim ADSBTF0702-A05 VER 1.0(101011) II [LEAD FREE] MSL Level 1 SPECIFICATION SPECIFICATIONSPECIFICATION SPECIFICATION Model : ADSBTF0702-A05 DIELECTRIC CHIP ANTENNA DIELECTRIC CHIP ANTENNADIELECTRIC CHIP ANTENNA DIELECTRIC CHIP ANTENNA Designed by Approved by Approved by R&D QC R&D Hyunjoo.Park Sunmo,Kang Seungyun,Kim 101011 101011 101011 20 2020 2010 1010 10. . . . 10 1010 10. . . . 11 1111 11 MicroRF Co., Ltd MicroRF Co., LtdMicroRF Co., Ltd MicroRF Co., Ltd. .. . TEL. 82-02-6406-5590 FAX. 82-02-6406-5591 ADSBTF0702-A05 VER 1.0(101011) III Contents Contents Contents Contents 1. Revision History .............................................................................................................................. 1 2. Feature And Applications ........................................................................................................... 2 3. CODE NO. .......................................................................................................................................... 2 4. Electrical Specifications.............................................................................................................. 2 5. Mechanical Dimensions .............................................................................................................. 6 6. Measurement Method and Conditions ................................................................................. 6 7. Environmental Specifications ................................................................................................... 7 8. Environmental Tests ...................................................................................................................... 8 9. Recommended Soldering Patterns ........................................................................................ 9 10. Packaging .................................................................................................................................... 1 0 11. Usage And Cautions .............................................................................................................. 1 0 12 .RoHS Data ................................................................................................................................... 1 1 ADSBTF0702-A05 VER 1.0(101011) １ 1. Revision History Product Dielectric Chip Antenna Model MC-710 CODE NO. ADSBTF0702-A05 Rev No. Date Name Page Item Revision Issue 1.0 101011 HJ.Park Issued ADSBTF0702-A05 VER 1.0(101011) ２ 2. Feature And Applications This ceramic chip antenna is applied to 2.4 GHz ISM band applications, i.e. wireless LAN, Bluetooth, Zigbee, etc.. 3. CODE NO. CODE NO. : ADSBTF0702-A05 CUSTOMER PART NO. : 4. Electrical Specifications 4-1. * All items are measured in room temperature (25°C). * All items are measured at customer set condition. No. ITEM Specification Typical Data 1 Frequency 2400 ~ 2500 MHz 2400 ~ 2484 MHz 2 VSWR 4.5 max 3.5 Max 3 Total Gain(Peak) Peak Gain : 1.0 dBi min 2.0 dBi 4 Impedance 50 Ω 50 Ω 5 Polarization Linear Linear ADSBTF0702-A05 VER 1.0(101011) ３ 4-2 VSWR data (S11 of SET condition) ADSBTF0702-A05 VER 1.0(101011) ４ 4-3 Radiation Patterns Peak Value(Beam Peak :dB) Azimuth Plane Elevation 1 Elevation 2 2.4 GHz -4.974 0.707 -1.234 2.45 GHz -2.323 2.379 -0.407 2.5 GHz -2.184 2.380 0.202 (a) Azimuth Plane (XY) – Horizontal Polarization ADSBTF0702-A05 VER 1.0(101011) ５ (b) Elevation1 Plane (ZX) – Vertical Polarization (c) Elevation2 Plane (YZ) – Vertical Polarization ADSBTF0702-A05 VER 1.0(101011) ６ 5. Mechanical Dimensions 6. Measurement Method and Conditions The measurement of antenna performance is measurement of gain, radiation pattern using ORBIT/FR apparatus in Anechoic chamber and measurement of VSWR using Network analyzer. 6-1. The measurement of Frequency and VSWR NETWORK ANALYZER [8753] <Measurement Method> 1) As seen the above, network analyzer is set up for S11 measurement. 2) The measurement frequency range is to set up from 2 GHz to 3 GHz. 3) Perform S11 one port full calibration. 4) Measure the VSRW of three points of Bluetooth frequency range such as 2400 MHz, 2450 MHz, and 2500 MHz. ADSBTF0702-A05 VER 1.0(101011) ７ 6-2. The measurement of Gain and Radiation Patterns NETWORK ANALYZER [8753] <Measurement Method> 1) As seen the above, network analyzer is to set up in Anechoic chamber. 2)As seen the beneath, for the measurement planes as Azimuth, Elevation1, and Elevation2, measure Gain data of vertical polarization and horizontal polarization for each plane. -90° 90° 180 ° 0° -90° 90° 180° 0° 90° -90° 180° 0° (AZIMUTH PLANE) (ELEVATION1 PLANE) (ELEVATION2 PLANE) 7. Environmental Specifications No. Items Specifications 1 Material Pb-free system 2 Operating Temperature Range -30 ~ +85 °C 3 Operating Humidity Range 45 ~ 85 % RH ADSBTF0702-A05 VER 1.0(101011) ８ 8. Environmental Tests No. Item Test Conditions 1 High Temperature Storage Leave for 72±2 hours in a test bath retaining 85±2°C. After then, leave on the test conditions for 1.5 hours. 2 Low Temperature Storage Leave for 72±2 hours in a test bath retaining -30±2°C. After then, leave on the test condition for 1.5 hours. 3 Static Humidity Leave for 24±2 hours in a test bath retaining 90~95% RH / 50±3°C. After then, leave in the test condition for 1.5 hours. 4 Thermal Shock Cool from 25°C down to -30±2°C and leave for 30 minutes. After that, heat up to +85±2°C and leave for 30 minutes. After then, cool down to 25°C. R…

Text truncated - open the document above for the full version.

MOVON CORPORATION Report Number: MOV-11-RF-004 Page : (57) of (59) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 13. RF exposure evaluation 13.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) Limits for maximum permissible exposure (MPE) 13.2. Friis transmission formula Pd = (PoutxG)/(4xpixR 2 ) Where Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.141 6 R = distance between observation point and center of the radiator in ㎝ Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency range (㎒) Electric field strength(V/m) Magnetic field strength (A/m) Power density (㎽/㎠) Average time (A) Limits for Occupational / Control exposures 300 – 1 500 -- -- F/300 6 1 500 – 100 000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300 – 1 500 -- -- F/1 500 6 1 500 – 100 000 -- -- 1 30 MOVON CORPORATION Report Number: MOV-11-RF-004 Page : (58) of (59) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 13.3. Test result of RF exposure evaluation Test Item ： RF Exposure evaluation data Test Mode ： Normal operation 13.4. Output power into antenna & RF exposure evaluation distance Operating mode Frequency (㎒) Output average power to antenna (㏈m) Antenna gain (㏈i) Power density at 20㎝ (㎽/㎠) Limit (㎽/㎠) GFSK 2 402 3.52 2.38 0.000 774 1 2 441 3.49 2.38 0.000 769 2 480 2.91 2.38 0.000 673 8DPSK 2 402 0.68 2.38 0.000 403 2 441 0.62 2.38 0.000 397 2 480 0.45 2.38 0.000 382 ※ Remark The power density Pd (5th column) at a distance of 20 ㎝ calculated from the friis transmission formula is far below the limit of 1 ㎽/㎠ .

MOVON CORPORATION Report Number: MOV-11-RF-004 Page : (1) of (59) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. FCC Part 15 Subpart B&C §15.247 Test Report Equipment Under Test SMART CONTROLLER Model Name MC710 Applicant MOVON CORPORATION FCC ID TDU-MC710 Manufacturer QINGDAO MOVON ELECTRONICS CO., LTD. Date of Test(s) 2011.03.11 ~ 2011.03.28 Date of Issue 2011.03.31. In the configuration tested, the EUT complied with the standards specified above. Issue to Issue by MOVON CORPORATION Hyunjuk Bldg., 140-28, Sanseong-dong, Gangnam-Gu, Seoul, Korea Tel.: +82 +2 2050 4670 Fax: +82 +2 539 5692 MOVON CORPORATION 194-1, Geumeo-ri, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea, 449-812 Tel.: +82 +31 338 8837 Fax: +82 +31 338 8847 MOVON CORPORATION Report Number: MOV-11-RF-004 Page : (2) of (59) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Revision history Revision Date of issue Description Revised by -- Mar. 31, 2011 Initial -- MOVON CORPORATION Report Number: MOV-11-RF-004 Page : (3) of (59) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Table of contents 1. ATTESTATION OF TEST RESULTS ............................................................................. 4 2. EUT DESCRIPTION ........................................................................................................ 5 3. INFORMATION ABOUT THE FHSS CHARACTERISTICS ............................................ 5 4. MEASUREMENT EQUIPMENT ...................................................................................... 6 5. TRANSMITTER RADIATED SPURIOUS EMISSIONS AND CONDUCTED SPURIOUS EMISSIONS .................................................................................................................. 7 6. RECEIVER RADIATED SPURIOUS EMISSIONS ........................................................ 27 7. 20 ㏈ BANDWIDTH MEASUREMENT & 99 % BANDWIDTH MEASUREMENT ........ 30 8. MAXIMUM PEAK OUTPUT POWER MEASUREMENT ............................................... 38 9. HOPPING CHANNEL SEPARATION ........................................................................... 44 10. NUMBER OF HOPPING FREQUENCY ...................................................................... 47 11. TIME OF OCCUPANCY(DWELL TIME) ..................................................................... 50 12. ANTENNA REQUIREMENT ....................................................................................... 56 13. RF EXPOSURE EVALUATION .................................................................................. 57 14. TEST SETUP PHOTO OF EUT .................................................................................. 59 e1 rurrr"r5 MOVON CORPORATION g*a F gtl.tE€i _ 'r\ /;"";; Report Number: MOV-11-RF-004 1. Attestation of test results 1.1. Details of applicant Applicant : MOVON CORPORATON Address : Hyunjuk Bldg., 140-28, Sanseong-dong, Gangnam-Gu, Seoul, Korea Contact Person : Wood Park Telephone : +82+220504670 Fax : +82 +2 539 9666 1.2. Summary of test results The EUT has been tested according to the following specifications; X Abbreviation C Complied N/A Not applicable F Fail Approval Signatories Page : (4) of (59) The results shown in this test report refer only to the sample(s) tested unless otheruvise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. .;;S=.C On 16',' F.cC,oart,{5 Result : $15.205(a) s15.20e s15.247(d) Transmitter radiated spurious emissions, Conducted spurious emission c $15.1oe(a) Receiver radiated spurious emissionC $15.247(a)(1) 20 dB bandwidth and 99 % bandwidthc s15.247(bX1) Maximum peak output power c $15.247(a)(1) Frequency separation c $15.247(a)(1Xiii) Number of hopping frequency c S15.247(aXl Xiii) Time of occupancy(Dwell time) c s15.247(i) s1 .'1307(bx1) RF exposure evaluationc Test and Report Completed by :ReDffAppid l by: Swen Lim Test Engineer MOVON CORPORATION lssac Jin Technical Manager MOVON CORPORATION MOVON CORPORATION Report Number: MOV-11-RF-004 Page : (5) of (59) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 2. EUT Description Kind of product SMART CONTROLLER Model MC710 Serial Number N/A Power supply DC 3.70 V Frequency range 2 402 ㎒ ~ 2 480 ㎒ Modulation technique GFSK, π/4 DQPSK, 8DPSK Number of channels 79 Operating conditions - 20 °C ~ + 55 °C Antenna gain 2.38㏈i ( M a x . ) 2.1. Declarations by the manufacturer The EUT is does not do anything at charging mode (Power is turned off when it is charging) 2.2. Details of modification None 3. Information about the FHSS characteristics 3.1. Pseudorandom frequency hopping sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 3.2. Medium access protocol The manufacturer declares that the device uses Bluetooth protocol. It confirmed that Medium access protocol is implemented. 3.3. Occupied hops while the equipment is operating While the equipment is operating (transmitting and/or receiving) each channel of the hop…

Text truncated - open the document above for the full version.

Test setup photo of EUT A. Setup photo of EUT
