TDU-MF300Bluetooth Headset

Movon MF300 Block Diagram ROM 15-bit Audio CODEC Baseband DSP MCURAM Bluetooth RF (2.4GHz Radio) I/O ANT TX_A TX_B V_BAT 5V DC Adapter V_BAT 240K 160K Battery 120mAh V_CHG Low BAT Detect LDO V_BAT V IN V OUT 2.7V 1.8V TALK VOL UP VOL DOWN LED_RED LED_BLUE RED BLUE 26MHz Balun Filter EEPROM I2C 1.8V

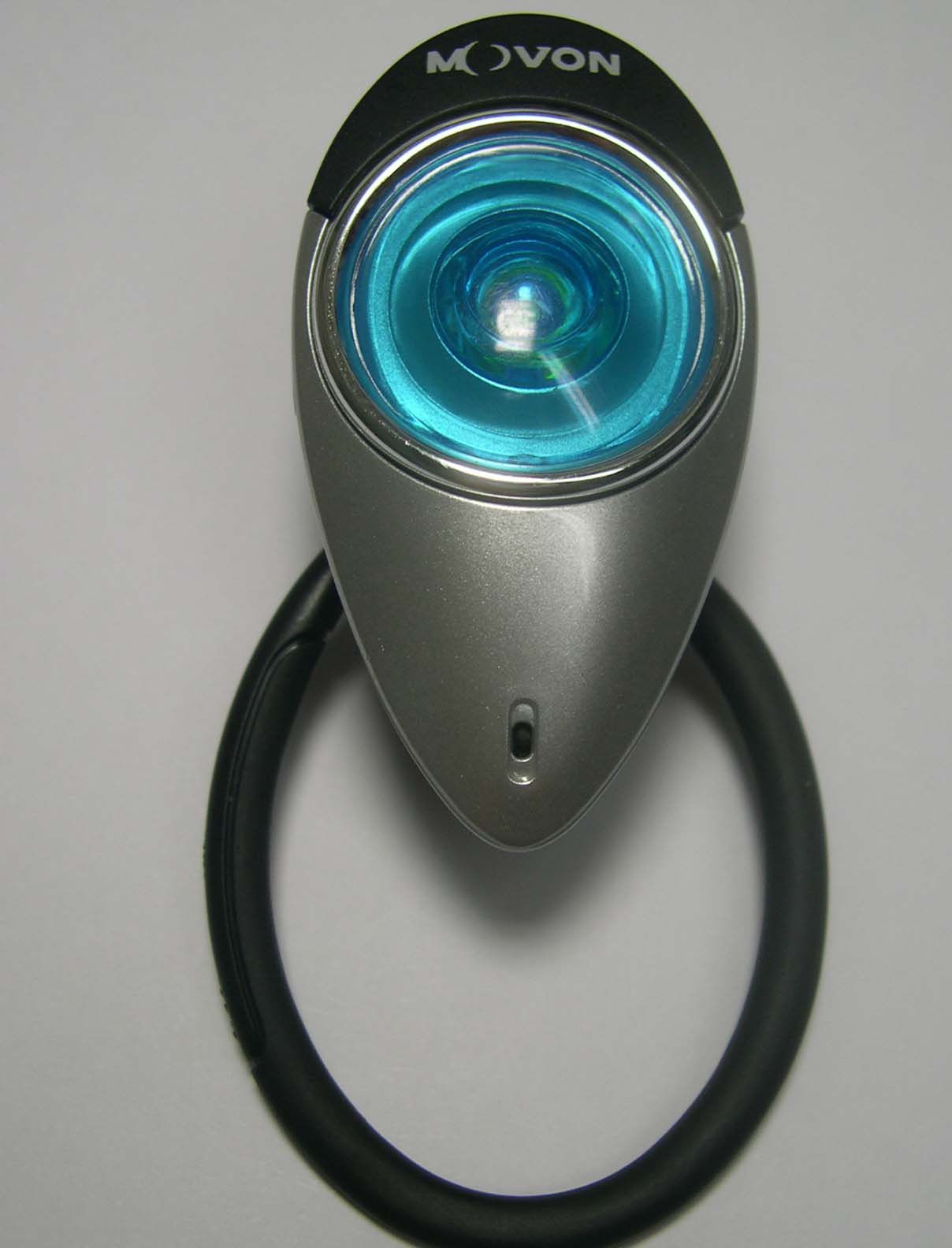

SK TECH CO., LTD. Page 1 of 3 SKTTRT-061013-025 FCC ID: TDU-MF300 External Photographs of EUT <Photograph 1: Front View> SK TECH CO., LTD. Page 2 of 3 SKTTRT-061013-025 FCC ID: TDU-MF300 <Photograph 2: Rear View> SK TECH CO., LTD. Page 3 of 3 SKTTRT-061013-025 FCC ID: TDU-MF300 <Photograph 3: AC/DC Adaptor supplied with the EUT>

ID Label Location & Sample LABEL LOCATION: Label will be printed on the REAR of the product LABEL Drawing:

SK TECH CO., LTD. Page 1 of 3 SKTTRT-061013-025 FCC ID: TDU-MF300 Internal Photographs of EUT <Photograph 1: Cover removed> SK TECH CO., LTD. Page 2 of 3 SKTTRT-061013-025 FCC ID: TDU-MF300 <Photograph 2: Front View> SK TECH CO., LTD. Page 3 of 3 SKTTRT-061013-025 FCC ID: TDU-MF300 <Photograph 3: Rear View>

Operational Description This product, MF300, is a Bluetooth device. The product operates in 2400 to 2483.5 MHz band. The channel is represented by a pseudo-random hopping sequence through the 79 channels. The channel is divided into time slots, with a nominal slot length of 625μs, where each slot corresponds to different RF hop frequencies. The nominal hop rate is 1600 hops/s. The control signals and data in the Bluetooth Chipset are modulated and processed and then pass the PA in it. They will be transmitted from ANT through the BALUN FILTER to another Bluetooth device. The RF signal from other Bluetooth devices is received via ANT. And they go through internal BALUN FILTER into the chip. They are magnified by internal LNA in the chip. The power settings and crystal trim are stored in internal flash. The product is powered from a Li-ion battery and uses a dielectric chip antenna. No external ground is required.

SK TECH CO., LTD. Page 1 of 43 SKTTRT-061013-025 FCC ID: TDU-MF300 Certificate of Compliance Test Report No.: SKTTRT-060613-025 NVLAP CODE: 200220-0 Applicant: MOVON CORPORATION Applicant Address: 6Fl. Hyunjuk Bldg., 140-28, Samseong-dong, Gangnam-Gu, Seoul, 135-090 Korea Manufacturer: MOVON CORPORATION Manufacturer Address: 6Fl. Hyunjuk Bldg., 140-28, Samseong-dong, Gangnam-Gu, Seoul, 135-090 Korea Device Under Test: Bluetooth Headset FCC ID: TDU-MF300 Model No.: MF300 Receipt No.: SKTEU06-0563 Date of receipt: Sep. 21, 2006 Date of Issue: Oct. 13, 2006 Location of Testing: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Procedure: ANSI C63.4, FCC Public Notice DA 00-705 (March 2000) Test Specification: 47CFR, Part 15 Rules, RSS-210 Issue 6 FCC Equipment Class: IC Equipment Category: DSS - Part 15 Spread Spectrum Transmitter RSS-210 Issue 6: Category I Equipment, Annex 8 Test Result: The above-mentioned device has been tested and passed. Tested & Reported by: Seong-Baek, Ko 2006. 10. 13 Approved by: Jae-Kyung, Bae 2006. 10. 13 Signature Date Signature Date Other Aspects: - Abbreviations: · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 43 SKTTRT-061013-025 FCC ID: TDU-MF300 >> CONTENTS << 1. GENERAL ············································································································· 4 2. TEST SITE ············································································································ 4 2.1 Location ········································································································· 4 2.2 List of Test and Measurement Instruments ···················································· 5 2.3 Test Date ········································································································ 5 2.4 Test Environment ··························································································· 5 3. DESCRIPTION OF THE EQUIPMENT UNDER TEST ········································· 6 3.1 Rating and Physical Characteristics ······························································ 6 3.2 Equipment Modifications ················································································ 6 3.3 Submitted Documents ···················································································· 6 4. MEASUREMENT CONDITIONS ··········································································· 7 4.1 Description of test configuration ···································································· 7 4.2 List of Peripherals ·························································································· 7 4.3 Type of Used Cables ······················································································ 8 4.4 Uncertainty ····································································································· 8 5. TEST AND MEASUREMENTS ············································································· 9 5.1 ANTENNA REQUIREMENT ·········································································· 9 5.1.1 Regulation ······························································································· 9 5.1.2 Result ······································································································ 9 5.2 MAXIMUM PEAK OUTPUT POWER ·························································· 10 5.2.1 Regulation ····························································································· 10 5.2.2 Test Procedure ······················································································ 10 5.2.3 Test Results ··························································································· 10 Table 1: Measured values of the Maximum Peak Output Power (Conducted) ····10 Figure 1: Plot of the Maximum Peak Output Power (Conducted) ······················11 5.3 CARRIER FREQUENCY SEPARATION ····················································· 13 5.3.1 Regulation ····························································································· 13 5.3.2 Test Procedure ······················································································ 13 5.3.3 Test Results ··························································································· 13 Table 2: Measured values of the Carrier Frequency Separation (Conducted) ···13 Figure 2: Plot of the Carrier Frequency Separation (Conducted) .....................14 5.4 20dB CHANNEL BANDWIDTH ·································································· 16 5.4.1 Regulation ····························································································· 16 5.4.2 Test Procedure ······················································································ 16 5.4.3 Test Results ··························································································· 16 Table 3: Measured values of the 20dB Channel Bandwidth (Conducted) ··········16 Figure 3: Plot of the 20dB Channel Bandwidth (Conducted) ···························17 SK TECH CO., LTD. Page 3 of 43 SKTTRT-061013-025 FCC ID: TDU-MF300 5.5 NUMBER OF HOPPING CHANNELS ························································ 19 5.5.1 Regulation ····························································································· 19 5.5.2 Test Procedure ············…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 3 SKTTRT-061013-025 FCC ID: TDU-MF300 Test set up photos <View of Conducted RF power measurement > SK TECH CO., LTD. Page 2 of 3 SKTTRT-061013-025 FCC ID: TDU-MF300 <Radiated Emissions - Front View> <Radiated Emissions - Rear View> SK TECH CO., LTD. Page 3 of 3 SKTTRT-061013-025 FCC ID: TDU-MF300 <Conducted Emissions - Front View> <Conducted Emissions - Rear View>
