TDU-MK10Bluetooth Handsfree Carkit

Antenna UART SPI PCM/SPDIF/I2S PIO/AIO Audio OUT Audio IN USB 2.4GHz Radio 1.8V LDO VDD IN Audio Interface Microcontroller Kalimba DSP Baseband And Logic Physical Layer Hardware Engine Clock Generator 26MHz X-Tal 1.8V DC Balun & Filter BlueCore3 Multimedia MD-10MM MD-10MM Block Diagram

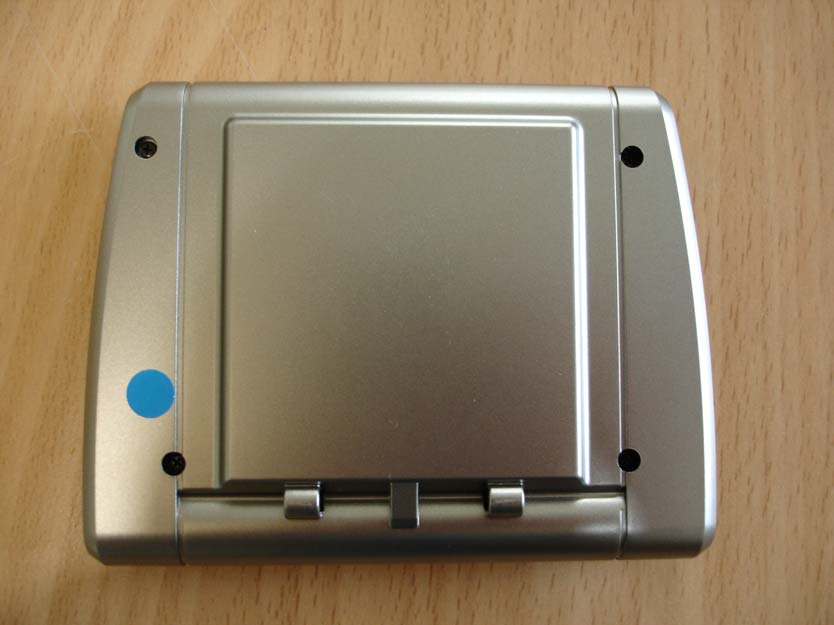

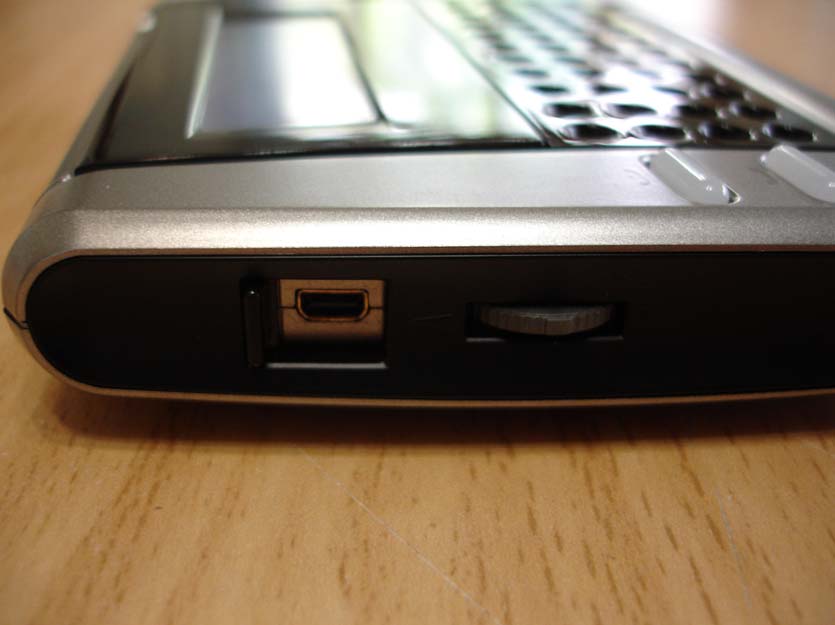

SK TECH CO., LTD. Page 1 of 5 SKT SKTTRT-060520-015 FCC ID: TDU-MK10, IC: 6432A-MK10 External Photographs of EUT <Photograph 1: Front View> SK TECH CO., LTD. Page 2 of 5 SKT SKTTRT-060520-015 FCC ID: TDU-MK10, IC: 6432A-MK10 <Photograph 2: Rear View> SK TECH CO., LTD. Page 3 of 5 SKT SKTTRT-060520-015 FCC ID: TDU-MK10, IC: 6432A-MK10 <Photograph 3: External Interface View - USB Charging Port> SK TECH CO., LTD. Page 4 of 5 SKT SKTTRT-060520-015 FCC ID: TDU-MK10, IC: 6432A-MK10 <Photograph 4: External Interface View - Earphone Jack> SK TECH CO., LTD. Page 5 of 5 SKT SKTTRT-060520-015 FCC ID: TDU-MK10, IC: 6432A-MK10 <Photograph 5: View of Accessories supplied with the EUT>

ID Label Location & Sample LABEL Location: The label will be attached on the REAR of the product LABEL Drawing:

SK TECH CO., LTD. Page 1 of 4 SKT SKTTRT-060520-015 FCC ID: TDU-MK10, IC: 6432A-MK10 Internal Photographs of EUT <Photograph 1: Cover Removed> SK TECH CO., LTD. Page 2 of 4 SKT SKTTRT-060520-015 FCC ID: TDU-MK10, IC: 6432A-MK10 <Photograph 2: Front View> SK TECH CO., LTD. Page 3 of 4 SKT SKTTRT-060520-015 FCC ID: TDU-MK10, IC: 6432A-MK10 <Photograph 3: Rear View> SK TECH CO., LTD. Page 4 of 4 SKT SKTTRT-060520-015 FCC ID: TDU-MK10, IC: 6432A-MK10 <Photograph 3: View of RF Module within the EUT>

SPECIFICATION Model No. MK-10 APP. Type Bluetooth Hands-Free Antenna MKTH_REV1.0 TYPE PIFA Maker MOVON COPORATION February, 03, 2006 DESIGNED CHECKED APPROVED MOVON MOVON CORPORATION Antenna Test results Sheet - 1- Research & Development Laboratory Contact : LEE TAE HYUNG : [email protected] 1. MEASUREMENT For the antenna measurement, Frequency and VSWR is measured by using Network Analyzer after setting, while Gain is measured in the shield room Antenna Test results Sheet - 2- 2.ELECTRICALLY CHARACTERISTIC ITEM SPEC Frequency Range[MHz] 2400 ~2485 V.S.W.R. 2.0 Max Gain[dBi] 0 Bandwidth[MHz] 370 [Picture-1 Smith chart 및 VSWR] Antenna Test results Sheet - 3- 3. Measure results for Radiation pattern Antenna Test results Sheet - 4- Antenna radiation coordinates φ θ z y x Test condition Parameters condition Unit Chamber size 6*10*4 M Temperature 21.5 °C Humidity 55 % Measurement S21(network Analyzer) 8510C System software Midas(Orbit/FR) Version 3.0 - E,H 는 linear horn antenna : E plane(roll=0deg.)과 H plane(roll=90deg.). 4.Dimension Antenna Test results Sheet - 5- [Azimuth XY] Antenna Test results Sheet - 6- [Elevation XZ] Antenna Test results Sheet - 7-

Operational Description This product, MK10, is a Bluetooth device. The product operates in 2400 to 2483.5 MHz band. The channel is represented by a pseudo-random hopping sequence through the 79 channels. The channel is divided into time slots, with a nominal slot length of 625μs, where each slot corresponds to different RF hop frequencies. The nominal hop rate is 1600 hops/s. The control signals and data in the Bluetooth Chipset are modulated and processed and then pass the PA in it. They will be transmitted from ANT through the BALUN FILTER to another Bluetooth device. The RF signal from other Bluetooth devices is received via ANT. And they go through internal BALUN FILTER into the chip. They are magnified by internal LNA in the chip. The power settings and crystal trim are stored in internal flash. The product is powered from a Li-ion battery and uses an integral Planer Inverted-F Antenna [PIFA]. No external ground is required.

SK TECH CO., LTD. Page 1 of 43 SKT SKTTRT-060520-015 FCC ID: TDU-MK10, IC: 6432A-MK10 Certificate of Compliance Test Report No.: SKTTRT-060520-015 NVLAP CODE: 200220-0 Applicant: MOVON CORPORATION Applicant Address: 6Fl. Hyunjuk Bldg., 140-28, Samseong-dong, Gangnam-Gu, Seoul, 135-090 Korea Manufacturer: MOVON CORPORATION Manufacturer Address: 6Fl. Hyunjuk Bldg., 140-28, Samseong-dong, Gangnam-Gu, Seoul, 135-090 Korea Device Under Test: Bluetooth Handsfree Carkit FCC ID: IC: TDU-MK10 6432A-MK10 Model No.: MK10 Receipt No.: SKTEU06-0249 Date of receipt: April 21, 2006 Date of Issue: May 20, 2006 Location of Testing: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Procedure: ANSI C63.4, FCC Public Notice DA 00-705 (March 2000) Test Specification: 47CFR, Part 15 Rules, RSS-210 Issue 6 FCC Equipment Class: IC Equipment Category: DSS - Part 15 Spread Spectrum Transmitter RSS-210 Issue 6: Category I Equipment, Annex 8 Test Result: The above-mentioned device has been tested and passed. Tested & Reported by: Seong-Baek, Ko 2006. 05. 20 Approved by: Jae-Kyung, Bae 2006. 05. 20 Signature Date Signature Date Other Aspects: - Abbreviations: · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 43 SKT SKTTRT-060520-015 FCC ID: TDU-MK10, IC: 6432A-MK10 >> CONTENTS << 1. GENERAL ············································································································· 4 2. TEST SITE ············································································································ 4 2.1 Location ········································································································· 4 2.2 List of Test and Measurement Instruments ···················································· 5 2.3 Test Date ········································································································ 5 2.4 Test Environment ··························································································· 5 3. DESCRIPTION OF THE EQUIPMENT UNDER TEST ········································· 6 3.1 Rating and Physical Characteristics ······························································ 6 3.2 Equipment Modifications ················································································ 6 3.3 Submitted Documents ···················································································· 6 4. MEASUREMENT CONDITIONS ··········································································· 7 4.1 Description of test configuration ···································································· 7 4.2 List of Peripherals ·························································································· 7 4.3 Uncertainty ····································································································· 7 5. TEST AND MEASUREMENTS ············································································· 8 5.1 ANTENNA REQUIREMENT ·········································································· 8 5.1.1 Regulation ······························································································· 8 5.1.2 Result ······································································································ 8 5.2 MAXIMUM PEAK OUTPUT POWER ···························································· 9 5.2.1 Regulation ······························································································· 9 5.2.2 Test Procedure ························································································ 9 5.2.3 Test Results ····························································································· 9 Table 1: Measured values of the Maximum Peak Output Power (Conducted) ····· 9 Figure 1: Plot of the Maximum Peak Output Power (Conducted) ······················10 5.3 CARRIER FREQUENCY SEPARATION ····················································· 12 5.3.1 Regulation ····························································································· 12 5.3.2 Test Procedure ······················································································ 12 5.3.3 Test Results ··························································································· 12 Table 2: Measured values of the Carrier Frequency Separation (Conducted) ···12 Figure 2: Plot of the Carrier Frequency Separation (Conducted) .....................13 5.4 20dB CHANNEL BANDWIDTH ·································································· 15 5.4.1 Regulation ····························································································· 15 5.4.2 Test Procedure ······················································································ 15 5.4.3 Test Results ··························································································· 15 Table 3: Measured values of the 20dB Channel Bandwidth (Conducted) ··········15 Figure 3: Plot of the 20dB Channel Bandwidth (Conducted) ···························16 SK TECH CO., LTD. Page 3 of 43 SKT SKTTRT-060520-015 FCC ID: TDU-MK10, IC: 6432A-MK10 5.5 NUMBER OF HOPPING CHANNELS ························································ 18 5.5.1 Regulation ····························································································· 18 5.5.2 Test Procedure ·········································…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 3 SKT SKTTRT-060520-015 FCC ID: TDU-MK10, IC: 6432A-MK10 Test set up photos <View of Conducted RF power measurement > SK TECH CO., LTD. Page 2 of 3 SKT SKTTRT-060520-015 FCC ID: TDU-MK10, IC: 6432A-MK10 <Radiated Emissions - Front View> <Radiated Emissions - Rear View> SK TECH CO., LTD. Page 3 of 3 SKT SKTTRT-060520-015 FCC ID: TDU-MK10, IC: 6432A-MK10 <Conducted Emissions - Front View> <Conducted Emissions - Rear View>
