TE6-DM2100ATRANSCEIVER MODULE

1 ® DM2100 The DM2100 is a 916.5 MHz transceiver module designed for wireless industrial sensor applica - tions. The DM2100 is equipped with seven I/O ports. Each port can be configured as an analog input, a digital input, or a digital output. The DM2100 is also equipped with a serial data port. The communication range of the DM2100 in an “open field” environment is typically 200 meters/hop. The DM2100 combines RFM’s low-current ASH radio technology with low-power microprocessor technology to achieve very long battery life. The DM2100 employs NOKOTA’s SOS-OEA V1.5 multi-mode mesh network protocol, which provides robust and flexible wireless network routing, a rich application command set, and a powerful and easy-to-use network management utility. The DM2100 is certified under FCC 15.249 regulations. RatingValueUnits All Input/Output Pins-0.3 to +4.0V Non-Operating Ambient Temperature Range-50 to +100 o C Absolute Maximum Ratings • NOKOTA SOS-OEA V1.5 Multi-mode Mesh Network Protocol • Network Configurable Analog, Digital and Serial I/O Ports • 3 V, Very Low Current Operation plus Sleep Mode • FCC 15.249 Certified In Development Electrical Characteristics CharacteristicSymNotesMinimumTypicalMaximumUnits Operating Frequencyf O 916.30916.70MHz Modulation TypeOOK RF Encoded Data Transmission Rate4.8kb/s Receive Mode: Average Input Current, 3 Vdc SupplyI R 4mA Input Signal for 10 -3 BER, 25°C -100dBm Transmit Mode: Peak Input Current, 3 Vdc SupplyI TP 13.5mA Peak Output PowerP O 1mW Sleep Mode Average Input Current, 3 Vdc SupplyI S 10μA Analog Input Measurement Range (10-bit ADC)0V DD V Analog Input Impedance2500ohms Digital Output Source Current0.5mA Digital Output Sink Current1mA Reference Crystal Accuracy±200ppm Serial Port Data Rate9.6kb/s Internal Power Supply Input Voltage Range3.114.0Vdc External Power Supply Voltage RangeV DD 2.853.7Vdc External Power Supply Voltage Ripple10mV P-P Operating Ambient Temperature RangeT A -40+85 o C 916.50 MHz Transceiver Module DM2100 Theory of Operation The major components of the DM2100 include the TR1000 ASH transceiver and the Texas Instruments MSP430F148 microcontroller. The TR1000 operates on 916.5 MHz, with a nominal output power of 1 mW. The MSP430F148 operates from an internal oscillator referenced to an external 32.768 kHz “watch” crystal. The MSP430F148 UART is used to provide a CMOS serial interface on connector J2. The microcontroller’s general purpose I/O pins are also available on con- nector J2 for external monitoring or control. Each of these pins can be separately configured through the RF network as a logic input, a logic output, or an analog input. Note that GP0 is dedicated to measuring the value of the received signal strength indicator (RSSI) circuit and should always be set as an analog input. GP1 - GP7 can be used in any configuration needed by the application. The three LEDs on the DM2100 display RF communication activity. DM2100 operation is based on NOKOTA’s SOS-OEA V1.5 multi-mode mesh network protocol, which sup - ports data and command transfers through both the se - rial interface and the RF channel. See theSOS-OEA V1.5 Protocol User’s Guidefor further details. 2 56789104321 GNDVIN 11121314 VRENVDDTD0TD1TWSTCKRSTCFG0CFG1CFG2CFG3GND J1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 J2 3 VDC GRN YEL RED TR1000 ASH Transceiver RSSI Low Voltage Reset TXMOD RXDATA CNTRL1 CNTRL0 3 VDC Voltage Regulator DM2100 Block Diagram GND GP7 GP6 GP5 GP4 GP3 GP2 GP1 GP0/RSSI RTS CTS TXD RXD GND MSP430F148 Microcontroller Figure 1 DM2100 FCC Certification The DM2100 has been certified for operation under FCC Part 15 Rules, Section 15.249. This certification applies only when the DM2100 is equipped with one of the following RFM antennas: ¼ wave antenna, RFM part number 400-1595-001 helical antenna, RFM part number 500-1141-001 ¼ wave antenna-coax assembly, RFM part num- ber 500-1142-001 WARNING: the DM2100 must be re-certified if used with any antennas other than the three listed above. Contact RFM for further information if your application requires a special antenna configuration. When the DM2100 is run from an off-board power sup - ply (applied to J1-4), the supply voltage must be limited to a maximum of 3.7 Vdc, and the power supply voltage ripple must not exceed 10 mV P-P . FCC Labels and Notices A clearly visible label is required on the outside of the user’s (OEM) enclosure stating that this product con- tains a DM2100 radio module, FCC ID: TE6-DM2100A. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, in- cluding interference that may cause undesired opera- tion. WARNING:This device operates under Part 15 of the FCC rules. Any modification to this device, not ex- pressly authorized by RF Monolithics, Inc., may void the user’s authority to operate this device. DM2100 Applications There are two ways to use the DM2100 in an applica - tion. The DM2100 can be used with a companion appli - cation interface board, the IM2100. The IM2100 has provisions for powering the DM2100 from a USB cable, an external unregulated DC supply such asa5Vdc “wall” transformer, an external regulated 3 Vdc power supply, or an external battery. The IM2100 also pro - vides the choice of UART, RS232, RS485 (single drop) or USB for a host computer serial interface. In addition, the IM2100 includes captured-screw terminal strips for connecting analog inputs, digital logic inputs, digital logic outputs and form C relay outputs. Refer to the IM2100 data sheet for additional details. The DM2100 can also be integrated into the user’s own application board. The DM2100 pin descriptions are given in the Table on pages 4 and 5. The DM2100 pin-out locations are show in Figure 2, and the PCB lay - out for the mating connectors is shown in Figure 3. The operating range of the DM2100 critically depends on the antenna being loca…

Text truncated - open the document above for the full version.

RF Monolithics, Inc. 4441 Sigma Road – Dallas, TX 75244 June 21, 2005 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: TE6-DM2100A. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of certain information accompanying this application as itemized below: • Schematics • Circuit description • Block diagram The above documents contain information not normally released to the public. The public disclosure of these documents and/or materials may be harmful to the applicant’s business and will provide unjustified benefits to the applicant’s competitors. The applicant understands that pursuant to Section 0.457 of the FCC rules, disclosure of the documents listed above, will be withheld from publication, in any form, indefinitely, unless a retraction of non-disclosure is authorized in writing and delivered by certified courier to the certifying body by the applicant. Also, the applicant understands that disclosure or any form of publication of any of the other documents associated with this application will not be made public before the grant for this device has been issued to the applicant. Sincerely, Frank Perkins Vice President of New Business Development RF Monolithics, Inc. Dallas TX

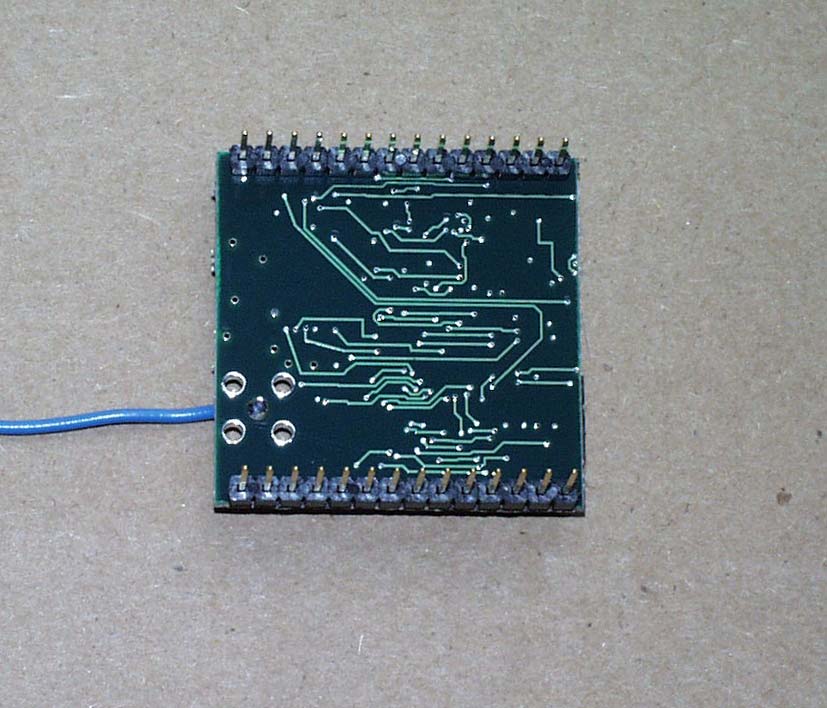

RF MONOLITHICS, INC. FCC ID: TE6-DM2100A PHOTOGRAPHS

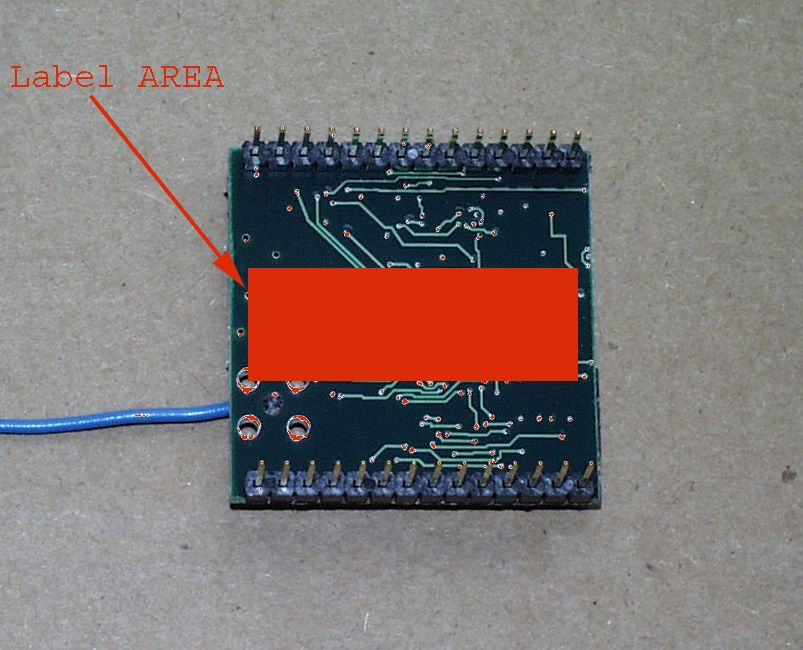

1 0.375" 1.300" rfmlabel.PCB 0 14-JULY-05 DM2100A FCC ID LABEL RF MONOLITHICS AB CD 4321 D C B A 1234 TitleScale Model Rev 2:1 Date Drawn by Filename Sheet of TR 1 FCC ID: TE6-DM2100A

RF MONOLITHICS, INC. FCC ID: TE6-DM2100A PHOTOGRAPHS

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: RF MONOLITHICS, INC. FCC ID: TE6-DM2100A REPORT #: R\RF MONOLITHICS TE6\1373AUT5\1373AUT5TestReport.doc COVER SHEET Test Report Product Name: 916.50 MHz TRANSCEIVER MODULE FCC ID: TE6-DM2100A Applicant: RF MONOLITHICS, INC. 4441 SIGMA ROAD DALLAS TX 75244 Date Receipt: 6/24/2005 Date Tested: 6/24/2005 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: RF MONOLITHICS, INC. FCC ID: TE6-DM2100A REPORT #: R\RF MONOLITHICS TE6\1373AUT5\1373AUT5TestReport.doc TABLE OF CONTENTS APPLICANT: RF MONOLITHICS, INC. FCC ID: TE6-DM2100A TABLE OF CONTENTS TEST REPORT CONTAINING: PAGE 1-2.........MODULAR APPROVAL REQUIREMENTS PAGE 3...........TEST EQUIPMENT LIST PAGE 4...........TEST PROCEDURE PAGE 5-6.........RADIATION INTERFERENCE TEST DATA PAGE 7-8.........OCCUPIED BANDWIDTH TEST DATA PAGE 9-11........POWERLINE CONDUCTED TEST DATA EXHIBIT INCLUDED: COVER LETTER REQUEST FOR CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATIC USERS MANUAL LABEL SAMPLE LABEL LOCATION PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRPAHS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: RF MONOLITHICS, INC. FCC ID: TE6-DM2100A REPORT #: R\RF MONOLITHICS TE6\1373AUT5\1373AUT5TestReport.doc Page 1 of 11 MODULAR REQUIREMENTS 1. The modular transmitter must have its own RF shielding. All of the transceiver RF portions are in a hermetically sealed case on the top surface of the module. 2. The modular transmitter must have buffered modulation data inputs. The transmitter has a modulated buffer amplifier for data transmission. See the operational description exhibit. 3. The modular transmitter must have its own power supply regulation. The schematic for this unit shows on-board regulators. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The module is being certified with three antennas 400-1595-001 – 916.5 MHz ¼ Wavelength Insulated Wire Antenna 500-1141-001 – 916.5 MHz Helical Wire Antenna 500-1142-001 – 916.5 MHz ¼ Wavelength Antenna-coax assembly with Reverse Pin “FCC” SMA connector. When the 500-1142-001 antenna-coax assembly is used, a matching reverse pin SMA connector is installed on the DM2100 before the unit is shipped to a retail customer. The 400-1595-001 and 500-1141-001 are installed by soldering them to the antenna eyelet before the unit is shipped to a retail customer. 5. The modular transmitter must be tested in a stand-alone configuration. The DM2100 was tested stand alone with each antenna. See the test setup photographs. 6. The modular transmitter must be labeled with its own FCC ID number. The FCC ID Label Sample and Label Location are included in the exhibits. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: RF MONOLITHICS, INC. FCC ID: TE6-DM2100A REPORT #: R\RF MONOLITHICS TE6\1373AUT5\1373AUT5TestReport.doc Page 2 of 11 MODULAR REQUIREMENTS CONTD. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter. The DM2100 meets all of the requirements per FCC Rules Part 15.249 and data is included in the report. 8. The modular transmitter must comply with any applicable RF exposure requirements. The unit is of such low power it meets all RF Exposure requirements. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: RF MONOLITHICS, INC. FCC ID: TE6-DM2100A REPORT #: R\RF MONOLITHICS TE6\1373AUT5\1373AUT5TestReport.doc Page 3 of 11 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/12/06 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 Biconnical Antenna Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Blue Tower RF Preselector HP 85685A 2620A00294 CAL 4/27/04 4/27/06 Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 LISN Electro- Metrics ANS-25/2 2604 CAL 8/27/04 8/27/06 LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Log- Periodic Antenna Eaton 96005 1243 CAL 5/8/03 5/8/05 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: RF MONOLITHICS, INC. FCC ID: TE6-DM2100A REPORT #: R\RF MONOLITHICS TE6\1373AUT5\1373AUT5TestReport.doc Page 4 of 11 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. The UUT was transmitting a test signal during the testing. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz up to 1.0GHz and 1.0MHz with a video BW of 3.0MHz above 1.0GHz. The ambient temperature of the UUT was 74.3oF with a humidity of 69%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (…

Text truncated - open the document above for the full version.

RF MONOLITHICS, INC. FCC ID: TE6-DM2100A TEST SET UP PHOTOGRAPHS RADIATED EMISSIONS TEST SET UP WITH ¼ WAVE ANTENNA, RFM PART NO. 400-1595-001 RADIATED EMISSIONS TEST SET UP WITH ¼ WAVE ANTENNA-COAX ASSEMBLY, RFM PART NO. 500-1142-001 RADIATED EMISSIONS TEST SET UP WITH HELICAL ANTENNA, RFM PART NO. 500-1141-001 POWERLINE CONDUCTED EMISSIONS TEST SET UP PHOTO
