TE7A6V3AC1200 MU-MIMO Wi-Fi Router

REV3.0.0 1910012805 User Guide AC1200 MU-MIMO Wi-Fi Router Archer A6 Contents About This Guide .........................................................................................................1 Chapter 1. Get to Know About Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1. 1. Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1. 2. Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1. 2. 1. The Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1. 2. 2. The Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Chapter 2. Connect the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2. 1. Position Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2. 2. Connect Your Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Chapter 3. Log In to Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Chapter 4. Set Up Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 4. 1. Use Quick Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 4. 2. Manually Set up Your Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 4. 3. Set Up an IPv6 Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 4. 4. Configure the Router in Access Point Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Chapter 5. TP-Link Cloud Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 5. 1. Register a TP-Link ID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 5. 2. Change Your TP-Link ID Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 5. 3. Manage the User TP-Link IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 5. 3. 1. Add TP-Link ID to Manage the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 5. 3. 2. Remove TP-Link ID(s) from Managing the Router . . . . . . . . . . . . . . . . . . . . . . 26 5. 4. Manage the Router via the TP-Link Tether App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Chapter 6. Guest Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 6. 1. Create a Network for Guests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 6. 2. Customize Guest Network Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Chapter 7. Parental Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 7. 1. Set Up Access Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 7. 2. Monitor Internet Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Chapter 8. QoS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 8. 1. Prioritize Internet Traffic with QoS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 Chapter 9. Network Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 9. 1. Protect the Network from Cyber Attacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 9. 2. Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 9. 3. IP & MAC Binding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Chapter 10. NAT Forwarding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 10. 1. Share Local Resources on the Internet by Virtual Servers. . . . . . . . . . . . . . . . . . . . 43 10. 2. Open Ports Dynamically by Port Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 10. 3. Make Applications Free from Port Restriction by DMZ . . . . . . . . . . . . . . . . . . . . . . . 45 10. 4. Make Xbox Online Games Run Smoothly by UPnP . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Chapter 11. VPN Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 11. 1. Use OpenVPN to Access Your Home Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 11. 1. 1. Step1. Set up OpenVPN Server on Your Router . . . . . . . . . . . . . . . . . . . . . . 49 11. 1. 2. Step 2. Configure OpenVPN Connection on Your Remote Device . . . . 50 11. 2. Use PPTP VPN to Access Your Home Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 11. 2. 1. Step 1. Set up PPTP VPN Server on Your Router . . . . . . . . . . . . . . . . . . . . . 51 11. 2. 2. Step 2. Configure PPTP VPN Connection on Your Remote Device . . . . 52 Chapter 12. Customize Your Network Settings . . . . . . . . . . . . . . . . . . . . . . . 56 12. 1. Change the LAN Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 12. 2. Configure to Support IPTV Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 12. 3. Specify DHCP Server Settings . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

TP-Link Technologies Co., Ltd. Authority to Act as Agent Date: 2020-06-19 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: BTL Inc./Mandy Wang is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 2021-0 6-19 By: __________________________ _______Jing Huang________ (Signature 1 ) (Print name) Title: Regulatory Compliance Manager On behalf of: TP-Link Technologies Co., Ltd. (Company Name) Telephone: 75521534921 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Technologies Co., Ltd. Request for Confidentiality Date: 2020-06-19 Subject: Confidentiality Request for: TE7A6V3 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual TP-Link Technologies Co., Ltd.____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Regulatory Compliance Manager __________ Jing Huang__________ 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. TP-Link Technologies Co., Ltd. (Signature/Title 3 ) (Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Non-SDR (Software Defined Radio) Cover Letter Date: 2020-06-19 Refer to KDB 442812 D01 SDR apps Guide v02r03. The following six questions can be used for determining if a radio can elect to be, or must be an SDR. 1. Can the RF parameters of the device be altered through software? □Yes - go to 2. No, not an SDR 2. Can third parties not permitted by the Commission through specific filings modify, configure, or load different software, or make configuration settings to operate the device or host hardware radio frequency parameters (frequency range, modulation type, maximum output power or other radio parameters) in any other way than granted (or expected to be granted)? □Yes, must be an SDR. □No - go to 3. 3. Is the device capable of operating in any other way than granted, or will be, granted? □Yes, - go to 4. □No - go to 5. 4. Is this a Part 15 client Device as defined in Section 15.202 (as opposed to a master device)? □Yes, qualifies as a part 15 client devices - go to 5. □No, must be an SDR. 5. Does the manufacturer elect SDR? □Yes, elects to be an SDR. □No, Not an SDR Final conclusion: According to the above questions reply, we can confirm this AC1200 MU-MIMO Wi-Fi Router (FCC ID: TE7A6V3) must be a Non-SDR. Name: Huang Jing Position: Regulatory Compliance Manager TP-Link Technologies Co., Ltd.

TP-Link Technologies Co., Ltd. Wi-Fi Channel 12 and 13 Declaration Letter Date: 2020-06-19 We, the undersigned company Company Name: TP-Link Technologies Co., Ltd. Address: Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen,518057 China Declare that: Product description: AC1200 MU-MIMO Wi-Fi Router Type designation: Archer A6 Brand: tp-link FCC ID: TE7A6V3 Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: ________________________ Name: Jing Huang Tel: 75521534921 Email: [email protected]

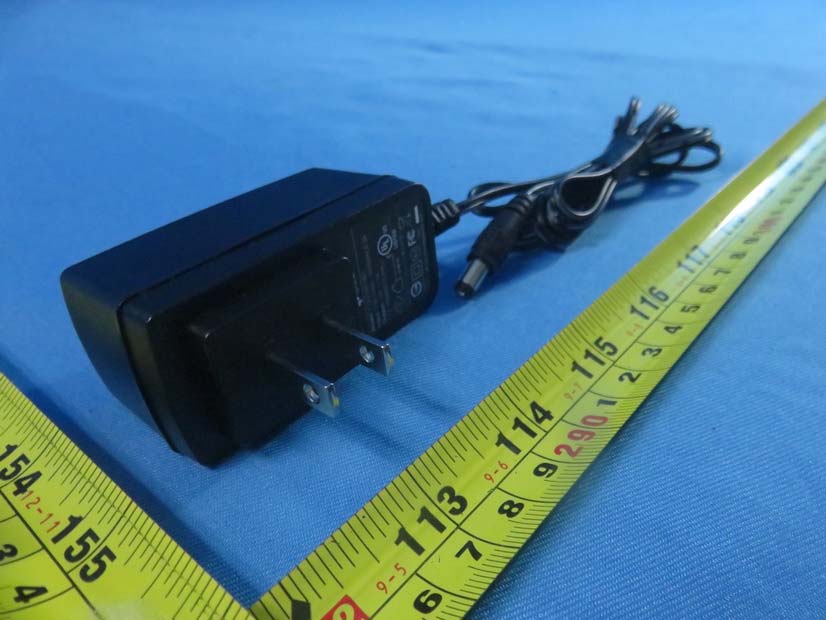

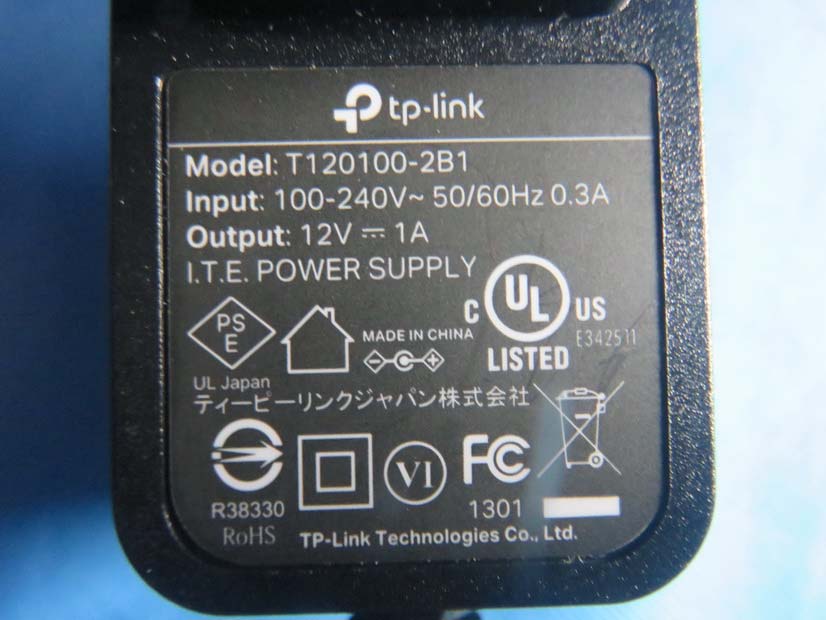

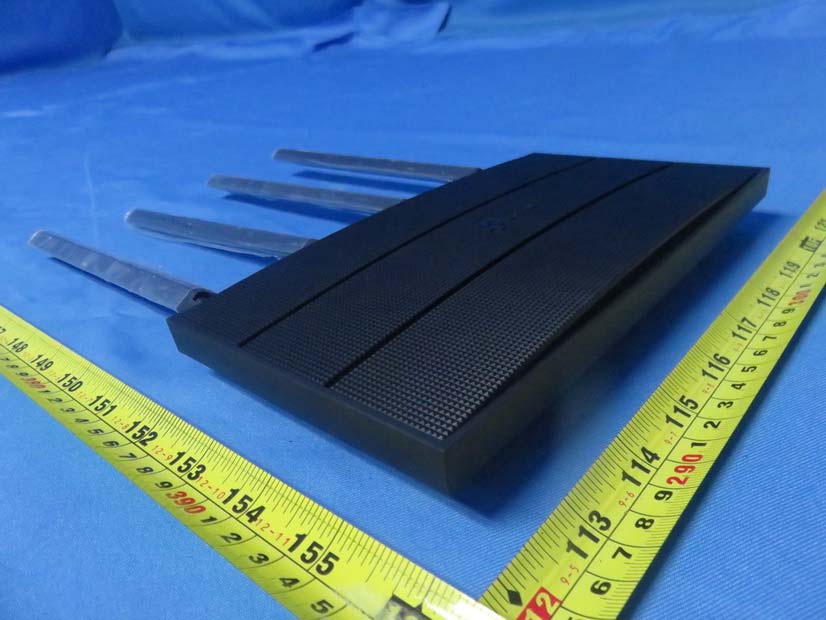

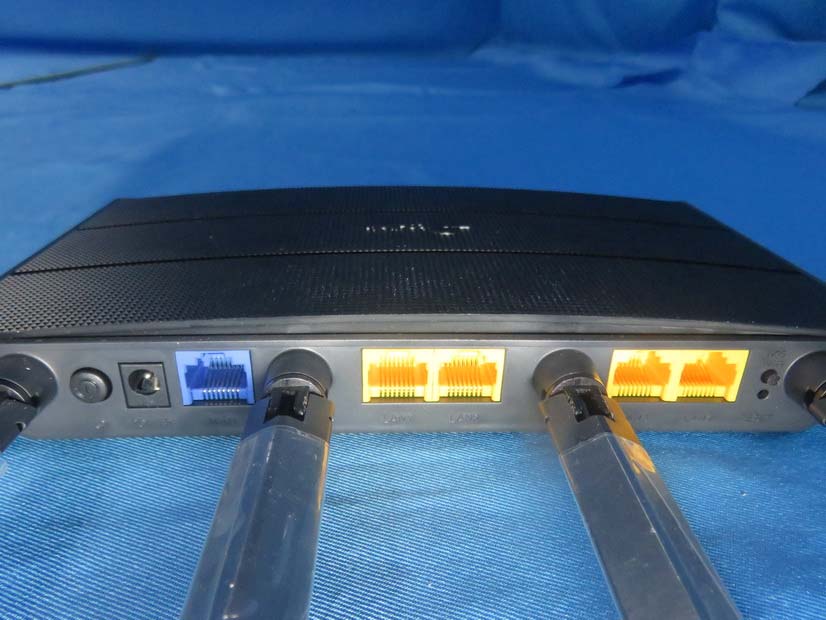

Report No.: 1912C003 Page 2 of 9 Report No.: 1912C003 Page 3 of 9 Report No.: 1912C003 Page 4 of 9 Report No.: 1912C003 Page 5 of 9

尺寸：69.7*38.2mm±0.2mm，3*R3.5,C2 备注：PIN、SSID及MAC地址由工厂直接打印在产品规格标贴上; 序列号由工厂用35*7mm的空白标贴打印并贴于产品规格标贴上; MAC条码由“XXXXXXXXXXXX”生成，文本打印为“XX-XX-XX-XX-XX-XX”。 Archer A6(US) 3.0产品规格标贴 A2 Archer A6(US) 3.0 陈博博 80g艾利铜版纸+雾膜 新三道杠-215 2019-11-26 添加二维码 文件转曲线（供应商来料效果图） Pantone 877C 黑色 8.8 mm 30.7 mm Power: 12V 1A Default Access: http://tplinkwifi.net Моdel: Archer A6(US)Ver: 3.0 SN: XXXXXXXXXXXXX Model: Archer A6 AC1200 MU-MIMO Wi-Fi Router FCC ID: TE7A6V3 IC: 8853A-A6V3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. TP-Link Technologies Co., Ltd. No.5 Keyuan Road, Nanshan, Shenzhen, 518057, PRC JOIN PRESET WI-FI MAC:XX-XX-XX-XX-XX-XX Wireless Password/PIN: HVIN：Archer A6V3 SSID:TP-Link_XXXX SSID:TP-Link_XXXX_5G 二维码制：QR CODE； 二维码尺寸：10*10 mm；误差要求正负1MM； 二维码内容：“WIFI:T:WPA;S:SSID;P:Wireless Password/PIN;;” ，其中“SSID”及“Wireless Password/PIN”内容与产品规格标 贴SSID及Wireless Password/PIN一维码内容对应 双频/三频产品打印2.4G Wi-Fi 二维码即可 For FCC&IC 尺寸：69.7*38.2mm±0.2mm，3*R3.5,C2 备注：PIN、SSID及MAC地址由工厂直接打印在产品规格标贴上; 序列号由工厂用35*7mm的空白标贴打印并贴于产品规格标贴上; MAC条码由“XXXXXXXXXXXX”生成，文本打印为“XX-XX-XX-XX-XX-XX”。 Archer C6(US) 3.0产品规格标贴 A1 Archer C6(US) 3.0 陈博博 80g艾利铜版纸+雾膜 新三道杠-215 2019-11-22 文件转曲线（供应商来料效果图） Pantone 877C 黑色 8.8 mm 30.7 mm Power: 12V 1A Default Access: http://tplinkwifi.net Моdel: Archer C6(US)Ver: 3.0 SN: XXXXXXXXXXXXX Model: Archer C6 AC1200 MU-MIMO Wi-Fi Router FCC ID: TE7A6V3 IC: 8853A-A6V3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. TP-Link Technologies Co., Ltd. No.5 Keyuan Road, Nanshan, Shenzhen, 518057, PRC JOIN PRESET WI-FI MAC:XX-XX-XX-XX-XX-XX Wireless Password/PIN: XXXXXXXX SSID:TP-Link_XXXX SSID:TP-Link_XXXX_5G 二维码制：QR CODE； 二维码尺寸：10*10 mm；误差要求正负1MM； 二维码内容：“WIFI:T:WPA;S:SSID;P:Wireless Password/PIN;;” ，其中“SSID”及“Wireless Password/PIN”内容与产品规格标 贴SSID及Wireless Password/PIN一维码内容对应 双频/三频产品打印2.4G Wi-]Fi 二维码即可 For FCC

Report No.: 1912C003 Page 6 of 9 5G Ant. 2.4G Ant. 5G Ant. 2 2.4G Ant. Report No.: 1912C003 Page 7 of 9 Report No.: 1912C003 Page 8 of 9 Report No.: 1912C003 Page 9 of 9

Report No.: BTL-FCCP-3-1912C003 Page 1 of 4 FCC RF EXPOSURE REPORT FCC ID: TE7A6V3 Project No. : 1912C003 Equipment : AC1200 MU-MIMO Wi-Fi Router Brand Name : tp-link Test Model : Archer A6 Series Model : Archer C6 Applicant : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Manufacturer : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Date of Receipt : Apr. 02, 2020 Date of Test : Apr. 28, 2020 ~ May 18, 2020 Issued Date : Jun. 04, 2020 Report Version : R00 Test Sample : Engineering Sample No.: DG20200415179 for conducted, DG20200415178 for radiated. Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Nick Chen Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Tel: +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-1912C003 Page 2 of 4 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Jun. 04, 2020 Report No.: BTL-FCCP-3-1912C003 Page 3 of 4 1. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Antenna Specification: For 2.4GHz: Ant. Brand P/N Antenna TypeConnector Gain (dBi) 1 3101502812 Dipole Weld 1.98 2 3101502813 Dipole Weld 1.98 Note: This EUT supports CDD, and all antennas have the same gain, Directional gain = G ANT +Array Gain, where Array Gain is as follows: For power measurements, Array Gain = 0 dB (N ANT ≤ 4), so Directional gain=1.98. For power spectral density measurements, N ANT = 2, N SS = 1,so Directional gain = G ANT + Array Gain = 10 log (N ANT / N SS ) dB =0.97+10log(2/1)dBi=4.99 For 5GHz: Ant. rand P/N Antenna TypeConnector Gain (dBi) 1 3101502814Dipole Weld 2.98 2 3101502815Dipole Weld 2.98 Note: This EUT supports CDD, and all antennas have the same gain, Directional gain = G ANT +Array Gain, where Array Gain is as follows: For Non-Beamforming function, Directional gain=G ANT+Array Gain, for power measurements, Array Gain = 0 dB (N ANT ≤ 4), so Directional gain=2.98 for power spectral density measurements, N ANT = 2, N SS = 1.,so Directional gain = G ANT + Array Gain =1 0 log (N ANT / N SS ) dB =2.98+10log(2/1)dBi=5.99 For Beamforming function, Beamforming Gain: 3.00 dB. So Directional gain = 2.98+3.00=5.98. . Report No.: BTL-FCCP-3-1912C003 Page 4 of 4 2. TEST RESULTS For 2.4GHz: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.98 1.5776 23.86 243.2204 0.0764 1 Complies For 5GHz UNII-1 Non-Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2.98 1.9861 23.37 217.2701 0.0859 1 Complies For 5GHz UNII-3 Non-Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2.98 1.9861 25.17 328.8516 0.1300 1 Complies For 5GHz UNII-1 Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5.98 3.9628 22.82 191.4256 0.1510 1 Complies For 5GHz UNII-3 Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5.98 3.9628 23.65 231.7395 0.1828 1 Complies For the max simultaneous transmission MPE: Power Density (S) (mW/cm 2 ) Power Density (S) (mW/cm 2 ) To t a l Limit of Power Density (S) (mW/cm 2 ) Test Result 2.4GHz 5GHz 0.0764 0.1510 0.2274 1 Complies Note: The calculated distance is 20 cm. Output power including tune up tolerance. End of Test Report

Report No.: BTL-FCCP-2-1912C003 Page 1 of 221 FCC Radio Test Report FCC ID: TE7A6V3 This report concerns: Original Grant Project No. : 1912C003 Equipment : AC1200 MU-MIMO Wi-Fi Router Brand Name : tp-link Test Model : Archer A6 Series Model : Archer C6 Applicant : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Manufacturer : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Date of Receipt : Apr. 02, 2020 Date of Test : May 14, 2020 ~ May 18, 2020 Issued Date : Jun. 04, 2020 Report Version : R00 Test Sample : Engineering Sample No.: DG20200415179 for conducted, DG20200415178 for radiated. Standard(s) : FCC Part15, Subpart E(15.407) ANSI C63.10-2013 FCC KDB 789033 D02 General UNII Test Procedures New Rules v02r01 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Nick Chen Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-1912C003 Page 2 of 221 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-1912C003 Page 3 of 221 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 TEST MODES 12 2.3 PARAMETERS OF TEST SOFTWARE 15 2.4 DUTY CYCLE 17 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 18 2.6 SUPPORT UNITS 18 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 19 3.1 LIMIT 19 3.2 TEST PROCEDURE 19 3.3 DEVIATION FROM TEST STANDARD 19 3.4 TEST SETUP 20 3.5 EUT OPERATION CONDITIONS 20 3.6 TEST RESULTS 20 4 . RADIATED EMISSIONS TEST 21 4.1 LIMIT 21 4.2 TEST PROCEDURE 22 4.3 DEVIATION FROM TEST STANDARD 22 4.4 TEST SETUP 23 4.5 EUT OPERATION CONDITIONS 24 4.6 TEST RESULTS - 9 KHZ to 30 MHZ 24 4.7 TEST RESULTS - 30 MHz TO 1000 MHz 24 4.8 TEST RESULTS - ABOVE 1000 MHz 24 5 . BANDWIDTH TEST 25 5.1 LIMIT 25 5.2 TEST PROCEDURE 25 5.3 DEVIATION FROM TEST STANDARD 25 Report No.: BTL-FCCP-2-1912C003 Page 4 of 221 Table of Contents Page 5.4 TEST SETUP 26 5.5 EUT OPERATION CONDITIONS 26 5.6 TEST RESULTS 26 6 . MAXIMUM OUTPUT POWER TEST 27 6.1 LIMIT 27 6.2 TEST PROCEDURE 27 6.3 DEVIATION FROM STANDARD 27 6.4 TEST SETUP 27 6.5 EUT OPERATION CONDITIONS 27 6.6 TEST RESULTS 27 7 . POWER SPECTRAL DENSITY TEST 28 7.1 LIMIT 28 7.2 TEST PROCEDURE 28 7.3 DEVIATION FROM STANDARD 28 7.4 TEST SETUP 29 7.5 EUT OPERATION CONDITIONS 29 7.6 TEST RESULTS 29 8 . FREQUENCY STABILITY MEASUREMENT 30 8.1 LIMIT 30 8.2 TEST PROCEDURE 30 8.3 DEVIATION FROM STANDARD 30 8.4 TEST SETUP 31 8.5 EUT OPERATION CONDITIONS 31 8.6 TEST RESULTS 31 9 . MEASUREMENT INSTRUMENTS LIST 32 10 . EUT TEST PHOTOS 34 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 38 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 41 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1 GHZ 46 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 49 APPENDIX E - BANDWIDTH 170 APPENDIX F - MAXIMUM OUTPUT POWER 183 Report No.: BTL-FCCP-2-1912C003 Page 5 of 221 Table of Contents Page APPENDIX G - POWER SPECTRAL DENSITY 198 APPENDIX H - FREQUENCY STABILITY 219 Report No.: BTL-FCCP-2-1912C003 Page 6 of 221 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Jun. 04, 2020 Report No.: BTL-FCCP-2-1912C003 Page 7 of 221 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart E(15.407) Standard(s) Section Test Item Test Result Judgement Remark 15.207 15.407(b) AC Power Line Conducted Emissions APPENDIX A PA SS ------ 15.407(b) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PA SS ------ 15.407(a) 15.407(e) Spectrum Bandwidth APPENDIX E PA SS ------ 15.407(a) Maximum Output Power AP…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-1912C003 Page 172 of 221 Test Mode UNII-3_TX A Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 149 5745 15.05 17.20 500 Complies 157 5785 14.30 17.10 500 Complies 165 5825 15.05 17.00 500 Complies CH149 CH157 CH165 6 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-1912C003 Page 173 of 221 Test Mode UNII-1_TX AC (VHT20) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 36 5180 21.01 17.80 40 5200 20.69 17.80 48 5240 20.99 17.80 CH36 CH40 CH48 Test Mode UNII-1_TX AC (VHT40) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 38 5190 40.60 36.40 46 5230 46.40 36.40 CH38 CH46 Report No.: BTL-FCCP-2-1912C003 Page 174 of 221 Test Mode UNII-1_TX AC (VHT80) Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 42 5210 150.80 76.40 CH42 Report No.: BTL-FCCP-2-1912C003 Page 175 of 221 Test Mode UNII-3_TX AC (VHT20) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 149 5745 13.85 18.00 500 Complies 157 5785 14.50 18.00 500 Complies 165 5825 15.15 18.00 500 Complies CH149 CH157 CH165 6 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-1912C003 Page 176 of 221 Test Mode UNII-3_TX AC (VHT40) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 151 5755 35.30 37.40 500 Complies 159 5795 35.40 37.40 500 Complies CH151 CH159 6 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-1912C003 Page 177 of 221 Test Mode UNII-3_TX AC (VHT80) Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 155 5775 75.59 80.80 500 Complies CH155 6 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-1912C003 Page 178 of 221 Beamforming Test Mode UNII-1_TX AC (VHT20) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 36 5180 20.60 17.60 40 5200 20.35 17.70 48 5240 20.55 17.60 CH36 CH40 CH48 Test Mode UNII-1_TX AC (VHT40) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 38 5190 40.40 36.40 46 5230 40.19 36.80 CH38 CH46 Report No.: BTL-FCCP-2-1912C003 Page 179 of 221 Test Mode UNII-1_TX AC (VHT80) Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 42 5210 82.00 75.60 CH42 Report No.: BTL-FCCP-2-1912C003 Page 180 of 221 Test Mode UNII-3_TX AC (VHT20) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 149 5745 13.85 18.00 500 Complies 157 5785 14.50 18.00 500 Complies 165 5825 15.15 18.00 500 Complies CH149 CH157 CH165 6 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-1912C003 Page 181 of 221 Test Mode UNII-3_TX AC (VHT40) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 151 5755 35.30 37.40 500 Complies 159 5795 35.40 37.40 500 Complies CH151 CH159 6 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-1912C003 Page 182 of 221 Test Mode UNII-3_TX AC (VHT80) Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 155 5775 75.59 80.80 500 Complies CH155 6 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-1912C003 Page 183 of 221 APPENDIX F - MAXIMUM OUTPUT POWER Report No.: BTL-FCCP-2-1912C003 Page 184 of 221 Non-Beamforming Test Mode UNII-1_TX A Mode_Ant. 1 Channel Frequency (MHz) Conducted Output Power (dBm) Duty Factor Conducted Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 18.13 0.91 19.04 30.00 1.00 Complies 40 5200 18.17 0.91 19.08 30.00 1.00 Complies 48 5240 18.28 0.91 19.19 30.00 1.00 Complies Test Mode UNII-1_TX A Mode_Ant. 2 Channel Frequency (MHz) Conducted Output Power (dBm) Duty Factor Conducted Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 18.07 0.91 18.98 30.00 1.00 Complies 40 5200 18.04 0.91 18.95 30.00 1.00 Complies 48 5240 18.16 0.91 19.07 30.00 1.00 Complies Test Mode UNII-1_TX A Mode_Total Channel Frequency (MHz) Conducted Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 22.02 30.00 1.00 Complies 40 5200 22.03 30.00 1.00 Complies 48 5240 22.14 30.00 1.00 Complies Report No.: BTL-FCCP-2-1912C003 Page 185 of 221 Test Mode UNII-3_TX A Mode_Ant. 1 Channel Frequency (MHz) Conducted Output Power (dBm) Duty Factor Conducted Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 149 5745 18.38 0.91 19.29 30.00 1.00 Complies 157 5785 18.46 0.91 19.37 30.00 1.00 Complies 165 5825 18.09 0.91 19.00 30.00 1.00 Comp…
