TE7BS1001Groovi Ripple

TP-LINK Groovi Ripple Portable Bluetooth Speaker BS1001 User Manual Caution: 1) Photos are for reference only, actual product may vary! 2) TP-LINK is committed to improving product quality and performance, but product technology and design are subject to change without prior notice . TP-LINK Groovi Ripple Portable Bluetooth Speaker BS1001 User Manual Caution: 1) Photos are for reference only, actual product may vary! 2) TP-LINK is committed to improving product quality and performance, but product technology and design are subject to change without prior notice . CONTENTS IN THE BOX: 1. BS1001: 2.USB charging cable 3. Manual4. Guarantee card Important safety instructions: 1. Please carefully read and follow the safety instructions before using the product. 2. Please avoid leaving the product in a damp environment, exposing it to sunlight, or placing it near re. 3. Please do not use the product near water. 4. Please do not place the product near heat-generating appliances such as a radiator, air conditioner, or stove. 5. Please use the recommended power voltage. 6. Please do not disassemble the product without authorization. 7. Explosion may occur if battery is replaced incorrectly. Please replace battery only with the same or equivalent type. 8. Please avoid leaving the product exposed to sunlight, rain, water droplets, or a hot or moist environment. 9. Please enjoy the music at an appropriate volume to protect your health and sound equipment. 10. Please unplug the charging cable when it is not in use. PRODUCT DESCRIPTION: Indicate led 1 Power button 2 Vol+ button 3 Vol- button 4 Micro USB charging port 5 3.5 mm audio input interface 3.5mm 6 1 2 43 65 TECHNICAL DATA: Output power: 3.5W Distortion: ≤1% Frequency response: 120Hz~20KHz SNR: >65dB Speaker unit: 4Ω Power input: USB/DC 5V Sensitivity: 600mV Product size: 88 x 88 x 41mm Recharging Battery: 1. This product has a built-in rechargeable lithium battery. Please connect the USB charging cable to a workable USB port (a PC/Mac or a USB power adapter). 2. When the battery is low, the red power indicator will turn on. 3. When the speaker is being recharged, the red power indicator truns on. When the recharging is completed, the indicator will turn off. 4. When the battery is completely discharged, the product cannot be turned on before being recharged for a while. The Speaker Paired with a Bluetooth Device (First Connection): 1. Make sure that the product has sucient power or has been connected to power. 2. Short Press the power button. 3. The blue power indicator turns on and the Bluetooth pairing blue indicator ashes. 4. Start the Bluetooth device (for example, a mobile phone) to searching mode (just as you would when searching for a new Bluetooth device on the phone) 5. “Groovi Ripple” is displayed in the list of Bluetooth devices. 6. Select “Groovi Ripple”. Enter “0000” if prompted to enter a pairing code. 7. The blue LED stops blinking and stays blue. This indicates a successful pairing. 8. Check the Bluetooth device to make sure that the connection is successful. 9. Press the power button to turn off the product. The product will shut down automatically after 30 minutes if no audio input is received. ATTENTION: ● To connect the product to another Bluetooth device, you must rst disconnect the current Bluetooth connection. Long Press Power button to enter a new device searching and pairing mode. ● When the product is restarted, it will automatically reconnect to the previously paired device by default. If the automatic connection fails, you need to do the connection manually. AUX IN Mode Operation Instructions: 1. Insert one end of a 3.5 mm stereo audio cable into the “Aux in” interface on the back of this product. 2. Put the other end of the stereo audio cable into the headphone jack of an external audio device.

TP-LINK Technologies Co., Ltd. Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park, Nanshan Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd. Columbia, MD Attention: Reviewing Engineering Reference: Model #: FCC ID: BS1001 TE7BS1001 Description of USB port Dear Sir/Madam: The BM8615 of MCU at pins 39 and 40 connect to Mini USB port, USB port is only used for manufacturer software upgrade, for the end-user, only to used for charging the internal battery or operational electrical power, there is no function of information transmission to connect computer peripheral device. Sincerely, TP-LINK Technologies Co., Ltd. Signature: Yongquan Wang/ Product Dept. Manager Typed name and Title

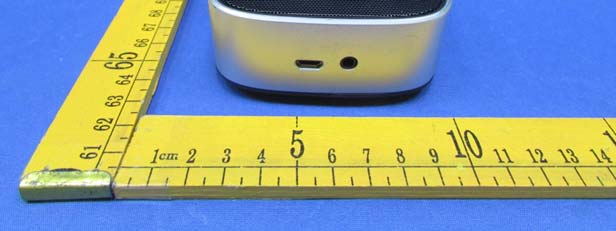

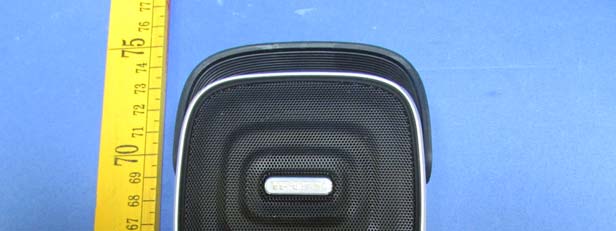

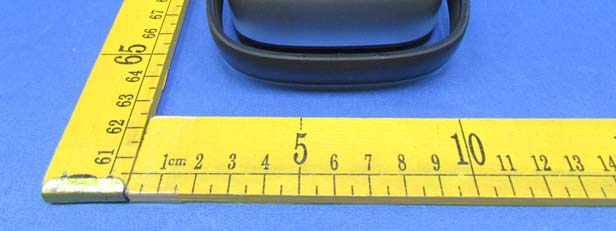

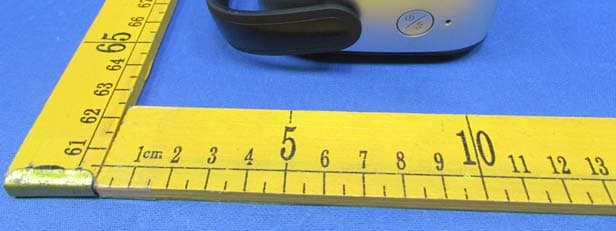

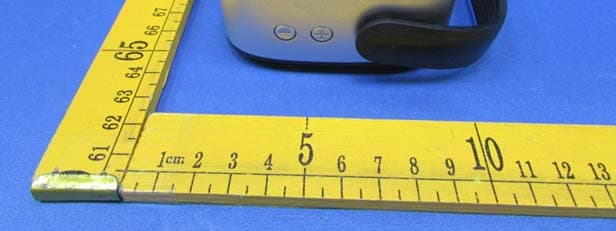

Reference No.: WTD15S0729644E Waltek Services (Shenzhen) Co.,Ltd. http://www.w altek.com.cn 19 Photographs - Constructional Details 19.1 Model BS1001 External View Reference No.: WTD15S0729644E Waltek Services (Shenzhen) Co.,Ltd. http://www.w altek.com.cn Reference No.: WTD15S0729644E Waltek Services (Shenzhen) Co.,Ltd. http://www.w altek.com.cn

FCC/IC Label Location for model: BS1001 The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable.

FCC/IC Label Location for model: BS1001 The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable.

Reference No.: WTD15S0729644E Waltek Services (Shenzhen) Co.,Ltd. http://www.w altek.com.cn 19.2 Model BS1001 Internal View Reference No.: WTD15S0729644E Waltek Services (Shenzhen) Co.,Ltd. http://www.w altek.com.cn ANT Reference No.: WTD15S0729644E Waltek Services (Shenzhen) Co.,Ltd. http://www.w altek.com.cn Bluetooth Mo dule Reference No.: WTD15S0729644E Waltek Services (Shenzhen) Co.,Ltd. http://www.w altek.com.cn Reference No.: WTD15S0729644E Waltek Services (Shenzhen) Co.,Ltd. http://www.w altek.com.cn

TEST REPORT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 73 Reference No. .................... : WTD15S0729644E FCC ID ................................ : TE7BS1001 Applicant ............................ : TP-LINK Technologies Co., Ltd. Address .............................. : Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park, Nanshan, Shenzhen, China Manufacturer .................... : Shenzhen 3nod Digital Technology Co., Ltd. Address .............................. : Building D Park 8# Langhui Road Tangxiayong Village, Industrial Zone Songgang Town, Baoan District, Shenzhen City, China. Product Name .................... : Groovi Ripple Model No. ........................... : BS1001 Standards........................... : FCC CFR47 Part 15 Section 15.247:2014 Date of Receipt sample .... : Jul. 07, 2015 Date of Test ....................... : Jul. 08 - 14, 2015 Date of Issue ...................... : Jul. 16, 2015 Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Tel :+86-755-83551033 Fax:+86-755-83552400 Compiled by: Approved by: Zero Zhou / Project Engineer Philo Zhong / Manager Reference No.: WTD15S0729644E Page 2 of 73 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 2 Test Summary Test Items Test Requirement Result Conduct Emission 15.207 PASS Radiated Spurious Emissions 15.205(a) 15.209 15.247(d) PASS Band edge 15.247(d) 15.205(a) PASS 20dB Bandwidth 15.247(a)(1) PASS 6dB Bandwidth 15.247(a)(2) PASS Maximum Peak Output Power 15.247(b)(1) PASS Power Spectral Density 15.247(e) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Reference No.: WTD15S0729644E Page 3 of 73 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE ...................................................................................................................................... 1 2 TEST SUMMARY ............................................................................................................................................. 2 3 CONTENTS ....................................................................................................................................................... 3 4 GENERAL INFORMATION ............................................................................................................................. 5 4.1 GENERAL DESCRIPTION OF E.U.T. .......................................................................................................... 5 4.2 DETAILS OF E.U.T. .................................................................................................................................... 5 4.3 CHANNEL LIST ............................................................................................................................................ 5 4.4 TEST MODE ................................................................................................................................................ 6 4.5 TEST FACILITY ............................................................................................................................................ 6 5 EQUIPMENT USED DURING TEST ............................................................................................................. 7 5.1 EQUIPMENTS LIST ...................................................................................................................................... 7 5.2 DESCRIPTION OF SUPPORT UNITS ............................................................................................................ 8 5.3 MEASUREMENT UNCERTAINTY .................................................................................................................. 8 5.4 TEST EQUIPMENT CALIBRATION ................................................................................................................ 8 6 CONDUCTED EMISSION ............................................................................................................................... 9 6.1 E.U.T. OPERATION .................................................................................................................................... 9 6.2 EUT SETUP ................................................................................................................................................ 9 6.3 MEASUREMENT DESCRIPTION ................................................................................................................... 9 6.4 CONDUCTED EMISSION TEST RESULT .................................................................................................... 10 7 RADIATED SPURIOUS EMISSIONS .......................................................................................................... 12 7.1 EUT OPERATION ...................................................................................................................................... 12 7.2 TEST SETUP ............................................................................................................................................. 13 7.3 SPECTRUM ANALYZER SETUP ................................................................................................................. 14 7.4 TEST PROCEDURE .............................................................................................................................…

Text truncated - open the document above for the full version.

Reference No.: WTD15S0729644E Waltek Services (Shenzhen) Co.,Ltd. http://www.w altek.com.cn 18 Photographs – Model BS1001 Test Setup 18.1 Photograph – Conducted Emission Test Setup at Test Site 1# 18.2 Photograph – Radiation Spurious Emission Test Setup Below 30MHz at Test Site 2# Reference No.: WTD15S0729644E Waltek Services (Shenzhen) Co.,Ltd. http://www.w altek.com.cn 30M Hz-1GHz at Test Site 2# Above 1GHz at Test Site 1#
