TE7C9V2AC1900 Wireless Dual Band Gigabit Router

Archer C9 AC1900 Wireless Dual Band Gigabit Router REV2.0.0 1910011382 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2015 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1） This device may not cause harmful interference. 2） This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a s eparation distance of at least 21 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications 5150-5250 MHz Country Restriction Reason/remark Bulgaria Not implemented Planned Croatia License required Italy General authorization required if used outside own premises Luxembourg None General authorization required for network and service supply (not for spectrum) Russian Federation No info 5250-5350 MHz Country Restriction Reason/remark Bulgaria Not implemented Planned Croatia License required Italy General authorization required if used outside own premises Luxembourg None General authorization required for network and service supply (not for spectrum) Russian Federation No info 5470-5725 MHz Country Restriction Reason/remark Bulgaria Not implemented Planned France Relevant+ provisions for the implementation of DFS mechanism described in ETSI standard EN 301 893 V1.3.1 and subsequent versions Italy General authorization required if used outside own premises Luxembourg None General authorization required for network and service supply (not for spectrum) Russian Federation No info Turkey Not implemented Defence systems Note: Please don’t use the product outdoors in France. Canadian Compliance Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2)This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas provoquer d’interférences et (2) cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un fonctionnement non souhaité de l’appareil. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communicatio…

Text truncated - open the document above for the full version.

FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRd ColumbiaMD21046-1609 Date:November11,2015 Subject:FCCApplicationforFCCID:TE7C9V2 ToWhomitmayconcern, We,theundersigned,wouldliketodeclarethatthecompositeportioncatagorizedascomputerperipheralhas beenauthorizedundertheDeclarationofConformityprocedures. Applicant:TP-LinkTechnologiesCo.,Ltd. Address: Building24(floors1,3,4,5)and28(floors1-4),CentralScienceand TechnologyPark,NanshanShenzhen,China518057 Signature: _________________________________ NameandJobTitle.:YongquanWang/ProductDept.Manager E-mail:[email protected] Tel.:86-755-26525554

Date:November11,2015 Subject:AdHocModeFunctionDeclaration FCCID:TE7C9V2 ToWhomitmayconcern, We,TP-LINKTECHNOLOGIESCO.,LTD.,declarethatthedevice(FCCID:TE7C9V2) 1.canbeoperatedasmasterandslavewithAdHocMode(limitedtooperateonUS/Canadafrequencies only)supportedwithinfollowingfrequencybands: a.802.11bgn(2412~2462MHz ； 2422~2452MHz) b.5GBand1:5180~5240MHz ； 5190~5230MHz ； 5250MHz c.5GBand4:5745~5825MHz；5755~5795MHz；5775MHz 2.isnotabletooperateonnon-US/Canadafrequencies,countrycodeselectionwillbedisabledforthis device. Pleasecontacttheonesignedbelowortheauthorizedagentforthisfiling.Thankyou. Regards, Applicant:TP-LINKTECHNOLOGIESCO.,LTD. Address: Building24(floors1,3,4,5)and28(floors1-4),CentralScienceand TechnologyPark,NanshanShenzhen,China518057 Signature: NameandJobTitle.:YongquanWang/ProductDept.Manager E-mail:[email protected] Tel.:86-755-26525554

ConfidentialityRequestLetter Date:2015/11/11 FederalCommunicationsCommission AuthorizationandEvaluationDivision FCCID：TE7C9V2 PermanentConfidentialityRequest PursuanttoSections0.457and0.459oftheCommission’sRules,theApplicantHereby requestsconfidentialtreatmentofinformationaccompanyingthisApplicationAsoutlined below: 1.BlockDiagram 2.CircuitDiagram 3.OperationalDescription Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarily releasedtothepublic.ThepublicdisclosureofthesemattersmightbeharmfultotheApplicant andprovideunjustifiedbenefitstoitscompetitors. TheApplicantunderstandsthatpursuanttoRule0.457,disclosureofthisApplicationandall accompanyingdocumentationwillnotbemadebeforethedateoftheGrantforthisapplication Sincerely, Applicant’scompanyname:TP-LinkTechnologiesCo.,Ltd. Applicant’scompanyaddress: Building24(floors1,3,4,5)and28(floors1-4),Central ScienceandTechnologyPark,NanshanShenzhen,China 518057 Signature: _________________________________ JobTitleandDept.:YongquanWang/ProductDept.Manager E-mail:[email protected] Tel.:86-755-26525554

Date:2015/11/11 FederalCommunicationsCommission 7435OaklandMillsRd ColumbiaMD21046-1609 Subject:ProductCertificationRepresentativeAuthorizationLetter FCCID:TE7C9V2 Productname:AC1900WirelessDualBandGigabitRouter Towhomitmayconcern: Wetheundersigned,herebyauthorizefollowingpersontoactasouragentinthepreparationofanapplication forequipmentauthorizationofmodelArcherC9totheFCCRulesandRegulations. SportonInternationalInc. Address: No.52,HwaYa1stRd.,HwaYaTechnologyPark,Kwei-ShanDistrict, TaoYuanCity,Taiwan,R.O.C. Name:KevinLiang JobTitle:ViceManager e-mail:[email protected] Wefurthercertifiesthatneithertheapplicantnoranypartytothisapplication,asdefinedin47CFRCh. 1.2002(b),issubjecttoadenialtoFederalbenefits,thatincludeFCCbenefits,pursuanttosection5301ofthe Anti-DrugAbuseActof1998,21U.S.C.835(a). ThisappointmentalsoincludestheauthoritytocompleteFCCForm731onourbehalfandsignthe applicationasanauthorizedagent. Applicant:TP-LinkTechnologiesCo.,Ltd. Address :Building24(floors1,3,4,5)and28(floors1-4),CentralScienceand TechnologyPark,NanshanShenzhen,China518057 Signature: _________________________________ NameandJobTitle.:YongquanWang/ProductDept.Manager E-mail:[email protected] Tel.:86-755-26525554

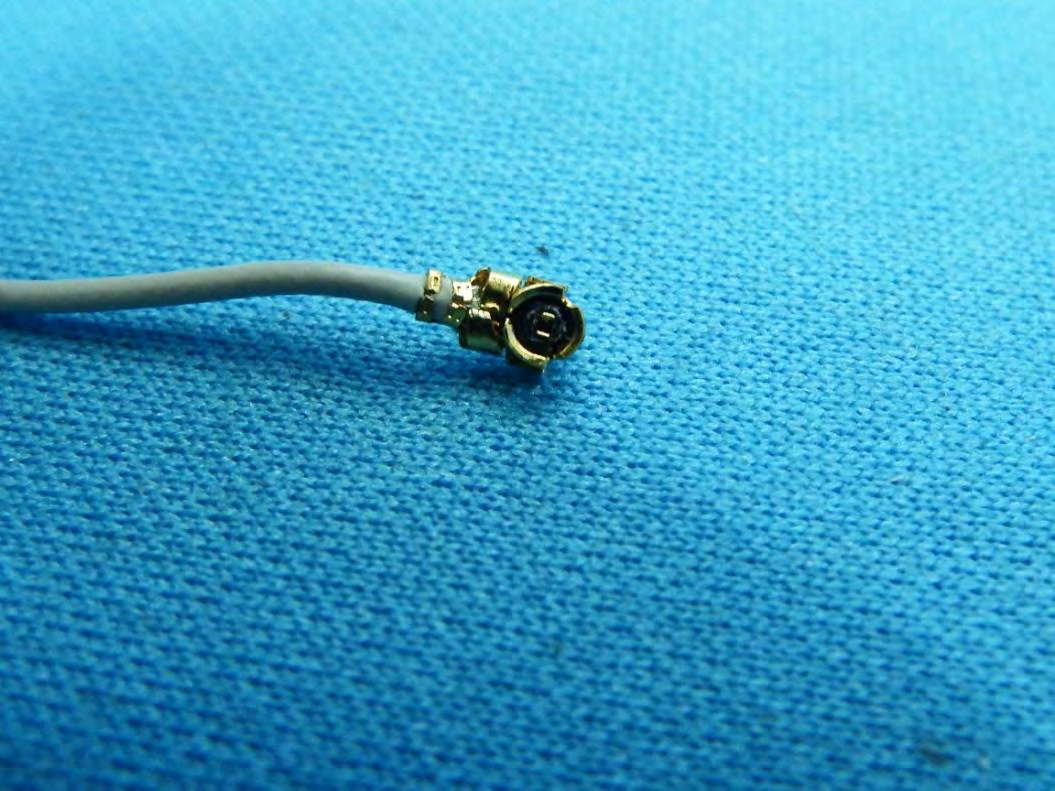

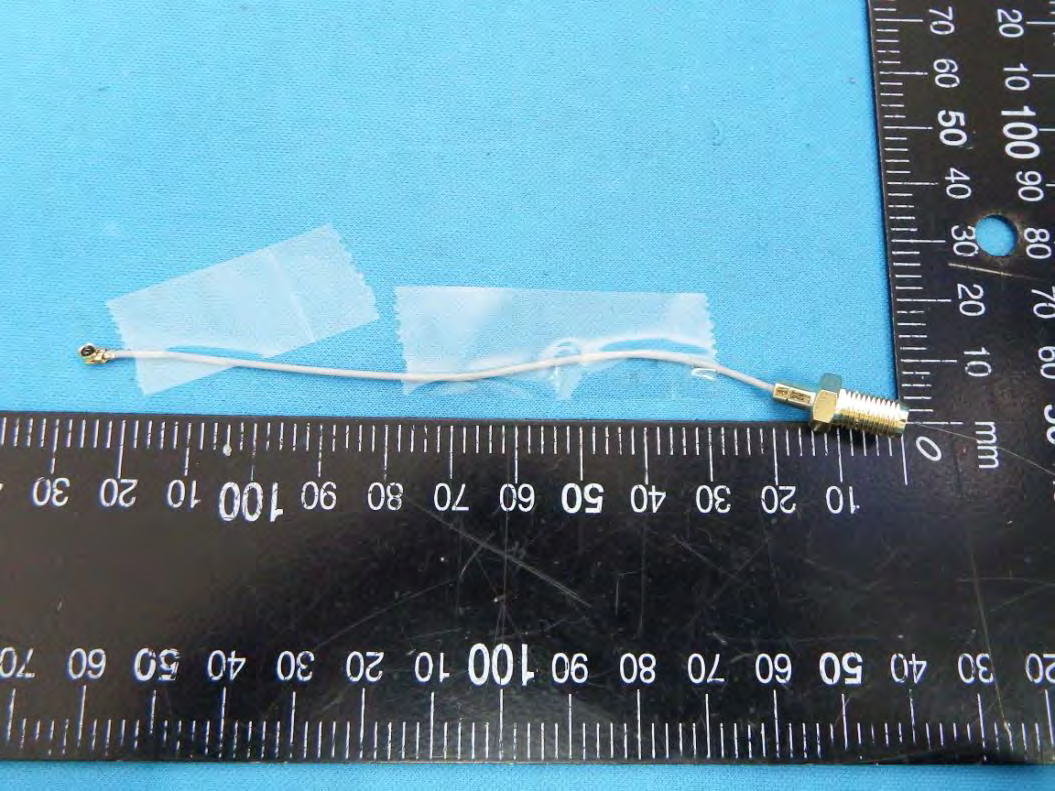

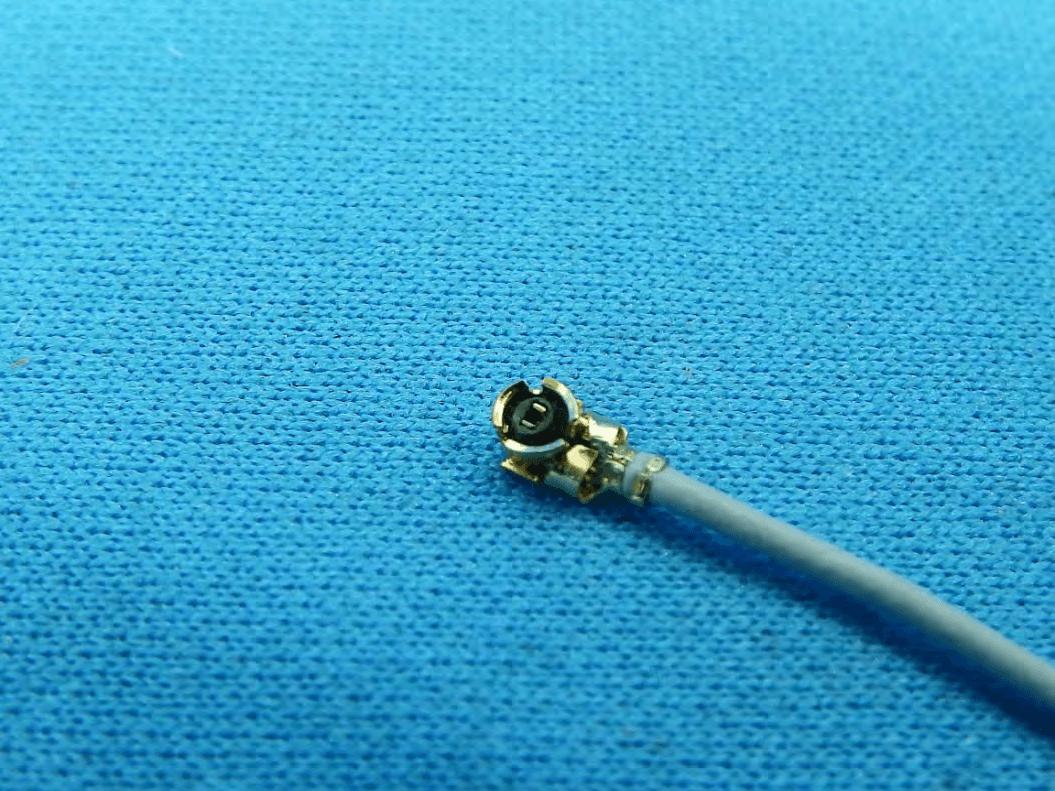

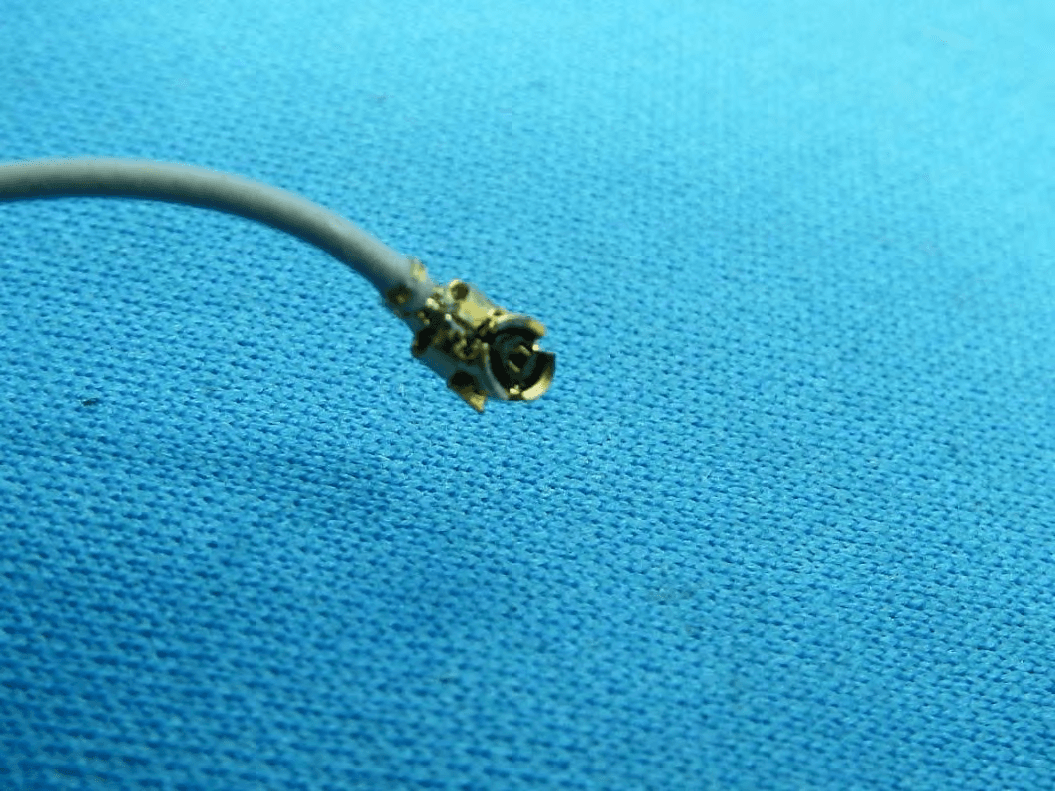

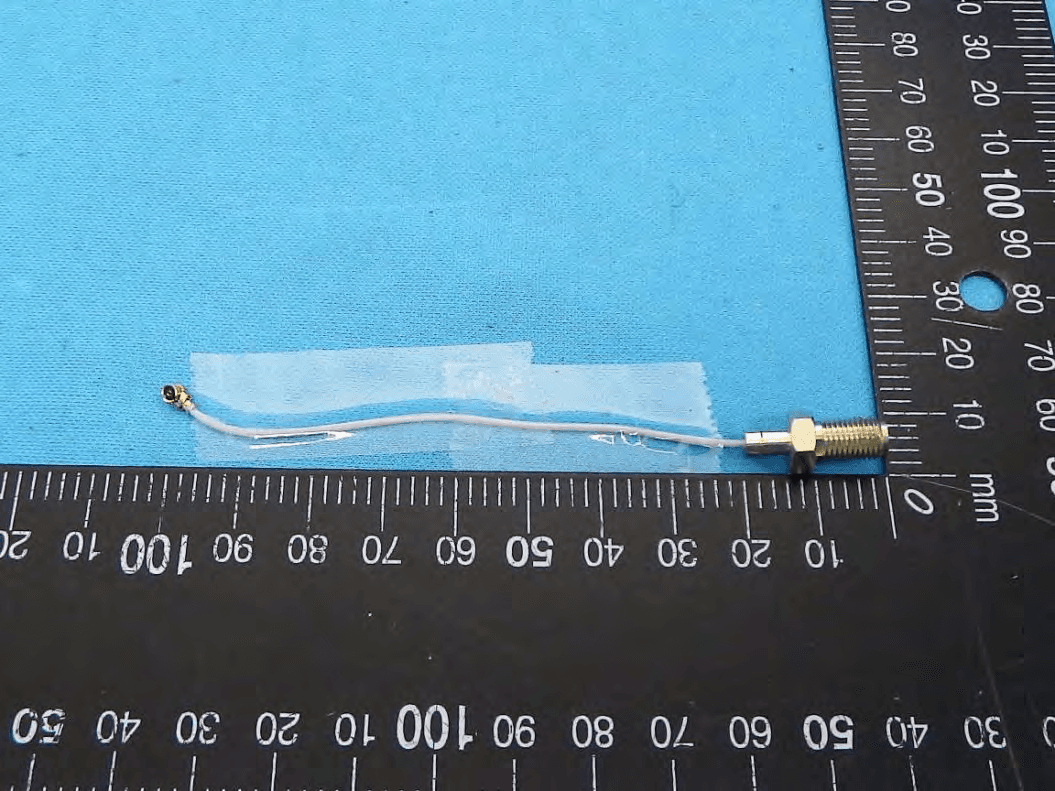

Report No. : EP580516 SPORTON International Inc. Page Number : B1 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT Report No. : EP580516 SPORTON International Inc. Page Number : B2 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP580516 SPORTON International Inc. Page Number : B3 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP580516 SPORTON International Inc. Page Number : B11 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP580516 SPORTON International Inc. Page Number : B13 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP580516 SPORTON International Inc. Page Number : B14 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP580516 SPORTON International Inc. Page Number : B15 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP580516 SPORTON International Inc. Page Number : B16 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP580516 SPORTON International Inc. Page Number : B17 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP580516 SPORTON International Inc. Page Number : B18 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

Report No. : EP580516 SPORTON International Inc. Page Number : B4 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP580516 SPORTON International Inc. Page Number : B5 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP580516 SPORTON International Inc. Page Number : B6 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP580516 SPORTON International Inc. Page Number : B7 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP580516 SPORTON International Inc. Page Number : B8 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP580516 SPORTON International Inc. Page Number : B9 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP580516 SPORTON International Inc. Page Number : B10 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP580516 SPORTON International Inc. Page Number : B11 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

Maximum Permissible Exposure Report No. : FA580516 SPORTON INTERNATIONAL INC. Page No. : 1 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Maximum Permissible Exposure Equipment : AC1900 Wireless Dual Band Gigabit Router Brand Name : TP-LINK Model No. : Archer C9 FCC ID : TE7C9V2 Standard : ANSI/IEEE C95.1 Applicant Manufacturer : TP-LINK TECHNOLOGIES CO., LTD. Building 24 (floors 1,3,4,5) and 28 (floors1-4) Central Science and Technology Park,Shennan Rd, Nanshan, Shenzhen,China The product sample received on Aug. 05, 2015 and completely tested on Sep. 15, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI/IEEE C95.1 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Kevin Liang / Assistant Manager Maximum Permissible Exposure Report No. : FA580516 SPORTON INTERNATIONAL INC. Page No. : 2 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 HUMAN EXPOSURE ASSESSMENT ................................................................................................... 4 1.1 Maximum Permissible Exposure ............................................................................................................ 4 Maximum Permissible Exposure Report No. : FA580516 SPORTON INTERNATIONAL INC. Page No. : 3 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FA580516 Rev. 01 Initial issue of report Nov. 12, 2015 Maximum Permissible Exposure Report No. : FA580516 SPORTON INTERNATIONAL INC. Page No. : 4 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   Maximum Permissible Exposure Report No. : FA580516 SPORTON INTERNATIONAL INC. Page No. : 5 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure RF General Information 2400 MHz – 2483.5 MHz Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) Co-location 2400-2483.5 b 2412-2462 1-11 [11] 3 29.95 Ye s 2400-2483.5 g 2412-2462 1-11 [11] 3 29.72 Yes 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 3 29.36 Yes 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 3 22.98 Yes Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) RF General Information 5150~5250MHz (non-beamforming) Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5150-5250 a 5180-5240 36-48 [4] 3 25.45 Yes 5150-5250 n (HT20) 5180-5240 36-48 [4] 3 26.16 Yes 5150-5250 n (HT40) 5190-5230 38-46 [2] 3 26.51 Yes 5150-5250 ac (VHT20) 5180-5240 36-48 [4] 3 26.11 Yes 5150-5250 ac (VHT40) 5190-5230 38-46 [2] 3 26.59 Yes 5150-5250 ac (VHT80) 5210 42 [1] 3 18.80 Yes Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) RF General Information 5725 MHz – 5850 MHz (non-beamforming) Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5725-5850 a 5745-5825 149-165 [5]3 29.95 Yes 5725-5850 n(HT20) 5745-5825 149-165 [5]3 29.94 Yes 5725-5850 n(HT40) 5755-5795 151-159 [2]3 29.73 Yes 5725-5850 ac(VHT20) 5745-5825 149-165 [5]3 29.91 Yes 5725-5850 ac(VHT40) 5755-5795 151-159 [2]3 29.77 Yes 5725-5850 ac(VHT80) 5775 155 [1] 3 27.45 Yes Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Maximum Permissible Exposure Report No. : FA580516 SPORTON INTERNATIONAL INC. Page No. : 6 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF General Information 5150~5250MHz (beamforming) Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 5150-5250 ac (VHT20…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR580516 SPORTON INTERNATIONAL INC. Page No. : 1 of 12 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 CO-LOCATION 1.1 Transmitter Radiated Unwanted Emissions 1.1.1 Transmitter Radiated Unwanted Emissions Limit Restricted Band Emissions Limit Frequency Range (MHz) Field Strength (uV/m) Field Strength (dBuV/m) Measure Distance (m) 0.009~0.490 2400/F(kHz) 48.5 - 13.8 300 0.490~1.705 24000/F(kHz) 33.8 - 23 30 1.705~30.0 30 29 30 30~88 100 40 3 88~216 150 43.5 3 216~960 200 46 3 Above 960 500 54 3 Note 1: Test distance for frequencies at or above 30 MHz, measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 30 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Note 2: Test distance for frequencies at below 30 MHz, measurements may be performed at a distance closer than the EUT limit distance; however, an attempt should be made to avoid making measurements in the near field. When performing measurements below 30 MHz at a closer distance than the limit distance, the results shall be extrapolated to the specified distance by either making measurements at a minimum of two or more distances on at least one radial to determine the proper extrapolation factor or by using the square of an inverse linear distance extrapolation factor (40 dB/decade). The test report shall specify the extrapolation method used to determine compliance of the EUT. Un-restricted Band Emissions Limit RF output power procedure Limit (dB) Peak output power procedure 20 Average output power procedure 30 Note 1: If the peak output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the peak conducted output power measured within any 100 kHz outside the authorized frequency band shall be attenuated by at least 20 dB relative to the maximum measured in-band peak PSD level. Note 2: If the average output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the power in any 100 kHz outside of the authorized frequency band shall be attenuated by at least 30 dB relative to the maximum measured in-band average PSD level. 1.1.2 Measuring Instruments Refer a test equipment and calibration data table in this test report. FCC Test Report Report No. : FR580516 SPORTON INTERNATIONAL INC. Page No. : 2 of 12 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Test Procedures Test Method Measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). The average emission levels shall be measured in [duty cycle ≥ 98 or duty factor]. For the transmitter unwanted emissions shall be measured using following options below: Refer as FCC KDB 558074, clause 11 for unwanted emissions into non-restricted bands. Refer as FCC KDB 558074, clause 12 for unwanted emissions into restricted bands. Refer as FCC KDB 558074, clause 12.2.5.1 and 9.2.1 Option 1 (spectral trace averaging) Refer as FCC KDB 558074, clause 12.2.5.2 and 9.2.1 Option 2 (slow sweep speed). Refer as ANSI C63.10, clause 4.1.4.2.3 (Reduced VBW). VBW ≥ 1/T, where T is pulse time. Refer as ANSI C63.10, clause 4.1.4.2.4 average value of pulsed emissions. Refer as FCC KDB 558074, clause 12.2.4 and 9.1.1 measurement procedure peak limit. Refer as FCC KDB 558074, clause 12.2.3 measurement procedure Quasi-Peak limit. For radiated measurement, refer as FCC KDB 558074, clause 12.1. Refer as ANSI C63.10, clause 6.4 for radiated emissions below 30 MHz and test distance is 3m. Refer as ANSI C63.10, clause 6.5 for radiated emissions 30 MHz to 1 GHz and test distance is 3m. Refer as ANSI C63.10, clause 6.6 for radiated emissions above 1 GHz and test distance is 3m. For conducted and cabinet radiation measurement, refer as FCC KDB 558074, clause 12.2.2. For conducted unwanted emissions into non-restricted bands (relative emission limits). Devices with multiple transmit chains: Refer as FCC KDB 662911, when testing out-of-band and spurious emissions against relative emission limits, tests may be performed on each output individually without summing or adding 10 log(N) if the measurements are made relative to the in-band emissions on the individual outputs. For conducted unwanted emissions into restricted bands (absolute emission limits). Devices with multiple transmit chains using options given below: (1) Measure and sum the spectra across the outputs or (2) Measure and add 10 log(N) dB FCC Test Report Report No. : FR580516 SPORTON INTERNATIONAL INC. Page No. : 3 of 12 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Test Setup Transmitter Radiated Unwanted Emissions (below 1GHz) Magnetic field tests shall be performed in the frequency range of 9 kHz to 30 MHz using a calibrated loop antenna. Electric field tests shall be performed in the frequency range of 30 MHz to 1000 MHz using a calibrated bi-log antenna. Transmitter Radiated Unwanted Emissions (Above 1GHz) Electric field tests shall be performed in the frequency range of 1 GHz to 10th harmonic of highest fundamental frequency or 40 GHz using a calibrated horn antenna. Note: FCC’s permission to use 1.5m as an a…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR580516AN SPORTON INTERNATIONAL INC. Page No. : 1 of 87 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : AC1900 Wireless Dual Band Gigabit Router Brand Name : TP-LINK Model No. : Archer C9 FCC ID : TE7C9V2 Standard : 47 CFR FCC Part 15.407 Operating Band : 5150 MHz – 5250 MHz FCC Classification : NII Applicant Manufacturer : TP-LINK TECHNOLOGIES CO., LTD. Building 24 (floors 1,3,4,5) and 28 (floors1-4) Central Science and Technology Park,Shennan Rd, Nanshan, Shenzhen,China Function : Outdoor AP Fixed P2P AP Indoor AP Portable Client The product sample received on Aug. 05, 2015 and completely tested on Sep. 16, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Kevin Liang / Assistant Manager FCC Test Report Report No. : FR580516AN SPORTON INTERNATIONAL INC. Page No. : 2 of 87 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 8 1.3 Testing Applied Standards ..................................................................................................................... 9 1.4 Testing Location Information .................................................................................................................. 9 1.5 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION OF EUT ....................................................................................................... 11 2.1 The Worst Case Modulation Configuration .......................................................................................... 11 2.2 The Worst Case Power Setting Parameter .......................................................................................... 12 2.3 The Worst Case Measurement Configuration ...................................................................................... 13 2.4 Test Setup Diagram ............................................................................................................................. 14 3 TRANSMITTER TEST RESULT .......................................................................................................... 17 3.1 AC Power-line Conducted Emissions .................................................................................................. 17 3.2 Emission Bandwidth ............................................................................................................................. 22 3.3 RF Output Power .................................................................................................................................. 25 3.4 Peak Power Spectral Density ............................................................................................................... 29 3.5 Transmitter Bandedge Emissions ........................................................................................................ 33 3.6 Transmitter Unwanted Emissions ......................................................................................................... 37 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 86 A PPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR580516AN SPORTON INTERNATIONAL INC. Page No. : 3 of 87 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Result 1.1.2 15.203 Antenna Requirement Complied 3.1 15.207 AC Power-line Conducted Emissions Complied 3.2 15.407(a) Emission Bandwidth Complied 3.3 15.407(a) RF Output Power (Maximum Conducted Output Power) Complied 3.4 15.407(a) Peak Power Spectral Density Complied 3.5 15.407(b) Transmitter Bandedge Emissions Complied 3.6 15.407(b) Transmitter Unwanted Emissions Complied 3.6.9 15.407(g) Frequency Stability Complied FCC Test Report Report No. : FR580516AN SPORTON INTERNATIONAL INC. Page No. : 4 of 87 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR580516AN Rev. 01 Initial issue of report Nov. 12, 2015 FCC Test Report Report No. : FR580516AN SPORTON INTERNATIONAL INC. Page No. : 5 of 87 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information (non-beamforming) Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5150-5250 a 5180-5240 36-48 [4] 3 25.45 Yes 5150-5250 n (HT20) 5180-5240 36-48 [4] 3 26.16 Yes 5150-5250 n (HT40) 5190-5230 38-46 [2] 3 26.51 Yes 5150-5250 ac (VHT20) 5180-5240 36-48 [4] 3 26.11 Yes 5150-5250 ac (VHT40) 5190-5230 38-46…

Text truncated - open the document above for the full version.
