Installation Guide Outdoor CPE CPE210 / CPE220 / CPE510 / CPE520 CONTENTS Hardware Connection Overview Software Configuration Antenna Alignment Specifications Frequently Asked Questions (FAQ) Site Consideration 1 3 5 6 7 8 11 12 13 Ethernet Cable Selection Connection and Installation Lightning & ESD Protection Login to Pharos 1 Overview • Package Contents Pharos CPEPassive PoE Adapter Pole Mounting Straps Installation Guide Power Cord TP-LINK's Pharos series outdoor CPEs are dedicated to remote point- to-point connection. This guide is applicable to products including CPE210, CPE220, CPE510 and CPE520. Installation Guide Outdoor CPE CPE210 / CPE220 / CPE510 / CPE520 TERMS OF USE: TP-LINK's Pharos series outdoor CPEs must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable is designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements. 2 • Panel Layout Grouding Terminal Pharos CPE: Passive PoE Adapter: Shielded Ethernet Port LAN0 (Passive PoE in) RESET LANPOERemote Reset Shielded Ethernet Port LAN1 Power LED The Power LED indicates the electricity current situation: green (0~0.8A), red (0.8A~1A). 3 Hardware Connection • Mounting Height 1. Site Consideration Ensure a clear line of sight between the wireless devices for an optimum performance. An elevated location is recommended as obstacles like trees, buildings and large steel structures will weaken the wireless signal. See Q2 in FAQ for details about how to calculate the minimum mounting height of the devices. line of sight Side View RESET 4 • Orientation Install the CPE devices with their fronts facing the signal receivers. You can orient the devices with the assistance of Google Map, GPS and some landmarks according to the horizontal beamwidth listed below. A shenzhen B line of sight Horizontal Beamwidth ModelsCPE210CPE220CPE510CPE520 Horizontal Beamwidth65°45°45°50° 5 2. Ethernet Cable Preparation 1. Select the adequate type of Ethernet cable. The shielded CAT5e cable with ground wire (refer to the figure below) is prior to the general shielded CAT5e cable during the whole cabling. The former can more effectively protect your devices against ESD attacks under brutal outdoor environment. Shielded CAT5e Cable with Ground Wire Twisted Pair Ground Wire Shielded RJ45 Connector Secondary Cable Shield Cable Shield Sheath 2. Review the routes of connecting the POE Adapter to the CPE and evaluate the Ethernet cable length for all the connections, then prepare adequate Ethernet cable. 6 3. Connection and Installation At the selected site, approximately align the CPE to the direction that you have oriented. Please connect and install the device as shown in the figure below. The product is suitable for indoor installation. Connect the PoE Adapter to a power outlet with the power cord. Connect the LAN port of the PoE Adapter to a computer, router or switch. Connect the LAN0 (POE IN) port of the CPE to the PoE port of the PoE Adapter. Power over Ethernet up to 60m Slide to replace the cover of the CPE when all connections are finished. This device complies with part 15 o f the FCC R ules. O peration is subject t o the following t wo conditions: ( 1) T his device m ay not cause harmful i nterference, and ( 2) t his device m ust accept any i nterference r eceived, including interference that may cause undesired operation. FCC ID:TE7CPE510 MADE IN CHINA IC:8853A-CPE510 Default Settings: IP: 192.168.0.254 Username: admin Password: admin Model: CPE510 Power: 24V 1 A 5 GHz 300Mbps 13dBi Outdoor CPE 5734 Fasten the CPE with the provided Pole Mounting Straps to a pole or mounting bracket. 7 4. Lightning & ESD Protection Proper grounding is extremely important for outdoor devices. Pharos CPEs provide two methods to protect the devices from damage of lightning and ESD attacks as shown in the figure below. Shielded CAT5e Cable with Ground Wire & PoE Adapter with Earth Ground Grounding Terminal and Cable CPE Shielded CAT5e Cable with Ground Wire PoE Adapter with Earth Ground Grounding Terminal Grounding Cable Earth Ground Two Methods: 2 2 1 1 1 1 In most cases, adopting either of the two methods can be adequate, but adopting both of them can offer more effective protection. 8 1. Login to PharOS 1. Before accessing the PharOS Web Interface, you need to assign a static IP address 192.168.0.x (2≤x≤253) to your computer. We use 192.168.0.10 as an example in the figure below. This chapter introduces the login to the Pharos Web Interface and the software configurations to implement Point-to-Point application. Software Configuration 9 2. Open your web browser, type 'http://192.168.0.254' in the address field and press 'Enter'. It is recommended to use the latest version of Google Chrome, Safari or Firefox. 3. The 'Login' page will appear, set the parameters as below. • Username: admin • Password: admin • Region: select according to your country/region • Select 'I agree to these terms of use' • Click 'Login' 4. At the first login, change the 'Password' for safety. For subsequent logins, you only need to enter the username and password that you have set to log in. 10 5. Then you will log in to the PharOS Web Interface and see the Status page, shown as the figure below. 11 Antenna Alignment In order to get the best performance, you can precisely align the direction of the CPE with the assistance of 'Wireless Signal Quality' on STATUS page of the Pharos Web Interface. 24dB 22dB 18dB 22dB 18dB WISP Adjust the direction of the CPE until the device reaches the highest SNR 12 HARDWARE FEATURES Dimensions CPE520/CPE220: 275.83*79*60.3mm CPE510/CPE210: 224.34*79*60.3mm Interface LAN0: 10/100Mbps Ethernet Port(PoE IN) LAN1: 10/100Mbps Ethernet Port GND: Grounding Terminal for Lightning Protection RESET: Button to restore the device to …
Text truncated - open the document above for the full version.
AGENCYAUTHORIZATIONLETTER FCCID:TE7CPE220 Date:Feb06,2015 Towhomitmayconcern: We,theundersigned,herebyauthorizeAudixTechnology(Shenzhen)Co.,Ltd (No.6,KeFengRd.,52Block,ShenzhenScience&Industrial Park,Nantou,Shenzhen,Guangdong,China)toactonourbehalf,asouragent,in thefollowingmattersrelatedtotheFCCapprovalofourproducts:reportsubmittal, relatedcorrespondence,thesigningofalldocumentsrelatingtothesematters, andanyotherlawfulactivitynecessarytoobtainsuchcertification.Anyactcarried outbyAudixwithinthescopeofthisauthorizationshallhavethesameeffectsas ourown. Thisauthorizationshallexpire6monthsfromoriginaldate.Ifyouhaveany questionsregardingtheauthorization,pleasedon’thesitatetocontactus. Thankyou. Sincerely, Nameofauthorizedsigner:YongquanWang Titleofauthorizedsigner:ProductDept.Manager CompanyName:TP-LINKTechnologiesCo.,Ltd. Tel:86-755-26525554 Fax:86-755-26508930 Website:WWW.TP-LINK.COM E-mail:[email protected]
Date:Feb06,2015 FederalCommunicationsCommission AuthorizationandEvaluationDivision FCCID:TE7CPE220 ConfidentialityRequest PursuanttoSections0.457and0.459oftheCommission’sRules,the Applicantherebyrequestsconfidentialtreatmentofinformationaccompanying thisapplicationasoutlinedbelow: 1.Blockdiagram 2.Schematics 3.OperationDescription Theabovematerialscontaintradesecretsandproprietaryinformationnot customarilyreleasedtothepublic.Thepublicdisclosureofthesematters mighttoharmfultotheapplicantandprovideunjustifiedbenefitstoits competitors. TheapplicantunderstandsthatpursuanttoRule0.457,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethe dateofthegrantforthisapplication. Sincerely, Nameofauthorizedsigner:YongquanWang Titleofauthorizedsigner:ProductDept.Manager CompanyName:TP-LINKTechnologiesCo.,Ltd. Tel:86-755-26525554 Fax:86-755-26508930 Website:WWW.TP-LINK.COM E-mail:[email protected]
TP-LINKTechnologiesCo.,Ltd. Building24(floor1,3,4,5)and28(floor1-4)CentralScienceandTechnologyPark,ShennanRd, Nanshan,Shenzhen,China March31,2015 AudixTechnology(Shenzhen)Co.,Ltd. No.6,KeFengRd.,52Block,ShenzhenScience&IndustrialPark,Nantou,Shenzhen,Guangdong, China RE:ProfessionalInstallationforTP-LINKModelsCPE210andCPE220 ToWhomItMayConcern: Westatethatourdevicerequiresprofessionalinstallationbasedonthefollowingreasons: 1,Intheviewofmarket,thisproductisdesignedforoutdoorpointtopointbroadbandwireless.It isavailablethroughspecialdistributionchannelsworldwideservingsystemintegratorsinthe WirelessInternetServiceProviderIndustry. 2,AprofessionalinstallerwithexperienceinextendedEthernetcabledeployment,tower mounting,andTP-LINKPharossystemknowledgewillberequiredtoproperlyenablethe equipment. 3,Theintendeduseisgenerallynotforthegeneralpublic.Itisgenerally forindustry/commercialuse. Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, Nameofauthorizedsigner:HongliangYang Titleofauthorizedsigner:ProductDept.Manager CompanyName:TP-LINKTechnologiesCo.,Ltd. Tel:86-755-26525554 Fax:86-755-26508930 Website:WWW.TP-LINK.COM E-mail:[email protected]

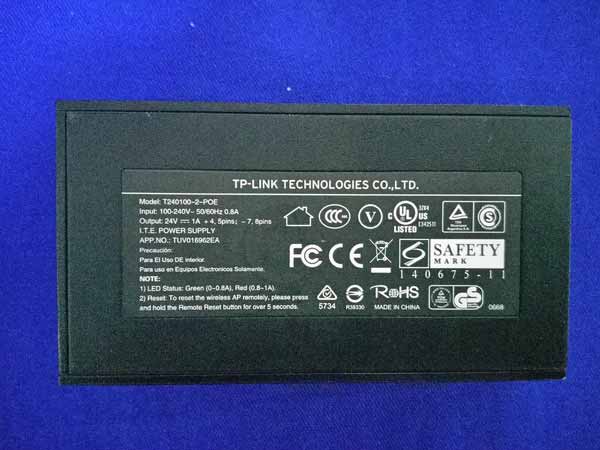

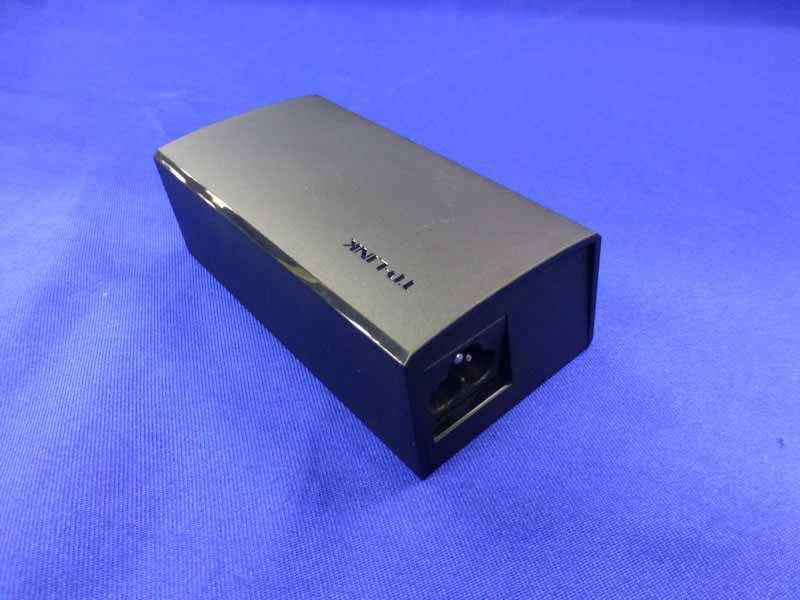

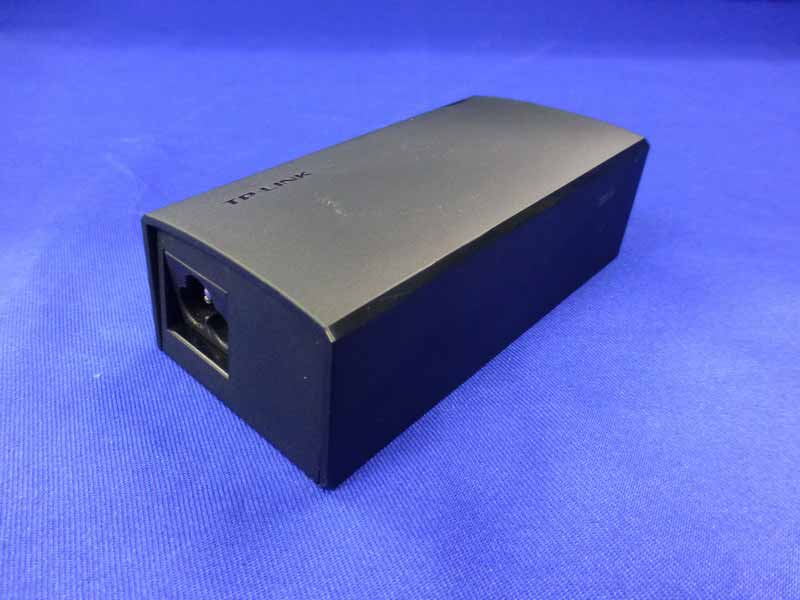

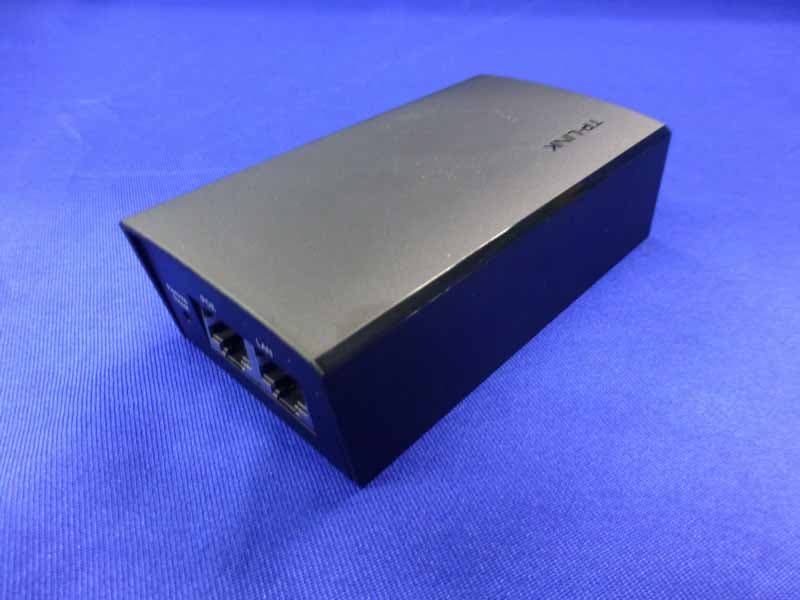

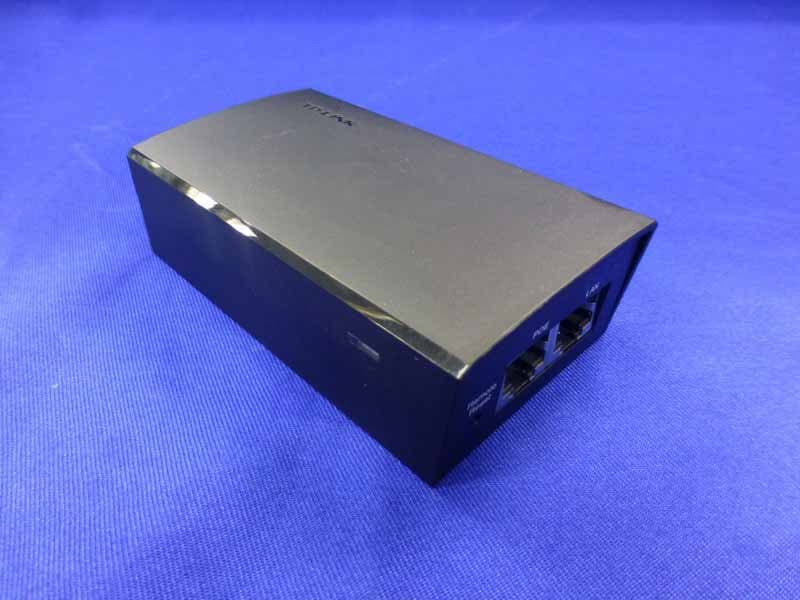

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 14-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 14-4 Figure 7 General Appearance of the EUT Figure 8 Label of the EUT
颜 色 名 称 版 本 材 质 模 具 机型版本号 logo 底色 文字 其它 结构工程师 硬件工程师 产品工程师 平面负责人 记 录 与上一版的区别 完成日期 设 计 C B A 12 C 345678 B E D D A 9 料号: 12345 E 6789 9.27 68.3 58.01 14.56 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.4GHz 300Mbps 12dBi Outdoor CPE 5734 79 275.83 22.3 68.5 275.83 79 9.27 68.3 58.01 14.56 79 275.83 22.3 68.5 275.83 79
R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 14-5 Figure 9 Inside of the EUT Figure 10 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 14-6 Figure 11 Inside of the EUT Figure 12 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 14-7 Figure 13 General Appearance of the EUT Figure 14 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 14-8 Figure 15 General Appearance of the EUT Figure 16 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 14-9 Figure 17 General Appearance of the EUT Figure 18 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 14-10 Figure 19 General Appearance of the EUT Figure 20 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 14-11 Figure 21 Inside of the EUT Figure 22 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 14-12 Figure 23 Inside of the EUT Figure 24 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 14-13 Figure 25 Inside of the EUT Figure 26 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 14-14 Figure 27 Inside of the EUT Figure 28 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 14-15 Figure 29 Power Cable
R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 10-1 10. MPE ESTIMATION 10.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz Estimation Result 5MHz EUT: 2.4GHz 300Mbps 12dBi Outdoor CPE M/N: CPE220 Test date: 2015-02-12 Pressure: 101.41.0 kpa Humidity: 50.13.0% Tested by: Donjon_Huang Test site: RF site Temperature:20.50.6 Test Mode CH Frequency MHz Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE CH1 2412 22.17 164.82 12 15.85 0.2311 CH6 2437 22.20 165.96 12 15.85 0.2327 11b CH11 2462 22.14 163.68 12 15.85 0.2295 CH1 2412 23.57 227.51 12 15.85 0.3190 CH6 2437 23.56 226.99 12 15.85 0.3182 11g CH11 2462 23.59 228.56 12 15.85 0.3205 CH1 2412 24.06 254.68 12 15.85 0.3571 CH6 2437 24.07 255.27 12 15.85 0.3579 11n HT20 CH11 2462 24.13 258.82 12 15.85 0.3629 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 10-2 PG 4πR 2 10MHz EUT: 2.4GHz 300Mbps 12dBi Outdoor CPE M/N: CPE220 Test date: 2015-02-12 Pressure: 101.41.0 kpa Humidity: 50.13.0% Tested by: Donjon_Huang Test site: RF site Temperature:20.50.6 Test Mode CH Frequency MHz Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE CH1 2412 24.64 291.07 12 15.85 0.4081 CH6 2437 25.32 340.41 12 15.85 0.4773 11b CH11 2462 24.62 289.73 12 15.85 0.4062 CH1 2412 26.60 457.09 12 15.85 0.6409 CH6 2437 27.34 542.00 12 15.85 0.7599 11g CH11 2462 26.61 458.14 12 15.85 0.6423 CH1 2412 26.63 460.26 12 15.85 0.6453 CH6 2437 27.13 516.42 12 15.85 0.7240 11n HT20 CH11 2462 26.52 448.75 12 15.85 0.6292 20MHz EUT: 2.4GHz 300Mbps 12dBi Outdoor CPE M/N: CPE220 Test date: 2015-02-12 Pressure: 101.41.0 kpa Humidity: 50.13.0% Tested by: Donjon_Huang Test site: RF site Temperature:20.50.6 Test Mode CH Frequency MHz Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE CH1 2412 24.71 295.80 12 15.85 0.4147 CH6 2437 25.26 335.74 12 15.85 0.4707 11b CH11 2462 24.05 254.10 12 15.85 0.3563 CH1 2412 26.58 454.99 12 15.85 0.6379 CH6 2437 27.28 534.56 12 15.85 0.7495 11g CH11 2462 26.59 456.04 12 15.85 0.6394 CH1 2412 26.65 462.38 12 15.85 0.6483 CH6 2437 27.09 511.68 12 15.85 0.7174 11n HT20 CH11 2462 26.45 441.57 12 15.85 0.6191 CH3 2422 20.50 112.20 12 15.85 0.1573 CH6 2437 27.28 534.56 12 15.85 0.7495 11n HT40 CH9 2452 21.55 142.89 12 15.85 0.2003 MPE= (R=30cm)
R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of TP-LINK TECHNOLOGIES CO., LTD. 2.4GHz 300Mbps 12dBi Outdoor CPE Model No.: CPE220 FCC ID: TE7CPE220 Prepared for : TP-LINK TECHNOLOGIES CO., LTD. Building 24(floors 1,3,4,5) and 28 (floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number : ACS-F15035 Date of Test : Jan.04~Feb.12, 2015 Date of Report : Mar.03, 2015 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-1 1.1. Description of Standards and Results ...................................................................................1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ...............................................................................................2-1 2.2. Test Information ...................................................................................................................2-2 2.3. Tested Supporting System Details........................................................................................2-2 2.4. Block Diagram of Test Setup ...............................................................................................2-2 2.5. Test Facility ..........................................................................................................................2-3 2.6. Measurement Uncertainty (95% confidence levels, k=2).....................................................2-3 3. POWER LINE CONDUCTED EMISSION TEST....................................................... 3-1 3.1. Test Equipments ...................................................................................................................3-1 3.2. Block Diagram of Test Setup ...............................................................................................3-1 3.3. Power Line Conducted Emission Test Limits ......................................................................3-1 3.4. Configuration of EUT on Test..............................................................................................3-1 3.5. Operating Condition of EUT ................................................................................................3-2 3.6. Test Procedure ......................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results .....................................................................3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment.....................................................................................................................4-1 4.2. Block Diagram of Test Setup ...............................................................................................4-2 4.3. Radiated Emission Limit ......................................................................................................4-3 4.4. EUT Configuration on Test ..................................................................................................4-3 4.5. Operating Condition of EUT ................................................................................................4-3 4.6. Test Procedure ......................................................................................................................4-4 4.7. Radiated Emission Test Results ...........................................................................................4-4 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment.....................................................................................................................5-1 5.2. Limit .....................................................................................................................................5-1 5.3. Test Procedure ......................................................................................................................5-1 5.4. Test result .............................................................................................................................5-1 6. BAND EDGE COMPLIANCE TEST............................................................................ 6-1 6.1. Test Equipment.....................................................................................................................6-1 6.2. Limit .....................................................................................................................................6-1 6.3. Test Produce .........................................................................................................................6-1 6.4. Test Results ..........................................................................................................................6-1 7. 6dB Bandwidth Test ........................................................................................................ 7-1 7.1. Test Equipment.....................................................................................................................7-1 7.2. Limit .....................................................................................................................................7-1 7.3. Test Procedure ......................................................................................................................7-1 …
Text truncated - open the document above for the full version.
R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-1 5. CONDUCTED SPURIOUS EMISSIONS 5.1. Test Equipment Item Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval 1. Spectrum Agilent N9030A MY51380221Oct.29, 14 1Year 2. Attenuator (20dB) Agilent 8491B MY39262165Apr. 28,14 1 Year 3. RF Cable Hubersuhner SUCOFLEX10228620/2 Apr. 28,14 1 Year 5.2. Limit In any 100kHz bandwidth outside the frequency bands in which the spread spectrum intentional radiator in operating, the radio frequency power that is produced by the intentional radiator shall be at least 20dB below that in the 100kHz bandwidth within the band that contains the highest level of the desired power. 5.3. Test Procedure The transmitter output was connected to a spectrum analyzer, The resolution bandwidth is set to 100 kHz, The video bandwidth is set to 300 kHz and measure all the emissions detected. 5.4. Test result PASS (The testing data was attached in the next pages.) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-2 Conducted emission test data: 5MHz Antenna 1 Test Mode: IEEE 802.11b Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-3 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-4 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-5 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-6 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-7 Test Mode: IEEE 802.11g Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-8 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-9 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-10 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-11 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-12 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-13 Test Mode: IEEE 11nTH20 Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-14 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-15 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-16 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-17 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-18 5MHz Antenna 2 Test Mode: IEEE 802.11b Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-19 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-20 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-21 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-22 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-23
R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-23 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-24 Test Mode: IEEE 802.11g Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-25 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-26 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-27 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-28 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-29 Test Mode: IEEE 11nTH20 Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-30 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-31 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-32 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-33 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-34 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-35 10MHz Antenna 1 Test Mode: IEEE 802.11b Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-36 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-37 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-38 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-39 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-40 Test Mode: IEEE 802.11g Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-41 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-42 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-43 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-44 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-45 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-46 Test Mode: IEEE 11nTH20 Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-47 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-48 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-49 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-50 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-51 10MHz Antenna 2 Test Mode: IEEE 802.11b Test CH1: 2412MHz
R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-51 10MHz Antenna 2 Test Mode: IEEE 802.11b Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-52 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7CPE220 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15035 5-53 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC I…
Text truncated - open the document above for the full version.
52 Block Shenzhen Science&Industry · Shenzhen · China
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.41 GHz - 2.46 GHz | 542.00 mW |
