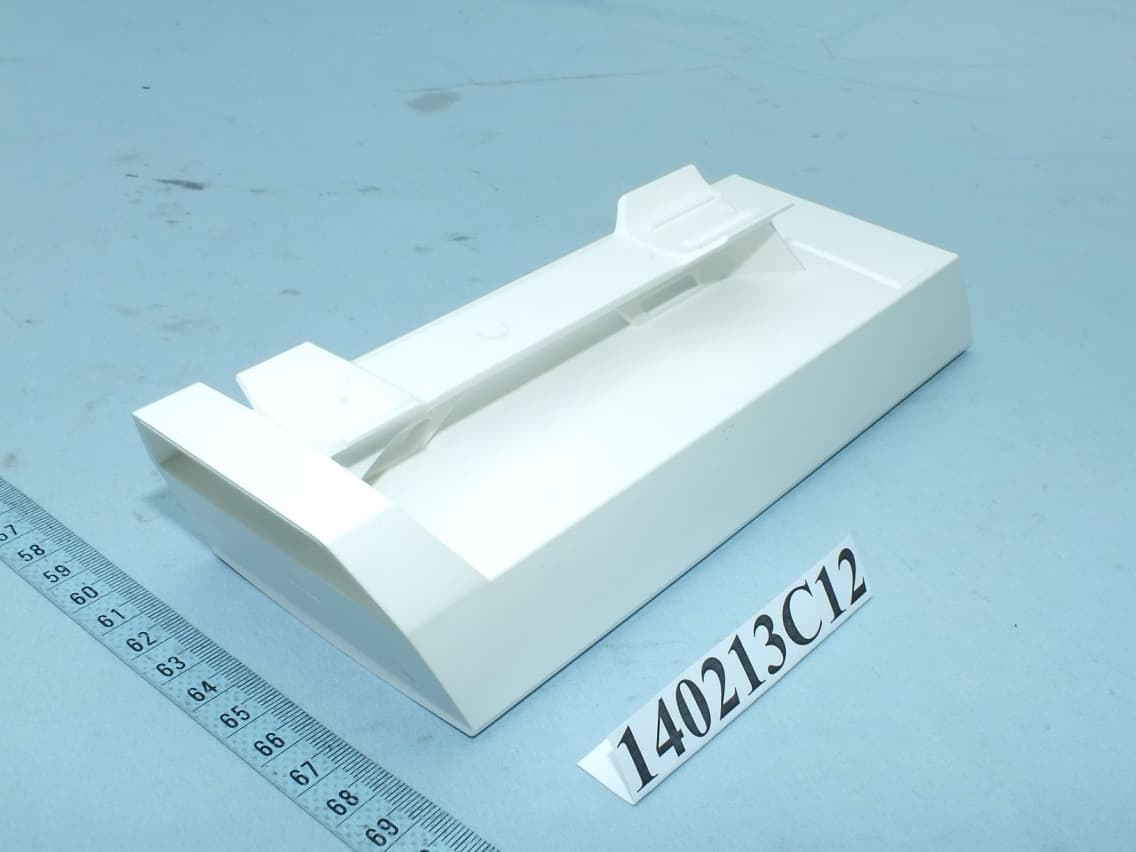

TE7CPE5105GHz 300Mbps 13 dBi Outdoor CPE

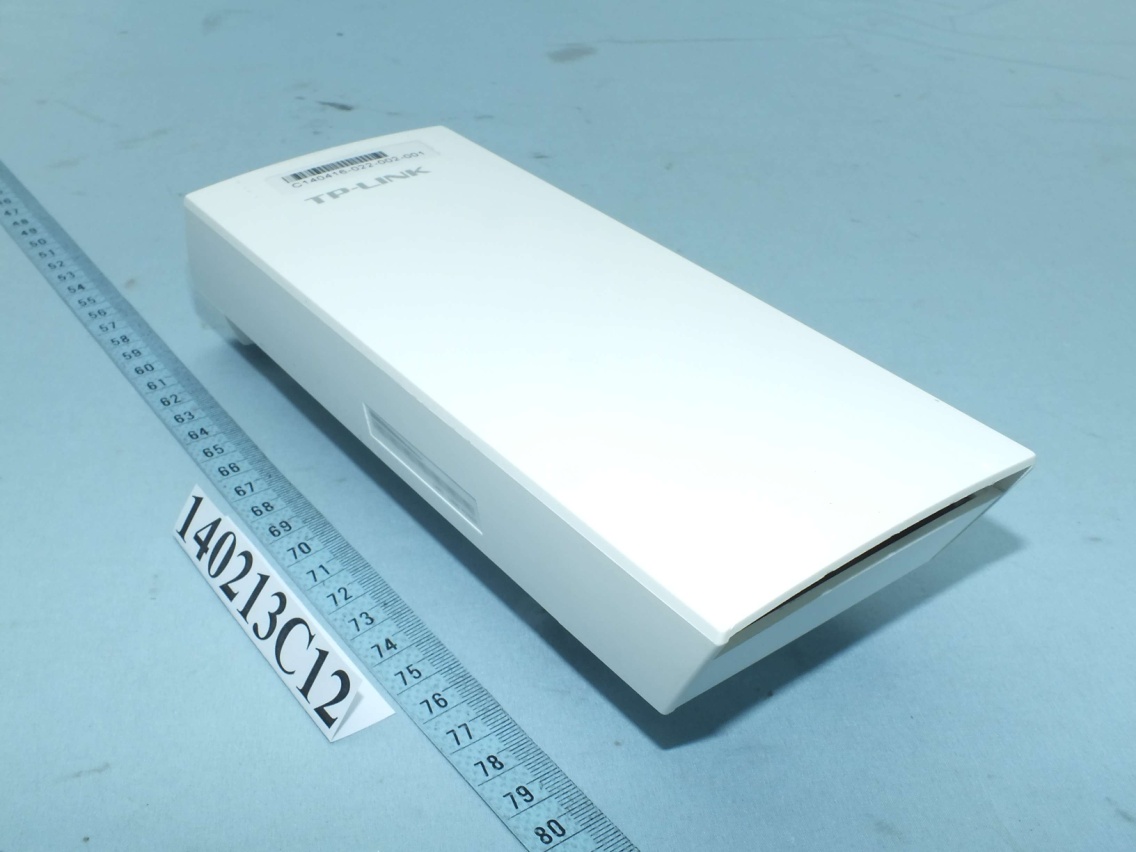

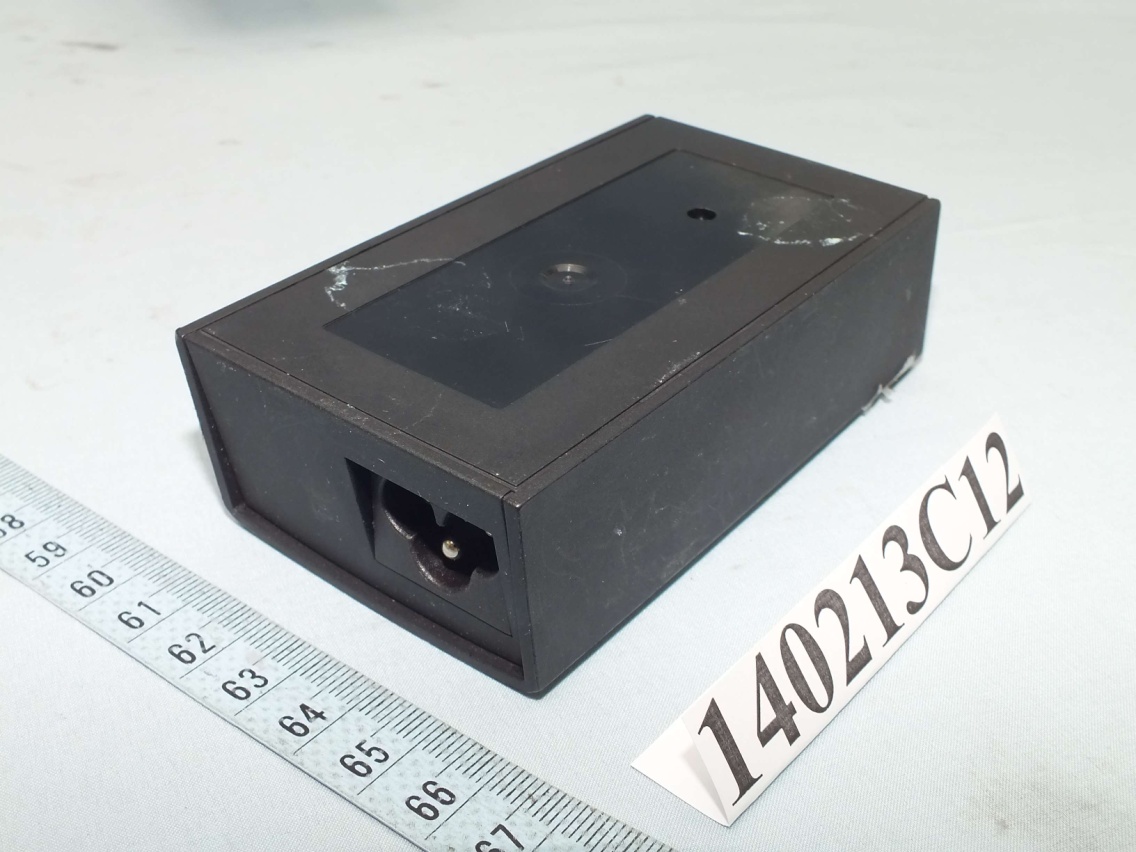

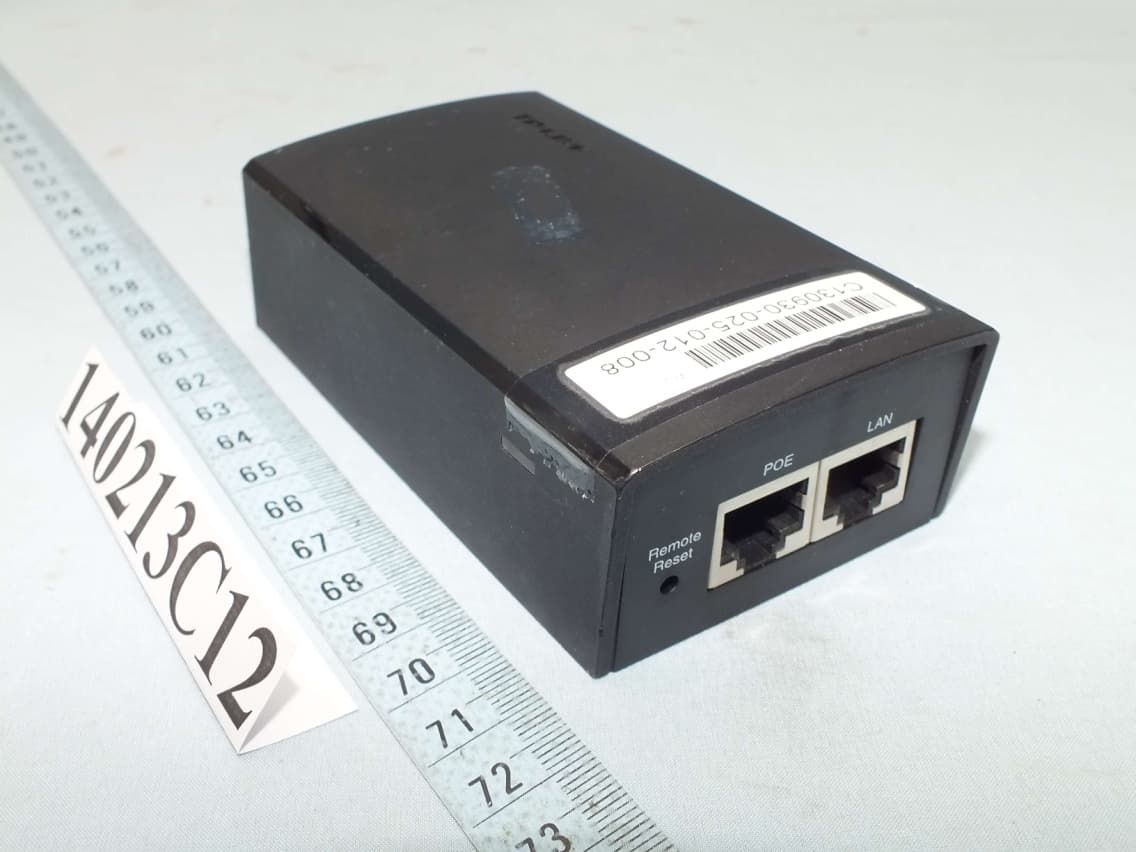

Installation Guide Outdoor CPE CPE210 / CPE220 / CPE510 / CPE520 CONTENT S Hardw are Connection Overview Software Configuration Antenna Alignment Specifications FAQ (Frequently Asked Questions) Site C onsideration 1 3 5 6 8 15 17 18 19 11 11 13 Connection and Installation Lightning & ESD Protection Logging into the PharOS Configuration for Typical Applications • Point-to-Point • Point-to-Multipoint • Hotspot 1 Ov erview • Pack age Contents • LED Explanation Phar os CPEPassive PoE Adapter Pole Mounting Straps Installation Guide Power Cord AP/AP Router mode: All four LEDS remain solid. Client/Bridge/Repeater/AP Client Router mode: That the more LEDs lit will indicate better wireless signal strength. On: A device is connected to this port, but there is no activity. Flashing: A device is connected to this port, and is active. On: The CPE is powered on. POWE R LAN0 LAN1 TP-LINK's P haros series outdoor CPEs are dedicated to outdoor wireless network solutions. This guide is applicable to products including CPE210, CPE220, CPE510 and CPE520. 2 • Panel La yout Gr ounding Terminal Phar os CPE: Passive PoE Adapter: Shielded Ether net Port LAN0 (Passive PoE in) RESETShielded Ethernet Port LAN1 Power LED The Power LED indicates the status of the electric current: green (0~0.8A), red (0.8A~1A). 3 Hardw are Connection • M oun ting Height 1. Sit e C onsideration Ensure a clear line of sight bet ween the wireless devices for an optimum performance. An elevated location is recommended as obstacles like trees, buildings and large steel structures will weaken the wireless signal. See 'Q2' in 'FAQ' for details about how to calculate the minimum mounting height of the devices. Line of Sight Side Vie w 4 • Orien tation Install the CPE de vices with the front facing the intended signal receiving devices. You can orient the devices with the assistance of Google Maps, GPS and some landmarks according to the horizontal beamwidth listed below. A shenzhen B Line of Sigh t Hor izontal Beamwidth ModelsCPE210 CPE220CPE510CPE520 Horizontal Beamwidth70°45°45°50° 5 2. Connec tion and Installation At the selec ted site, approximately align the CPE to the direction that you have oriented. You should prepare an adequate Ethernet cable to connect the CPE and the passive PoE adapter. Shielded CAT5e (or above) cable with ground wire is recommended (refer to the next section). P lease connec t and install the device as shown in the fi gure below. Connect to a computer, router or switch. (Depending on your intended usage and/or network topology.) Ethernet cable length up to 60m Slide to replace the cover of the CPE when all connections are fi nished. This device complies with part 15 o f the FCC R ules. O peration is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID:TE7CPE510 MADE IN CHINA IC:8853A-CPE510 Default Settings: IP: 192.168.0.25 4 Username: admin Password: admin Model: CPE510 Power: 24V 1A 5GHz 300Mbps 13dBi Outdoor CPE 5734 POE LAN0 LAN 6 3. Lightning & ESD P rotection Pr oper grounding is extremely important for outdoor devices. By using shielded CAT5e (or above) cable with ground wire for the connection and the provided PoE adapter (method ), you can eff ectively eliminate ESD attacks. If you use the general CAT5e cable for the connection, then it is necessary to connect the grounding terminal of the CPE to earth ground through grounding cable (method ). 2 1 Shielded CAT5e (or above) Cable with Ground Wire Grounding Terminal and Cable Grounded 3-wire Power Outlet CPE Shielded CAT5e (or above) Cable with Ground Wire PoE Adapter with Earth Ground Grounding Terminal Grounding Cable Earth Ground Tw o Methods: 2 2 1 1 1 1 7 Shielded CAT5e ( or above) Cable with Ground Wire Twisted Pair Ground Wire Shielded RJ45 Connector Secondary Cable Shield Cable Shield Sheath 8 1. Logg ing into the PharOS This chapt er introduces the login to the PharOS Web Interface and the software confi gurations to implement three typical applications, including point-to-point, point-to-multipoint and hotspot. Sof tware Confi guration 1. Before accessing the PharOS Web Interface, you need to assign a static IP address 192.168.0.x (2≤x≤253) to your computer. We use 192.168.0.10 as an example in the fi gure below. 9 2. Open your w eb browser, type 'http://192.168.0.254' in the address fi eld and press 'Enter'. It is recommended to use the latest version of Google Chrome, Safari or Firefox. 3. The 'Login' page will appear, set the parameters as below. • Username: admin. • Password: admin. • Region: select according to your country/region. • Select 'I agree to these terms of use'. • Click 'Login'. 4. At the fi rst login, change the 'Password' for safety. For subsequent log ins, you only need to enter the username and password that you have set to log in. 10 5. T hen you will log in to the PharOS Web Interface and see the Status page as shown in the fi gure below. 11 • Poin t-to-Point Point -to-Point application is used to build a transparent bridge between two locations which are far from each other. The figure shown below is an example for this application. Refer to the following steps to configure the CPEs. 2. Configur ation for Typical Applications T his sec tion introduces the configurations for the point-to-point, point-to-multipoint and hotspot applications. Refer to the section corresponding to your networking needs. Configure the Access Point 1. Log in to PharOS 2. Go to the Quick Setup page 3. Operation Mode • Select 'Access Point'. • Click 'Next'. 4. LAN Settings: Click 'Next'. 5. Wireless AP Settings • SSID: customize the name for the network as you like. • Security: select 'WPA-PSK/WPA2-PSK'. • PSK Password: create the password for the network as you like. • Distance Setting: enter the distance between the Access Point and the Client. It is recommended to round the number …
