TE7CPE510V1

TP-Link Technologies Co., Ltd.

5GHz 300Mbps 13dBi Outdoor CPE

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: Aug 18, 2015
Application Purpose: Original Equipment
Date of Application: Aug 18, 2015
Equipment Note: 5GHz 300Mbps 13dBi Outdoor CPE
Frequency Range: 5745.00000000 - 5825.00000000
Company: TP-Link Technologies Co., Ltd.
Country: China

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

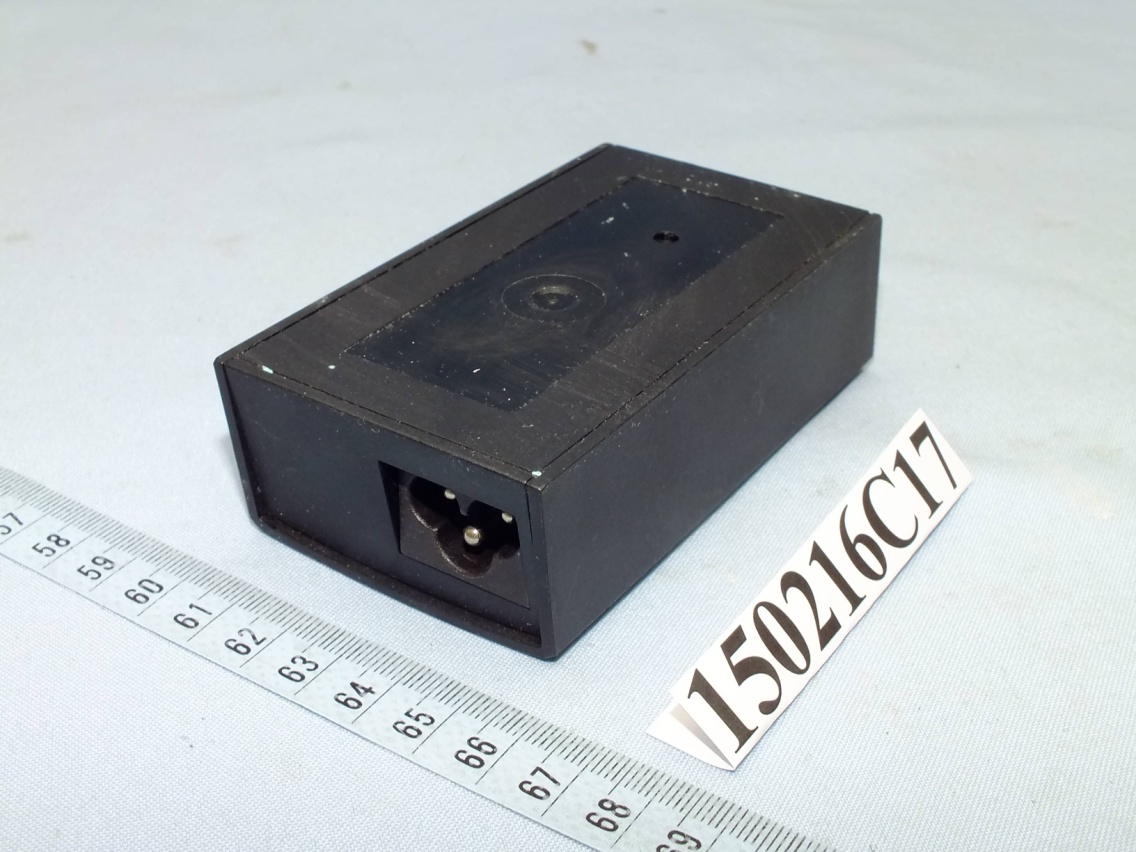

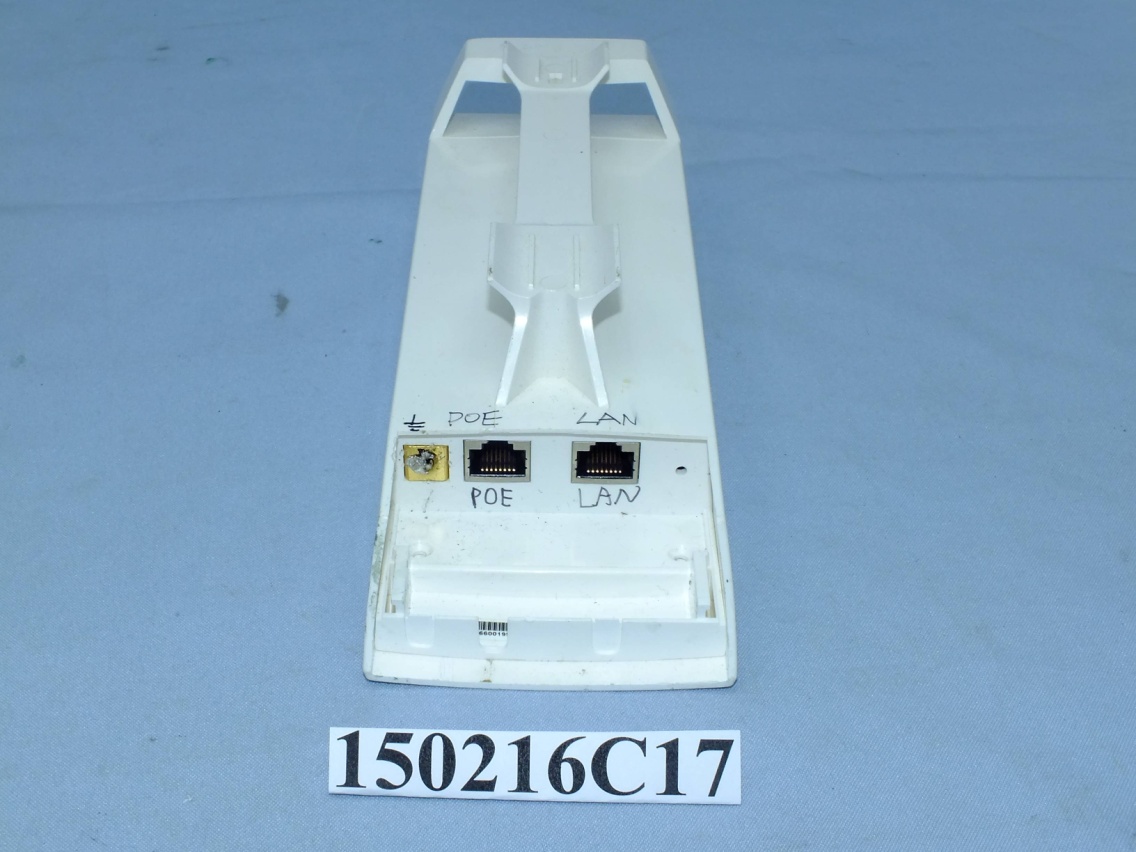

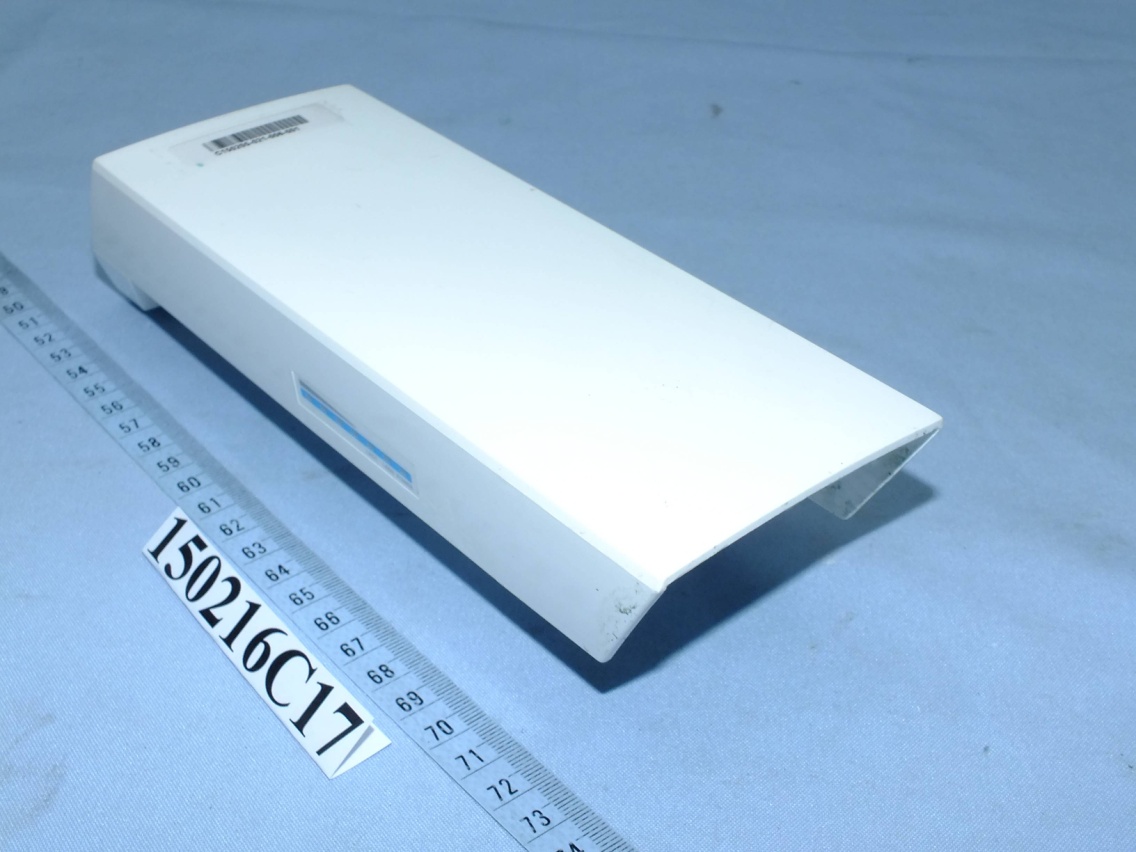

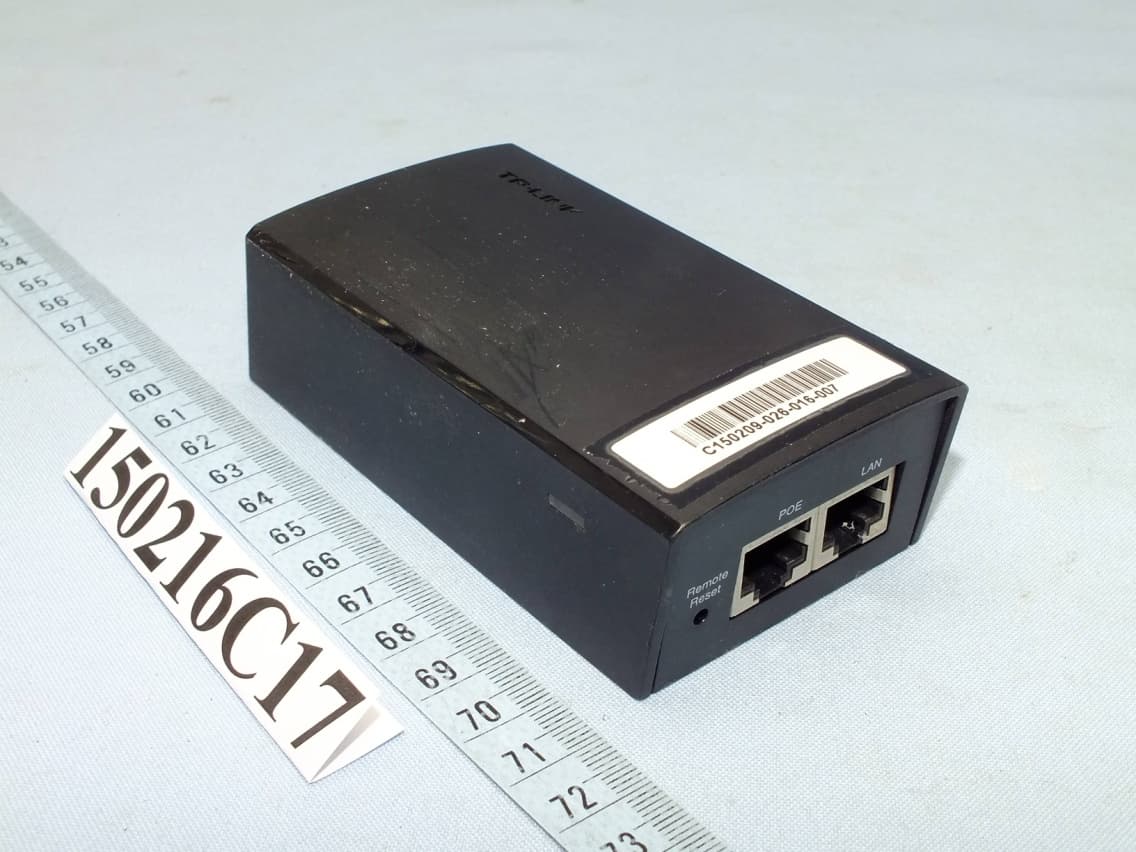

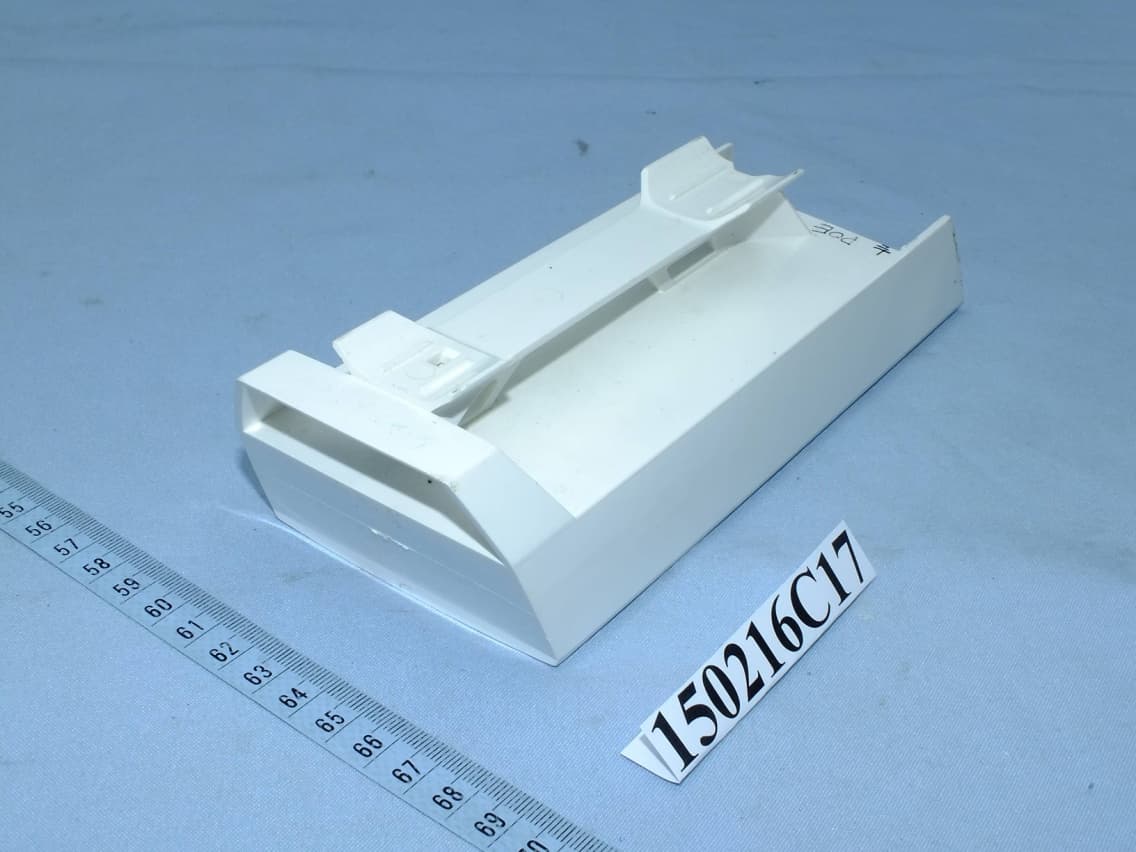

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

Jing Huang(Regulatory Compliance Manager)

[email protected]75521534921Fax: 75526508930

Technical Contact

Bureau Veritas Consumer Products Services (H.K.) LRobert Huang

[email protected]886 3 318 3232

No. 19, Hwa Ya 2nd Rd., Kwei Shan Hsiang · Taoyuan City · Taiwan

Test Firm

Bureau Veritas CPS (H.K.) Ltd. Taoyuan BranchRichard Chen

[email protected]886-3-3183232Fax: 886-3-2115834

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15E	5.75 GHz - 5.83 GHz	195.00 mW

Confidentiality

Long Term

Grant Notes

Power Output listed is conducted. Device is an 802.11n device in a 2x2 Spatial Multiplexing MIMO configuration as described in this filing. The antennas used for this transmitter must be installed to provide a separation distance of at least 26 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 MHz and 40 MHz bandwidth modes.
