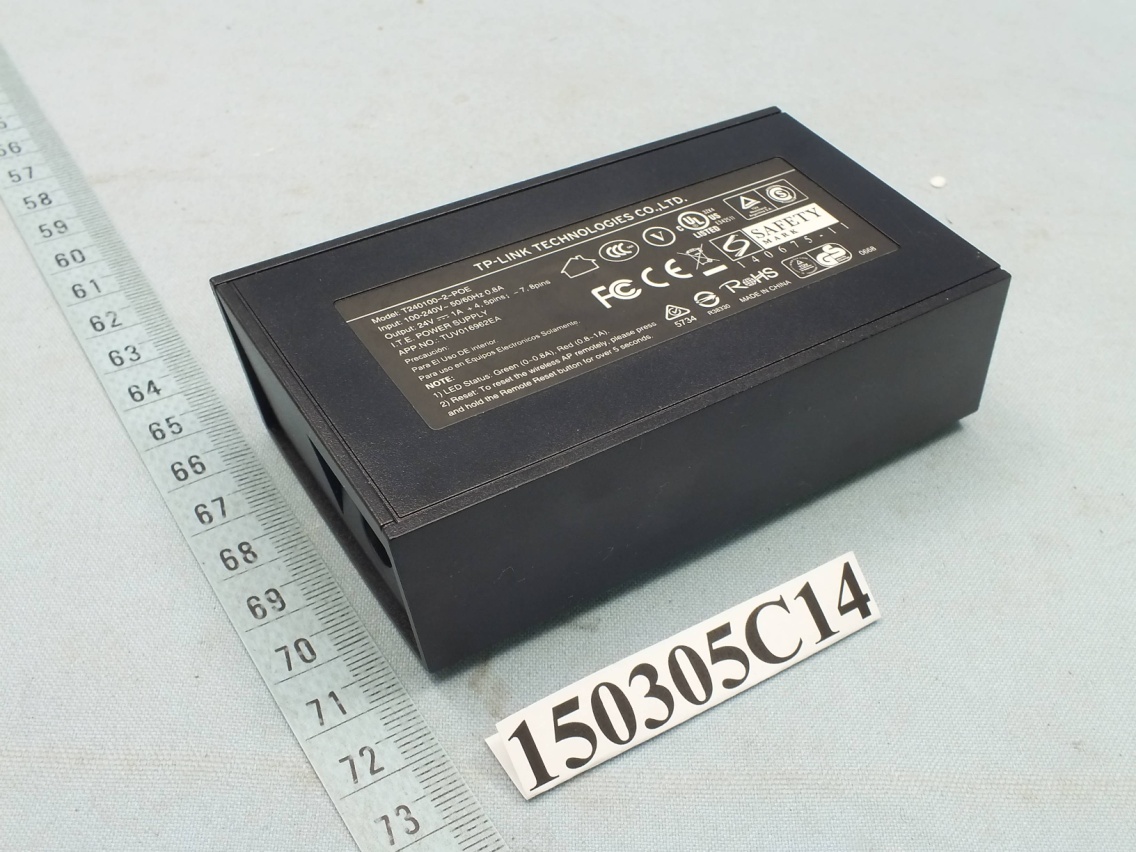

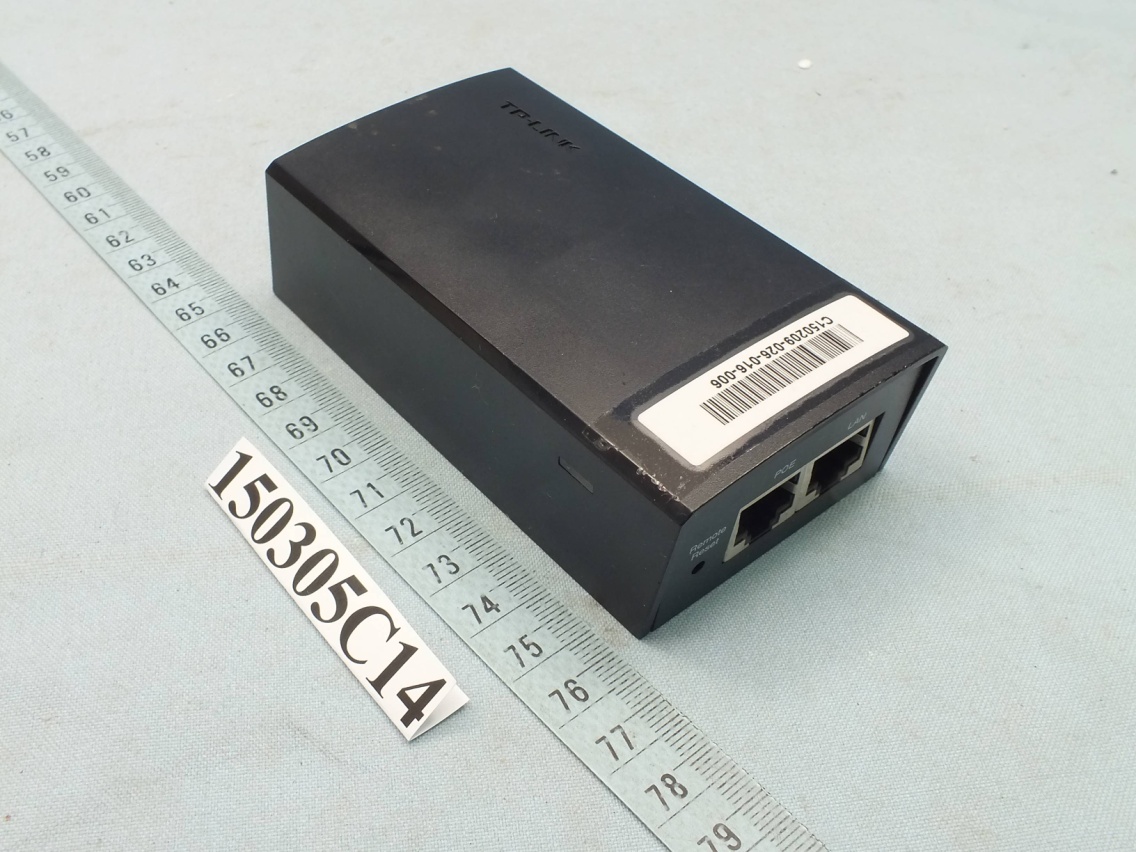

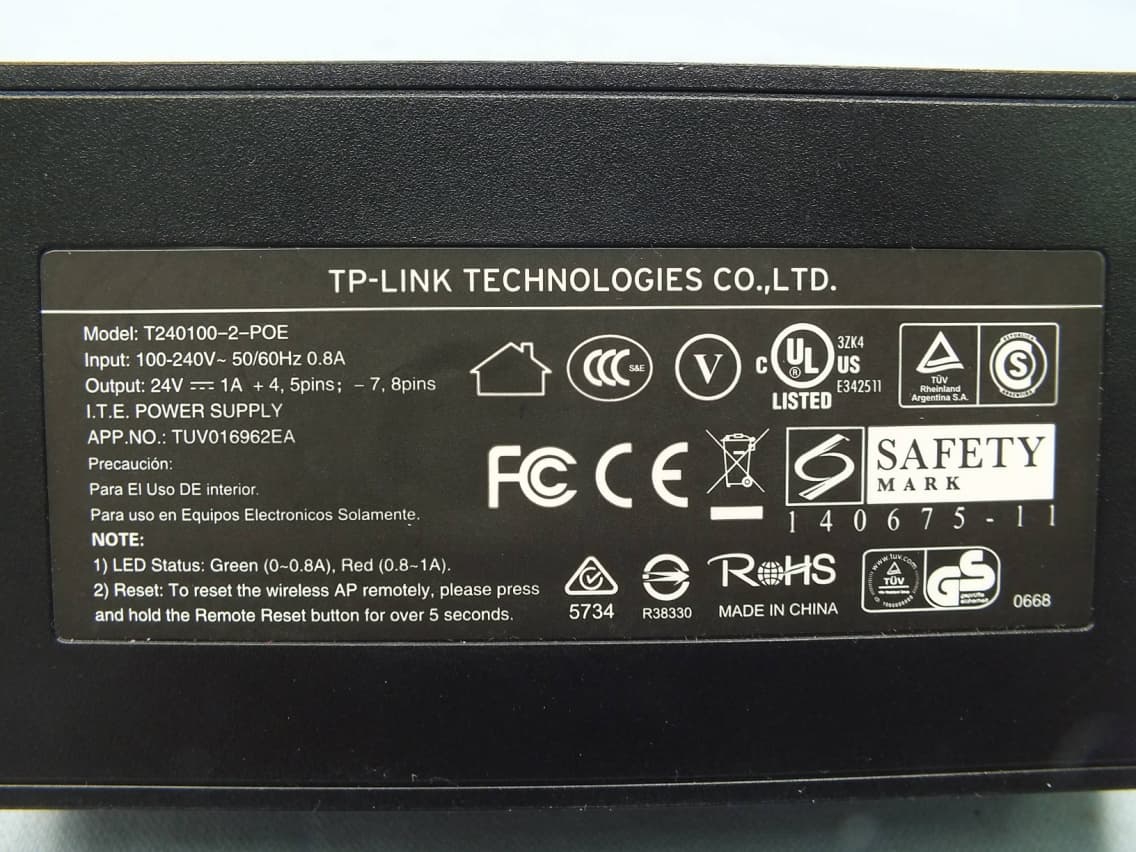

I nstallation Guide Out door CPE CPE210 / CPE220 / CPE510 / CPE520 C ONTENTS Har dware Connection Overview Software Configuration Antenna Alignment Specifications FAQ (Frequently Asked Questions) Sit e Consideration 1 3 5 6 8 15 16 17 11 11 Connection and Installation Lightning & ESD Protection Logging into the PharOS Configuration for Typical Applications • Point-to-Point 1 O verview • P ackage Contents • LED Explanation P haros CPEPassive PoE Adapter Pole Mounting Straps Installation Guide Power Cord AP/AP Router mode: All four LEDS remain solid. Client/Bridge/Repeater/AP Client Router mode: That the more LEDs lit will indicate better wireless signal strength. On: A device is connected to this port, but there is no activity. Flashing: A device is connected to this port, and is active. On: The CPE is powered on. POWE R LAN0 LAN1 TP -LINK's Pharos series outdoor CPEs are dedicated to outdoor wireless network solutions. This guide is applicable to products including CPE210, CPE220, CPE510 and CPE520. 2 • P anel Layout G rounding Terminal P haros CPE: Passive PoE Adapter: Shielded E thernet Port LAN0 (Passive PoE in) RESETShielded Ethernet Port LAN1 Power LED The Power LED indicates the status of the electric current: green (0~0.8A), red (0.8A~1A). 3 Har dware Connection • M ounting Height 1. Sit e Consideration Ensur e a clear line of sight between the wireless devices for an optimum performance. An elevated location is recommended as obstacles like trees, buildings and large steel structures will weaken the wireless signal. See 'Q2' in 'FAQ' for details about how to calculate the minimum mounting height of the devices. Line of Sigh t Side V iew 4 • O rientation I nstall the CPE devices with the front facing the intended signal receiving devices. You can orient the devices with the assistance of Google Maps, GPS and some landmarks according to the horizontal beamwidth listed below. A shenzhen B Line of Sigh t Horizontal Beamwidth M odelsCPE210CPE220CPE510CPE520 Horizontal Beamwidth70°45°45°50° 5 2. C onnection and Installation A t the selected site, approximately align the CPE to the direction that you have oriented. You should prepare an adequate Ethernet cable to connect the CPE and the passive PoE adapter. Shielded CAT5e (or above) cable with ground wire is recommended (refer to the next section). P lease connect and install the device as shown in the fi gure below. Connect to a computer, router or switch. (Depending on your intended usage and/or network topology.) Ethernet cable length up to 60m Slide to replace the cover of the CPE when all connections are fi nished. This device complies with part 15 o f the FCC R ules. O peration is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID:TE7CPE510 MADE IN CHINA IC:8853A-CPE510 Default Settings: IP: 192.168.0.254 Username: admin Password: admin Model: CPE510 Power: 24V 1A 5 GHz 300Mbps 13dBi Outdoor CPE 5734 POE LAN0 LAN 6 3. Ligh tning & ESD Protection P roper grounding is extremely important for outdoor devices. By using shielded CAT5e (or above) cable with ground wire for the connection and the provided PoE adapter (method ), you can eff ectively eliminate ESD attacks. If you use the general CAT5e cable for the connection, then it is necessary to connect the grounding terminal of the CPE to earth ground through grounding cable (method ). 2 1 Shielded CAT5e (or above) Cable with Ground Wire Grounding Terminal and Cable Grounded 3-wire Power Outlet CPE Shielded CAT5e (or above) Cable with Ground Wire PoE Adapter with Earth Ground Grounding Terminal Grounding Cable Earth Ground T wo Methods: 2 2 1 1 1 1 7 Shielded CA T5e (or above) Cable with Ground Wire Twisted Pair Ground Wire Shielded RJ45 Connector Secondary Cable Shield Cable Shield Sheath 8 1. Logging into the PharOS 9 2. Open y our web browser, type 'http://192.168.0.254' in the address fi eld and press 'Enter'. It is recommended to use the latest version of Google Chrome, Safari or Firefox. 3. The 'Login' page will appear, set the parameters as below. • Username: admin. • Password: admin. • Select 'I agree to these terms of use'. • Click 'Login'. 4. At the fi rst login, change the 'Password' for safety. F or subsequent logins, you only need to enter the username and password that you have set to log in. 10 5. Then you will log in to the PharOS Web Interface and see the Status page as shown in the fi gure below. 11 • Point-to-Point 2. 1. Log in to PharOS 2. Go to the Quick Setup page 3. Operation Mode 4. LAN Settings: 5. Wireless AP Settings 6. Finsh: IP camera Access Point LAN: 192.168.0.254 Client LAN: 192.168.0.2 Computer 15 A ntenna Alignment I n order to get the best performance, you can precisely align the direction of the CPE with the assistance of 'Wireless Signal Quality' on 'STATUS' page of the PharOS Web Interface. WISP WISP A djust the direction of the CPE until the device reaches the highest SNR. 16 HARDWARE FEATURES Dimensions Interface Power Supply ESD Protection 1 Lightning Protection 1 Operating Temperature °F °F Operating Humidity WIRELESS FEATURES Models Antenna Gain Horizontal Beamwidth/ Elevation Beamwidth 2 Operating Frequency 3 802.11 Standards This is fixed point-to-point device not point-to-multipoint device. 17 F AQ (Frequently Asked Questions) Q1. How to restore the CPE to its factory default settings? W ith the CPE powered on, press and hold the 'RESET' button of the CPE or the 'Remote Reset' button of the passive PoE adapter for about 8 seconds until the Wireless Signal Strength LEDs flash. RESET Button Press & hold for about 8 seconds Remote Reset Button Press & hold for about 8 seconds M ethod 1: Method 2: 18 Q2. Ho w to calculate the minimum mounting height of the devices? I n order to maximize the received signal strength of the devices, installers need to minimize the effect of the ou…
