TE7HS110Wi-Fi Smart Plug With Energy Monitoring

User Guide Wi-Fi Smart Plug HS100 Wi-Fi Smart Plug with Energy Monitoring HS110 REV1.0.0 1910011524 Contents Chapter 1. Introduction..........................................................................................................................................................2 1.1 Product Overview.................................................................................................................................................................................2 1.2 Main Features..........................................................................................................................................................................................2 1.3 Panel Layout.............................................................................................................................................................................................1 Chapter 2. Quick Start.............................................................................................................................................................4 Appendix A. FAQs.......................................................................................................................................................................5 Appendix B. Specifications....................................................................................................................................................6 Chapter 1. Introduction 2 Chapter 1. Introduction 1.1 Product Overview What This Product Does The Smart Plugs make it easy to manage your household electronic devices anywhere in the world with a tap of your smartphone. Schedule and Timer Deter bad guys by setting your lights to turn on and off on a schedule so it seems like you’re home when you are actually away. And the countdown timer gives you a peace of mind, which automatically switches off the running household appliances as your settings. Compatible with Amazon Echo You can pair the Smart Plugs with Amazon Echo for voice control. Compatible with Android, iOS The free Kasa app lets you run them from any Android (4.1 and higher) or iOS (iOS 8 and higher) smartphone. Energy Conservation (for HS110 only) You can efficiently conserve energy and save money while using the Smart Plugs to control your space heaters and fans. The Smart Plug tracks your device’s power consumption in real-time, and has weekly and monthly summaries. 1.2 Main Features  Control devices connected to the Smart Plug wherever you have Internet using the free Kasa app on your smartphone.  Schedule the Smart Plug to automatically power electronics on and off as needed, like setting lights to come on at dusk or turn off at sunrise.  Analyze a device’s real-time and historical power consumption. (for HS110 only)  Turns your devices on and off at different times to give the appearance that someone is home.  Amazon Echo (sold separately) lets you control devices connected to the Smart Plugs just using your voice. Chapter 1. Introduction 3 1.3 Panel Layout Wi-Fi LED Power LED Settings Button * Image may differ from actual product due to different regional power specifications. Here we take the US version as an exam ple. Button Description (Settings button) Press this button until the Wi-Fi LED blinks amber and green alternately (about 5 seconds) to initiate the smart-config process. Press and hold until the Wi-Fi LED blinks amber quickly (about 10 seconds) to reset the Smart Plug to factory defaults. LED Status Indication Blink Amber and Green: Smart-config mode initiated. Green: Connecting to the network. Amber: Factory reset. (Wi-Fi LED) On Green: Connected to the network. Amber: Rebooting. Red: No network connection. On The Smart Plug is powered on. (Power LED) Off No power. Chapter 2. Quick Start 4 Chapter 2. Quick Start 1. Download TP-LINK Kasa app. 2. Connect mobile device to your Wi-Fi network. Note: The Smart Plug can only connect to 2.4GHz network. 3. Launch Kasa and follow the app instructions. Appendix A. FAQs 5 Appendix A. FAQs 1. What devices can I control with the Smart Plug? You can control lights, fans, humidifiers, portable heaters, and any small appliances in accordance with the Smart Plug’s specifications. 2. What should I do when I can’t turn devices on or off? Make sure that the devices connected to the Smart Plug are turned on, and that the Smart Plug is connected to the network. 3. What should I do when the Wi-Fi LED is lit solid red? A solid red indicates no network connection, or that the smart-config process has failed. You can:  Check for interference or relocate the Smart Plug to another location within the signal range.  Make sure that you connect the Smart Plug to the 2.4GHz network.  Repeat the smart-config process.  Factory reset the Smart Plug and try to add it again. Technical Support For technical support, advanced features, and usage tips for the Smart Plug, visit the support page at www.tp-link.com. Appendix B. Specifications 6 Appendix B. Specifications Working Status Input voltage: 100 - 120VAC, 15A Output voltage: 100 - 120VAC, 15A Maximum Load: 15A Maximum Power: 1.8KW Network Protocol: IEEE 802.11b/g/n Wireless Type: 2.4GHz, 1T1R System Requirements: Android 4.1 or higher, iOS 8 or higher General Certifications: RoHS, EAC, CE Buttons: Power button, Settings button Environment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -20°C~70°C (-4°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2015 TP-L…

Text truncated - open the document above for the full version.

TP-LINKTECHNOLOGIESCO.,LTD. We Name:TP-LINKTECHNOLOGIESCO.,LTD. Address:Building24(floors1,3,4,5)and28(floors1-4)CentralScienceand TechnologyPark,ShennanRd,Nanshan City:Shenzhen  . Country:China. Declarethat: AgentCompanyname:QuieTekTechnology(Suzhou)Co.,Ltd. Address:No.99HongyeRd.,SuzhouIndustrialPark, City:Suzhou CountryChina isauthorizedtoapplyforCertificationofthefollowingproduct(s): Productdescription:Wi-FiSmartPlugWithEnergyMonitoring............ Typedesignation:HS110 FCCID:TE7HS110 onourbehalf. Date:2015-11-19.. Name:YongquanWang.. Function:......ProductDept.Manager............................ Signature:............................................................ Notes: (1):RequiredforFCCapplication (2):ForFCCitmustbetheGranteeCode“owner”ortheauthorizedagent.

TP-LINKTECHNOLOGIESCO.,LTD Date:2015-11-19 FederalCommunications CommissionAuthorizationand EvaluationDivision FCCID:TE7HS110 ATTESTATION FCCID:TE7HS110 Product:Wi-FiSmartPlugWithEnergyMonitoring Model:HS110 Wedon'tprovideanycontrolsorsoftwaretoallowoperationoutside theUSAfrequencybandwhenwesellthisproductinUSA. Sincerely, __________________ YongquanWang/ProductDept.Manager TP-LINKTECHNOLOGIESCO.,LTD.

TP-LINKTECHNOLOGIESCO.,LTD. Date：2015-11-19 FederalCommunicationsCommission AuthorizationandEvaluationDivision FCCID:TE7HS110 ConfidentialityRequest PursuanttoSections0.457and0.459oftheCommission’sRules,theApplicant herebyrequestsconfidentialtreatmentofinformationaccompanyingthisApplication asoutlinedbelow: Schematics BlockDiagram OperationalDescription Theabovematerialscontaintradesecretsandproprietaryinformationnot customarilyreleasedtothepublic.Thepublicdisclosureofthesemattersmightbe harmfultotheApplicantandprovideunjustifiedbenefitstoitscompetitors. TheApplicantunderstandsthatpursuanttoRule0.457,disclosureofthisApplication andallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. Sincerely, YongquanWang/ProductDept.Manager TP-LINKTECHNOLOGIESCO.,LTD.

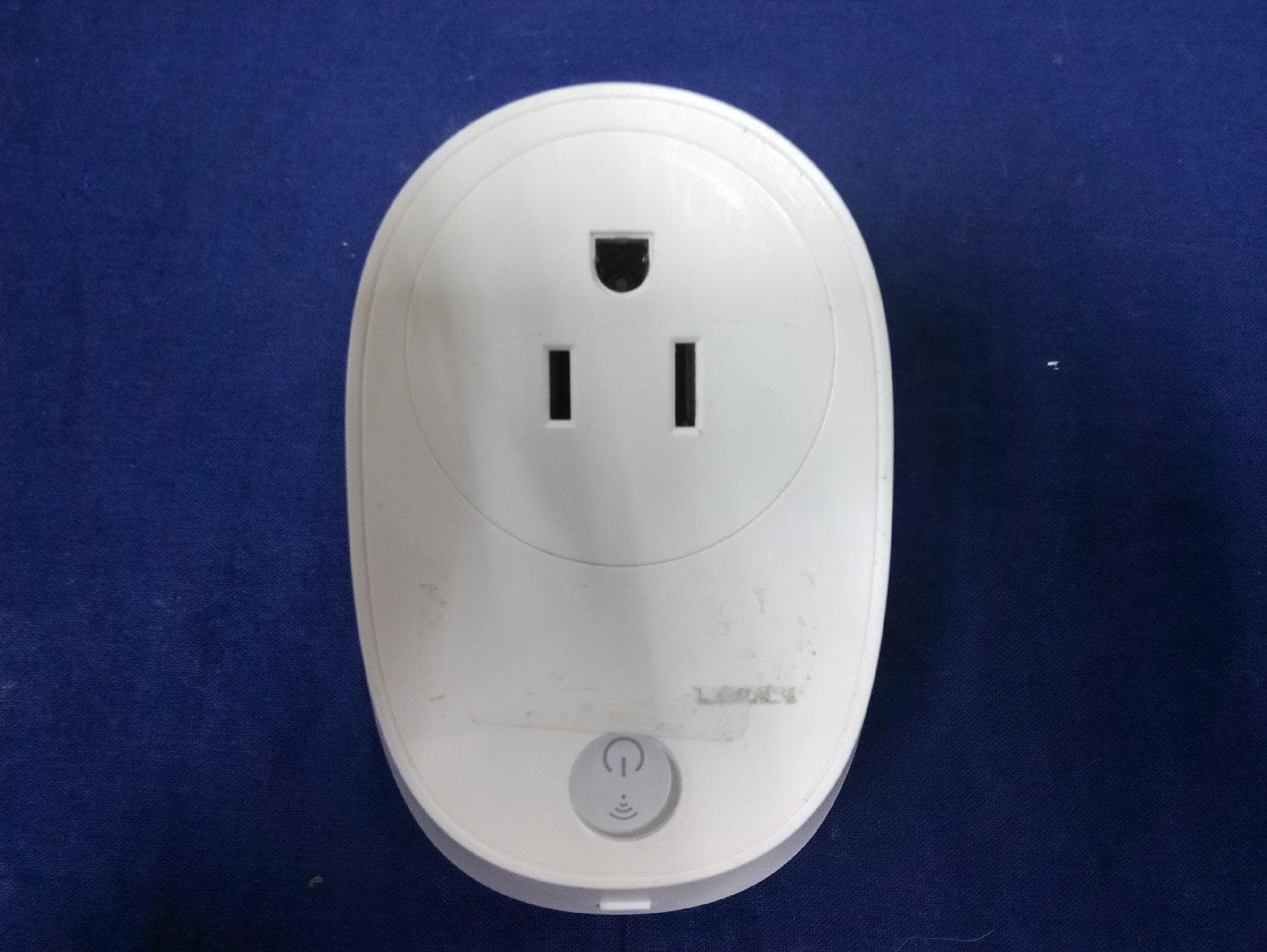

EUT Photograph (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo

(1) EUT Photo (2) EUT Photo (3) EUT Photo

Test Report FCC Part15 Subpart C Product Name : Wi-Fi Smart Plug With Energy Monitoring Model No. : HS110 FCC ID : TE7HS110 Applicant : TP-LINK TECHNOLOGIES CO., LTD. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Date of Receipt : Sep. 16, 2015 Test Date : Oct. 19, 2015~ Nov. 18, 2015 Issued Date : Nov. 19, 2015 Report No. : 1590447R-RF-US-P06V01 Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No: 1590447R-RF-US-P06V01 Page: 2 of 193 Test Report Certification Issued Date : Nov. 19, 2015 Report No. : 1590447R-RF-US-P06V01 Product Name : Wi-Fi Smart Plug With Energy Monitoring Applicant : TP-LINK TECHNOLOGIES CO., LTD. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan,Shenzhen, China Manufacturer : TP-LINK TECHNOLOGIES CO., LTD. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan,Shenzhen, China Model No. : HS110 FCC ID : TE7HS110 EUT Voltage : 100-120V~50/60Hz Brand Name : TP-LINK Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2015 ANSI C63.4:2014; ANSI C63.10:2013; KDB 558074 D01v03r03 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park, Suzhou,215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392; Documented By : Reviewed By : Approved By : Report No: 1590447R-RF-US-P06V01 Page: 3 of 193 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park, Suzhou,215006, Jiangsu, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC, TAF USA : FCC Japan : VCCI China : CNAS Report No: 1590447R-RF-US-P06V01 Page: 4 of 193 TABLE OF CONTENTS Description Page 1. General Information ................................................................................................. 7 1.1. EUT Description ...................................................................................................... 7 1.2. Mode of Operation ................................................................................................. 11 1.3. Tested System Details ........................................................................................... 12 1.4. Configuration of Tested System ............................................................................. 13 1.5. EUT Exercise Software .......................................................................................... 14 2. Technical Test ........................................................................................................ 15 2.1. Summary of Test Result ......................................................................................... 15 2.2. Test Environment ................................................................................................... 16 3. Conducted Emission .............................................................................................. 17 3.1. Test Equipment ...................................................................................................... 17 3.2. Test Setup.............................................................................................................. 17 3.3. Limit ....................................................................................................................... 18 3.4. Test Procedure ...................................................................................................... 18 3.5. Uncertainty ............................................................................................................ 19 3.6. Test Result ............................................................................................................. 20 4. Radiated Emission ................................................................................................. 22 4.1. Test Equipment ...................................................................................................... 22 4.2. Test Setup.............................................................................................................. 23 4.3. Limit ....................................................................................................................... 24 4.4. Test Procedure ............................................................................................…

Text truncated - open the document above for the full version.

Report No: 1590447R-RF-US-P06V01 Page: 101 of 193 Report No: 1590447R-RF-US-P06V01 Page: 102 of 193 Channel 11 (2462MHz) Reference Level – Frequency H High Band Edge - Frequency H Report No: 1590447R-RF-US-P06V01 Page: 103 of 193 Spurious Emission 30MHz ~ 25GHz - Frequency H Report No: 1590447R-RF-US-P06V01 Page: 104 of 193 Report No: 1590447R-RF-US-P06V01 Page: 105 of 193 Report No: 1590447R-RF-US-P06V01 Page: 106 of 193 Report No: 1590447R-RF-US-P06V01 Page: 107 of 193 Report No: 1590447R-RF-US-P06V01 Page: 108 of 193 Report No: 1590447R-RF-US-P06V01 Page: 109 of 193 Report No: 1590447R-RF-US-P06V01 Page: 110 of 193 Product : Wi-Fi Smart Plug With Energy Monitoring Test Item : RF Antenna Conducted Spurious Test Site : TR-8 Test Mode : Mode 4: Transmit by 802.11n(40MHz) Channel 03 (2422MHz) Reference Level – Frequency L Report No: 1590447R-RF-US-P06V01 Page: 111 of 193 Low Band Edge - Frequency L Spurious Emission 30MHz ~ 25GHz - Frequency L Report No: 1590447R-RF-US-P06V01 Page: 112 of 193 Report No: 1590447R-RF-US-P06V01 Page: 113 of 193 Report No: 1590447R-RF-US-P06V01 Page: 114 of 193 Report No: 1590447R-RF-US-P06V01 Page: 115 of 193 Report No: 1590447R-RF-US-P06V01 Page: 116 of 193 Report No: 1590447R-RF-US-P06V01 Page: 117 of 193 Report No: 1590447R-RF-US-P06V01 Page: 118 of 193 Report No: 1590447R-RF-US-P06V01 Page: 119 of 193 Report No: 1590447R-RF-US-P06V01 Page: 120 of 193 Report No: 1590447R-RF-US-P06V01 Page: 121 of 193 Channel 06(2437MHz) Reference Level – Frequency M Spurious Emission 30MHz ~ 25GHz - Frequency M Report No: 1590447R-RF-US-P06V01 Page: 122 of 193 Report No: 1590447R-RF-US-P06V01 Page: 123 of 193 Report No: 1590447R-RF-US-P06V01 Page: 124 of 193 Report No: 1590447R-RF-US-P06V01 Page: 125 of 193 Report No: 1590447R-RF-US-P06V01 Page: 126 of 193 Report No: 1590447R-RF-US-P06V01 Page: 127 of 193 Report No: 1590447R-RF-US-P06V01 Page: 128 of 193 Report No: 1590447R-RF-US-P06V01 Page: 129 of 193 Channel 09 (2452MHz) Reference Level – Frequency H High Band Edge - Frequency H Report No: 1590447R-RF-US-P06V01 Page: 130 of 193 Emission 30MHz ~ 25GHz - Frequency H Report No: 1590447R-RF-US-P06V01 Page: 131 of 193 Report No: 1590447R-RF-US-P06V01 Page: 132 of 193 Report No: 1590447R-RF-US-P06V01 Page: 133 of 193 Report No: 1590447R-RF-US-P06V01 Page: 134 of 193 Report No: 1590447R-RF-US-P06V01 Page: 135 of 193 Report No: 1590447R-RF-US-P06V01 Page: 136 of 193 Report No: 1590447R-RF-US-P06V01 Page: 137 of 193 6. Radiated Emission Band Edge 6.1. Test Equipment Radiated Emission Band Edge / AC-5 Instrument Manufacturer Type No. Serial No. Cali. Due Date Preamplifier Miteq NSP1800-25 1364185 2016.05.03 Preamplifier QuieTek AP-040G CHM-0906001 2016.05.03 Bilog Antenna Teseq GmbH CBL6112D 27612 2016.10.15 DRG Horn ETS-Lindgren 3117 00123988 2016.01.07 Coaxial Cable Huber+Suhner SUCOFLEX 106 AC5-C1 2016.03.01 Coaxial Cable Huber+Suhner SUCOFLEX 106 AC5-C2 2016.03.01 Coaxial Cable Huber+Suhner SUCOFLEX 102 AC5-C3 2016.03.01 EMI Receiver Agilent N9038A MY51210196 2016.06.09 Temperature/Humidity Meter Zhichen ZC1-2 AC5-TH 2016.01.08 Note 1: All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. Report No: 1590447R-RF-US-P06V01 Page: 138 of 193 6.2. Test Setup 6.3. Limit Radiated emissions which fall in the restricted bands, as defined in Section 15.205(a) of FCC part 15, must also comply with the radiated emission limits specified in Section 15.209(a) (see Section 15.205(c)). 6.4. Test Procedure According to FCC ANSI C63.4: 2014 & ANSI C63.10: 2013& FCC 47CFR 15.247& KDB 558074 D01v03r03 This test is required for any spurious emission or modulation product that falls in a Restricted Band, as defined in Section 15.205 of FCC part 15. It must be performed with the highest gain of each type of antenna proposed for use with the EUT. Use the following spectrum analyzer settings: Span = wide enough to fully capture the emission being measured RBW = 1 MHz for f ≧ 1 GHz, 100 kHz for f < 1GHz VBW ≧ RBW Sweep = auto Detector function = peak Trace = max hold Follow the guidelines in ANSI C63.4 with respect to maximizing the emission by rotating the EUT, measuring the emission while the EUT is situated in three orthogonal planes (if appropriate), adjusting the measurement antenna height and polarization, etc. A pre-amp and a Report No: 1590447R-RF-US-P06V01 Page: 139 of 193 high pass filter are required for this test, in order to provide the measuring system with sufficient sensitivity. Allow the trace to stabilize. The peak reading of the emission, after being corrected by the antenna factor, cable loss, pre-amp gain, etc., is the peak field strength, which must comply with the limit specified in Section 15.35(b) of FCC part 15. Now set the VBW ≥ 1 / T (the minimum transmission duration), while maintaining all of the other instrument settings. This peak level, once corrected, must comply with the limit specified in Section 15.209 of FCC Part 15. If the emission on which a radiated measurement must be made is located at the edge of the authorized band of operation, then the alternative “marker-delta” method may be employed. 6.5. Uncertainty The measurement uncertainty above 1G is defined as ± 3.9 dB Report No: 1590447R-RF-US-P06V01 Page: 140 of 193 6.6. Test Result Measure Level = Reading Level + Cable Loss + Antenna Factor - Preamplifier Gain Site: AC5 Time: 2015/10/23 - 09:38 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_00165315(1-18GHz) Polarity: Horizontal EUT: Wi-Fi Smart Plug With Energy Monitoring Power: 120V/60Hz Note: Mode 1: Transmit at ch2412 by 802.11b No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2386.888 73.135 35.792-0.86574.000 37.343PK 2 2390.000 67.571 30.226-6.42974.000 37.345PK 3 * 2412.360 110.845 73.49636.84574.000 37.349PK Report No: 1590447R-RF-US-P06V01 Page: 141 of 193 Site: AC5 Time: 2015/10/23 - 09:39 Limi…

Text truncated - open the document above for the full version.

Test Setup Photograph for Part 15.247 Description: Radiated Emission Test Setup for Below 1GHz Description: Radiated Emission Test Setup for 1~18GHz Description : Front View of Conducted Test Description : Back View of Conducted Test
