Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
User Guide Kasa Cam, 24/7 Recording 1910012733 REV1.0.0 Contents About This Guide ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท1 Introduction ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท2 Appearance ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท3 Set Up Your Camera ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท4 Use Your Camera ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท6 Authentication ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท10 1 About This Guide This guide provides a brief introduction to the Kasa Cam and the Kasa app, as well as regulatory information. Features available in Kasa Smart may vary by model and software version. Kasa Smart availability may also vary by region or ISP. All images, steps, and descriptions in this guide are only examples and may not reflect your actual Kasa Smart experience. Conventions In this guide, the following convention is used: Convention Description Teal Key information appears in teal, including management page text such as menus, items, buttons and so on. Underline Hyperlinks are in teal and underlined. You can click to redirect to a website. More Info โข Specifications can be found on the product page at https://www.tp-link.com. โข Our Technical Support and troubleshooting information can be found at https://www.tp-link.com/support/. โข A TP-Link Community is provided for you to discuss our products at https://community.tp-link.com. โข Frequently Asked Questions (FAQs) can be found at https://www.tp-link.com/support/faq/. 2 Introduction With the Kasa Cam connected to your home network, you can see what happens in your home even when you're away. This keeps your home safe and give yourself a little peace of mind โ all while seeing every detail on your phone. You can set up and use your Kasa Cam alone, or use it together with other smart home devices including plugs, bulbs, switches and more. All these can be achieved on the Kasa app, which provides: โข Simple Setup - Easily connects your camera to your home network and place it almost anywhere. โข Live Video and Two-Way Audio - View 1080P full HD video and connect with your family instantly from anywhere at any time with your phone. โข Free Cloud Storage โ Record up to two days of video activity per camera at no cost and save favorite moments to your phone. Upgrade options available. โข Activity Detection โ Immediately alert you whenever it detects motion, keeping you and your family aware of what's going on. 3 Appearance Kasa Cam has a system LED that changes color according to its status, a microphone, a USB micro port and a RESET button. See the explanation below: RESET Button Note: You need to remove the magnetic housing to see the RESET button. โข Press and hold for 3 to 15 seconds: Reset to SoftAP mode โข Press and hold for over 15 seconds: Reset to Factory mode USB Micro Port Connect the USB cable and power adapter provided. System LED โข Solid amber: Rebooting โข Alternating amber and green: SoftAP Mode โข Flashing red: Connecting to Wi-Fi โข Flashing green: Connected to Wi-Fi โข Solid green: Bound to Cloud โข Flashing amber: Resetting to SoftAP/Factory mode Microphone Built-in internal microphone. Note: Do NOT insert objects into the hole. 4 Set Up Your Camera Follow the steps below to get started with your new camera. Step 1. Download Kasa Get the Kasa Smart app from the Apple App Store or Google Play, or by scanning the QR code below. Step 2. Log In Open the app, and log in with your TP-Link ID. If you don't have an account, create one first. Step 3. Start Setup Tap the button in the Kasa app and select Cameras > Kasa Cam. 5 Step 4. Configure Camera Follow app instructions to configure your camera and add it to your home network. Step 5. Place Camera Place your camera on a flat surface, or follow app instructions to install it on a wall or ceiling with the provided mounting screws. โข Place on a flat surface โข Install on a wall or ceiling Unit: mm 6 Use Your Camera After initial setup is complete, you can view and manage your camera with the Kasa app. View the Live Video You can view your camera from anywhere at any time with your phone. Go to the Devices page, then tap a camera to view the live video. Kasa LIVE 7 Change Camera Settings You can change the settings of your camera to meet various needs. Go to the Devices page, tap a camera, then tap to view and change camera settings. 8 Check Activity Notifications When you receive an activity notification, you can check the live video immediately, or check the recordings at any time. Go to the Activity page to view activity notifications on each date. You can tap for notification settings. Kasa Kasa 9 Control Your Camera Smartly You can easily control your camera together with other smart home devices. With Kasa, your home is never more than a few taps away. For more information, go to the Kasa app. 10 Authentication COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright ยฉ 2020 TP-Link Technologies Co., Ltd. All rights reserved. 11 FCC compliance information statement Product Name: Kasa Cam, Kasa Cam, 24/7 Recording Model Number: KC125 Component NameModelFCC Identifier number AC ADAPTER A8-501000 TE7KC125 Responsible Party: TP-Link USA Corporation, d/b/a TP-Link North America, Inc. Address: 145 South State College Blvd. Suite 400, Brea, CA 92821 Website: http://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6803 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limiโฆ
Text truncated - open the document above for the full version.
TP-Link Technologies Co., Ltd. Authority to Act as Agent Date: 2019-12-26 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: BTL Inc./Mandy Wang is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: ___2020-12-26____ By: _______________ ________Jing Huang________ (Signature 1 ) (Print name) Title: ____ Regulatory Compliance Manager_____________ On behalf of: ___ TP-Link Technologies Co., Ltd.________ (Company Name) Telephone: ___75521534921_____ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.
TP-Link Technologies Co., Ltd. Request for Confidentiality Date: 2019-12-26 Subject: Confidentiality Request for: TE7KC125 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 Userโs Manual TP-Link Technologies Co., Ltd.____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Regulatory Compliance Manager __________ Jing Huang__________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.
TP-Link Technologies Co., Ltd. Wi-Fi Channel 12 and 13 Declaration Letter Date: 2019-12-26 We, the undersigned company Company Name: TP-Link Technologies Co., Ltd. Address: Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen,518057 China Declare that: Product description: Kasa Cam, 24/7 Recording Type designation: KC125 Brand: tp-link FCC ID: TE7KC125 Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: ____________ Name: Jing Huang Tel: 75521534921 Email: [email protected]

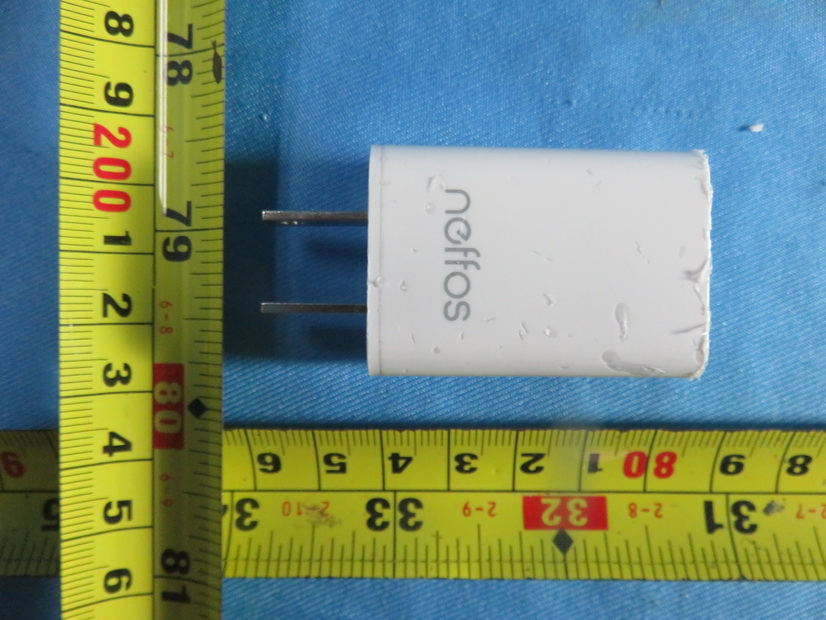

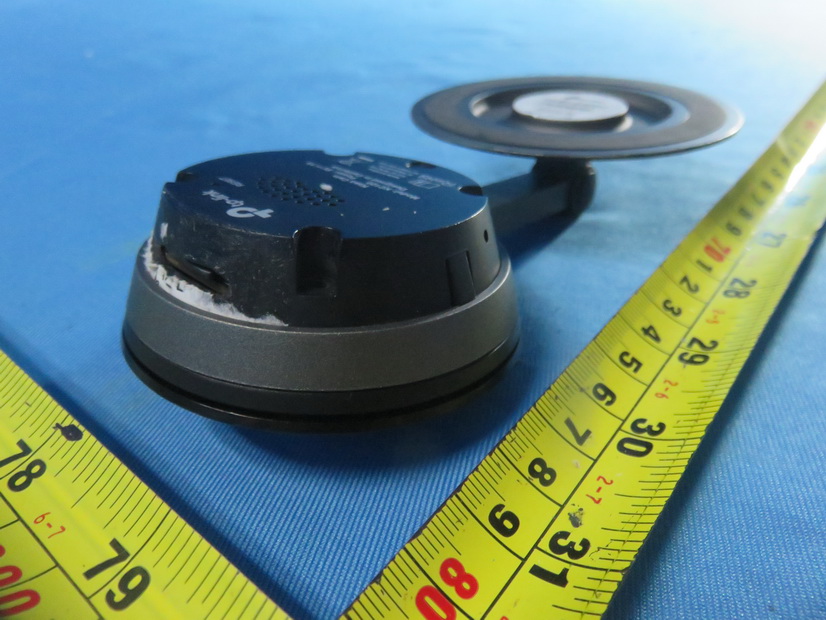

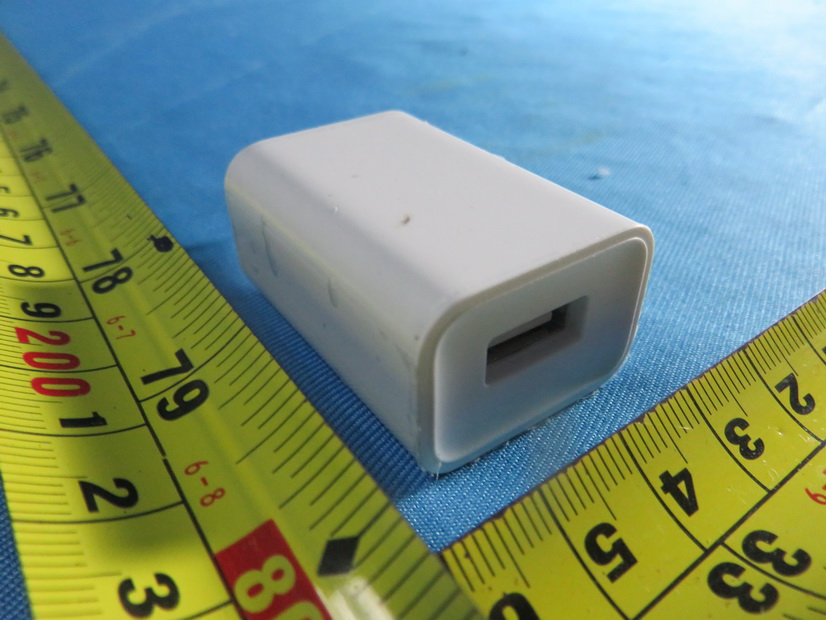

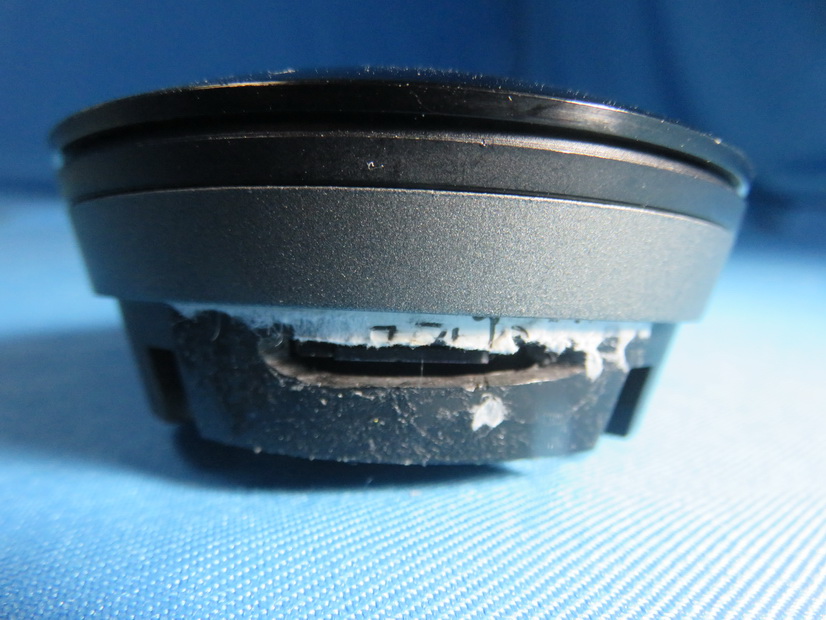

Project No.: 1911C087 Page 2 of 14 Project No.: 1911C087 Page 3 of 14 Project No.: 1911C087 Page 4 of 14 Project No.: 1911C087 Page 5 of 14 Project No.: 1911C087 Page 6 of 14
Project No.: 1911C087 Page 7 of 14 Project No.: 1911C087 Page 8 of 14 Project No.: 1911C087 Page 9 of 14 Ant. Project No.: 1911C087 Page 10 of 14 Project No.: 1911C087 Page 11 of 14 Project No.: 1911C087 Page 12 of 14 Project No.: 1911C087 Page 13 of 14 Project No.: 1911C087 Page 14 of 14
Report No.: BTL-FCCP-2-1911C087 Page 1 of 4 FCC RF EXPOSURE REPORT FCC ID: TE7KC125 Project No. : 1911C087 Equipment : Kasa Cam, 24/7 Recording Brand Name : tp-link Test Model : KC125 Series Model : N/A Applicant : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Manufacturer : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Date of Receipt : Nov. 14, 2019 Date of Test : Nov. 19, 2019 ~ Dec. 06, 2019 Issued Date : Jan. 02, 2020 Report Version : R00 Test Sample : Engineering Sample No.: DG2019111456 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Jivey Jiang Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-1911C087 Page 2 of 4 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Jan. 02, 2020 Report No.: BTL-FCCP-2-1911C087 Page 3 of 4 1. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A Internal N/A 4.05 Report No.: BTL-FCCP-2-1911C087 Page 4 of 4 2. TEST RESULTS Tune up tolerance (dBm) ยฑ0.5 Antenna Gain (dBi) Antenna Gain (numeric) Max. Peak Output Power (dBm) Max. Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 4.05 2.5410 25.45 350.7519 0.17740 1 Complies Note: The calculated distance is 20 cm. Output power including tune up tolerance(tune up tolerance: X.XX dBm). End of Test Report
Report No.: BTL-FCCP-1-1911C087 Page 1 of 115 FCC Radio Test Report FCC ID: TE7KC125 This report concerns: Original Grant Project No. : 1911C087 Equipment : Kasa Cam, 24/7 Recording Brand Name : tp-link Test Model : KC125 Series Model : N/A Applicant : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Manufacturer : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Date of Receipt : Nov. 14, 2019 Date of Test : Nov. 19, 2019 ~ Dec. 06, 2019 Issued Date : Jan. 02, 2020 Report Version : R00 Test Sample : Engineering Sample No.: DG2019111456 Standard(s) : FCC Part15, Subpart C (15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Jivey Jiang Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-1911C087 Page 2 of 115 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufactureโs responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTLโs laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturerโs responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-1911C087 Page 3 of 115 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 8 2 . GENERAL INFORMATION 9 2.1 GENERAL DESCRIPTION OF EUT 9 2.2 DESCRIPTION OF TEST MODES 10 2.3 PARAMETERS OF TEST SOFTWARE 12 2.4 DUTY CYCLE 13 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 14 2.6 SUPPORT UNITS 14 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 15 3.1 LIMIT 15 3.2 TEST PROCEDURE 15 3.3 DEVIATION FROM TEST STANDARD 15 3.4 TEST SETUP 16 3.5 EUT OPERATION CONDITIONS 16 3.6 TEST RESULTS 16 4 . RADIATED EMISSIONS TEST 17 4.1 LIMIT 17 4.2 TEST PROCEDURE 18 4.3 DEVIATION FROM TEST STANDARD 18 4.4 TEST SETUP 19 4.5 EUT OPERATION CONDITIONS 20 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 20 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 20 4.8 TEST RESULTS - ABOVE 1000 MHZ 20 5 . BANDWIDTH TEST 21 5.1 LIMIT 21 5.2 TEST PROCEDURE 21 5.3 DEVIATION FROM STANDARD 21 Report No.: BTL-FCCP-1-1911C087 Page 4 of 115 Table of Contents Page 5.4 TEST SETUP 21 5.5 EUT OPERATION CONDITIONS 21 5.6 TEST RESULTS 21 6 . MAXIMUM PEAK OUTPUT POWER TEST 22 6.1 LIMIT 22 6.2 TEST PROCEDURE 22 6.3 DEVIATION FROM STANDARD 22 6.4 TEST SETUP 22 6.5 EUT OPERATION CONDITIONS 22 6.6 TEST RESULTS 22 7 . CONDUCTED SPURIOUS EMISSIONS 23 7.1 LIMIT 23 7.2 TEST PROCEDURE 23 7.3 DEVIATION FROM STANDARD 23 7.4 TEST SETUP 23 7.5 EUT OPERATION CONDITIONS 23 7.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY TEST 24 8.1 LIMIT 24 8.2 TEST PROCEDURE 24 8.3 DEVIATION FROM STANDARD 24 8.4 TEST SETUP 24 8.5 EUT OPERATION CONDITIONS 24 8.6 TEST RESULTS 24 9 . MEASUREMENT INSTRUMENTS LIST 25 10 . EUT TEST PHOTO 27 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 31 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 34 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 39 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 42 APPENDIX E - BANDWIDTH 103 APPENDIX F - MAXIMUM PEAK OUTPUT POWER 107 Report No.: BTL-FCCP-1-1911C087 Page 5 of 115 Table of Contents Page APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 109 APPENDIX H - POWER SPECTRAL DENSITY 113 Report No.: BTL-FCCP-1-1911C087 Page 6 of 115 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Jan. 02, 2020 Report No.: BTL-FCCP-1-1911C087 Page 7 of 115 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart C (15.247) Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A N/A ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PA SS ------ 15.247(a)(2) Bandwidth APPENDIX E PA SS ------ 15.247(b)(3) Maximum Peak Output Power APPENDIX F PA SS ------ 15.247(d) Conducted Spurious Emissions APPENDIX G PA SS ------ 15.247(e) Power Spectral Density APPEโฆ
Text truncated - open the document above for the full version.
Report No.: BTL-FCCP-1-1911C087 Page 111 of 115 Test Mode TX G Mode Bandedge-CH01 Bandedge-CH11 CH01 โ 10th Harmonic of the fundamental frequency CH06 โ 10th Harmonic of the fundamental frequency CH11 โ 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-1911C087 Page 11 2 of 115 Test Mode TX N-20M Mode Bandedge-CH01 Bandedge-CH11 CH01 โ 10th Harmonic of the fundamental frequency CH06 โ 10th Harmonic of the fundamental frequency CH11 โ 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-1911C087 Page 11 3 of 115 APPENDIX H - POWER SPECTRAL DENSITY Report No.: BTL-FCCP-1-1911C087 Page 11 4 of 115 Test Mode TX B Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -3.76 8.0 Complies 06 2437 -4.65 8.0 Complies 11 2462 -6.02 8.0 Complies CH01 CH06 CH11 Test Mode TX G Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -10.49 8.0 Complies 06 2437 -10.98 8.0 Complies 11 2462 -10.08 8.0 Complies CH01 CH06 CH11 Report No.: BTL-FCCP-1-1911C087 Page 11 5 of 115 Test Mode TX N-20M Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -10.70 8.0 Complies 06 2437 -10.37 8.0 Complies 11 2462 -10.99 8.0 Complies CH01 CH06 CH11 End of Test Report
Report No.: BTL-FCCP-1-1911C087 Page 27 of 115 10. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-1-1911C087 Page 28 of 115 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-1-1911C087 Page 29 of 115 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-1-1911C087 Page 30 of 115 Radiated Emissions Test Photos Above 1 GHz
No.3 Jinshagang 1st Rd, Shixia, Dalang ยท Dongguan City ยท China
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.41 GHz - 2.46 GHz | 312.60 mW |
