TE7M5350V23G Mobile Wi-Fi

M5350 3G Mobile WiFi REV 1.0.1 1910011059 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2014 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user‟s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user‟s authority to operate the equipment. FCC RF Radiation Exposure Statement: M5350 radiates radio frequency energy at a level below the United States FCC radio frequency exposure limits. Nevertheless, this device should be used in such a manner that the potential for human contact during normal operation is minimized. For body worn operation, this device has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 5 mm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. This Mobile device has been evaluated for and shown compliant with the FCC RF Exposure limits. The unit of measurement for RF exposure is Specific Absorption Rate (SAR). The FCC SAR limits for mobile phone is 1.6W/Kg per 1g of tissue. Canadian Compliance Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1)This device may not cause interference, and (2)This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme aux norms CNR exemptes de licence d‟Industrie Canada. Le fonctionnement est soumis aux deux conditions suivantes: (1)cet appareil ne doit pas provoquer d‟interférences et (2)cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un fonctionnement non souhaité de l‟appareil. Industry Canada Statement Complies with the Canadian ICES-003 Class B specifications. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device complies with RSS 210 of Industry Canada. This Class B device meets all the requirements of the Canadian interference-causing equipment regulations. Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Korea Warning Statements: 당해 무선설비는 운용중 전파혼신 가능성이 있음. NCC Notice & BSMI Notice 注意！ 依據 低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機，費經許可，公司、商號或使用者均不得擅自變更頻 率、加大功率或變更原設計之特性或功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通行；經發現有干擾現象時，應立 即停用，并改善至無干擾時方得繼續使用。前項合法通信，指依電信規定作業之無線電信。低功率 射頻電機需忍受合法通信或工業、科學以及醫療用電波輻射性電機設備之干擾。 減少電磁波影響，請妥適使用。 安全諮詢及注意事項 ● 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。 ● 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。 ● 注意防潮，請勿將水或其他液體潑灑到本產品上。  ● 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。 ● 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。 ● 請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。 Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України. Safety Information  When product has power button, the power button is one of the way to shut off the product; When there is no power button, the only way to completely shut off power is to disconnect the product or the power adapter from the power source.  Don‟t disassemble the product, or make repairs yourself. You run the risk of electric shock and voiding the limited warranty. If you need service, please contact us.  Avoid water and wet locations. This product can be used in the following countries: AT BG BY CA CZ DE DK EE ES FI FR GB GR HU IE IT LT LV MT NL NO PL PT RO RU SE SK TR UA US TP-LINK TECHNOLOGIES CO., LTD TP-LINK TECHNOLOGIES CO., LTD. Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China DECLARATION OF CONFORMITY For the following equipment: Product Description: 3G Mobile WiFi Model No.: M5350 Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives: Directi…

Text truncated - open the document above for the full version.

Declarationfornonor-USchanneloperation Date:Jul24,2014 We,TP-LinkTechnologiesCo.,Ltddeclarethatthedevicedoesnot supportanynon-USchannel(12,13)inalltheoperationalmode(s)fortheflowing product. FCCID:TE7M5350V2 Productdescription:3GMobileWi-Fi Ifyoushouldhaveanyquestion(s)regardingthisdeclaration,pleasedon’t hesitatetocontactus. Thankyou! Sincerely, YongquanWang ProductDept.Manager TP-LinkTechnologiesCo.,Ltd

For the following information Ref. File No.: C1M1407030 Product 3G Mobile Wi-Fi Model Number M5350 Brand TP-LINK Applicant TP-Link Technologies Co., Ltd Manufacturer TP-Link Technologies Co., Ltd Standards FCC CFR 47 Part 15 Subpart B/Oct. 2013 and CISPR 22/1997 and ICES-003 Issue 5:2012 (Class B Limit) We hereby certify that the above product has been tested by us and complied with the FCC and IC official limits. The product might be marketed in US in accordance with the standard CFR 47 Part 2 and Part 15 Subpart B class B equipment regulations under FCC Rules. The test was performed according to the procedures mentioned in ANSI C63.4-2009. The test data and results are issued on the test report no. EM-F140428. Signature _____________________________ Ben Cheng/Manager Date: 2014. 08. 06 Test Laboratory: AUDIX Technology Corporation, EMC Department NVLAP Lab. Code: 200077-0 FCC OET Designation: TW1004 Web Site: www.audixtech.com The statement is based on a single evaluation of one sample of the above-mentioned products. It does not imply an assessment of the whole production and does not permit the use of the test lab logo. NVLAP Lab Code 200077-0

AuthoritytoActasAgent Date:Jul24,2014 AmericanCertificationBody,Inc. 6731WhittierAvenue SuiteC110 McLean,VA22101 ToWhomItMayConcern: _AUDIXTechnologyCorporation__isauthorizedtoactonourbehalf,untilotherwise notified,forapplicationstoAmericanCertificationBody,Inc.(ACB). Wecertifythatwearenotsubjecttodenialoffederalbenefits,thatincludesFCCbenefits,pursuantto Section5301oftheAnti-DrugAbuseActof1988,21U.S.C.862.Further,noparty,asdefinedin47 CFR1.2002(b),totheapplicationissubjecttodenialoffederalbenefits,thatincludesFCCbenefits. Thankyou, AgencyAgreementExpirationDate:_____Jul24,2015_ By:____YongquanWang__ (Signature)(Printname) Title:___ProductDept.Manager_____ Onbehalfof:___TP-LinkTechnologiesCo.,Ltd___ (CompanyName)Telephone: _____75526508263___________

Request for Confidentiality Date: Jul. 24, 2014 Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding Application for certification of FCC ID: TE7M5350V2 Gentlemen: Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below:  Functional Block Diagram  Operational Description (theory of operation)  Schematic Diagram  Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Name: Yongquan Wang TP-Link Technologies Co., Ltd. Tel.: +86-755-26502509 Fax.: +86-755-26508930 E-mail: [email protected]

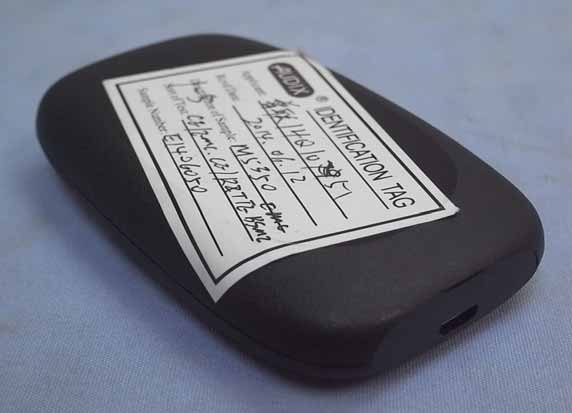

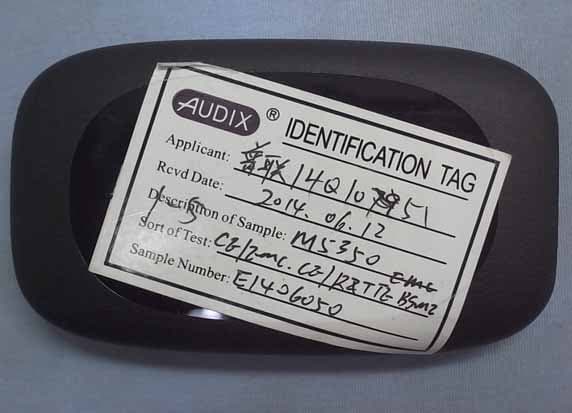

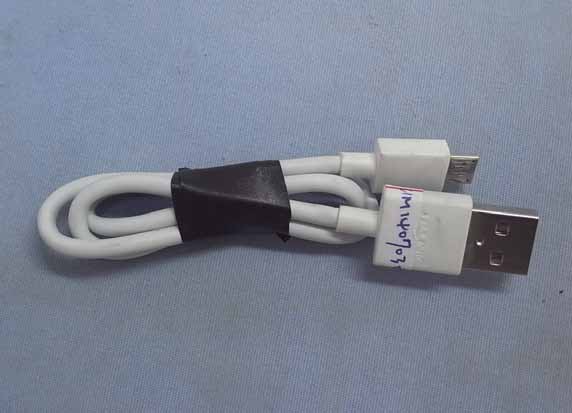

TP-Link Technologies Co., Ltd 3G Mobile Wi-Fi FCC ID : TE7M5350V2 EUT External Photos Photo 1 General Appearance (Front & Side View) Photo 2 General Appearance (Back & Side View) TP-Link Technologies Co., Ltd 3G Mobile Wi-Fi FCC ID : TE7M5350V2 Photo 3 General Appearance (Front View) Photo 4 General Appearance (Back View) TP-Link Technologies Co., Ltd 3G Mobile Wi-Fi FCC ID : TE7M5350V2 Photo 5 Power Adapter (Front & Side View) Photo 6 Power Adapter (Back & Side View) TP-Link Technologies Co., Ltd 3G Mobile Wi-Fi FCC ID : TE7M5350V2 Photo 7 Power Adapter (Label View) Photo 8 USB Cable

TP-Link Technologies Co., Ltd 3G Mobile Wi-Fi FCC ID : TE7M5350V2 ID Label Location z Label Placement Location (Back View of EUT) z ID Label Format ID Label Placement Location

TP-Link Technologies Co., Ltd 3G Mobile Wi-Fi FCC ID : TE7M5350V2 EUT Internal Photos Photo 9 Internal View (Removed Battery) Photo 10 Internal View 2G DRX Antenna 2G Primary Antenna WiFi Antenna TP-Link Technologies Co., Ltd 3G Mobile Wi-Fi FCC ID : TE7M5350V2 Photo 11 Internal View (Main Board, Front View) Photo 12 Internal View (Main Board, Back View) 2G+GPS Chipset 2G+GPS Chipset Wi-Fi Chipset TP-Link Technologies Co., Ltd 3G Mobile Wi-Fi FCC ID : TE7M5350V2 Photo 13 Battery (Front View) Photo 14 Battery (Back View) TP-Link Technologies Co., Ltd 3G Mobile Wi-Fi FCC ID : TE7M5350V2 Photo 15 Battery ( Label View)

FCC ID:TE7M5350V2 Page 1 of 73 AUDIX Technology Corporation Report No. EM-SR140004 SAR TEST REOIRT FOR TP-LINK Technologies Co., Ltd. 3G Mobile Wi-Fi Model No.: M5350 FCC ID: TE7M5350V2 Brand: TP-LINK Prepared for : TP-LINK Technologies Co., Ltd. Building 24 (Floors 1,2,4,5) and 28 (floorsl-4) Central Science and technology park , Shennan Rd, Nanshan, Shenzhen, China Prepared By : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax : (02) 2609-9303 File Number : C1M1407030 Report Number : EM-SR140004 Date of Test : 2014. 07. 14 ~ 08. 28 Date of Report : 2014. 08. 28 FCC ID:TE7M5350V2 Page 2 of 73 AUDIX Technology Corporation Report No. EM-SR140004 TABLE OF CONTENTS Description Page Test Report Verification .............................................................................................................................3 1.DESCRIPTION OF REVISION HISTORY ...........................................................................................4 2.SUMMARY OF MAXIMUM SAR VALUE..........................................................................................5 3.GENERAL INFORMATION..................................................................................................................6 3.1. Description of Device (EUT) .........................................................................................................6 3.2. Antenna Information ......................................................................................................................7 3.3. Test Environment...........................................................................................................................7 3.4. Description of Test Facility ...........................................................................................................8 3.5. Measurement Uncertainty ..............................................................................................................9 4.TEST EQUIPMENT..............................................................................................................................10 5.SAR MEASUREMENT SYSTEM .......................................................................................................11 5.1. Definition of Specific Absorption Rate (SAR) ............................................................................11 5.2. SPEAG DASY System ................................................................................................................11 5.3. SAR System Verification.............................................................................................................19 5.4. SAR Measurement Procedure ......................................................................................................26 6.SAR MEASUREMENT EVALUATION .............................................................................................29 6.1. EUT Configuration and Setting ...................................................................................................29 6.2. EUT Testing Position...................................................................................................................30 6.3. Tissue Calibration Result .............................................................................................................31 6.4. SAR Exposure Limits ..................................................................................................................31 6.5. Conducted Power Measurement ..................................................................................................32 6.6. Exposure Positions Consideration ...............................................................................................35 6.7. SAR Test Result...........................................................................................................................36 6.8. Simultaneous Multi-band Transmission Evaluation ....................................................................69 7.PHOTOGRAPHS OF MEASUREMENT .............................................................................................70 APPENDIX I (Test Equipment Calibration Data) FCC ID:TE7M5350V2 Page 3 of 73 AUDIX Technology Corporation Report No. EM-SR140004 TEST REPORT VERIFICATION Applicant : TP-LINK Technologies Co., Ltd. EUT Description : 3G Mobile Wi-Fi FCC ID : TE7M5250V2 (A) Model No. : M5350 (B) Serial No. : N/A (C) Brand : TP-LINK (D) Power Supply : DC 3.7V (E) Test Voltage : DC 3.7V Measurement Standards Used: FCC 47 CFR Part 2 (§2.1093) FCC OET Bulletin 65 Supplement C, June 2001 (Measurement: KDB 248227 D01 SAR meas for 802.11 a b g v01r02, KDB 447498 D01 General RF Exposure Guidance v05r02, KDB 941225 D01 SAR Test for 3G devices v02, KDB 941225 D03 SAR Test Reduction GSM GPRS EDGE v01, KDB 865664 D01 SAR Measurment 100MHz to 6GHz v01r03) The device described above was tested by AUDIX Technology Corporation. The measurement results were contained in this test report and AUDIX Technology Corporation was assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliance with the FCC OET Bulletin 65 Supplement C & IEEE 1528 requirements. This report applies to above tested sample only and shall not be reproduced in part without written approval of AUDIX Technology Corporation. Date of Test: 2014. 07. 14 ~ 08. 28 Date of Report: 2014. 08. 28 Producer: (Tina Huang/Administrator) Signatory: (Ben Cheng/Manager) FCC ID:TE7M5350V2 Page 4 of 73 AUDIX Technology Corporation Report No. EM-SR140004 1. DESCRIPTION OF REVISION HISTORY Edition No. Date of Rev. Revision Summary Report No. 0 2014. 08. 28 Original Report EM-SR140004 FCC ID:TE7M5350V2 Page 5 of 73 AUDIX Technology Corporation Report No. EM-SR140004 2. SUMMARY OF MAXIMUM SAR VALUE Mode Highest Reported Body SAR 1g WLAN 2.4G 0.48(W/kg) GSM 850 …

Text truncated - open the document above for the full version.

FCC ID:TE7M5350V2 APPENDIX I AUDIX Technology Corporation Report No. EM-SR140004 APPENDIX I Test Equipment Calibration Data Audix Technology Corporation EMC Department: No. 53-11, Dingfu, Linkou Dist., New Taipei City, Taiwan, R.O.C. Tel: 886-2-26099301 / 26092133 Fax: 886-2-26099303 E-mail: [email protected] Statement of Due Date for Dipole Calibration We have defined that the calibration interval of following dipole which use for SAR system is 3 years. Please note that the Cal Interval may be other than 1 year, e.g. 2 years or 3 years. Also we have determined that the original calibration result of these instruments are not significantly affected before the first-time use of them, when they are stored in good condition. According to the above reasons, the dipole calibration Due Date described as below: Example: Date tested at SPEAG: May 9, 2012 Example Calibration Interval: 3 Years First-Time Use of Instrument: September 13, 2012 First-Time Use + Selected Interval = Date for Next Calibration ------------------------------------------------------------------------------------------------------- September 13, 2012 + 3 Years = September 12, 2015 Leon Liu / Quality Manager SPEAG D1750V2 1065 SPEAG D900V2 1d133 SPEAG D750V3 1056 SPEAG D835V2 4d136 SPEAG D1900V2 5d156 SPEAG D2000V2 1061 SPEAG D2450V2 888 SPEAG D2600V2 1048 SPEAG D5GHzV2 1124 SPEAG CD2450V3 1161 SPEAG CD1880V3 1173 SPEAG CD835V3 1187 Dipole Verified Data Model Name: D2450V2 SN:888 Pursuant to KDB 865664 D01 V01r01 section 3.2.2 that the reference dipole calibration can be extended to 3 years if Lab. does a confirmation on return loss and impedance annually, and compliance with following conditions, 1. Return loss deviates by less than 20% from the previous measurement and have 20 dB minimum return-loss requirement 2. The real or imaginary parts of the impedance, measured at least annually, deviates by less than 5 Ω from the previous measurement. Antenna Parameters with Head Tissue Item Verified on 7/15, 2013 Original Cal. Result Deviation Impedance, transformed to feed point 51.096Ω+4.93jΩ 53.8Ω+3.3jΩ < 5Ω Return Loss ‐26.196 dB ‐26.3 dB 0.39% Antenna Parameters with Body Tissue Item Verified on 7/15, 2013 Original Cal. Result Deviation Impedance, transformed to feed point 49.528Ω+3.87jΩ 50.2Ω+4.7jΩ < 5Ω Return Loss ‐23.31 dB ‐26.6 dB 12.37% Plot for Antenna Parameters with Head Tissue Plot for Antenna Parameters with Body Tissue Dipole Verified Data Model Name: D2450V2 SN:888 Pursuant to KDB 865664 D01 V01r01 section 3.2.2 that the reference dipole calibration can be extended to 3 years if Lab. does a confirmation on return loss and impedance annually, and compliance with following conditions, 1. Return loss deviates by less than 20% from the previous measurement and have 20 dB minimum return-loss requirement 2. The real or imaginary parts of the impedance, measured at least annually, deviates by less than 5 Ω from the previous measurement. Antenna Parameters with Head Tissue Item Verified on 7/1 5 , 2014 Original Cal. Result Deviation Impedance, transformed to feed point 51.099+4.93j 53.8+3.3j < 5 Return Loss ‐26.19 dB ‐26.3 dB 0.42% Antenna Parameters with Body Tissue Item Verified on 7/1 5 , 2014 Original Cal. Result Deviation Impedance, transformed to feed point 49.527+3.87j 50.2+4.7j < 5 Return Loss ‐23.31 dB ‐26.6 dB 12.37% Plot for Antenna Parameters with Head Tissue Plot for Antenna Parameters with Body Tissue

Dipole Verified Data Model Name: D835V2 SN:4d136 Pursuant to KDB 865664 D01 V01r01 section 3.2.2 that the reference dipole calibration can be extended to 3 years if Lab. does a confirmation on return loss and impedance annually, and compliance with following conditions, 1. Return loss deviates by less than 20% from the previous measurement and have 20 dB minimum return-loss requirement 2. The real or imaginary parts of the impedance, measured at least annually, deviates by less than 5 Ω from the previous measurement. Antenna Parameters with Head Tissue Item Verified on 12/13, 2013 Original Cal. Result Deviation Impedance, transformed to feed point 52.507Ω‐3.8191jΩ 52.5Ω‐1.4jΩ < 5Ω Return Loss ‐30.816 dB ‐31 dB 0.6% Antenna Parameters with Body Tissue Item Verified on12/13, 2013 Original Cal. Result Deviation Impedance, transformed to feed point 49.788Ω‐1.3948jΩ 47.6Ω‐3.8jΩ < 5Ω Return Loss ‐26.080 dB ‐26.8 dB 2.7% Plot for Antenna Parameters with Head Tissue Plot for Antenna Parameters with Body Tissue Dipole Verified Data Model Name: D1900V2 SN:5d156 Pursuant to KDB 865664 D01 V01r01 section 3.2.2 that the reference dipole calibration can be extended to 3 years if Lab. does a confirmation on return loss and impedance annually, and compliance with following conditions, 1. Return loss deviates by less than 20% from the previous measurement and have 20 dB minimum return-loss requirement 2. The real or imaginary parts of the impedance, measured at least annually, deviates by less than 5 Ω from the previous measurement. Antenna Parameters with Head Tissue Item Verified on 12/14, 2013 Original Cal. Result Deviation Impedance, transformed to feed point 52.516Ω+4.6433jΩ 52.5Ω+5.1jΩ < 5Ω Return Loss ‐24.565 dB ‐25.2 dB 2.5% Antenna Parameters with Body Tissue Item Verified on12/14, 2013 Original Cal. Result Deviation Impedance, transformed to feed point 49.948Ω+3.6457jΩ 48.5Ω+5.8jΩ < 5Ω Return Loss ‐22.18dB ‐24.3 dB 8.7% Plot for Antenna Parameters with Head Tissue Plot for Antenna Parameters with Body Tissue

Dipole Verified Data Model Name: D835V2 SN:4d136 Pursuant to KDB 865664 D01 V01r01 section 3.2.2 that the reference dipole calibration can be extended to 3 years if Lab. does a confirmation on return loss and impedance annually, and compliance with following conditions, 1. Return loss deviates by less than 20% from the previous measurement and have 20 dB minimum return-loss requirement 2. The real or imaginary parts of the impedance, measured at least annually, deviates by less than 5 Ω from the previous measurement. Antenna Parameters with Head Tissue Item Verified on 12/13, 2013 Original Cal. Result Deviation Impedance, transformed to feed point 52.507Ω‐3.8191jΩ 52.5Ω‐1.4jΩ < 5Ω Return Loss ‐30.816 dB ‐31 dB 0.6% Antenna Parameters with Body Tissue Item Verified on12/13, 2013 Original Cal. Result Deviation Impedance, transformed to feed point 49.788Ω‐1.3948jΩ 47.6Ω‐3.8jΩ < 5Ω Return Loss ‐26.080 dB ‐26.8 dB 2.7% Plot for Antenna Parameters with Head Tissue Plot for Antenna Parameters with Body Tissue

Dipole Verified Data Model Name: D1900V2 SN:5d156 Pursuant to KDB 865664 D01 V01r01 section 3.2.2 that the reference dipole calibration can be extended to 3 years if Lab. does a confirmation on return loss and impedance annually, and compliance with following conditions, 1. Return loss deviates by less than 20% from the previous measurement and have 20 dB minimum return-loss requirement 2. The real or imaginary parts of the impedance, measured at least annually, deviates by less than 5 Ω from the previous measurement. Antenna Parameters with Head Tissue Item Verified on 12/14, 2013 Original Cal. Result Deviation Impedance, transformed to feed point 52.516Ω+4.6433jΩ 52.5Ω+5.1jΩ < 5Ω Return Loss ‐24.565 dB ‐25.2 dB 2.5% Antenna Parameters with Body Tissue Item Verified on12/14, 2013 Original Cal. Result Deviation Impedance, transformed to feed point 49.948Ω+3.6457jΩ 48.5Ω+5.8jΩ < 5Ω Return Loss ‐22.18dB ‐24.3 dB 8.7% Plot for Antenna Parameters with Head Tissue Plot for Antenna Parameters with Body Tissue

FCC ID: TE7M5350V2 Page 1 of 74 AUDIX Technology Corporation Report No. EM-F140426 APPLICATION FOR CERTIFICATION On Behalf of TP-Link Technologies Co., Ltd 3G Mobile Wi-Fi Model No.: M5350 FCC ID: TE7M5350V2 Brand: TP-LINK Prepared for : TP-Link Technologies Co., Ltd Building 24 (Floors 1,2,4,5) and 28 (floorsl-4) Central Science and technology park , Shennan Rd, Nanshan, Shenzhen, China Prepared by : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number C1M1407030 Report Number EM-F140426 Date of Test 2014. 07. 08 ~ 14 Date of Report 2014. 07. 21 FCC ID: TE7M5350V2 Page 2 of 74 AUDIX Technology Corporation Report No. EM-F140426 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION .................................................................................................4 1. DESCRIPTION OF REVISION HISTORY .......................................................................... 5 2. GENERAL INFORMATION .................................................................................................. 6 2.1. Description of Device (EUT)........................................................................................................... 6 2.2. Antenna Information........................................................................................................................ 7 2.3. Data Rate Relative to Average Output Power ................................................................................. 8 2.4. Test Configuration for Each Test Item ............................................................................................ 8 2.5. Tested Supporting System Details ................................................................................................... 9 2.6. Description of Test Facility ............................................................................................................. 9 2.7. Measurement Uncertainty.............................................................................................................. 10 3. CONDUCTED EMISSION MEASUREMET...................................................................... 11 3.1. Test Equipment .............................................................................................................................. 11 3.2. Block Diagram of Test Setup......................................................................................................... 11 3.3. Powerline Conducted Emission Limit [§15.207, Class B] ............................................................ 12 3.4. Operating Condition of EUT ......................................................................................................... 12 3.5. Test Procedure ............................................................................................................................... 12 3.6. Conducted Emission Measurement Results................................................................................... 13 4. RADIATED EMISSION MEASUREMENT ....................................................................... 18 4.1. Test Equipment .............................................................................................................................. 18 4.2. Test Setup ...................................................................................................................................... 19 4.3. Radiated Emission Limits (§15.209) .............................................................................................21 4.4. Operating Condition of EUT ......................................................................................................... 21 4.5. Test Procedure ............................................................................................................................... 22 4.6. Test Results.................................................................................................................................... 23 5. 6dB BANDWIDTH MEASUREMENT ................................................................................ 39 5.1. Test Equipment .............................................................................................................................. 39 5.2. Block Diagram of Test Setup......................................................................................................... 39 5.3. Specification Limits [§15.247(a)(2)] ............................................................................................. 39 5.4. Operating Condition of EUT ......................................................................................................... 39 5.5. Test Procedure ............................................................................................................................... 39 5.6. Test Results.................................................................................................................................... 40 6. MAXIMUM PEAK OUTPUT POWER MEASUREMENT .............................................. 46 6.1. Test Equipment .............................................................................................................................. 46 6.2. Block Diagram of Test Setup......................................................................................................... 46 6.3. Specification Limits [§15.247(b)-(3)]............................................................................................ 46 6.4. Operating Condition of EUT ....................................................................…

Text truncated - open the document above for the full version.
