TE7MR3420V23G/4G Wireless N Router

TL-MR3420 3G/4G Wireless N Router Rev: 2.0.0 1910010676 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2012 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions This device is intended fo r home and of fice use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service It aly None If used outside of own premises, general authorization is required Luxembourg None General authorization require d for network and service supply(not for spectrum) Norway Implemented This subsecti on does not apply for the geographical area within a radius of 20 km from the centre of Ny- Ålesund Russian Federation None Only for indoor applications This device has been designed to operate with th e antennas listed below, and having a maximum gain of 5 dBi. Antennas not included in this list or having a gain greater than 5 dBi ar e strictly prohibited for use with this device. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r .p.) is not more th an that permitted for successful communication.” Industry Canada Statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1)Le dispositif ne doit pas produire de brouillage préjudiciable, et (2)Ce dispositif doit accepter tout brouillage reçu,y compris un brouillage susceptible de provoquer un fonctionnement indésirable. NOTE IMPORTANTE: Déclaration d’exposition aux radiations: Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. Korea Warning Statements: 당해 무선설비는 운용중 전파혼신 가능성이 있음. NCC Notice: 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功 率或變更原設計之特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並 改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電 機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України. TP-LINK TECHNOLOGIES CO., LTD DECLARATION OF CONFORMIT…

Text truncated - open the document above for the full version.

Date: Oct 10, 2012 Federal Communications Commission Authorization and Evaluation Division FCC ID: TE7MR3420V2 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP‐LINK Technologies Co., Ltd. Tel: 86‐755‐26525554 Fax: 86‐755‐26508930 Web site: WWW.TP‐LINK.COM E‐mail: public@tp‐link.com.cn

AGENCY AUTHORIZATION LETTER FCC ID: TE7MR3420V2 Date: Oct 9, 2012 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd (No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China) to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Yo ngq u an Wang Title of authorized signer: Product Dept. Manager Company Name: TP‐LINK Technologies Co., Ltd. Tel: 86‐755‐26525554 Fax: 86‐755‐26508930 Web site: WWW.TP‐LINK.COM E‐mail: public@tp‐link.com.cn

Attestation for FCC Declaration of Conformity FCC ID: TE7MR3420V2 Date: 2012-10-10 Please be notified that we, the undersigned, TP-LINK TECHNOLOGIES CO., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM-F1010813, with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP‐LINK Technologies Co., Ltd. Tel: 86‐755‐26525554 Fax: 86‐755‐26508930 Web site: WWW.TP‐LINK.COM E‐mail: public@tp‐link.com.cn

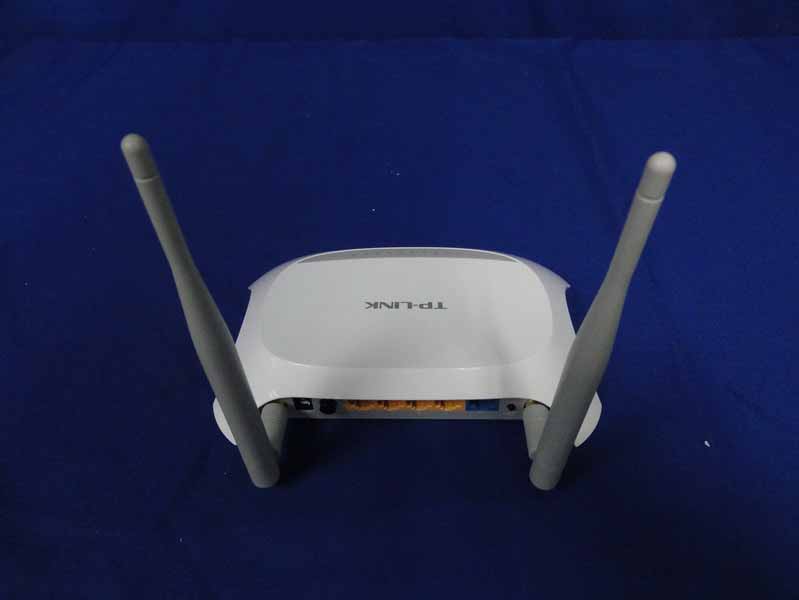

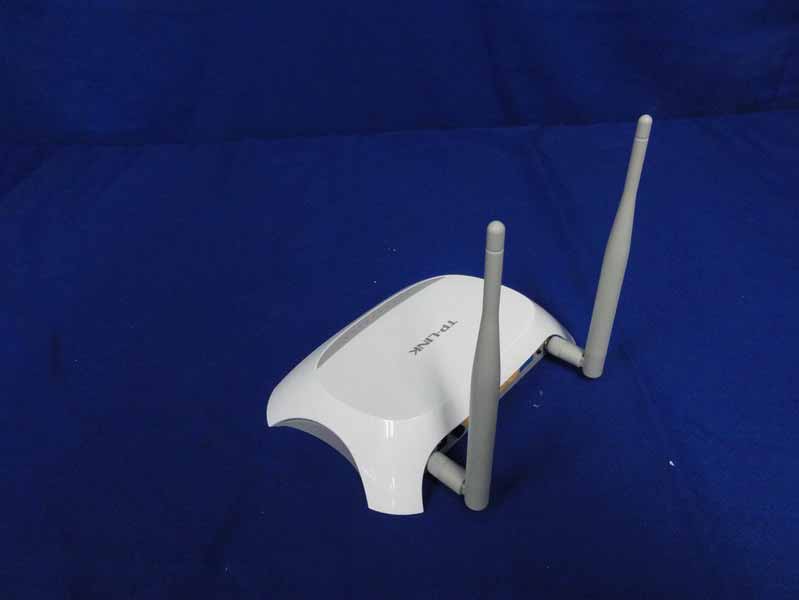

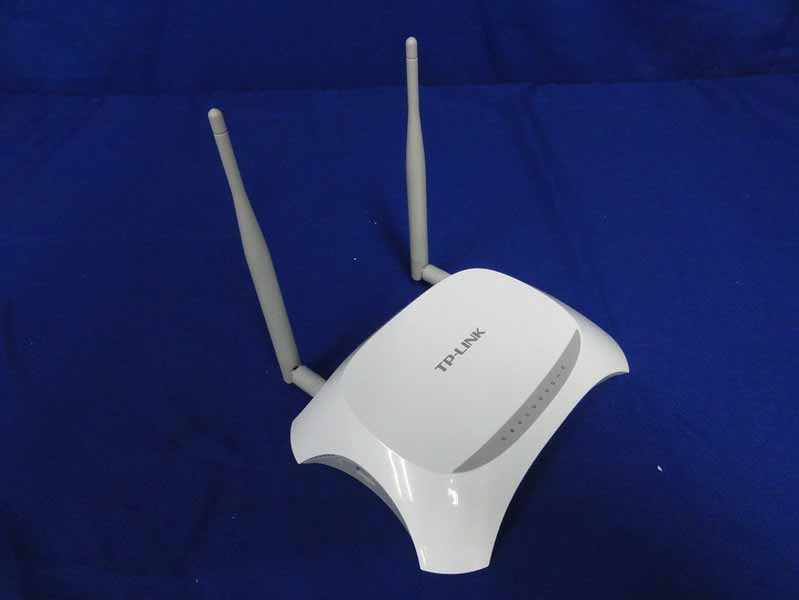

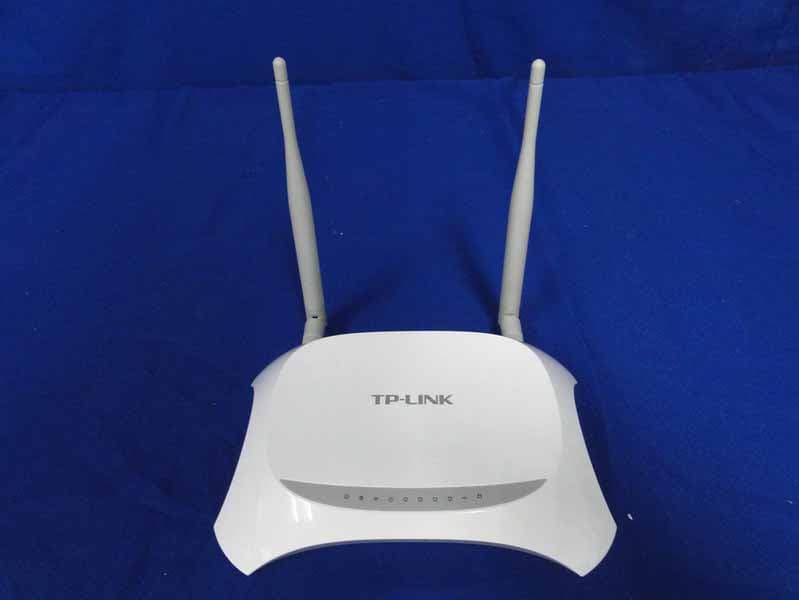

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT

TL-MR3420 2.0产品规格标贴 A5 80g艾利铜版纸+可打印雾膜 美B-204 VER:2.0 2012-6-20 更新PCT以及边框颜色，增加 SSID、KEY，更改材质 白色 Pantone Cool Gray 9C &白色 Pantone CoolGray 2U 李 婧 同TP-LINK标准色样 1 2 E D C B A 1 2 3 4 5 6 7 8 9 E D C 3 4 5 6 7 8 B A 9 料号： 设 计 审 核 颜 色 名 称 版 本 材 质 模 具 机型版本号 完成日期 logo 底色 文字 其它 记 录 与上一版的区别 PIN MAC Address Serial Number FCC ID TE7MR3420V2 IC : 8853A-MR3420 TL - MR3420 12V 1A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful int erference, and (2) this device must accept any int erference received, including int erference that may cause undesired operation. 文件转曲 N28505

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 14-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 14-4 Figure 7 Label of the EUT Figure 8 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 14-5 Figure 9 Components Side of the PCB Figure 10 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 14-6 Figure 11 Components Side of the PCB Figure 12 Power Adapter R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 14-7 Figure 13 Power Adapter

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 11-1 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2. Estimation Result EUT: 3G/4G Wireless N Router M/N: TL-MR3420 Test date:2012-10-14 Pressure: 101.2 kpa Humidity: 53.8% Tested by: Leo-Li Test site: RF Site Temperature：23.1°C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain: 5.3dBi Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE CH1 2412 17.09 51.17 5.3 3.39 0.0322 CH6 2437 17.78 59.98 5.3 3.39 0.0378 11b CH11 2462 16.68 46.56 5.3 3.39 0.0293 CH1 2412 19.37 86.50 5.3 3.39 0.0544 CH6 2437 24.16 260.62 5.3 3.39 0.1640 11g CH11 2462 19.02 79.80 5.3 3.39 0.0502 CH1 2412 20.23 105.44 5.3 3.39 0.0711 CH6 2437 27.01 502.34 5.3 3.39 0.3388 11n HT20 CH11 2462 20.51 112.46 5.3 3.39 0.0758 CH1 2422 19.70 93.33 5.3 3.39 0.0629 CH4 2437 27.36 544.50 5.3 3.39 0.3672 11n HT40 CH7 2452 18.87 77.09 5.3 3.39 0.0520 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 11-2 11.3.This device have a SUB interface and it tends to be used for 3G/4G USB dongle,so need MPE Evaluation that this device working along with the 3G/4G USB dongle. 11.4.RF exposure limit 11.5. RF exposure calculations R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 11-3 11.6.Test result Antenna No. Total 1 2 3 4 5 6 Tx Status On On Off Off Off Off Frequency MHz 850 2450 1900 2450 2450 5800 MPE Limit mW/cm 2 0.57 1.00 0.00 0.00 0.00 0.00 Max % MPE % 121.488.4 36.7 0.0 0.0 0.0 0.0 Power (W) 2.5442.0000.5440.0000.0000.000 0.000 Antenna Gain dBi 1.00 5.30 3.00 1.50 0.50 1.00 EIRP (W) 4.36 2.5181.8430.0000.0000.000 0.000 X (cm) -3.0 -9.0 9.0 4.0 -8.0 8.0 Y (cm) 16.0 11.0 11.0 0.0 0.0 0.0 Sector FALSEFALSEFALSEFALSEFALSE FALSE Arc FALSEFALSEFALSEFALSEFALSE FALSE θ 1 -120 -120 -120 -120 -120 -120 θ 2 input 60 60 60 60 60 60 θ 1 -120 -120 -120 -120 -120 -120 θ 2 degs actual 60 60 60 60 60 60 -45 -40 -35 -30 -25 -20 -15 -10 -5 05 10 15 20 25 30 35 40 45 45 39 33 27 21 15 9 3 -3 -9 -15 -21 -27 -33 -39 -45 Distance X (cm) Distance Y (cm) % MPE Contour 100.0-150.0 50.0-100.0 0.0-50.0 Note: The 0% contour surrounding the antennas identifies a 20 cm perimeter surrounding all active antennas

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 1-1 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of TP-LINK TECHNOLOGIES CO., LTD. 3G/4G Wireless N Router Model No.: TL-MR3420 FCC ID: TE7MR3420V2 Prepared for : TP-LINK TECHNOLOGIES CO., LTD. Building 24(floors 1,3,4,5) and 28 (floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F12219 Date of Test ： Oct.08~14l, 2012 Date of Report ： Oct.18, 2012 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 1-2 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-5 1.1. Description of Standards and Results ...................................................................................1-5 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ...............................................................................................2-1 2.2. Test Information ...................................................................................................................2-2 2.3. Tested Supporting System Details........................................................................................2-3 2.4. Block Diagram of Test Setup ...............................................................................................2-3 2.5. Test Facility ..........................................................................................................................2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2).....................................................2-4 3. POWER LINE CONDUCTED EMISSION TEST....................................................... 3-1 3.1. Test Equipments ...................................................................................................................3-1 3.2. Block Diagram of Test Setup ...............................................................................................3-1 3.3. Power Line Conducted Emission Test Limits ......................................................................3-1 3.4. Configuration of EUT on Test..............................................................................................3-1 3.5. Operating Condition of EUT ................................................................................................3-2 3.6. Test Procedure ......................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results .....................................................................3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment.....................................................................................................................4-1 4.2. Block Diagram of Test Setup ...............................................................................................4-1 4.3. Radiated Emission Limit ......................................................................................................4-2 4.4. EUT Configuration on Test ..................................................................................................4-3 4.5. Operating Condition of EUT ................................................................................................4-3 4.6. Test Procedure ......................................................................................................................4-3 4.7. Radiated Emission Test Results ...........................................................................................4-4 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment.....................................................................................................................5-1 5.2. Limit .....................................................................................................................................5-1 5.3. Test Procedure ......................................................................................................................5-1 5.4. Test result .............................................................................................................................5-1 6. BAND EDGE COMPLIANCE TEST............................................................................ 6-1 6.1. Test Equipment.....................................................................................................................6-1 6.2. Limit .....................................................................................................................................6-1 6.3. Test Produce .........................................................................................................................6-1 6.4. Test Results ..........................................................................................................................6-1 7. 6dB Bandwidth Test ........................................................................................................ 7-1 7.1. Test Equipment.....................................................................................................................7-1 7.2. Limit .....................................................................................................................................7-1 7.3. Test Procedure ...........................................................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-10 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-11 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-12 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-13 Test Mode: IEEE 802.11n HT20 TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-14 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-15 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-16 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-17 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-18 Test Mode: IEEE 802.11n HT40 TX Test CH1: 2422MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-19 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-20 Test CH4: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-21 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-22 Test CH7: 2452MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-23 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-24 ANT1 Test Mode: IEEE 802.11b TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-25 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-26 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-27 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-28 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-29 Test Mode: IEEE 802.11g TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-30 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-31 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-32 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-33 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-34 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-35 Test Mode: IEEE 802.11n HT20 TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-36 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-37 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-38 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-39 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-40 Test Mode: IEEE 802.11n HT40 TX Test CH1: 2422MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-41 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-42 Test CH4: 2437MH R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-43 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-44 Test CH7: 2452MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 5-45 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 6-1 6. BAND EDGE COMPLIANCE TEST 6.1. Test Equipment Item Equipment Manufacturer Model No.Serial No. Last Cal. Cal. Interval 1. Spectrum Agilent E4446A US44300459 May.08, 12 1 Year 2. Amp HP 8449B 3008A08495 May.08, 12 1 Year 3. Antenna EMCO 3115 9510-4580 May.08, 12 1Year 4. HF Cable Hubersuhne Sucoflex104- May.08, 12 1 Year 6.2. Limit All the lower and upper band-edges emissions appearing within 2310MHz to 2390MHz and 2483.5MHz to 2500MHz restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions outside operation frequency band 2400MHz to 2483.5MHz shall be at least 20dB below the fundamental emissions, or comply with 15.209 limits. 6.3. Test Produce …

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 13-2 13.2.Photos of Radiated Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12219 13-3 (Above 1000MHz)
