TE7MR3420V33G/4G Wireless N Router

TL-MR3420 3G/ 4G Wireless N Router REV: 4.0.0 1910011461 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2015 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1） This device may not cause harmful interference. 2） This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. RF Exposure Information This device meets the EU requirements (1999/519/EC) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. The device complies with RF specifications when the device used at 20 cm form your body. National Restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Belarus Not implemented Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund on Svalbard Italy Implemented The public use is subject to general authorisation by the respective service provider Russian Federation Limited implementation 1. SRD with FHSS modulation 1.1. Maximum 2.5 mW e.i.r.p. 1.2. Maximum 100 mW e.i.r.p. Permitted for use SRD for outdoor applications without restriction on installation height only for purposes of gathering telemetry information for automated monitoring and resources accounting systems. Permitted to use SRD for other purposes for outdoor applications only when the installation height is not exceeding 10 m above the ground surface. 1.3.Maximum 100 mW e.i.r.p. Indoor applications 2. SRD with DSSS and other than FHSS wideband modulation 2.1. Maximum mean e.i.r.p. density is 2 mW/MHz. Maximum 100 mW e.i.r.p. 2.2. Maximum mean e.i.r.p. density is 20 mW/MHz. Maximum 100 mW e.i.r.p. It is permitted to use SRD for outdoor applications only for purposes of gathering telemetry information for automated monitoring and resources accounting systems or security systems. 2.3. Maximum mean e.i.r.p. density is 10 mW/MHz. Maximum 100 mW e.i.r.p. Indoor applications Ukraine Limited implementation e.i.r.p. ≤100 mW with built-in antenna with amplification factor up to 6 dBi ATTENTION: Due to EU law, the country settings must be identical to the country where the device is operating (important due to non-harmonised frequencies in the EU). Canadian Compliance Statement This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2)This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage; (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement.） Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment sh…

Text truncated - open the document above for the full version.

TP-Link Technologies Co., Ltd. Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park, Nanshan, Shenzhen, China Declaration for no non‐US channel operation November 2, 2015 We, TP-Link Technologies Co., Ltd. declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. FCC ID:TE7MR3420V3 If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! Name: Yongquan Wang TP‐Link Technologies Co., Ltd. Tel.: +86‐755‐26502509 Fax.: +86‐755‐26508930 E‐mail: public@tp‐link.com.cn

AGENCY AUTHORIZATION LETTER FCC ID: TE7MR3420V3 Date:October 26, 2015 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd (No. 6, KeFeng Rd., 52 Block, Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China) to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer:Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP‐LINK Technologies Co., Ltd. Tel:86‐755‐26525554 Fax:86‐755‐26508930 Web site: WWW.TP‐LINK.COM E‐mail:public@tp‐link.com.cn

Date:October26, 2015 Federal Communications Commission Authorization and Evaluation Division FCC ID: TE7MR3420V3 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicanthereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer:Yongquan Wang Title of authorized signer:Product Dept. Manager Company Name:TP-LINK Technologies Co., Ltd. Tel:86-755-26525554 Fax:86-755-26508930 Web site:WWW.TP-LINK.COM E-mail:[email protected]

Attestation for FCC Declaration of Conformity FCC ID: TE7MR3420V3 Date: 2015-10-26 Please be notified that we, the undersigned, TP-LINK TECHNOLOGIES CO., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is C1M1510092, with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer:Yongquan Wang Title of authorized signer:Product Dept. Manager Company Name:TP‐LINK Technologies Co., Ltd. Tel:86‐755‐26525554 Fax:86‐755‐26508930 Web site:WWW.TP‐LINK.COM E‐mail:public@tp‐link.com.cn

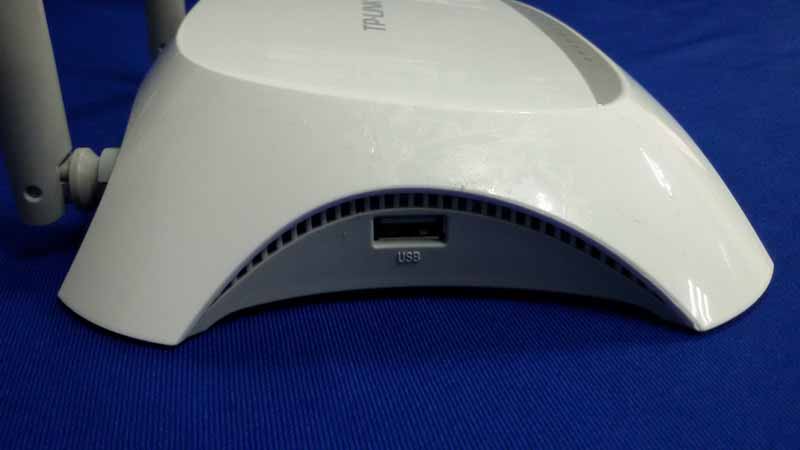

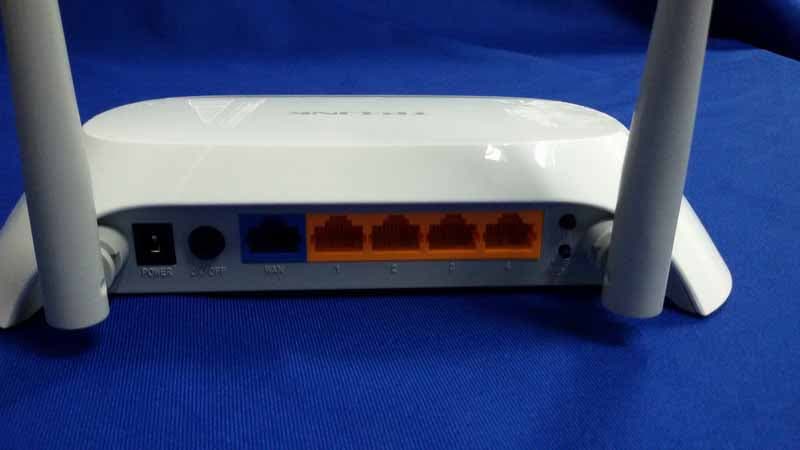

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: TE7MR3420V3 page 14-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15286 14. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: TE7MR3420V3 page 14-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15286 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: TE7MR3420V3 page 14-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15286 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: TE7MR3420V3 page 14-4 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15286 Figure 7 General Appearance of the EUT Figure 8 General Appearance of the EUT

Location

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: TE7MR3420V3 page 14-5 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15286 Figure 9 General Appearance of the EUT Figure 10 Inside Configuration of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: TE7MR3420V3 page 14-6 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15286 Figure 11 Inside Configuration of the EUT Figure 12 Inside Configuration of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: TE7MR3420V3 page 14-7 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15286 Figure 13 Inside Configuration of the EUT Figure 14 Inside Configuration of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: TE7MR3420V3 page 14-8 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15286 Figure 15 Inside Configuration of the EUT Figure 16 Power Adapter R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: TE7MR3420V3 page 14-9 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15286 Figure 17 Power Adapter Figure 18 Power Adapter

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: TE7MR3420V3 page 10-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15286 10. MPE ESTIMATION 10.1.Limit for General Population/ Uncontrolled Exposures Fre quencyPower density (mW/ cm 2 )Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: TE7MR3420V3 page 10-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15286 PG 4πR 2 10.2. Estimation Result EUT: 3G/4G Wireless N Router M/N: TL-MR3420 Test date: 2015-10-15 Pressure: 101.4±1.0 kpa Humidity: 52.3±3.0% Tested by: Alice_Yang Test site: RF site Temperature:23.2±0.6 Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE 11b CH1 2412 22.97 198.15 4 2.51 0.0991 CH6 2437 22.32 170.61 4 2.51 0.0853 CH11 2462 22.90 194.98 4 2.51 0.0975 11g CH1 2412 19.88 97.27 4 2.51 0.0486 CH6 2437 23.57 227.51 4 2.51 0.1137 CH11 2462 18.95 78.52 4 2.51 0.0393 11n HT20 CH1 2412 19.95 98.86 4 2.51 0.0494 CH6 2437 23.44 220.80 4 2.51 0.1104 CH11 2462 19.27 84.53 4 2.51 0.0423 11n HT40 CH3 2422 17.46 55.72 4 2.51 0.0279 CH6 2437 23.26 211.84 4 2.51 0.1059 CH9 2452 16.12 40.93 4 2.51 0.0205 MPE= (R=20cm) When incorporate the module or module-like transmitter in host device that operate in the mixed mobile and portable host platform exposure conditions, the test exclusion condition” [Σ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [Σ of MPE ratios] is ≤ 1.0” should be satisfied. So the result will be 1.4W/kg / 1.6W/kg+0.1137/1≤ 1.0.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15286 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of TP-LINK TECHNOLOGIES CO., LTD. 3G/4G Wireless N Router Model Number: TL-MR3420 FCC ID: TE7MR3420V3 Prepared for : TP-LINK TECHNOLOGIES CO., LTD. Building 24(floors 1,3,4,5) and 28 (floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F15286 Date of Test ： Oct.05~18, 2015 Date of Report ： Oct.26, 2015 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7MR3420V3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15286 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-1 1.1. Description of Standards and Results ................................................................................... 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Test Information ................................................................................................................... 2-2 2.1. Tested Supporting System Details ........................................................................................ 2-3 2.2. Block diagram of connection between the EUT and simulators .......................................... 2-3 2.3. Test Facility .......................................................................................................................... 2-4 2.4. Measurement Uncertainty (95% confidence levels, k=2) ..................................................... 2-4 3. POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 3.1. Test Equipments ................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits ...................................................................... 3-1 3.4. Configuration of EUT on Test .............................................................................................. 3-2 3.5. Operating Condition of EUT ................................................................................................ 3-2 3.6. Test Procedure ...................................................................................................................... 3-2 3.7. Power Line Conducted Emission Test Results ..................................................................... 3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment ..................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-2 4.3. Radiated Emission Limit ...................................................................................................... 4-3 4.4. EUT Configuration on Test .................................................................................................. 4-3 4.5. Operating Condition of EUT ................................................................................................ 4-4 4.6. Test Procedure ...................................................................................................................... 4-4 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment ..................................................................................................................... 5-1 5.2. Limit ..................................................................................................................................... 5-1 5.3. Test Procedure ...................................................................................................................... 5-1 5.4. Test result ............................................................................................................................. 5-1 6. BAND EDGE COMPLIANCE TEST ............................................................................ 6-1 6.1. Test Equipment ..................................................................................................................... 6-1 6.2. Limit ..................................................................................................................................... 6-1 6.3. Test Produce ......................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-1 7. 6dB Bandwidth Test ........................................................................................................ 7-1 7.1. Test Equipment ..................................................................................................................... 7-1 7.2. Limit ..................................................................................................................................... 7-1 7.3. Test Procedure .........................................................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: TE7MR3420V3 page 13-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15286 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: TE7MR3420V3 page 13-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15286 13.2.Photos of Radiated Emission Test 30-1000MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: TE7MR3420V3 page 13-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15286 Above 1000MHz
