COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK Technologies Co., Ltd. Copyright © 2006 TP-LINK Technologies Co., Ltd. All rights reserved. FCC STATEMENT This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ¾ Reorient or relocate the receiving antenna. ¾ Increase the separation between the equipment and receiver. ¾ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ¾ Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter”. CE Declaration of Conformity For the following equipment: MR0-WR541G is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (89/336/EEC), Low-voltage Directive (73/23/EEC) and the Amendment Directive (93/68/EEC), the procedures given in European Council Directive 99/5/EC and 89/3360EEC. The equipment was passed. The test was performed according to the following European standards: ¾ EN 300 328 V.1.4.1 (2003) ¾ EN 301 489-1 V.1.4.1 (2002) / EN 301 489-17 V.1.2.1 (2002) ¾ EN 60950-1: 2001 European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835GHz; In France, the equipment must be restricted to the 2.4465-2.4835GHz frequency range and must be restricted to indoor use. Package contents.............................................................................................................. 1 Chapter 1: About this Guide .............................................................................................. 2 1.1 Purposes.............................................................................................................. 2 1.2 Conventions ......................................................................................................... 2 1.3 Overview of this User Guide ................................................................................ 2 Chapter 2: Introduction...................................................................................................... 3 2.1 Overview of the Router ........................................................................................ 3 2.2 Features............................................................................................................... 3 2.3 Panel Layout........................................................................................................ 4 2.3.1 The Front Panel ......................................................................................... 4 2.3.2 The Rear Panel.......................................................................................... 5 Chapter 3: Connecting the Router .................................................................................... 6 3.1 System Requirements.......................................................................................... 6 3.2 Installation Environment Requirements................................................................ 6 3.3 Connecting the Router ......................................................................................... 6 Chapter 4: Quick Installation Guide................................................................................... 8 4.1 TCP/IP configuration ............................................................................................ 8 4.2 Quick Installation Guide ..................................................................................... 10 Chapter 5: Configuring the Router.................................................................................. 14 5.1 login ................................................................................................................... 14 5.2 Status ................................................................................................................. 14 5.3 Quick Setup .........................…
Text truncated - open the document above for the full version.
Compliance Certification Services (Shenzhen) Inc. Report No: SZ060614B06-RU FCC ID: TE7MRWR54XGV1 Date of Issue: January 09, 2007 RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(b)(4) and §1.1307(b)(1) of this chapter. EUT Specification EUT 54M Wireless Router Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 23.36 dBm (216.77mW) Antenna gain (Max) 5 dBi (Numeric gain: 3.16) Evaluation applied MPE Evaluation SAR Evaluation Note: 1. The maximum output power is 23.36 dBm (216.77mW) at 2462MHz (with 3.16 numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULT No non-compliance noted. Compliance Certification Services (Shenzhen) Inc. Report No: SZ060614B06-RU FCC ID: TE7MRWR54XGV1 Date of Issue: January 09, 2007 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field Strength in Volts / meter P = Power in Watts G=Numeric antenna gain d=Distance in meters S=Power Density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: S GP d × ×× = 3770 30 Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) =100 * d (m) Yields S GP S GP d × ×= × ×× ×=282.0 3770 )1000/(30 100 Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm^2 Substituting the logarithmic form of power and gain using: P (mW) = 10 ^ (P (dBm) / 10) and G (numeric) = 10 ^ (G (dBi) / 10) Yields 20 10 282.0 20 )(GP d + ×= Equation 1 Where d = MPE safe distance in cm Compliance Certification Services (Shenzhen) Inc. Report No: SZ060614B06-RU FCC ID: TE7MRWR54XGV1 Date of Issue: January 09, 2007 P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW / cm^2 Maximum Permissible Exposure (2.4 GHz Band) S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW). = 216.77 G = Numeric power gain of the antenna = 3.16 R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) = 0.02 2 The maximum permissible exposure (MPE) for the general population is 1.00 mW/cm 2 . ( 216.77 * 3.16 ) / ( 4π * 0.02 2 ) = 0.136 mW/cm 2 The power density at 20cm does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules.

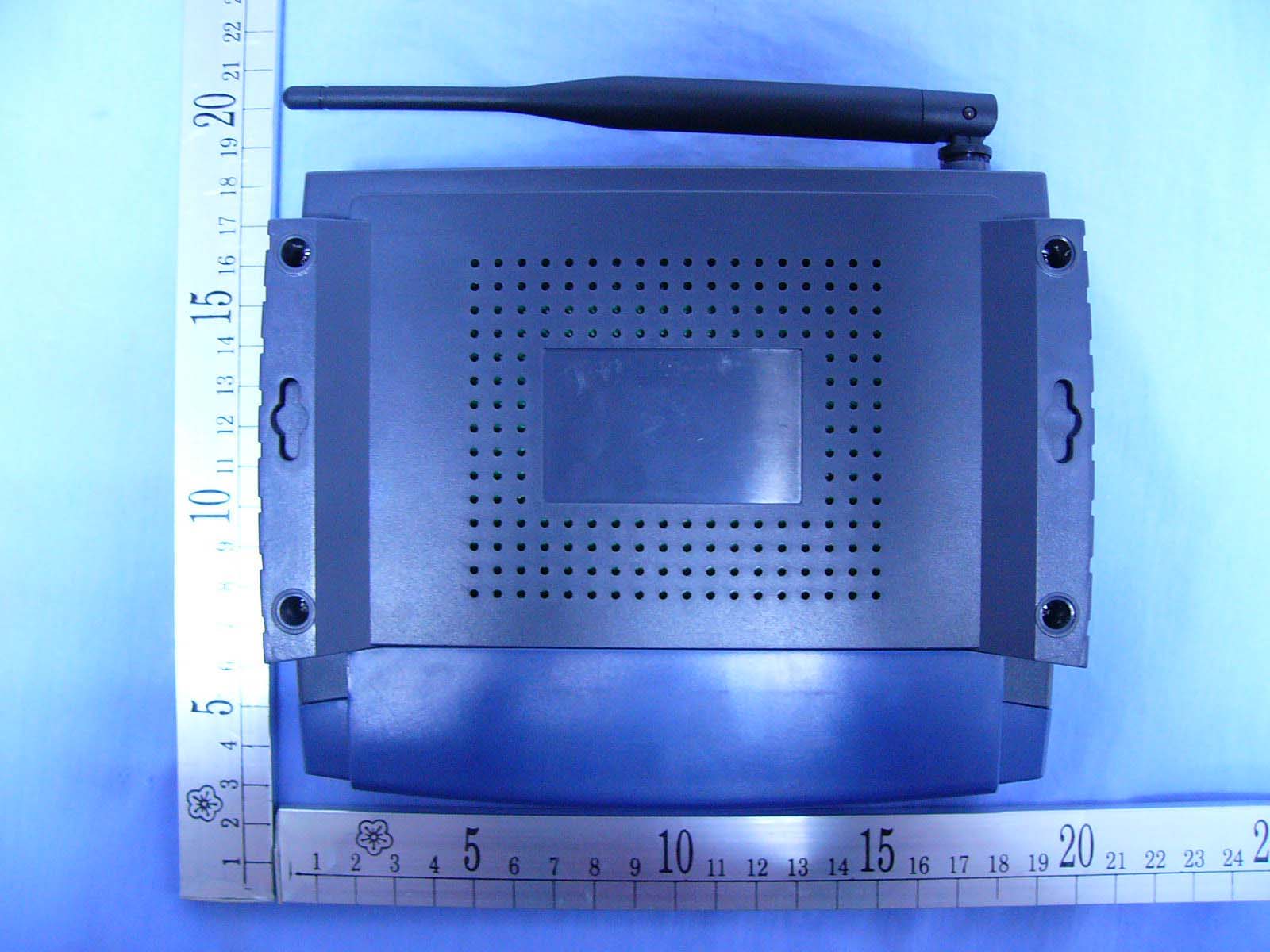

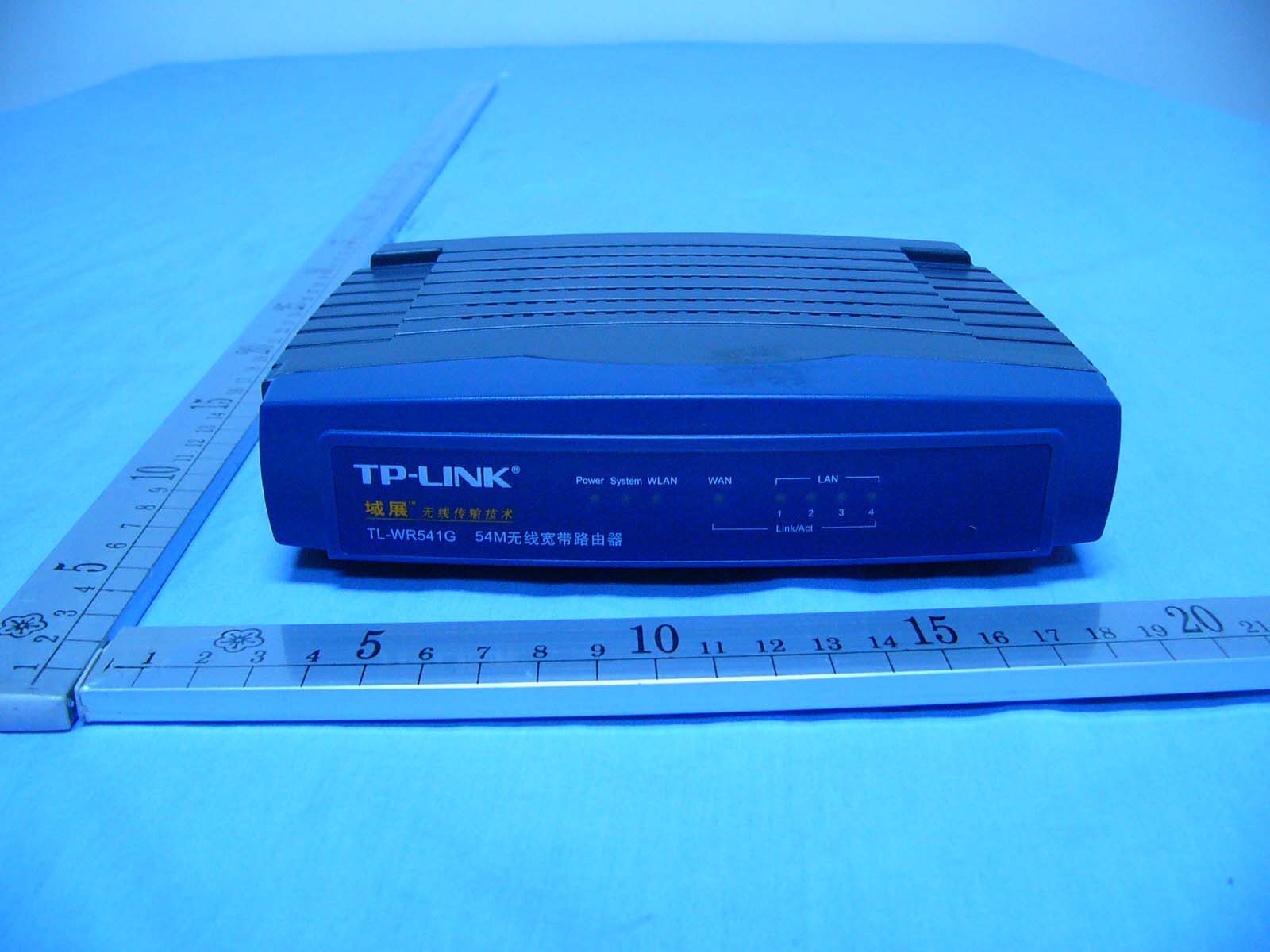

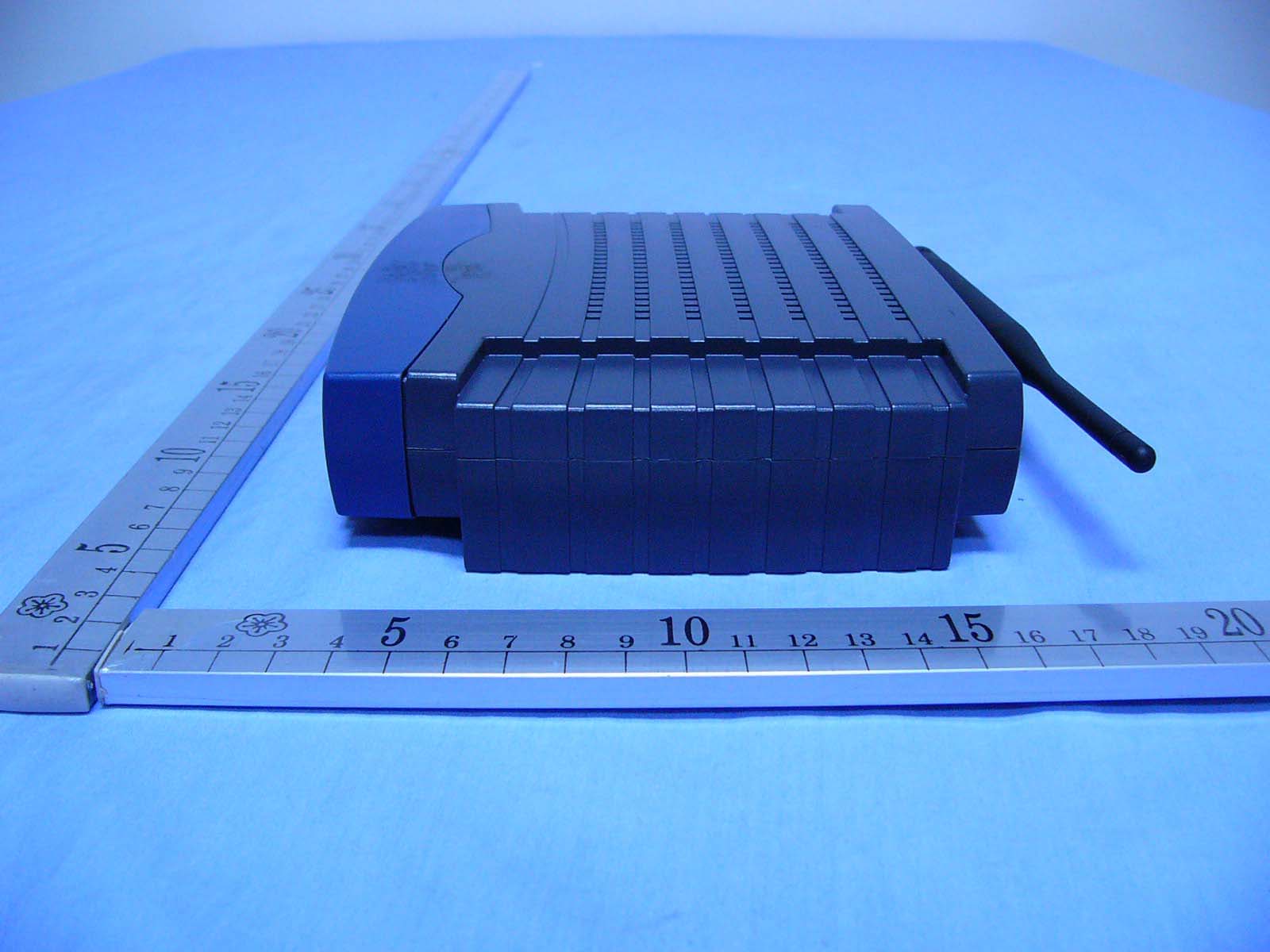

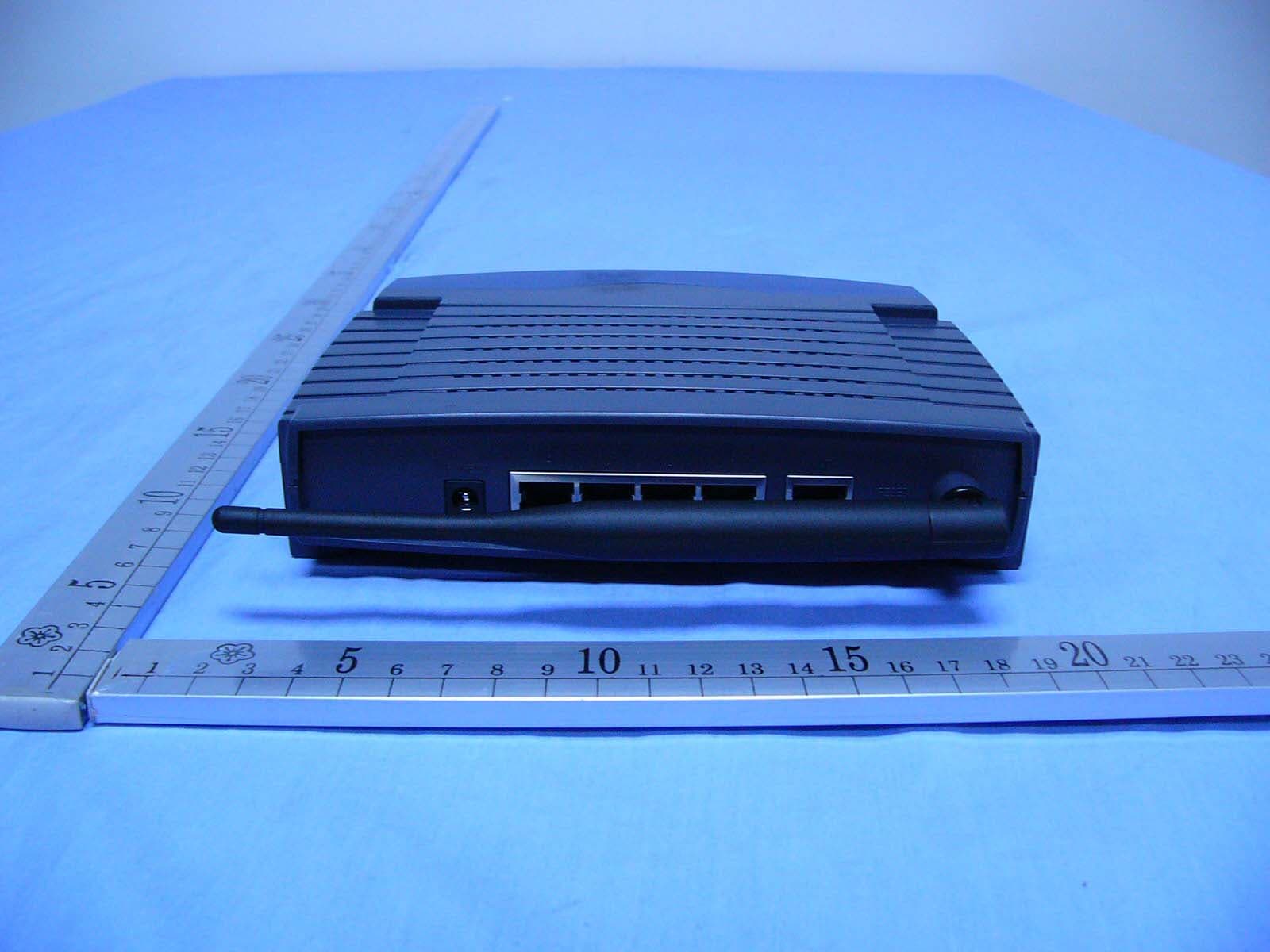

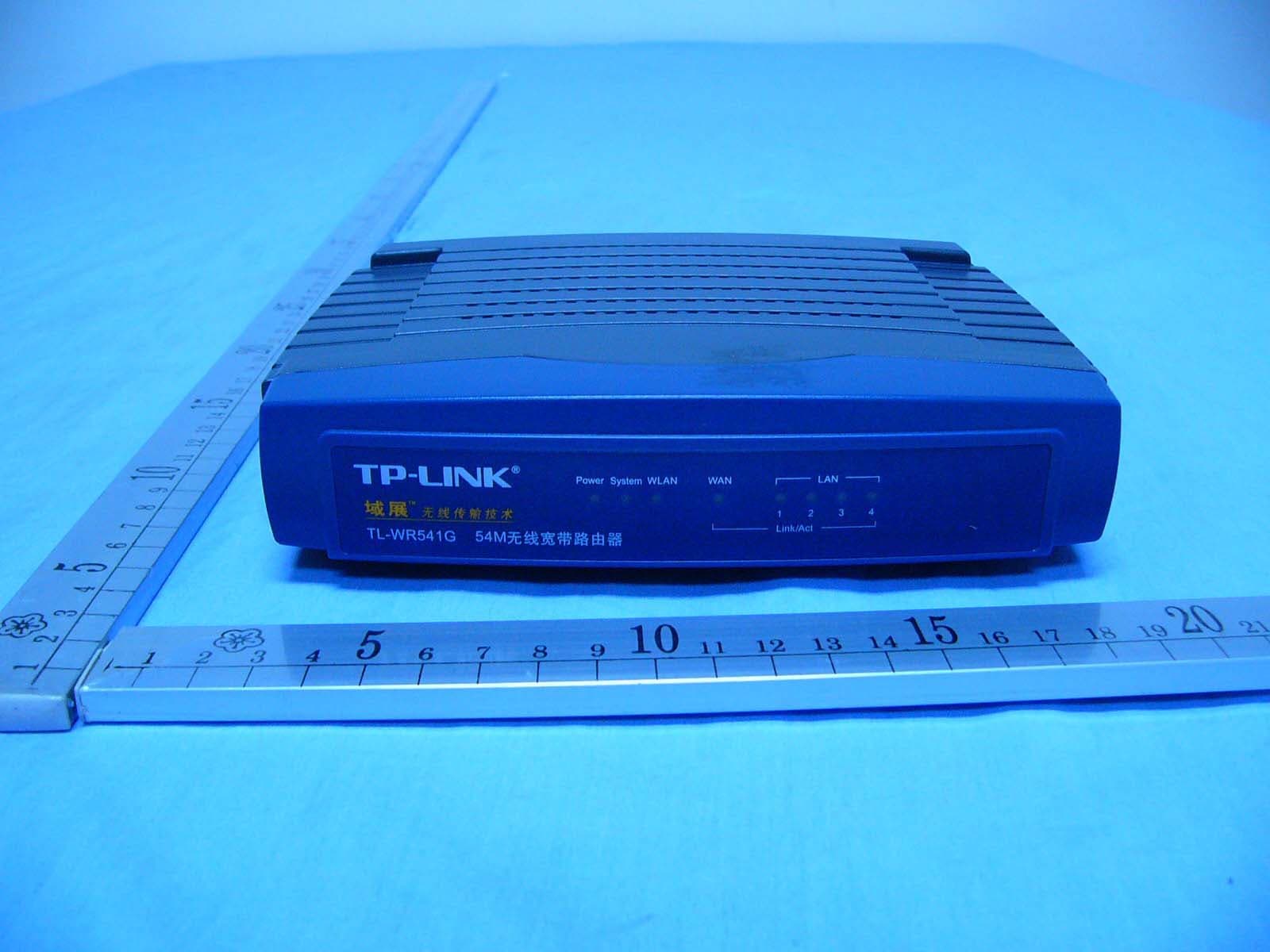

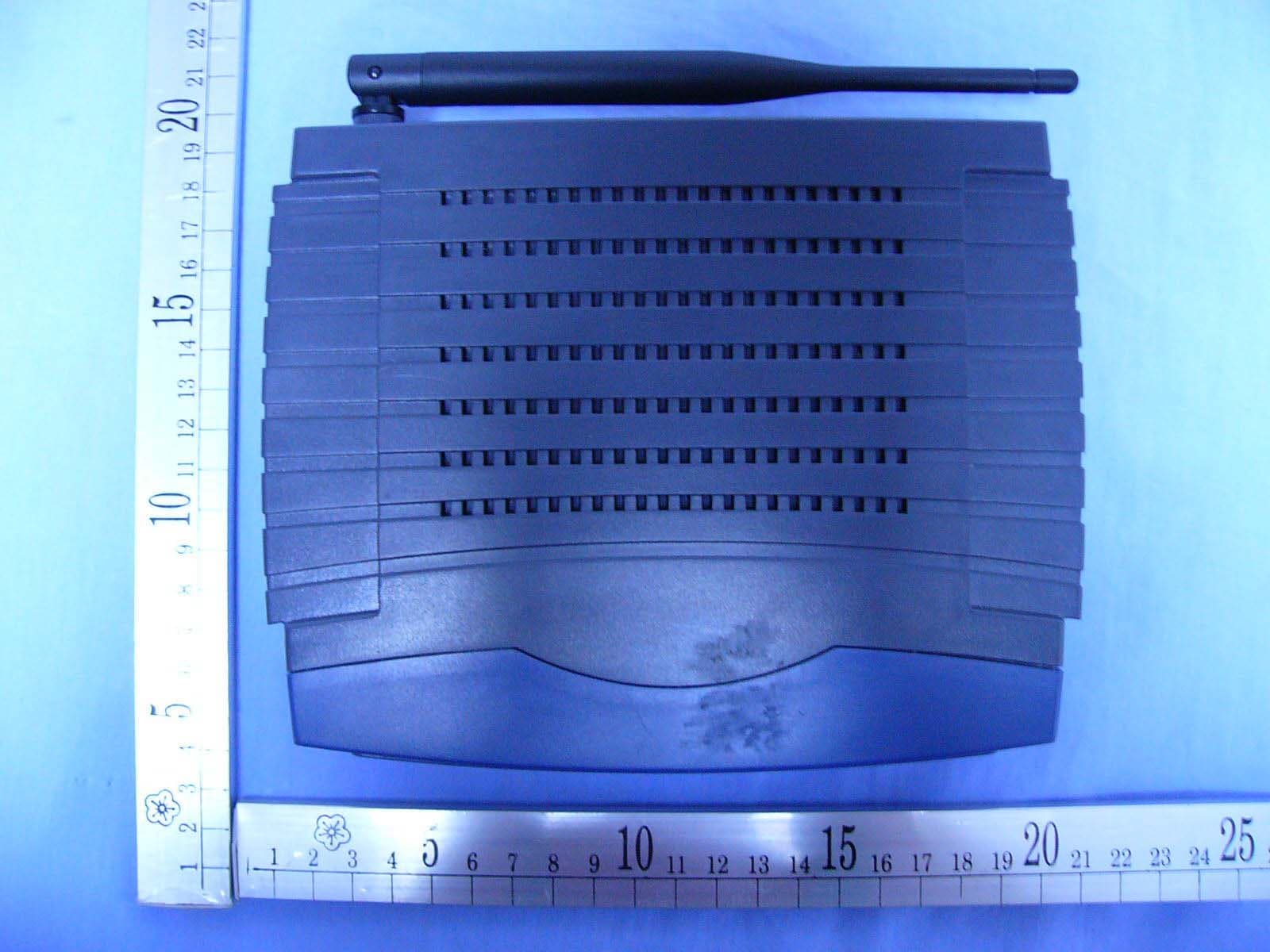

Compliance Certification Services (Shenzhen) Inc. Report No: SZ060614B06-RP FCC ID: TE7MRWR54XGV1 Date of Issue: November 17, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 1 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 54M Wireless Router Model: MR0-WR541G / MR0-WR542G , AL7954 Trade Name: TP-LINK, JensenScandinavia Prepared for TP-LINK TECHNOLOGIES CO., LTD. BUILDING 7, SECTION 2, HONGHUALING INDUSTRIAL PARK, XILI, NANSHAN DISTRICT, SHENZHEN, P.R.C. Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. NO. 5, JINAO INDUSTRIAL PARK, NO. 35 JUKENG ROAD, DASHUIKENG VILLAGE, GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL: 86-755-28055000 FAX: 86-755-28055221 LAB CODE:200577-0 Compliance Certification Services (Shenzhen) Inc. Report No: SZ060614B06-RP FCC ID: TE7MRWR54XGV1 Date of Issue: November 17, 2006 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES ........................................................................................................8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 6. SETUP OF EQUIPMENT UNDER TEST .........................................................................................9 6.1 SETUP CONFIGURATION OF EUT.........................................................................................................9 6.2 SUPPORT EQUIPMENT .................................................................................................................9 7. FCC PART 15.247 REQUIREMENTS.............................................................................................10 7.1 6DB BANDWIDTH.............................................................................................................................10 7.2 PEAK POWER....................................................................................................................................16 7.3 BAND EDGES MEASUREMENT ................................................................................................22 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................31 7.5 RADIO FREQUENCY EXPOSURE.............................................................................37 7.6 SPURIOUS EMISSIONS ................................................................................................................37 7.7 POWERLINE CONDUCTED EMISSIONS..............................................................................................54 APPENDIX 1 PHOTOGRPHS OF TEST SETUP .................................................................................58 Compliance Certification Services (Shenzhen) Inc. Report No: SZ060614B06-RP FCC ID: TE7MRWR54XGV1 Date of Issue: November 17, 2006 Page 3 1. TEST RESULT CERTIFICATION Applicant: TP-LINK TECHNOLOGIES CO., LTD. BUILDING 7, SECTION 2, HONGHUALING INDUSTRIAL PARK, XILI, NANSHAN DISTRICT, SHENZHEN, P.R.C. Equipment Under Test: 54M Wireless Router Trade Name: TP-LINK, JensenScandinavia Model: MR0-WR541G / MR0-WR542G , AL7954 Date of Test: October 27-November 16, 2006 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services (Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Tested By: Henry Ding Reviewed By: Clinton Kao/ Manager Eric Wong / Assistant manager COMPLIANCE CERTIFICATION COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. SERVICES (SHENZHEN) INC. Compliance Certification Services (Shenzhen) Inc. Report No: SZ060614B06-RP FCC ID: TE7MRWR54XGV1 Date of Issue: November 17, 2006 Page 4 2. EUT DESCRIPTION Product 54M Wireless Router Trade Name TP-LINK, JensenScandinavia Model Number MR0-WR541G / MR0-WR542G , AL7954 Model Difference MR0-WR541…
Text truncated - open the document above for the full version.
Compliance Certification Services (Shenzhen) Inc. Report No: SZ060614B06-RP FCC ID: TE7MRWR54XGV1 Date of Issue: November 17, 2006 Page 59 APPENDIX 1 PHOTOGRPHS OF TEST SETUP LINE CONDUCTED EMISSION TEST Compliance Certification Services (Shenzhen) Inc. Report No: SZ060614B06-RP FCC ID: TE7MRWR54XGV1 Date of Issue: November 17, 2006 Page 60 RADIATED EMISSION TEST
