TE7RE200AC750 WiFi Range Extender

RE200 AC750 WiFi Range Extender REV1.0.0 1910011070 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2014 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France. Canadian Compliance Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1)This device may not cause interference, and (2)This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le fonctionnement est soumis aux deux conditions suivantes: (1)cet appareil ne doit pas provoquer d’interférences et (2)cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un fonctionnement non souhaité de l’appareil. Industry Canada Statement Complies with the Canadian ICES-003 Class B specifications. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device complies with RSS 210 of Industry Canada. This Class B device meets all the requirements of the Canadian interference-causing equipment regulations. Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Korea Warning Statements 당해 무선설비는 운용중 전파혼신 가능성이 있음. NCC Notice & BSMI Notice 注意！ 依據 低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻 率、加大功率或變更原設計之特性或功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通行；經發現有干擾現象時，應立 即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信規定作業之無線電信。低功率 射頻電機需忍受合法通信或工業、科學以及醫療用電波輻射性電機設備之干擾。 減少電磁波影響，請妥適使用。 於5.25GHz至5.35GHz區域內操作之無線設備的警告聲明 工作頻率5.250~5.350GHz該頻段限於室內使用。 安全諮詢及注意事項 ●請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。 ●清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。 ●注意防潮，請勿將水或其他液體潑灑到本產品上。  ●插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。 ●請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。 ●請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。 Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України. * 2.4GHz 電磁波曝露量 MPE 標準值 1mW/cm 2 ，送測產品實測值為 0.3167mW/cm 2 。 * 5GHz 電磁波曝露量 MPE…

Text truncated - open the document above for the full version.

E2(EU) 1.0天线方向图测试报告V1.0 I RE200(EU) 1.0天线方向图测试报告 SOHO 张章浙 版 本 历 史 版本/状态 责任人 起止日期 备注 V1.0/正式 张章浙 2013.10.24-2013.10.24 初稿。 E2(EU) 1.0天线方向图测试报告V1.0 II 目录 1. 测试概述 ................................................................................................................................ 1 2. 天线S参数 ............................................................................................................................ 2 3. 天线增益 ................................................................................................................................ 2 4. 天线效率 ................................................................................................................................ 5 5. 3D方向图 .............................................................................................................................. 8 6. 2D方向图 ............................................................................................................................ 10 6.1 Θ=90°(XOY面) ............................................................................................................... 10 6.2 Φ=0°（XOZ面） ............................................................................................................. 16 6.3 Φ=90°(YOZ面) ................................................................................................................ 21 7. 测试小结 .............................................................................................................................. 26 E2(EU) 1.0天线方向图测试报告V1.0 - 1 - 1. 测试概述 本次测试样机：E2(EU) 1.0， 1PCS 天线频段：2.4～2.5GHz&5.15～5.85GHz 天线形式：3 路印制天线，其中 2 路 2.4GHz 天线，1 路 5GHz 天线。 测试频率范围：2400-2500MHz，每隔 10MHz 测试一个频点。 5150-5850MHz，每隔 25MHz 测试一个频点。 本次测试环境为SATIMO STARLAB 16探头近场测试系统，测试数据包括：增益、效率、3D方 向图、2D方向图。 图1 SATIMO STARLAB测试系统 E2(EU) 1.0天线方向图测试报告V1.0 - 2 - 图2 天线样机图 2. 天线S参数 图3 S参数 3. 天线增益 图4 ANT1-2G最大增益 E2(EU) 1.0天线方向图测试报告V1.0 - 3 - 图5 ANT2-2G最大增益 图6 ANT3-5G最大增益 2G天线最大增益(dBi) 频率(GHz) ANT1-2G ANT2-2G 2.40 4.40 3.32 2.41 4.41 3.18 2.42 4.41 3.19 2.43 4.39 3.18 2.44 4.40 3.24 2.45 4.45 3.35 2.46 4.43 3.38 2.47 4.32 3.41 2.48 4.28 3.39 2.49 4.24 3.34 2.50 4.14 3.25 最小值 4.14 3.18 E2(EU) 1.0天线方向图测试报告V1.0 - 4 - 最大值 4.45 3.41 平均值 4.35 3.29 图7 ANT3-5G最大增益 5G天线最大增益(dBi) 频率(GHz) ANT3-5G 5.15 3.50 5.18 3.28 5.20 3.34 5.23 3.42 5.25 3.28 5.28 3.12 5.30 3.06 5.33 3.14 5.35 3.13 5.38 3.13 5.40 3.37 5.43 3.25 5.45 3.07 5.48 2.95 5.50 2.90 5.53 2.82 5.55 2.86 5.58 2.91 5.60 2.85 5.63 2.89 5.65 3.41 5.68 3.71 5.70 3.75 E2(EU) 1.0天线方向图测试报告V1.0 - 5 - 5.73 3.88 5.75 3.98 5.78 4.08 5.80 3.94 5.83 3.72 5.85 3.47 最小值 2.82 最大值 4.08 平均值 3.32 4. 天线效率 图8 ANT1-2G效率 图9 ANT2-2G效率 E2(EU) 1.0天线方向图测试报告V1.0 - 6 - 图10 ANT3-5G效率 2G天线效率(%) 频率(GHz) ANT1-2G ANT2-2G 2.40 81.3 75.6 2.41 81.3 75.7 2.42 81.5 75.9 2.43 81.1 75.7 2.44 80.9 75.6 2.45 81.8 76.3 2.46 81.6 75.9 2.47 81.3 75.7 2.48 80.9 75.1 2.49 80.6 74.4 2.50 79.5 73.2 最小值 79.5 73.2 最大值 81.8 76.3 平均值 81.1 75.4 E2(EU) 1.0天线方向图测试报告V1.0 - 7 - 图11 ANT3-5G效率 5G天线效率(%) 频率(GHz) ANT3-5G 5.15 75.8 5.18 74.8 5.20 75.7 5.23 72.8 5.25 71.8 5.28 74.0 5.30 75.4 5.33 77.1 5.35 75.6 5.38 76.9 5.40 81.2 5.43 79.2 5.45 76.5 5.48 75.5 5.50 74.4 5.53 73.1 5.55 73.6 5.58 73.3 5.60 70.7 5.63 70.0 5.65 69.0 5.68 68.3 5.70 69.0 5.73 68.6 5.75 65.3 5.78 64.1 5.80 64.5 E2(EU) 1.0天线方向图测试报告V1.0 - 8 - 5.83 66.3 5.85 67.7 最小值 64.1 最大值 81.2 平均值 72.4 5. 3D方向图 图12 ANT1-2G 在2.45GHz频点的3D方向图 Freq=2.45GHz Max=4.45dBi E2(EU) 1.0天线方向图测试报告V1.0 - 9 - 图13 ANT2-2G 在2.45GHz频点的3D方向图 图14 ANT3-5G 在5.5GHz频点的3D方向图 Freq=2.45GHz Max=3.35dBi Freq=2.45GHz Max=2.90dBi E2(EU) 1.0天线方向图测试报告V1.0 - 10 - 6. 2D方向图 图15 圆坐标示意图 6.1 θ=90°(XOY面) 图16 ANT1-2G XOY面2D方向图 E2(EU) 1.0天线方向图测试报告V1.0 - 11 - 图17 ANT2-2G XOY面2D方向图 图18 ANT3-5G XOY面2D方向图 2G天线XOY面最大增益(dBi) 频率(GHz) ANT1-2G ANT2-2G 2.40 0.01 0.80 2.41 -0.28 0.72 2.42 -0.56 0.70 2.43 -0.88 0.79 2.44 -1.05 0.90 2.45 -0.96 1.05 2.46 -0.91 1.12 2.47 -0.76 1.21 2.48 -0.75 1.26 2.49 -0.75 1.29 2.50 -0.76 1.27 最小值 -1.05 0.70 E2(EU) 1.0天线方向图测试报告V1.0 - 12 - 最大值 0.01 1.29 平均值 -0.70 1.01 2G天线XOY面增益波动值(最大-最小,dBi) 频率(GHz) ANT1-2G ANT2-2G 2.40 4.87 5.19 2.41 4.47 4.52 2.42 4.10 3.96 2.43 3.74 3.59 2.44 3.51 3.40 2.45 3.52 3.51 2.46 3.58 3.61 2.47 3.75 3.69 2.48 3.71 3.75 2.49 3.78 3.86 2.50 3.87 4.20 最小值 3.51 3.40 最大值 4.87 5.19 平均值 3.90 3.93 2G天线XOY面平均增益(dBi) 频率(GHz) ANT1-2G ANT2-2G 2.40 -2.49 -0.62 2.41 -2.52 -0.60 2.42 -2.53 -0.59 2.43 -2.59 -0.61 2.44 -2.63 -0.63 2.45 -2.64 -0.61 2.46 -2.70 -0.65 2.47 -2.74 -0.69 2.48 -2.80 -0.75 2.49 -2.86 -0.81 2.50 -2.93 -0.89 最小值 -2.93 -0.89 最大值 -2.49 -0.59 平均值 -2.68 -0.68 E2(EU) 1.0天线方向图测试报告V1.0 - 13 - 图20 ANT3-5G XOY面2D方向图 5G天线XOY面最大增益(dBi) 频率(GHz) ANT3-5G 5.15 1.67 5.18 2.01 5.20 2.20 5.23 1.73 5.25 1.16 5.28 1.51 5.30 1.58 5.33 1.76 5.35 1.68 5.38 1.81 5.40 2.01 5.43 1.85 5.45 1.70 5.48 1.69 5.50 1.66 5.53 1.70 5.55 1.87 5.58 2.03 5.60 2.17 5.63 2.61 5.65 3.07 5.68 3.33 5.70 3.42 5.73 3.61 5.75 3.79 5.78 3.92 5.80 3.78 E2(EU) 1.0天线方向图测试报告V1.0 - 14 - 5.83 3.56 5.85 3.34 最小值 1.16 最大值 3.92 平均值 2.35 5G天线XOY面增益波动值(最大-最小,dBi) 频率(GHz) ANT3-5G 5.15 4.71 5.18 5.53 5.20 5.94 5.23 6.44 5.25 6.46 5.28 6.57 5.30 6.40 5.33 6.33 5.35 6.16 5.38 5.91 5.40 5.60 5.43 5.26 5.45 5.03 5.48 4.85 5.50 4.79 5.53 4.77 5.55 4.86 5.58 5.06 5.60 5.45 5.63 6.14 5.65 7.19 5.68 7.89 5.70 7.99 5.73 8.53 5.75 9.24 5.78 8.45 5.80 7.95 5.83 7.62 5.85 7.53 最小值 4.71 最大值 9.24 平均值 6.37 5G天线XOY面平均增益(dBi) E2(EU) 1.0天线方向图测试报告V1.0 - 15 - 频率(GHz) ANT3-5G 5.15 -0.32 5.18 -0.37 5.20 -0.32 5.23 -0.60 5.25 -0.83 5.28 -0.68 5.30 -0.56 5.33 -0.43 5.35 -0.46 5.38 -0.34 5.40 -0.05 5.43 -0.12 5.45 -0.24 5.48 -0.27 5.50 -0.32 5.53 -0.38 5.55 -0.32 5.58 -0.33 5.60 -0.44 5.63 -0.44 5.65 -0.51 5.68 -0.59 5.70 -0.50 5.73 -0.47 5.75 -0.71 5.78 -0.87 5.80 -0.85 5.83 -0.70 5.85 -0.64 最小值 -0.87 最大值 -0.05 平均值 -0.47 E2(EU) 1.0天线方向图测试报告V1.0 - 16 - 6.2 φ=0°（XOZ面） 图21 ANT1-2G XOZ面2D方向图 图22 ANT2-2G XOZ面2D方向图 E2(EU) 1.0天线方向图测试报告V1.0 - 17 - 图xxx ANT3-5G XOZ面2D方向图 2G天线XOZ面最大增益(dBi) 频率(GHz) ANT1-2G ANT2-2G 2.40 3.45 3.14 2.41 3.45 2.89 2.42 3.45 2.62 2.43 3.43 2.29 2.44 3.43 1.95 2.45 3.50 …

Text truncated - open the document above for the full version.

For the following information Ref. File No.: C1M1411001 Product ： AC750 WiFi Range Extender Model Number ： RE200 Brand Name ： TP-LINK Applicant ： TP-LINK TECHNOLOGIES CO., LTD. Manufacturer ： TP-LINK TECHNOLOGIES CO., LTD. Standards ： FCC 47 CFR Part 15 Subpart B/Oct. 2013 and CISPR 22/1997 and ICES-003 Issue 5 Aug. 2012 (Class B Limit) We hereby certify that the above product has been tested by us and complied with the FCC and IC official limits. The product might be marketed in US in accordance with the standard CFR 47 Part 2 and Part 15 Subpart B class B equipment regulations under FCC Rules. The test was performed according to the procedures mentioned in ANSI C63.4-2009. The test data and results are issued on the test report no.EM-F140708. Signature _____________________________ Ben Cheng/Manager Date: 2014. 11. 12 Test Laboratory: AUDIX Technology Corporation, EMC Department NVLAP Lab. Code: 200077-0 FCC OET Designation: TW1004 Web Site: www.audixtech.com The statement is based on a single evaluation of one sample of the above-mentioned products. It does not imply an assessment of the whole production and does not permit the use of the test lab logo. NVLAP Lab Code 200077-0

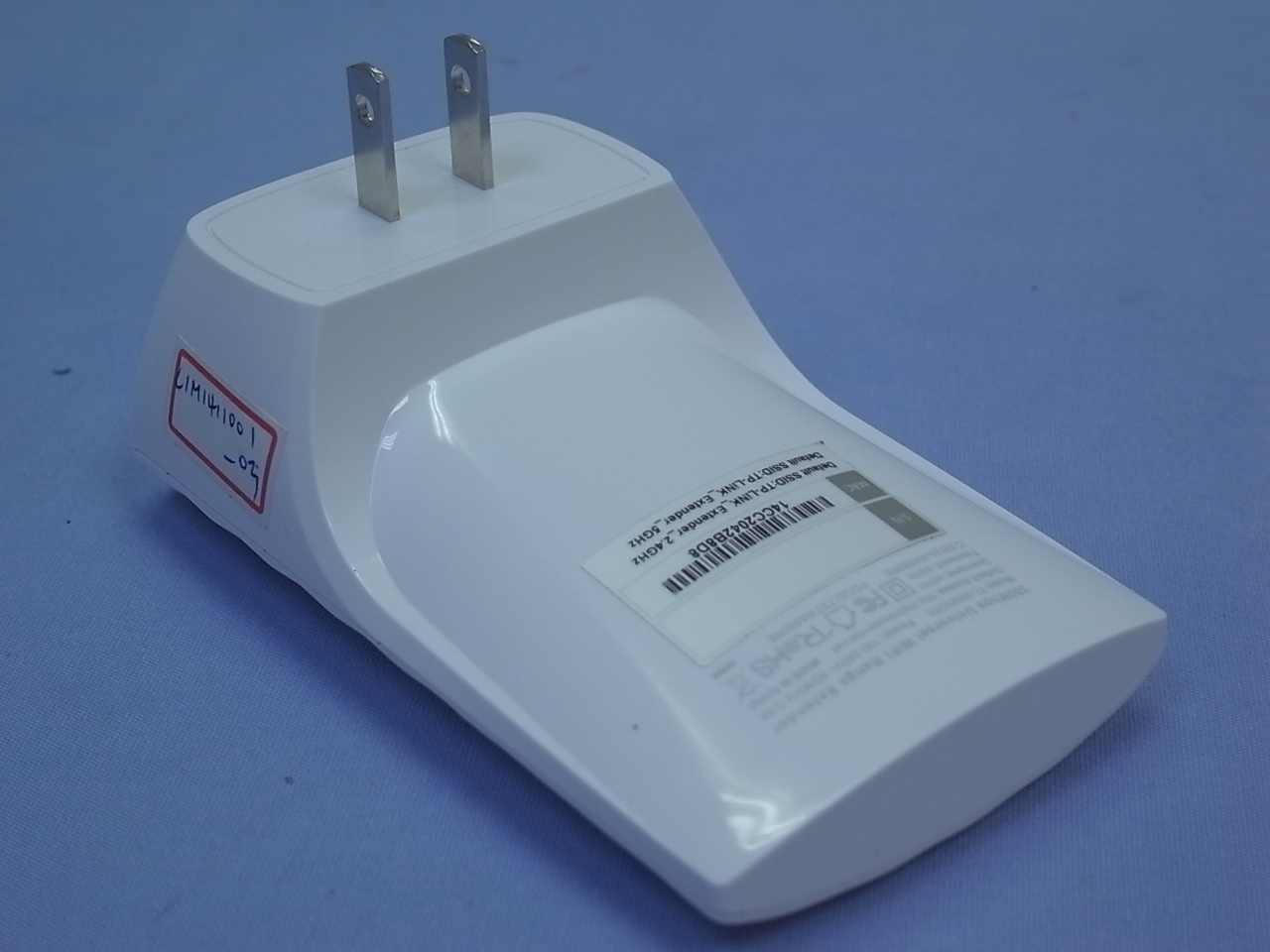

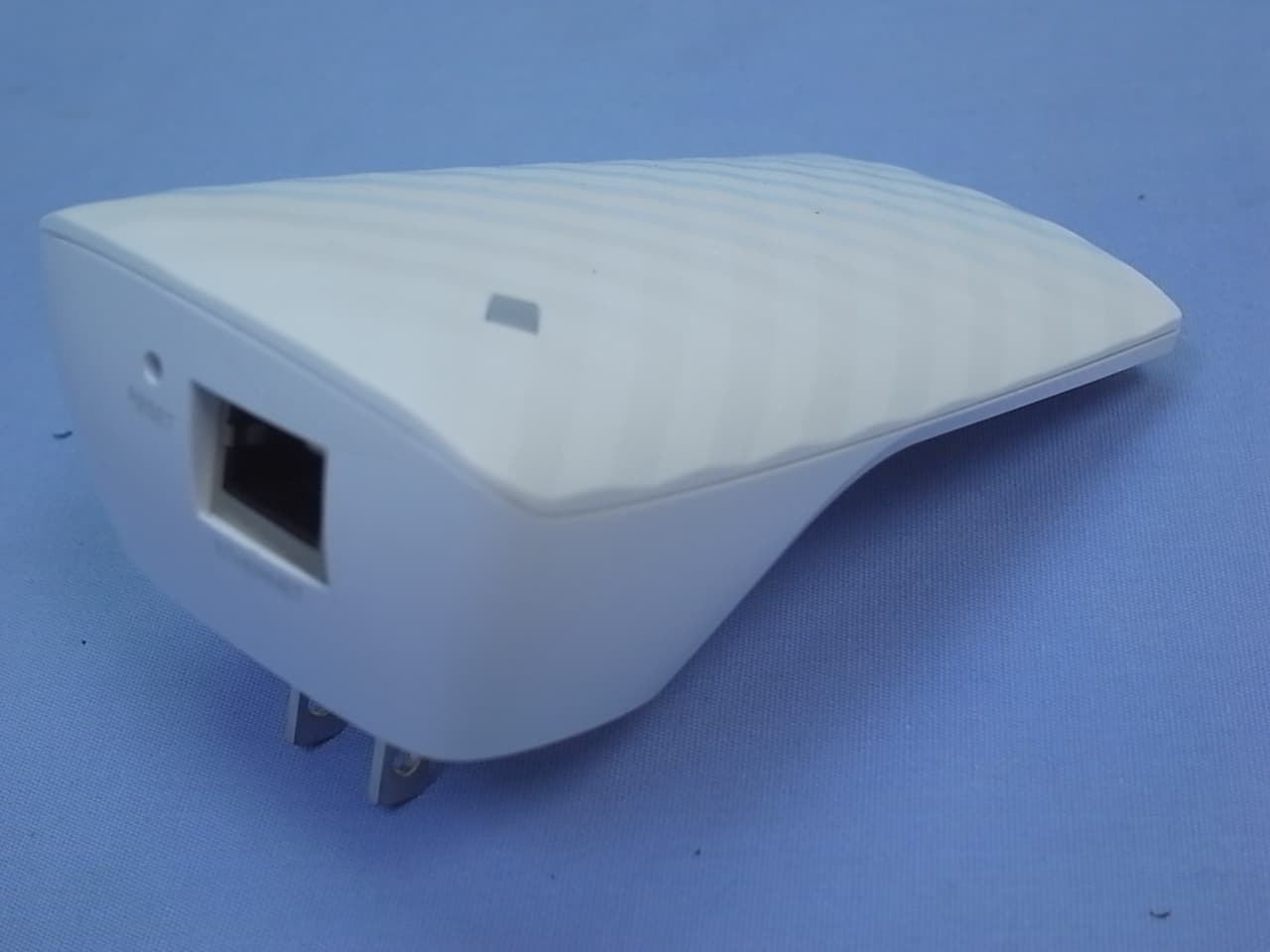

TP-Link Technologies Co., Ltd. AC750 WiFi Range Extender FCC ID. : TE7RE200 IC: 8853A-RE200 EUT External Photos Figure 1 General Appearance (Top & Front & Side View) Figure 2 General Appearance (Bottom & Back & Side View)

TP-Link Technologies Co., Ltd. AC750 WiFi Range Extender FCC ID. : TE7RE200 IC: 8853A-RE200 FCC ID & IC Label Location z Label Placement Location z FCC ID & IC Label Format FCC ID & IC Label Placement Location

TP-Link Technologies Co., Ltd. AC750 WiFi Range Extender FCC ID. : TE7RE200 IC: 8853A-RE200 EUT Internal Photos Figure 3 Internal View (Removed Cover) Figure 4 Internal View (Main Board, Front View) TP-Link Technologies Co., Ltd. AC750 WiFi Range Extender FCC ID. : TE7RE200 IC: 8853A-RE200 Figure 5 Internal View (Main Board, Back View)

Maximum Permissive Exposure FCC ID: TE7RE200 IC: 8853A-RE200 Product Name: AC750 WiFi Range Extender Model No: RE200 1. According to FCC CFR 47 §1.1310, the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). Table 1 Limits for Maximum Permissible Exposure 2. MPE Calculation TP-Link Technologies Co., Ltd. declares that the product described above has been evaluated and found to comply with the RF exposure limits for humans, as specified based on ANSI/FCC recommendation. For 2.4GHz: Based on safety distance 20cm, the antenna gain is 6.96dBi, and the power output is 4.765mW, the power density is 0.5844mW/cm 2 RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = (P * G) / (4 * π * S) Where S = Power Density in mW/cm^2 P=27.72dBm=591.562mw G =6.96dBi=4.966Numerical r = 20cm S = 591.562*4.966/ 4*π* 20^2=0.5844mW/cm 2 For 5GHz: Based on safety distance 20cm, the antenna gain is 4.08dBi, and the power output is 4.765mW, the power density is 0.0732mW/cm 2 RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = (P * G) / (4 * π * S) Where S = Power Density in mW/cm^2 P=21.58dBm=143.88mw G =4.08dBi=2.559Numerical r = 20cm S = 143.88*2.559/ 4*π* 20^2=0.0732mW/cm 2 Sincerely Yours, ____________________________________ Mr. Ben Cheng Manager AUDIX Technology Corporation

Page 1 of 46 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1411001 Report Number: EM-F140740 This test report may be reproduced in full only. The document may only be updated by AUDIX Technology Corp. personnel Any changes will be noted in the Document History section of the report. FCC 15.247 DTS 2.4 GHz WLAN Report for TP-LINK TECHNOLOGIES CO., LTD. Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park, Nanshan, Shenzhen, China 518057 Brand : TP-LINK Product Name : AC750 WiFi Range Extender Model Name : RE200 FCC ID : TE7RE200 Page 2 of 46 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1411001 Report Number: EM-F140740 This test report may be reproduced in full only. The document may only be updated by AUDIX Technology Corp. personnel Any changes will be noted in the Document History section of the report. TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION ............................................................................................ 4 1. REPORT HISTORY............................................................................................................. 5 2. SUMMARY OF TEST RESULTS ...................................................................................... 6 3. GENERAL INFORMATION .............................................................................................. 7 3.1. Description of EUT .................................................................................................................... 7 3.2. EUT Specifications Assessed in Current Report ..................................................................... 8 3.3. Antenna Information ................................................................................................................. 8 3.4. Data Rate Relative to Output Power ........................................................................................ 9 3.5. Test Configuration ................................................................................................................... 10 3.6. Tested Supporting System List ............................................................................................... 10 3.7. Setup Configuration ................................................................................................................ 11 3.8. Operating Condition of EUT .................................................................................................. 11 3.9. Description of Test Facility ..................................................................................................... 12 3.10. Measurement Uncertainty ...................................................................................................... 12 4. MEASUREMENT EQUIPMENT LIST ........................................................................... 13 4.1. Conducted Emission Measurement ........................................................................................ 13 4.2. Radiated Emission Measurement ........................................................................................... 13 4.3. RF Conducted Measurement .................................................................................................. 13 5. CONDUCTED EMISSION MEASUREMET .................................................................. 14 5.1. Block Diagram of Test Setup .................................................................................................. 14 5.2. Power Line Conducted Emission Limit ................................................................................. 14 5.3. Test Procedure ......................................................................................................................... 14 5.4. Conducted Emission Measurement Results .......................................................................... 15 6. RADIATED EMISSION MEASUREMENT ................................................................... 17 6.1. Block Diagram of Test Setup .................................................................................................. 17 6.2. Radiated Emission Limits ....................................................................................................... 18 6.3. Test Procedure ......................................................................................................................... 18 6.4. Measurement Result Explanation .......................................................................................... 19 6.5. Test Results ............................................................................................................................... 19 7. 6dB BANDWIDTH MEASUREMENT ............................................................................ 40 7.1. Block Diagram of Test Setup .................................................................................................. 40 7.2. Specification Limits ................................................................................................................. 40 7.3. Test Procedure ......................................................................................................................... 40 7.4. Test Results ............................................................................................................................... 40 8. MAXIMUM PEAK OUTPUT POWER MEASUREMENT .......................................... 41 8.1. Block Diagram of Test Setup .................................................................................................. 41 8.2. Specification Limits ................................................................................................................. 41 8.3. Test Procedure ............................................................................…

Text truncated - open the document above for the full version.

APPENDIX A AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1411001 Report Number: EM-F140740 This test report may be reproduced in full only. The document may only be updated by AUDIX Technology Corp. personnel Any changes will be noted in the Document History section of the report. APPDNDIX A TEST PLOTS (Model: RE200) APPENDIX A-Page 1 of 32 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1411001 Report Number: EM-F140740 This test report may be reproduced in full only. The document may only be updated by AUDIX Technology Corp. personnel Any changes will be noted in the Document History section of the report. A.1 6dB BANDWIDTH MEASUREMENT Test Date 2015/03/24 Temp./Hum. 25°C/58% Cable Loss 3.8dB Test Voltage AC 120V, 60Hz A.1.1 6dB Bandwidth Result Modulation Type Centre Frequency (MHz) 6 dB Bandwidth (MHz) Limit 802.11b 2412 10.10 >500kHz 2437 10.14 2462 10.11 802.11g 2412 16.60 2437 16.59 2462 16.36 802.11n-HT20 2412 17.73 2437 17.78 2462 17.79 802.11n-HT40 2422 36.57 2437 36.56 2452 36.57 APPENDIX A-Page 2 of 32 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1411001 Report Number: EM-F140740 This test report may be reproduced in full only. The document may only be updated by AUDIX Technology Corp. personnel Any changes will be noted in the Document History section of the report. A.1.2 Measurement Plots 802.11b 802.11g APPENDIX A-Page 3 of 32 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1411001 Report Number: EM-F140740 This test report may be reproduced in full only. The document may only be updated by AUDIX Technology Corp. personnel Any changes will be noted in the Document History section of the report. 802.11n-HT20 802.11n-HT40 APPENDIX A-Page 4 of 32 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1411001 Report Number: EM-F140740 This test report may be reproduced in full only. The document may only be updated by AUDIX Technology Corp. personnel Any changes will be noted in the Document History section of the report. A.2 MAXIMUM PEAK OUTPUT POWER MEASUREMENT Test Date 2015/03/24 Temp./Hum. 25°C/58% Cable Loss 0.8dB Test Voltage AC 120V, 60Hz A.2.1 Peak Output Power Modulation Type Centre Frequency (MHz) Output Power (dBm)Total Peak Output Power Limit Chain 0 Chain 1 (dBm) (W) 802.11b 2412 23.24 23.07 26.17 0.414 < 29.04dBm (0.8W) 2437 25.29 24.03 27.72 0.592 2462 24.50 23.75 27.15 0.519 802.11g 2412 24.15 23.21 26.72 0.470 2437 24.39 24.27 27.34 0.542 2462 24.88 24.17 27.55 0.569 802.11n-HT20 2412 24.30 23.20 26.80 0.479 < 30dBm (1W) 2437 24.41 24.40 27.42 0.552 2462 24.62 24.12 27.39 0.548 802.11n-HT40 2422 23.38 22.18 25.83 0.383 2437 23.94 23.16 26.58 0.455 2452 23.41 21.19 25.45 0.351 Note: The results have been included cable loss. APPENDIX A-Page 5 of 32 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1411001 Report Number: EM-F140740 This test report may be reproduced in full only. The document may only be updated by AUDIX Technology Corp. personnel Any changes will be noted in the Document History section of the report. A.2.2 Average Output Power (Reporting only) Modulation Type Centre Frequency (MHz) Output Power (dBm) Total Average Output Power Limit Chain 0 Chain 1 (dBm) (W) 802.11b 2412 19.91 20.15 23.04 0.201 < 29.04dBm (0.8W) 2437 22.68 22.35 25.53 0.357 2462 21.6 21.34 24.48 0.281 802.11g 2412 15.51 15.40 18.47 0.070 2437 21.68 21.33 24.52 0.283 2462 17.59 17.31 20.46 0.111 802.11n-HT20 2412 15.41 15.12 18.28 0.067 < 30dBm (1W) 2437 21.39 21.27 24.34 0.272 2462 16.05 15.99 19.03 0.080 802.11n-HT40 2422 13.72 13.39 16.57 0.045 2437 15.21 15.28 18.26 0.067 2452 14.83 14.94 17.90 0.062 Note: The results have been included cable loss presented in section. APPENDIX A-Page 6 of 32 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1411001 Report Number: EM-F140740 This test report may be reproduced in full only. The document may only be updated by AUDIX Technology Corp. personnel Any changes will be noted in the Document History section of the report. A.3 EMISSION LIMITATIONS MEASUREMENT Test Date 2015/03/24 Temp./Hum. 25°C/58% Mode 802.11b Frequency TX 2412MHz Cable Loss 0.8dB Test Voltage AC 120V, 60Hz Simultaneous 10 log(n) (Note: “n” is antenna number) 2 Reference Level Band Edge 30MHz – 1GHz 1GHz – 5GHz APPENDIX A-Page 7 of 32 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1411001 Report Number: EM-F140740 This test report may be reproduced in full only. The document may only be updated by AUDIX Technology Corp. personnel Any changes will be noted in the Document History section of the report. 5GHz – 10GHz 10GHz – 15GHz 15GHz – 20GHz 20GHz – 25GHz Note: All results have been included cable loss and simultaneous factor. APPENDIX A-Page 8 of 32 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1411001 Report Number: EM-F140740 This test report may be reproduced in full only. The document may only be updated by AUDIX Technology Corp. personnel Any changes will be noted in the Document History section of the report. Test Date 2015/03/24 Temp./Hum. 25°C/58% Mode 802.11b Frequency TX 2437MHz Cable Loss 0.8dB Test Voltage AC 120V, 60Hz Simultaneous 10 log(n) (Note: “n” is antenna number) 2 Reference Level 30MHz – 1GHz 1GHz – 5GHz 5GHz – 10GH…

Text truncated - open the document above for the full version.

APPENDIX A-Page 14 of 32 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1411001 Report Number: EM-F140740 This test report may be reproduced in full only. The document may only be updated by AUDIX Technology Corp. personnel Any changes will be noted in the Document History section of the report. Test Date 2015/03/24 Temp./Hum. 25°C/58% Mode 802.11g Frequency TX 2437MHz Cable Loss 0.8dB Test Voltage AC 120V, 60Hz Simultaneous 10 log(n) (Note: “n” is antenna number) 2 Reference Level 30MHz – 1GHz 1GHz – 5GHz 5GHz – 10GHz APPENDIX A-Page 15 of 32 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1411001 Report Number: EM-F140740 This test report may be reproduced in full only. The document may only be updated by AUDIX Technology Corp. personnel Any changes will be noted in the Document History section of the report. 10GHz – 15GHz 15GHz – 20GHz 20MHz – 25GHz Note: All results have been included cable loss and simultaneous factor. APPENDIX A-Page 16 of 32 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1411001 Report Number: EM-F140740 This test report may be reproduced in full only. The document may only be updated by AUDIX Technology Corp. personnel Any changes will be noted in the Document History section of the report. Test Date 2015/03/24 Temp./Hum. 25°C/58% Mode 802.11g Frequency TX 2462MHz Cable Loss 0.8dB Test Voltage AC 120V, 60Hz Simultaneous 10 log(n) (Note: “n” is antenna number) 2 Reference Level Band Edge 30MHz – 1GHz 1GHz – 5GHz APPENDIX A-Page 17 of 32 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1411001 Report Number: EM-F140740 This test report may be reproduced in full only. The document may only be updated by AUDIX Technology Corp. personnel Any changes will be noted in the Document History section of the report. 5GHz – 10GHz 10GHz – 15GHz 15GHz – 20GHz 20GHz – 25GHz Note: All results have been included cable loss and simultaneous factor. APPENDIX A-Page 18 of 32 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1411001 Report Number: EM-F140740 This test report may be reproduced in full only. The document may only be updated by AUDIX Technology Corp. personnel Any changes will be noted in the Document Histor…

Text truncated - open the document above for the full version.
