TE7RE605XAX1800 Wi-Fi 6 Range Extender, AX1750 Wi-Fi 6 Range Extender

1910012830 REV1.2.0 AX1500/AX1750/AX1800 Wi-Fi 6 Range Extender RE505X/RE603X/RE605X User Guide Contents About This Guide 1 Chapter 1 Get to Know About Your Extender 2 1. 1. Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1. 2. Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1. 2. 1. LED Explanation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1. 2. 2. Button Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Chapter 2 Set Up Internet Connection 5 2. 1. Power On the Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2. 2. Set Up the Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2. 2. 1. Method 1: Via the TP-Link Tether App. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2. 2. 2. Method 2: Via a Web Browser. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2. 2. 3. Method 3: Via the WPS Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Chapter 3 OneMesh TM with Seamless Roaming 14 3. 1. What‘s a OneMesh TM Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 3. 2. How to Set Up a OneMesh TM Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Chapter 4 TP-Link Cloud Service 17 4. 1. Register a TP-Link ID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 4. 2. Change Your TP-Link ID Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 4. 3. Manage the User TP-Link IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 4. 3. 1. Add TP-Link ID to Manage the Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 4. 3. 2. Remove TP-Link ID(s) from Managing the Extender . . . . . . . . . . . . . . . . . . .20 4. 4. Manage the Extender via the TP-Link Tether App. . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Chapter 5 Customize Your Network 22 5. 1. Check Internet Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 5. 2. Configure Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 5. 3. Change LAN Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 5. 4. Adjust Wi-Fi Coverage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 5. 5. Set Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 5. 6. Set High Speed Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Chapter 6 Manage Your Extender 31 6. 1. Set System Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 6. 2. Control LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 6. 3. Set Power Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 6. 4. Upgrade the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 6. 5. Backup and Restore Configuration Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 6. 6. Change Login Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 6. 7. Check System Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 Chapter 7 More Features of Your Extender 39 7. 1. Use Your Extender as a Wireless Adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 7. 2. Transform Your Existing Wired Network to a Wireless One . . . . . . . . . . . . . . . . . . .40 Method 1: Connect to the extender manually. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 Method 2: Connect to the extender via WPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 FAQ 43 1 About This Guide This guide is a complement to Quick Installation Guide. The Quick Installation Guide provides instructions for quick internet setup, while this guide contains details of each function and demonstrates how to configure them. Note: Features available in this range extender may vary by model and software version. Range extender availability may also vary by region or ISP. All images, steps, and descriptions in this guide are only examples and may not reflect your actual range extender experience. Conventions In this guide the following conventions are used: ConventionDescription Underline Underlined words or phrases are hyperlinks. You can click to redirect to a website or a specific section. Teal Contents to be emphasized and texts on the web page are in teal, including the menus, items, buttons and so on. > The menu structures to show the path to load the corresponding page. For example, Advanced > Wireless > MAC Filtering means the MAC Filtering function page is under the Wireless menu that is located in the Advanced tab. Note: Ignoring this type of note might result in a malfunction or damage to the device. Tip: Indicates important information that helps you make better use of yo…

Text truncated - open the document above for the full version.

35 Chapter 6Manage Your Extender 3. Focus on the Online Upgrade section, and click Upgrade. 4. Wait a few minutes for the upgrade and reboot to complete. • To upgrade the firmware locally: 1. Download the latest firmware file for the extender from our website www.tp-link.com. 2. Visit http://tplinkrepeater.net, and log in with your TP-Link ID or the password you set for the extender. 3. Go to Settings > System Tools > Firmware Upgrade. 4. Click Browse to locate the downloaded new firmware file, and then click Upgrade. 5. Wait a few minutes for the firmware upgrade to complete and the extender to reboot. 6 5 Backup and Restore Configuration Settings The configuration settings are stored as a configuration file in the extender. You can backup the configuration file and restore the extender to the previous settings from the backup file when needed. Moreover, if necessary, you can erase the current settings and reset the extender to the default factory settings. 1. Visit http://tplinkrepeater.net, and log in with your TP-Link ID or the password you set for the extender. 2. Go to Settings > System Tools > Backup & Restore. 36 Chapter 6Manage Your Extender • To backup configuration settings: Click Backup to save a copy of the current settings to your local computer. A ‘.bin’ file of the current settings will be stored on your computer. • To restore configuration settings: 1. Click Browse to locate the backup configuration file stored on your computer, and click Restore. 2. Wait a few minutes for the restore and reboot. Note: During the restore process, do not power off or reset the extender. • To reset the extender to factory default settings: 1. Click Factory Restore to restore all configuration settings to default values, or click Restore if you want to keep you login and cloud account information. 2. Wait a few minutes for the reset and reboot. Notes: • During the reset process, do not power off the extender. • We strongly recommend you backup the current configuration settings before resetting the extender. 6 6 Change Login Password The account management feature allows you to change your login username and password of the web management webpage. 37 Chapter 6Manage Your Extender 1. Visit http://tplinkrepeater.net, and log in with your TP-Link ID or the password you set for the extender. 2. Go to Settings > System Tools > Admin Account. 3. Enter the old password. Then enter the new password twice (case-sensitive) and click Save. 4. Use the new password for future logins. 6 7 Check System Log If the extender is not working properly, you can save the system log and send it to our technical support team. 1. Visit http://tplinkrepeater.net, and log in with your TP-Link ID or the password you set for the extender. 2. Go to Settings > System Tools > System Log. • To save the system log locally: 1. Choose the type and level of the system log as needed. 2. Click Save Log to save the system logs to a local disk. 38 Chapter 6Manage Your Extender Chapter 7 More Features of Your Extender This chapter explains how to use the extender as a wireless adapter and as an access point. It contains the following sections: • Use Your Extender as a Wireless Adapter • Transform Your Existing Wired Network to a Wireless One 40 Chapter 7More Features of Your Extender 7 1 Use Your Extender as a Wireless Adapter The extender can be used as a wireless adapter to connect any wired-only device, such as a Blu-ray player, game console, DVR, or smart TV, to your wireless network. After configuration, you can connect an Ethernet-enabled device to the extender via an Ethernet cable. Ethernet Connection Router Smart TVGame ConsoleDesktop 7 2 Transform Your Existing Wired Network to a Wireless One The extender can work as an access point, transforming your existing wired network to a wireless one. 7 2 1 Set Up the Extender as an Access Point 1. Visit http://tplinkrepeater.net, and log in with your TP-Link ID or the password you set for the extender. 2. Click Mode in the top right corner of the page. Select Access Point and click Save. The extender will reboot and switch to Access Point mode. 3. After rebooting, connect the extender to your modem or wired router via an Ethernet cable. 41 Chapter 7More Features of Your Extender 4. Visit http://tplinkrepeater.net, and log in with your TP-Link ID or the password you set for the extender. 5. Go to Quick Setup to configure your extender. 1 ) Configure your wireless settings and click Next. 2 ) Confirm the information and click Finish. Now, you can enjoy Wi-Fi. 42 Chapter 7More Features of Your Extender 7 2 2 Connect Your Wireless Devices to the Extender Method 1: Connect to the extender manually You can connect your wireless devices to the extender by manually entering the wireless password on your device. Method 2: Connect to the extender via WPS Wi-Fi Protected Setup (WPS) provides an easier way to set up a secure Wi-Fi connection. Wireless devices that support WPS, including Android phones, tablets and most USB network cards, can be connected to your extender through this method (not supported by iOS devices). 1. Visit http://tplinkrepeater.net, and log in with your TP-Link ID or the password you set for the extender. 2. Go to Settings > Wireless > WPS. 3. Enable WPS. 4. Connect via WPS: • AP’s PIN: Enable AP’s PIN and enter the PIN on your device. You can click Generate to get a new PIN or click Default to restore the PIN to its factory one. • Push Button (Recommended): Click Connect and push the WPS button on the client device. • PIN code: Enter the client’s PIN, and click Connect. 43 FAQ Q1 How to reset the extender to its factory default settings? • With the extender powered on, use a pin to press the RESET button for 1 second. The extender will reboot. • Log in to the extender’s web management page. Go to Settings > System Tools > Backup & Restore and click Factory Restore. Q2 What should I do if I forget my login password? Refer to FAQ > Q1 to reset the extender, and then vi…

Text truncated - open the document above for the full version.

Declaration letter For our business issue and marketing requirement, we would like to list different model number as following: Model No.: RE605X (Product name: AX1800 Wi-Fi 6 Range Extender), RE603X (Product name: AX1750 Wi-Fi 6 Range Extender) Model Difference: There is the same hardware design, PCB layout between the models. different models and product names for different marketing requirement. _____________________ Name: Huang Jing Position: Regulatory Compliance Manager Date: 2020-08-04

Attestation Letter Federal Communications Commission Authorization and Evaluation Division We Name: TP-Link Technologies Co., Ltd. Address: Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park, Nanshan Shenzhen, 518057 China Declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. Product: AX1800 Wi-Fi 6 Range Extender AX1750 Wi-Fi 6 Range Extender FCC ID: TE7RE605X Model: RE605X, RE603X Brand: tp-link Sincerely, _________________ Name: Huang Jing Position: Regulatory Compliance Manager Date: 2020-07-22

Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: TE7RE605X Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________ Name: Huang Jing Position: Regulatory Compliance Manager Date: 2020-07-22

Declaration of Authorization We Name: TP-Link Technologies Co., Ltd. Address: Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park, Nanshan Shenzhen, 518057 China Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: AX1800 Wi-Fi 6 Range Extender AX1750 Wi-Fi 6 Range Extender FCC ID: TE7RE605X Model: RE605X, RE603X Brand: tp-link Sincerely, _________________ Name: Huang Jing Position: Regulatory Compliance Manager Date: 2020-04-19

Declaration of Conformity We Name: TP-Link Technologies Co., Ltd. Address: Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park, Nanshan Shenzhen, 518057 China Declare that: Product: AX1800 Wi-Fi 6 Range Extender AX1750 Wi-Fi 6 Range Extender FCC ID: TE7RE605X Model: RE605X, RE603X Brand: tp-link Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, _________________ Name: Huang Jing Position: Regulatory Compliance Manager Date: 2020-07-22

Report No.: 2007TW0006-UE 1 of 3 EUT Photograph (1) EUT Photo (2) EUT Photo 2.4G & 5G Ant 0 2.4G & 5G Ant 1 Report No.: 2007TW0006-UE (3) EUT Photo (4) EUT Photo Report No.: 2007TW0006-UE (5) EUT Photo (6) EUT Photo

Label RE605X RE603X Label location

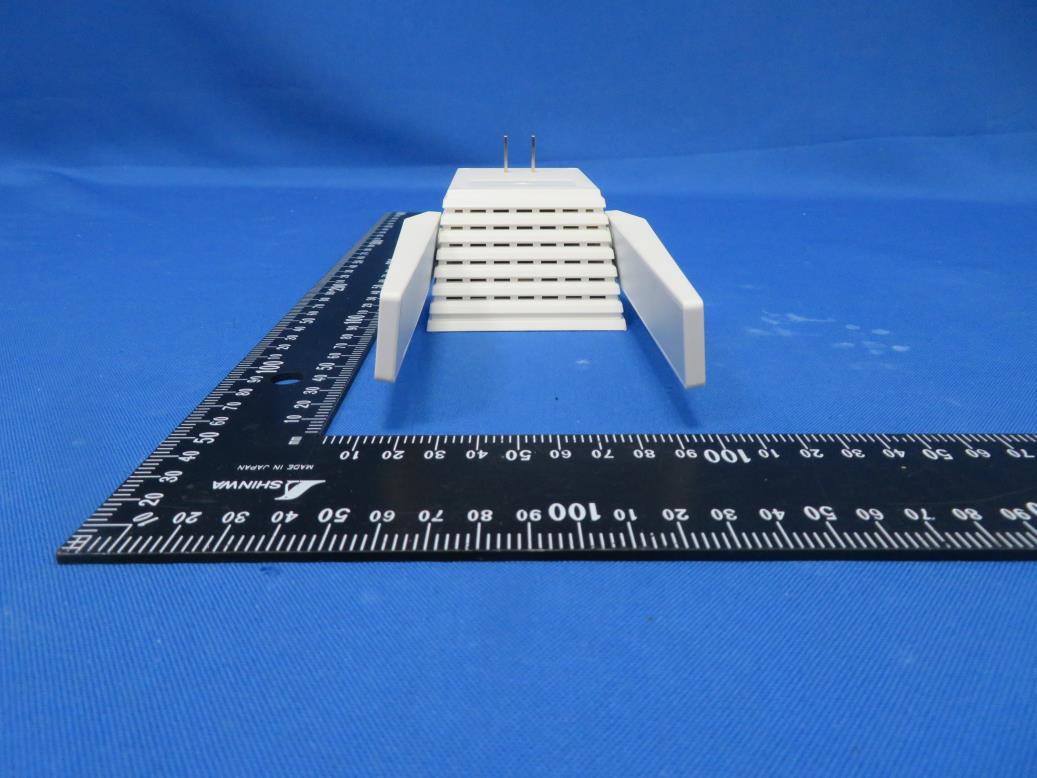

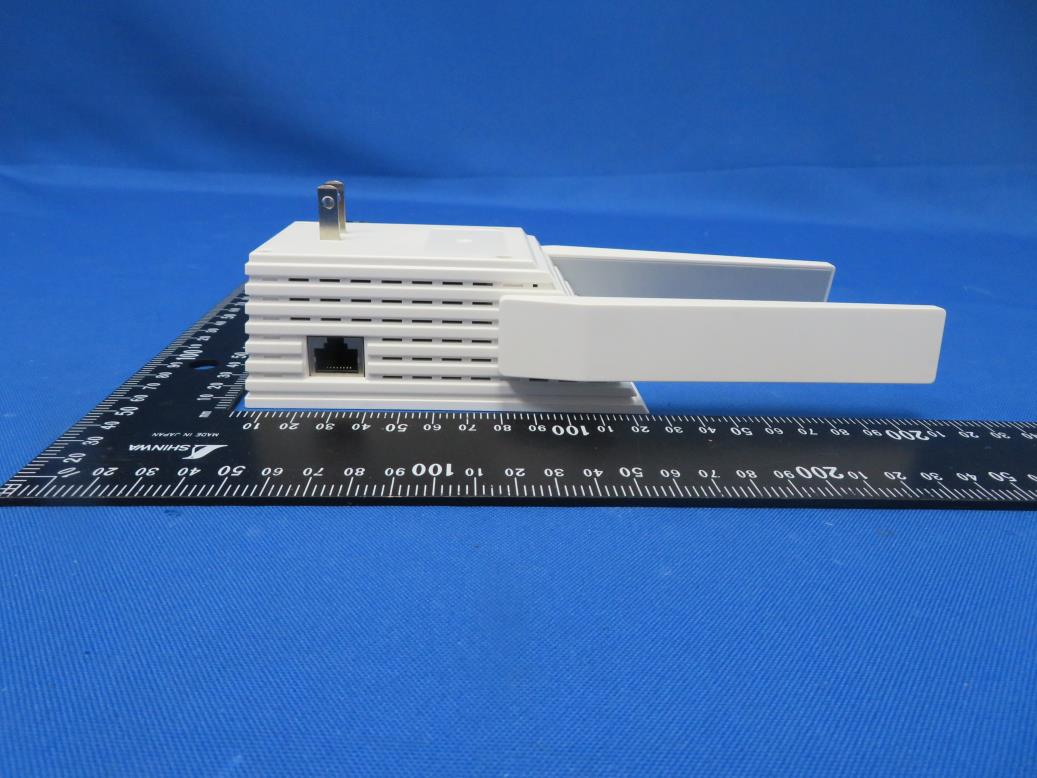

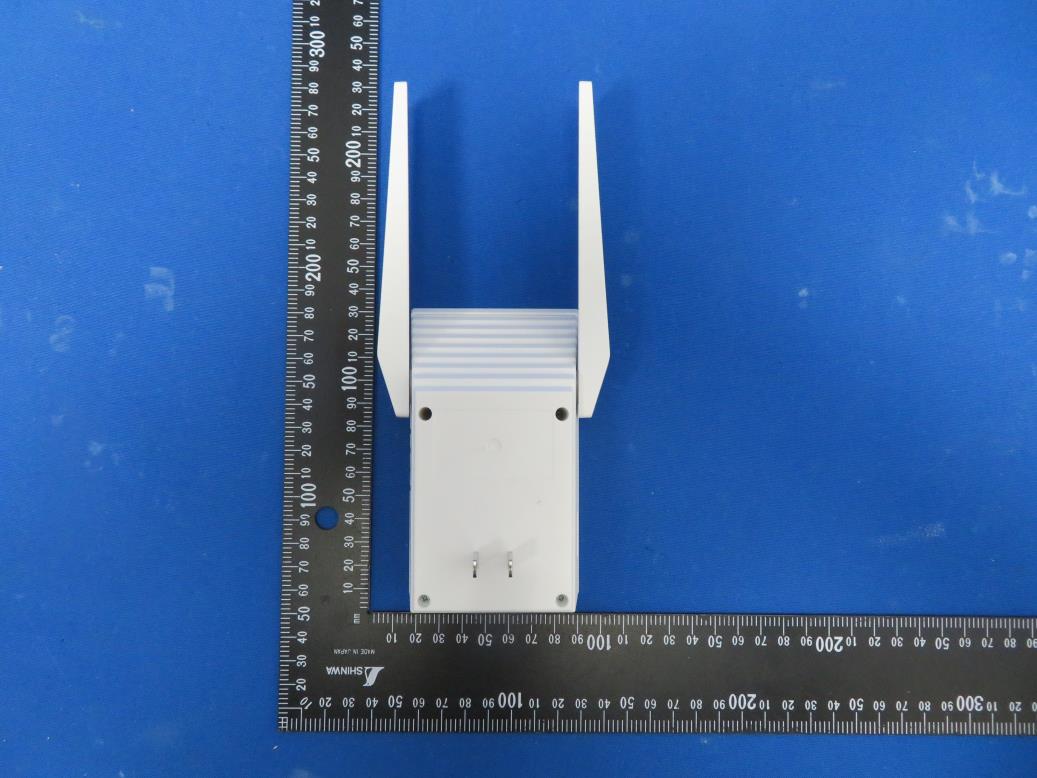

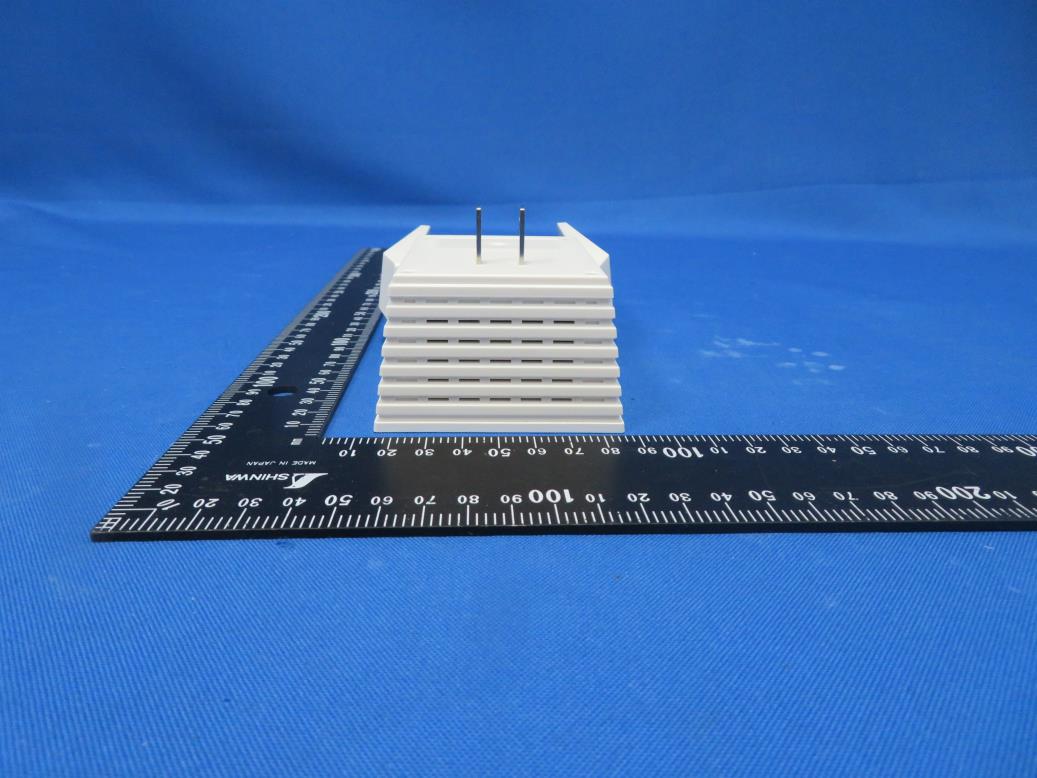

Report No.: 2007TW0006-UE 1 of 5 EUT Photograph (1) EUT Photo (2) EUT Photo Report No.: 2007TW0006-UE (3) EUT Photo (4) EUT Photo Report No.: 2007TW0006-UE (5) EUT Photo (6) EUT Photo Report No.: 2007TW0006-UE (7) EUT Photo (8) EUT Photo Report No.: 2007TW0006-UE (9) EUT Photo

MRT Technology (Taiwan) Co., Ltd Report No.: 2007TW0006-U3 Phone: +886-3-3288388 Report Version: V01 Web: www.mrt-cert.com Issue Date: 08-08-2020 Page Number: 1 of 10 RF Exposure Evaluation Declaration FCC ID: TE7RE605X APPLICANT: TP-Link Technologies Co., Ltd. Application Type: Certification Product: AX1800 Wi-Fi 6 Range Extender AX1750 Wi-Fi 6 Range Extender Model No.: RE605X, RE603X Trademark: tp-link FCC Classification: Digital Transmission System (DTS) Unlicensed National Information Infrastructure (NII) Test Procedure(s): KDB 447498 D01v06 Test Date: August 08, 2020 Reviewed By: ( Paddy Chen ) Approved By: (Chenz Ker) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2007TW0006-U3 Page Number: 2 of 10 Revision History Report No. Version Description Issue Date Note 2007TW0006-U3 Rev. 01 Initial report 08-08-2020 Valid Report No.: 2007TW0006-U3 Page Number: 3 of 10 CONTENTS Description Page 1. INTRODUCTION ................................................................................................................... 5 1.1. Scope .................................................................................................................................... 5 1.2. MRT Test Location .............................................................................................................. 5 2. PRODUCT INFORMATION ................................................................................................... 6 2.1. Feature of Equipment under Test ..................................................................................... 6 2.2. Description of Available Antennas..................................................................................... 6 2.3. Description of Antenna RF Port ........................................................................................ 7 3. RF Exposure Evaluation ..................................................................................................... 8 3.1. Limits ..................................................................................................................................... 8 3.2. Test Result of RF Exposure Evaluation ........................................................................... 9 Appendix A - EUT Photograph ..................................................................................................10 Report No.: 2007TW0006-U3 Page Number: 4 of 10 General Information Applicant: TP-Link Technologies Co., Ltd. Applicant Address: Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park, Nanshan Shenzhen, 518057 China Manufacturer: TP-Link Technologies Co., Ltd. Manufacturer Address: Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park, Nanshan Shenzhen, 518057 China Test Site: MRT Technology (Taiwan) Co., Ltd Test Site Address: No. 38, Fuxing Second Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C) Test Facility / Accreditations Measurements were performed at MRT Laboratory located in Fuxing Rd., Taoyuan, Taiwan ( R.O.C ) MRT facility is a FCC registered (Designation No. TW3261) test facility with the site description report on file and is designated by the FCC as an Accredited Test Firm.  MRT facility is an IC registered (MRT Reg. No. 21723-1) test laboratory with the site description on file at Industry Canada.  MRT Lab is accredited to ISO 17025 by the American Association for Laboratory Accreditation (TAF) under the American Association for Laboratory Accreditation Program (TAF Cert. No. 3261) in EMC, Telecommunications and Radio testing for FCC, Industry Taiwan, EU and TELEC Rules. Report No.: 2007TW0006-U3 Page Number: 5 of 10 1. INTRODUCTION 1.1. Scope Measurement and determination of electromagnetic emissions (EMC) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission and the Innovation, Science and Economic Development Canada and Certification and Engineering Bureau. 1.2. MRT Test Location The map below shows the location of the MRT LABORATORY, its proximity to the Taoyuan City. These measurement tests were conducted at the MRT Technology (Taiwan) Co., Ltd. Facility located at No.38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C). Report No.: 2007TW0006-U3 Page Number: 6 of 10 2. PRODUCT INFORMATION 2.1. Feature of Equipment under Test Note: There is the same hardware design, PCB layout between the models, different models and product names for different marketing requirements. Only RE605X (Product name: AX1800 Wi-Fi 6 Range Extender) was selected for final tests. 2.2. Description of Available Antennas Antenna Type Frequency Band (MHz) T X Paths Number of spatial streams Max Antenna Gain (dBi) Beamforming Directional Gain (dBi) CDD Directional Gain (dBi) For Power For PSD Monopole Antenna 2412 ~ 2462 2 1 1.99 5.00 1.99 5.00 5150 ~ 5250 2 1 1.98 4.99 1.98 4.99 5250 ~ 5350 2 1 2.99 6.00 2.99 6.00 5470 ~ 5725 2 1 2.46 5.47 2.46 5.47 5725 ~ 5850 2 1 2.13 5.14 2.13 5.14 Note 1: The EUT supports Cyclic Delay Diversity (CDD) mode, and CDD signals are correlated. If all antennas have the same gain, G ANT , Directional gain = G ANT + Array Gain, where Array Gain is as follows. • For power spectral density (PSD) measurements on all devices, Array Gain = 10 log (N ANT / N SS ) dB; • For power measurements on IEEE 802.11 devices, Array Gain = 0 dB for N ANT ≤ 4; Note 2: The EUT also supports Beam Forming mode, and the Beam Forming support 802.11ac/ax, not include 802.11a/b/g/n. BF Directional gain = G ANT + 10 log (N ANT ). Product Name AX1800 Wi-Fi 6 Range Extender…

Text truncated - open the document above for the full version.

MRT Technology (Taiwan) Co., Ltd Report No.: 2007TW0006-U2 Phone: +886-3-3288388 Report Version: V01 Web: www.mrt-cert.com Issue Date: 08-08-2020 Page Number: 1 of 247 FCC ID: TE7RE605X Applicant: TP-Link Technologies Co., Ltd. Application Type: Certification Product: AX1800 Wi-Fi 6 Range Extender AX1750 Wi-Fi 6 Range Extender Model No.: RE605X, RE603X Brand Name: tp-link FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part15 Subpart E (Section 15.407) Test Procedure(s): ANSI C63.10-2013, KDB 789033 D02v02r01, KDB 662911 D01v02r01 Test Date: June 22 ~ August 08, 2020 MEASUREMENT REPORT FCC PART 15.407 WLAN 802.11a/n/ac/ax Reviewed By: ( Paddy Chen ) Approved By: (Chenz Ker) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 D02v02r01. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.:2007TW006-U2 Page Number: 2 of 247 Revision History Report No. Version Description Issue Date Note 2007TW0006-U2 Rev. 01 Initial report 08-08-2020 Valid Report No.:2007TW006-U2 Page Number: 3 of 247 CONTENTS Description Page 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .................................................................................................. 7 2.2. Product Specification Subjective to this Report ............................................................. 7 2.3. Working Frequencies for this report .............................................................................. 8 2.4. Description of Available Antennas ................................................................................. 8 2.5. Description ofAntenna RF Port ..................................................................................... 9 2.6. Test Mode .................................................................................................................... 9 2.7. Configuration of Test System ...................................................................................... 10 2.8. Test System Details ..................................................................................................... 11 2.9. Description of Test Software ........................................................................................ 11 2.10. Duty Cycle .................................................................................................................. 12 2.11. Test Configuration ...................................................................................................... 13 2.12. EMI Suppression Device(s)/Modifications ................................................................... 13 2.13. Labeling Requirements ............................................................................................... 14 3. DESCRIPTION OF TEST ...................................................................................................... 15 3.1. Evaluation Procedure ................................................................................................. 15 3.2. AC Line Conducted Emissions ................................................................................... 15 3.3. Radiated Emissions .................................................................................................... 16 4. ANTENNA REQUIREMENTS ................................................................................................ 17 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 18 6. MEASUREMENT UNCERTAINTY ......................................................................................... 19 7. TEST RESULT ...................................................................................................................... 20 7.1. Summary .................................................................................................................... 20 7.2. 26dB Bandwidth Measurement ................................................................................... 21 7.2.1. Test Limit .................................................................................................................... 21 7.2.2. Test Procedure used ................................................................................................... 21 7.2.3. Test Setting ................................................................................................................. 21 7.2.4. Test Setup .................................................................................................................. 21 7.2.5. Test Result .................................................................................................................. 22 7.3. 6dB Bandwidth Measurement ..................................................................................... 29 Report No.:2007TW006-U2 Page Number: 4 of 247 7.3.1. Test Limit .................................................................................................................... 29 7.3.2. Test Procedure used ................................................................................................... 29 7.3.3. TestSetting ..................…

Text truncated - open the document above for the full version.

Report No.:2007TW006-U2 Page Number: 46 of 247 802.11a Power Spectral Density - Ant 1 / Ant 0 + 1 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) 802.11ac-VHT20 Power Spectral Density - Ant 1 / Ant 0 + 1 Channel 36 (5180MHz) Channel 44 (5220MHz) Report No.:2007TW006-U2 Page Number: 47 of 247 Channel 48 (5240MHz) 802.11ac-VHT40 Power Spectral Density - Ant 1 / Ant 0 + 1 Channel 38 (5190MHz) Channel 46 (5230MHz) 802.11ac-VHT80 Power Spectral Density - Ant 1 / Ant 0 + 1 Channel 42 (5210MHz) Report No.:2007TW006-U2 Page Number: 48 of 247 802.11ax-HE20 Power Spectral Density - Ant 1 / Ant 0 + 1 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) 802.11ax-HE40 Power Spectral Density - Ant 1 / Ant 0 + 1 Channel 38 (5190MHz) Channel 46 (5230MHz) Report No.:2007TW006-U2 Page Number: 49 of 247 802.11ax-HE80 Power Spectral Density - Ant 1 / Ant 0 + 1 Channel 42 (5210MHz) Report No.:2007TW006-U2 Page Number: 50 of 247 802.11a Power Spectral Density - Ant 0 / Ant 0 + 1 Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) 802.11ac-VHT20 Power Spectral Density - Ant 0 / Ant 0 + 1 Channel 149 (5745MHz) Channel 157 (5785MHz) Report No.:2007TW006-U2 Page Number: 51 of 247 Channel 165 (5825MHz) 802.11ac-VHT40 Power Spectral Density - Ant 0 / Ant 0 + 1 Channel 151 (5755MHz) Channel 159 (5795MHz) 802.11ac-VHT80 Power Spectral Density - Ant 0 / Ant 0 + 1 Channel 155 (5775MHz) Report No.:2007TW006-U2 Page Number: 52 of 247 802.11ax-HE20 Power Spectral Density - Ant 0 / Ant 0 + 1 Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) 802.11ax-HE40 Power Spectral Density - Ant 0 / Ant 0 + 1 Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.:2007TW006-U2 Page Number: 53 of 247 802.11ax-HE80 Power Spectral Density - Ant 0 / Ant 0 + 1 Channel 155 (5775MHz) Report No.:2007TW006-U2 Page Number: 54 of 247 802.11a Power Spectral Density - Ant 1 / Ant 0 + 1 Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) 802.11ac-VHT20 Power Spectral Density - Ant 1 / Ant 0 + 1 Channel 149 (5745MHz) Channel 157 (5785MHz) Report No.:2007TW006-U2 P…

Text truncated - open the document above for the full version.
