TE7SC3171GWireless Day/Night Surveillance Camera

TL-SC3171G Wireless Day/Night Surveillance Camera REV: 1.0.0 1910010292 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2010 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limit s are designed to pro-vide reasonable pr otection against harmful interference in a residential installation. This eq uipment generates, uses and can radiate radio frequency energy and, if no t in- st all ed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that in te rference will no t occur in a parti cular in stallation. If this equipment does cause harmful in te rference to radio or te levi sion re ce ption, which can be dete rmined by tu rning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit dif ferent from that to which the receiver is connected. Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference th at may cause undesired operation. Any changes or modifications not expressly approve d by the party responsible for co mpliance could void th e user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or tv in terfe ren ce caused by un authori zed modifications to this equipment. Such modifications could void the use r’s au thority to op era te th e equipment. CE Mark Warning 1588 This is a class B product. In a domestic environment, thi s product may cause radio in te rf erence , in which case the user may be required to take adequate measures. CONTENTS Package Contents.........................................................................................................................1 Chapter 1 Mini mum System Requirements .............................................................................2 Chapter 2 Phy sical Overview....................................................................................................3 2.1 Front View ......................................................................................................................3 2.2 Bottom v iew....................................................................................................................3 Chapter 3 Using IP Camera via Web Browser .........................................................................5 3.1 Obt ain the IP Address ....................................................................................................5 3.2 Windows W eb Browser ..................................................................................................7 3.3 Mac W eb Browser ..........................................................................................................9 Chapter 4 Using IP Camera via Mobile Phone ......................................................................12 4.1 3G S treaming Mobile View Mode .................................................................................12 4.2 3G W eb Brower Mobile View Mode..............................................................................14 4.3 2.5G W AP Browser Snapshot Mode ............................................................................16 4.4 2.5G W eb Browser Snapshot Mode .............................................................................16 4.5 Mobile View on Windows Mobile 6 Smart Phone .........................................................16 Chapter 5 Configuration of Main Menu..................................................................................20 5.1 Live View ......................................................................................................................20 5.1.1 Snap shot ..............................................................................................................20 5.1.1 Zoom in/out the image via the monitor window ....................................................21 5.1.2 V ideo play buttons................................................................................................21 5.1.3 Audio buttons .......................................................................................................21 5.2 Setting ..........................................................................................................................22 5.3 Client Settin g ................................................................................................................23 5.3.1 Mode....................................................................................................................23 5.3.2 V iew Size .............................................................................................................23 5.3.3 Protocol ................................................................................................................24 5.3.4 V ideo Buffer .........................................................................................................24 5.4 Image Setup ......................................................…

Text truncated - open the document above for the full version.

Date: 2010-9-10 Federal Communications Commission Authorization and Evaluation Division FCC ID: TE7SC3171G Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

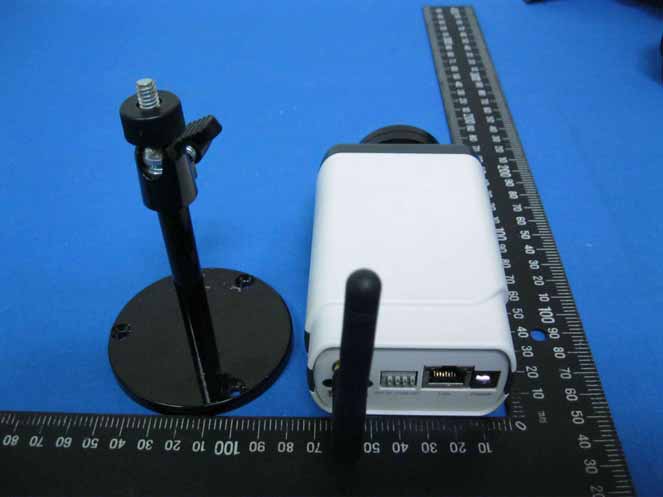

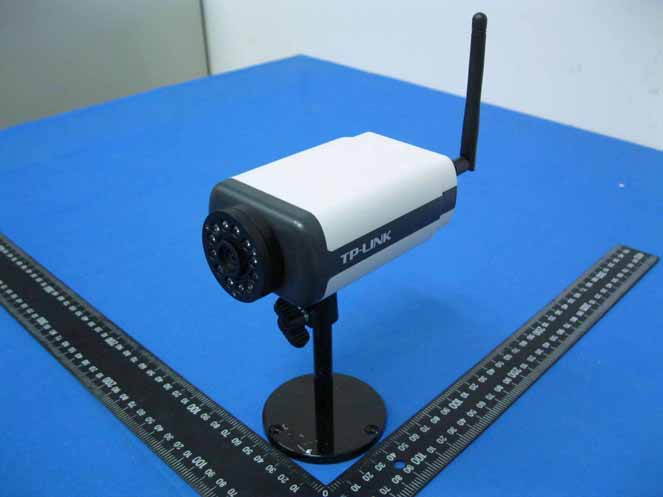

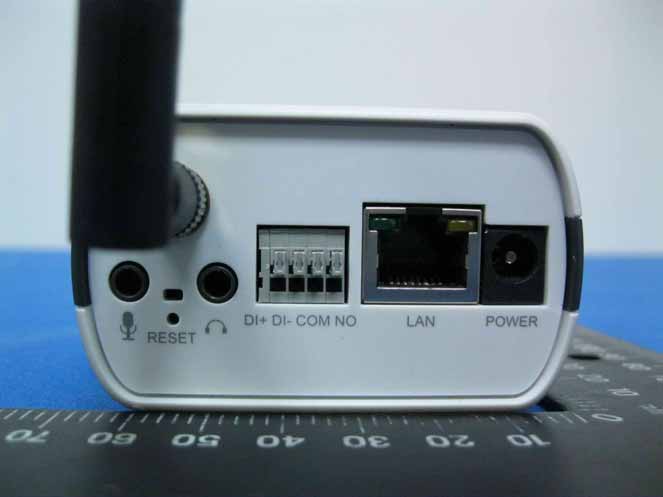

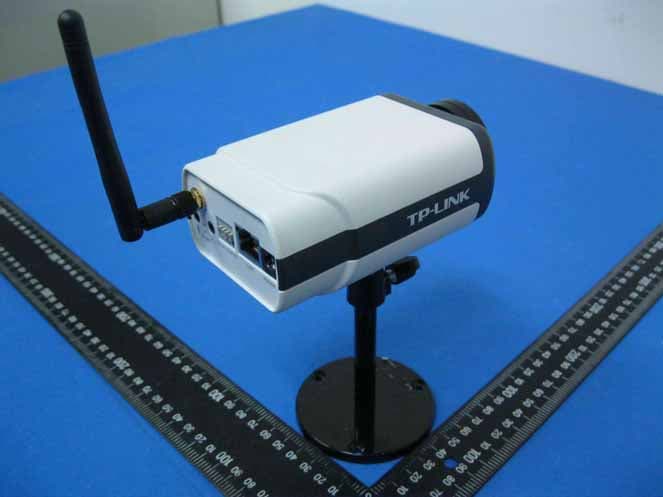

Report No.T100727309 Page 1 of 27 External Photo Report No.T100727309 Page 2 of 27

FCC ID: TE7SC3171GFCC ID: TE7SC3171G

Report No.T100727309 Page 3 of 27 Internal Photo Report No.T100727309 Page 4 of 27 Report No.T100727309 Page 5 of 27 Report No.T100727309 Page 6 of 27 Report No.T100727309 Page 7 of 27 Report No.T100727309 Page 8 of 27 Report No.T100727309 Page 9 of 27 Report No.T100727309 Page 10 of 27 Report No.T100727309 Page 11 of 27 Report No.T100727309 Page 12 of 27 Report No.T100727309 Page 13 of 27 Report No.T100727309 Page 14 of 27 Report No.T100727309 Page 15 of 27 Report No.T100727309 Page 16 of 27 Report No.T100727309 Page 17 of 27 Report No.T100727309 Page 18 of 27 Report No.T100727309 Page 19 of 27 Antenna Photo Report No.T100727309 Page 20 of 27 Power Adapter Photo (Model : WRG15F-120B) Report No.T100727309 Page 21 of 27 Report No.T100727309 Page 22 of 27 Power Adapter Photo (Model : MU12-2120100-C5) Report No.T100727309 Page 23 of 27 Report No.T100727309 Page 24 of 27 Power Adapter Photo (Model : MU12-2120100-B2) Report No.T100727309 Page 25 of 27 Report No.T100727309 Page 26 of 27 Power Adapter Photo (Model : MU12-2120100-A3) Report No.T100727309 Page 27 of 27

. Refer No. T100525302-RP1 FCC IDTE7SC3171G Report No.T100727309-RP1-1 Page 1 of 8 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2003 MAXIMUM PERMISSIBLE EXPOSURE TEST REPORT For Wireless Day/Night Surveillance Camera Model : TL-SC3171G Trade Name : TP-LINK Issued for TP-LINK TECHNOLOGIES CO.,LTD. 1-6F, Building 2, Pingshandayuan Industrial, South Zone, Taoyuan Street, Nanshan District, Shenzhen, P.R.C. Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. . Refer No. T100525302-RP1 FCC IDTE7SC3171G Report No.T100727309-RP1-1 Page 2 of 8 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 08/12/2010 Initial Issue All Page 8 Kate Shi . Refer No. T100525302-RP1 FCC IDTE7SC3171G Report No.T100727309-RP1-1 Page 3 of 8 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 2.1 DESCRIPTION OF EUT & POWER ....................................................................... 5 3. TEST METHODOLOGY ............................................................................................... 6 4. FACILITIES AND ACCREDITATION ........................................................................... 6 4.1 FACILITIES ............................................................................................................ 6 4.2 ACCREDITATIONS................................................................................................ 6 5.MAXIMUM PERMISSIBLE EXPOSURE ....................................................................... 7-8 . Refer No. T100525302-RP1 FCC IDTE7SC3171G Report No.T100727309-RP1-1 Page 4 of 8 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST REPORT CERTIFICATION Applicant TP-LINK TECHNOLOGIES CO.,LTD. Address 1-6F, Building 2, Pingshandayuan Industrial, South Zone, Taoyuan Street, Nanshan District, Shenzhen, P.R.C. Equipment Under Test Wireless Day/Night Surveillance Camera Model TL-SC3171G Trade Name TP-LINK Tested Date May 25 ~ June 30, 2010; July 27 ~ August 11, 2010 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Alex Chiu Gundam Lin Director Team Leader . Refer No. T100525302-RP1 FCC IDTE7SC3171G Report No.T100727309-RP1-1 Page 5 of 8 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name Wireless Day/Night Surveillance Camera Model Number TL-SC3171G Received Date May 25, 2010 Frequency Range IEEE 802.11b/g : 2412MHz ~ 2462MHz IEEE 802.11b : 21.75dBm (0.1496W) Transmit Power IEEE 802.11g : 19.68dBm (0.0929W) Channel Spacing IEEE 802.11b/g : 5MHz Channel Number IEEE 802.11b/g : 11 Channels IEEE 802.11b : 11, 5.5, 2, 1 Mbps Transmit Data Rate IEEE 802.11g : 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11b : DSSS (CCK, DQPSK, DBPSK) Type of Modulation IEEE 802.11g : OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Type Dipole Antenna , Antenna Gain 2dBi Connector : SMA Male RP Unshielded cable 1.8 m (no detachable) DC Power Cord Type Unshielded cable 1.5m (no detachable) Power Source 12VDC, 1.25A/1.0A (From Power Adapter) RJ-45 port × 1, Audio In port × 1, Audio Out port × 1, I/O Port Power port × 1, DI+DI-Com No port × 1 Power Adapter : No. Manufacturer Model No. Power Input Power Output 1 FAIRWAY WRG15F-120A 100-240VAC, 1.0A max, 50/60Hz 12V, 1.25A 2 LEADER MU12-2120100-A1 100-240VAC, 50/60Hz, 0.5A 12V, 1.0A Remark : 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. For more details, please refer to the User’s manual of the EUT. 3. This report is modified from T100525302-RP1. . Refer No. T100525302-RP1 FCC IDTE7SC3171G Report No.T100727309-RP1-1 Page 6 of 8 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4: 2003/ FCC DTS Measurement procedure KDB558074 March, 2005 and FCC CFR 47, 15.207, 15.209 and 15.247. 4. FACILITIES AND ACCREDITATION 4.1 FACILITIES All measurement facilities used to collect the measurement data are located at NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C The sites are constructe…

Text truncated - open the document above for the full version.

. Refer No. T100525302-RP1 FCC IDTE7SC3171G Report No.T100727309-RP1 Page 1 of 68 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2003 TEST REPORT For Wireless Day/Night Surveillance Camera Model : TL-SC3171G Trade Name : TP-LINK Issued for TP-LINK TECHNOLOGIES CO.,LTD. 1-6F, Building 2, Pingshandayuan Industrial, South Zone, Taoyuan Street, Nanshan District, Shenzhen, P.R.C. Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. . Refer No. T100525302-RP1 FCC IDTE7SC3171G Report No.T100727309-RP1 Page 2 of 68 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 08/12/2010 Initial Issue All Page 68 Kate Shi . Refer No. T100525302-RP1 FCC IDTE7SC3171G Report No.T100727309-RP1 Page 3 of 68 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 2.1 DESCRIPTION OF EUT & POWER ....................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 6 5. FACILITIES AND ACCREDITATION ........................................................................... 6 5.1 FACILITIES ............................................................................................................ 6 5.2 ACCREDITATIONS................................................................................................ 7 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 7 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 8-9 7. FCC PART 15.247 REQUIREMENTS.......................................................................... 10 7.1 6dB BANDWIDTH .................................................................................................. 10-15 7.2 MAXIMUM PEAK OUTPUT POWER..................................................................... 16-21 7.3 AVERAGE POWER ............................................................................................... 22-23 7.4 POWER SPECTRAL DENSITY............................................................................. 24-29 7.5 CONDUCTED SPURIOUS EMISSION .................................................................. 30-34 7.6 RADIATED EMISSION........................................................................................... 35-53 7.7 CONDUCTED EMISSION ...................................................................................... 54-60 APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE ..................................................... 61-62 APPENDIX II SETUP PHOTOS ....................................................................................... 63-68 . Refer No. T100525302-RP1 FCC IDTE7SC3171G Report No.T100727309-RP1 Page 4 of 68 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST REPORT CERTIFICATION Applicant TP-LINK TECHNOLOGIES CO.,LTD. Address 1-6F, Building 2, Pingshandayuan Industrial, South Zone, Taoyuan Street, Nanshan District, Shenzhen, P.R.C. Equipment Under Test Wireless Day/Night Surveillance Camera Model TL-SC3171G Trade Name TP-LINK Tested Date May 25 ~ June 30, 2010; July 27 ~ August 11, 2010 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Alex Chiu Gundam Lin Director Team Leader . Refer No. T100525302-RP1 FCC IDTE7SC3171G Report No.T100727309-RP1 Page 5 of 68 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name Wireless Day/Night Surveillance Camera Model Number TL-SC3171G Received Date May 25, 2010 Frequency Range IEEE 802.11b/g : 2412MHz ~ 2462MHz IEEE 802.11b : 21.75dBm (0.1496W) Transmit Power IEEE 802.11g : 19.68dBm (0.0929W) Channel Spacing IEEE 802.11b/g : 5MHz Channel Number IEEE 802.11b/g : 11 Channels IEEE 802.11b : 11, 5.5, 2, 1 Mbps Transmit Data Rate IEEE 802.11g : 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11b : DSSS (CCK, DQPSK, DBPSK) Type of Modulation IEEE 802.11g : OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Type Dipole Antenna , Antenna Gain 2dBi Connector : SMA Male RP Unshielded cable 1.8 m (no detachable)…

Text truncated - open the document above for the full version.
