Archer T4UH AC1200 High Gain Wireless Dual Band USB Adapter REV1.0.0 1910011097 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2014 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1） This device may not cause harmful interference. 2） This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. SAR measurements are based on a 10mm spacing from the body and that compliance is achieved at that distance. This device is restricted to indoor use only CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France. Canadian Compliance Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2)This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas provoquer d’interférences et (2) cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un fonctionnement non souhaité de l’appareil. This device has been designed to operate with the antennas listed below, It can’t be disassembled. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. Industry Canada Statement Complies with the Canadian ICES-003 Class B specifications. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device complies with RSS 210 of Industry Canada. This Class B device meets all the requirements of the Canadian interference-causing equipment regulations. Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Korea Warning Statements 당해 무선설비는 운용중 전파혼신 가능성이 있음. NCC Notice & BSMI Notice 注意！ 依據 低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻 率、加大功率或變更原設計之特性或功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通行；經發現有干擾現象時，應立 即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信規定作業之無線電信。低功 率射頻電機需忍受合法通信或工業、科學以及醫療用電波輻射性電機設備之干擾。 減少電磁波影響，請妥適使用。 於5.25GHz至5.35GHz區域內操作之無線設備的警告聲明 工作頻率5.250~5.350GHz該頻段限於室內使用。 安全諮詢及注意事項 ●請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。 ●清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。 ●注意防潮，請勿將水或其他液體潑灑到本產品上。 ●插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。 ●請勿將本產品置放於靠近熱源的地方。除非有正常的…

Text truncated - open the document above for the full version.

TP-Link Technologies Co., Ltd. Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park, Nanshan, Shenzhen, China Date: August 20, 2014 Power of Attorney To whom it may concern, Please be notified that I, TP-Link Technologies Co., Ltd., have designated Michael Lin in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: TE7T4UH If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Name of authorized signer: Yongquan Wang T itle of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

Rev. 1/1/03 TP-Link Technologies Co., Ltd. Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park, Nanshan, Shenzhen, China Date: August 20, 2014 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: TE7T4UH Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Par ts List Operation Description Turn up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

1/1 TP-Link Technologies Co., Ltd. Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park, Nanshan, Shenzhen, China Date: October 24, 2014 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : TE7T4UH To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which TP-Link Technologies Co., Ltd. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Name: Yongquan Wang TP-Link Technologies Co., Ltd. Tel.: +86-755-26502509 Fax.: +86-755-26508930 E-mail: [email protected] E-mail: [email protected]

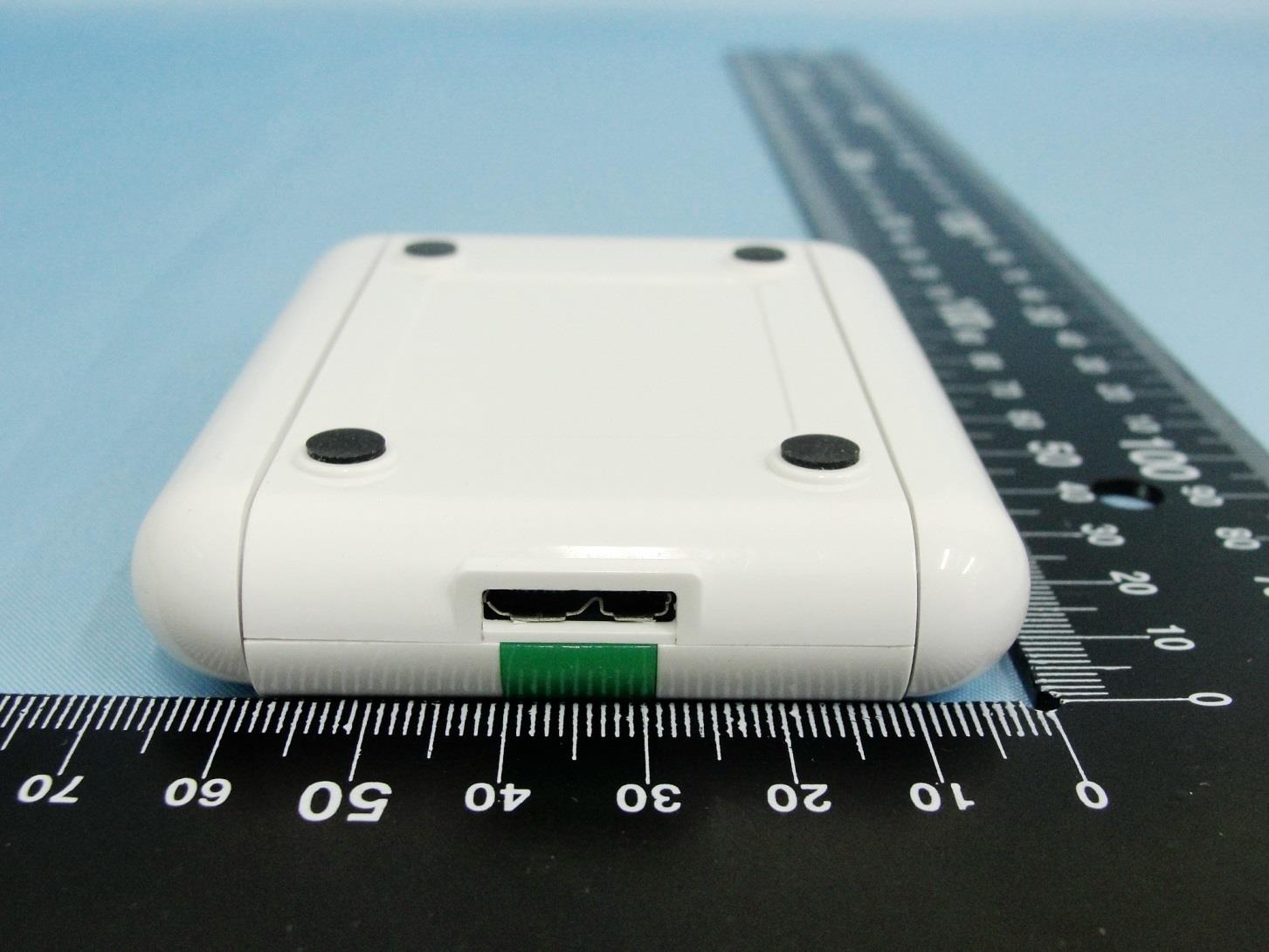

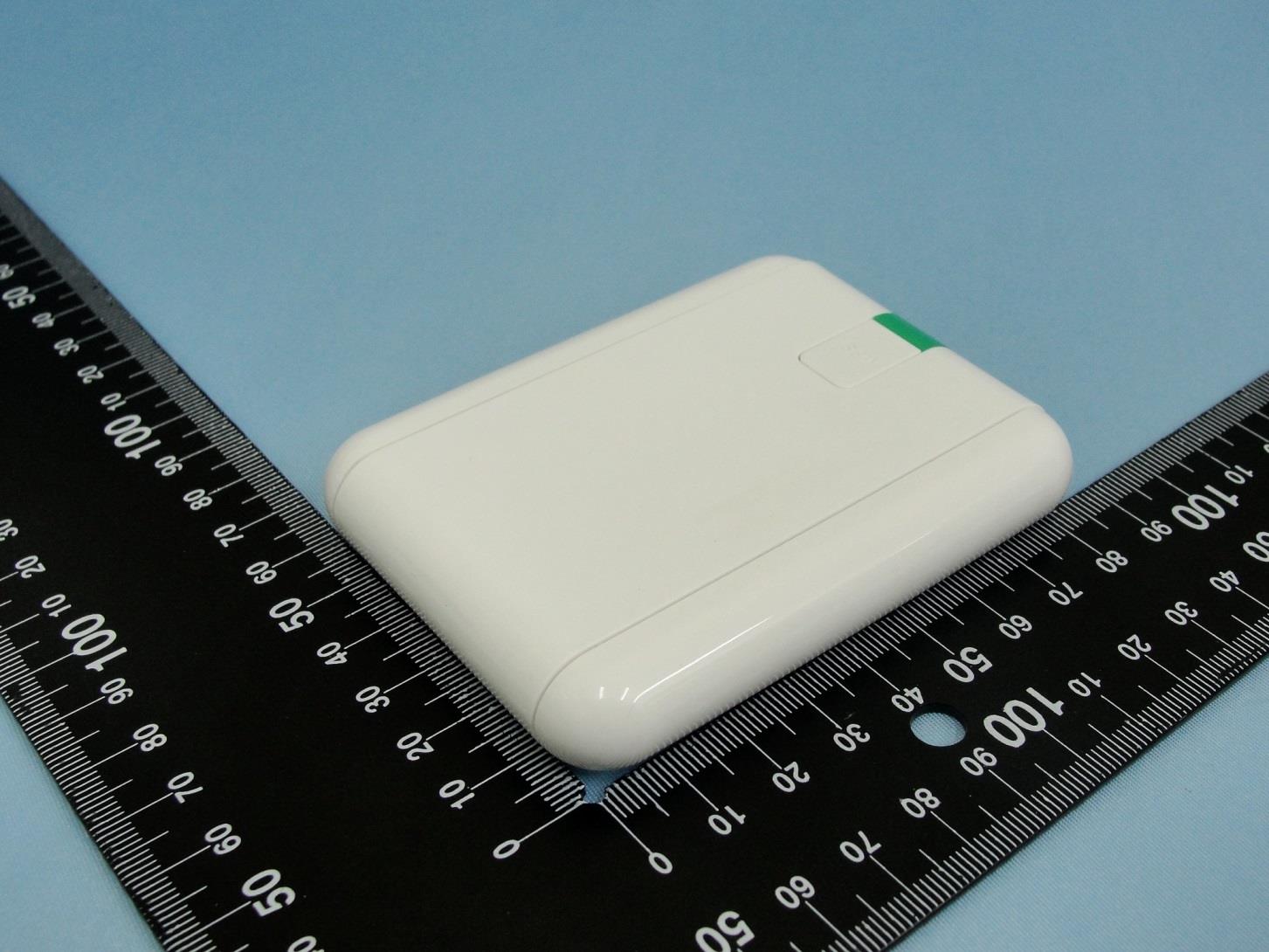

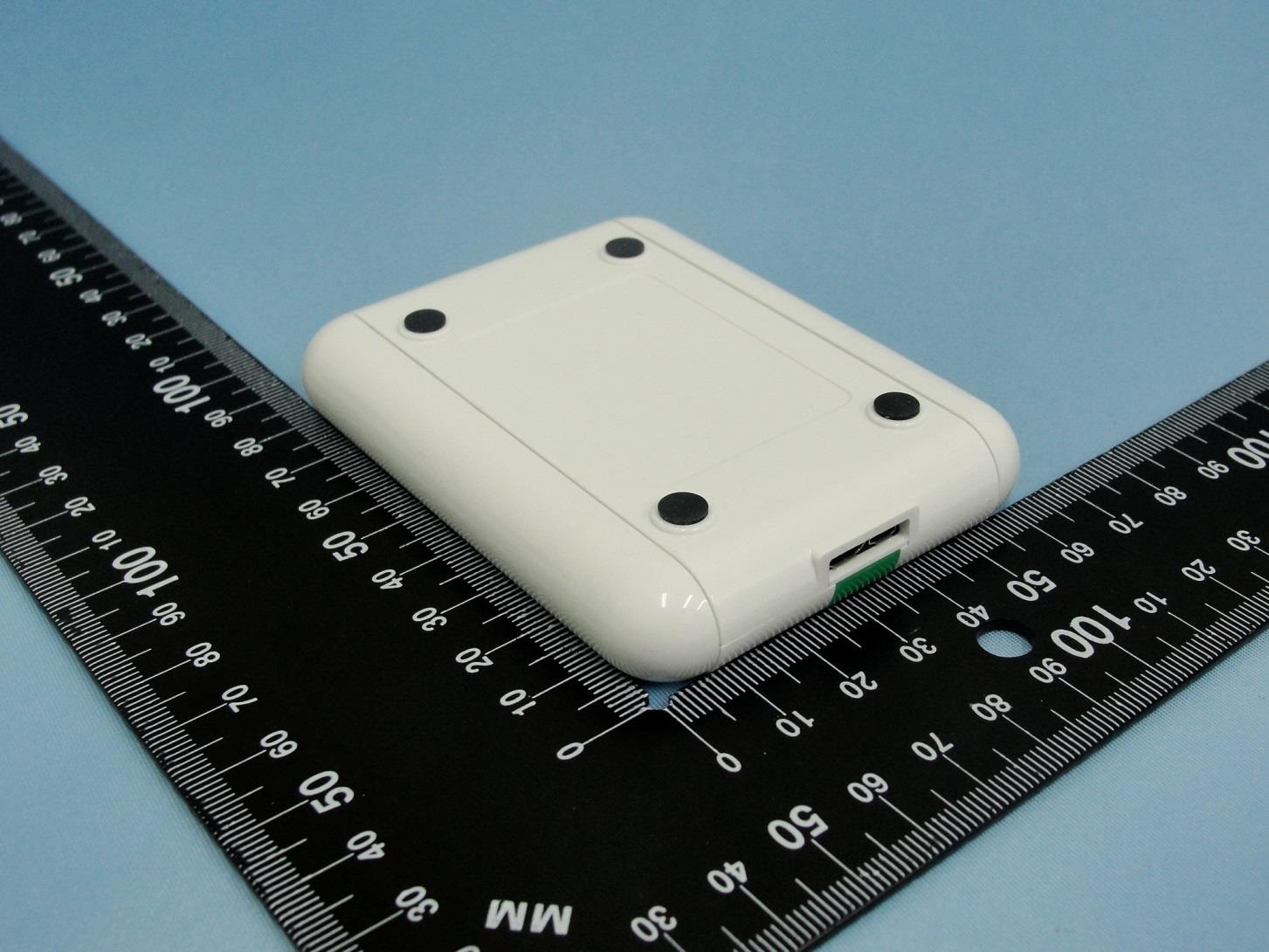

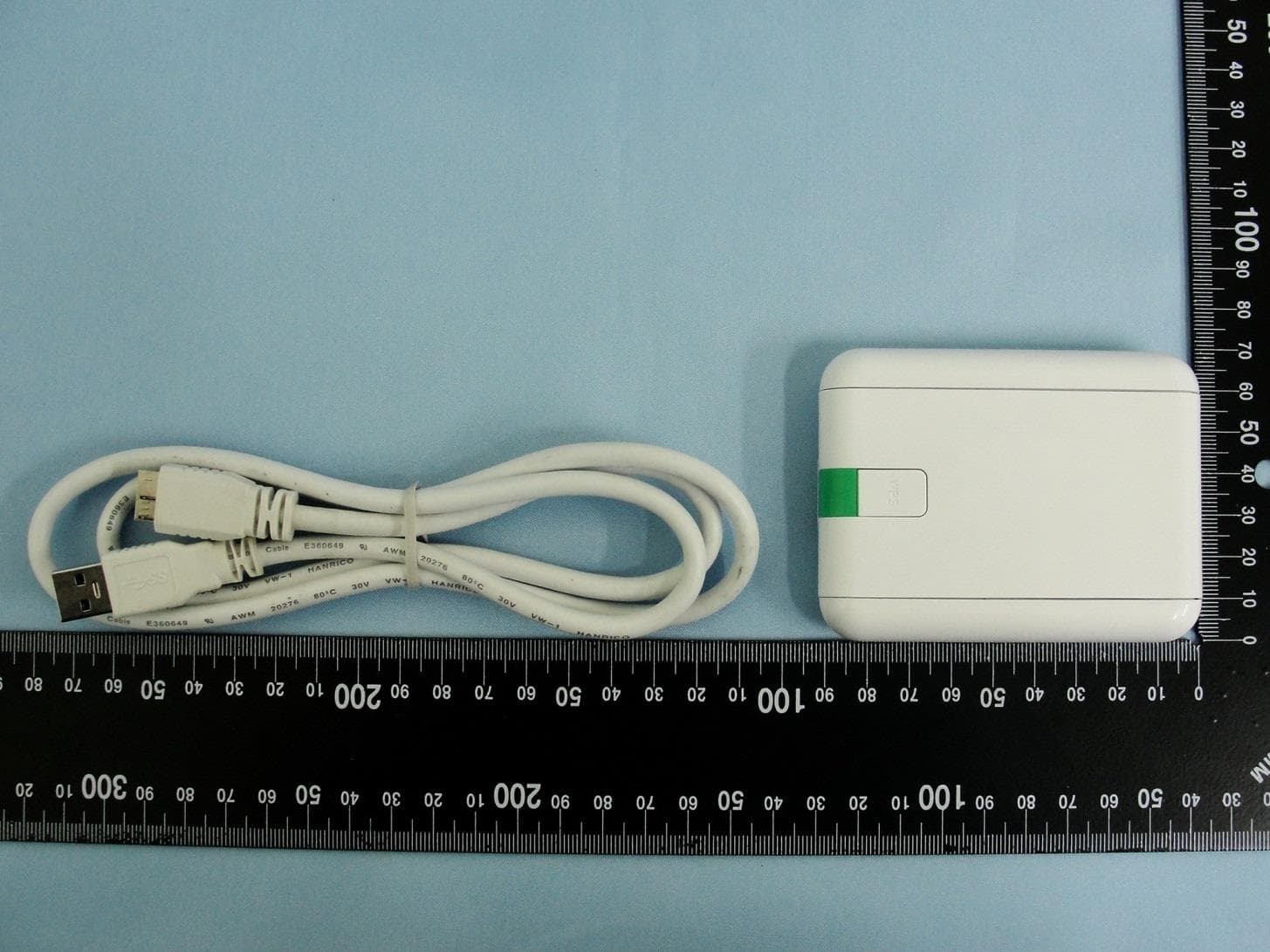

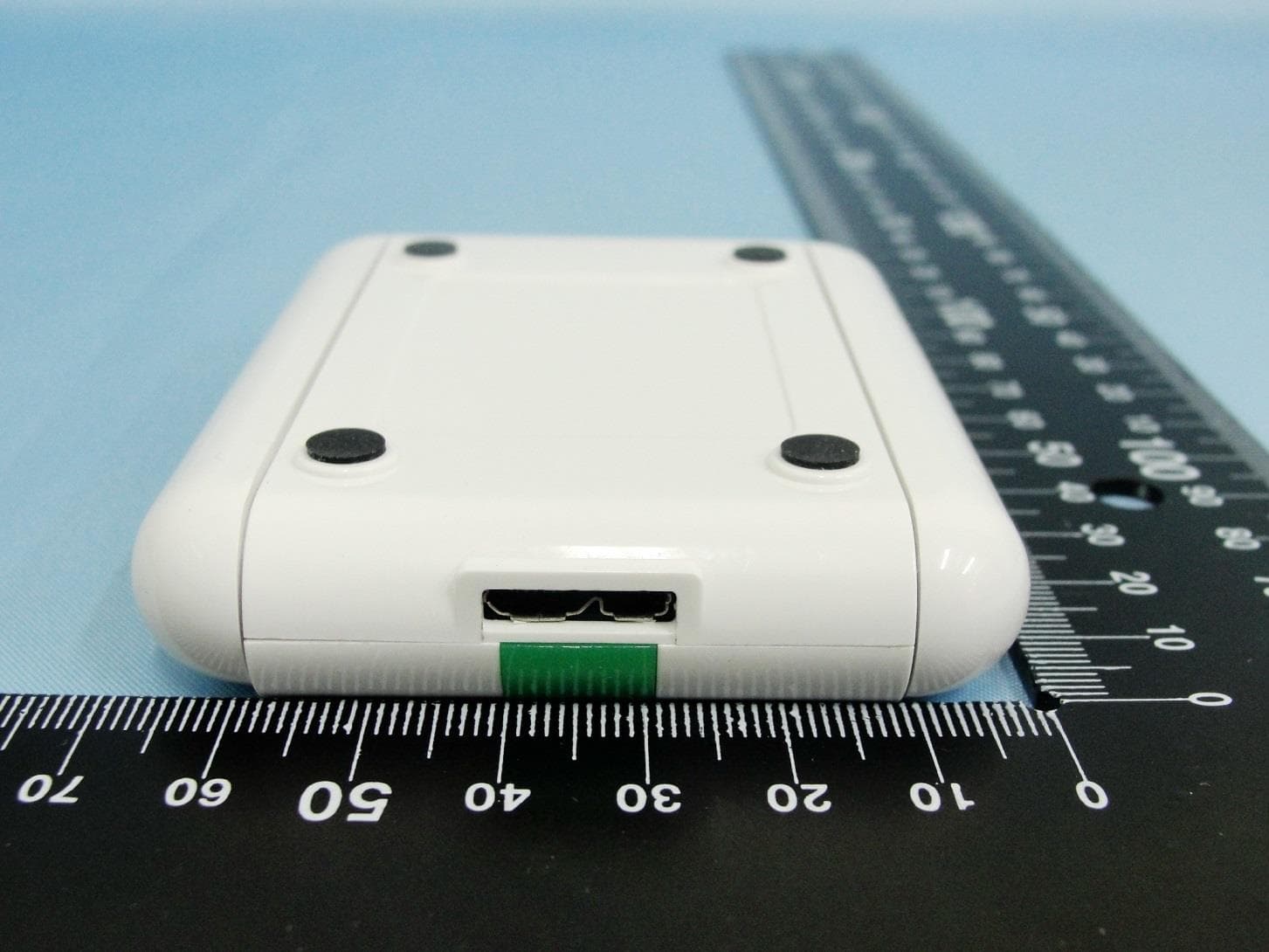

Photographs of EUT Report No.: EP470201 Brand Name: TP-LINK / Model Name: T4UH SPORTON INTERNATIONAL INC. Page Number : 1 of 13 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TE7T4UH 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP470201 Brand Name: TP-LINK / Model Name: T4UH SPORTON INTERNATIONAL INC. Page Number : 2 of 13 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TE7T4UH 720510 Photographs of EUT Report No.: EP470201 Brand Name: TP-LINK / Model Name: T4UH SPORTON INTERNATIONAL INC. Page Number : 3 of 13 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TE7T4UH 720510 Photographs of EUT Report No.: EP470201 Brand Name: TP-LINK / Model Name: T4UH SPORTON INTERNATIONAL INC. Page Number : 4 of 13 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TE7T4UH Specification of Accessory USB Cable Brand Name N/A Model Name USB3.0 Signal Line 0.9 meter shielded cable without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP470201 Brand Name: TP-LINK / Model Name: T4UH SPORTON INTERNATIONAL INC. Page Number : 5 of 13 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TE7T4UH 720510

C B A 12 C 345678 B E D D A 9 料号： 12345 与上一版的区别 E 6789 颜 色 名 称 版 本 材 质 模 具 机型版本号 logo 底色 文字 其它 结构工程师 硬件工程师 产品工程师 平面负责人 记 录 审 核 完成日期 设 计 IC:8853A-T4UHFCC ID:TE7T4UH ModelT4UH AC1200 High Gain Wireless Dual Band USB Adapter 5734 0700 3mm 3mm 3mm 文字方向 文字方向

Photographs of EUT Report No.: EP470201 Brand Name: TP-LINK / Model Name: T4UH SPORTON INTERNATIONAL INC. Page Number : 6 of 13 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TE7T4UH 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP470201 Brand Name: TP-LINK / Model Name: T4UH SPORTON INTERNATIONAL INC. Page Number : 7 of 13 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TE7T4UH 720510 Photographs of EUT Report No.: EP470201 Brand Name: TP-LINK / Model Name: T4UH SPORTON INTERNATIONAL INC. Page Number : 8 of 13 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TE7T4UH 720510 Photographs of EUT Report No.: EP470201 Brand Name: TP-LINK / Model Name: T4UH SPORTON INTERNATIONAL INC. Page Number : 9 of 13 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TE7T4UH 720510 Photographs of EUT Report No.: EP470201 Brand Name: TP-LINK / Model Name: T4UH SPORTON INTERNATIONAL INC. Page Number : 10 of 13 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TE7T4UH 720510 Photographs of EUT Report No.: EP470201 Brand Name: TP-LINK / Model Name: T4UH SPORTON INTERNATIONAL INC. Page Number : 11 of 13 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TE7T4UH 720510 WLAN Antenna Photographs of EUT Report No.: EP470201 Brand Name: TP-LINK / Model Name: T4UH SPORTON INTERNATIONAL INC. Page Number : 12 of 13 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TE7T4UH 720510 Photographs of EUT Report No.: EP470201 Brand Name: TP-LINK / Model Name: T4UH SPORTON INTERNATIONAL INC. Page Number : 13 of 13 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TE7T4UH 720510

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Nov. 04, 2014 FCC ID : TE7T4UH Page 1 of 31 Form version. : 140820 FCC SAR Test Report Report No. : FA470201 FCC SAR Test Report APPLICANT : TP-LINK TECHNOLOGIES CO., LTD. EQUIPMENT : AC1200 High Gain Wireless Dual Band USB Adapter BRAND NAME : TP-LINK MODEL NAME : T4UH FCC ID : TE7T4UH STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Nov. 04, 2014 FCC ID : TE7T4UH Page 2 of 31 Form version. : 140820 FCC SAR Test Report Report No. : FA470201 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 4 3. Guidance Standard ....................................................................................................................................................... 5 4. Equipment Under Test (EUT) ....................................................................................................................................... 5 4.1 General Information ............................................................................................................................................... 5 4.2 Maximum Tune-up Limit ......................................................................................................................................... 6 5. RF Exposure Limits....................................................................................................................................................... 7 5.1 Uncontrolled Environment ...................................................................................................................................... 7 5.2 Controlled Environment .......................................................................................................................................... 7 6. Specific Absorption Rate (SAR) ................................................................................................................................... 8 6.1 Introduction ............................................................................................................................................................ 8 6.2 SAR Definition ........................................................................................................................................................ 8 7. System Description and Setup .................................................................................................................................... 9 8. Measurement Procedures ...........................................................................................................................................10 8.1 Spatial Peak SAR Evaluation ................................................................................................................................10 8.2 Power Reference Measurement............................................................................................................................ 11 8.3 Area Scan ............................................................................................................................................................. 11 8.4 Zoom Scan ............................................................................................................................................................12 8.5 Volume Scan Procedures ......................................................................................................................................12 8.6 Power Drift Monitoring ...........................................................................................................................................12 9. Test Equipment List .....................................................................................................................................................13 10. System Verification ....................................................................................................................................................14 10.1 Tissue Verification ...............................................................................................................................................14 10.2 System Performance Check Results ...................................................................................................................15 11. RF Exposure Positions ..............................................................................................................................................16 11.1 Wireless Router ...................................................................................................................................................16 12. Conducted RF Output Power (Unit: dBm) ................................................................................................................17 13. Antenna Location .......................................................................................................................................................24 14. SAR T…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/9/25 System Check_Body_2450MHz_140925 DUT: D2450V2-736 Communication System: CW ; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_140925 Medium parameters used: f = 2450 MHz; σ = 2.005 S/m; ε r = 53.959; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration - Probe: EX3DV4 - SN3873; ConvF(7.13, 7.13, 7.13); Calibrated: 2014/8/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/7/23 - Phantom: SAM_RIGHT; Type: QD000P40CD; Serial: 1719 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 20.1 W/kg Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 100.3 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 27.4 W/kg SAR(1 g) = 12.9 W/kg; SAR(10 g) = 5.91 W/kg Maximum value of SAR (measured) = 20.0 W/kg 0 dB = 20.0 W/kg = 13.01 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/9/25 System Check_Body_2450MHz_140925 DUT: D2450V2-736 Communication System: CW ; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_140925 Medium parameters used: f = 2450 MHz; σ = 2.005 S/m; ε r = 53.959; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration - Probe: EX3DV4 - SN3954; ConvF(7.34, 7.34, 7.34); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/7/23 - Phantom: SAM_RIGHT; Type: QD000P40CD; Serial: 1719 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 20.8 W/kg Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 102.6 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 27.3 W/kg SAR(1 g) = 13.1 W/kg; SAR(10 g) = 6.06 W/kg Maximum value of SAR (measured) = 20.1 W/kg 0 dB = 20.1 W/kg = 13.03 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/9/25 System Check_Body_5200MHz_140925 DUT: D5GHzV2-1040 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: MSL_5G_140925 Medium parameters used: f = 5200 MHz; σ = 5.441 S/m; ε r = 47.382; ρ = 1000 kg/m 3 23.2 22.2 DASY5 Configuration - Probe: EX3DV4 - SN3954; ConvF(4.52, 4.52, 4.52); Calibrated: 2013/11/4; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/7/23 - Phantom: SAM LEFT; Type: QD000P40CD; Serial: TP:1718 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 20.0 W/kg Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 64.571 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 30.1 W/kg SAR(1 g) = 7.69 W/kg; SAR(10 g) = 2.17 W/kg Maximum value of SAR (measured) = 18.7 W/kg 0 dB = 18.7 W/kg = 12.72 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/9/26 System Check_Body_5200MHz_140926 DUT: D5GHzV2-1040 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: MSL_5G_140926 Medium parameters used: f = 5200 MHz; σ = 5.388 S/m; ε r = 48.732; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration - Probe: EX3DV4 - SN3954; ConvF(4.52, 4.52, 4.52); Calibrated: 2013/11/4; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/7/23 - Phantom: SAM LEFT; Type: QD000P40CD; Serial: TP:1718 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 19.8 W/kg Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 64.571 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 29.8 W/kg SAR(1 g) = 7.62 W/kg; SAR(10 g) = 2.14 W/kg Maximum value of SAR (measured) = 18.5 W/kg 0 dB = 18.5 W/kg = 12.67 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/9/25 System Check_Body_5300MHz_140925 DUT: D5GHzV2-1040 Communication System: CW ; Frequency: 5300 MHz;Duty Cycle: 1:1 Medium: MSL_5G_140925 Medium parameters used: f = 5300 MHz; σ = 5.562 S/m; ε r = 47.093; ρ = 1000 kg/m 3 23.2 22.2 DASY5 Configuration - Probe: EX3DV4 - SN3954; ConvF(4.28, 4.28, 4.28); Calibrated: 2013/11/4; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/7/23 - Phantom: SAM LEFT; Type: QD000P40CD; Serial: TP:1718 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 19.3 W/kg Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 64.541 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 29.2 W/kg SAR(1 g) = 7.65 W/kg; SAR(10 g) = 2.17 W/kg Maximum value of SAR (measured) = 18.7 W/kg 0 dB = 18.7 W/kg = 12.72 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/9/26 System Check_Body_5300MHz_140926 DUT: D5GHzV2-1040 Communication System: CW ; Frequency: 5300 MHz;Duty Cycle: 1:1 Medium: MSL_5G_140926 Medium parameters used: f = 5300 MHz; σ = 5.522 S/m; ε r = 48.584; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration - Probe: EX3DV4 - SN3954; ConvF(4.28, 4.28, 4.28); Calibrated: 2013/11/4; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/7/23 - Phantom: SAM LEFT; Type: QD000P40CD; Serial: TP:1718 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/9/25 #01_WLAN2.4GHz_802.11b 1Mbps_Back_0.5cm_Ch6;Ant0_degree0 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_140925 Medium parameters used: f = 2437 MHz; σ = 1.985 S/m; ε r = 53.972; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration - Probe: EX3DV4 - SN3873; ConvF(7.13, 7.13, 7.13); Calibrated: 2014/8/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/7/23 - Phantom: SAM_RIGHT; Type: QD000P40CD; Serial: 1719 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Ch6/Area Scan (81x101x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 2.11 W/kg Configuration/Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 32.248 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 2.79 W/kg SAR(1 g) = 1.39 W/kg; SAR(10 g) = 0.664 W/kg Maximum value of SAR (measured) = 2.01 W/kg 0 dB = 2.01 W/kg = 3.03 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/9/25 #02_WLAN5GHz_802.11n-HT40 MCS0_Back_0.5cm_Ch38;Ant0_degree180 Communication System: 802.11n ; Frequency: 5190 MHz;Duty Cycle: 1:1 Medium: MSL_5G_140925 Medium parameters used : f = 5190 MHz; σ = 5.422 S/m; ε r = 47.396; ρ = 1000 kg/m 3 23.2 22.2 DASY5 Configuration - Probe: EX3DV4 - SN3954; ConvF(4.52, 4.52, 4.52); Calibrated: 2013/11/4; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/7/23 - Phantom: SAM LEFT; Type: QD000P40CD; Serial: TP:1718 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Ch38/Area Scan (101x201x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.67 W/kg Configuration/Ch38/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 19.097 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 2.65 W/kg SAR(1 g) = 0.699 W/kg; SAR(10 g) = 0.229 W/kg Maximum value of SAR (measured) = 1.61 W/kg 0 dB = 1.61 W/kg = 2.07 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/9/25 #03_WLAN5GHz_802.11ac-VHT80 MCS0_Back_0.5cm_Ch58;Ant0_degree180 Communication System: 802.11ac ; Frequency: 5290 MHz;Duty Cycle: 1:1 Medium: MSL_5G_140925 Medium parameters used : f = 5290 MHz; σ = 5.546 S/m; ε r = 47.127; ρ = 1000 kg/m 3 23.2 22.2 DASY5 Configuration - Probe: EX3DV4 - SN3954; ConvF(4.28, 4.28, 4.28); Calibrated: 2013/11/4; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/7/23 - Phantom: SAM LEFT; Type: QD000P40CD; Serial: TP:1718 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Ch58/Area Scan (101x201x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.47 W/kg Configuration/Ch58/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 18.075 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 2.81 W/kg SAR(1 g) = 0.717 W/kg; SAR(10 g) = 0.222 W/kg Maximum value of SAR (measured) = 1.66 W/kg 0 dB = 1.66 W/kg = 2.20 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/9/26 #04_WLAN5GHz_802.11a 6Mbps_Back_0.5cm_Ch136;Ant0_degree0 Communication System: 802.11a ; Frequency: 5680 MHz;Duty Cycle: 1:1 Medium: MSL_5G_140926 Medium parameters used: f = 5680 MHz; σ = 6.003 S/m; ε r = 47.919; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration - Probe: EX3DV4 - SN3954; ConvF(3.97, 3.97, 3.97); Calibrated: 2013/11/4; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/7/23 - Phantom: SAM LEFT; Type: QD000P40CD; Serial: TP:1718 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Ch136/Area Scan (101x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.72 W/kg Configuration/Ch136/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 18.426 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 3.51 W/kg SAR(1 g) = 0.794 W/kg; SAR(10 g) = 0.233 W/kg Maximum value of SAR (measured) = 1.95 W/kg Configurat…

Text truncated - open the document above for the full version.
