TE7T4UV32AC1300 High Gain Wireless MU-MIMO USB Adapter

TP-Link Technologies Co., Ltd.
AC1300 High Gain Wireless MU-MIMO USB Adapter - FCC ID TE7T4UV32 - TP-Link Technologies Co., Ltd.
Click to zoom

Application Details

Equipment Class
NII - Unlicensed National Information Infrastructure TX
Date of Grant
Mar 19, 2020
Application Purpose
Original Equipment
Date of Application
Mar 19, 2020
Equipment Note
AC1300 High Gain Wireless MU-MIMO USB Adapter
Frequency Range
5745.00000000 - 5825.00000000
Company
TP-Link Technologies Co., Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗
↗
↗
↗
↗

Test Report

↗
↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

REV3.2.0 1910012228 User Guide AC1300 High Gain Wireless MU-MIMO USB Adapter Archer T4U Contents About This Guide 1 Chapter 1 Get to Know About Your Adapter 2 1. 1. Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 1. 2. LED Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Chapter 2 Connect to a Computer 5 Chapter 3 Windows 7 3. 1. Install Driver and WPS Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3. 2. Join a Wireless Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 3. 3. Uninstall Driver and WPS Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Chapter 4 Mac OS X 12 4. 1. Install Driver and Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 4. 2. Join a Wireless Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 4. 2. 1. TP-Link Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 4. 2. 2. WPS (Wi-Fi Protected Setup). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 4. 3. Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 4. 4. Uninstall Driver and Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Chapter 5 Linux 23 Appendix: Troubleshooting 25 1 About This Guide This guide is a complement to Quick Installation Guide. The Quick Installation Guide instructs you on quick installation, and this guide provides the product overview and detailed instructions for each steps. When using this guide, please notice that features available of the adapter may vary by model and software version. All images, steps, and descriptions in this guide are only examples and may not reflect your actual experience. Conventions In this guide, the following conventions are used: Convention Description Teal Contents to be emphasized and texts on the web page are in teal, including the menus, items, buttons, etc. Note: Ignoring this type of note might result in a malfunction or damage to the device. Tips: Indicates important information that helps you make better use of your device. *Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) AP limitations, including rated performance, location, connection quality, and AP condition. *To ensure compatibility, you may need to update the adapter’s drivers after an OS update. You can find our latest drivers in the download center at https://www.tp-link.com/en/download- center More Info • The latest software and utility can be found at Download Center at https://www.tp-link.com/support. • The Quick Installation Guide (QIG) can be found where you find this guide or inside the package of the product. • Specifications can be found on the product page at https://www.tp-link.com. • A community is provided for you to discuss our products at https://community.tp-link.com. • Our Technical Support contact information can be found at the Contact Technical Support page at https://www.tp-link.com/support. Chapter 1 Get to Know About Your Adapter This chapter introduces what the adapter can do and shows its appearance. This chapter contains the following sections: • Product Overview • LED Status 3 Chapter 1 Get to Know about Your Adapter 1 1 Product Overview TP-Link Wireless USB Adapter connects your computer to a Wi-Fi network for lag-free video streaming, online gaming, secure internet surfing and internet calls. • Compatible with 802.11a/b/g/n products • Maximum speed of 867Mbps at 5GHz or 400Mbps at 2.4GHz network • Support beamforming technology which concentrates the Wi-Fi signal towards your router to create stronger overall connections • With super speed USB 3.0 port, the adapter experiences blazing speed data transfers up to 10x faster than USB 2.0 • Supports ad-hoc and infrastructure mode • Supports 64/128 bit WEP, WPA-PSK/WPA2-PSK • With WPS button, the adapter provides secured connection at the push of a button • Supports Windows, Mac and Linux 1 2 LED Status You can check the adapter’s working status by following the LED Explanation table. Status Indication Off The driver has not been installed. The adapter’s radio has been disabled. 4 Chapter 1 Get to Know about Your Adapter Status Indication Flashing SlowlyThe driver has been installed but no data is being transmitted or received. Flashing QuicklyData is being transmitted or received. Tips: If the LED is off, try these troubleshooting tips: 1. Check if the adapter is recognized and enabled or not. Refer to T2 for detailed instructions. 2. Remove and reinsert the adapter. 3. Reinstall the software, if necessary. Chapter 2 Connect to a Computer This chapter introduces how to connect the adapter to your computer. 6 Chapter 2 Connect to a Computer Before you start using your adapter, insert the adapter into a USB port on your computer directly. After connecting your adapter to the computer, please follow the instructions in the appropriate chapter for your operating system: Windows, Mac OS X, Linux. Chapter 3 Windows This chapter introduces how to install your adapter’s driver and WPS Tool, use your adapter to join a wireless network, and uninstall your adapter in a Windows system. The adapter is equipped with a Setup Wizard, which can guide you through the insta…

Text truncated - open the document above for the full version.

Cover Letter(s)

TP-Link Technologies Co., Ltd. Authority to Act as Agent Date: 2020-03-12 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: BTL Inc./Mandy Wang is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 2021-03-12 By: __________________________________Jing Huang________ (Signature 1 ) (Print name) Title: Regulatory Compliance Manager On behalf of: TP-Link Technologies Co., Ltd. (Company Name) Telephone: 75521534921 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Cover Letter(s)

Non-SDR (Software Defined Radio) Cover Letter Date: 2020-03-12 Refer to KDB 442812 D01 SDR apps Guide v02r03. The following six questions can be used for determining if a radio can elect to be, or must be an SDR. 1. Can the RF parameters of the device be altered through software? □Yes - go to 2. No, not an SDR 2. Can third parties not permitted by the Commission through specific filings modify, configure, or load different software, or make configuration settings to operate the device or host hardware radio frequency parameters (frequency range, modulation type, maximum output power or other radio parameters) in any other way than granted (or expected to be granted)? □Yes, must be an SDR. □No - go to 3. 3. Is the device capable of operating in any other way than granted, or will be, granted? □Yes, - go to 4. □No - go to 5. 4. Is this a Part 15 client Device as defined in Section 15.202 (as opposed to a master device)? □Yes, qualifies as a part 15 client devices - go to 5. □No, must be an SDR. 5. Does the manufacturer elect SDR? □Yes, elects to be an SDR. □No, Not an SDR Final conclusion: According to the above questions reply, we can confirm this AC1300 High Gain Wireless MU-MIMO USB Adapter (FCC ID: TE7T4UV32) must be a Non-SDR. Name: Huang Jing Position: Regulatory Compliance Manager TP-Link Technologies Co., Ltd.

Cover Letter(s)

TP-Link Technologies Co., Ltd. Request for Confidentiality Date: 2020-03-20 Subject: Confidentiality Request for: TE7T4UV32 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual TP-Link Technologies Co., Ltd.____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Regulatory Compliance Manager ______ Jing Huang__________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

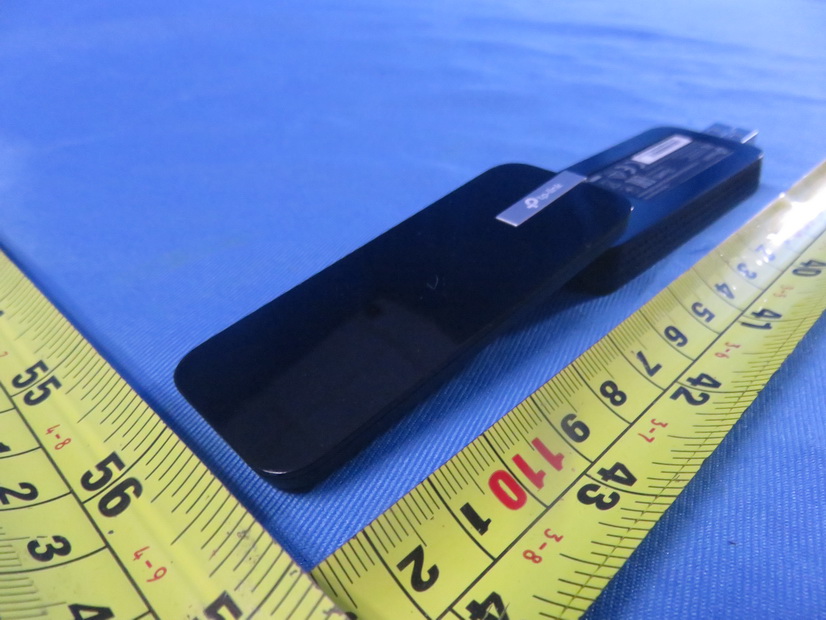

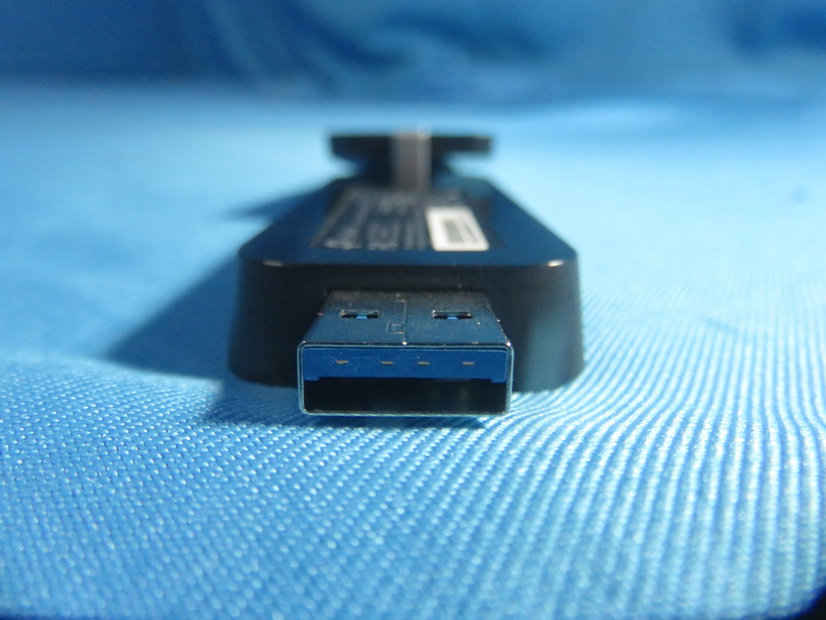

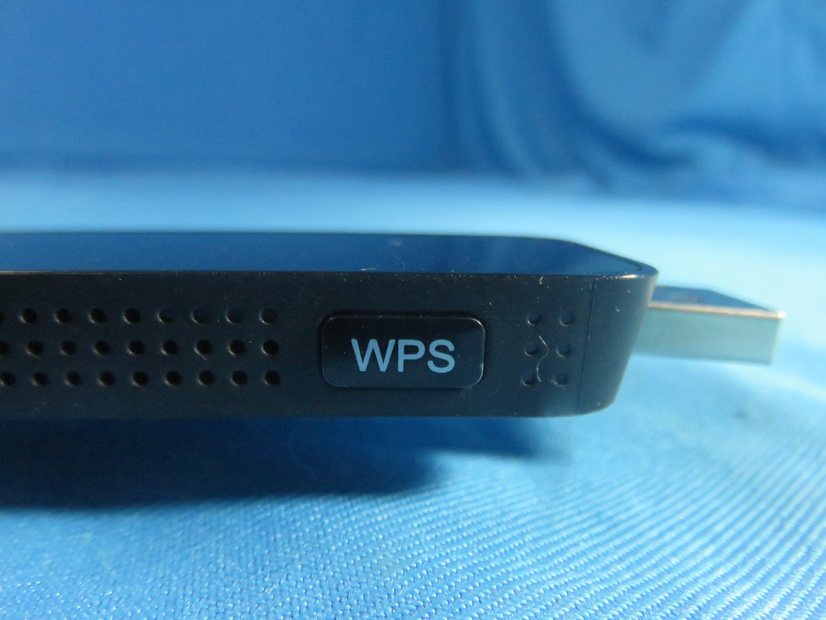

External Photos

Project No.: 1911C140 Page 2 of 7 Project No.: 1911C140 Page 3 of 7

ID Label/Location Info

C B A 12 C 345678 B E D D A 9 料号: 12345 E 6789 Archer T4U(US) 3.20_产品规格标贴 A1 80g艾利铜版纸+雾膜 绅士-93 Archer T4U(US) 3.20 胡燕燕 2019-12-10 更新认证 Pantone 877C 黑色 Pantone 877C Archer T4U 3.2 AC1300 High Gain Wireless MU-MIMO USB Adapter IC: 8853A-T4UV32 MADE IN CHINA S/N:XXXXXXXXXXXXX US/ 3.20 TP-Link Technologies Co., Ltd. No.5 Keyuan Road, Nanshan, Sh enzhen, 518057, PRC C B A 12 C 345678 B E D D A 9 料号: 12345 E 6789 Archer T4U(US) 3.20_产品规格标贴 A1 80g艾利铜版纸+雾膜 绅士-93 Archer T4U(US) 3.20 胡燕燕 2019-12-10 更新认证 Pantone 877C 黑色 Pantone 877C Model: Archer T4U AC1300 High Gain Wireless MU-MIMO USB Adapter FCC ID: TE7T4U V32 MADE IN CHINA S/N:XXXXXXXXXXXXX US/ 3.20 TP-Link Technologies Co., Ltd. No.5 Keyuan Road, Nanshan, Sh enzhen, 518057, PRC Label location

Internal Photos

Project No.: 1911C140 Page 2 of 7 Project No.: 1911C140 Page 3 of 7 Project No.: 1911C140 Page 4 of 7 Ant. 1 Ant. 2 Project No.: 1911C140 Page 5 of 7 Project No.: 1911C140 Page 6 of 7 Project No.: 1911C140 Page 7 of 7

RF Exposure Info

Report No.: BTL-FCC SAR-1-1911C140 Page 1 of 38 FCC SAR Test Report FCC ID: TE7T4UV32 Project No. : 1911C140 Equipment : AC1300 High Gain Wireless MU-MIMO USB Adapter Brand Name : tp-link Test Model : Archer T4U Series Model : N/A Date of Receipt : Nov. 21, 2019 Date of Test : Jan. 03, 2020 ~ Jan. 06, 2020 Issued Date : Mar. 19, 2020 Report Version : R03 Test Sample : Engineering Sample No.: DG2019112238 Standard(s) : Please refer to page 2. Applicant : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Manufacturer : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Zmj Zhang Approved by : Herbort Liu Add: No.3, Jinshagang 1 st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCC SAR-1-1911C140 Page 2 of 38 Standard(s) : ANSI Std C95.1:1992 Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.(IEEE Std C95.1-1991) IEEE Std 1528:2013 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques KDB447498 D01 General RF Exposure Guidance v06 KDB447498 D02 SAR Procedures for Dongle Xmtr v02 KDB248227 D01 802. 11 Wi-Fi SAR v02r02 KDB865664 D01 SAR measurement 100 MHz to 6 GHz v01r04 KDB865664 D02 SAR Reporting v01r02 KDB690783 D01 SAR Listings on Grants v01r03 Report No.: BTL-FCC SAR-1-1911C140 Page 3 of 38 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL’s reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority’s logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCC SAR-1-1911C140 Page 4 of 38 Table of Contents Page REPORT ISSUED HISTORY 6 1 . RF EMISSIONS MEASUREMENT 7 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 STATEMENT OF COMPLIANCE 8 2.3 LABORATORY ENVIRONMENT 8 2.4 MAIN TEST INSTRUMENTS 9 3 . SAR MEASUREMENTS SYSTEM CONFIGURATION 10 3.1 SAR MEASUREMENT SET-UP 10 3.1.1 TEST SETUP LAYOUT 10 3.2 DASY5 E-FIELD PROBE SYSTEM 11 3.2.1 EX3DV4 PROBE SPECIFICATION 11 3.2.2 E-FIELD PROBE CALIBRATION 12 3.2.3 OTHER TEST EQUIPMENT 13 3.2.4 SCANNING PROCEDURE 14 3.2.5 DATA STORAGE AND EVALUATION 15 3.2.6 SPATIAL PEAK SAR EVALUATION 16 3.2.7 DATA EVALUATION BY SEMCAD 17 4 . SYSTEM VERIFICATION PROCEDURE 19 4.1 TISSUE VERIFICATION 19 4.2 SYSTEM CHECK 20 4.3 SYSTEM CHECK PROCEDURE 20 5 . SAR MEASUREMENT VARIABILITY AND UNCERTAINTY 21 5.1 SAR MEASUREMENT VARIABILITY 21 6 . OPERATIONAL CONDITIONS DURING TEST 22 6.1 TEST POSITION 22 6.2 TEST CONFIGURATION 22 6.2.1 WIFI TEST CONFIGURATION 22 7 . TEST RESULT 25 7.1 CONDUCTED POWER RESULTS 25 7.1.1 CONDUCTED POWER MEASUREMENTS OF WIFI 25 7.2 SAR TEST RESULTS 31 Report No.: BTL-FCC SAR-1-1911C140 Page 5 of 38 Table of Contents Page 7.2.1 SAR MEASUREMENT RESULT 32 7.3 MULTIPLE TRANSMITTER EVALUATION 36 APPENDIX 37 1. TEST LAYOUT 37 Appendix A. SAR Plots of System Verification Appendix B. SAR Plots of SAR Measurement Appendix C. Calibration Certificate Appendix D. Photographs of the Test Set-Up Report No.: BTL-FCC SAR-1-1911C140 Page 6 of 38 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Jan. 16, 2020 R01 Updated the conducted power of 5G WiFi MIMO. Mar. 05, 2020 R02 Updated the data rate of 5G WiFi MIMO. Mar. 11, 2020 R03 Added the test software of RF signal in section 6.2.1. Mar. 19, 2020 Report No.: BTL-FCC SAR-1-1911C140 Page 7 of 38 1. RF EMISSIONS MEASUREMENT 1.1 TEST FACILITY The test facilities used to collect the test data in this report is SAR room at the location of No.3,Jinshagang 1st Road, ShiXia, Dalang Town,Dong Guan, China.523792 1.2 MEASUREMENT UNCERTAINTY Note: Per KDB865664 D01 SAR Measurement 100 MHz to 6 GHz, when the highest measured 1-g SAR within a frequency band is < 1.5 W/kg, the extensive SAR measurement uncerta…

Text truncated - open the document above for the full version.

RF Exposure Info

Report No.: BTL-FCC SAR-1-1911C140_Appendix A. Page 1 of 5 Test Laboratory: BTL.Inc Date: 2020-01-03 System Check_H2450_0103 DUT: Dipole 2450 MHz D2450V2;SN:919; Communication System: UID 0, CW (0); Frequency: 2450 MHz; Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2450 MHz; σ = 1.848 S/m; ε r = 38.218; ρ = 1000 kg/m 3 Ambient Temperature:23.3 °C; Liquid Temperature:22.4 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(7.58, 7.58, 7.58) @ 2450 MHz; Calibrated: 2019-09-09 • Sensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 • Electronics: DAE4 Sn1390; Calibrated: 2019-05-25 • Phantom: SAM Left v5.0; Type: Twin SAM; Serial: TP:1784 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (8x8x1): Interpolated grid: dx=12 mm, dy=12 mm Maximum value of SAR (interpolated) = 14.3 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 99.88 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 24.6 W/kg SAR(1 g) = 12.4 W/kg; SAR(10 g) = 6 W/kg Maximum value of SAR (measured) = 13.5 W/kg Report No.: BTL-FCC SAR-1-1911C140_Appendix A. Page 2 of 5 Test Laboratory: BTL.Inc Date: 2020-01-04 System Check_H5300_0104 DUT: Dipole D5GHzV2;SN;1160; Communication System: UID 0, CW (0); Frequency: 5300 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5300 MHz; σ = 4.948 S/m; ε r = 35.91; ρ = 1000 kg/m 3 Ambient Temperature:23.1 °C; Liquid Temperature:22.5 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(5.21, 5.21, 5.21) @ 5300 MHz; Calibrated: 2019-09-09 • Sensor-Surface: 2mm (Mechanical Surface Detection), z = 1.0, 23.0 • Electronics: DAE4 Sn1390; Calibrated: 2019-05-25 • Phantom: SAM Left v5.0; Type: Twin SAM; Serial: TP:1784 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (6x6x1): Interpolated grid: dx=10 mm, dy=10 mm Maximum value of SAR (interpolated) = 8.04 W/kg Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 39.22 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 37.3 W/kg SAR(1 g) = 7.65 W/kg; SAR(10 g) = 2.15 W/kg Maximum value of SAR (measured) = 7.80 W/kg Report No.: BTL-FCC SAR-1-1911C140_Appendix A. Page 3 of 5 Test Laboratory: BTL.Inc Date: 2020-01-05 System Check_H5500_0105 DUT: Dipole D5GHzV2;SN;1160; Communication System: UID 0, CW (0); Frequency: 5500 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5500 MHz; σ = 5.167 S/m; ε r = 35.559; ρ = 1000 kg/m 3 Ambient Temperature:23.2 °C; Liquid Temperature:22.3 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(4.95, 4.95, 4.95) @ 5500 MHz; Calibrated: 2019-09-09 • Sensor-Surface: 2mm (Mechanical Surface Detection), z = 1.0, 23.0 • Electronics: DAE4 Sn1390; Calibrated: 2019-05-25 • Phantom: SAM Left v5.0; Type: Twin SAM; Serial: TP:1784 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (6x6x1): Interpolated grid: dx=10 mm, dy=10 mm Maximum value of SAR (interpolated) = 8.66 W/kg Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 40.32 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 45.6 W/kg SAR(1 g) = 8.47 W/kg; SAR(10 g) = 2.41 W/kg Maximum value of SAR (measured) = 8.20 W/kg Report No.: BTL-FCC SAR-1-1911C140_Appendix A. Page 4 of 5 Test Laboratory: BTL.Inc Date: 2020-01-05 System Check_H5600_0105 DUT: Dipole D5GHzV2;SN;1160; Communication System: UID 0, CW (0); Frequency: 5600 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5600 MHz; σ = 5.277 S/m; ε r = 35.386; ρ = 1000 kg/m 3 Ambient Temperature:23.2 °C; Liquid Temperature:22.3 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(4.81, 4.81, 4.81) @ 5600 MHz; Calibrated: 2019-09-09 • Sensor-Surface: 2mm (Mechanical Surface Detection), z = 1.0, 23.0 • Electronics: DAE4 Sn1390; Calibrated: 2019-05-25 • Phantom: SAM Left v5.0; Type: Twin SAM; Serial: TP:1784 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (6x6x1): Interpolated grid: dx=10 mm, dy=10 mm Maximum value of SAR (interpolated) = 8.18 W/kg Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 38.77 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 45.0 W/kg SAR(1 g) = 8.23 W/kg; SAR(10 g) = 2.32 W/kg Maximum value of SAR (measured) = 7.75 W/kg Report No.: BTL-FCC SAR-1-1911C140_Appendix A. Page 5 of 5 Test Laboratory: BTL.Inc Date: 2020-01-06 System Check_H5800_0106 DUT: Dipole D5GHzV2;SN;1160; Communication System: UID 0, CW (0); Frequency: 5800 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5800 MHz; σ = 5.497 S/m; ε r = 35.045; ρ = 1000 kg/m 3 Ambient Temperature:23.3 °C; Liquid Temperature:22.2 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(4.75, 4.75, 4.75) @ 5800 MHz; Calibrated: 2019-09-09 • Sensor-Surface: 2mm (Mechanical Surface Detection), z = 1.0, 23.0 • Electronics: DAE4 Sn1390; Calibrated: 2019-05-25 • Phantom: SAM Left v5.0; Type: Twin SAM; Serial: TP:1784 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (6x6x1): Interpolated grid: dx=10 mm, dy=10 mm Maximum value of SAR (interpolated) = 7.48 W/kg Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 36.26 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 46.2 W/kg SAR(1 g) = 8.13 W/kg; SAR(10 g) = 2.27 W/kg Maximum value of SAR (measured) = 7.36 W/kg

RF Exposure Info

Report No.: BTL-FCC SAR-1-1911C140_Appendix B. Page 1 of 8 Test Laboratory: BTL.Inc Date: 2020-01-03 T17_802.11b_CH11_Tip Side-90°_0.5cm_Ant 1 DUT: USB Adapter; Communication System: UID 0, 802.11b (0); Frequency: 2462 MHz; Duty Cycle: 1:1 Medium parameters used: f = 2462 MHz; σ = 1.861 S/m; ε r = 38.172; ρ = 1000 kg/m 3 Ambient Temperature:23.3 °C; Liquid Temperature:22.4 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(7.58, 7.58, 7.58) @ 2462 MHz; Calibrated: 2019-09-09 • Sensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 • Electronics: DAE4 Sn1390; Calibrated: 2019-05-25 • Phantom: SAM Left v5.0; Type: Twin SAM; Serial: TP:1784 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (8x12x1): Interpolated grid: dx=12 mm, dy=12 mm Maximum value of SAR (interpolated) = 1.35 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.01 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 2.80 W/kg SAR(1 g) = 1.1 W/kg; SAR(10 g) = 0.430 W/kg Maximum value of SAR (measured) = 1.23 W/kg Report No.: BTL-FCC SAR-1-1911C140_Appendix B. Page 2 of 8 Test Laboratory: BTL.Inc Date: 2020-01-03 T34_802.11n20_CH1_Tip Side-90°_0.5cm_Ant 1+2 DUT: USB Adapter; Communication System: UID 0, 802.11n (0); Frequency: 2412 MHz; Duty Cycle: 1:1 Medium parameters used: f = 2412 MHz; σ = 1.808 S/m; ε r = 38.369; ρ = 1000 kg/m 3 Ambient Temperature:23.3 °C; Liquid Temperature:22.4 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(7.58, 7.58, 7.58) @ 2412 MHz; Calibrated: 2019-09-09 • Sensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 • Electronics: DAE4 Sn1390; Calibrated: 2019-05-25 • Phantom: SAM Left v5.0; Type: Twin SAM; Serial: TP:1784 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (8x12x1): Interpolated grid: dx=12 mm, dy=12 mm Maximum value of SAR (interpolated) = 1.17 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.48 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 2.58 W/kg SAR(1 g) = 1.14 W/kg; SAR(10 g) = 0.508 W/kg Maximum value of SAR (measured) = 1.32 W/kg Report No.: BTL-FCC SAR-1-1911C140_Appendix B. Page 3 of 8 Test Laboratory: BTL.Inc Date: 2020-01-04 T53_802.11a_CH52_Horizontal-Down-0°_0.5cm_Ant 1 DUT: USB Adapter; Communication System: UID 0, 802.11a (0); Frequency: 5260 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5260 MHz; σ = 4.901 S/m; ε r = 35.976; ρ = 1000 kg/m 3 Ambient Temperature:23.1 °C; Liquid Temperature:22.5 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(5.21, 5.21, 5.21) @ 5260 MHz; Calibrated: 2019-09-09 • Sensor-Surface: 2mm (Mechanical Surface Detection), z = 1.0, 23.0 • Electronics: DAE4 Sn1390; Calibrated: 2019-05-25 • Phantom: SAM Left v5.0; Type: Twin SAM; Serial: TP:1784 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (10x15x1): Interpolated grid: dx=10 mm, dy=10 mm Maximum value of SAR (interpolated) = 0.776 W/kg Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 0.4270 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 7.34 W/kg SAR(1 g) = 1.18 W/kg; SAR(10 g) = 0.333 W/kg Maximum value of SAR (measured) = 1.36 W/kg Report No.: BTL-FCC SAR-1-1911C140_Appendix B. Page 4 of 8 Test Laboratory: BTL.Inc Date: 2020-01-05 T64_802.11a_CH140_Tip Side-90°_0.5cm_Ant 1 DUT: USB Adapter; Communication System: UID 0, 802.11a (0); Frequency: 5700 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5700 MHz; σ = 5.386 S/m; ε r = 35.216; ρ = 1000 kg/m 3 Ambient Temperature:23.2 °C; Liquid Temperature:22.3 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(4.75, 4.75, 4.75) @ 5700 MHz; Calibrated: 2019-09-09 • Sensor-Surface: 2mm (Mechanical Surface Detection), z = 1.0, 23.0 • Electronics: DAE4 Sn1390; Calibrated: 2019-05-25 • Phantom: SAM Left v5.0; Type: Twin SAM; Serial: TP:1784 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (10x15x1): Interpolated grid: dx=10 mm, dy=10 mm Maximum value of SAR (interpolated) = 1.91 W/kg Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 9.448 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 6.13 W/kg SAR(1 g) = 1.17 W/kg; SAR(10 g) = 0.359 W/kg Maximum value of SAR (measured) = 2.25 W/kg Report No.: BTL-FCC SAR-1-1911C140_Appendix B. Page 5 of 8 Te st Laboratory: BTL.Inc Date: 2020-01-06 T89_802.11a_CH165_Horizontal-Down-0°_0.5cm_Ant 1 DUT: USB Adapter; Communication System: UID 0, 802.11a (0); Frequency: 5825 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5825 MHz; σ = 5.529 S/m; ε r = 35; ρ = 1000 kg/m 3 Ambient Temperature:23.3 °C; Liquid Temperature:22.2 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(4.75, 4.75, 4.75) @ 5825 MHz; Calibrated: 2019-09-09 • Sensor-Surface: 2mm (Mechanical Surface Detection), z = 1.0, 23.0 • Electronics: DAE4 Sn1390; Calibrated: 2019-05-25 • Phantom: SAM Left v5.0; Type: Twin SAM; Serial: TP:1784 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (10x15x1): Interpolated grid: dx=10 mm, dy=10 mm Maximum value of SAR (interpolated) = 2.70 W/kg Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 1.157 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 3.97 W/kg SAR(1 g) = 1.16 W/kg; SAR(10 g) = 0.380 W/kg Maximum value of SAR (measured) = 1.89 W/kg Report No.: BTL-FCC SAR-1-1911C140_Appendix B. Page 6 of 8 Test Laboratory: BTL.Inc Date: 2020-01-04 T92_802.11ac80_CH58_Horizontal-Down-0°_0.5cm_Ant 1+2 DUT: USB Adapter; Communication System: UID 0, 802.11ac (0); Frequency: 5290 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5290 MHz; σ = 4.937 S/m; ε r = 35.92; ρ = 1000 kg/m 3 Ambient Temperature:23.1 °C; Liquid Temperature:22.5 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(5.21, 5.21, 5.21) @ 5290 MHz; Calibrated: 2019-09-09 • Sensor-Surface: 2mm (Mechanical Surface Detection), z = 1.0, 23.0 • Electronics: DAE4 Sn1390; Calibrated: 2019-05-25 • Phantom: SAM Left v5.0; Type: Twin SAM; Serial: TP:1784 • DASY52 52.10.2(1495)…

Text truncated - open the document above for the full version.

RF Exposure Info

~® ~------fn Co eborationwi -TTLs e e a a ~ CAUBRATION LABORATORY Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel: +86-10-62304633-2512 Fax: +86-10-62304633-2504 E-mail: [email protected] Http://www.chinattl.cn Client : BTL Inc. Certifica…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Jing Huang(Regulatory Compliance Manager)
[email protected]75521534921Fax: 75526508930

Technical Contact

BTL Inc.Steven Lu
[email protected]8676983183000

No.3 Jinshagang 1st Rd, Shixia, Dalang · Dongguan City · China

Test Firm

BTL Inc.Sophia Huang
[email protected]+86-769-83183000

Technical Specifications

#Rule PartsFrequency RangePower Output
415E5.75 GHz - 5.83 GHz55.70 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted. This device must not be collocated or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing and/or in accordance with FCC multi-transmitter product guidelines. End users must be provided with operating instructions for satisfying RF exposure compliance requirements. This device is restricted for indoor use only. SAR compliance has been demonstrated as described in this filing. The highest reported body SAR value is 1.19W/kg. This device supports 20, 40 and 80 MHz bandwidth modes and contains 2.4 GHz transmitter.
