TE7T6EV2AC1300 Wireless Dual Band PCI Express Adapter

Non-SDR (Software Defined Radio) Cover Letter Date: 2020-05-11 Refer to KDB 442812 D01 SDR apps Guide v02r03. The following six questions can be used for determining if a radio can elect to be, or must be an SDR. 1. Can the RF parameters of the device be altered through software? □Yes - go to 2. No, not an SDR 2. Can third parties not permitted by the Commission through specific filings modify, configure, or load different software, or make configuration settings to operate the device or host hardware radio frequency parameters (frequency range, modulation type, maximum output power or other radio parameters) in any other way than granted (or expected to be granted)? □Yes, must be an SDR. □No - go to 3. 3. Is the device capable of operating in any other way than granted, or will be, granted? □Yes, - go to 4. □No - go to 5. 4. Is this a Part 15 client Device as defined in Section 15.202 (as opposed to a master device)? □Yes, qualifies as a part 15 client devices - go to 5. □No, must be an SDR. 5. Does the manufacturer elect SDR? □Yes, elects to be an SDR. □No, Not an SDR Final conclusion: According to the above questions reply, we can confirm this AC1300 Wireless Dual Band PCI Express Adapter (FCC ID: TE7T6EV2) must be a Non-SDR. Name: Huang Jing Position: Regulatory Compliance Manager TP-Link Technologies Co., Ltd.

< TP-Link Technologies Co., Ltd.> <Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen, 518057 China> 1 Operation Description SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21048 Date: <2020-05-11> Attn: Office of Engineering and Technology Subject: Attestation Letter regarding UNII devices FCC ID: TE7T6EV2 IC ID: 8853A-T6EV2 Software security questions and answers per KDB 594280 D02: SOFTWARE SECURITY DESCRIPTION General Description 1. Describe how any software/firmware updates for elements than can affect the device’s RF parameters will be obtained, downloaded, validated and installed. For software that is accessed through manufacturer’s website or device’s management system, describe the different levels of security as appropriate. Software/firmware will be obtained by the factory, downloaded from the ODM website, and installed by the end user. Software is accessed through Web UI when computer is connected. 2. Describe the RF parameters that are modified by any software/firmware without any hardware changes. Are these parameters in some way limited such that any other software/firmware changes will not allow the device to exceed the authorized RF characteristics? The RF parameters cannot be modified by software. All these parameters will not exceed the authorized parameters. The firmware has been complied as binary file. It couldn’t change the setting RF parameter through this binary file. It is read-only without change. 3. Describe in detail the authentication protocols that are in place to ensure that the source of the RF-related software/firmware is valid. Describe in detail how the RF-related software is protected against modification. No any authentication protocol is used. The RF Parameters is put in read-only partition of EUT’s flash and are only installed in the factory. RF parameters including frequency of operation, power setting, modulation type, antenna types or country code setting will be locked in this partition. < TP-Link Technologies Co., Ltd.> <Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen, 518057 China> 2 4. Describe in detail any encryption methods used to support the use of legitimate RF-related software/firmware. No encryption methods used. 5. For a device that can be configured as a master and client (with active or passive scanning), explain how the device ensures compliance for each mode? In particular if the device acts as master in some band of operation and client in another; how is compliance ensured in each band of operation? The device ensures the compliance by checking the configured parameter and operation values according to the regulatory domain and country code in each band. Third-Party Access Control 1. Explain if any third parties have the capability to operate a U.S.-sold device on any other regulatory domain, frequencies, or in any manner that may allow the device to operate in violation of the device’s authorization if activated in the U.S. No any third parties have the capability to operate a US sold device on any other regulatory domain, frequencies, or in any manner that may allow the device to operate in violation of the device’s authorization if activated in the U.S. 2. Describe, if the device permits third-party software or firmware installation, what mechanisms are provided by the manufacturer to permit integration of such functions while ensuring that the RF parameters of the device cannot be operated outside its authorization for operation in the U.S. In the description include what controls and/or agreements are in place with providers of third-party functionality to ensure the devices’ underlying RF parameters are unchanged and how the manufacturer verifies the functionality. The RF Parameters is put in read-only partition of EUT’s flash and are only installed in the factory. RF parameters including frequency of operation, power setting, modulation type, antenna types or country code setting will be locked in this partition. 3. For Certified Transmitter modular devices, describe how the module grantee ensures that host manufacturers fully comply with these software security requirements for U-NII devices. If the module is controlled through driver software loaded in the host, describe how the drivers are controlled and managed such that the modular transmitter RF parameters are not modified outside the grant of authorization. This is not a module device. SOFTWARE CONFIGURATION DESCRIPTION GUIDE For devices which have “User Interfaces” (UI) to configure the device in a manner that may impact the operational RF parameters, the following questions shall be answered by the applicant and the information included in the operational description. The description must < TP-Link Technologies Co., Ltd.> <Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen, 518057 China> 3 address if the device supports any of the country code configurations or peer-peer mode communications discussed in KDB 594280 Publication D01. SOFTWARE CONFIGURATION DESCRIPTION USER CONFIGURATION GUIDE 1. Describe the user configurations permitted through the UI. If different levels of access are permitted for professional installers, system integrators or end-users, describe the differences. Authorized channel, bandwidth, and modulation can be configured through the UI. There are no different levels of access. a. What parameters are viewable and configurable by different parties? Authorized channel, bandwidth, and modulation. b. What parameters are accessible or modifiable by the professional installer or system integrators? This is not professional install device. (1) Are the parameters in some way limited, so that the installers will not enter parameters that exceed those authorized? Th…

Text truncated - open the document above for the full version.

TP-Link Technologies Co., Ltd. Authority to Act as Agent Date: 2020-05-11 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: BTL Inc./Rose Liu is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 2021-05-11 By: __________________________ ________Jing Huang________ (Signature 1 ) (Print name) Tit le: Regulatory Compliance Manager On behalf of: TP-Link Technologies Co., Ltd. (Company Name) Telephone: 75521534921 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Technologies Co., Ltd. Request for Confidentiality Date: 2020-05-11 Subject: Confidentiality Request for: TE7T6EV2 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual TP-Link Technologies Co., Ltd.____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Per ma nent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Regulatory Compliance Manager __________ Jing Huang__________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

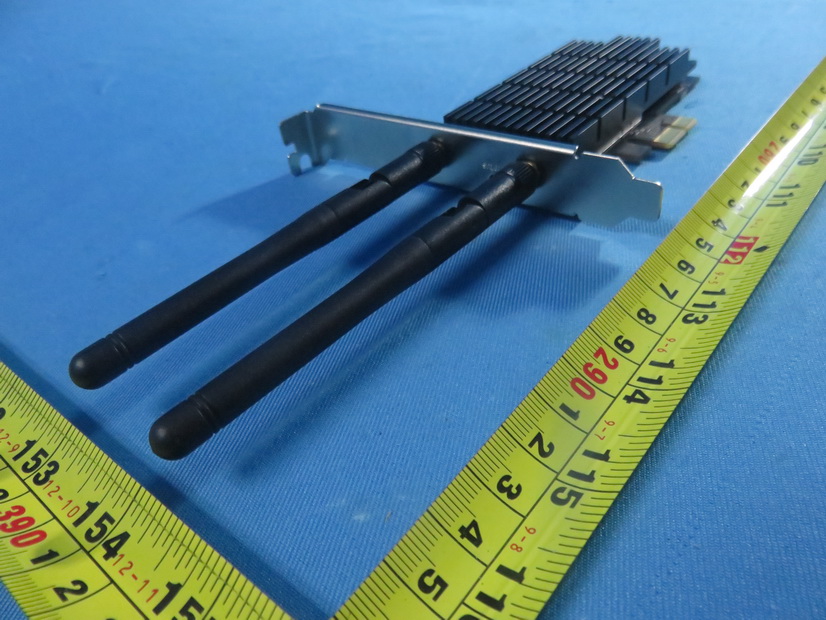

Project No.: 2003C118 Page 2 of 8 2.4G&5G ANT 1 2.4G&5G ANT 2

C B A 12 C 345678 B E D D A 9 料号： 12345 与上一版的区别 E 6789 颜 色 名 称 版 本 材 质 模 具 机型版本号 logo 底色 文字 其它 结构工程师 硬件工程师 产品工程师 平面负责人 记 录 完成日期 设 计 Archer T6E(US)2.0_ 产品规格标贴 A2 80g 艾利铜版纸 + 光膜 Archer T6E(US)2.0 董卓越 2020 － 05 － 11 FCC认证 黑色 pantone 877C 文字转曲（供应商来料效果） 3mm 3mm 3mm 文字方向 文字方向 平装供货 边距： 3mm 跳距： 3mm 37*14±0.2mm，0.5R Model: Archer T6E AC1300 Wireless Dual Band PCI Express Adapter MADE IN CHINA FCC ID: TE7T6EV2 TP-Link Technologies Co., Ltd. No.5 Keyuan Road, Nanshan, Shenzhen, 518057, PRC Label Location

Project No.: 2003C118 Page 3 of 8 Project No.: 2003C118 Page 4 of 8 Project No.: 2003C118 Page 5 of 8 Project No.: 2003C118 Page 6 of 8 Project No.: 2003C118 Page 7 of 8 Project No.: 2003C118 Page 8 of 8

Report No.: BTL-FCCP-4-2003C118 Page 1 of 4 FCC RF EXPOSURE REPORT FCC ID: TE7T6EV2 Project No. : 2003C118 Equipment : AC1300 Wireless Dual Band PCI Express Adapter Brand Name : tp-link Test Model : Archer T6E Series Model : N/A Applicant : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Manufacturer : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Date of Receipt : Mar. 20, 2020 Date of Test : Mar. 23, 2020 ~ Apr. 25, 2020 Issued Date : May 12, 2020 Report Version : R00 Test Sample : Engineering Sample No.: DG20200316141 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Welly Zhou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-4-2003C118 Page 2 of 4 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. May 12, 2020 Report No.: BTL-FCCP-4-2003C118 Page 3 of 4 1. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand P/N Antenna Type Connector Gain (dBi) 1 AN2450-5506RS Dipole SMA Male Reverse 2.61 2 AN2450-5506RS Dipole SMA Male Reverse 2.61 Note: This EUT supports CDD, and all antennas have the same gain, so Directional gain = G ANT +Array Gain, where Array Gain is as follows: 1) For power spectral density measurements, N ANT = 2, N SS = 1. So Directional gain = G ANT + Array Gain =10 log (N ANT / N SS ) dB =2.61+10log(2/1)dBi=5.62. 2) For power measurements, Array Gain = 0 dB (N ANT ≤ 4), so the Directional gain=2.61. Ant. Brand P/N Antenna Type Connector Gain (dBi) 1 AN2450-5506RS Dipole SMA Male Reverse 2.68 2 AN2450-5506RS Dipole SMA Male Reverse 2.68 Note: This EUT supports CDD, and all antennas have the same gain, so Directional gain = G ANT +Array Gain, where Array Gain is as follows: 1) For power spectral density measurements, N ANT = 2, N SS = 1. So Directional gain = G ANT + Array Gain =10 log (N ANT / N SS ) dB =2.68+10log(2/1)dBi=5.69. 2) For power measurements, Array Gain = 0 dB (N ANT ≤ 4), so the Directional gain=2.68. Report No.: BTL-FCCP-4-2003C118 Page 4 of 4 2. TEST RESULTS For 2.4GHz: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2.61 1.8239 23.20 208.9296 0.07585 1 Complies For 5GHz UNII-1: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2.68 1.8535 19.19 82.9851 0.03062 1 Complies For 5GHz UNII-2A: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2.68 1.8535 23.59 228.5599 0.08432 1 Complies For 5GHz UNII-2C: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2.68 1.8535 23.79 239.3316 0.08830 1 Complies For 5GHz UNII-3: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2.68 1.8535 23.77 238.2319 0.08789 1 Complies Note: The calculated distance is 20 cm. End of Test Report

Report No.: BTL-FCCP-3-2003C118 Page 1 of 21 FCC DFS Test Report FCC ID: TE7T6EV2 This report concerns: Original Grant Project No. : 2003C118 Equipment : AC1300 Wireless Dual Band PCI Express Adapter Brand Name : tp-link Test Model : Archer T6E Series Model : N/A Applicant : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Manufacturer : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Date of Receipt : Mar. 20, 2020 Date of Test : Mar. 23, 2020 ~ Apr. 25, 2020 Issued Date : May 12, 2020 Report Version : R00 Test Sample : Engineering Sample No.: DG2019112233 Standard(s) : FCC Part 15, Subpart E (Section 15.407) FCC KDB 789033 D02 General U-NI I Test Procedures New Rules v02r01 FCC KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 FCC KDB 905462 D03 UNII Clients Without Radar Detection New Rules v01r02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Welly Zhou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-2003C118 Page 2 of 21 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-3-2003C118 Page 3 of 21 Table of Contents page REPORT ISSUED HISTORY 4 1 . EUT INFORMATION 5 1.1 EUT SPECIFICATION TABLE 5 1.2 CONDUCTED OUTPUT POWER AND EIRP 7 2 . U-NII DFS RULE REQUIREMENTS 8 2.1 WORKING MODES AND REQUIRED TEST ITEMS 8 2.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS 9 3 . TEST INSTRUMENTS 11 4 . DYNAMIC FREQUENCY SELECTION (DFS) TEST 12 4.1 DFS MEASUREMENT SYSTEM 12 4.2 CALIBRATION OF DFS DETECTION THRESHOLD LEVEL 15 4.3 DEVIATION FROM TEST STANDARD 15 5 . TEST RESULTS 16 5.1 SUMMARY OF TEST RESULT 16 5.2 TEST MODE: DEVICE OPERATING IN MASTER MODE 16 5.3 DFS DETECTION THRESHOLD 17 5.4 CHANNEL CLOSING TRANSMISSION AND CHANNEL MOVE TIME WLAN TRAFFIC 18 5.5 NON-OCCUPANCY PERIOD 20 6 . EUT TEST PHOTO 21 Report No.: BTL-FCCP-3-2003C118 Page 4 of 21 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. May 12, 2020 Report No.: BTL-FCCP-3-2003C118 Page 5 of 21 1. EUT INFORMATION 1.1 EUT SPECIFICATION TABLE Table 1: Specification of EUT Equipment AC1300 Wireless Dual Band PCI Express Adapter Brand Name tp-link Test Model Archer T6E Series Model N/A Model Difference(s) N/A Power Source Supplied from PC PCI Slot. Power Rating DC 12V&3.3V Operational Mode Client Operation Frequency Bands UNII-2A: 5250 MHz ~ 5350 MHz UNII-2C: 5470 MHz ~ 5725 MHz Modulation Type OFDM Note: This device was functioned as a Master Client device without radar detection Client device with radar detection Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the user's manual. 2. Channel List: IEEE 802.11a IEEE 802.11n (HT20) IEEE 802.11ac (VHT20) IEEE 802.11n (HT40) IEEE 802.11ac (VHT40) IEEE 802.11ac (VHT80) UNII-2A UNII-2A UNII-2A Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 52 5260 54 5270 58 5290 56 5280 62 5310 60 5300 64 5320 IEEE 802.11a IEEE 802.11n (HT20) IEEE 802.11ac (VHT20) IEEE 802.11n (HT40) IEEE 802.11ac (VHT40) IEEE 802.11ac (VHT80) UNII-2C UNII-2C UNII-2C Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 100 5500 102 5510 106 5530 104 5520 110 5550 122 5610 108 5540 118 5590 112 5560 126 5630 116 5580 134 5670 120 5600 124 5620 128 5640 132 5660 136 5680 140 5700 Report No.: BTL-FCCP-3-2003C118 Page 6 of 21 3. Antenna Specification: Ant. Brand P/N Antenna Type Connector Gain (dBi) 1 AN2450-5506RS Dipole SMA Male Reverse 2.68 2 AN2450-5506RS Dipole SMA Male Reverse 2.68 Note: This EUT supports CDD, and all antennas have the same gain, so Directional gain = G ANT +Array Gain, where Array Gain is as follows: 1) For power spectral density measurements, N ANT = 2, N SS = 1. So Directional gain = …

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2003C118 Page 1 of 260 FCC Radio Test Report FCC ID: TE7T6EV2 This report concerns: Original Grant Project No. : 2003C118 Equipment : AC1300 Wireless Dual Band PCI Express Adapter Brand Name : tp-link Test Model : Archer T6E Series Model : N/A Applicant : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Manufacturer : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Date of Receipt : Mar. 20, 2020 Date of Test : Mar. 23, 2020 ~ Apr. 25, 2020 Issued Date : May 12, 2020 Report Version : R00 Test Sample : Engineering Sample No.: DG20200316141 Standard(s) : FCC Part15, Subpart E(15.407) ANSI C63.10-2013 FCC KDB 789033 D02 General UNII Test Procedures New Rules v02r01 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Welly Zhou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2003C118 Page 2 of 260 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/I EC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-2003C118 Page 3 of 260 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 8 2 . GENERAL INFORMATION 9 2.1 GENERAL DESCRIPTION OF EUT 9 2.2 TEST MODES 12 2.3 PARAMETERS OF TEST SOFTWARE 15 2.4 DUTY CYCLE 16 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 17 2.6 SUPPORT UNITS 17 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 18 3.1 LIMIT 18 3.2 TEST PROCEDURE 18 3.3 DEVIATION FROM TEST STANDARD 18 3.4 TEST SETUP 19 3.5 EUT OPERATION CONDITIONS 19 3.6 TEST RESULTS 19 4 . RADIATED EMISSIONS TEST 20 4.1 LIMIT 20 4.2 TEST PROCEDURE 21 4.3 DEVIATION FROM TEST STANDARD 21 4.4 TEST SETUP 22 4.5 EUT OPERATION CONDITIONS 23 4.6 TEST RESULTS - 9 KHZ to 30 MHZ 23 4.7 TEST RESULTS - 30 MHz TO 1000 MHz 23 4.8 TEST RESULTS - ABOVE 1000 MHz 23 5 . BANDWIDTH TEST 24 5.1 LIMIT 24 5.2 TEST PROCEDURE 24 5.3 DEVIATION FROM TEST STANDARD 25 Report No.: BTL-FCCP-2-2003C118 Page 4 of 260 Table of Contents Page 5.4 TEST SETUP 25 5.5 EUT OPERATION CONDITIONS 25 5.6 TEST RESULTS 25 6 . MAXIMUM OUTPUT POWER TEST 26 6.1 LIMIT 26 6.2 TEST PROCEDURE 26 6.3 DEVIATION FROM STANDARD 26 6.4 TEST SETUP 26 6.5 EUT OPERATION CONDITIONS 26 6.6 TEST RESULTS 26 7 . POWER SPECTRAL DENSITY TEST 27 7.1 LIMIT 27 7.2 TEST PROCEDURE 27 7.3 DEVIATION FROM STANDARD 28 7.4 TEST SETUP 28 7.5 EUT OPERATION CONDITIONS 28 7.6 TEST RESULTS 28 8 . FREQUENCY STABILITY MEASUREMENT 29 8.1 LIMIT 29 8.2 TEST PROCEDURE 29 8.3 DEVIATION FROM STANDARD 29 8.4 TEST SETUP 29 8.5 EUT OPERATION CONDITIONS 29 8.6 TEST RESULTS 29 9 . MEASUREMENT INSTRUMENTS LIST 30 10 . EUT TEST PHOTOS 32 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 36 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 39 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1 GHZ 44 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 47 APPENDIX E - BANDWIDTH 200 APPENDIX F - MAXIMUM OUTPUT POWER 213 Report No.: BTL-FCCP-2-2003C118 Page 5 of 260 Table of Contents Page APPENDIX G - POWER SPECTRAL DENSITY 230 APPENDIX H - FREQUENCY STABILITY 256 Report No.: BTL-FCCP-2-2003C118 Page 6 of 260 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. May 12, 2020 Report No.: BTL-FCCP-2-2003C118 Page 7 of 260 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart E(15.407) Standard(s) Section Test Item Test Result Judgment Remark 15.207 15.407(b) AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.407(b) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.407(a) 15.407(e) Spectrum Bandwidth APPENDIX E PASS ------ 15.407(a) Maximum Output Power APPENDIX F PASS ------ 15.407(a) Po…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2003C118 Page 201 of 260 Test Mode UNII-1_TX A Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 36 5180 20.46 17.00 40 5200 20.55 17.00 48 5240 20.50 17.00 CH36 CH40 CH48 Test Mode UNII-2A_TX A Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 52 5260 20.60 17.00 60 5300 20.59 17.10 64 5320 20.45 17.10 Note: The maximum conducted output power over the frequency bands of operation shall not exceed the lesser of 250 mW or 11 dBm + 10log B, where B is the 26dB Bandwidth in megahertz. CH52 CH60 CH64 Report No.: BTL-FCCP-2-2003C118 Page 202 of 260 Test Mode UNII-2C_TX A Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 100 5500 20.51 17.00 116 5580 20.60 17.00 140 5700 20.50 17.10 Note: The maximum conducted output power over the frequency bands of operation shall not exceed the lesser of 250 mW or 11 dBm + 10log B, where B is the 26dB Bandwidth in megahertz. CH100 CH116 CH140 Report No.: BTL-FCCP-2-2003C118 Page 203 of 260 Test Mode UNII-3_TX A Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 149 5745 16.45 17.10 500 Complies 157 5785 16.65 17.00 500 Complies 165 5825 16.49 17.10 500 Complies CH149 CH157 CH165 6 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-2003C118 Page 204 of 260 Test Mode UNII-1_TX AC (VHT20) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 36 5180 20.95 18.00 40 5200 20.85 18.00 48 5240 20.95 18.00 CH36 CH40 CH48 Test Mode UNII-1_TX AC (VHT40) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 38 5190 41.70 36.80 46 5230 41.60 36.80 CH38 CH46 Repo…
