TE7TD851WT150Mbps Wireless N ADSL2+ Modem Router

TD851W 150Mbps Wireless N ADSL2+ Modem Router 1910010501 Rev: 2.0.0 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2011 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France. TP-LINK TECHNOLOGIES CO., LTD TP-LINK TECHNOLOGIES CO., LTD. South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P. R. China DECLARATION OF CONFORMITY For the following equipment: Product Description: 150Mbps Wireless N ADSL2+ Modem Router Model No.: TD851W Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives: Directives 1999/5/EC The above product is in conformity with the following standards or other normative documents ETSI EN 300 328 V1.7.1: 2006 ETSI EN 301 489-1 V1.8.1:2008& ETSI EN 301 489-17 V2.1.1:2009 EN60950-1:2006 Recommendation 1999/519/EC EN62311:2008 Directives 2004/108/EC The above product is in conformity with the following standards or other normative documents EN 55022:2006 +A1:2007 EN 55024:1998+A1:2001+A2:2003 EN 61000-3-2:2006 EN 61000-3-3:1995+A1:2001+A2:2005 Directives 2006/95/EC The above product is in conformity with the following standards or other normative documents EN60950-1:2006 Directive（ErP） 2009/125/EC Audio/Video, information and communication technology equipment- Environmentally conscious design EN62075:2008 Person is responsible for marking this declaration: Yang Hongliang Product Manager of International Business CONTENTS Package Contents.................................................................................................... 1 Chapter 1 Introduction......................................................................................... 2 1.1 Product Overview..................................................................................2 1.2 Main Features.......................................................................................2 1.3 Conventions..........................................................................................3 Chapter 2 Hardware Installation.......................................................................... 4 2.1 The Front Panel.....................................................................................4 2.2 The Back Panel.....................................................................................5 2.3 Installation Environment...........................................................…

Text truncated - open the document above for the full version.

Date:Oct.24,2011 Federal Communications Commission Authorization and Evaluation Division FCC ID: TE7TD851WT Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

Attestation for FCC Declaration of Conformity FCC ID:TE7TD851WT Date:Oct 28, 2011 Please be notified that we, the undersigned, TP-LINK TECHNOLOGIES CO., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM-F1000914, with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

AGENCY AUTHORIZATION LETTER FCC ID：TE7TD851WT Date:Oct.24,2011 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd （No. 6, Ke Feng Rd., 52 Block， Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China） to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

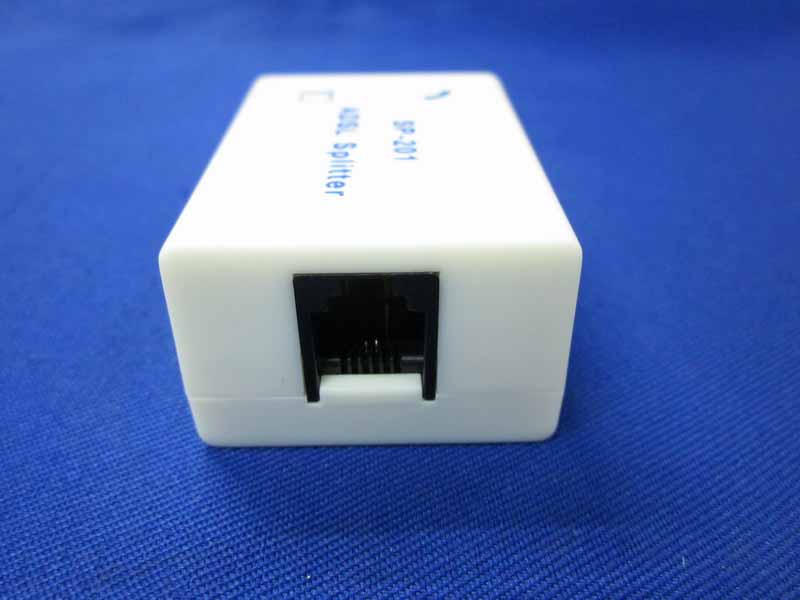

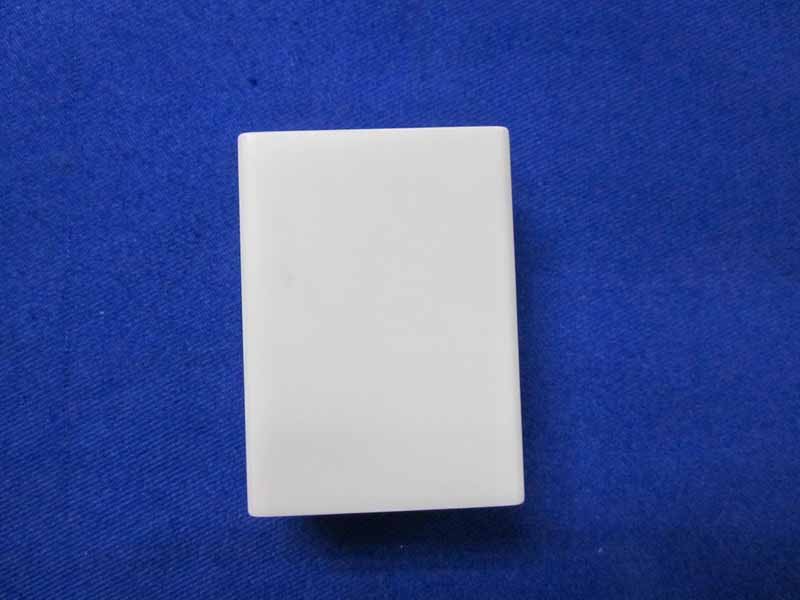

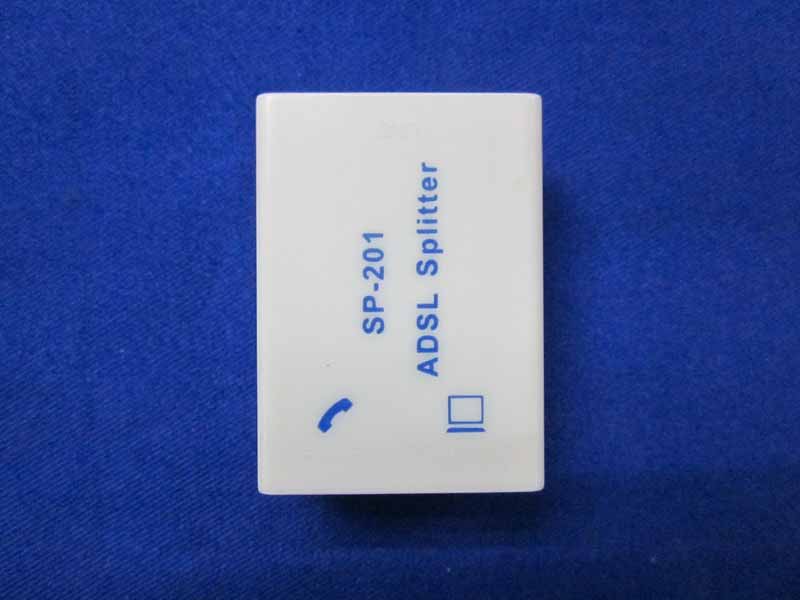

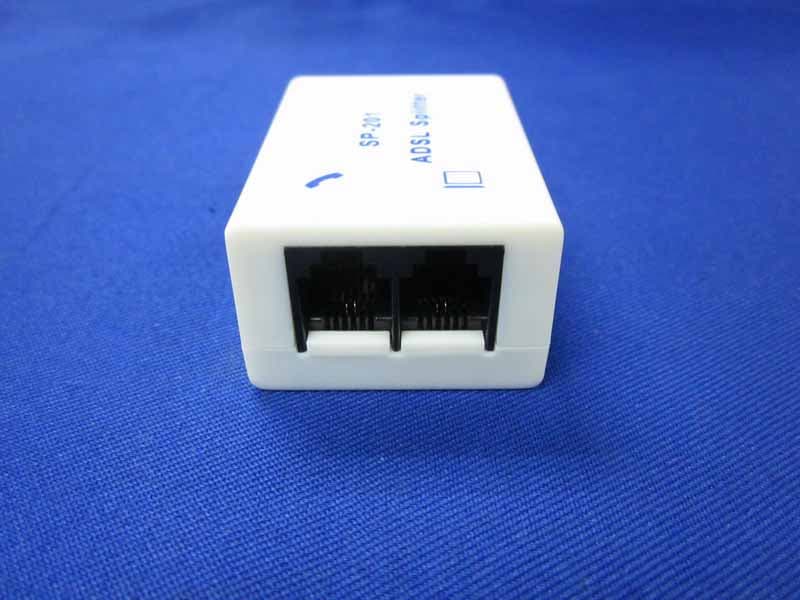

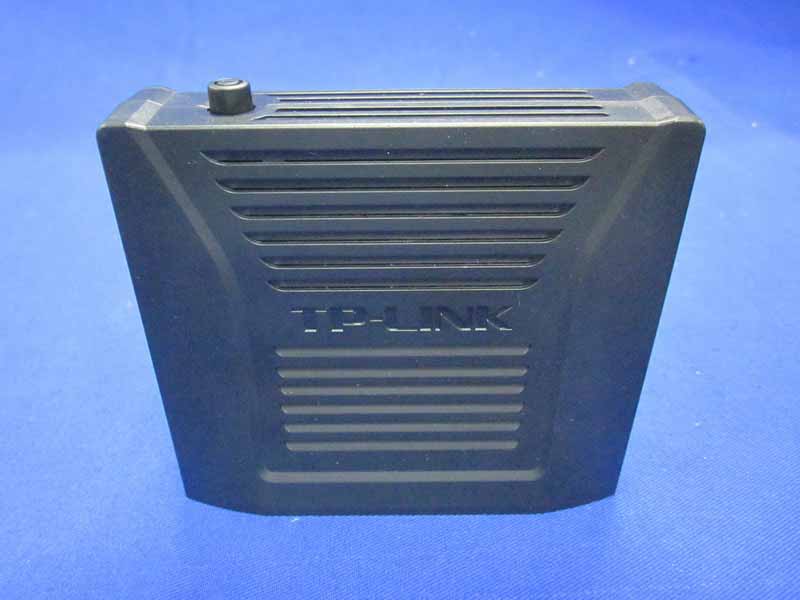

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TD851WT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11232 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TD851WT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11232 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TD851WT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11232 14-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TD851WT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11232 14-4 Figure 7 General Appearance of the EUT Figure 8 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TD851WT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11232 14-5 Figure 9 General Appearance of the EUT Figure 10 General Appearance of the EUT

1 2 E D C B A 1 2 3 4 5 6 7 8 9 E D 3 4 5 6 7 8 B A 9 料号： 设 计 审 核 颜 色 名 称 版 本 材 质 模 具 机型版本号 完成日期 logo 底色 文字 其它 记 录 与上一版的区别 TD851W A4 80g艾利铜版纸+雾膜 TD851W 2.0.0 2011-10-24 白色 黑色 白色 陈巍 FCC ID:TE7TD851WT 150Mbps Wireless N ADSL2+ Modem Router Model No.: Power: Default Settings: MAC S/N PIN 1588 Label

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TD851WT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11232 14-6 Figure 11 Inside of the EUT Figure 12 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TD851WT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11232 14-7 Figure 13 Component side of the PCB Figure 14 Component side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TD851WT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11232 14-8 Figure 15 Power Adapter Figure 16 Power Adapter

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TD851WT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11232 11-2 11.2.Estimation Result EUT: 150Mbps Wireless N ADSL2+ Modem Router M/N: TD851W Test date: 2011-10-05 Pressure: 100.6 kpa Humidity: 51% Tested by: Leo-Li Test site: RF Site Temperature：25°C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain: 2 dBi Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE 11b CH1 2412 10.31 10.74 2 1.58 0.0034 CH6 2437 15.33 34.12 2 1.58 0.0108 CH11 2462 10.15 10.35 2 1.58 0.0033 11g CH1 2412 20.50 112.20 2 1.58 0.0354 CH6 2437 20.94 124.17 2 1.58 0.0392 CH11 2462 21.02 126.47 2 1.58 0.0399 11n HT20 CH1 2412 20.09 102.09 2 1.58 0.0322 CH6 2437 20.53 112.98 2 1.58 0.0356 CH11 2462 20.58 114.29 2 1.58 0.0361 11n HT40 CH1 2422 20.45 110.92 2 1.58 0.0350 CH4 2437 19.99 99.77 2 1.58 0.0315 CH7 2452 19.59 90.99 2 1.58 0.0287 Note: The estimation distance is 20cm

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TD851WT Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11232 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of TP-LINK TECHNOLOGIES CO., LTD. 150Mbps Wireless N ADSL2+ Modem Router Model No.: TD851W FCC ID: TE7TD851WT Prepared for : TP-LINK TECHNOLOGIES CO., LTD. Building 24 (floors 1,3,4,5) and 28 (floors1-4) Central Science and Technology Park,Shennan Rd, Nanshan, Shenzhen,China Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F11232 Date of Test ： Aug.21~Oct.05, 2011 Date of Report ： Oct.18, 2011 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TD851WT Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11232 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS .......................................................... 1-1 1.1. Description of Standards and Results .................................................................................. 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Test Information ................................................................................................................... 2-2 2.3. Tested Supporting System Details ....................................................................................... 2-3 2.4. Block diagram of connection between the EUT and simulators .......................................... 2-3 2.5. Test Facility ......................................................................................................................... 2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-4 3. POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 3.1. Test Equipments ................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits ...................................................................... 3-1 3.4. Configuration of EUT on Test ............................................................................................. 3-2 3.5. Operating Condition of EUT ................................................................................................ 3-2 3.6. Test Procedure ...................................................................................................................... 3-2 3.7. Power Line Conducted Emission Test Results .................................................................... 3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-1 4.3. Radiated Emission Limit ...................................................................................................... 4-2 4.4. EUT Configuration on Test .................................................................................................. 4-3 4.5. Operating Condition of EUT ................................................................................................ 4-3 4.6. Test Procedure ...................................................................................................................... 4-3 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. CONDUCTED SPURIOUS EMISSIONS...................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit ..................................................................................................................................... 5-1 5.3. Test Procedure ...................................................................................................................... 5-1 5.4. Test result ............................................................................................................................. 5-1 6. BAND EDGE COMPLIANCE TEST ............................................................................ 6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit ..................................................................................................................................... 6-1 6.3. Test Produce ......................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-1 7. 6dB Bandwidth Test ......................................................................................................... 7-1 7.1. Test Equipment .................................................................................................................... 7-1 7.2. Limit ..................................................................................................................................... 7-1 7.3. Test Procedure ........................................................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TD851WT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11232 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TD851WT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11232 13-2 13.2.Photos of Radiated Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TD851WT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11232 13-3 (Above 1000MHz)
