TE7TDW8151N150Mbps Wireless N ADSL2+ Modem Router

TD-W8151N 150Mbps Wireless N ADSL2+ Modem Router Rev: 1.0.0 1910010402 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2010 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com FCC STATEMENT Model: TD-W8151N Product Name: 150Mbps Wireless N ADSL2+ Modem Router Corporate Name: TP-LINK USA CORPORATION Corporate Address: 117 n sunset Avenue, City of Industry, CA 91744 Corporate Telephone: 626 333 0234 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provi de reasonable pro te cti on against harmful interference in a residential installation. This equipment generates, uses and can radiate radi o frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to ra dio communica tions. However, th ere is no gu arantee that interference will not occur in a particular installation. If this equipment does cause harmful in te rference to radio or television reception, which can be de te rmined by tu rning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet o n a circuit different from that to which the receiver is connected. • Consult the dealer or an exp erienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly appro ve d by the party responsible for co mpliance could void th e user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or tv int erference ca used by unauthorized modifications to this equipment. Such modifications could void the user’s au thority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure li mits set forth for an uncontrolled environment. This device and its an tenna must no t be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation di stance of at least 20 cm fr om all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” National Restrictions 2400.0-2483.5 MHz Country RestrictionReason/remark Bul garia General authorization re quir ed for outdoor use an d pu blic service France Outdoor use limited to 10 mW e.i.r. p. within the band 24 54-2483.5 MHz Military Radi olocation use. Refarming of the 2.4 GHz ba nd has been ongoing in re cen t years to al low current rel axed re gulation. F ull impl ementation planned 2012 It al y If used ou tsi de of own pre mise s, genera l au th ori za ti on is required Luxe mbourg None General authorization requir ed for ne twork and servic e supply(not for spectrum) Norway Implemented This sub sect ion does not apply for the geog rap hical area within a radius of 20 km from the centre of Ny- Ålesund Russian F ederation Only for ind oor applications Note: Please don’t use the product ou tdoors in F rance. CE Mark Warning This is a class B product. In a domestic environment which case the user may be required to take adequate measures. TP-LINK TECHNOLOGIES CO., LTD TP-LINK TECHNOLOGIES CO., LTD. South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P. R. China DECLARATION OF CONFORMITY For the following equipment: Product Description: 150Mbps Wireless N ADSL2+ Modem Router Model No.: TD-W8151N Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives: Directives 1999/5/EC The above product is in conformity with the following standards or other normative documents ETSI EN 300 328 V1.7.1: 2006 ETSI EN 301 489-1 V1.8.1:2008& ETSI EN 301 489-17 V2.1.1:2009 EN60950-1:2006 Recommendation 1999/519/EC EN62311:2008 Directives 2004/108/EC The above product is in conformity with the following standards or other normative documents EN 55022:2006 +A1:2007 EN 55024:1998+A1:2001+A2:2003 EN 61000-3-2:2006 EN 61000-3-3:1995+A1:2001+A2:2005 Directives 2006/95/EC The above product is in conformity with the following standards or other normative documents EN60950-1:2006 Directive（ErP） 2009/125/EC Audio/Video, information and communication technology equipment- Environmentally conscious design EN62075:2008 Person is responsible for marking this declaration: Yang Hongliang Product Manager of International Business CONTENTS Package Contents .................................................................................................... 1 Chapter 1 Introduction ......................................................................................... 2 1.1 Product Overview.................................................................................. 2 1.2 Main Features ....................................................................................... 2 1.3 Conventions ..........................................................…

Text truncated - open the document above for the full version.

AGENCY AUTHORIZATION LETTER FCC ID：TE7TDW8151N Date:2010-9-10 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd （No. 6, Ke Feng Rd., 52 Block， Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China） to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

Date: 2010-9-10 Federal Communications Commission Authorization and Evaluation Division FCC ID: TE7TDW8151N Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

Attestation for FCC Declaration of Conformity FCC ID: TE7TDW8151N Date:2010-9-16 Please be notified that we, the undersigned, TP-LINK TECHNOLOGIES CO., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM-F990909 , with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

FCC ID:TE7TDW8151N Page 14-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10261 14. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT FCC ID:TE7TDW8151N Page 14-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10261 Figure 3 General Appearance of the EUT Label Location

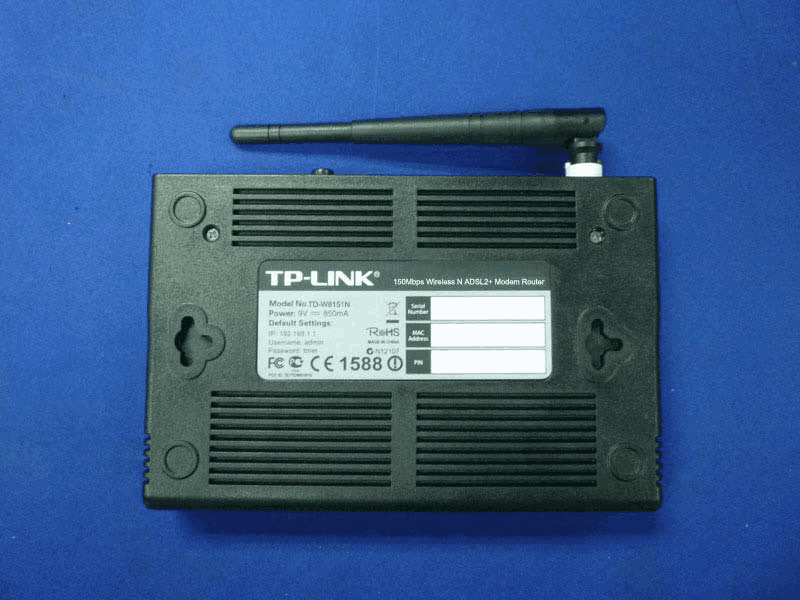

FCC ID:TE7TDW8151N Page 14-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10261 Figure 3 General Appearance of the EUT Label Location

FCC ID:TE7TDW8151N Page 14-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10261 Figure 4 Inside of the EUT Figure 5 Inside of the EUT FCC ID:TE7TDW8151N Page 14-4 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10261 Figure 6 Inside of the EUT Figure 7 Adapter

FCC ID:TE7TDW8151N page 11-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10261 11. MPE ESTIMATION 11.1. Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2. Estimation Result Mode CH Frequency (MHz) PK Output power (dBm) Output power (mW) Antenna Gain (dBi) antenna Gain(linear) MPE 11b 1 2412 21.19 131.52 3 2.00 0.0522 6 2437 21.70 147.91 3 2.00 0.0587 11 2462 21.92 155.60 3 2.00 0.0618 11g 1 2412 20.59 114.55 3 2.00 0.0455 6 2437 21.50 141.25 3 2.00 0.0561 11 2462 21.45 139.64 3 2.00 0.0555 11n HT20 1 2412 20.29 106.91 3 2.00 0.0425 6 2437 20.84 121.34 3 2.00 0.0482 11 2462 21.12 129.42 3 2.00 0.0514 11n HT40 1 2422 20.25 105.93 3 2.00 0.0421 4 2437 20.54 113.24 3 2.00 0.0450 7 2452 18.30 67.61 3 2.00 0.0269 Note: The estimation distance is 20cm

FCC ID:TE7TDW8151N Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10261 APPLICATION FOR CERTIFICATION On Behalf of TP-LINK Technologies Co., Ltd. 150Mbps Wireless N ADSL2+ Modem Router Model Number: TD-W8151N FCC ID: TE7TDW8151N Prepared for : TP-LINK Technologies Co., Ltd. 1-6F, Building 2, Pingshandayuan Industrial, South Zone, Taoyuan Street, Nanshan District, Shenzhen, P.R.C. Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F10261 Date of Test ： Aug.24~Sep.03, 2010 Date of Report ： Aug.09, 2010 FCC ID:TE7TDW8151N Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10261 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ....................................................... 1-1 1.1. Description of Standards and Results ............................................................................... 1-1 2. GENERAL INFORMATION ...................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................ 2-1 2.2. Test information ................................................................................................................ 2-2 2.3. Tested Supporting System Details .................................................................................... 2-3 2.4. Block Diagram of Test Setup ............................................................................................ 2-3 2.5. Test Facility ...................................................................................................................... 2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2) ................................................. 2-4 3. POWER LINE CONDUCTED EMISSION TEST .................................................... 3-1 3.1. Test Equipments ................................................................................................................ 3-1 3.2. Power Line Conducted Emission Test Limits ................................................................... 3-1 3.3. Configuration of EUT on Test .......................................................................................... 3-1 3.4. Operating Condition of EUT ............................................................................................. 3-1 3.5. Test Procedure ................................................................................................................... 3-2 3.6. Power Line Conducted Emission Test Results ................................................................. 3-2 4. RADIATED EMISSION TEST ................................................................................... 4-1 4.1. Test Equipment ................................................................................................................. 4-1 4.2. Radiated Emission Limit ................................................................................................... 4-2 4.3. EUT Configuration on Test ............................................................................................... 4-2 4.4. Operating Condition of EUT ............................................................................................. 4-3 4.5. Test Procedure ................................................................................................................... 4-3 4.6. Radiated Emission Test Results ........................................................................................ 4-3 5. CONDUCTED SPURIOUS EMISSIONS................................................................. 5-78 5.1. Test Equipment ............................................................................................................... 5-78 5.2. Limit ................................................................................................................................ 5-78 5.3. Test Procedure ................................................................................................................. 5-78 5.4. Test result ........................................................................................................................ 5-79 6. BAND EDGE COMPLIANCE TEST ....................................................................... 6-90 6.1. Test Equipment ............................................................................................................... 6-90 6.2. Limit ................................................................................................................................ 6-90 6.3. Test Produce .................................................................................................................... 6-90 6.4. Test Results ..................................................................................................................... 6-90 7. 6dB Bandwidth Test .................................................................................................. 7-123 7.1. Test Equipment ............................................................................................................. 7-123 7.2. Limit .............................................................................................................................. 7-123 7.3. Test Procedure ............................................................................................................... 7-123 7.4. Test Results ................................................................................................................... 7-123 8. OUTPUT POWER TEST ......................................................................................... 8-131 8.1. Test Equipment ............................................................................................................. 8-131 8.2. Limit (FCC Part 15C 15.247 b(3)) ...................…

Text truncated - open the document above for the full version.

FCC ID:TE7TDW8151N Page 13-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10261 13. PHOTOGRAPH OF TEST 13.1. Photos of Power Line Conducted Emission Test FCC ID:TE7TDW8151N Page 13-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10261 13.2. Photos of Radiated Emission Test 30-1000MHz FCC ID:TE7TDW8151N Page 13-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10261 Above 1000MHz
