TE7TDW8900GWireless ADSL2+ Router

I COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK Technologies Co., Ltd. Copyright © 2007 TP-LINK Technologies Co., Ltd. All rights reserved. http://www.tp-link.com TD-W8900G 54M Wireless ADSL2+ Router User Guide II FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. TD-W8900G 54M Wireless ADSL2+ Router User Guide III National Restrictions 2400.0-2483.5 MHz Country Restriction Reason/remark Bulgaria General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation Only for indoor applications TD-W8900G 54M Wireless ADSL2+ Router User Guide IV Package contents The following contents should be found in your box: ¾ One TD-W8900G 54M Wireless ADSL2+ Router ¾ One DC power Adapter for TD-W8900G 54M Wireless ADSL2+ Router ¾ Quick Installation Guide ¾ One RJ45 cable ¾ Two RJ11 cables ¾ One ADSL splitter ¾ One Resource CD for TD-W8900G 54M Wireless ADSL2+ Router, including: • This User Guide • Other Helpful Information ) Note: If any of the listed contents are damaged or missing, please contact the retailer from whom you purchased the TD-W8900G 54M Wireless ADSL2+ Router for assistance. TD-W8900G 54M Wireless ADSL2+ Router User Guide V CONTENTS Chapter 1. About This User Guide..........................................................................1 1.1 Purpose .....................................................................................................................1 1.2 Conventions ..............................................................................................................1 1.3 Overview of this User Guide .....................................................................................1 Chapter 2. Product Overview ..................................................................................2 2.1 Overview of the Router .............................................................................................2 2.2 Main Features ...........................................................................................................2 2.3 Supporting Protocol...................................................................................................3 2.4 Transmit Data-rate ....................................................................................................4 Chapter 3. Hardware Installation Guide .................................................................5 3.1 The Front Panel ........................................................................................................5 3.2 LED Explanation .......................................................................................................5 3.3 The Back Panel .........................................................................................................6 3.4 System Requirements ..................................................................................…

Text truncated - open the document above for the full version.

Attestation for FCC Declaration of Conformity FCC ID: TE7TDW8900G Date: Jan.4 2008 Please be notified that we, the undersigned, TP-LINK TECHNOLOGIES CO., LTD. declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM-F960571 (ACS) with is issued by an accredited lab, Audix Technology Corporation, EMC Department Sincerely, Xudong Liu R&D VP TP-LINK Technologies Co., Ltd. Tel: +86-755-26525554 Fax: +86-755-26504832 Web site: WWW.TP-LINK.COM E-mail: [email protected] PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

AGENCY AUTHORIZATION LETTER FCC ID: TE7TDW8900G Date: Nov 29,2007 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd Audix of Shenzhen to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Xudong Liu / R&D VP TP-LINK Technologies Co., Ltd.

Date：2007 Federal Communications Commission Authorization and Evaluation Division FCC ID:TE7TDW8900G Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outline below: 1. Schematics 2. Block Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Application and provide unjustified benefits to its competitors. The Application understands that pursuant to Rule 0.457,disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Xu Dong Liu /R&D VP TP-LINK Technologies Co., Ltd.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 26, 2007 RE: ATCB005762 FCC ID: TE7TDW8900G for TP-Link Technologies Co., Ltd. I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1. Please provide a complete user manual exhibit for review. The submitted user manual was missing Figures 4-2 through 4.8 and Figures 5-1 to 5-80. Without these Figures, the manual cannot be evaluated. 2. Please provide a block diagram that describes the product being approved. The submitted block diagram shows two transmit antennas but the device only uses one transmit antenna. 3. Please identify the antenna connector used on this device to show compliance with Section 15.203 of the FCC Rules. 4. Please confirm what the antenna gain is for the antenna used with this device. Section 9 of the Test Report shows an antenna gain of 5 dBi when evaluating the MPE for this device but other sections of the test report indicate the antenna gain is only 3 dBi. What is the correct antenna gain? 5. This device is also a personal computer (PC) peripheral which requires either Declaration of Conformity (DoC) or Certification in accordance with Section 15.101(a) of the Rules. The FCC label for this device indicates a DoC has been preformed for the PC peripheral portion of this device. Test labs in China are not eligible to perform DoC measurements because there is no Mutual Recognition Agreement in force between the USA and China. Please provide evidence that the proper authorization has been done. Please note that the FCC is about to enforce this new requirement on all TCBs in January of 2008. More details will follow when the FCC releases the procedures TCBs are to follow in this matter. 6. For Your Information – I will be correcting the output power listed on the submitted FCC form 731 application to 103 milliwatts. That is the output power that is shown in the supporting test report. No other exhibits in this application support the output power of 135 milliwatts that is listed on the application form. If this is incorrect, please provide evidence that supports the requested output power of 135 milliwatts.  Page 2 December 26, 2007 Richard Fabina Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

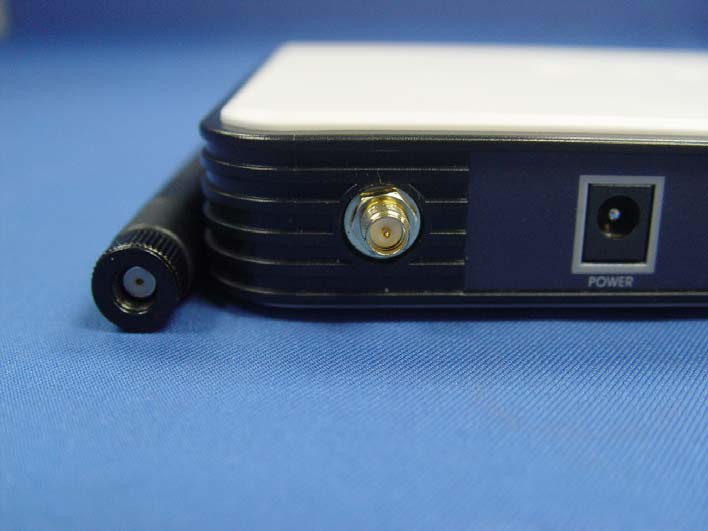

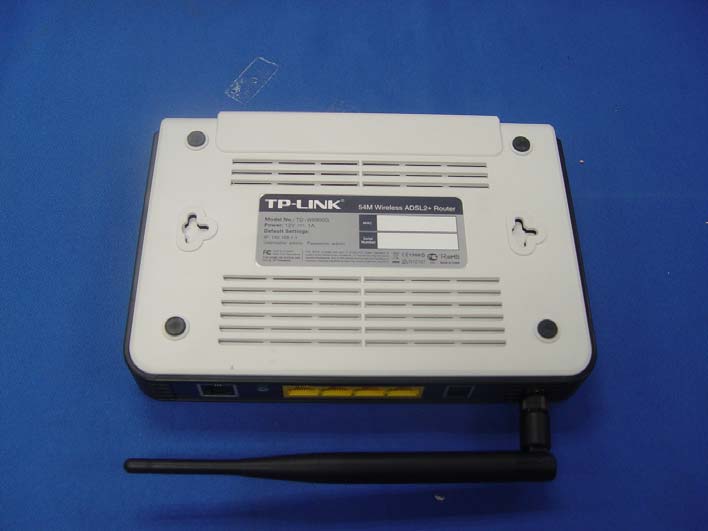

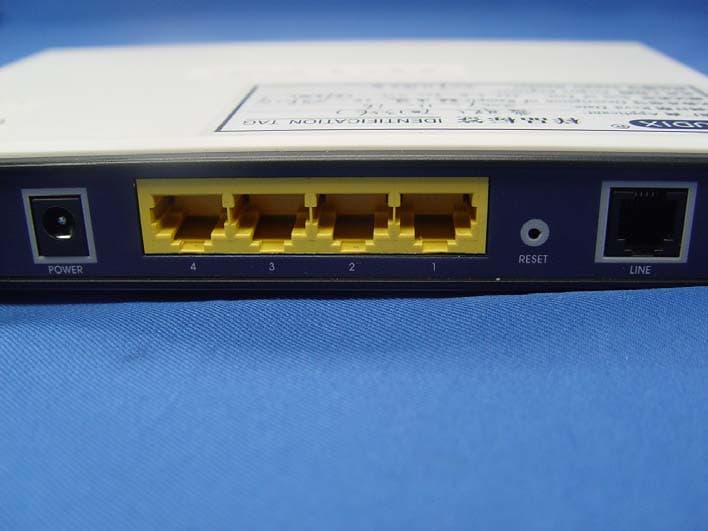

Page 6 TP-LINK Technologies Co., Ltd. 54M Wireless ADSL2 + Router FCC ID:TE7TDW8900G Photographs Figure 1 General Appearance Figure 2 General Appearance Page 7 TP-LINK Technologies Co., Ltd. 54M Wireless ADSL2 + Router FCC ID:TE7TDW8900G Figure 3 General Appearance Figure 4 General Appearance Page 8 TP-LINK Technologies Co., Ltd. 54M Wireless ADSL2 + Router FCC ID:TE7TDW8900G Figure 5 General Appearance Figure 6 General Appearance Label Location

1 2 E D C B A 1 2 3 4 5 6 7 8 9 E D 3 4 5 6 7 8 B A 9 料号： 设 计 审 核 颜 色 名 称 版 本 材 质 模 具 机型版本号 完成日期 logo 底色 文字 其它 记 录 与上一版的区别 文字转曲线 1588 1588 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Page 8 TP-LINK Technologies Co., Ltd. 54M Wireless ADSL2 + Router FCC ID:TE7TDW8900G Figure 5 General Appearance Figure 6 Inside of the EUT Label Location

Page 8 TP-LINK Technologies Co., Ltd. 54M Wireless ADSL2 + Router FCC ID:TE7TDW8900G Figure 5 General Appearance Figure 6 Inside of the EUT Label Location Page 9 TP-LINK Technologies Co., Ltd. 54M Wireless ADSL2 + Router FCC ID:TE7TDW8900G Figure 7 Inside of the EUT Figure 8 Inside of the EUT Page 10 TP-LINK Technologies Co., Ltd. 54M Wireless ADSL2 + Router FCC ID:TE7TDW8900G Figure 9 Inside of the EUT

FCC ID:TE7TDW8900G Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07518 APPLICATION FOR CERTIFICATION On Behalf of TP-LINK Technologies Co., Ltd. 54M Wireless ADSL2 + Router Model Number: TD-W8900G; TD-W8910G Prepared for : TP-LINK Technologies Co., Ltd. Building 7, Second Part, Honghualing Industrial Zone, Xili town, Nanshan District, Shenzhen, China Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F07518 Date of Test ： Nov.22 ~Dec.06, 2007 Date of Report ： Dec.12, 2007 FCC ID:TE7TDW8900G Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07518 TABLE OF CONTENTS Description Page FCC Test Report for Declaration of Conformity 1. SUMMARY OF STANDARDS AND RESULTS................................................................... 1-1 1.1. Description of Standards and Results ............................................................................................1-1 2. GENERAL INFORMATION .................................................................................................. 2-1 2.1. Description of Device (EUT) .........................................................................................................2-1 2.2. Tested Supporting System Details .................................................................................................2-2 2.3. Test Facility ...................................................................................................................................2-5 2.4. Measurement Uncertainty ..............................................................................................................2-5 3. POWER LINE CONDUCTED EMISSION TEST ................................................................ 3-1 3.1. Test Equipments.............................................................................................................................3-1 3.2. Block Diagram of Test Setup .........................................................................................................3-1 3.3. Power Line Conducted Emission Test Limits................................................................................3-2 3.4. Configuration of EUT on Test .......................................................................................................3-2 3.5. Operating Condition of EUT..........................................................................................................3-2 3.6. Test Procedure................................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results ..............................................................................3-2 4. RADIATED EMISSION TEST ............................................................................................... 4-1 4.1. Test Equipment ..............................................................................................................................4-1 4.2. Block Diagram of Test Setup .........................................................................................................4-2 4.3. Radiated Emission Limit................................................................................................................4-3 4.4. EUT Configuration on Test............................................................................................................4-3 4.5. Operating Condition of EUT..........................................................................................................4-3 4.6. Test Procedure................................................................................................................................4-4 4.7. Radiated Emission Test Results .....................................................................................................4-4 5. 6dB Bandwidth Test.................................................................................................................. 5-1 5.1. Test Equipment ..............................................................................................................................5-1 5.2. Test Information .............................................................................................................................5-1 5.3. Test Procedure................................................................................................................................5-1 5.4. Test Results ....................................................................................................................................5-2 6. OUTPUT POWER TEST......................................................................................................... 6-1 6.1. Test Equipment ..............................................................................................................................6-1 6.2. Test Information .............................................................................................................................6-1 6.3. Test Procedure................................................................................................................................6-1 6.4. Test Results ....................................................................................................................................6-2 7. BAND EDGE COMPLIANCE TEST ..................................................................................... 7-1 7.1. Test Equipment ..............................................................................................................................7-1 7.2. Test Information .............................................................................................................................7-1 7.3. Test Results ...................................................................................................................…

Text truncated - open the document above for the full version.

FCC ID:TE7TDW8900G Page 12-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07518 12. PHOTOGRAPH 12.1.Photos of Power Line Conducted Emission Test FCC ID:TE7TDW8900G Page 12-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07518 12.2.Photos of Radiated Emission Test 30-1000MHz FCC ID:TE7TDW8900G Page 12-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07518 Above 1000MHz
