TE7TDW8901NV1150Mbps Wireless N ADSL2+ Modem Router

TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router Rev: 1.0.0 1910010775 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2012 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com I FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1） This device may not cause harmful interference. 2） This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” II CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. This device has been designed to operate with the antennas listed below, and having a maximum gain of 5dBi. Antennas not included in this list or having a gain greater than 5dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. Canadian Compliance Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1)This device may not cause interference, and (2)This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le fonctionnement est soumis aux deux conditions suivantes: (1)cet appareil ne doit pas provoquer d’interférences et (2)cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un fonctionnement non souhaité de l’appareil. Industry Canada Statement Complies with the Canadian ICES-003 Class B specifications. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device complies with RSS 210 of Industry Canada. This Class B device meets all the requirements of the Canadian interference-causing equipment regulations. Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Korea Warning Statements: 당해 무선설비는 운용중 전파혼신 가능성이 있음. NCC Notice: 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功 III 率或變更原設計之特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並 改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電 機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України. Safety Information  When product has power button, the power button is one of the way to shut off the product; when there is no power button, the only way to completely shut off power is to disconnect the product or the power adapter from the power source.  Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock and voiding the limited warranty. If you need service, please contact us.  Avoid water and wet locations. This product can be used in the following countries: AT BG BY CA CZ DE DK EE ES FI FR GB GR HU IE IT LT LV MT NL NO PL PT RO RU SE SK TR UA IV TP-LINK TECHNOLOGIES CO., LTD TP-LINK TECHNOLOGIES CO., LTD. Building 24 (floors 1, 3, 4, 5), and 28 (floors 1- 4) Central Science and Tec hnology Park, Shennan Rd, Nanshan, Shenzhen, China DECLARATION OF CONFORMITY For the following equipment: Product Description: 150Mbps Wireless N ADSL2+ Modem Router Model No.: TD-W8901N Trademark: TP-LINK We declare under our own responsibility that the above products sa ti sfy all the te chnical regulations applicable to the product within the scope of Cou…

Text truncated - open the document above for the full version.

AGENCY AUTHORIZATION LETTER FCC ID: TE7TDW8901NV1 Date: 2013-4-21 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd (No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China) to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

Date: 2013-4-21 Federal Communications Commission Authorization and Evaluation Division FCC ID: TE7TDW8901NV1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

Attestation for FCC Declaration of Conformity FCC ID:TE7TDW8901NV4 Date: 2013-04-07 Please be notified that we, the undersigned, TP-LINK TECHNOLOGIES CO., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM-F1020307, with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP‐LINK Technologies Co., Ltd. Tel: 86‐755‐26525554 Fax: 86‐755‐26508930 Web site: WWW.TP‐LINK.COM E‐mail: public@tp‐link.com.cn

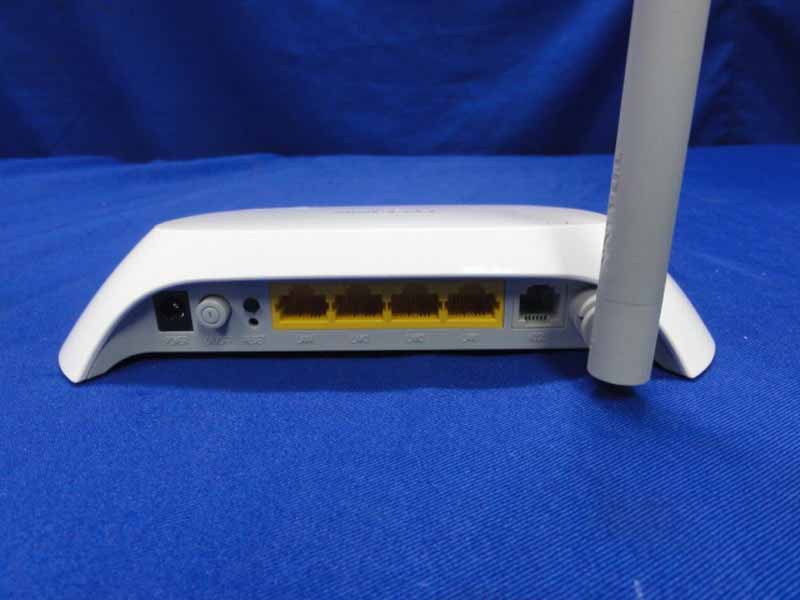

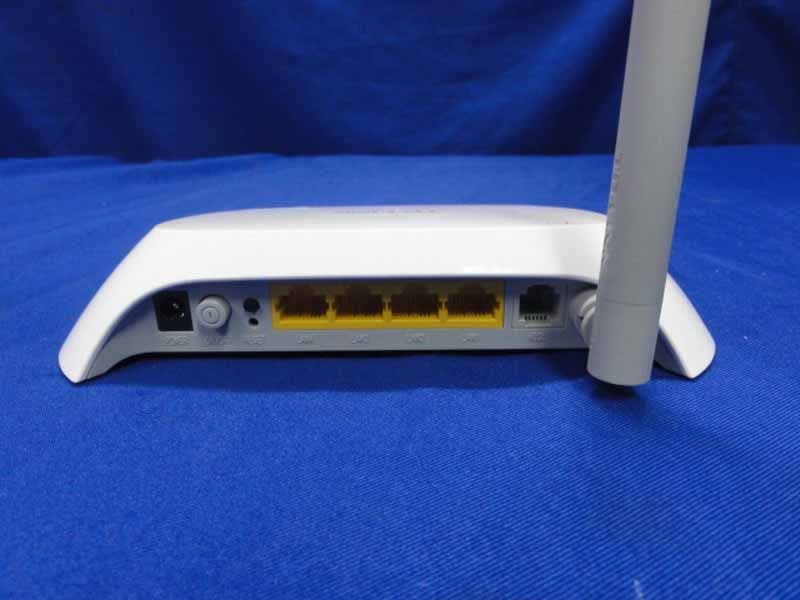

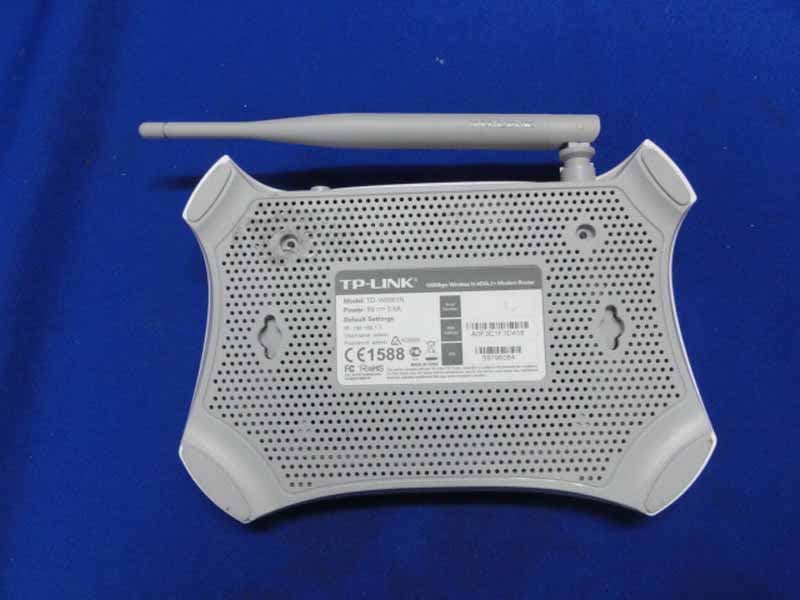

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13008 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13008 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13008 14-3 Figure 5 I/O Port of the EUT Figure 6 I/O Port of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13008 14-4 Figure 7 Label of the EUT Figure 8 Inside of the EUT

尺寸：71.5*39.5mm,3R，公差±0.2mm转曲文件 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID:TE7TDW8901NV1 IC:8853A-W8901N Model: Power: 150Mbps Wireless N ADSL2 + Modem Router MADE IN CHINA C B A 12 C 345678 B E D D A 9 料号： 12345 与上一版的区别 E 6789 颜 色 名 称 版 本 材 质 模 具 机型版本号 logo 底色 文字 其它 结构工程师 硬件工程师 产品工程师 平面负责人 记 录 审 核 完成日期 设 计

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13008 14-4 Figure 7 Label of the EUT Figure 8 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13008 14-5 Figure 9 Components Side of the PCB Figure 10 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13008 14-6 Figure 11 Components Side of the PCB Figure 12 Adapter R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13008 14-7 Figure 13 Adapter

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13008 10-14 10. MPE ESTIMATION 10.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 10.2. Estimation Result EUT: 150Mbps Wireless N ADSL2+ Modem Router M/N: TD-W8901N Test date: 2013-04-09 Pressure: 101.4±1.0 kpa Humidity: 46.4±3.0% Tested by: Leo-Li Test site: RF Site Temperature：23.6±0.6 °C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain: 5dBi Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE 11b CH1 19.8 95.50 CH6 19.14 82.04 CH11 18.44 69.82 11g CH1 24.96 313.33 CH6 24.35 272.27 CH11 23.69 233.88 11n HT20 CH1 24.87 306.90 CH6 23.94 247.74 CH11 23.32 214.78 11n HT40 CH1 20.24 105.68 CH4 24.56 285.76 CH7 19.57 90.57

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13008 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of TP-LINK TECHNOLOGIES CO., LTD. 150Mbps Wireless N ADSL2+ Modem Router Model No.: TD-W8901N FCC ID: TE7TDW8901NV1 Prepared for : TP-LINK TECHNOLOGIES CO., LTD. Building 24(floors 1,3,4,5) and 28 (floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F13008 Date of Test ： Mar.06~Apr.09, 2013 Date of Report ： Apr.19, 2013 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13008 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-1 1.1. Description of Standards and Results ................................................................................... 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Test Information ................................................................................................................... 2-2 2.3. Tested Supporting System Details ....................................................................................... 2-3 2.4. Block diagram of connection between the EUT and simulators .......................................... 2-3 2.5. Test Facility .......................................................................................................................... 2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-4 3. POWER LINE CONDUCTED EMISSION MEASUREMENT ................................. 3-1 3.1. Test Equipments ................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits ...................................................................... 3-1 3.4. Configuration of EUT on Test ............................................................................................. 3-2 3.5. Operating Condition of EUT ................................................................................................ 3-2 3.6. Test Procedure ...................................................................................................................... 3-2 3.7. Power Line Conducted Emission Test Results ..................................................................... 3-2 4. RADIATED EMISSION MEASUREMENT ................................................................ 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-2 4.3. Radiated Emission Limit ...................................................................................................... 4-3 4.4. EUT Configuration on Test .................................................................................................. 4-3 4.5. Operating Condition of EUT ................................................................................................ 4-3 4.6. Test Procedure ...................................................................................................................... 4-4 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit ..................................................................................................................................... 5-1 5.3. Test Procedure ...................................................................................................................... 5-1 5.4. Test result ............................................................................................................................. 5-1 6. BAND EDGE COMPLIANCE TEST ............................................................................ 6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit ..................................................................................................................................... 6-1 6.3. Test Produce ......................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-1 7. 6dB Bandwidth Test ........................................................................................................ 7-1 7.1. Test Equipment .................................................................................................................... 7-1 7.2. Limit ..................................................................................................................................... 7-1 7.3. Test Procedure ...................................................................................................................... 7…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13008 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13008 13-2 13.2.Photos of Radiated Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13008 13-3 (Above 1000MHz)
