TE7TDW8901NV2150Mbps Wireless N ADSL2+ Modem Router

TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router Rev: 1.0.1 1910010775 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2014 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1） This device may not cause harmful interference. 2） This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” Limited to local law of the United States, selecting country code and channel function was disabled. CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in Canadian Compliance Statement exempt RSS standard(s). Operation is subject erference, and luding interference that may cause undesired rme aux norms CNR exemptes de licence d’Industrie Canada. Le is celles susceptibles de provoquer un e antennas listed below, and having a maximum Industry Canada Statement cifications. NMB-003 du Canada. ts all the du Règlement sur le Korea Warning Statements 있음. NCC Notice & BSMI Notice which case the user may be required to take adequate measures. This device complies with Industry Canada license- to the following two condi tions: (1) This device may not cause int (2)This device must accept any interference, inc operation of the device. Cet appareil est confo fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas provoquer d’interférences et (2) cet appareil doit accepter toute interférence, y compr fonctionnement non souhaité de l’appareil. This device has been designed to operate with th gain of 5 dBi. Antennas not included in this list or having a gain greater than 5 dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. Complies with the Canadian ICES-003 Class B spe Cet appa reil numérique de la classe B est conforme à la norme This device complies with RSS 210 of Industry Canada. This Class B device mee requirements of the Canadian interference-causing equipment regulations. Cet appareil numérique de la Classe B respecte toutes les exigences matériel brouilleur du Canada. 당해 무선설 비는 운용중 전파혼신 가능성이 注意！ 依據 低功率電波輻射性電機管理辦法 電機，非經許可，公司、商號或使用者均不得擅自變更頻率、 飛航安全及干擾合法通行；經發現有干擾現象時，應立即 或只能按照本產品注明的電源類型使用本產品。 清潔。 過熱，請勿堵塞或覆蓋開口。 UkrSEPRO 第十二條 經 型式認證合格之低功率射頻 加大功率或變更原設計之特性或功能。 第十四條 低功率射頻電機之使用不得影響 停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信規定作業之無線電信。低功率射 頻電機需忍受合法通信或工業、科學以及醫療用電波輻射性電機設備之干擾。 減少電磁波影響，請妥適使用。 安全諮詢及注意事項 ●請使用原裝電源供應器 ●清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行 ●注意防潮，請勿將水或其他液體潑灑到本產品上。 ●插槽與開口供通風使用，以確保本產品的操作可靠並防止 ●請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。 ●請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。 Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України. Safety Information button, the power button is one of the way to shut off the product; self. You run the risk of electric shock AT BG BY CA CZ DE DK EE  When product has power when there is no power button, the only way to completely shut off power is to disconnect the product or the power adapter from the power source.  Don’t disassemble the product, or make repairs your and voiding the limited warranty. If you need service, please contact us.  Avoid water and …

Text truncated - open the document above for the full version.

AGENCY AUTHORIZATION LETTER FCC ID: TE7TDW8901NV2 Date: March 7, 2014 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd (No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China) to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Yo ngq u an Wang Title of authorized signer: Product Dept. Manager Company Name: TP‐LINK Technologies Co., Ltd. Tel: 86‐755‐26525554 Fax: 86‐755‐26508930 Web site: WWW.TP‐LINK.COM E‐mail: public@tp‐link.com.cn

Date: March 7, 2014 Federal Communications Commission Authorization and Evaluation Division FCC ID: TE7TDW8901NV2 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP‐LINK Technologies Co., Ltd. Tel: 86‐755‐26525554 Fax: 86‐755‐26508930 Web site: WWW.TP‐LINK.COM E‐mail: public@tp‐link.com.cn

Attestation for FCC Declaration of Conformity FCC ID: TE7TDW8901NV2 Date: 2014-03-07 Please be notified that we, the undersigned, TP-LINK TECHNOLOGIES CO., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM-F140123, with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP‐LINK Technologies Co., Ltd. Tel: 86‐755‐26525554 Fax: 86‐755‐26508930 Web site: WWW.TP‐LINK.COM E‐mail: public@tp‐link.com.cn

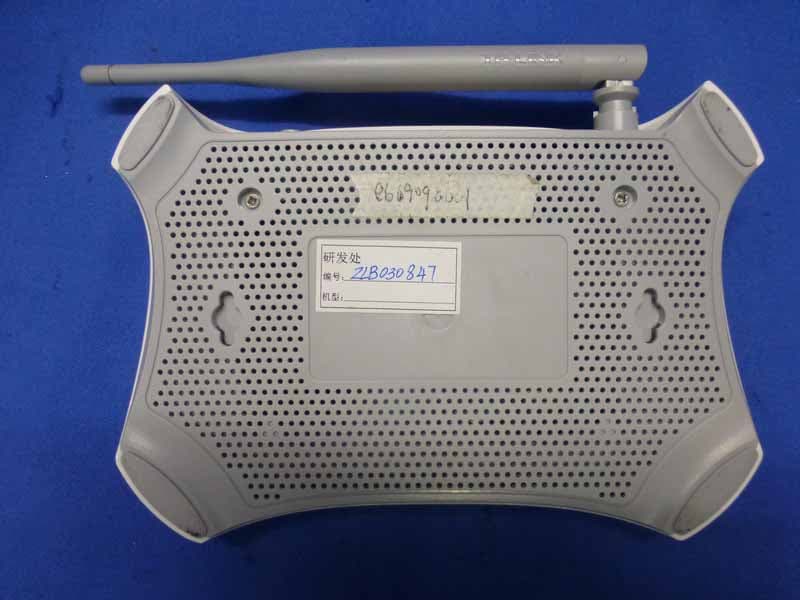

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14072 15-1 15. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14072 15-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14072 15-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14072 15-4 Figure 7 General Appearance of the EUT Figure 8 General Appearance of the EUT

C B A 12 C 345678 B E D D A 9 料号： 12345 与上一版的区别 E 6789 颜 色 名 称 版 本 材 质 模 具 机型版本号 logo 底色 文字 其它 结构工程师 硬件工程师 产品工程师 平面负责人 记 录 完成日期 设 计 TD-W8901N(UN)_2.0_产品规格标贴 A1 80g艾利铜版纸+雾膜 美B-182 TD-W8901N(UN)_2.0 程 成 2014-02-20 白色 白色、PANTONE Cool Gray 9C 白色、PANTONE Cool Gray 9C PANTONE Cool Gray 2U 卷式供货 边距：3mm 跳距：3mm 3mm 3mm 3mm 文字方向 文字方向 注：S/N码由工厂打印至25*7mm空白标贴（7210500003）后粘贴， MAC地址、Wireless Password/PIN由工厂直接打印在产品规格标贴上。 71.5*39.5±0.2mm，3R 供应商来料示意图（文字转曲） 1.5：1放大效果图 150Mbps Wireless N ADSL2 + Modem Router This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Model: TD - W8901N Power: 9V 0.6A Default Access: IP: 192.168.1.1 Username: admin Password : admin IC:8853A - W8901N FCC ID:TE7TDW8901NV2

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14072 15-5 Figure 9 Inside of the EUT Figure 10 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14072 15-6 Figure 11 General Appearance of the EUT Figure 12 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14072 15-7 Figure 13 Inside of the EUT Figure 14 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14072 15-8 Figure 15 Components Side of the PCB Figure 16 Adapter R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14072 15-9 Figure 17 Adapter

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14072 11-1 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz Estimation Result EUT: 150Mbps Wireless N ADSL2+ Modem Router M/N: TD-W8901N Test date: 2014-02-20 Pressure: 101.2±1.0 kpa Humidity: 48.4±3.0% Tested by: Leo-Li Test site: RF site Temperature: 20.7±0.6 °C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain: 5dBi Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE CH1 2412 23.96 248.89 5.0 3.16 0.1567 CH6 2437 23.72 235.50 5.0 3.16 0.1482 11b CH11 2462 23.09 203.70 5.0 3.16 0.1282 CH1 2412 22.85 192.75 5.0 3.16 0.1213 CH6 2437 25.72 373.25 5.0 3.16 0.2349 11g CH11 2462 21.97 157.40 5.0 3.16 0.0991 CH1 2412 20.49 111.94 5.0 3.16 0.0705 CH6 2437 23.03 200.91 5.0 3.16 0.1265 11n HT20 CH11 2462 20.42 110.15 5.0 3.16 0.0693 CH1 2422 20.6 114.82 5.0 3.16 0.0723 CH4 2437 23.86 243.22 5.0 3.16 0.1531 11n HT40 CH7 2452 21.28 134.28 5.0 3.16 0.0845 Note: MPE=PG/4πR 2 (R:20cm)

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14072 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of TP-LINK TECHNOLOGIES CO., LTD. 150Mbps Wireless N ADSL2+ Modem Router Model No.: TD-W8901N FCC ID: TE7TDW8901NV2 Prepared for : TP-LINK TECHNOLOGIES CO., LTD. Building 24(floors 1,3,4,5) and 28 (floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F14072 Date of Test ： Feb.12~27, 2014 Date of Report ： Mar.05, 2014 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14072 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-1 1.1. Description of Standards and Results ...................................................................................1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ...............................................................................................2-1 2.2. Test Information ...................................................................................................................2-2 2.3. Tested Supporting System Details........................................................................................2-2 2.4. Block Diagram of Test Setup ...............................................................................................2-2 2.5. Test Facility ..........................................................................................................................2-3 2.6. Measurement Uncertainty (95% confidence levels, k=2).....................................................2-3 3. POWER LINE CONDUCTED EMISSION TEST....................................................... 3-1 3.1. Test Equipments ...................................................................................................................3-1 3.2. Block Diagram of Test Setup ...............................................................................................3-1 3.3. Power Line Conducted Emission Test Limits ......................................................................3-1 3.4. Configuration of EUT on Test..............................................................................................3-2 3.5. Operating Condition of EUT ................................................................................................3-2 3.6. Test Procedure ......................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results .....................................................................3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment.....................................................................................................................4-1 4.2. Block Diagram of Test Setup ...............................................................................................4-2 4.3. Radiated Emission Limit ......................................................................................................4-3 4.4. EUT Configuration on Test ..................................................................................................4-3 4.5. Operating Condition of EUT ................................................................................................4-3 4.6. Test Procedure ......................................................................................................................4-4 4.7. Radiated Emission Test Results ...........................................................................................4-4 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment.....................................................................................................................5-1 5.2. Limit .....................................................................................................................................5-1 5.3. Test Procedure ......................................................................................................................5-1 5.4. Test result .............................................................................................................................5-1 6. BAND EDGE COMPLIANCE TEST............................................................................ 6-1 6.1. Test Equipment.....................................................................................................................6-1 6.2. Limit .....................................................................................................................................6-1 6.3. Test Produce .........................................................................................................................6-1 6.4. Test Results ..........................................................................................................................6-1 7. 6dB Bandwidth Test ........................................................................................................ 7-1 7.1. Test Equipment.....................................................................................................................7-1 8.1. Limit .....................................................................................................................................7-1 8.2. Test Procedure .........................................................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14072 14-1 14. PHOTOGRAPH OF TEST 14.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14072 14-2 14.2.Photos of Radiated Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8901NV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14072 14-3 (Above 1000MHz)
