TE7TDW8960NV5300Mbps Wireless N ADSL2+ Modem Router

TD-W8960N 300Mbps Wireless N ADSL2+ Modem Router Rev: 5.2.2 1910010926 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2013 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Canadian Compliance Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1)This device may not cause interference, and (2)This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le fonctionnement est soumis aux deux conditions suivantes: (1)cet appareil ne doit pas provoquer d’interférences et (2)cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un fonctionnement non souhaité de l’appareil. This device has been designed to operate with the antennas listed below, and having a maximum gain of 5 dBi. Antennas not included in this list or having a gain greater than 5 dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. Industry Canada Statement Complies with the Canadian ICES-003 Class B specifications. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device complies with RSS 210 of Industry Canada. This Class B device meets all the requirements of the Canadian interference-causing equipment regulations. Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Korea Warning Statements 당해 무선설비는 운용중 전파혼신 가능성이 있음. NCC Notice& BSMI Notice 注意！ 依據 低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、 加大功率或變更原設計之特性或功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通行；經發現有干擾現象時，應立即 停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信規定作業之無線電信。低功率射 頻電機需忍受合法通信或工業、科學以及醫療用電波輻射性電機設備之干擾。 安全諮詢及注意事項 ●請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。 ●清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。 ●注意防潮，請勿將水或其他液體潑灑到本產品上。 ●插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。 ●請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。 ●請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。 Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України. Safety Information  When product has power button, the power button is one of the way to shut off the product; when there is no power button, the only way to completely shut off power is to disconnect the product or the power adapter from the power source.  Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock and voiding the limited warranty. If you need service, please contact us.  Avoid water and wet locations. This product can be used in the following countries: AT BG BY CA CZ DE DK EE ES FI FR GB GR HU IE IT LT LV MT NL NO PL PT RO RU SE SK TR UA TP-LINK TECHNOLO…

Text truncated - open the document above for the full version.

AGENCY AUTHORIZATION LETTER FCC ID: TE7TDW8960NV5 Date: Nov 20, 2013 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd (No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China) to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Yo ngq u an Wang Title of authorized signer: Product Dept. Manager Company Name: TP‐LINK Technologies Co., Ltd. Tel: 86‐755‐26525554 Fax: 86‐755‐26508930 Web site: WWW.TP‐LINK.COM E‐mail: public@tp‐link.com.cn

Date: Nov 20, 2013 Federal Communications Commission Authorization and Evaluation Division FCC ID: TE7TDW8960NV5 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP‐LINK Technologies Co., Ltd. Tel: 86‐755‐26525554 Fax: 86‐755‐26508930 Web site: WWW.TP‐LINK.COM E‐mail: public@tp‐link.com.cn

Attestation for FCC Declaration of Conformity FCC ID:TE7TDW8960NV5 Date: 2013-12-10 Please be notified that we, the undersigned, TP-LINK TECHNOLOGIES CO., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC isEM-F1020868, with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP‐LINK Technologies Co., Ltd. Tel: 86‐755‐26525554 Fax: 86‐755‐26508930 Web site: WWW.TP‐LINK.COM E‐mail: public@tp‐link.com.cn

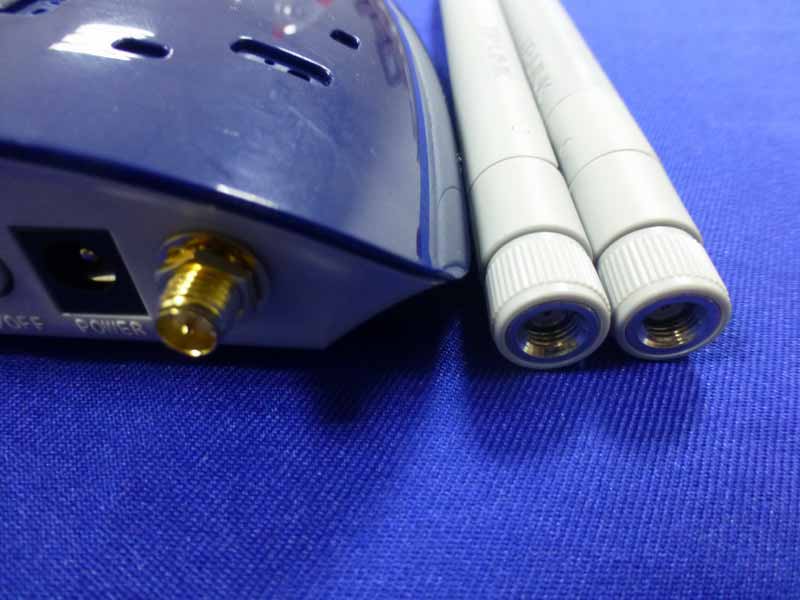

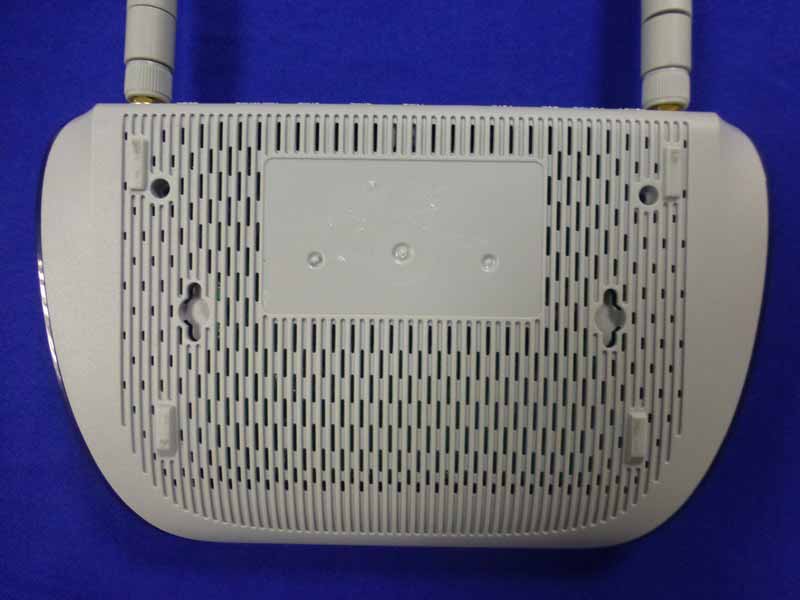

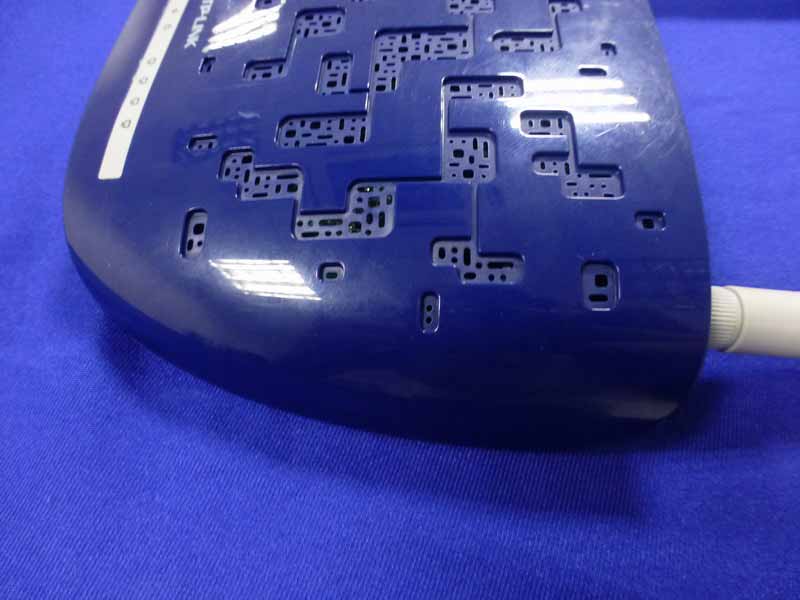

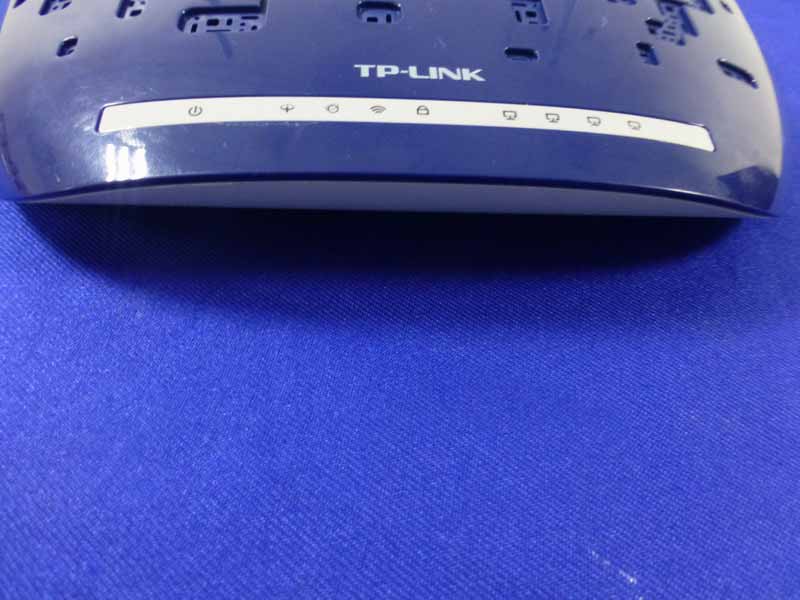

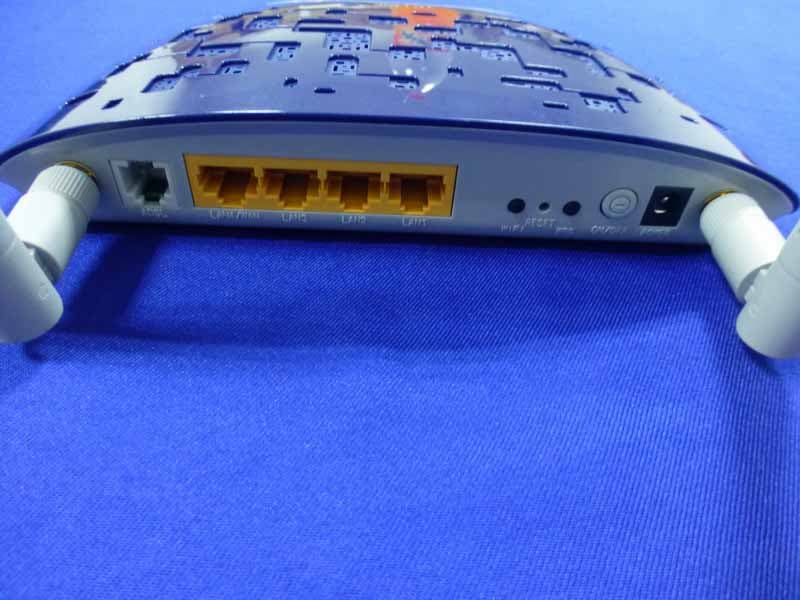

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 14-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT

C B A 12 C 345678 B E D D A 9 料号： 12345 E 6789 与上一版的区别 颜 色 名 称 版 本 材 质 模 具 机型版本号 logo 底色 文字 其它 结构工程师 硬件工程师 产品工程师 平面负责人 记 录 完成日期 设 计 3mm 3mm 3mm 文字方向 文字方向 卷装供货 边距：3mm 跳距：3mm TD-W8960N(UN)_产品规格标贴 A2 80g艾利铜版纸+雾膜 美E-195 TD-W8960N(UN)_5.0 林如君 2013-8-19 修改产品名称/更新认证 71.5*39.5mm, 公差取值±0.2mm，2.5R 注：MAC、Wireless Password/PIN由工厂直接打印 S/N码由工厂打印在33*7mm的空白标贴上，并黏贴于锡标上 文字转曲（供应商印刷效果图） 白色 白色、PANTONE CoolGray 9C 白色、PANTONE CoolGray 9C PANTONE CoolGray 2U Power: 9V 0.85A Default Access: http://tplinkmodem.net Username: admin Password: admin Model: TD - W8960N This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 300Mbps Wireless N ADSL2+ Modem Router IC:8853A-W8960N FCC ID:TE7TDW8960NV5 Wireless Password /PIN

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 14-4 Figure 7 Inside of the EUT Figure 8 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 14-5 Figure 9 Components Side of the PCB Figure 10 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 14-6 Figure 11 Power Adapter Figure 12 Power Adapter R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 14-7 Figure 13 Power Adapter

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 10-1 10. MPE ESTIMATION 10.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 10.2. Estimation Result EUT: 300Mbps Wireless N ADSL2+ Modem Router M/N: TD-W8960N Test date: 2013-11-05 Pressure: 101.3±1.0 kpa Humidity: 49.4±3.0% Tested by: Leo-Li Test site: RF site Temperature: 21.7±0.6 °C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain: 5dBi Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE CH1 2412 21.72 148.59 5 3.16 0.0935 CH6 2437 22.94 196.79 5 3.16 0.1239 11b CH11 2462 21.50 141.25 5 3.16 0.0889 CH1 2412 20.36 108.64 5 3.16 0.0684 CH6 2437 28.21 662.22 5 3.16 0.4168 11g CH11 2462 21.71 148.25 5 3.16 0.0933 CH1 2412 22.10 162.18 5 3.16 0.1021 CH6 2437 28.12 648.63 5 3.16 0.4083 11n HT20 CH11 2462 23.13 205.59 5 3.16 0.1294 CH1 2422 23.33 215.28 5 3.16 0.1355 CH4 2437 28.95 785.24 5 3.16 0.4943 11n HT40 CH7 2452 22.62 182.81 5 3.16 0.1151

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of TP-LINK TECHNOLOGIES CO., LTD. 300Mbps Wireless N ADSL2+ Modem Router Model No.: TD-W8960N FCC ID: TE7TDW8960NV5 Prepared for : TP-LINK TECHNOLOGIES CO., LTD. Building 24(floors 1,3,4,5) and 28 (floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F13332 Date of Test ： Oct.15~Nov.15, 2013 Date of Report ： Dec.10, 2013 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-1 1.1. Description of Standards and Results ...................................................................................1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ...............................................................................................2-1 2.2. Test Information ...................................................................................................................2-2 2.3. Tested Supporting System Details........................................................................................2-3 2.4. Block Diagram of Test Setup ...............................................................................................2-3 2.5. Test Facility ..........................................................................................................................2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2).....................................................2-4 3. POWER LINE CONDUCTED EMISSION TEST....................................................... 3-1 3.1. Test Equipments ...................................................................................................................3-1 3.2. Block Diagram of Test Setup ...............................................................................................3-1 3.3. Power Line Conducted Emission Test Limits ......................................................................3-1 3.4. Configuration of EUT on Test..............................................................................................3-1 3.5. Operating Condition of EUT ................................................................................................3-2 3.6. Test Procedure ......................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results .....................................................................3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment.....................................................................................................................4-1 4.2. Block Diagram of Test Setup ...............................................................................................4-1 4.3. Radiated Emission Limit ......................................................................................................4-2 4.4. EUT Configuration on Test ..................................................................................................4-3 4.5. Operating Condition of EUT ................................................................................................4-3 4.6. Test Procedure ......................................................................................................................4-3 4.7. Radiated Emission Test Results ...........................................................................................4-4 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment.....................................................................................................................5-1 5.2. Limit .....................................................................................................................................5-1 5.3. Test Procedure ......................................................................................................................5-1 5.4. Test result .............................................................................................................................5-1 6. BAND EDGE COMPLIANCE TEST............................................................................ 6-1 6.1. Test Equipment.....................................................................................................................6-1 6.2. Limit .....................................................................................................................................6-1 6.3. Test Produce .........................................................................................................................6-1 6.4. Test Results ..........................................................................................................................6-1 7. 6dB Bandwidth Test ........................................................................................................ 7-1 7.1. Test Equipment.....................................................................................................................7-1 7.2. Limit .....................................................................................................................................7-1 7.3. Test Procedure .....................................................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 5-21 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 5-22 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 5-23 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 5-24 Test Mode: IEEE 802.11g TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 5-25 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 5-26 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 5-27 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 5-28 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 5-29 Test Mode: IEEE 802.11n HT20 TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 5-30 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 5-31 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 5-32 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 5-33 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 5-34 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 5-35 Test Mode: IEEE 802.11n HT40 TX Test CH1: 2422MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 5-36 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 5-37 Test CH4: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 5-38 Test CH7: 2452MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 5-39 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 5-40 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 6-1 6. BAND EDGE COMPLIANCE TEST 6.1. Test Equipment Item Equipment Manufacturer Model No.Serial No. Last Cal. Cal. Interval 1. Spectrum Agilent E4446A US44300459 May.08, 13 1 Year 2. Amp HP 8449B 3008A08495 May.08, 13 1 Year 3. Antenna EMCO 3115 9607-4580 May.08, 13 1Year 4. HF Cable Hubersuhne Sucoflex104- May.08, 13 1 Year 6.2. Limit All the lower and upper band-edges emissions appearing within 2310MHz to 2390MHz and 2483.5MHz to 2500MHz restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions outside operation frequency band 2400MHz to 2483.5MHz shall be at least 20dB below the fundamental emissions, or comply with 15.209 limits. 6.3. Test Produce 1. The EUT is placed on a turntable, which is 0.8m above the ground plane and worked at highest radiated power. 2. The turntable was rotated for 360 degrees to determine the position of maximum emission level. 3. EUT is set 3m away from the receiving antenna, which is varied from 1m to 4m to find out the highest emission. 4. Set the spectrum analyzer in the following setting in order to capture the lower and upper band-edges of the emission: (a) PEAK: RBW=1MHz; VBW=3MHz; Sweep=AUTO (b) AVERAGE: RBW=1MHz; VBW=10Hz; Sweep=AUTO 6.4. Test Results Pass (The testing data was attached in the next pages.) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 6-2 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 6-3 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 6-4 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 6-5 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 6-6 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 6-7 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 6-8 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 6-9 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 6-10 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 6-11 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 6-12 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 6-13 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report N…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 6-30 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 6-31 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 6-32 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 6-33 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 7-1 7. 6dB Bandwidth Test 7.1. Test Equipment Item Equipment Manufacturer Model No.Serial No. Last Cal. Cal. Interval 1. Spectrum Analyzer Agilent N9030A MY51380221 Oct.31, 12 1Year 2. Amp HP 8449B 3008A08495 May.08, 13 1 Year 3. Antenna EMCO 3115 9510-4580 May.08, 13 1Year 4. HF Cable Hubersuhner Sucoflex104- May.08, 13 1 Year 7.2. Limit For direct sequence systems, the minimum 6dB bandwidth shall be at least 500kHz 7.3. Test Procedure The transmitter output was connected to a spectrum analyzer, The bandwidth of the fundamental frequency was measured by spectrum analyzer with 300KHz RBW and 1MHz VBW. The 6dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6dB. 7.4. Test Results EUT:300Mbps Wireless N ADSL2+ Modem Router M/N:TD-W8960N Test date: 2013-11-05 Pressure: 101.3±1.0 kpa Humidity: 49.4±3.0% Tested by: Kevin_Hu Test site: RF site Temperature:21.7±0.6 °C Cable loss: 1 dB Attenuator loss: 20 dB 6dB bandwidth （MHz） Test Mode CH Chain 0 Chain 1 Limit (KHz) CH1 N/A 8.240 >500 CH6 N/A 8.239 >500 11b CH11 N/A 8.233 >500 CH1 16.21 16.22 >500 CH6 16.16 16.13 >500 11g CH11 16.15 16.19 >500 CH1 17.26 16.70 >500 CH6 17.22 16.73 >500 11n HT20 CH11 17.15 17.01 >500 CH1 36.48 36.51 >500 CH4 36.51 36.48 >500 11n HT40 CH7 36.39 35.49 >500 Conclusion: PASS R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 7-2 ANT 0 Test Mode: IEEE 802.11g TX Test CH1: 2412MHz Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 7-3 Test CH11: 2462MHz Test Mode: IEEE 802.11n HT20 TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 7-4 Test CH6: 2437MHz Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 7-5 Test Mode: IEEE 802.11n HT40 TX Test CH1: 2422MHz Test CH4: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 7-6 Test CH7: 2452MHz ANT 1 Test Mode: IEEE 802.11b TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 7-7 Test CH6: 2437MHz Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 7-8 Test Mode: IEEE 802.11g TX Test CH1: 2412MHz Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 7-9 Test CH11: 2462MHz Test Mode: IEEE 802.11n HT20 TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 7-10 Test CH6: 2437MHz Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 7-11 Test Mode: IEEE 802.11n HT40 TX Test CH1: 2422MHz Test CH4: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 7-12 Test CH7: 2452MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV5 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332 8-1 8. OUTPUT POWER TEST 8.1. Test Equipment Item Equipment Manufacturer Model No.Serial No. Last Cal. Cal. Interval 1. Spectrum Agilent E4446A US44300459 May.08, 13 1 Year 2. Amp HP 8449B 3008A08495 May.08, 13 1 Year 3. Antenna EMCO 3115 9510-4580 May.08, 13 1Year 4. HF Cable Hubersuhne Sucoflex104- May.08, 13 1 Year 5. Power Meter Anritsu ML2487A6K00002472 May.08, 13 1Year 6. Power Sensor Anritsu MA2491A033005 May.08, 13 1Year 7. Spectrum Analyzer Agilent N9030A MY5138022 May.08, 13 1 Year 8.2. Limit (FCC Part 15C 15.247 b(3)) For systems using digital modulation in the 2400—2483.5MHz, The Peak out put Power shall not exceed 1W(30dBm) 8.3. Test Procedure 1, Connected the EUT’s antenna port to measure device by 26dB attenuator. 2, For IEEE 802.11b/g and IEEE802.11n HT20 mode, use a PK power meter which’s bandwidth is 20MHz and above 26dB bandwidth of signal to measure out each test modes’ PK output power. 3, For IEEE802.11n HT40 mode, because the signal’s bandwidth is about 40MHz and above 20MHz bandwidth of power sensor ML2491A. 1) Set the RBW = 1MHz. 2) Set the VBW = 3MHz. 3) Set the span to a value that is 5-30% greater than the EBW. 4) Detector = peak. 5) Sweep time = auto couple. 6) Trace mode = max hold. 7) Allow trace to fully stabilize. 8) Use the spectrum analyzer’s integrated band power measurement function with band limits set equal t…

Text truncated - open the document above for the full version.
