TE7TDW8960NV6300Mbps Wireless N ADSL2+ Modem Router

TD-W8960N 300Mbps Wireless N ADSL2+ Modem Router Rev: 5.0.0 1910010662 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2012 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France. This device has been designed to operate with the antennas listed below, and having a maximum gain of 3 dBi. Antennas not included in this list or having a gain greater than 3 dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. Industry Canada Statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) Le dispositif ne doit pas produire de brouillage préjudiciable, et (2) Ce dispositif doit accepter tout brouillage reçu,y compris un brouillage susceptible de provoquer un fonctionnement indésirable. NOTE IMPORTANTE: Déclaration d’exposition aux radiations: Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. Korea Warning Statements: 당해 무선설비는 운용중 전파혼신 가능성이 있음. NCC Notice: 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功 率或變更原設計之特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用…

Text truncated - open the document above for the full version.

AGENCYAUTHORIZATIONLETTER FCCID:TE7TDW8960NV6 Date:May07,2015 Towhomitmayconcern: We,theundersigned,herebyauthorizeAudixTechnology(Shenzhen)Co.,Ltd (No.6,KeFengRd.,52Block,ShenzhenScience&Industrial Park,Nantou,Shenzhen,Guangdong,China)toactonourbehalf,asouragent,in thefollowingmattersrelatedtotheFCCapprovalofourproducts:reportsubmittal, relatedcorrespondence,thesigningofalldocumentsrelatingtothesematters, andanyotherlawfulactivitynecessarytoobtainsuchcertification.Anyactcarried outbyAudixwithinthescopeofthisauthorizationshallhavethesameeffectsas ourown. Thisauthorizationshallexpire6monthsfromoriginaldate.Ifyouhaveany questionsregardingtheauthorization,pleasedon’thesitatetocontactus. Thankyou. Sincerely, Nameofauthorizedsigner:YongquanWang Titleofauthorizedsigner:ProductDept.Manager CompanyName:TP-LINKTechnologiesCo.,Ltd. Tel:86-755-26525554 Fax:86-755-26508930 Website:WWW.TP-LINK.COM E-mail:[email protected]

Date:May07,2015 FederalCommunicationsCommission AuthorizationandEvaluationDivision FCCID:TE7TDW8960NV6 ConfidentialityRequest PursuanttoSections0.457and0.459oftheCommission’sRules,the Applicantherebyrequestsconfidentialtreatmentofinformationaccompanying thisapplicationasoutlinedbelow: 1.Blockdiagram 2.Schematics 3.OperationDescription Theabovematerialscontaintradesecretsandproprietaryinformationnot customarilyreleasedtothepublic.Thepublicdisclosureofthesematters mighttoharmfultotheapplicantandprovideunjustifiedbenefitstoits competitors. TheapplicantunderstandsthatpursuanttoRule0.457,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethe dateofthegrantforthisapplication. Sincerely, Nameofauthorizedsigner:YongquanWang Titleofauthorizedsigner:ProductDept.Manager CompanyName:TP-LINKTechnologiesCo.,Ltd. Tel:86-755-26525554 Fax:86-755-26508930 Website:WWW.TP-LINK.COM E-mail:[email protected]

AttestationforFCCDeclarationofConformity FCCID:TE7TDW8960NV6Date:May12,2015 Pleasebenotifiedthatwe,theundersigned,TP-LINKTECHNOLOGIESCO., LTDdeclarethattheproductbearstheaboveFCCIDisalsocomplyingwith therequirementsofFCCDoC.ThetestreportnumberforFCCDoCis EM-F1020868Awithisissuedbyanaccreditedlab,AudixTechnology Corporation,EMCDepartmentlocatedatNo.53-11,Tin-FuTsun,Lin-Kou, TaipeiHsien,Taiwan.Whichhasbeenaccreditedinaccordancetoallofthe requirementsof47CFR2.948(d)and(e)oftheFCCrulesandKDB349827. Sincerely, Nameofauthorizedsigner:YongquanWang Titleofauthorizedsigner:ProductDept.Manager CompanyName:TP-LINKTechnologiesCo.,Ltd. Tel:86-755-26525554 Fax:86-755-26508930 Website:WWW.TP-LINK.COM E-mail:[email protected]

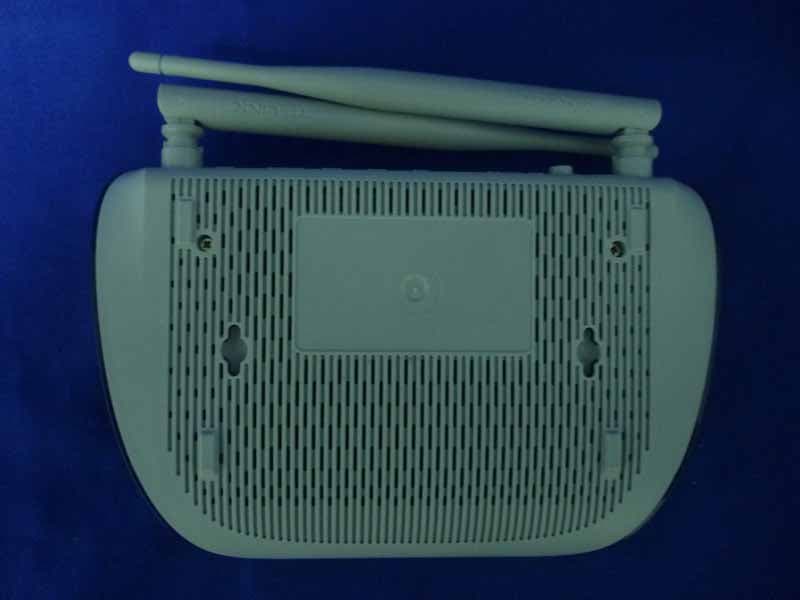

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 14-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT

Label Location

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 14-4 Figure 7 General Appearance of the EUT Figure 8 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 14-5 Figure 9 Components Side of the PCB Figure 10 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 14-6 Figure 11 Components Side of the PCB Figure 12 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 14-7 Figure 13 Power Adapter Figure 14 Power Adapter R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 14-8 Figure 15 Power Adapter

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 10-1 10. MPE ESTIMATION 10.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 10.2. Estimation Result EUT: 300Mbps Wireless N ADSL2+ Modem Router M/N: TD-W8960N Test date: 2013-11-05 Pressure: 101.3±1.0 kpa Humidity: 49.4±3.0% Tested by: Leo-Li Test site: RF site Temperature: 21.7±0.6 °C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain: 5dBi Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE CH1 2412 21.72 148.59 5 3.16 0.0935 CH6 2437 22.94 196.79 5 3.16 0.1239 11b CH11 2462 21.50 141.25 5 3.16 0.0889 CH1 2412 20.36 108.64 5 3.16 0.0684 CH6 2437 28.21 662.22 5 3.16 0.4168 11g CH11 2462 21.71 148.25 5 3.16 0.0933 CH1 2412 22.10 162.18 5 3.16 0.1021 CH6 2437 28.12 648.63 5 3.16 0.4083 11n HT20 CH11 2462 23.13 205.59 5 3.16 0.1294 CH3 2422 23.33 215.28 5 3.16 0.1355 CH6 2437 28.95 785.24 5 3.16 0.4943 11n HT40 CH9 2452 22.62 182.81 5 3.16 0.1151

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of TP-LINK TECHNOLOGIES CO., LTD. 300Mbps Wireless N ADSL2+ Modem Router Model No.: TD-W8960N FCC ID: TE7TDW8960NV6 Prepared for : TP-LINK TECHNOLOGIES CO., LTD. Building 24(floors 1,3,4,5) and 28 (floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F13332-1 Date of Test ： Oct.15~Nov.15, 2013 Date of Report ： May.11, 2015 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-1 1.1. Description of Standards and Results ...................................................................................1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ...............................................................................................2-1 2.2. Test Information ...................................................................................................................2-2 2.3. Tested Supporting System Details........................................................................................2-3 2.4. Block Diagram of Test Setup ...............................................................................................2-3 2.5. Test Facility ..........................................................................................................................2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2).....................................................2-4 3. POWER LINE CONDUCTED EMISSION TEST....................................................... 3-1 3.1. Test Equipments ...................................................................................................................3-1 3.2. Block Diagram of Test Setup ...............................................................................................3-1 3.3. Power Line Conducted Emission Test Limits ......................................................................3-1 3.4. Configuration of EUT on Test..............................................................................................3-1 3.5. Operating Condition of EUT ................................................................................................3-2 3.6. Test Procedure ......................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results .....................................................................3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment.....................................................................................................................4-1 4.2. Block Diagram of Test Setup ...............................................................................................4-1 4.3. Radiated Emission Limit ......................................................................................................4-2 4.4. EUT Configuration on Test ..................................................................................................4-3 4.5. Operating Condition of EUT ................................................................................................4-3 4.6. Test Procedure ......................................................................................................................4-3 4.7. Radiated Emission Test Results ...........................................................................................4-4 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment.....................................................................................................................5-1 5.2. Limit .....................................................................................................................................5-1 5.3. Test Procedure ......................................................................................................................5-1 5.4. Test result .............................................................................................................................5-1 6. BAND EDGE COMPLIANCE TEST............................................................................ 6-1 6.1. Test Equipment.....................................................................................................................6-1 6.2. Limit .....................................................................................................................................6-1 6.3. Test Produce .........................................................................................................................6-1 6.4. Test Results ..........................................................................................................................6-1 7. 6dB Bandwidth Test ........................................................................................................ 7-1 7.1. Test Equipment.....................................................................................................................7-1 7.2. Limit .....................................................................................................................................7-1 7.3. Test Procedure ...............................................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-1 5. CONDUCTED SPURIOUS EMISSIONS 5.1. Test Equipment Item Equipment ManufacturerModel No. Serial No. Last Cal. Cal. Interval 1. Spectrum AnalyzerAgilent N9030A MY51380221 Oct.31, 12 1Year 2. Attenuator Agilent 8491B MY39262165 May.08,13 1 Year 3. RF Cable Hubersuhner SUCOFLEX10228618/2 May.08,13 1Year 5.2. Limit In any 100kHz bandwidth outside the frequency bands in which the spread spectrum intentional radiator in operating, the radio frequency power that is produced by the intentional radiator shall be at least 20dB below that in the 100kHz bandwidth within the band that contains the highest level of the desired power. 5.3. Test Procedure The transmitter output was connected to a spectrum analyzer, The resolution bandwidth is set to 100 kHz, The video bandwidth is set to 300 kHz and measure all the emissions detected. 5.4. Test result PASS (The testing data was attached in the next pages.) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-2 ANT 0 Test Mode: IEEE 802.11g TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-3 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-4 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-5 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-6 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-7 Test Mode: IEEE 802.11n HT20 TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-8 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-9 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-10 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-11 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-12 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-13 Test Mode: IEEE 802.11n HT40 TX Test CH3: 2422MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-14 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-15 Test CH6: 2437MHz

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-16 Test CH9: 2452MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-17 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-18 ANT 1 Test Mode: IEEE 802.11b TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-19 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-20 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-21 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-22 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-23 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-24 Test Mode: IEEE 802.11g TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-25 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-26 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-27 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-28 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-29 Test Mode: IEEE 802.11n HT20 TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-30 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-31 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-32 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-33 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-34 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-35 Test Mode: IEEE 802.11n HT40 TX Test CH3: 2422MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-36 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-37 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-38 Test CH9: 2452MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-39 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 5-40 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 6-1 6. BAND EDGE COMPLIANCE TEST 6.1. Test Equipment Item Equipment Manufacturer Model No.Serial No. Last Cal. Cal. Interval 1. Spectrum Agilent E4446A US44300459 May.08, 13 1 Year 2. Amp HP 8449B 3008A08495 May.08, 13 1 Year 3. Antenna EMCO 3115 9607-4580 May.08, 13 1Year 4. HF Cable Hubersuhne Sucoflex104- May.08, 13 1 Year 6.2. Limit All the lower and upper band-edges emissions appearing within 2310MHz to 2390MHz and 2483.5MHz to 2500MHz restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions outside operation frequency band 2400MHz to 2483.5MHz shall be at least 20dB below the fundamental emissions, or comply with 15.209 limits. 6.3. Test Produce 1. The EUT is placed on a turntable, which is 0.8m above the ground plane and worked at highest radiated power. 2. The turntable was rotated for 360 degrees to determine the position of maximum emission level. 3. EUT is set 3m away from the receiving antenna, which is varied from 1m to 4m to find out the highest emission. 4. Set the spectrum analyzer in the following setting in order to capture the lower and upper band-edges of the emission: (a) PEAK: RBW=1MHz; VBW=3MHz; Sweep=AUTO (b) AVERAGE: RBW=1MHz; VBW=10Hz; Sweep=AUTO 6.4. Test Results Pass (The testing data was attached in the next pages.) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 6-2 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 6-3 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 6-4 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 6-5 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 6-6 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 6-7 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzh…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 7-1 7. 6dB Bandwidth Test 7.1. Test Equipment Item Equipment Manufacturer Model No.Serial No. Last Cal. Cal. Interval 1. Spectrum Analyzer Agilent N9030A MY51380221 Oct.31, 12 1Year 2. Amp HP 8449B 3008A08495 May.08, 13 1 Year 3. Antenna EMCO 3115 9510-4580 May.08, 13 1Year 4. HF Cable Hubersuhner Sucoflex104- May.08, 13 1 Year 7.2. Limit For direct sequence systems, the minimum 6dB bandwidth shall be at least 500kHz 7.3. Test Procedure The transmitter output was connected to a spectrum analyzer, The bandwidth of the fundamental frequency was measured by spectrum analyzer with 300KHz RBW and 1MHz VBW. The 6dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6dB. 7.4. Test Results EUT:300Mbps Wireless N ADSL2+ Modem Router M/N:TD-W8960N Test date: 2013-11-05 Pressure: 101.3±1.0 kpa Humidity: 49.4±3.0% Tested by: Kevin_Hu Test site: RF site Temperature:21.7±0.6 °C Cable loss: 1 dB Attenuator loss: 20 dB 6dB bandwidth （MHz） Test Mode CH Chain 0 Chain 1 Limit (KHz) CH1 N/A 8.240 >500 CH6 N/A 8.239 >500 11b CH11 N/A 8.233 >500 CH1 16.21 16.22 >500 CH6 16.16 16.13 >500 11g CH11 16.15 16.19 >500 CH1 17.26 16.70 >500 CH6 17.22 16.73 >500 11n HT20 CH11 17.15 17.01 >500 CH3 36.48 36.51 >500 CH6 36.51 36.48 >500 11n HT40 CH9 36.39 35.49 >500 Conclusion: PASS R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 7-2 ANT 0 Test Mode: IEEE 802.11g TX Test CH1: 2412MHz Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 7-3 Test CH11: 2462MHz Test Mode: IEEE 802.11n HT20 TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 7-4 Test CH6: 2437MHz Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 7-5 Test Mode: IEEE 802.11n HT40 TX Test CH3: 2422MHz Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 7-6 Test CH9: 2452MHz ANT 1 Test Mode: IEEE 802.11b TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 7-7 Test CH6: 2437MHz Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 7-8 Test Mode: IEEE 802.11g TX Test CH1: 2412MHz Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 7-9 Test CH11: 2462MHz Test Mode: IEEE 802.11n HT20 TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 7-10 Test CH6: 2437MHz Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7TDW8960NV6 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13332-1 7-11 Test Mode: IEEE 802.11n HT40 TX Test CH3: 2422MHz Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Lt…

Text truncated - open the document above for the full version.
