TE7WA60XG108M Wireless Access Point

TP-Link Technologies Co., Ltd.
108M Wireless Access Point - FCC ID TE7WA60XG - TP-Link Technologies Co., Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Oct 17, 2007
Application Purpose
Original Equipment
Date of Application
Oct 17, 2007
Equipment Note
108M Wireless Access Point
Frequency Range
2412.00000000 - 2462.00000000
Company
TP-Link Technologies Co., Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

TL-WA601G 108M Wireless Access Point Rev:1.0 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2007 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions 2400.0-2483.5 MHz Country Restriction Reason/remark Bulgaria General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation Only for indoor applications Package contents The following contents should be found in your box: ¾ One TL-WA601G 108Mbps Wireless Access Point ¾ One AC power Adapter for TL-WA601G 108Mbps Wireless Access Point ¾ One Resource CD , including: z This User Guide z Other Helpful Information ) Note: If any of the listed contents are damaged or missing, please contact the retailer from whom you purchased the product for assistance. COMMENT Chapter 1 Introduction ........................................................................................1 1.1 Product Overview ......................................................................................................1 1.2 Main Features ...........................................................................................................1 1.3 Overview the User Guide ..........................................................................................1 1.4 Conventions ..............................................................................................................2 Chapter 2 Hardware Installation .........................................................................3 2.1 The Front Panel ........................................................................................................3 2.1.1 LED Explanation...............................................................................................................3 2.2 The Back Panel .........................................................................................................3 2.3 System Requirements ...............................................................................................4 2.4 Installation Environment Requirements.....................................................................4 2.5 Connecting the Device ..............................................................................................4 2.6 Configure PC.............................................................................................................5 Chapter 3 Software Configuration......................................................................9 3.1 Login .........................................................................................................................9 3.2 Status ......................................................................................................................10 3.3 Network ...................................................................................................................11 3.4 Wireless ..................................................................................................................11 3.4.1 Basic Settings.…

Text truncated - open the document above for the full version.

Cover Letter(s)

AGENCY AUTHORIZATION LETTER FCC ID: TE7WA60XG Date: Sep 11,2007 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd Audix of Shenzhen to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Xudong Liu / R&D VP TP-LINK Technologies Co., Ltd.

Cover Letter(s)

Date:Sep 11,2007 Federal Communications Commission Authorization and Evaluation Division FCC ID: TE7WA60XG Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outline below: 1. Schematics 2. Block Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Application and provide unjustified benefits to its competitors. The Application understands that pursuant to Rule 0.457,disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Xu Dong Liu /R&D VP TP-LINK Technologies Co., Ltd.

External Photos

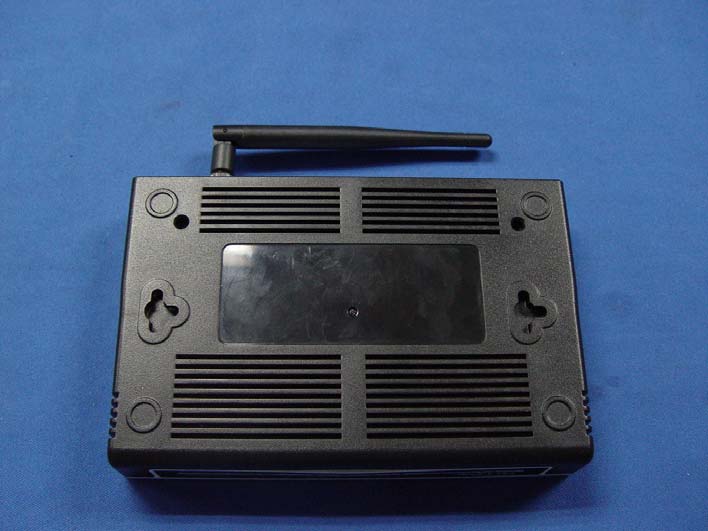

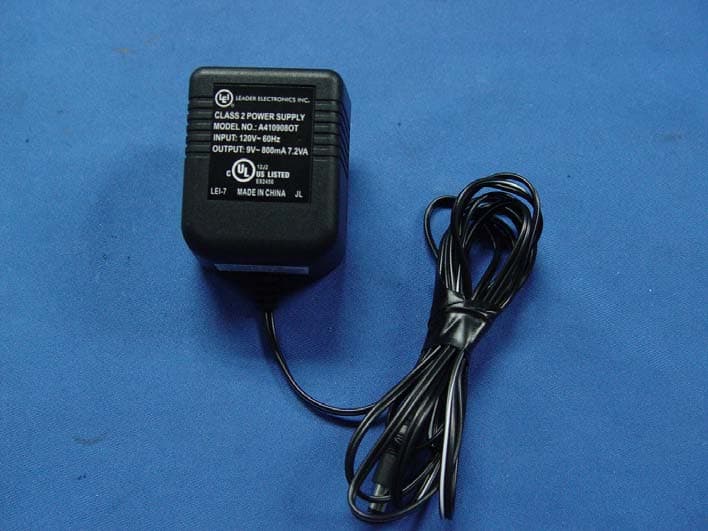

Page 6 TP-LINK Technologies Co., Ltd 108M Wireless Access Point FCC ID:TE7WA60XG Photographs Figure 1 General Appearance Figure 2 General Appearance Page 7 TP-LINK Technologies Co., Ltd 108M Wireless Access Point FCC ID:TE7WA60XG Figure 3 General Appearance Figure 4 General Appearance Label Location

ID Label/Location Info

1588 108M Wireless Access Point Model No.: TL-WA601G Contains FCC ID:TE7WA60XG Power: 9V~ 50-60Hz 0.8A Page 7 TP-LINK Technologies Co., Ltd 108M Wireless Access Point FCC ID:TE7WA60XG Figure 3 General Appearance Figure 4 General Appearance Label Location

Internal Photos

Page 8 TP-LINK Technologies Co., Ltd 108M Wireless Access Point FCC ID:TE7WA60XG Figure 5 Inside of the EUT Figure 6 Inside of the EUT

RF Exposure Info

FCC ID:TE7WA60XG page 9-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07443 9. MPE ESTIMATION 9.1. Limit for General Population / Uncontrolled Exposures Frequency Power density (mW/cm²) Averaging time (minutes) 300MHz~1.5GHz F/1500 30 1.5GHz~100GHz 1.0 30 Frequency (MHz) Power density (mW/cm²) Averaging time (minutes) 2412 1.0 30 2442 1.0 30 2462 1.0 30 Note: F = Frequency in MHz 9.2. Estimation Result 2.1 IEEE 802.11b Mode Channel Frequency(MHz) Peak output power(dBm) antenna gain(dBi) antenna gain (Linear) 1 2412 16.95 4 2.51 7 2442 17.57 4 2.51 11 2462 17.84 4 2.51 Channel Frequency(MHz) Peak output power to antenna (mW) Power density at 20cm(mW/ cm 2 ) 1 2412 49.55 0.0248 7 2442 57.15 0.0286 11 2462 60.81 0.0303 FCC ID:TE7WA60XG page 9-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07443 2.2 IEEE 802.11g Mode Channel Frequency(MHz) Peak output power(dBm) antenna gain(dBi) antenna gain (Linear) 1 2412 22.18 4 2.51 7 2442 24.61 4 2.51 11 2462 22.07 4 2.51 Channel Frequency(MHz) Peak output power to antenna (mW) Power density at 20cm(mW/ cm 2 ) 1 2412 165.20 0.0825 7 2442 289.07 0.1444 11 2462 161.06 0.0805 2.3 IEEE 802.11g Turbo Mode Channel Frequency(MHz) Peak output power(dBm) antenna gain(dBi) antenna gain (Linear) 6 2437 24.73 4 2.51 Channel Frequency(MHz) Peak output power to antenna (mW) Power density at 20cm(mW/ cm 2 ) 6 2437 297.17 0.1485

Test Report

FCC ID:TE7WA60XG Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07443 APPLICATION FOR CERTIFICATION On Behalf of TP-LINK Technologies Co., Ltd 108M Wireless Access Point Model Number: TL-WA601G Prepared for : TP-LINK Technologies Co., Ltd Building 7, Second Part, Honghualing Industrial Zone, Xili town, Nanshan District, Shenzhen, China Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number Κ ACS-F07443 Date of Test Κ Sep.11 ~Oct.11, 2007 Date of Report Κ Oct. 17, 2007 FCC ID:TE7WA60XG Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07443 TABLE OF CONTENTS Description Page FCC Test Report for Declaration of Conformity 1.SUMMARY OF STANDARDS AND RESULTS................................................................... 1-1 1.1.Description of Standards and Results ............................................................................................1-1 2.GENERAL INFORMATION .................................................................................................. 2-1 2.1.Description of Device (EUT) .........................................................................................................2-1 2.2.Tested Supporting System Details .................................................................................................2-2 2.3.Test Facility ...................................................................................................................................2-3 2.4.Measurement Uncertainty ..............................................................................................................2-3 3.POWER LINE CONDUCTED EMISSION TEST ................................................................ 3-1 3.1.Test Equipments.............................................................................................................................3-1 3.2.Block Diagram of Test Setup .........................................................................................................3-1 3.3.Power Line Conducted Emission Test Limits................................................................................3-1 3.4.Configuration of EUT on Test .......................................................................................................3-2 3.5.Operating Condition of EUT..........................................................................................................3-2 3.6.Test Procedure................................................................................................................................3-2 3.7.Power Line Conducted Emission Test Results ..............................................................................3-2 4.RADIATED EMISSION TEST ............................................................................................... 4-1 4.1.Test Equipment ..............................................................................................................................4-1 4.2.Block Diagram of Test Setup .........................................................................................................4-1 4.3.Radiated Emission Limit................................................................................................................4-2 4.4.EUT Configuration on Test............................................................................................................4-2 4.5.Operating Condition of EUT..........................................................................................................4-3 4.6.Test Procedure................................................................................................................................4-3 4.7.Radiated Emission Test Results .....................................................................................................4-3 5.6dB Bandwidth Test.................................................................................................................. 5-1 5.1.Test Equipment ..............................................................................................................................5-1 5.2.Test Information .............................................................................................................................5-1 5.3.Test Procedure................................................................................................................................5-1 5.4.Test Results ....................................................................................................................................5-2 6.OUTPUT POWER TEST......................................................................................................... 6-1 6.1.Test Equipment ..............................................................................................................................6-1 6.2.Test Information .............................................................................................................................6-1 6.3.Test Procedure................................................................................................................................6-1 6.4.Test Results ....................................................................................................................................6-2 7.BAND EDGE COMPLIANCE TEST ..................................................................................... 7-3 7.1.Test Equipment ..............................................................................................................................7-3 7.2.Test Information .............................................................................................................................7-3 7.3.Test Results ....................................................................................................................................7-3 8.POWER SPECTRAL DENSITY TEST ...…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID:TE7WA60XG Page 12-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07443 12. PHOTOGRAPH 12.1.Photos of Power Line Conducted Emission Test FCC ID:TE7WA60XG Page 12-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07443 12.2.Photos of Radiated Emission Test 30-1000MHz FCC ID:TE7WA60XG Page 12-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07443 Above 1000MHz

Contact Information

Applicant

Jing Huang(Regulatory Compliance Manager)
[email protected]75521534921Fax: 75526508930

Technical Contact

Audix TechnologyKen Lu
[email protected]86-755-2663-9497

52 Block Shenzhen Science Industry · Shenzhen · China

Test Firm

Audix Technology (Shenzhen) Co., Ltd.Smart Tsai
[email protected]86-755-26639495Fax: 86-755-26632877

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz297.00 mW
Confidentiality
Long Term
Grant Notes
Power Output listed is Conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
