TE7WA701ND150Mbps Wireless Lite N Access Point

TL-WA701ND 150Mbps Wireless Lite N Access Point Rev: 2.0.0 1910010249 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2009 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France. TP-LINK TECHNOLOGIES CO., LTD TP-LINK TECHNOLOGIES CO., LTD. South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P. R. China DECLARATION OF CONFORMITY For the following equipment: Product Description: 150Mbps Wireless Lite N Access Point Model No.: TL-WA701ND Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives: Directives 1999/5/EC The above product is in conformity with the following standards or other normative documents ETSI EN 300 328 V1.7.1: 2006 ETSI EN 301 489-1 V1.8.1:2008& ETSI EN 301 489-17 V1.3.2:2008 EN 61000-3-2:2006 EN 61000-3-3:1995+A1:2001+A2:2005 EN60950-1:2006 Recommendation 1999/519/EC EN62311:2008 Directives 2004/108/EC The above product is in conformity with the following standards or other normative documents EN 55022:2006 +A1:2007 EN 55024:1998+A1:2001+A2:2003 EN 61000-3-2:2006 EN 61000-3-3:1995+A1:2001+A2:2005 Directives 2006/95/EC The above product is in conformity with the following standards or other normative documents EN60950-1:2006 Person is responsible for marking this declaration: Yang Hongliang Product Manager of International Business CONTENTS Package Contents.................................................................................................... 1 Chapter 1 Introduction........................................................................................... 2 1.1 Product Overview.............................................................................................. 2 1.2 Main Features ................................................................................................... 2 1.3 Conventions...................................................................................................... 2 Chapter 2 Hardware Installation........................................................................... 3 2.1 The Front Panel................................................................................................ 3 2.2 The Back Panel.........................…

Text truncated - open the document above for the full version.

AGENCY AUTHORIZATION LETTER FCC ID：TE7WA701ND Date:Feb,1 2010 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd （No. 6, Ke Feng Rd., 52 Block， Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China） to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

Date: Feb. 1 ,2010 Federal Communications Commission Authorization and Evaluation Division FCC ID: TE7WA701ND Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

Attestation for FCC Declaration of Conformity FCC ID: TE7WA701ND Date: Feb. 2. 2010 Please be notified that we, the undersigned, TP-LINK TECHNOLOGIES CO., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM-F990100 , with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

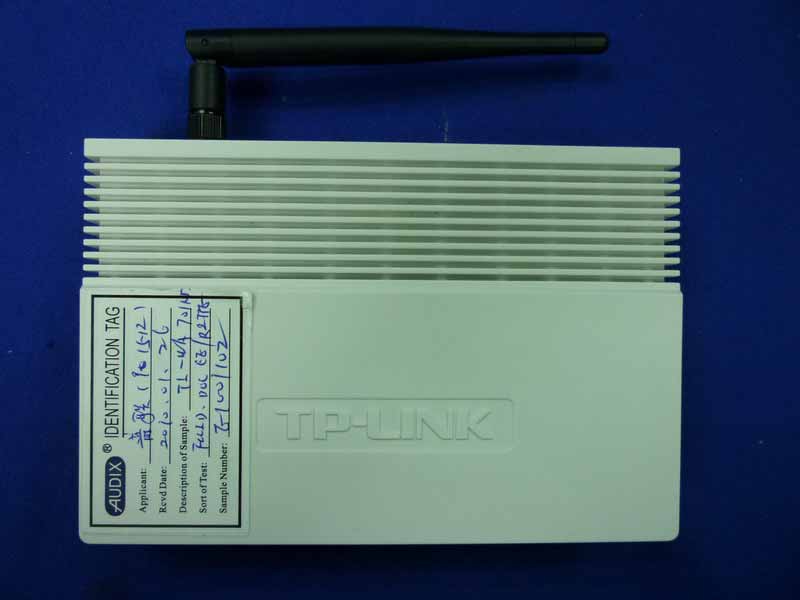

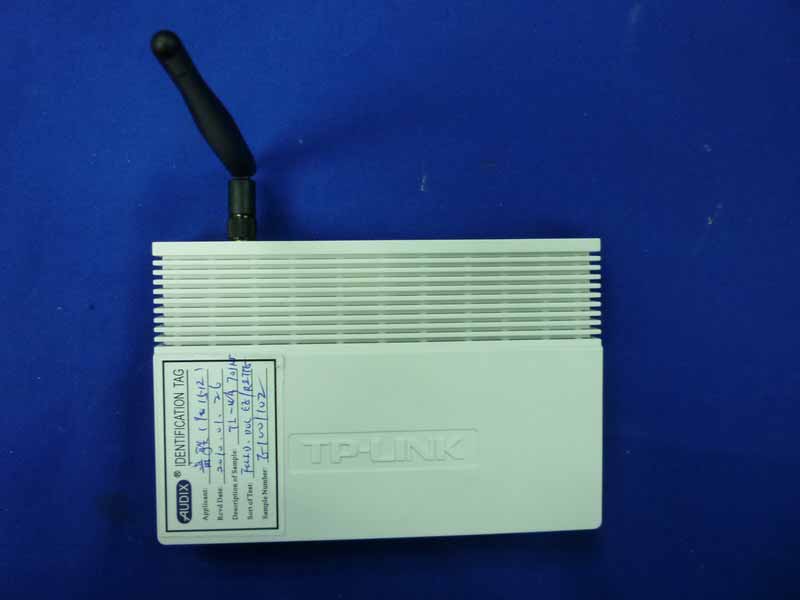

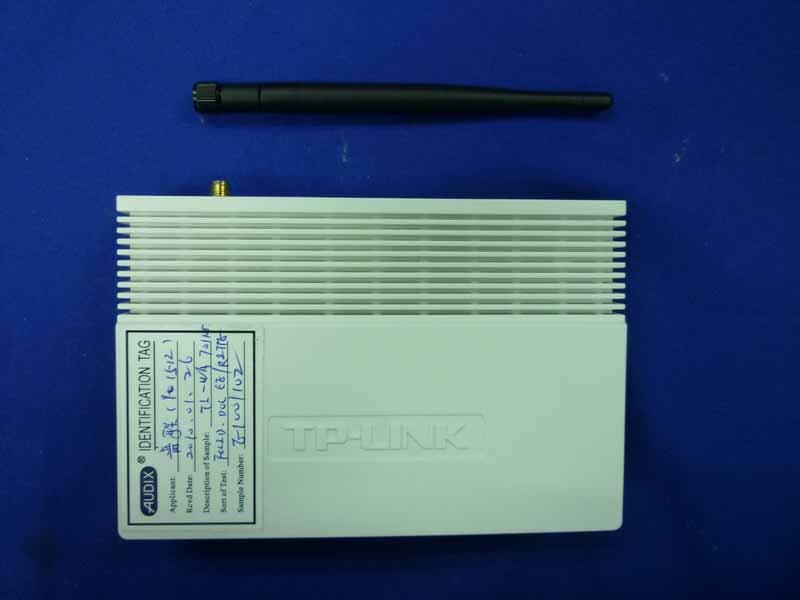

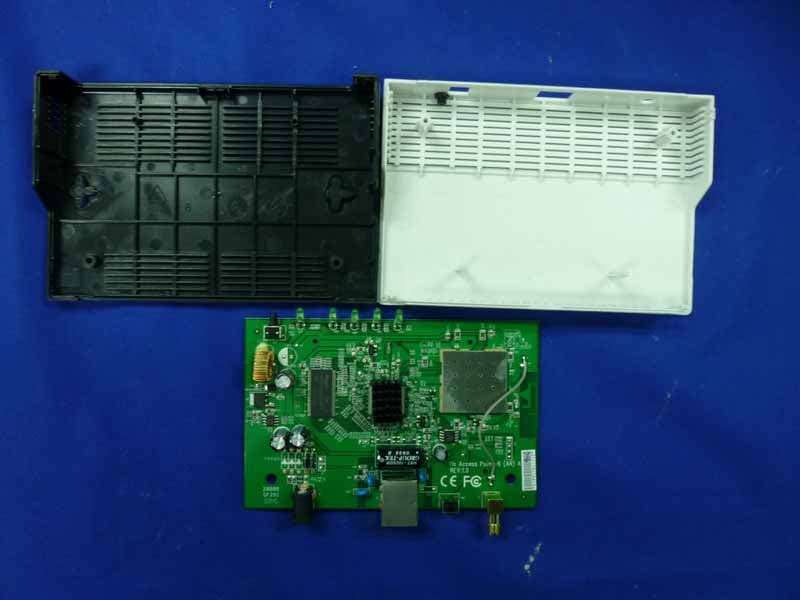

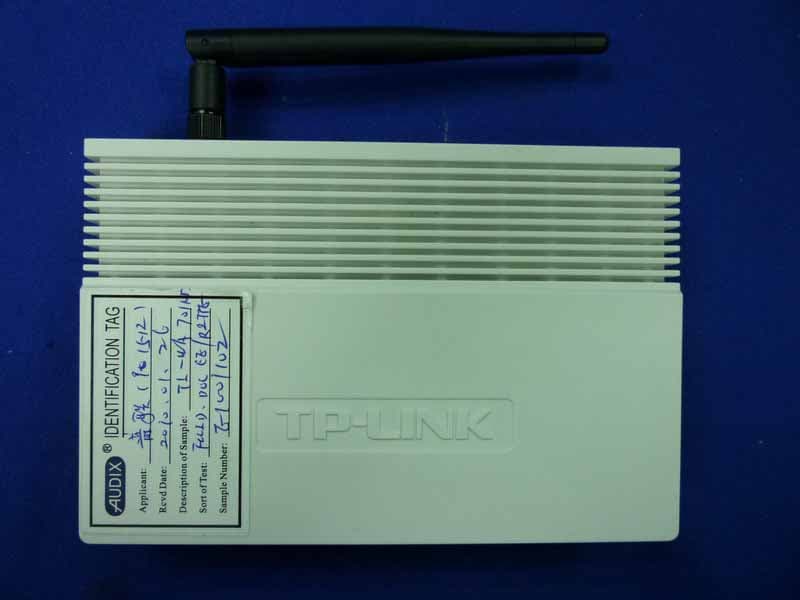

FCC ID:TE7WA701ND Page 14-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10024 14. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT FCC ID:TE7WA701ND Page 14-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10024 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT FCC ID:TE7WA701ND Page 14-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10024 Figure 5 General Appearance of the EUT Figure 6 Inside of the EUT

54 .5*33.5mm 1R文字转曲 TL-WA701ND产品规格标贴(特制） 第一版 80g艾利铜版纸+雾膜 TL-WA701ND 1.0 2010-2-8 白色 PANTONE 536C/533C 白色;PANTONE 533C 余佳 12 E D C B A 12 3456789 E D C 345678 B A 9 料号： 设 计 审 核 颜 色 名 称 版 本 材 质 模 具 机型版本号 完成日期 logo 底色 文字 其它 与上一版的区别 记 录 Default Settings: Model No. FCC ID:TE7WA701ND MADE IN CHINA Power: Wireless Lite N Access Point Label Location

FCC ID:TE7WA701ND Page 14-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10024 Figure 5 General Appearance of the EUT Figure 6 Inside of the EUT FCC ID:TE7WA701ND Page 14-4 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10024 Figure 7 Inside of the EUT Figure 8 Inside of the EUT FCC ID:TE7WA701ND Page 14-5 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10024 Figure 9 Inside of the EUT Figure 10 Power Adapter FCC ID:TE7WA701ND Page 14-6 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10024 Figure 11 Power Adapter

FCC ID:TE7WA701ND Page 11-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10024 11.MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2.Estimation Result Mode CH Frequency (MHz) PK Output power (dBm) Output power (mW) Antenna Gain (dBi) Antenna Gain(linear) MPE (mW/ cm2 ) 1 2412 17.54 56.75 4 2.51 0.0284 6 2437 16.97 49.77 4 2.51 0.0249 11b 11 2462 16.82 48.08 4 2.51 0.0240 1 2412 19.56 90.36 4 2.51 0.0452 6 2437 23.4 218.78 4 2.51 0.1094 11g 11 2462 19.35 86.10 4 2.51 0.0430 1 2412 18.52 71.12 4 2.51 0.0356 6 2437 23.21 209.41 4 2.51 0.1047 11n HT20 11 2462 19.38 86.70 4 2.51 0.0433 1 2422 14.83 30.41 4 2.51 0.0152 4 2437 21.22 132.43 4 2.51 0.0662 11n HT40 7 2452 15.04 31.92 4 2.51 0.0160 Note: The estimation distance is 20cm

FCC ID:TE7WA701ND Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10024 APPLICATION FOR CERTIFICATION On Behalf of TP-LINK Technologies Co., Ltd. 150Mbps Wireless Lite N Access Point Model Number: TL-WA701ND FCC ID: TE7WA701ND Prepared for : TP-LINK Technologies Co., Ltd. Building 7, Second Part, Honghualing Industrial Zone, Xili town, Nanshan, Shenzhen, P.R. China Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F10024 Date of Test ： Jan.23~28, 2010 Date of Report ： Jan.28, 2010 FCC ID:TE7WA701ND Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10024 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS................................................................... 1-1 1.1. Description of Standards and Results ............................................................................................1-1 2. GENERAL INFORMATION .................................................................................................. 2-1 2.1. Description of Device (EUT) .........................................................................................................2-1 2.2. Test information .............................................................................................................................2-2 2.3. Date rate VS power ........................................................................................................................2-3 2.4. Tested Supporting System Details .................................................................................................2-4 2.5. Test Facility ...................................................................................................................................2-5 2.6. Measurement Uncertainty (95% confidence levels, k=2) ..............................................................2-5 3. POWER LINE CONDUCTED EMISSION TEST ................................................................ 3-1 3.1. Test Equipments.............................................................................................................................3-1 3.2. Block Diagram of Test Setup .........................................................................................................3-1 3.3. Power Line Conducted Emission Test Limits................................................................................3-1 3.4. Configuration of EUT on Test .......................................................................................................3-2 3.5. Operating Condition of EUT..........................................................................................................3-2 3.6. Test Procedure................................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results ..............................................................................3-2 4. RADIATED EMISSION TEST ............................................................................................... 4-1 4.1. Test Equipment ..............................................................................................................................4-1 4.2. Block Diagram of Test Setup .........................................................................................................4-1 4.3. Radiated Emission Limit................................................................................................................4-2 4.4. EUT Configuration on Test............................................................................................................4-3 4.5. Operating Condition of EUT..........................................................................................................4-3 4.6. Test Procedure................................................................................................................................4-3 4.7. Radiated Emission Test Results .....................................................................................................4-4 5. CONDUCTED SPURIOUS EMISSIONS............................................................................... 5-1 5.1. Test Equipment ..............................................................................................................................5-1 5.2. Limit...............................................................................................................................................5-1 5.3. Test Procedure................................................................................................................................5-1 5.4. Test result .......................................................................................................................................5-1 6. BAND EDGE COMPLIANCE TEST ..................................................................................... 6-1 6.1. Test Equipment ..............................................................................................................................6-1 6.2. Limit...............................................................................................................................................6-1 6.3. Test Produce ...................................................................................................................................6-1 6.4. Test Results ....................................................................................................................................6-1 7. 6dB Bandwidth Test.................................................................................................................. 7-1 7.1. Test Equipment ..............................................................................................................................7-1 7.2. Limit................................…

Text truncated - open the document above for the full version.

FCC ID:TE7WA701ND Page 13-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10024 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test FCC ID:TE7WA701ND Page 13-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10024 13.2.Photos of Radiated Emission Test 30-1000MHz FCC ID:TE7WA701ND Page 13-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10024 Above 1000MHz
