TE7WA801NV6300Mbps Wireless N Access Point

REV6.0.0 1910012715 User Guide 300Mbps Wireless N Access Point TL-WA801N Contents About This Guide .........................................................................................................1 Chapter 1. Get to Know About Your Access Point. . . . . . . . . . . . . . . . . . . . .2 1. 1. Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1. 2. Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1. 2. 1. LED Explanation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1. 2. 2. The Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Chapter 2. Set Up Internet Connection Via Quick Setup Wizard. . . . . . .5 2. 1. Position Your Access Point. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2. 2. Set Up Your Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2. 2. 1. Access Point Mode (Default). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2. 2. 2. Range Extender Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2. 2. 3. Client Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 2. 2. 4. Multi-SSID Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Chapter 3. Customize Your Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3. 1. View Network Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 3. 2. Change the LAN Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 3. 3. Customize Wireless Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 3. 3. 1. Customize the Network Name (Access Point/Multi-SSID mode) . . . . . . .15 3. 3. 2. Customize Wireless Security (Access Point/Multi-SSID mode) . . . . . . . .16 3. 3. 3. Extend Another Host Network (Range Extender/Client mode) . . . . . . . . .16 3. 3. 4. Customize the Extended Network (Range Extender mode). . . . . . . . . . . .17 3. 4. Use WPS for Wireless Connection (Access Point mode) . . . . . . . . . . . . . . . . . . . . .17 3. 5. Wireless MAC Filtering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 3. 6. Wireless Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 3. 7. Wireless Statistics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 3. 8. Throughput Monitor (Access Point mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 3. 9. DHCP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 3. 9. 1. DHCP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 3. 9. 2. DHCP Clients List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 3. 9. 3. Address Reservation (Access Point mode). . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Chapter 4. Manage Your Access Point. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 4. 1. Set Up System Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 4. 2. Diagnostic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 4. 3. SNMP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 4. 4. Ping Watch Dog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 4. 5. Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 4. 6. Factory Defaults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 4. 7. Backup & Restore. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 4. 8. Reboot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 4. 9. Change Login Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 4. 10. System Log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 4. 11. Log Out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 FAQ ................................................................................................................................33 1 About This Guide This guide is a complement to Quick Installation Guide. The Quick Installation Guide provides instructions for quick Internet setup, while this guide contains details of each function and demonstrates how to configure them. Note: Features available in access point may vary by model and software version. Access point availability may also vary by region or ISP. All images, steps, and descriptions in this g…

Text truncated - open the document above for the full version.

TP-Link Technologies Co., Ltd. Authority to Act as Agent Date: 2020-03-05 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: BTL Inc./Mandy Wang is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 2021-03-05 By: __________________________ ________Jing Huang________ (Signature 1 ) (Print name) Title: Regulatory Compliance Manager On behalf of: TP-Link Technologies Co., Ltd. (Company Name) Telephone: 75521534921 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Technologies Co., Ltd. Request for Confidentiality Date: 2020-03-05 Subject: Confidentiality Request for: TE7WA801NV6 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual TP-Link Technologies Co., Ltd.____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Regulatory Compliance Manager __________ Jing Huang__________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Technologies Co., Ltd. Wi-Fi Channel 12 and 13 Declaration Letter Date: 2020-03-05 We, the undersigned company Company Name: TP-Link Technologies Co., Ltd. Address: Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen,518057 China Declare that: Product description: 300Mbps Wireless N Access Point Type designation: TL-WA801N Brand: tp-link FCC ID: TE7WA801NV6 Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: ________________________ Name: Jing Huang Tel: 75521534921 Email: [email protected]

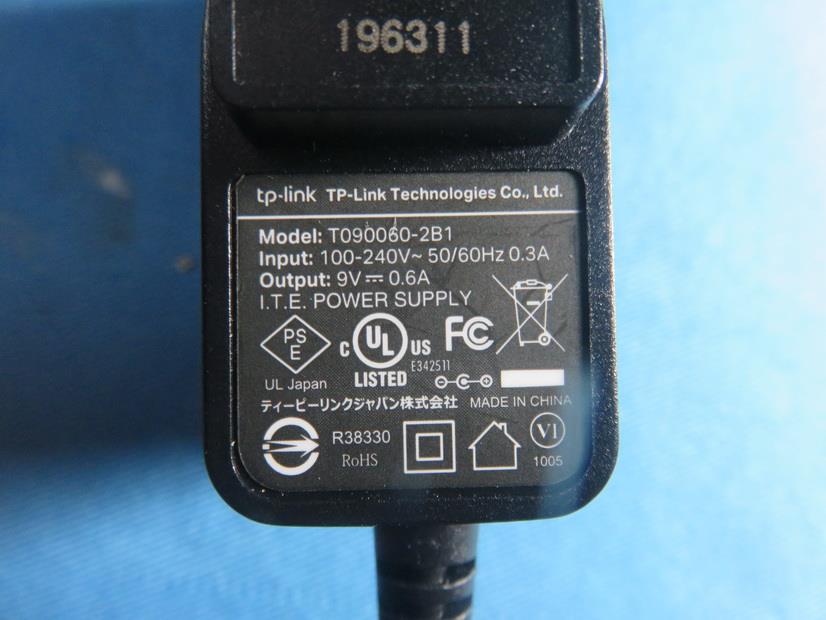

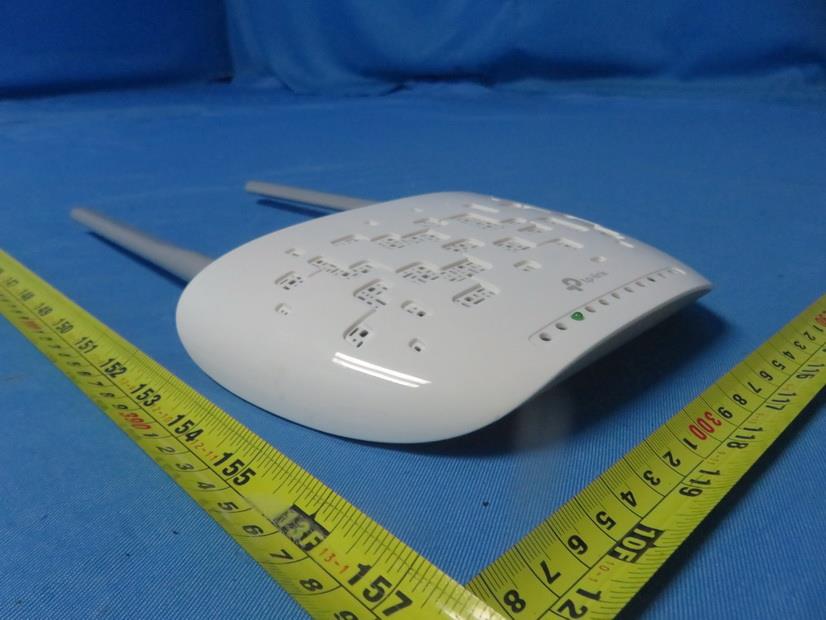

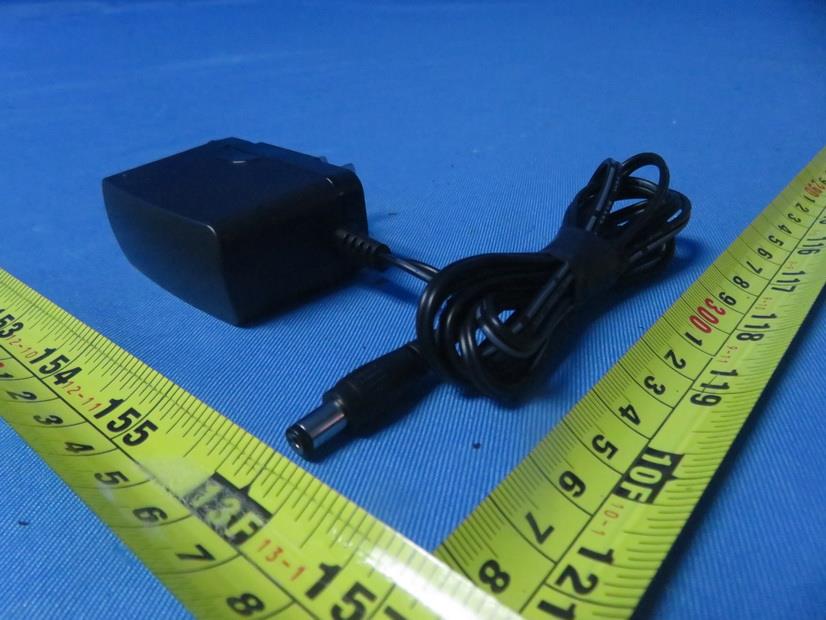

Project No.: 2002C019 Page 2 of 8 Project No.: 2002C019 Page 3 of 8 Project No.: 2002C019 Page 4 of 8 Project No.: 2002C019 Page 5 of 8

卷装供货 边距&跳距：3mm 备注：Wireless Password/PIN、MAC及SSID由工厂直接打印在产品规格标贴上； 序列号由工厂用33*7mm的空白标贴（7210500094）打印,并贴于指定位置. (以上条码均为示意) TL-WA801N(EU/US)_6.0_产品规格标贴 A1 80g艾利铜版纸+雾膜 美E-181 TL-WA801N(EU/US)_6.0 陈映徽 2019-09-17 TP底壳灰 白色 尺寸：69.9*38.7mm±0.2mm,2.5R文字转曲（供应商来料效果图） 300Mbps Wireless N Access Point Model: TL-WA801N 9V 0.6APower: Default Settings: http://tplinkap.net Username: admin Password: admin FCC ID: TE7WA801NV6 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MAC:XX - XX - XX - XX - XX - XX Wireless Password/PIN:XXXXXXXX SSID:TP-Link_AP_XXXX Model:TL-WA801N(EU) Ver:6.0 S/N:XXXXXXXXXXXXX TP-Link Technologies Co., Ltd. No.5 Keyuan Road, Nanshan, Shenzhen, 518057, PRC Label location

Project No.: 2002C019 Page 6 of 8 Ant.1 Ant.2 Project No.: 2002C019 Page 7 of 8 Project No.: 2002C019 Page 8 of 8

Report No.: BTL-FCCP-2-2002C019 Page 1 of 3 FCC RF EXPOSURE REPORT FCC ID: TE7WA801NV6 Project No. : 2002C019 Equipment : 300Mbps Wireless N Access Point Brand Name : tp-link Test Model : TL-WA801N Series Model : N/A Applicant : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Manufacturer : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Date of Receipt : Feb. 17, 2020 Date of Test : Feb. 19, 2020 ~ Mar. 02, 2020 Issued Date : Mar. 06, 2020 Report Version : R00 Test Sample : Engineering Sample No.: DG202002171 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chay Cai Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Tel: +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2002C019 Page 2 of 3 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Mar. 06, 2020 Report No.: BTL-FCCP-2-2002C019 Page 3 of 3 1. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Antenna Specification: Ant. Brand P/N Antenna Type Connector Gain (dBi) 1 3101500977 Dipole Weld 4.71 2 3101501026 Dipole Weld 4.71 Note: This EUT supports CDD, and all antennas have the same gain, Directional gain = G ANT + Array Gain. For power spectral density measurements, N ANT = 2, N SS = 1. Directional gain = G ANT + Array Gain = G ANT + 10 log (N ANT / N SS ) dB =4.71+10log(2/1)dBi=7.72. Then, the power density limit is 8-(7.72-6) = 6.28. For power measurements, Array Gain = 0 dB (N ANT ≤ 4), so the Directional gain=4.71. 2. TEST RESULTS Directional Gain (dBi) Directional Gain (numeric) Max. AVG Output Power (dBm) Max. AVG Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 4.71 3.1623 23.62 7.7446 0.00487 1 Complies Note: The calculated distance is 20 cm. Output power including tune up tolerance (tune up tolerance: 0.5 dBm). End of Test Report

Report No.: BTL-FCCP-1-2002C019 Page 1 of 146 FCC Radio Test Report FCC ID: TE7WA801NV6 This report concerns: Original Grant Project No. : 2002C019 Equipment : 300Mbps Wireless N Access Point Brand Name : tp-link Test Model : TL-WA801N Series Model : N/A Applicant : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Manufacturer : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Date of Receipt : Feb. 17, 2020 Date of Test : Feb. 19, 2020 ~ Mar. 02, 2020 Issued Date : Mar. 06, 2020 Report Version : R00 Test Sample : Engineering Sample No.: DG202002171 for conducted, DG2020021712 for radiated. Standard(s) : FCC Part15, Subpart C (15.247) ANSI C63.10-2013 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chay Cai Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Tel: +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2002C019 Page 2 of 146 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture‟s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL‟s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer‟s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2002C019 Page 3 of 146 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 8 2 . GENERAL INFORMATION 9 2.1 GENERAL DESCRIPTION OF EUT 9 2.2 DESCRIPTION OF TEST MODES 11 2.3 PARAMETERS OF TEST SOFTWARE 12 2.4 DUTY CYCLE 13 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 14 2.6 SUPPORT UNITS 14 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 15 3.1 LIMIT 15 3.2 TEST PROCEDURE 15 3.3 DEVIATION FROM TEST STANDARD 15 3.4 TEST SETUP 16 3.5 EUT OPERATION CONDITIONS 16 3.6 TEST RESULTS 16 4 . RADIATED EMISSIONS TEST 17 4.1 LIMIT 17 4.2 TEST PROCEDURE 18 4.3 DEVIATION FROM TEST STANDARD 18 4.4 TEST SETUP 19 4.5 EUT OPERATION CONDITIONS 20 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 20 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 20 4.8 TEST RESULTS - ABOVE 1000 MHZ 20 5 . BANDWIDTH TEST 21 5.1 LIMIT 21 5.2 TEST PROCEDURE 21 5.3 DEVIATION FROM STANDARD 21 5.4 TEST SETUP 21 Report No.: BTL-FCCP-1-2002C019 Page 4 of 146 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 21 5.6 TEST RESULTS 21 6 . MAXIMUM AVERAGE OUTPUT POWER TEST 22 6.1 LIMIT 22 6.2 TEST PROCEDURE 22 6.3 DEVIATION FROM STANDARD 22 6.4 TEST SETUP 22 6.5 EUT OPERATION CONDITIONS 22 6.6 TEST RESULTS 22 7 . CONDUCTED SPURIOUS EMISSIONS 23 7.1 LIMIT 23 7.2 TEST PROCEDURE 23 7.3 DEVIATION FROM STANDARD 23 7.4 TEST SETUP 23 7.5 EUT OPERATION CONDITIONS 23 7.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY TEST 24 8.1 LIMIT 24 8.2 TEST PROCEDURE 24 8.3 DEVIATION FROM STANDARD 24 8.4 TEST SETUP 24 8.5 EUT OPERATION CONDITIONS 24 8.6 TEST RESULTS 24 9 . MEASUREMENT INSTRUMENTS LIST 25 10 . EUT TEST PHOTO 27 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 31 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 34 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 39 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 42 APPENDIX E - BANDWIDTH 123 APPENDIX F - MAXIMUM AVERAGE OUTPUT POWER 128 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 133 Report No.: BTL-FCCP-1-2002C019 Page 5 of 146 Table of Contents Page APPENDIX H - POWER SPECTRAL DENSITY 142 Report No.: BTL-FCCP-1-2002C019 Page 6 of 146 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Mar. 06, 2020 Report No.: BTL-FCCP-1-2002C019 Page 7 of 146 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart C (15.247) Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth APPENDIX E PASS ------ 15.247(b)(3) Maximum Average Output Power APPENDIX F PASS ------ 15.247(d) Conducted Spurious Emissions …

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2002C019 Page 126 of 146 Test Mode TX N-20M Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 01 2412 17.62 500 Complies 06 2437 15.06 500 Complies 11 2462 16.11 500 Complies CH01 CH06 CH11 Channel Frequency (MHz) 99 % Emission Bandwidth (MHz) Result 01 2412 17.70 Complies 06 2437 18.30 Complies 11 2462 17.80 Complies CH01 CH06 CH11 Report No.: BTL-FCCP-1-2002C019 Page 127 of 146 Test Mode TX N-40M Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 03 2422 33.96 500 Complies 06 2437 33.96 500 Complies 09 2452 33.96 500 Complies CH03 CH06 CH09 Channel Frequency (MHz) 99 % Emission Bandwidth (MHz) Result 03 2422 36.20 Complies 06 2437 36.40 Complies 09 2452 36.00 Complies CH03 CH06 CH09 Report No.: BTL-FCCP-1-2002C019 Page 128 of 146 APPENDIX F - MAXIMUM AVERAGE OUTPUT POWER Report No.: BTL-FCCP-1-2002C019 Page 129 of 146 Test Mode TX B Mode_Ant. 1 Channel Frequency (MHz) Avg Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 19.97 0.16 20.13 30.00 1.0000 Complies 06 2437 19.95 0.16 20.11 30.00 1.0000 Complies 11 2462 19.97 0.16 20.13 30.00 1.0000 Complies Test Mode TX B Mode_Ant. 2 Channel Frequency (MHz) Avg Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 19.83 0.16 19.99 30.00 1.0000 Complies 06 2437 19.61 0.16 19.77 30.00 1.0000 Complies 11 2462 19.51 0.16 19.67 30.00 1.0000 Complies Test Mode TX B Mode_Total Channel Frequency (MHz) Avg Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 23.07 30.00 1.0000 Complies 06 2437 22.95 30.00 1.0000 Complies 11 2462 22.92 30.00 1.0000 Complies Report No.: BTL-FCCP-1-2002C019 Page 130 of 146 Test Mode TX G Mode_Ant. 1 Channel Frequency (MHz) Avg Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 16.33 0.67 17.00 30.00 1.0000 Complies 06 2437 19.93 0.67 20.60 30.00 1.0000 Complies 11 2462 15.23 0.67 15.90 30.00 1.0000 Complies Test Mode TX G Mode_Ant. 2 Channel Frequency (MHz) Avg Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 15.94 0.67 16.61 30.00 1.0000 Complies 06 2437 19.54 0.67 20.21 30.00 1.0000 Complies 11 2462 14.87 0.67 15.54 30.00 1.0000 Complies Test Mode TX G Mode_Total Channel Frequency (MHz) Avg Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 19.82 30.00 1.0000 Complies 06 2437 23.42 30.00 1.0000 Complies 11 2462 18.73 30.00 1.0000 Complies Report No.: BTL-FCCP-1-2002C019 Page 131 of 146 Test Mode TX N-20M Mode_Ant. 1 Channel Frequency (MHz) Avg Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 15.49 0.55 16.04 30.00 1.0000 Complies 06 2437 19.88 0.55 20.43 30.00 1.0000 Complies 11 2462 14.98 0.55 15.53 30.00 1.0000 Complies Test Mode TX N-20M Mode_Ant. 2 Channel Frequency (MHz) Avg Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 15.11 0.55 15.66 30.00 1.0000 Complies 06 2437 19.51 0.55 20.06 30.00 1.0000 Complies 11 2462 14.68 0.55 15.23 30.00 1.0000 Complies Test Mode TX N-20M Mode_Total Channel Frequency (MHz) Avg Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 18.86 30.00 1.0000 Complies 06 2437 23.26 30.00 1.0000 Complies 11 2462 18.39 30.00 1.0000 Complies Report No.: BTL-FCCP-1-2002C019 Page 132 of 146 Test Mode TX N-40M Mode_Ant. 1 Channel Frequency (MHz) Avg Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 03 2422 11.72 1.51 13.23 30.00 1.0000 Complies 06 2437 16.92 1.51 18.43 30.00 1.0000 Complies 09 2452 11.84 1.51 13.35 30.00 1.0000 Complies Test Mode TX N-40M Mode_Ant. 2 Channel Frequency (MHz) Avg Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 03 2422 11.61 1.51 13.12 30.00 1.0000 Complies 06 2437 16.61 1.51 18.12 30.00 1.0000 Complies 09 2452 11.65 1.51 13.16 30.00 1.0000 Complies Test Mode TX N-40M Mode_Total Channel Frequency (MHz) Avg Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 03 2422 16.19 30.00 1.0000 Complies 06 2437 21.29 30.00 1.0000 Complies 09 2452 16.27 30.00 1.0000 Complies Report No.: BTL-FCCP-1-2002C019 Page 133 of 146 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS Report No.: BTL-FCCP-1-2002C019 Page 134 of 146 Test Mode TX B Mode_Ant. 1 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2002C019 Page 135 of 146 Test Mode TX B Mode_Ant. 2 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2002C019 Page 136 of 146 Test Mode TX G Mode_Ant. 1 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2002C019 Page 137 of 146 Test Mode TX G Mode_Ant. 2 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2002C019 Page 138 of 146 Test Mode TX N-20M Mode_Ant. 1 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2002C019 Page 139 of 146 Test Mode TX N-20M Mode_Ant. 2 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: …

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2002C019 Page 27 of 146 10. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-1-2002C019 Page 28 of 146 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-1-2002C019 Page 29 of 146 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-1-2002C019 Page 30 of 146 Radiated Emissions Test Photos Above 1 GHz
