TE7WA901NV6450Mbps Wireless N Access Point

REV6.0.0 1910012719 User Guide 450Mbps Wireless N Access Point TL-WA901N Contents About This Guide .........................................................................................................1 Chapter 1. Get to Know About Your Access Point. . . . . . . . . . . . . . . . . . . . .2 1. 1. Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1. 2. Panel Layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1. 2. 1. Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1. 2. 2. The Back Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Chapter 2. Connect the Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2. 1. Position Your Access Point. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2. 2. Connect Your Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2. 2. 1. Access Point Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2. 2. 2. Range Extender Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2. 2. 3. Client Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2. 2. 4. Multi-SSID Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Chapter 3. Set Up Internet Connection Via Quick Setup Wizard. . . . . 10 3. 1. Log In to the Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 3. 2. Configure the Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 3. 2. 1. Access Point Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 3. 2. 2. Range Extender Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 3. 2. 3. Client Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 3. 2. 4. Multi-SSID Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Chapter 4. Configure the Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 4. 1. Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 4. 2. Operation Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 4. 3. Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 4. 3. 1. LAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 4. 3. 2. DHCP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 4. 3. 3. DHCP Client List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 4. 4. Wireless. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 4. 4. 1. Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 4. 4. 2. Wireless Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 4. 4. 3. WPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 4. 4. 4. Wireless MAC Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 4. 4. 5. Wireless Advanced. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 4. 4. 6. Wireless Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 4. 4. 7. Throughput Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 4. 5. System Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39 4. 5. 1. SNMP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39 4. 5. 2. Diagnostic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 4. 5. 3. Ping Watch Dog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41 4. 5. 4. Firmware Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 4. 5. 5. Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 4. 5. 6. Backup & Restore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 4. 5. 7. Reboot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 4. 5. 8. Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44 4. 5. 9. System Log . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

TP-Link Technologies Co., Ltd. Authority to Act as Agent Date: 2020-02-14 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: BTL Inc./Mandy Wang is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 2021-02-14 By: ____________ ______________ ________Jing Huang________ (Signature 1 ) (Print name) Title: Regulatory Compliance Manager On behalf of: TP-Link Technologies Co., Ltd. (Company Name) Telephone: 75521534921 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Technologies Co., Ltd. Request for Confidentiality Date: 2020-02-14 Subject: Confidentiality Request for: TE7WA901NV6 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual TP-Link Technologies Co., Ltd.____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Regulatory Compliance Manager __________ Jing Huang__________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate TP-Link Technologies Co., Ltd. authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Technologies Co., Ltd. Wi-Fi Channel 12 and 13 Declaration Letter Date: 2020-02-14 We, the undersigned company Company Name: TP-Link Technologies Co., Ltd. Address: Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen,518057 China Declare that: Product description: 450Mbps Wireless N Access Point Type designation: TL-WA901N Brand: tp-link FCC ID: TE7WA901NV6 Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: _____ ___________________ Name: Jing Huang Tel: 75521534921 Email: [email protected]

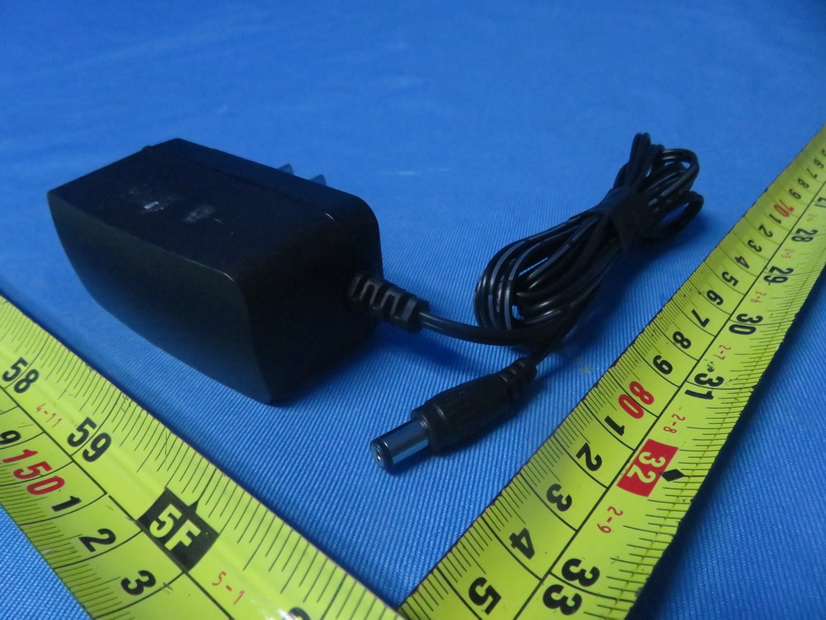

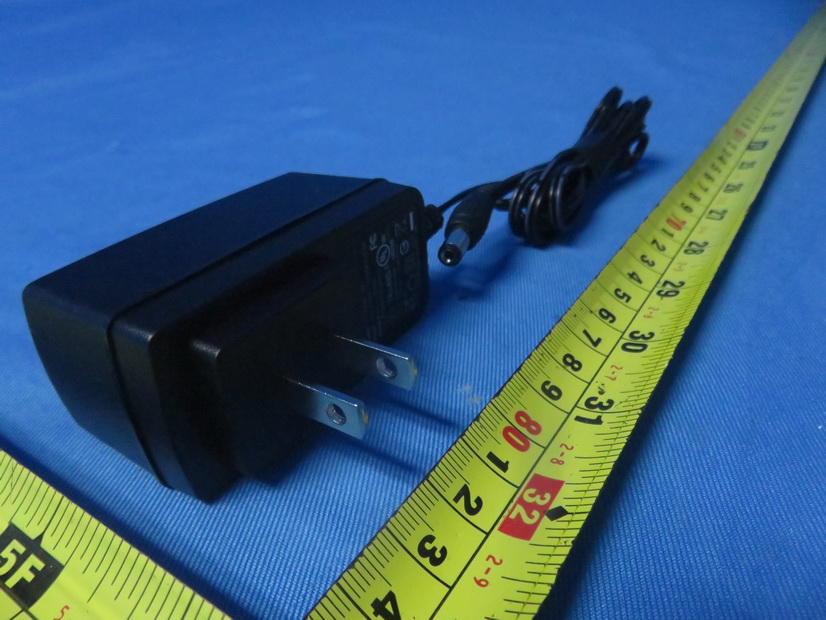

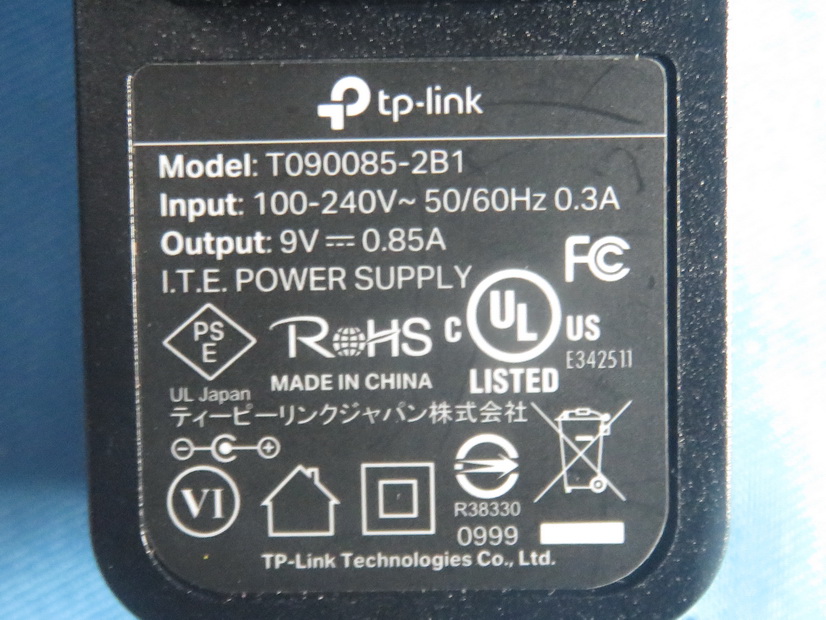

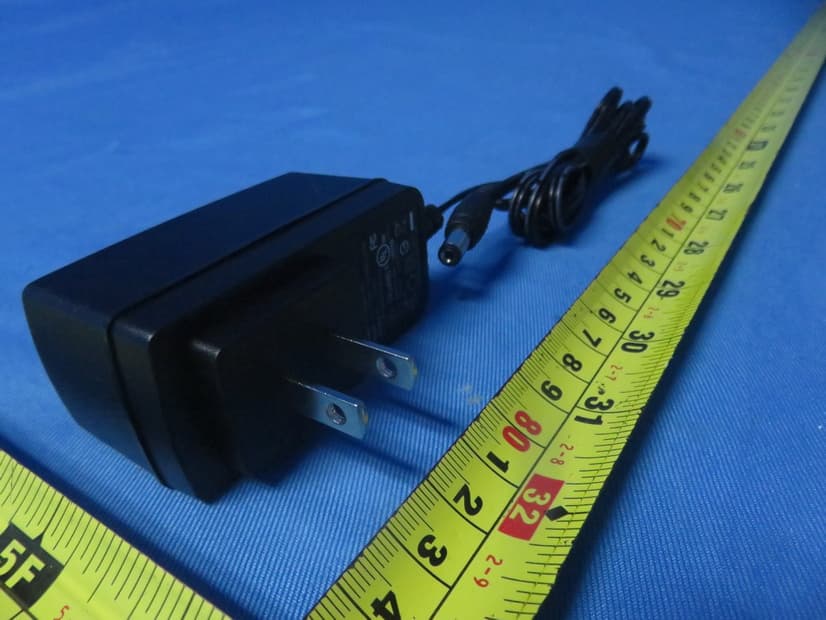

Project No.: 2001C031 Page 2 of 9 Project No.: 2001C031 Page 3 of 9 Project No.: 2001C031 Page 4 of 9 Project No.: 2001C031 Page 5 of 9

TL-WA901N(EU/US)_6.0_产品规格标贴 A2 80g艾利铜版纸+雾膜 美E-195 TL-WA901N(EU/US)_6.0 黄明洁 2019-11-18 白色 TP底壳灰，白色 白色 白色 删除admin信息 ,SSID以生成工具为准) ( 尺寸：70.7*38.7±0.2mm, 2.5R Model: TL-WA901N 450Mbps Wireless N Access Point Power: 9V 0.85A Default Access: http://tplinkap.net Model: TL-WA901N(EU) Ver:6.0 S/N: XXXXXXXXXXXXX MAC: XX-XX-XX-XX-XX-XX Wireless Password/PIN: XXXXXXXX SSID: TP-Link_AP_XXXX This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: TE7WA901NV6 IC: 8853A-WA901NV6 TP-Link Technologies Co., Ltd. No.5 Keyuan Road, Nanshan, Shenzhen, 518057, PRC Label location

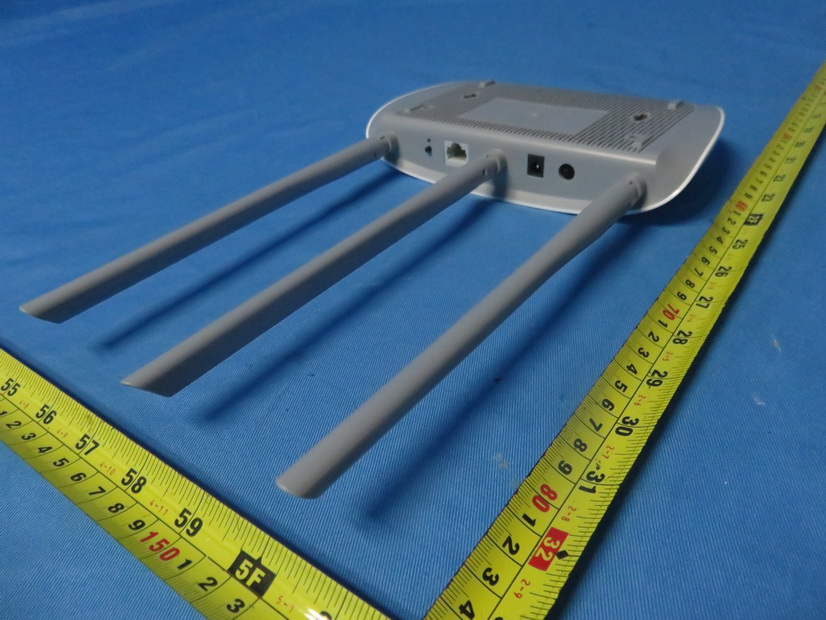

Project No.: 2001C031 Page 6 of 9 ANT 1 ANT 3 ANT 2 Project No.: 2001C031 Page 7 of 9 Project No.: 2001C031 Page 8 of 9 Project No.: 2001C031 Page 9 of 9

Report No.: BTL-FCCP-2-2001C031 Page 1 of 4 FCC RF EXPOSURE REPORT FCC ID: TE7WA901NV6 Project No. : 2001C031 Equipment : 450Mbps Wireless N Access Point Brand Name : tp-link Test Model : TL-WA901N Series Model : N/A Applicant : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Manufacturer : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Date of Receipt : Jan. 06, 2020 Date of Test : Jan. 06, 2020~Feb. 14, 2020 Issued Date : Feb. 18, 2020 Report Version : R00 Test Sample : Engineering Sample No.: DG2020011610 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chay Cai Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Tel: +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2001C031 Page 2 of 4 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Feb. 18, 2020 Report No.: BTL-FCCP-2-2001C031 Page 3 of 4 1. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand P/N Antenna Type Connector Gain(dBi) 1 3101501026 Dipole Weld 4.71 2 3101501087 Dipole Weld 4.71 3 3101501276 Dipole Weld 4.71 Note: This EUT supports CDD, and all antennas have the same gain, Directional gain = G ANT +Array Gain. For power spectral density measurements, Array Gain=10log(N ANT /N SS ) dB, that is Directional gain = 4.71+10log(3/1)dBi=9.48. So, the power density limit is 8-(9.48-6)=4.52 For power measurements, Array Gain = 0 dB (N ANT ≤ 4), so the Directional gain=4.71 Report No.: BTL-FCCP-2-2001C031 Page 4 of 4 2. TEST RESULTS Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 4.71 2.9580 22.47 176.6038 0.10398 1 Complies Note: The calculated distance is 20 cm. Output power including tune up tolerance. End of Test Report

Report No.: BTL-FCCP-1-2001C031 Page 1 of 154 FCC Radio Test Report FCC ID: TE7WA901NV6 This report concerns: Original Grant Project No. : 2001C031 Equipment : 450Mbps Wireless N Access Point Brand Name : tp-link Test Model : TL-WA901N Series Model : N/A Applicant : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Manufacturer : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Date of Receipt : Jan. 06, 2020 Date of Test : Jan. 06, 2020~Feb. 14, 2020 Issued Date : Feb. 18, 2020 Report Version : R00 Test Sample : Engineering Sample No.: DG2020011610 for conducted, DG2020010699 for radiated. Standard(s) : FCC Part15, Subpart C (15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chay Cai Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2001C031 Page 2 of 154 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2001C031 Page 3 of 154 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 8 2 . GENERAL INFORMATION 9 2.1 GENERAL DESCRIPTION OF EUT 9 2.2 DESCRIPTION OF TEST MODES 11 2.3 PARAMETERS OF TEST SOFTWARE 12 2.4 DUTY CYCLE 13 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 14 2.6 SUPPORT UNITS 14 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 15 3.1 LIMIT 15 3.2 TEST PROCEDURE 15 3.3 DEVIATION FROM TEST STANDARD 15 3.4 TEST SETUP 16 3.5 EUT OPERATION CONDITIONS 16 3.6 TEST RESULTS 16 4 . RADIATED EMISSIONS TEST 17 4.1 LIMIT 17 4.2 TEST PROCEDURE 18 4.3 DEVIATION FROM TEST STANDARD 18 4.4 TEST SETUP 19 4.5 EUT OPERATION CONDITIONS 20 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 20 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 20 4.8 TEST RESULTS - ABOVE 1000 MHZ 20 5 . BANDWIDTH TEST 21 5.1 LIMIT 21 5.2 TEST PROCEDURE 21 5.3 DEVIATION FROM STANDARD 21 5.4 TEST SETUP 21 Report No.: BTL-FCCP-1-2001C031 Page 4 of 154 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 21 5.6 TEST RESULTS 21 6 . MAXIMUM AVERAGE OUTPUT POWER TEST 22 6.1 LIMIT 22 6.2 TEST PROCEDURE 22 6.3 DEVIATION FROM STANDARD 22 6.4 TEST SETUP 22 6.5 EUT OPERATION CONDITIONS 22 6.6 TEST RESULTS 22 7 . CONDUCTED SPURIOUS EMISSIONS 23 7.1 LIMIT 23 7.2 TEST PROCEDURE 23 7.3 DEVIATION FROM STANDARD 23 7.4 TEST SETUP 23 7.5 EUT OPERATION CONDITIONS 23 7.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY TEST 24 8.1 LIMIT 24 8.2 TEST PROCEDURE 24 8.3 DEVIATION FROM STANDARD 24 8.4 TEST SETUP 24 8.5 EUT OPERATION CONDITIONS 24 8.6 TEST RESULTS 24 9 . MEASUREMENT INSTRUMENTS LIST 25 10 . EUT TEST PHOTO 27 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 31 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 34 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 39 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 42 APPENDIX E - BANDWIDTH 123 APPENDIX F - MAXIMUM AVERAGE OUTPUT POWER 128 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 133 Report No.: BTL-FCCP-1-2001C031 Page 5 of 154 Table of Contents Page APPENDIX H - POWER SPECTRAL DENSITY 146 Report No.: BTL-FCCP-1-2001C031 Page 6 of 154 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Feb. 18, 2020 Report No.: BTL-FCCP-1-2001C031 Page 7 of 154 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart C (15.247) Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth APPENDIX E PASS ------ 15.247(b)(3) Maximum Average Output Power APPENDIX F PASS ------ 15.247(d) Conducted Spurious Emissions APP…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2001C031 Page 134 of 154 Test Mode TX B Mode_Ant. 1 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2001C031 Page 135 of 154 Test Mode TX B Mode_Ant. 2 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2001C031 Page 136 of 154 Test Mode TX B Mode_Ant. 3 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2001C031 Page 137 of 154 Test Mode TX G Mode_Ant. 1 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2001C031 Page 138 of 154 Test Mode TX G Mode_Ant. 2 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2001C031 Page 139 of 154 Test Mode TX G Mode_Ant. 3 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2001C031 Page 140 of 154 Test Mode TX N-20M Mode_Ant. 1 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2001C031 Page 141 of 154 Test Mode TX N-20M Mode_Ant. 2 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2001C031 Page 142 of 154 Test Mode TX N-20M Mode_Ant. 3 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2001C031 Page 143 of 154 Test Mode TX N-40M Mode_Ant. 1 Bandedge-CH03 Bandedge-CH09 CH03 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH09 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2001C031 Page 144 of 154 Test Mode TX N-40M Mode_Ant. 2 Bandedge-CH03 Bandedge-CH09 CH03 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH09 – 10th Harmonic of the fundamental frequency

Report No.: BTL-FCCP-1-2001C031 Page 145 of 154 Test Mode TX N-40M Mode_Ant. 3 Bandedge-CH03 Bandedge-CH09 CH03 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH09 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2001C031 Page 146 of 154 APPENDIX H - POWER SPECTRAL DENSITY Report No.: BTL-FCCP-1-2001C031 Page 147 of 154 Test Mode TX B Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -6.04 8 Complies 06 2437 -6.90 8 Complies 11 2462 -6.37 8 Complies CH01 CH06 CH11 Test Mode TX B Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -5.87 8 Complies 06 2437 -7.14 8 Complies 11 2462 -6.75 8 Complies CH01 CH06 CH11 Report No.: BTL-FCCP-1-2001C031 Page 148 of 154 Test Mode TX B Mode_Ant. 3 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -5.38 8 Complies 06 2437 -6.85 8 Complies 11 2462 -6.80 8 Complies CH01 CH06 CH11 Test Mode TX B Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -0.98 4.52 Complies 06 2437 -2.19 4.52 Complies 11 2462 -1.86 4.52 Complies Report No.: BTL-FCCP-1-2001C031 Page 149 of 154 Test Mode TX G Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -9.71 8 Complies 06 2437 -8.18 8 Complies 11 2462 -9.36 8 Complies CH01 CH06 CH11 Test Mode TX G Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -9.99 8 Complies 06 2437 -8.54 8 Complies 11 2462 -9.46 8 Complies CH01 CH06 CH11 Report No.: BTL-FCCP-1-2001C031 Page 150 of 154 Test Mode TX G Mode_Ant. 3 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -10.01 8 Complies 06 2437 -8.14 8 Complies 11 2462 -10.31 8 Complies CH01 CH06 CH11 Test Mode TX G Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -5.13 4.52 Complies 06 2437 -3.51 4.52 Complies 11 2462 -4.92 4.52 Complies Report No.: BTL-FCCP-1-2001C031 Page 151 of 154 Test Mode TX N-20M Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -11.30 8 Complies 06 2437 -6.76 8 Complies 11 2462 -13.31 8 Complies CH01 CH06 CH11 Test Mode TX N-20M Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -12.01 8 Complies 06 2437 -7.57 8 Complies 11 2462 -13.21 8 Complies CH01 CH06 CH11 Report No.: BTL-FCCP-1-2001C031 Page 152 of 154 Test Mode TX N-20M Mode_Ant. 3 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -11.96 8 Complies 06 2437 -7.58 8 Complies 11 2462 -14.14 8 Complies CH01 CH06 CH11 Test Mode TX N-20M Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -6.97 4.52 Complies 06 2437 -2.51 4.52 Complies 11 2462 -8.76 4.52 Complies Report No.: BTL-FCCP-1-2001C031 Page 153 of 154 Test Mode TX N-40M Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -17.13 8 Complies 06 2437 -12.66 8 Complies 09 2452 -18.64 8 Complies CH03 CH06 CH09 Test Mode TX N-40M Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -16.48 8 Complies 06 2437 -13.14 8 Complies 09 2452 -17.76 8 Complies CH03 CH06 CH09 Report No.: BTL-FCCP-1-2001C031 Page 154 of 154 Test Mode TX N-40M Mode_Ant. 3 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -17.21 8 Complies 06 2437 -13.52 8 Complies 09 2452 -17.84 8 Complies CH03 CH06 CH09 Test Mode TX N-40M Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -12.16 4.52 Complies 06 2437 -8.32 4.52 Complies 09 2452 -13.29 4.52 Complies End of Test Report

Report No.: BTL-FCCP-1-2001C031 Page 27 of 154 10. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-1-2001C031 Page 28 of 154 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-1-2001C031 Page 29 of 154 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-1-2001C031 Page 30 of 154 Radiated Emissions Test Photos Above 1 GHz
