TE7WDR4300N750 Wireless Dual Band Gigabit Router

TL-WDR4300 N750 Wireless Dual Band Gigabit Router Rev: 1.0.0 1910010640 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2012 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France. Industry Canada Statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) Le dispositif ne doit pas produire de brouillage préjudiciable, et (2) Ce dispositif doit accepter tout brouillage reçu,y compris un brouillage susceptible de provoquer un fonctionnement indésirable. NOTE IMPORTANTE: Déclaration d’exposition aux radiations: Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. Caution : (i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; (ii) high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. Avertissement: (i) les dispo…

Text truncated - open the document above for the full version.

TP-Link Technologies Co., Ltd. Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Date: 2012‐04‐24 AUTHORIZATION LETTER To whom it may concern: We, the undersigned TP‐Link Technologies Co., Ltd., hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required in FCC approval and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Name: Yongquan Wang TP‐Link Technologies Co., Ltd. Tel.: +86‐755‐26502509 Fax.: +86‐755‐26508930 E‐mail: public@tp‐link.com.cn

TP-Link Technologies Co., Ltd. Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Date: 2012‐04‐24 FCC ID: TE7WDR4300 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Name: Yongquan Wang TP‐Link Technologies Co., Ltd. Tel.: +86‐755‐26502509 Fax.: +86‐755‐26508930 E‐mail: public@tp‐link.com.cn

Attestation for FCC Declaration of Conformity FCC ID:TE7WDR4300 Date:May 4th, 2012 Please be notified that we, the undersigned, TP-LINK TECHNOLOGIES CO., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is FD120330C20 , with is issued by an accredited lab, Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Ta i wa n. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26502509 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

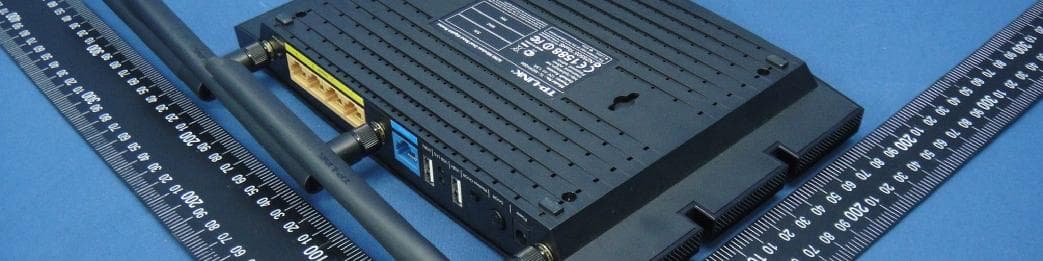

Report No.: 120330C20 1 Report Format Version 4.0.0 Reference No.: 110816E02 CONSTRUCTION PHOTOS OF EUT Report No.: 120330C20 2 Report Format Version 4.0.0 Reference No.: 110816E02 Report No.: 120330C20 3 Report Format Version 4.0.0 Reference No.: 110816E02

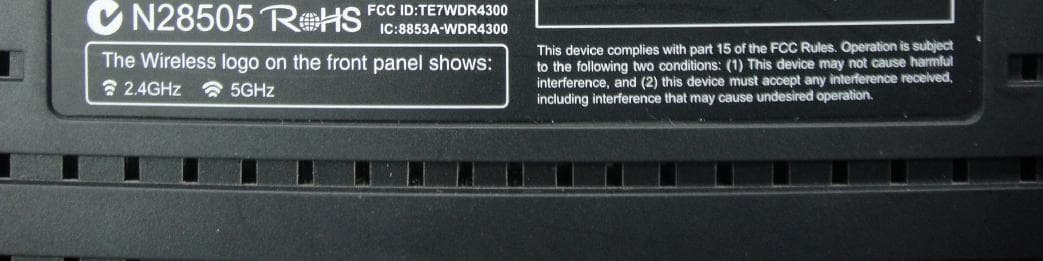

C B A 12 C 345678 B E D D A 9 料号： 12345 E 6789 与上一版的区别 颜 色 名 称 版 本 材 质 模 具 机型版本号 logo 底色 文字 其它 结构工程师 硬件工程师 产品工程师 平面负责人 记 录 审 核 完成日期 设 计 TL-WDR4300 1.0 产品规格标贴 A1 80g艾利铜版纸+雾膜 TL-WDR4300 1.0 李倩 2012-3-16 Pantone 877C 黑色 Pantone 877C Pantone 877C N750 Wireless Dual Band Gigabit Router Model No.: FCC ID:TE7WDR4300 IC:8853A - WDR4300 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label location

Report No.: 120330C20 4 Report Format Version 4.0.0 Reference No.: 110816E02 Report No.: 120330C20 5 Report Format Version 4.0.0 Reference No.: 110816E02 Report No.: 120330C20 6 Report Format Version 4.0.0 Reference No.: 110816E02 Model No.: MU18-2120150-A1 Report No.: 120330C20 7 Report Format Version 4.0.0 Reference No.: 110816E02 Report No.: 120330C20 8 Report Format Version 4.0.0 Reference No.: 110816E02 Model No.: MU18-2120150-A3 Report No.: 120330C20 9 Report Format Version 4.0.0 Reference No.: 110816E02 Report No.: 120330C20 10 Report Format Version 4.0.0 Reference No.: 110816E02 Model No.: MU18-2120150-B2 Report No.: 120330C20 11 Report Format Version 4.0.0 Reference No.: 110816E02 Report No.: 120330C20 12 Report Format Version 4.0.0 Reference No.: 110816E02 Model No.: MU18-2120150-C5 Report No.: 120330C20 13 Report Format Version 4.0.0 Reference No.: 110816E02

Report No.: SA120330C20 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA120330C20 MODEL NO.: TL-WDR4300 FCC ID: TE7WDR4300 RECEIVED: Mar. 30, 2012 TESTED: Apr. 13 to 14, 2012 ISSUED: May 11, 2012 APPLICANT: TP-LINK TECHNOLOGIES CO., LTD. ADDRESS: Building 24 (floors 1,3,4,5) and 28 (floors1- 4) Central Science and Technology Park,Shennan Rd, Nanshan, Shenzhen,China ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This test report consists of 8 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by any government agency. The test results in the report only apply to the tested sample. Report No.: SA120330C20 Report Format Version 4.0.0 2 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT .............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. ANTENNA GAIN....................................................................................................... 5 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ........................... 6 Report No.: SA120330C20 Report Format Version 4.0.0 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120330C20 Original release May 11, 2012 Report No.: SA120330C20 Report Format Version 4.0.0 4 1. CERTIFICATION PRODUCT: N750 Wireless Dual Band Gigabit Router BRAND NAME: TP-LINK MODEL NO.: TL-WDR4300 TEST SAMPLE: PROTOTYPE APPLICANT: TP-LINK TECHNOLOGIES CO., LTD. TESTED: Apr .13 to 14, 2012 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: TL-WDR4300) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Mar. 07, 2012 ( Lori Chung, Specialist ) APPROVED BY : , DATE: Mar. 07, 2012 ( May Chen, Deputy Manager ) Report No.: SA120330C20 Report Format Version 4.0.0 5 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r= distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 5. ANTENNA GAIN The antennas provided to the EUT, please refer to the following table: Transmitter Circuit Model Antenna Type Peak Gain (dBi) Connecter Type 2.4GHz 5GHz Chain (0) AN2450-1726RS Omni 2 3 SMA Male Reverse Chain (1) AN2450-1726RS Omni 2 3 SMA Male Reverse Chain (2) AN2450-1726RS Omni 2 3 SMA Male Reverse Report No.: SA120330C20 Report Format Version 4.0.0 6 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For 15.247(2.4GHz): 802.11b: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 135.252 5.01 20 0.085 1.00 Directional gain = gain of antenna element + 10 log (# of TX antenna elements) Effective Legacy Gain (dBi)=5.01 802.11g: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 744.844 5.01 20 0.470 1.00 Directional gain = gain of antenna element + 10 log (# of TX antenna elements) Effective Legacy Gain (dBi)=5.01 802.11n (20MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 735.782 5.01 20 0.464 1.00 Directional gain = gain of antenna element + 10 log (# of TX antenna elements) Effective Legacy Gain (dBi)=5.01 802.11n (40MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2422-2452 387.576 5.01 20 0.244 1.00 Directional gain = gain of antenna element + 10 log (# of TX antenna elements) Effective Legacy Gain (dBi)=5.01 Report No.: SA120330C20 Report Format Version 4.0.0 7 For 15.247(5GHz): 802.11a: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745~5825 433.106 7.77 20 0.516 1.00 Directional gain = gain of antenna element + 10 log (# of TX antenna elements) Effective Legacy Gain (dBi)=7.77 802.11n(20MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745~5825 423.984 7.77 20 0.505 1.00 Directional gain = gain of antenna element + 10 log (# of TX antenna elements) Effective Legacy Gain (dBi)=7.77 802.11n(40MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5755 ~ 579…

Text truncated - open the document above for the full version.

Report No.: RF120330C20-2 1 Report Format Version 4.0.0 Cancels and replaces the report No.: RF110718E01-2 dated Aug. 26, 2011 Supplemental “Transmit Simultaneously” Test Report REPORT NO.: RF120330C20-2 MODEL NO.: TL-WDR4300 FCC ID: TE7WDR4300 IC: 8853A-WDR4300 RECEIVED: Mar. 30, 2012 TESTED: Apr. 06 to May 31, 2012 ISSUED: June 01, 2012 APPLICANT: TP-LINK TECHNOLOGIES CO., LTD. ADDRESS: Building 24 (floors 1,3,4,5) and 28 (floors1-4) Central Science and Technology Park,Shennan Rd, Nanshan, Shenzhen,China ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This test report consists of 24 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF120330C20-2 2 Report Format Version 4.0.0 Cancels and replaces the report No.: RF110718E01-2 dated Aug. 26, 2011 Table of Contents RELEASE CONTROL RECORD .................................................................................................... 3 1. CERTIFICATION ............................................................................................................... 4 2. SUMMARY OF TEST RESULTS ........................................................................................ 5 2.1 MEASUREMENT UNCERTAINTY ..................................................................................... 5 3. GENERAL INFORMATION ................................................................................................ 6 3.1 GENERAL DESCRIPTION OF EUT ................................................................................... 6 3.2 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:....................................... 8 3.3 DESCRIPTION OF SUPPORT UNITS ............................................................................... 9 3.4 CONFIGURATION OF SYSTEM UNDER TEST ............................................................... 10 4. TEST TYPES AND RESULTS .......................................................................................... 11 4.1 CONDUCTED EMISSION MEASUREMENT .................................................................... 11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .................................................. 11 4.1.2 TEST INSTRUMENTS ..................................................................................................... 11 4.1.3 TEST PROCEDURES ..................................................................................................... 12 4.1.4 DEVIATION FROM TEST STANDARD............................................................................. 12 4.1.5 TEST SETUP .................................................................................................................. 13 4.1.6 EUT OPERATING CONDITIONS ..................................................................................... 13 4.1.7 TEST RESULTS .............................................................................................................. 14 4.2 RADIATED EMISSION MEASUREMENT......................................................................... 16 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT....................................................... 16 4.2.2 TEST INSTRUMENTS ..................................................................................................... 17 4.2.3 TEST PROCEDURES ..................................................................................................... 18 4.2.4 DEVIATION FROM TEST STANDARD............................................................................. 18 4.2.5 TEST SETUP .................................................................................................................. 19 4.2.6 EUT OPERATING CONDITIONS ..................................................................................... 19 4.2.7 TEST RESULTS .............................................................................................................. 20 4. INFORMATION ON THE TESTING LABORATORIES ............................................................... 23 5. APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB ............................................................................................................ 24 Report No.: RF120330C20-2 3 Report Format Version 4.0.0 Cancels and replaces the report No.: RF110718E01-2 dated Aug. 26, 2011 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED RF120330C20-2 Original release June 01, 2012 Report No.: RF120330C20-2 4 Report Format Version 4.0.0 Cancels and replaces the report No.: RF110718E01-2 dated Aug. 26, 2011 1. CERTIFICATION PRODUCT: N750 Wireless Dual Band Gigabit Router BRAND NAME: TP-LINK MODEL NO.: TL-WDR4300 TEST SAMPLE: PROTOTYPE APPLICANT: TP-LINK TECHNOLOGIES CO., LTD. TESTED: Apr. 06 to May 31, 2012 STANDARDS: FCC Part 15, Subpart C (Section 15.247) ANSI C63.10-2009 Canada RSS-210 Issue 8 (2010-12) Canada RSS-Gen Issue 3 (2010-12) The above equipment (Model: TL-WDR4300) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC cha…

Text truncated - open the document above for the full version.

Report No.: RF120330C20-1 1 Report Format Version 4.2.0 Report No.: 110719E01, 120110E14 RF TEST REPORT REPORT NO.: RF120330C20-1 MODEL NO.: TL-WDR4300 FCC ID: TE7WDR4300 IC: 8853A-WDR4300 RECEIVED: Mar. 30, 2012 TESTED: Apr. 06 to 27, 2012 ISSUED: May 11, 2012 APPLICANT: TP-LINK TECHNOLOGIES CO., LTD. ADDRESS: Building 24 (floors 1,3,4,5) and 28 (floors1-4) Central Science and Technology Park,Shennan Rd, Nanshan, Shenzhen,China ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This test report consists of 58 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF120330C20-1 2 Report Format Version 4.2.0 Report No.: 110719E01, 120110E14 Table of Contents RELEASE CONTROL RECORD ........................................................................................ 4 1. CERTIFICATION .................................................................................................... 5 2. SUMMARY OF TEST RESULTS ............................................................................ 6 2.1 MEASUREMENT UNCERTAINTY ................................................................................ 7 3. GENERAL INFORMATION ..................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ....................................................................... 8 3.2 DESCRIPTION OF TEST MODES ....................................................................... 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................ 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 13 3.4 DUTY CYCLE OF TEST SIGNAL ......................................................................... 13 3.5 DESCRIPTION OF SUPPORT UNITS .................................................................. 14 3.6 CONFIGURATION OF SYSTEM UNDER TEST ................................................... 15 4. TEST TYPES AND RESULTS .............................................................................. 16 4.1 CONDUCTED EMISSION MEASUREMENT ........................................................ 16 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................... 16 4.1.2 TEST INSTRUMENTS .......................................................................................... 16 4.1.3 TEST PROCEDURES .......................................................................................... 17 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 17 4.1.5 TEST SETUP ....................................................................................................... 18 4.1.6 EUT OPERATING CONDITIONS ......................................................................... 18 4.1.7 TEST RESULTS ................................................................................................... 19 4.2 RADIATED EMISSION MEASUREMENT ............................................................. 21 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ........................................... 21 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS.......... 22 4.2.3 TEST INSTRUMENTS .......................................................................................... 23 4.2.4 TEST PROCEDURES .......................................................................................... 25 4.2.5 DEVIATION FROM TEST STANDARD ................................................................. 25 4.2.6 TEST SETUP ....................................................................................................... 26 4.2.7 EUT OPERATING CONDITION ............................................................................ 26 4.2.8 TEST RESULTS ................................................................................................... 27 4.3 TRANSMIT POWER MEASUREMENT ................................................................ 37 4.3.1 LIMITS OF TRANSMIT POWER MEASUREMENT .............................................. 37 4.3.2 TEST INSTRUMENTS .......................................................................................... 37 4.3.3 TEST PROCEDURE ............................................................................................. 38 4.3.4 DEVIATION FROM TEST STANDARD ................................................................. 38 4.3.5 TEST SETUP ....................................................................................................... 39 4.3.6 EUT OPERATING CONDITIONS ......................................................................... 39 4.3.7 TEST RESULTS ................................................................................................... 40 Report No.: RF120330C20-1 3 Report Format Version 4.2.0 Report No.: 110719E01, 120110E14 4.4 OCCUPIED BANDWIDTH MEASUREMENT ........................................................ 42 4.4.1 TEST INSTRUMENTS .......................................................................................... 42 4.4.2 TEST PROCEDURE ............................................................................................. 42 4.4.3 DEVIATION FROM TEST STANDARD .................................................................…

Text truncated - open the document above for the full version.

Report No.: 120330C20 1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 120330C20 2 RADIATED EMISSION TEST
