Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK Technologies Co., Ltd. Copyright © 2006 TP-LINK Technologies Co., Ltd. All rights reserved. FCC STATEMENT This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ¾ Reorient or relocate the receiving antenna. ¾ Increase the separation between the equipment and receiver. ¾ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ¾ Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter”. IMPORTANT NOTE: FCC Radiation Exposure Statement (TL-WN510G) : This device has been tested for compliance with FCC RF Exposure (SAR) limits in the typical laptop computer configuration and this device can be used in substantially similar laptop computers with side mounted PCMCIA slots. This device cannot be used with handheld PDAs (personal digital assistants) or other portable host devices. This device and its antenna must not be co-located or operated in conjunction with any other antenna or transmitter. CE Declaration of Conformity For the following equipment: TL-WN510G/TL-WN550G/TL-WN551G Is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (89/336/EEC), Low-voltage Directive (73/23/EEC) and the Amendment Directive (93/68/EEC), the procedures given in European Council Directive 99/5/EC and 89/3360EEC. The equipment was passed. The test was performed according to the following European standards: ¾ EN 300 328 V.1.4.1 (2003) ¾ EN 301 489-1 V.1.4.1 (2002) / EN 301 489-17 V.1.2.1 (2002) ¾ EN 60950-1: 2001 European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835GHz; In France, the equipment must be restricted to the 2.4465-2.4835GHz frequency range and must be restricted to indoor use. Package Contents............................................................................................................. 1 Chapter 1: Introduction...................................................................................................... 2 1.1 Overview of the product....................................................................................... 2 1.2 Features............................................................................................................... 2 1.3 LED Status........................................................................................................... 3 1.3.1 TL-WN510G LED Indications..................................................................... 3 1.3.2 TL-WN550G/TL-WN551G LED Indications................................................ 3 Chapter 2: Installation Guide............................................................................................. 4 2.1 Hardware Installation........................................................................................... 4 2.1.1 TL-WN550G/TL-WN551G Hardware Installation....................................... 4 2.1.2 TL-WN510G Hardware Installation............................................................ 4 2.2 Software Installation............................................................................................. 4 2.2.1 Overview.................................................................................................... 4 2.2.2 Software Installation for Windows 2000..................................................... 4 Chapter 3: Configuration................................................................................................... 9 3.1 Current Status...................................................................................................... 9 3.2 Profile Management............................................................................................11 3.2.1 Add or Modify a Configuration Profile................................................…
Text truncated - open the document above for the full version.

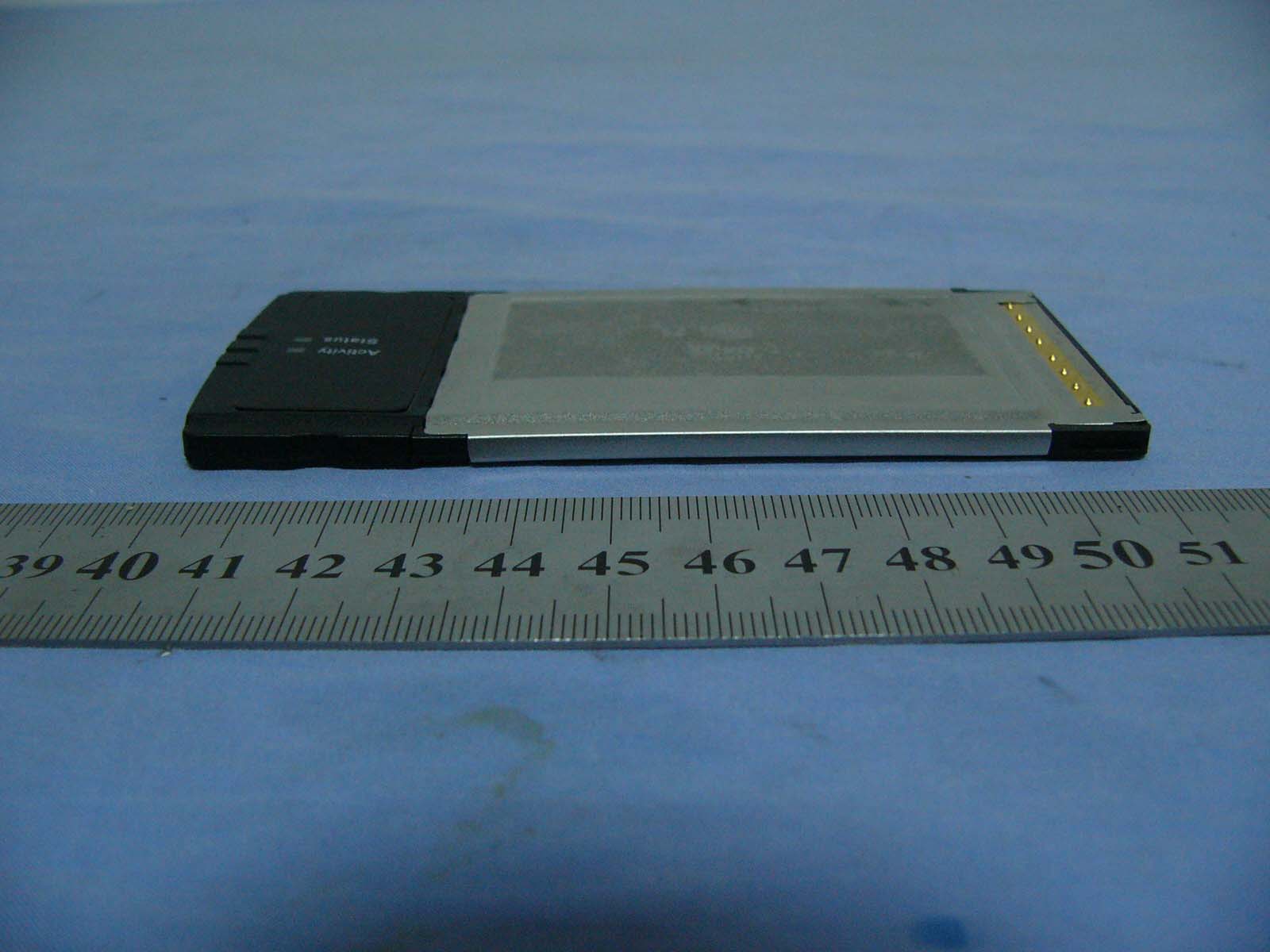

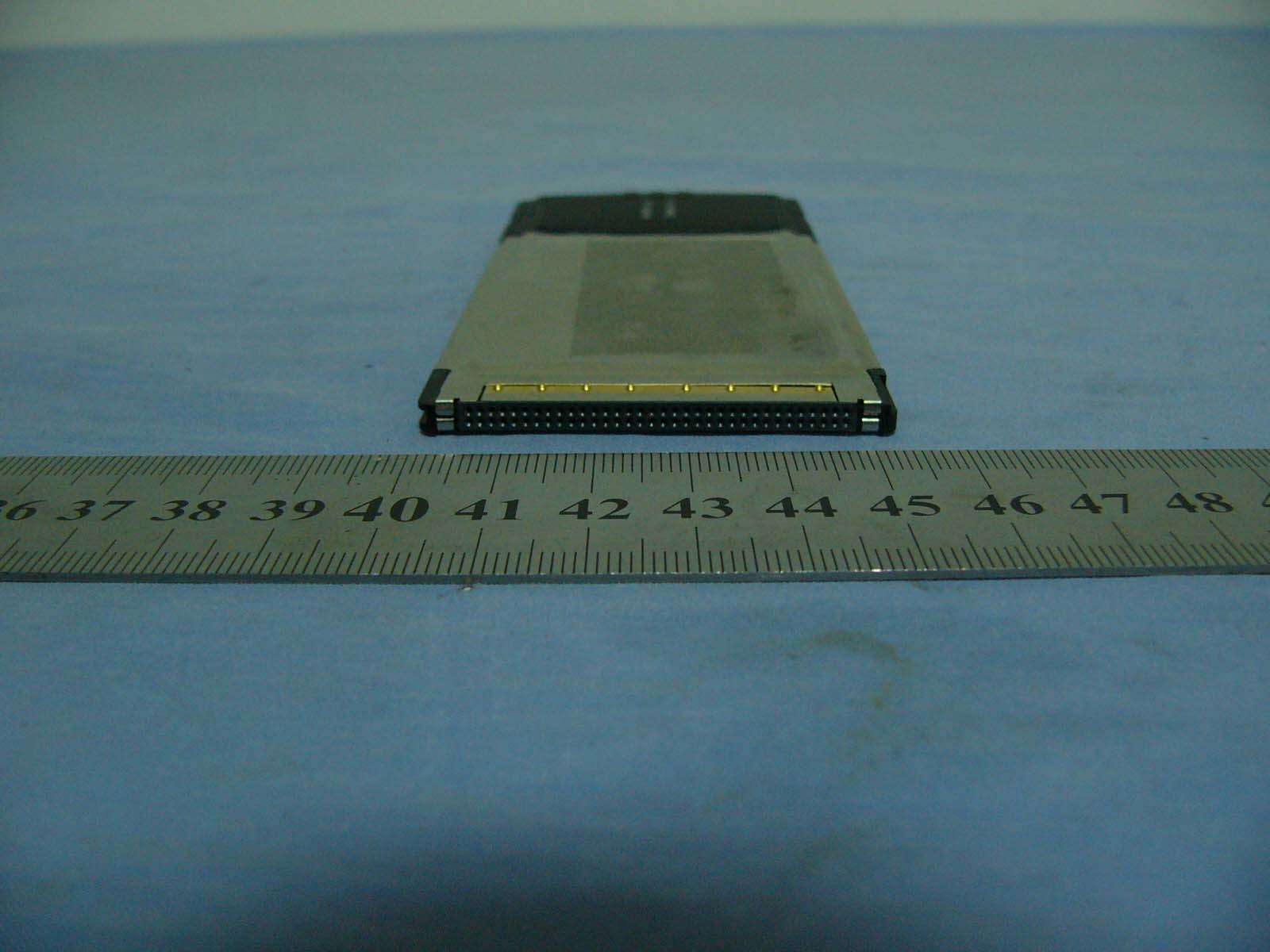

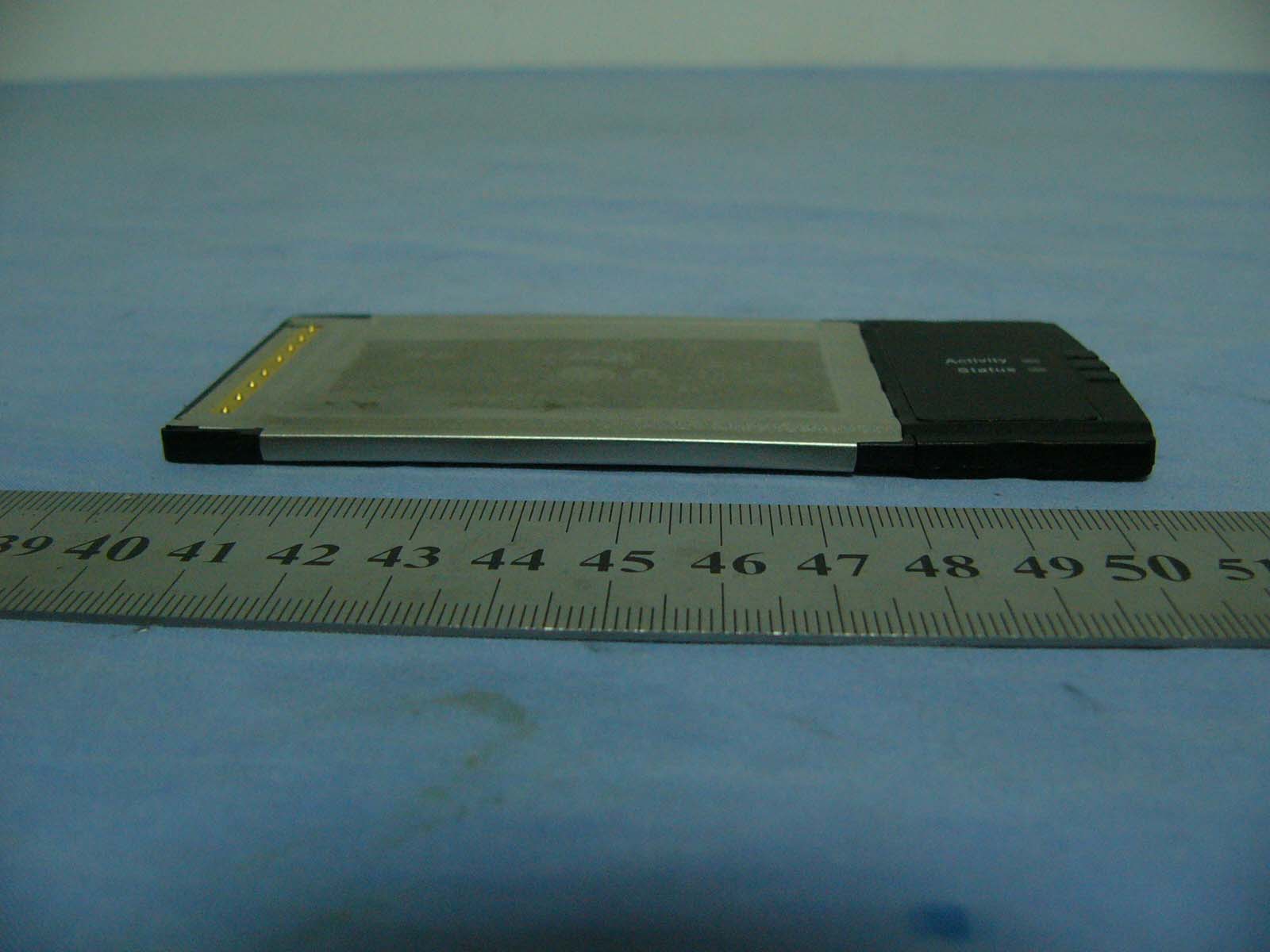

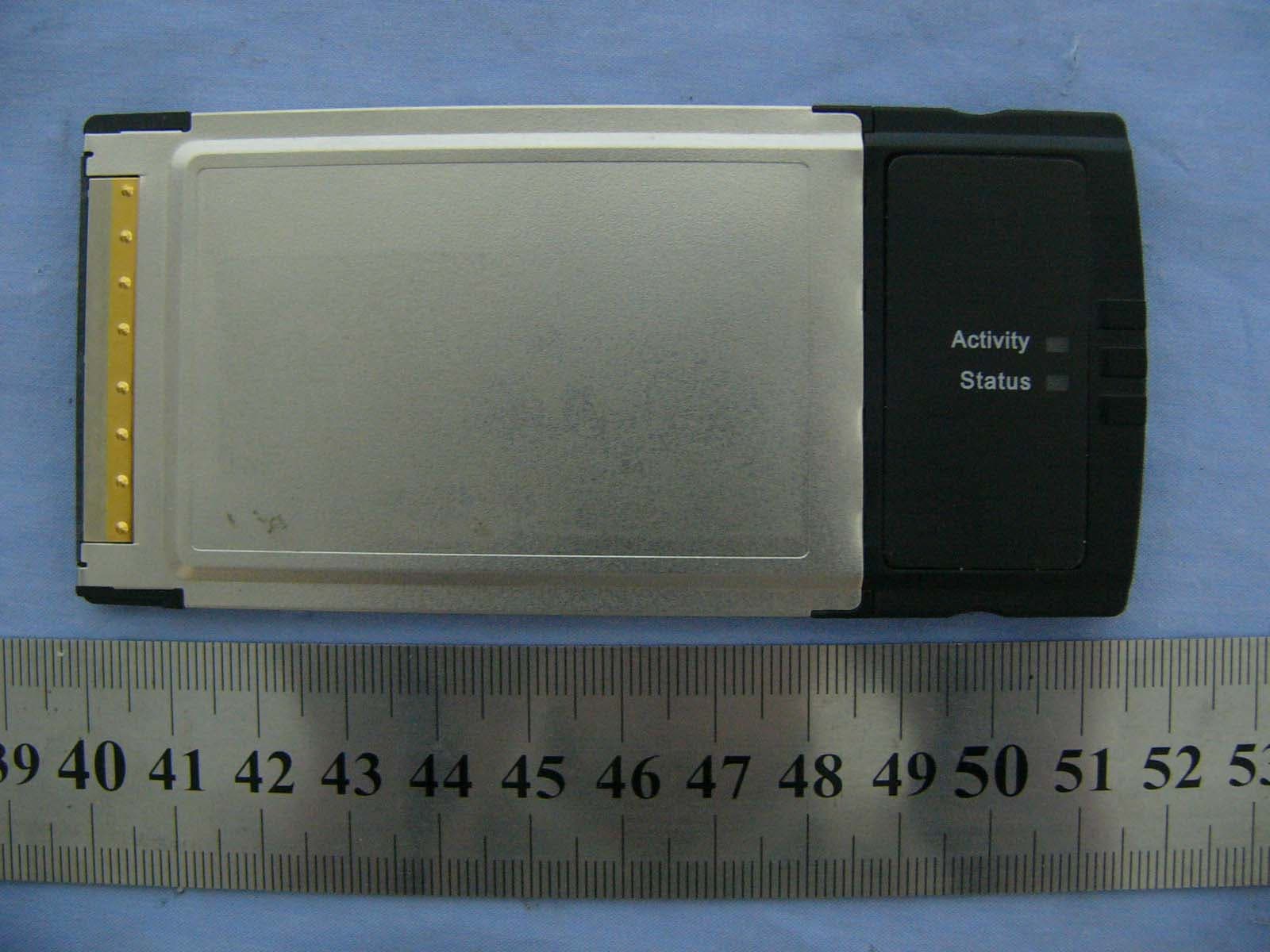

Compliance Certification Services (Kunshan) Inc. Report No: KS060925A01 FCC ID: TE7WN51XGV2 Date of Issue: September 27, 2006 Page 1 Totle 26 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C ANSI/IEEE Std. C95.1-1992 For 54M Wireless Cardbus Adapter Model: TL-WN510G;AL7054 Tr a d e N a m e : TP-LINK; JensenScandinavia Prepared for TP-LINK TECHNOLOGIES CO., LTD. Building 7,Section 2,Honhualing Industrial Park, Xili,Nanshan District, Shenzhen, P.R.C. Prepared by Compliance Certification Services (Kunshan) Inc. No.10, Weiye Rd., Innovation Park, Eco & Tec. Development Part, Kunshan City, Jiangsu Province, PRC. TEL: 86-512-57355888 FAX: 86-512-57370818 http://www.ccsemc.com.cn Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Lab. Code: 200581-0 Compliance Certification Services (Kunshan) Inc. Report No: KS060925A01 FCC ID: TE7WN51XGV2 Date of Issue: September 27, 2006 Page 2 Totle 26 TABLE OF CONTENTS 1. EUT DESCRIPTION .............................................................................................................. 3 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ............. 4 3. DOSIMETRIC ASSESSMENT SYSTEM ............................................................................ 4 3.1 MEASUREMENT SYSTEM DIAGRAM .................................................................................... 5 3.2 SYSTEM COMPONENTS ........................................................................................................... 6 4. EVALUATION PROCEDURE.............................................................................................. 8 4.1 DATA EVALUATION ................................................................................................................. 8 4.2 SAR EVALUATION PROCEDURES........................................................................................ 10 4.3 SPATIAL PEAK SAR EVALUATION ...................................................................................... 11 5. MEASUREMENT UNCERTAINTY .................................................................................. 12 6. EXPOSURE LIMIT .............................................................................................................. 13 7. EUT ARRANGEMENT........................................................................................................ 14 7.1 ANTHROPOMORPHIC HEAD PHANTOM......................................................................................... 14 8. MEASUREMENT RESULTS .............................................................................................. 17 8.1 TEST LIQUID CONFIRMATION ............................................................................................. 17 8.2 EUT TUNE-UP PROCEDURE................................................................................................... 18 8.3 EUT SETUP PHOTOS................................................................................................................ 19 8.4 SAR MEASUREMENT RESULT .............................................................................................. 20 9. EUT PHOTOS ....................................................................................................................... 21 10. EQUIPMENT LIST & CALIBRATION ............................................................................ 24 11. FACILITIES .......................................................................................................................... 25 12. REFERENCES ......................................................................................................................25 13. ATTACHMENT .................................................................................................................... 26 CONTENT................................................................................................................................................. 26 Compliance Certification Services (Kunshan) Inc. Report No: KS060925A01 FCC ID: TE7WN51XGV2 Date of Issue: September 27, 2006 Page 4 Totle 26 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. 3. DOSIMETRIC ASSESSMENT SYSTEM These measurements were performed with the automated near-field scanning system OPENSAR from ANTENNESSA.The system is based on a high precision robot (working range greater than 0.9 m), which positions the probes with a positional repeatability of better than ± 0.02 mm. Special E- and H-field probes have been developed for measurements close to material discontinuity, the sensors of which are directly loaded with a Schottky diode and connected via highly resistive lines to the data acquisition unit. The SAR measurements were …
Text truncated - open the document above for the full version.
SAR MEASUREMENT REPORT Project Name:ccs 25/9/2006 MEASUREMENT 1 Tp-link b mode low channel configuration1 Spacing between EUT and phantom - 1.5 cm Type: Phone measurement (Complete) Date of measurement: 23/9/2006 Time of measurement: 14 minutes 32 seconds Mobile Phone IMEI number: -- SAR Measurement Results Frequency (MHz) 2412.000000 Relative permitivity (real part) 52.675999 Relative permitivity (imaginary part) 14.487900 Conductivity (S/m) 1.941379 Variation (%) 0.650000 SURFACE SAR VOLUME SAR SAR 10g (W/Kg) 0.088973 SAR 1g (W/Kg) 0.149679 Z Axis Scan MEASUREMENT 2 Tp-link b mode low channel configuration2 Spacing between host device and phantom-0cm Type: Phone measurement (Complete) Date of measurement: 23/9/2006 Time of measurement: 14 minutes 19 seconds Mobile Phone IMEI number: -- SAR Measurement Results Frequency (MHz) 2412.000000 Relative permitivity (real part) 52.675999 Relative permitivity (imaginary part) 14.487900 Conductivity (S/m) 1.941379 Variation (%) -0.150000 SURFACE SAR VOLUME SAR SAR 10g (W/Kg) 0.160082 SAR 1g (W/Kg) 0.280992 Z Axis Scan MEASUREMENT 3 Tp-link g mode low channel configuration2 Spacing between host device and phantom-0cm Type: Phone measurement (Complete) Date of measurement: 23/9/2006 Time of measurement: 14 minutes 26 seconds Mobile Phone IMEI number: -- SAR Measurement Results Frequency (MHz) 2412.000000 Relative permitivity (real part) 52.675999 Relative permitivity (imaginary part) 14.487900 Conductivity (S/m) 1.941379 Variation (%) -1.060000 SURFACE SAR VOLUME SAR SAR 10g (W/Kg) 0.132281 SAR 1g (W/Kg) 0.227228 Z Axis Scan MEASUREMENT 4 Tp-link g mode low channel configuration1 Spacing between EUT and phantom - 1.5 cm Type: Phone measurement (Complete) Date of measurement: 23/9/2006 Time of measurement: 15 minutes 0 seconds Mobile Phone IMEI number: -- SAR Measurement Results Frequency (MHz) 2412.000000 Relative permitivity (real part) 52.675999 Relative permitivity (imaginary part) 14.487900 Conductivity (S/m) 1.941379 Variation (%) -1.030000 SURFACE SAR VOLUME SAR SAR 10g (W/Kg) 0.078912 SAR 1g (W/Kg) 0.131307 Z Axis Scan MEASUREMENT 5 Tp-link g mode middle channel configuration1 Spacing between EUT and phantom - 1.5 cm Type: Phone measurement (Complete) Date of measurement: 23/9/2006 Time of measurement: 14 minutes 33 seconds Mobile Phone IMEI number: -- SAR Measurement Results Frequency (MHz) 2437.000000 Relative permitivity (real part) 52.633999 Relative permitivity (imaginary part) 14.750400 Conductivity (S/m) 1.997040 Variation (%) -2.810000 SURFACE SAR VOLUME SAR SAR 10g (W/Kg) 0.154581 SAR 1g (W/Kg) 0.258080 Z Axis Scan MEASUREMENT 6 Tp-link b mode middle channel configuration1 Spacing between EUT and phantom - 1.5 cm Type: Phone measurement (Complete) Date of measurement: 23/9/2006 Time of measurement: 14 minutes 26 seconds Mobile Phone IMEI number: -- SAR Measurement Results Frequency (MHz) 2437.000000 Relative permitivity (real part) 38.641998 Relative permitivity (imaginary part) 13.318200 Conductivity (S/m) 1.803136 Variation (%) -0.390000 SURFACE SAR VOLUME SAR SAR 10g (W/Kg) 0.096109 SAR 1g (W/Kg) 0.158479 Z Axis Scan MEASUREMENT 7 Tp-link b mode middle channel configuration2 Spacing between host device and phantom-0cm Type: Phone measurement (Complete) Date of measurement: 23/9/2006 Time of measurement: 14 minutes 30 seconds Mobile Phone IMEI number: -- SAR Measurement Results Frequency (MHz) 2437.000000 Relative permitivity (real part) 38.641998 Relative permitivity (imaginary part) 13.318200 Conductivity (S/m) 1.803136 Variation (%) -0.730000 SURFACE SAR VOLUME SAR SAR 10g (W/Kg) 0.174346 SAR 1g (W/Kg) 0.302901 Z Axis Scan MEASUREMENT 8 Tp-link g mode middle channel configuration2 Spacing between host device and phantom-0cm Type: Phone measurement (Complete) Date of measurement: 23/9/2006 Time of measurement: 14 minutes 38 seconds Mobile Phone IMEI number: -- SAR Measurement Results Frequency (MHz) 2437.000000 Relative permitivity (real part) 52.633999 Relative permitivity (imaginary part) 14.750400 Conductivity (S/m) 1.997040 Variation (%) 0.470000 SURFACE SAR VOLUME SAR SAR 10g (W/Kg) 0.255126 SAR 1g (W/Kg) 0.455210 Z Axis Scan MEASUREMENT 9 Tp-link g mode high channel configuration1 Spacing between EUT and phantom - 1.5 cm Type: Phone measurement (Complete) Date of measurement: 23/9/2006 Time of measurement: 14 minutes 37 seconds Mobile Phone IMEI number: -- SAR Measurement Results Frequency (MHz) 2462.000000 Relative permitivity (real part) 38.469002 Relative permitivity (imaginary part) 13.381200 Conductivity (S/m) 1.830251 Variation (%) -3.070000 SURFACE SAR VOLUME SAR SAR 10g (W/Kg) 0.094521 SAR 1g (W/Kg) 0.159683 Z Axis Scan MEASUREMENT 10 Tp-link b mode high channel configuration1 Spacing between EUT and phantom - 1.5 cm Type: Phone measurement (Complete) Date of measurement: 23/9/2006 Time of measurement: 14 minutes 28 seconds Mobile Phone IMEI number: -- SAR Measurement Results Frequency (MHz) 2462.000000 Relative permitivity (real part) 38.469002 Relative permitivity (imaginary part) 13.381200 Conductivity (S/m) 1.830251 Variation (%) 0.160000 SURFACE SAR VOLUME SAR SAR 10g (W/Kg) 0.109223 SAR 1g (W/Kg) 0.183537 Z Axis Scan MEASUREMENT 11 Tp-link b mode high channel configuration2 Spacing between host device and phantom-0cm Type: Phone measurement (Complete) Date of measurement: 23/9/2006 Time of measurement: 14 minutes 23 seconds Mobile Phone IMEI number: -- SAR Measurement Results Frequency (MHz) 2462.000000 Relative permitivity (real part) 52.490002 Relative permitivity (imaginary part) 14.847000 Conductivity (S/m) 2.030740 Variation (%) -1.750000 SURFACE SAR VOLUME SAR SAR 10g (W/Kg) 0.187582 SAR 1g (W/Kg) 0.330478 Z Axis Scan MEASUREMENT 12 Tp-link g mode high channel configuration2 Spacing between host device and phantom-0cm Type: Phone measurement (Complete) Date of measurement: 23/9/2006 Time of measurement: 14 minutes 28 seconds Mobile Phone IMEI number: -- SAR Measurement Results Frequency (MHz) 2462.00000…
Text truncated - open the document above for the full version.
SAR MEASUREMENT REPORT Project Name:tp-link 23/9/2006 MEASUREMENT 1 tp-link validation Type: Validation measurement (Complete) Date of measurement: 23/9/2006 Time of measurement: 14 minutes 22 seconds Mobile Phone IMEI number: -- SAR Measurement Results Frequency (MHz) 2437.000000 Relative permitivity (real part) 52.758999 Relative permitivity (imaginary part) 14.445900 Conductivity (S/m) 1.959827 Variation (%) 0.100000 SURFACE SAR VOLUME SAR SAR 10g (W/Kg) 23.845221 SAR 1g (W/Kg) 53.126022 Z Axis Scan
Compliance Certification Services (Shenzhen) Inc. Report No: SZ060915B02-RP FCC ID: TE7WN51XGV2 Date of Issue: September 18, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 60 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 54M Wireless Cardbus Adapter Model: TL-WN510G, AL7054 Trade Name: TP-LINK, JensenScandinavia Prepared for TP-LINK TECHNOLOGIES CO., LTD. BUILDING 7, SECTION 2, HONGHUALING INDUSTRIAL PARK, XILI, NANSHAN DISTRICT, SHENZHEN, P.R.C. Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. NO. 5, JINAO INDUSTRIAL PARK, NO. 35 JUKENG ROAD, DASHUIKENG VILLAGE, GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL: 86-755-28055000 FAX: 86-755-28055221 LAB CODE:200577-0 Compliance Certification Services (Shenzhen) Inc. Report No: SZ060915B02-RP FCC ID: TE7WN51XGV2 Date of Issue: September 18, 2006 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES ........................................................................................................8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 6. SETUP OF EQUIPMENT UNDER TEST .........................................................................................9 6.1 SETUP CONFIGURATION OF EUT.........................................................................................................9 6.2 SUPPORT EQUIPMENT .................................................................................................................9 7. FCC PART 15.247 REQUIREMENTS.............................................................................................10 7.1 6DB BANDWIDTH.............................................................................................................................10 7.2 PEAK POWER....................................................................................................................................16 7.3 BAND EDGES MEASUREMENT ................................................................................................22 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................31 7.5 RADIO FREQUENCY EXPOSURE.............................................................................37 7.6 SPURIOUS EMISSIONS.................................................................................................................38 7.7 POWERLINE CONDUCTED EMISSIONS..............................................................................................55 APPENDIX 1 PHOTOGRPHS OF TEST SETUP .................................................................................59 Compliance Certification Services (Shenzhen) Inc. Report No: SZ060915B02-RP FCC ID: TE7WN51XGV2 Date of Issue: September 18, 2006 Page 3 1. TEST RESULT CERTIFICATION Applicant: TP-LINK TECHNOLOGIES CO., LTD. BUILDING 7, SECTION 2, HONGHUALING INDUSTRIAL PARK, XILI, NANSHAN DISTRICT, SHENZHEN, P.R.C. Equipment Under Test: 54M Wireless Cardbus Adapter Trade Name: TP-LINK, JensenScandinavia Model: TL-WN510G, AL7054 Date of Test: September 15-18, 2006 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services (Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Tested By: Henry Ding Reviewed By: Harris Lai / General Manager Eric Wong / Assistant manager COMPLIANCE CERTIFICATION COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. SERVICES (SHENZHEN) INC. Compliance Certification Services (Shenzhen) Inc. Report No: SZ060915B02-RP FCC ID: TE7WN51XGV2 Date of Issue: September 18, 2006 Page 4 2. EUT DESCRIPTION Product 54M Wireless Cardbus Adapter Trade Name TP-LINK, JensenScandinavia Model Number TL-WN510G, AL7054 Model Difference All models are identical to …
Text truncated - open the document above for the full version.
Compliance Certification Services (Shenzhen) Inc. Report No: SZ060915B02-RP FCC ID: TE7WN51XGV2 Date of Issue: September 18, 2006 Page 59 APPENDIX 1 PHOTOGRPHS OF TEST SETUP LINE CONDUCTED EMISSION TEST Compliance Certification Services (Shenzhen) Inc. Report No: SZ060915B02-RP FCC ID: TE7WN51XGV2 Date of Issue: September 18, 2006 Page 60 RADIATED EMISSION TEST
Bldg. 6 35 Jinao Industry Technology Yuan Jukeng · Shenzhen · China
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.41 GHz - 2.46 GHz | 188.00 mW |
