TE7WN65XGWireless PCI Card

COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK Technologies Co., Ltd. Copyright © 2005 TP-LINK Technologies Co., Ltd. All rights reserved. FCC STATEMENT This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ¾ Reorient or relocate the receiving antenna. ¾ Increase the separation between the equipment and receiver. ¾ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ¾ Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation . Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter”. CE Declaration of Conformity For the following equipment: TL-WN610G/TL-WN650G/TL-WN651G Is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (89/336/EEC), Low-voltage Directive (73/23/EEC) and the Amendment Directive (93/68/EEC), the procedures given in European Council Directive 99/5/EC and 89/3360EEC. The equipment was passed. The test was performed according to the following European standards: ¾ EN 300 328 V.1.4.1 (2003) ¾ EN 301 489-1 V.1.4.1 (2002) / EN 301 489-17 V.1.2.1 (2002) ¾ EN 60950-1: 2001 European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835GHz; In France, the equipment must be restricted to the 2.4465-2.4835GHz frequency range and must be restricted to indoor use. Package Contents............................................................................................................. 1 Chapter 1: Introduction...................................................................................................... 2 1.1 Overview of the product ....................................................................................... 2 1.2 Features............................................................................................................... 2 1.3 LED Status ........................................................................................................... 3 1.3.1 TL-WN610G LED Indications..................................................................... 3 1.3.2 TL-WN650G/TL-WN651G LED Indications................................................ 3 Chapter 2: Installation Guide............................................................................................. 4 2.1 Hardware Installation ........................................................................................... 4 2.1.1 TL-WN650G/TL-WN651G Hardware Installation ....................................... 4 2.1.2 TL-WN610G Hardware Installation ............................................................ 4 2.2 Software Installation............................................................................................. 4 2.2.1 Overview.................................................................................................... 4 2.2.2 Software Installation for Windows 2000..................................................... 4 Chapter 3: Configuration ................................................................................................... 9 3.1 Current Status ...................................................................................................... 9 3.2 Profile Management ............................................................................................11 3.2.1 Add or Modify a Configuration Profile........................................................11 3.2.2 Remove a profile...................................................................................... 14 3.2.3 Switch another Profile .............................................................................. 14 3.2.4 Import a Profile ........................................................................................ 14 3.2.5 Export a Profile ........................................................................................ 15 3.2.6 Scan Available Networks .........…

Text truncated - open the document above for the full version.

TP-LINK TECHNOLOGIES CO., LTD. BUILDING 7, SECTION 2, HONGHUALING INDUSTRIAL PARK, SHENZHEN, CHINA POWER OF ATTORNEY Date: July 16, 2005 We, the undersigned, hereby authorize Compliance Certification Services, Inc. to act on our behalf in all matters relating to all processes related to FCC applications and communications issue. Any and all acts carried out by Compliance Certification Services, Inc. on our behalf shall have the same effects as acts of our own. If you have any questions regarding this authorization, please don’t hesitate to contact us. Thank you. Best Regards

TP-LINK TECHNOLOGIES CO., LTD. BUILDING 7, SECTION 2, HONGHUALING INDUSTRIAL PARK, SHENZHEN, CHINA Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: TE7WN65XG To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Best Regards

LABEL LOCATION TP-LINK MODEL: TL-WN650G FCC ID: TE7WN65XG

WHA YU INDUSTRIAL CO., LTD.(HEAD OFFICE) WHA YU INDUSTRIAL CO., LTD.(HEAD OFFICE)WHA YU INDUSTRIAL CO., LTD.(HEAD OFFICE) WHA YU INDUSTRIAL CO., LTD.(HEAD OFFICE) AEON TECH CO., LTD.(CHINA) SPECIFICATION FOR APPROVAL REVISION: REV.:A SSR-00302 MANUFACTURERCUSTOMER SIGNATURESIGNATURE APPROVED BY : WHA YU GROUP WHA YU INDUSTRIAL CO., LTD.(HEAD OFFICE) 譁 裕 實 業 股 份 有 限 公 司 譁 裕 實 業 股 份 有 限 公 司譁 裕 實 業 股 份 有 限 公 司 譁 裕 實 業 股 份 有 限 公 司 Address: #70 Shui Li Road , Hsin Chu City, Taiwan, R.O.C. TAI HWA ELECTRONC CO., LTD. (CHINA) 台 樺 電 業 制 品 廠 台 樺 電 業 制 品 廠台 樺 電 業 制 品 廠 台 樺 電 業 制 品 廠 Address: Pak Ho District , Hou Street Town, Dong Guan City, Guangdong, China HUA HONG INTERNATIONAL LTD. 華 華華 華 弘 弘弘 弘 國 國國 國 際 際際 際 有 有有 有 限 限限 限 公 公公 公 司 司司 司 Rm.1103A,President Commercial Centre,608 Nathan Road,Mong Kok,Kowloon,Hong Kong Tel: + 86-852-27712210 Fax: + 86-852-23843747 SHANGHAI HUA YU ELECTRONIC CO., LTD. (CHINA) 上 海 譁 裕 電 子 有 限 公 司 上 海 譁 裕 電 子 有 限 公 司上 海 譁 裕 電 子 有 限 公 司 上 海 譁 裕 電 子 有 限 公 司 Address:3586 ,Wai Qing Song Road, Qing Pu County, Shanghai China Tel: + 86-21-59741348 ． ．． ． + 86-21-59744101~4 Fax: + 86-21-59741347 SU ZHOU AEON TECH CO. , LTD. (CHINA) 蘇 蘇蘇 蘇 州 州州 州 華 華華 華 廣 廣廣 廣 電 電電 電 通 有 限 公 司 通 有 限 公 司通 有 限 公 司 通 有 限 公 司 Address:Limin North Road, LiLi Town,LiLi Industrial Park,LinHu Economic Zone Wujiang City,Jiangsu Province,China Tel: + 86-512-63627980 Fax: + 86-512-63627981 TAI HWA ELECTRONIC CO., LTD.(CHINA) SHANGHAI HUA YU ELECTRONIC CO., LTD.(CHINA) W. Y. P/NO.:C636-510003-A CUSTOMER:深圳市普聯技術有限公司 深圳市普聯技術有限公司深圳市普聯技術有限公司 深圳市普聯技術有限公司 PART NAME:RF Antenna Assembly PART NO.:31010001 Fax: + 86-769-5599376 DATE : Tel:+886-3-5714225(REP.) Fax:+ 886-3-5713853． ．． ．+ 886-3-5723600 Tel: + 86-769-5599375 ． ．． ． + 86-769-5912375 Item Page 1.1 2.2 3.3~5 4.6~7 5.8~14 6.15~16 7.17~20 天線桿套材質特性 天線桿套材質特性天線桿套材質特性 天線桿套材質特性 .................................... 測試報告 測試報告測試報告 測試報告 .................. Cable 規格 規格規格 規格 膠水特性及黏著力測試 膠水特性及黏著力測試膠水特性及黏著力測試 膠水特性及黏著力測試 .................. INDEX Content .................................... 天線規格表 天線規格表天線規格表 天線規格表 成品圖 成品圖成品圖 成品圖 .................................... 天線固定座材質特性 天線固定座材質特性天線固定座材質特性 天線固定座材質特性 .................................... .................................... .................. .................. Specification 1. Electrical Properties : 1.1 1.11.1 1.1Frequency Rang............ 1.2 1.21.2 1.2Impedance .................. 1.3 1.31.3 1.3VSWR ........................ 1.4 1.41.4 1.4Return Loss.................. 1.5 1.51.5 1.5Electrical Wave............ 1.6 1.61.6 1.6Gain............................ 1.7 1.71.7 1.7Admitted Power............ 2. Physical Properties : 2.1 Cable...........................RG-178 Cable 2.2 Antenna Cover............ ...TPE 2.3 Antenna Base............ ...PC 2.4 Operating Temp. ......... -20°C °C°C °C ~ +65°C °C°C °C 2.5 Storage Temp. ............ ...-30°C °C°C °C ~ +75°C °C°C °C 2.6 Color ........................ Black RF Antenna Cable Assembly 1/2 λ Dipole 1W 1.8 dBi 2.4GHz ~ 2.5GHz 50Ω ΩΩ Ω Nominal 1.92 Max. -10dB Maximum RF Antenna Assembly SPEC : 2.4 ~ 2.5GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -75-50-250 dB Far-field amplitude of antenna-5-h.nsi 2.4GHz2.45GHz2.5GHz RF Antenna Assembly SPEC : 2.4 ~ 2.5GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -75-50-250 dB Far-field amplitude of antenna-6-e.nsi 2.4GHz2.45GHz2.5GHz

来标测试术 COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. 区观澜35 5 (: 518110) TEL.(0755)28055000 FAX(0755)28055221 SHENZHEN LAB.: No.5, Jinao Industrial Park, No.35, Jukeng Rd., Dashuikeng Village, Guanlan Town, Baoan District, Shenzhen, 518110, PROC. Measurement of MPE 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 来标测试术 COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. 区观澜35 5 (: 518110) TEL.(0755)28055000 FAX(0755)28055221 SHENZHEN LAB.: No.5, Jinao Industrial Park, No.35, Jukeng Rd., Dashuikeng Village, Guanlan Town, Baoan District, Shenzhen, 518110, PROC. According to OET BULLETIN 56 Fourth Edition/August 1999, Equation for Predicting RF Fields: Power density at the specific separation (mobile): 2 22 /012.0 )20(4 51.146.40 4 cmmW R PG S= × == ππ Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain/10) G = Log -1 (1.8 / 10) = 1.51

Compliance Certification Services (Shenzhen) Inc. Report No: SZ050713B12-RP FCC ID: TE7WN65XG Date of Issue: August 29, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 67 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 108M WIRELESS PCI ADAPTER Model: TL-WN650G / TL-WN651G Trade Name: TP-LINK Prepared for TP-LINK TECHNOLOGIES CO., LTD. BUILDING 7, SECTION 2, HONGHUALING INDUSTRIAL PARK, XILI, NANSHAN DISTRICT, SHENZHEN, P.R.C. Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. NO. 6, JINAO INDUSTRIAL PARK, NO. 35 JUKENG ROAD, DASHUIKENG VILLAGE, GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL: 86-755-28055000 FAX: 86-755-28055221 LAB CODE:200577-0 Compliance Certification Services (Shenzhen) Inc. Report No: SZ050713B12-RP FCC ID: TE7WN65XG Date of Issue: August 29, 2005 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES 8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT.........................................................................................................9 6.2 SUPPORT EQUIPMENT .................................................................................................................9 7. FCC PART 15.247 REQUIREMENTS...................................................................................... 10 7.1 6DB BANDWIDTH.............................................................................................................................10 7.2 PEAK POWER....................................................................................................................................16 7.3 BAND EDGES MEASUREMENT ................................................................................................22 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................31 7.5 SPURIOUS EMISSIONS.................................................................................................................37 7.6 POWERLINE CONDUCTED EMISSIONS..............................................................................................62 APPENDIX 1 PHOTOGRPHS OF TEST SETUP .......................................................................... 66 Compliance Certification Services (Shenzhen) Inc. Report No: SZ050713B12-RP FCC ID: TE7WN65XG Date of Issue: August 29, 2005 Page 3 1. TEST RESULT CERTIFICATION Applicant: TP-LINK TECHNOLOGIES CO., LTD. BUILDING 7, SECTION 2, HONGHUALING INDUSTRIAL PARK, XILI, NANSHAN DISTRICT, SHENZHEN, P.R.C. Equipment Under Test: 108M WIRELESS PCI ADAPTER Trade Name: TP-LINK Model: TL-WN650G / TL-WN651G Date of Test: July 12-August 28, 2005 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services (Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Reviewed and Approved by Clinton Kao Manager of the Engineering Dept. Compliance Certification Services (ShenZhen) Inc. Compliance Certification Services (Shenzhen) Inc. Report No: SZ050713B12-RP FCC ID: TE7WN65XG Date of Issue: August 29, 2005 Page 4 2. EUT DESCRIPTION Product 108M WIRELESS PCI ADAPTER Trade Name TP-LINK Model Number TL-WN650G / TL-WN651G Model Difference TL-WN650G is fixed antenna, and TL-WN651G is detachable antenna. Others are the same with each other. EUT Power Rating Powered from PC Frequency Range 802.11b mode: 2412 ~ 2462 MHz 802.11g mode: 2412 ~ 2462 MHz Transmit Power 802.11b mode: 15.73 dBm 802.11g mode: 16.07 dBm Modulation Technique 802.11b: DSSS (CCK; DQPSK; DBPSK) 802.11g: OFDM Transmit Data Rate 802.11b: 11Mbps(CCK) with fall back rates of 5.5, 2, and 1Mbps 802.11g : 108Mbps with fall …

Text truncated - open the document above for the full version.

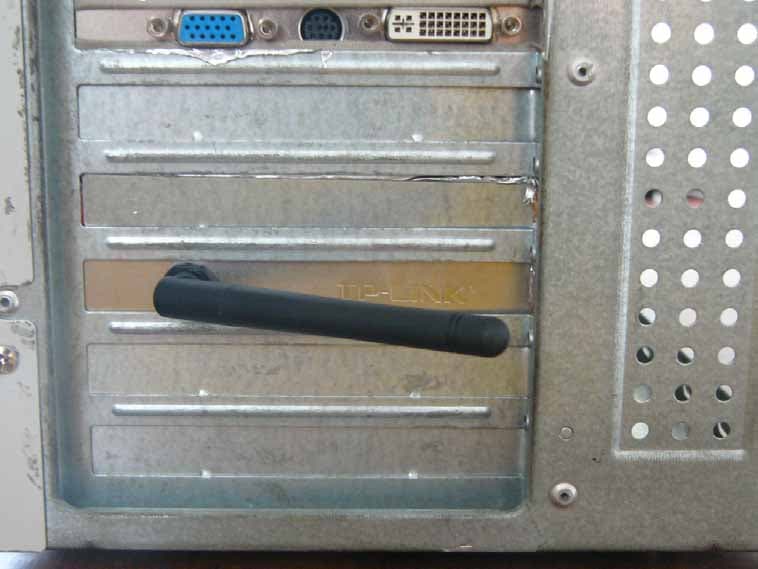

Compliance Certification Services (Shenzhen) Inc. Report No: SZ050713B12-RP FCC ID: TE7WN65XG Date of Issue: August 29, 2005 Page 66 APPENDIX 1 PHOTOGRPHS OF TEST SETUP LINE CONDUCTED EMISSION TEST Compliance Certification Services (Shenzhen) Inc. Report No: SZ050713B12-RP FCC ID: TE7WN65XG Date of Issue: August 29, 2005 Page 67 RADIATED EMISSION TEST
