TE7WN66XG108M Wireless Mini PCI Adapter

54/108M Wireless Mini-PCI Adapter User's Guide FCC STATEMENT This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ¾ Reorient or relocate the receiving antenna. ¾ Increase the separation between the equipment and receiver. ¾ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ¾ Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation . Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Transmitter Module approval conditions: 1. Antennas must be installed to provide 20 cm separation distance from the transmitting antenna to the body of user during normal operating condition. This device must not be co-located or operating in conjunction with any other antenna or transmitter. 2. Only those antennas filed under FCC ID: TE7WN66XG can be used with this device. 3. When the Module installed in the final system where the antenna location is less than 20 cm separation distance to the body of user, additional equipment authorization applied. 4. FCC ID label on the final system must be labeled with "Contains FCC ID: TE7WN66XG" or "Contains transmitter module FCC ID:TE7WN66XG". 5. In the user manual, final system integrator must be ensure that there is no instruction provided in the user manual to install or remove the transmitter module. 6. Transmitter module must be installed and used in strict accordance with the manufacturer¡¦s instructions as described in the user documentation that comes with the product. This device complies with the following radio frequency and safety standards. The following information are required to be included into user manual of the final host system: USA-Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the distance between the equipment and the receiver. -Connect the equipment to outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user¡¦s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. Caution: Exposure to Radio Frequency Radiation. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Chapter 1: Introduction...................................................................................................... 1 1.1 Overview of the product ....................................................................................... 1 1.2 Features............................................................................................................... 1 Chapter 2: Installation Guide............................................................................................. 2 2.1 Software Installation............................................................................................. 2 2.1.1 Overview.................................................................................................... 2 2.1.2 Software Installation for Windows 2000..................................................... 2 Chapter 3: Configuration ................................................................................................... 8 3.1 Current Status ...................................................................................................... 8 3.2 Profile Management ........................................................................................... 10 3.2.1 Add or Modify a Con…

Text truncated - open the document above for the full version.

TP-LINK TECHNOLOGIES CO., LTD. BUILDING 7, SECTION 2, HONGHUALING INDUSTRIAL PARK, XILI, NANSHAN DISTRICT, SHENZHEN, P.R.C. Date: 2006/7/24 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Shenzhen office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS SZ, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS SZ on our behalf shall have the same effect as acts of our own. In authorizing CCS SZ as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours,

TP-LINK TECHNOLOGIES CO., LTD. BUILDING 7, SECTION 2, HONGHUALING INDUSTRIAL PARK, XILI, NANSHAN DISTRICT, SHENZHEN, P.R.C. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: TE7WN66XG To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Best Regards

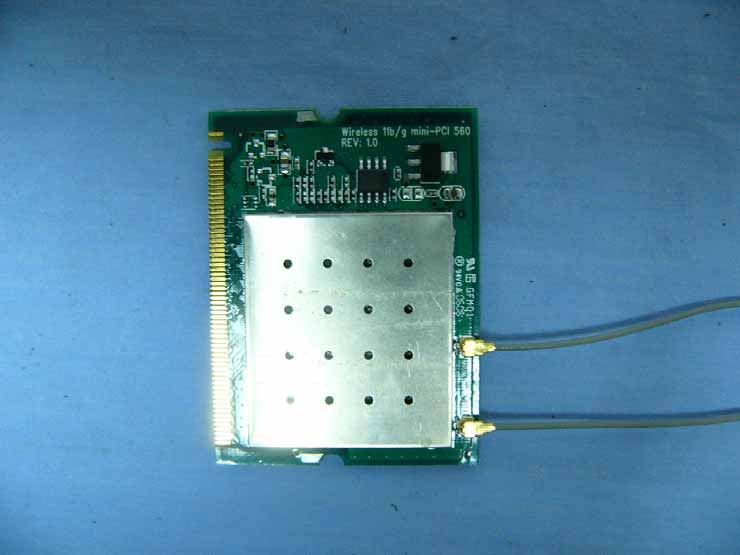

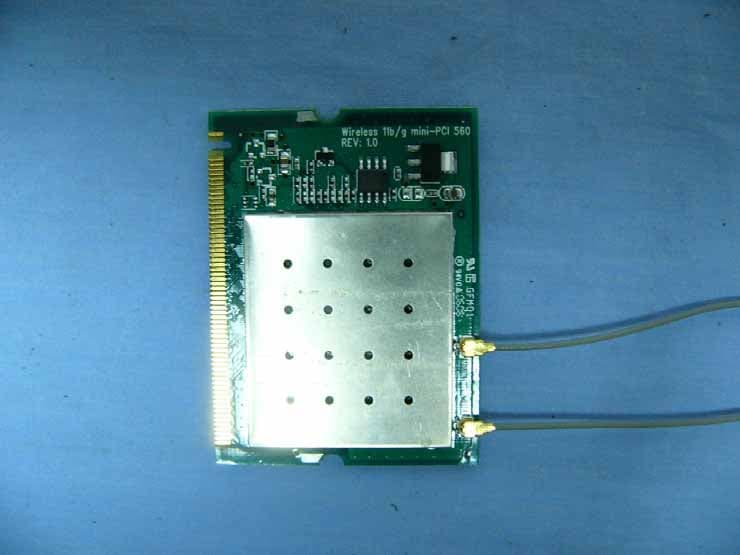

Company FCC ID: TE7WN66XG Request for transmitter modular approval Transmitter Module Characteristics Item Requirements Does the EUT meet the requirement? 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal 1.8V power regulator. Refer to Block diagram 4 Meet the antenna requirements of Section 15.203 Dipole antenna with MHF connector 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device is tested external to a host on an extender board in a standalone configuration 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Two proposed FCC ID label format are included in the filing. One of label is to be placed on the module and the other label is to be placed on the outside of system. Refer to FCC ID label format and location file. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). MPE calculation is provided to demonstrate RF compliance for mobile modular approval.

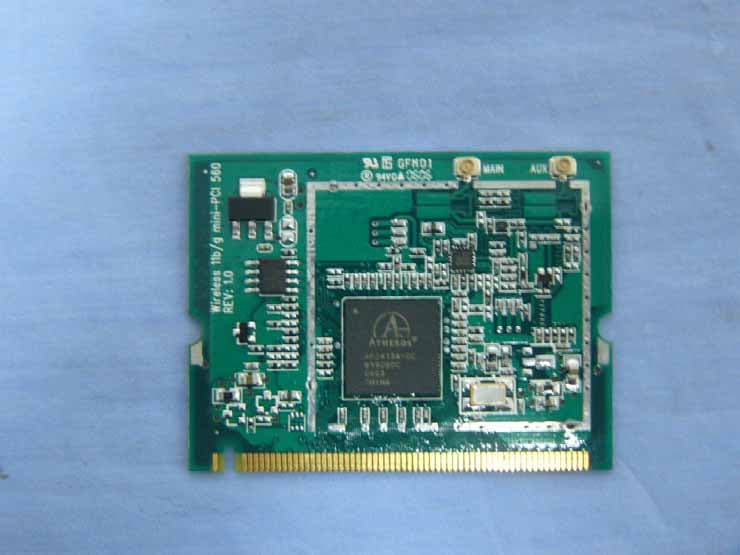

Helen Zhao Subject: FW: TP-Link Technologies Co., Ltd., FCC ID: TE7WN66XG, Assessment NO.: AN06T6000, Notice#1 8/10/2006 From: eric.wong Sent: Thursday, August 10, 2006 7:36 PM To: Helen Zhao Cc: eric.wong; aven.zhou Subject: FW: TP-Link Technologies Co., Ltd., FCC ID: TE7WN66XG, Assessment NO.: AN06T6000, Notice#1 Hello Helen, Please find the replies below in BLUE. Thank you!! Eric Wong -----Original Message----- Sent: Monday, July 24, 2006 5:42 PM Subject: TP-Link Technologies Co., Ltd., FCC ID: TE7WN66XG, Assessment NO.: AN06T6000, Notice#1 Question #1: Please provide additional internal photos to clearly show component side, please add one enlarged photo to show chipset name. (ERIC: Please find the updated materials attached) Question #2: The block diagram shows RF chipset 2413, while operational description shows RF chipset 2414. Please confirm which one is correct, please modify the document(s) accordingly. (ERIC: Please find the updated materials attached, the correct RF chipset should be 2414 FYI.) Question #3: The power line conducted emission test setup photos show an extension board was used during the test, so the EUT was tested as stand-alone. Please confirm. If this is the case, please update test report section 6. (ERIC: Please find the additional photos showing more clearly of the test setup in the updated report.) Question #4: Please provide additional radiated emission test setup photos, at least one close view to show placement of the EUT, antenna and support equipment, please show clearly whether extension board was ever used. (ERIC: Please find the additional photos showing more clearly of the test setup in the updated report.) Question #5: This device is a mini PCI card, needs to be installed inside a notebook PC. It is not a final product. Additional certification or new certification is required when the device is installed in any host, unless it has got a modular approval as specifed in FCC Public Notice DA-00-1407. You may need to submit a modular approval cover letter, in the letter, please address 8 criterias. (ERIC: Please find the additional materials provided by the manufacturer addressing the modular approvals condition, FYI this EUT is only entitle for the LMA.) Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 8/10/2006

LABEL LOCATION PROPOSED FCC ID LABEL FOR HOST DEVICE THIS DEVICE CONTAINS FCC ID: TE7WN66XG

Compliance Certification Services (Shenzhen) Inc. Report No: SZ060414B04-RP FCC ID: TE7WN66XG Date of Issue: June 03, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 71 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 108M WIRELESS MINI PCI ADAPTER Model: TL-WN660G Trade Name: TP-LINK Prepared for TP-LINK TECHNOLOGIES CO., LTD. BUILDING 7, SECTION 2, HONGHUALING INDUSTRIAL PARK, XILI, NANSHAN DISTRICT, SHENZHEN, P.R.C. Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. NO. 5, JINAO INDUSTRIAL PARK, NO. 35 JUKENG ROAD, DASHUIKENG VILLAGE, GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL: 86-755-28055000 FAX: 86-755-28055221 LAB CODE:200577-0 Compliance Certification Services (Shenzhen) Inc. Report No: SZ060414B04-RP FCC ID: TE7WN66XG Date of Issue: June 03, 2006 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES 8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 6. SETUP OF EQUIPMENT UNDER TEST .........................................................................................9 6.1 SETUP CONFIGURATION OF EUT.........................................................................................................9 6.2 SUPPORT EQUIPMENT .................................................................................................................9 7. FCC PART 15.247 REQUIREMENTS.............................................................................................10 7.1 6DB BANDWIDTH.............................................................................................................................10 7.2 PEAK POWER....................................................................................................................................16 7.3 BAND EDGES MEASUREMENT ................................................................................................22 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................31 7.5 RADIO FREQUENCY EXPOSURE........................................................................................................37 7.6 SPURIOUS EMISSIONS.................................................................................................................40 7.7 POWERLINE CONDUCTED EMISSIONS..............................................................................................65 APPENDIX 1 PHOTOGRPHS OF TEST SETUP .................................................................................69 Compliance Certification Services (Shenzhen) Inc. Report No: SZ060414B04-RP FCC ID: TE7WN66XG Date of Issue: June 03, 2006 Page 3 1. TEST RESULT CERTIFICATION Applicant: TP-LINK TECHNOLOGIES CO., LTD. BUILDING 7, SECTION 2, HONGHUALING INDUSTRIAL PARK, XILI, NANSHAN DISTRICT, SHENZHEN, P.R.C. Equipment Under Test: 108M WIRELESS MINI PCI ADAPTER Trade Name: TP-LINK Model: TL-WN660G Date of Test: May 15-July 03, 2006 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services (Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Tested By: Henry Ding Reviewed By: Clinton Kao / EMC Manager Eric Wong / Assistant manager COMPLIANCE CERTIFICATION COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. SERVICES (SHENZHEN) INC. Compliance Certification Services (Shenzhen) Inc. Report No: SZ060414B04-RP FCC ID: TE7WN66XG Date of Issue: June 03, 2006 Page 4 2. EUT DESCRIPTION Product 108M WIRELESS MINI PCI ADAPTER Trade Name TP-LINK Model Number TL-WN660G EUT Power Rating Powered from the notebook Frequency Range 802.11b mode: 2412 ~ 2462 MHz 802.11g mode: 2412 ~ 2462 MHz Transmit Power 802.11b mode: 13.81 dBm 802.11g mode: 11.77 dBm (Turbo mode: 13.82 dBm) Modulation Technique 802.11b:…

Text truncated - open the document above for the full version.

Compliance Certification Services (Shenzhen) Inc. Report No: SZ060414B04-RP FCC ID: TE7WN66XG Date of Issue: June 03, 2006 Page 66 APPENDIX 1 PHOTOGRPHS OF TEST SETUP LINE CONDUCTED EMISSION TEST Compliance Certification Services (Shenzhen) Inc. Report No: SZ060414B04-RP FCC ID: TE7WN66XG Date of Issue: June 03, 2006 Page 67 Compliance Certification Services (Shenzhen) Inc. Report No: SZ060414B04-RP FCC ID: TE7WN66XG Date of Issue: June 03, 2006 Page 68 RADIATED EMISSION TEST
