TE7WN723N150Mbps Mini Wireless N USB Adapter

TP-Link Technologies Co., Ltd.
150Mbps Mini Wireless N USB Adapter - FCC ID TE7WN723N - TP-Link Technologies Co., Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Mar 03, 2011
Application Purpose
Original Equipment
Date of Application
Mar 02, 2011
Equipment Note
150Mbps Mini Wireless N USB Adapter
Frequency Range
2422.00000000 - 2452.00000000
Company
TP-Link Technologies Co., Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

TL-WN723N 150Mbps Mini Wireless N USB Adapter Rev: 1.0.0 1910010432 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2010 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment has been SAR-evaluated for use in hand. SAR measurements are based on a 4mm spacing from the body and that compliance is achieved at that distance. CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France. TP-LINK TECHNOLOGIES CO., LTD TP-LINK TECHNOLOGIES CO., LTD. South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P. R. China DECLARATION OF CONFORMITY For the following equipment: Product Description: 150Mbps Mini Wireless N USB Adapter Model No.: TL-WN723N Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives: Directives 1999/5/EC The above product is in conformity with the following standards or other normative documents: ETSI EN 300 328 V1.7.1: 2006 ETSI EN 301 489-1 V1.8.1:2008 & ETSI EN 301 489-17 V1.3.2:2008 EN60950-1:2006 EN62311:2008 Recommendation 1999/519/EC Person is responsible for marking this declaration: Yang Hongliang Product Manager of International Business CONTENTS Package Contents ....................................................................................................1 Chapter 1. Introduction ........................................................................................2 1.1 Overview of the product ......................................................................................................2 1.2 Features.............................................................................................................................2 1.3 LED Status.........................................................................................................................3 Chapter 2. Installation Guide ...............................................................................4 2.1 Hardware Installation..........................................................................................................4 2.2 Software Installation........................................................................................................... 4 2.2.1 Overv iew .....................................................................................................................4 2.2.2 Installation Gu ide.........................................................................................................4 Chapter 3. Configuration Guide.....................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

AGENCY AUTHORIZATION LETTER FCC ID:TE7WN723N Date: Feb, 21, 2011 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd (No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China) to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

Cover Letter(s)

Date: Feb, 21, 2011 Federal Communications Commission Authorization and Evaluation Division FCC ID: TE7WN723N Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

Cover Letter(s)

Attestation for FCC Declaration of Conformity FCC ID: TE7WN723N Date: 2011-2-25 Please be notified that we, the undersigned, TP-LINK TECHNOLOGIES CO., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM-F1000175, with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

External Photos

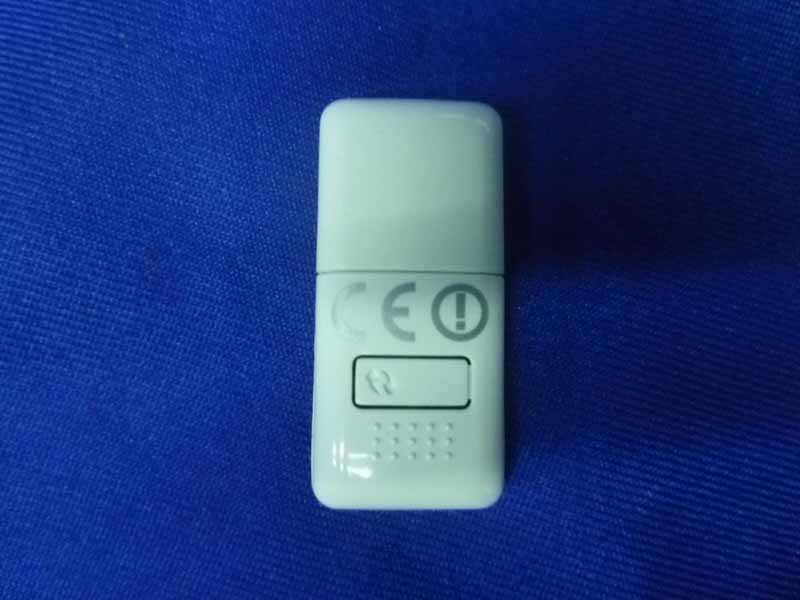

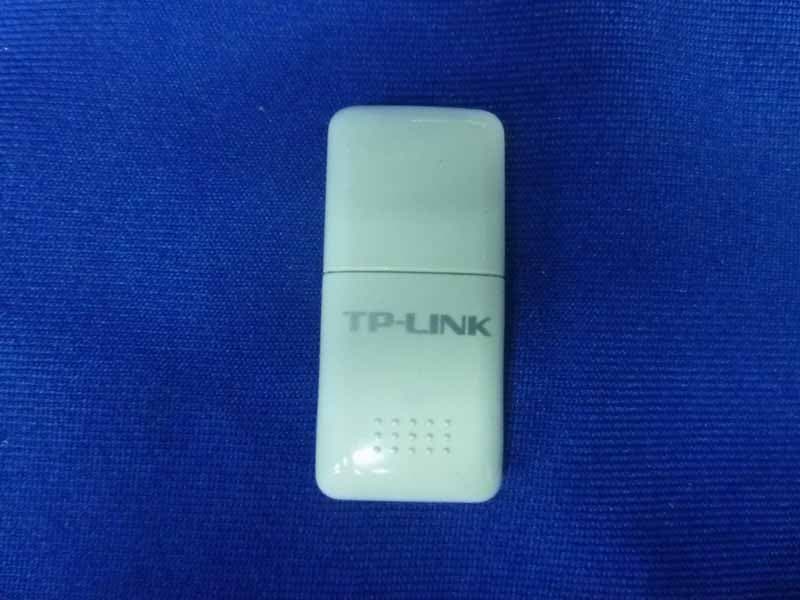

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 13-1 13. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT

ID Label/Location Info

12 E D C B A 12 3456789 E D C 345678 B A 9 料号: 设 计 审 核 颜 色 名 称 版 本 材 质 模 具 机型版本号 完成日期 logo 底色 文字 其它 记 录 与上一版的区别 TL-WN723N(欧)1.0USB端口丝印 TL-WN723N(欧)1.0 2010-7-16 2010-7-16添加CE认证丝印 黑色 黑色 PANTONE877C 刘凡 TL-WN723N 12 7.16 12 5.16 4.84 10.42 12 5.16 TL-WN723N FCC ID:TE7WN723N FCC ID:TE7WN723N

Internal Photos

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 13-3 Figure 5 Components Side of the PCB Figure 6 Components Side of the PCB

RF Exposure Info

Report No.: RZA1102-0169SAR TESTING No. L2264 TEST REPORT Product Name 150Mbps Mini Wireless N USB Adapter Model TL-WN723N FCC ID TE7WN723N Client TP-LINK TECHNOLOGIES CO., LTD. TA Technology (Shanghai) Co., Ltd. GENERAL SUMMARY Product Name 150Mbps Mini Wireless N USB Adapter Model TL-WN723N FCC ID TE7WN723N Report No. RZA1102-0169SAR Client TP-LINK TECHNOLOGIES CO., LTD. Manufacturer TP-LINK TECHNOLOGIES CO., LTD. Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438, published June 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radio frequency Emissions. KDB 248227 D01 SAR meas for 802 11 a b g v01r02: SAR Measurement Procedures for 802.11a/b/g Transmitters. KDB 447498 D02 SAR Procedures for Dongle Xmtr v02: SAR Measurement Procedures for USB Dongle Transmitters. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: February 22 th , 2011 Comment The test result only responds to the measured sample. Approved by Yang Weizhong Revised by Ling Minbao Performed by Liu Jun TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1102-0169SAR Page 3 of 69 TABLE OF CONTENT 1. General Information ........................................................................................................................ 5 1.1. Notes of the Test Report.......................................................................................................... 5 1.2. Testing Laboratory ................................................................................................................... 5 1.3. Applicant Information ............................................................................................................... 6 1.4. Manufacturer Information ......................................................................................................... 6 1.5. Information of EUT................................................................................................................... 7 1.6. The Maximum SAR 1g Values and Power of each tested Mode................................................ 8 1.7. Test Date ................................................................................................................................. 8 2. Operational Conditions during Test ................................................................................................. 9 2.1. General Description of Test Procedures .................................................................................. 9 2.2. Position of Module in Portable Devices.................................................................................. 10 2.3. Picture of Host Product .......................................................................................................... 11 3. SAR Measurements System Configuration ................................................................................... 12 3.1. SAR Measurement Set-up .....................................................................................................12 3.2. DASY4 E-field Probe System ................................................................................................ 13 3.2.1. EX3DV4 Probe Specification .......................................................................................... 13 3.2.2. E-field Probe Calibration ................................................................................................. 14 3.3. Other Test Equipment ............................................................................................................14 3.3.1. Device Holder for Transmitters ....................................................................................... 14 3.3.2. Phantom .........................................................................................................................15 3.4. Scanning Procedure ..............................................................................................................15 3.5. Data Storage and Evaluation ................................................................................................. 17 3.5.1. Data Storage................................................................................................................... 17 3.5.2. Data Evaluation by SEMCAD ......................................................................................... 17 3.6. System Check........................................................................................................................ 20 3.7. Equivalent Tissues ................................................................................................................. 21 4. Laboratory Environment................................................................................................................ 21 5. Characteristics of the Test ............................................................................................................. 22 5.1. Applicable Limit Regulations .................................................................................................. 22 5.2. Applicable Measurement Standards...................................................................................... 22 6. Conducted Output Power Measurement....................................................................................... 23 6.1. Summary ......................................................................................................................…

Text truncated - open the document above for the full version.

Test Report

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of TP-LINK TECHNOLOGIES CO., LTD. 150Mbps Mini Wireless N USB Adapter Model No.: TL-WN723N FCC ID: TE7WN723N Prepared for : TP-LINK TECHNOLOGIES CO., LTD. 1-6F, Building 2, Pingshandayuan Industrial, South Zone, Taoyuan Street, Nanshan District, Shenzhen, P.R.C. Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number Κ ACS-F11034 Date of Test Κ Jan.19~Feb.15, 2011 Date of Report Κ Feb.17, 2011 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 TABLE OF CONTENTS Description Page 1.SUMMARY OF STANDARDS AND RESULTS.......................................................... 1-1 1.1.Description of Standards and Results .................................................................................. 1-1 2.GENERAL INFORMATION ......................................................................................... 2-1 2.1.Description of Device (EUT) ............................................................................................... 2-1 2.2.Test Information................................................................................................................... 2-2 2.3.Tested Supporting System Details ....................................................................................... 2-3 2.4.Block diagram of connection between the EUT and simulators .......................................... 2-3 2.5.Test Facility ......................................................................................................................... 2-4 2.6.Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-4 3.POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 3.1.Test Equipments................................................................................................................... 3-1 3.2.Block Diagram of Test Setup ............................................................................................... 3-1 3.3.Power Line Conducted Emission Test Limits...................................................................... 3-1 3.4.Configuration of EUT on Test ............................................................................................. 3-2 3.5.Operating Condition of EUT................................................................................................ 3-2 3.6.Test Procedure...................................................................................................................... 3-2 3.7.Power Line Conducted Emission Test Results .................................................................... 3-2 4.RADIATED EMISSION TEST ...................................................................................... 4-1 4.1.Test Equipment .................................................................................................................... 4-1 4.2.Block Diagram of Test Setup ............................................................................................... 4-1 4.3.Radiated Emission Limit...................................................................................................... 4-2 4.4.EUT Configuration on Test..................................................................................................4-3 4.5.Operating Condition of EUT................................................................................................ 4-3 4.6.Test Procedure...................................................................................................................... 4-3 4.7.Radiated Emission Test Results ........................................................................................... 4-4 5.CONDUCTED SPURIOUS EMISSIONS.................................................................... 5-79 5.1.Test Equipment .................................................................................................................. 5-79 5.2.Limit................................................................................................................................... 5-79 5.3.Test Procedure.................................................................................................................... 5-79 5.4.Test result ........................................................................................................................... 5-79 6.BAND EDGE COMPLIANCE TEST ........................................................................ 6-108 6.1.Test Equipment ................................................................................................................ 6-108 6.2.Limit................................................................................................................................. 6-108 6.3.Test Produce ..................................................................................................................... 6-108 6.4.Test Results ...................................................................................................................... 6-108 7.6dB Bandwidth Test..................................................................................................... 7-141 7.1.Test Equipment ................................................................................................................ 7-141 7.2.Limit................................................................................................................................. 7-141 7.3.Test Procedure.................................................................................................................. 7-141 7.4.Test Results ..........................................................…

Text truncated - open the document above for the full version.

Test Report

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 4-75 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 4-76 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 4-77 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 4-78 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-79 5. CONDUCTED SPURIOUS EMISSIONS 5.1.Test Equipment Item Equipment ManufacturerModel No. Serial No. Last Cal. Cal. Interval 1. Spectrum Analyzer Agilent E4446A US44300459 May.08,10 1 Year 2. Attenuator Agilent 8491B MY39262165 May.08,10 1 Year 3. RF Cable Hubersuhner SUCOFLEX10228618/2 May.08,10 1Year 5.2.Limit In any 100kHz bandwidth outside the frequency bands in which the spread spectrum intentional radiator in operating, the radio frequency power that is produced by the intentional radiator shall be at least 20dB below that in the 100kHz bandwidth within the band that contains the highest level of the desired power. 5.3.Test Procedure The transmitter output was connected to a spectrum analyzer, The resolution bandwidth is set to 100 kHz, The video bandwidth is set to 300 kHz and measure all the emissions detected. 5.4.Test result PASS (The testing data was attached in the next pages.) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-80 Test Mode: IEEE 802.11b TX CH1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-81 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-82 CH6 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-83 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-84 CH11 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-85 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-86 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-87 Test Mode: IEEE 802.11g TX CH1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-88 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-89 CH6 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-90 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-91 CH11 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-92 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-93 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-94 Test Mode: IEEE 802. 11n HT20 TX CH1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-95 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-96 CH6 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-97 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-98 CH11 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-99 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-100 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-101 Test Mode: IEEE 802. 11n HT40TX CH1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-102 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-103 CH4 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-104 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-105 CH7 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-106 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 5-107 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 6-108 6. BAND EDGE COMPLIANCE TEST 6.1.Test Equipment Item Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval 1. Spectrum Analyzer Agilent E4446A US44300459 May.08,10 1 Year 2. Horn Antenna EMCO 3115 9607-4877 Nov.25, 09 1.5 Year 3. Amplifier Agilent 8449B 3008A02495 May.08, 10 1 Year 4. RF Cable Hubersuhner SUCOFLEX102 28620/2 May.08,10 1 Year 5. RF Cable Hubersuhner SUCOFLEX102 28618/2 May.08,10 1 Year 6. RF Cable Hubersuhner SUCOFLEX102 28610/2 May.08,10 1 Year 6.2.Limit All the lower and upper band-edges emissions appearing within 2310MHz to 2390MHz and 2483.5MHz to 2500MHz restri…

Text truncated - open the document above for the full version.

Test Setup Photos

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 12-1 12. PHOTOGRAPH OF TEST 12.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 12-2 12.2.Photos of Radiated Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WN723N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11034 12-3 (Above 1000MHz)

Contact Information

Applicant

Jing Huang(Regulatory Compliance Manager)
[email protected]75521534921Fax: 75526508930

Technical Contact

AUDIX Technology (Shenzhen) Co., Ltd.Ken Lu
[email protected]86-755-26639497

52 Block Shenzhen Science&Industry · Shenzhen · China

Non-Technical Contact

AUDIX Technology (Shenzhen) Co., Ltd.Kris Zheng
[email protected]86-755-26639497

Test Firm

Audix Technology (Shenzhen) Co.Smart Tsai
[email protected]86-755-663-9495Fax: 86-755-663-2877

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz107.00 mW
Confidentiality
Long Term
Grant Notes
Power Output is conducted. The SAR data in this filing is applicable to demonstrate compliance for the USB Dongle only as shown in this filing. End-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The highest reported SAR values are: Body: 0.228 W/kg;
