TE7WN751NX150Mbps Wireless N PCI Adapter

TP-Link Technologies Co., Ltd. Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park, Nanshan, Shenzhen, China Date: 2013‐01‐28 AUTHORIZATION LETTER To whom it may concern: We, the undersigned TP‐Link Technologies Co., Ltd., hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required in FCC approval and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Name: Yongquan Wang TP‐Link Technologies Co., Ltd. Tel.: +86‐755‐26502509 Fax.: +86‐755‐26508930 E‐mail: public@tp‐link.com.cn

TP-Link Technologies Co., Ltd. Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan, Shenzhen, China Date:2013‐01‐28 FCC ID:TE7WN751NX To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Name: Yongquan Wang TP‐Link Technologies Co., Ltd. Tel.: +86‐755‐26502509 Fax.: +86‐755‐26508930 E‐mail: public@tp‐link.com.cn

TP-Link Technologies Co., Ltd. Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan, Shenzhen, China Attestation for FCC Declaration of Conformity FCC ID: TE7WN751NXDate: 2013-01-21 Please be notified that we, the undersigned, TP-LINK TECHNOLOGIES CO., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is FD121107E10, with is issued by an accredited lab, Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer:Yongquan Wang Title of authorized signer:Product Dept. Manager Company Name:TP‐LINK Technologies Co., Ltd. Tel:86‐755‐26525554 Fax:86‐755‐26508930 Web site:WWW.TP‐LINK.COM E‐mail:public@tp‐link.com.cn

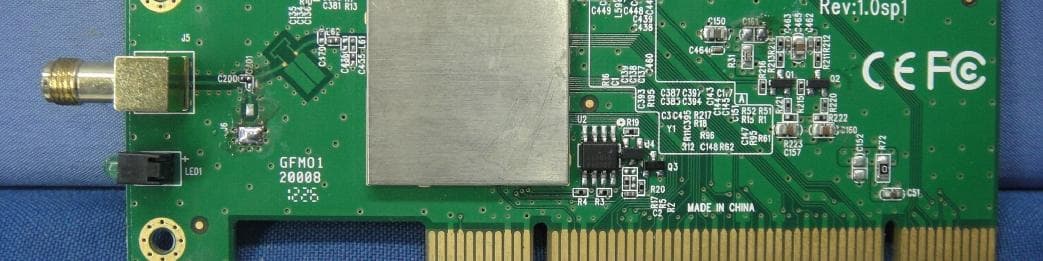

Report No.: 121107E10 Page 1 CONSTRUCTION PHOTOS OF EUT Model No.: TL-WN751ND Report No.: 121107E10 Page 2 Report No.: 121107E10 Page 3 Report No.: 121107E10 Page 4 Report No.: 121107E10 Page 5 Model No.: TL-WN751N Report No.: 121107E10 Page 6 Report No.: 121107E10 Page 7

FCC ID： TE7WN751NX LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

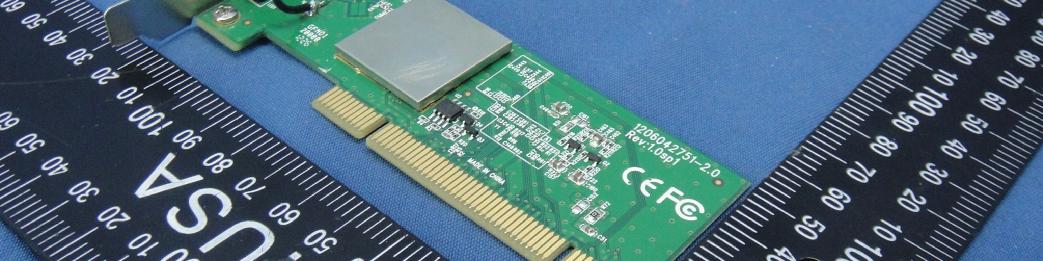

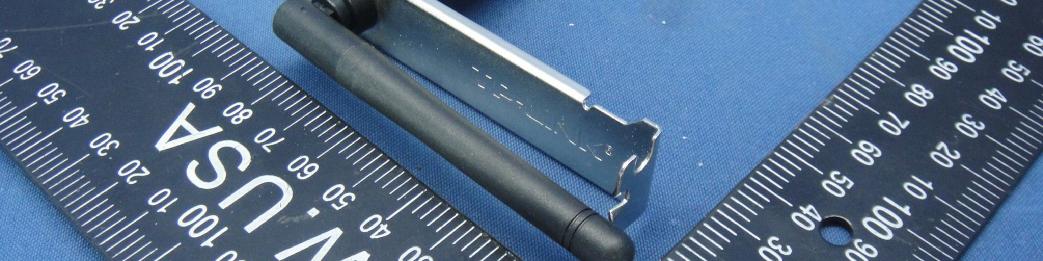

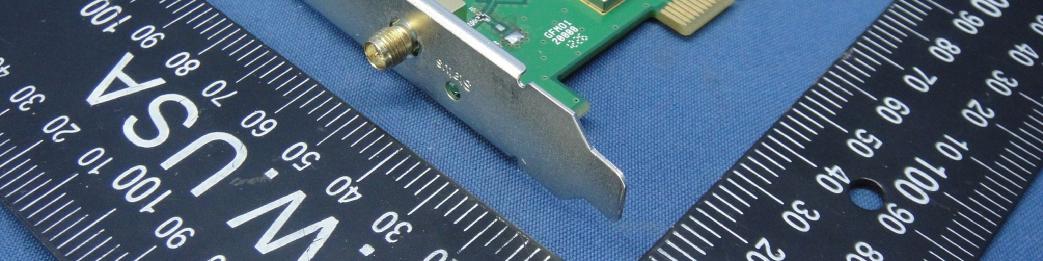

Report No.: 121107E10 Page 1 CONSTRUCTION PHOTOS OF EUT Model No.: TL-WN751ND Report No.: 121107E10 Page 2 Model No.: TL-WN751N

Report No.: SA121107E10 1 of 5 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA121107E10 MODEL NO.: TL-WN751ND, TL-WN751N FCC ID: TE7WN751NX RECEIVED: Nov. 07, 2012 TESTED: Dec. 28, 2012 ISSUED: Jan. 08, 2013 APPLICANT: TP-LINK TECHNOLOGIES CO., LTD. ADDRESS: Building 24 (floors 1,3,4,5) and 28 (floors1-4) Central Science and Technology Park,Shennan Rd, Nanshan, Shenzhen,China ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA121107E10 2 of 5 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD .................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT .............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ........................... 5 Report No.: SA121107E10 3 of 5 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA121107E10 Original release Jan. 08, 2013 Report No.: SA121107E10 4 of 5 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: 150Mbps Wireless N PCI Adapter BRAND NAME: TP-LINK MODEL NO.: TL-WN751ND, TL-WN751N TEST SAMPLE: PROTOTYPE APPLICANT: TP-LINK TECHNOLOGIES CO., LTD. TESTED DATE: Dec. 28, 2012 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: TL-WN751ND) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Jan. 08, 2013 ( Phoenix Huang, Specialist ) APPROVED BY : , DATE: Jan. 08, 2013 ( May Chen, Deputy Manager ) Report No.: SA121107E10 5 of 5 Report Format Version 5.0.0 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 110.917 1.8 20 0.03340 1 --- END ---

Report No.: RF121107E10 1 of 57 Report Format Version 5.1.0 FCC TEST REPORT REPORT NO.: RF121107E10 MODEL NO.: TL-WN751ND, TL-WN751N FCC ID: TE7WN751NX RECEIVED: Nov. 07, 2012 TESTED: Nov. 12 to Dec. 28, 2012 ISSUED: Jan. 08, 2013 APPLICANT: TP-LINK TECHNOLOGIES CO., LTD. ADDRESS: Building 24 (floors 1,3,4,5) and 28 (floors1-4) Central Science and Technology Park,Shennan Rd, Nanshan, Shenzhen,China ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF121107E10 2 of 57 Report Format Version 5.1.0 Table of Contents RELEASE CONTROL RECORD ........................................................................................ 4 1. CERTIFICATION .................................................................................................... 5 2. SUMMARY OF TEST RESULTS ............................................................................ 6 2.1 MEASUREMENT UNCERTAINTY .......................................................................... 7 3. GENERAL INFORMATION ..................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ....................................................................... 8 3.2 DESCRIPTION OF TEST MODES ....................................................................... 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................ 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 14 3.4 DESCRIPTION OF SUPPORT UNITS .................................................................. 15 3.5 CONFIGURATION OF SYSTEM UNDER TEST ................................................... 17 4. TEST TYPES AND RESULTS .............................................................................. 18 4.1 CONDUCTED EMISSION MEASUREMENT ........................................................ 18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................... 18 4.1.2 TEST INSTRUMENTS .......................................................................................... 18 4.1.3 TEST PROCEDURES .......................................................................................... 19 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 19 4.1.5 TEST SETUP ....................................................................................................... 20 4.1.6 EUT OPERATING CONDITIONS ......................................................................... 20 4.1.7 TEST RESULTS ................................................................................................... 21 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................ 23 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 23 4.2.2 TEST INSTRUMENTS .......................................................................................... 24 4.2.3 TEST PROCEDURES .......................................................................................... 26 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 26 4.2.5 TEST SETUP ....................................................................................................... 27 4.2.6 EUT OPERATING CONDITIONS ......................................................................... 27 4.2.7 TEST RESULTS ................................................................................................... 28 4.3 6dB BANDWIDTH MEASUREMENT .................................................................... 41 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................. 41 4.3.2 TEST INSTRUMENTS .......................................................................................... 41 4.3.3 TEST PROCEDURE ............................................................................................. 41 4.3.4 DEVIATION FROM TEST STANDARD ................................................................. 41 4.3.5 TEST SETUP ....................................................................................................... 42 4.3.6 EUT OPERATING CONDITION…

Text truncated - open the document above for the full version.

Report No.: 120810E25C Page 1 Reference No.: 121009E05 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 120810E25C Page 2 Reference No.: 121009E05 RADIATED EMISSION TEST
