TL-WN861N 300Mbps Wireless N Mini PCI Adapter Rev: 1.0.4 1910010307 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2010 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” The final end host device which contains this module must be labeled in a visible area with “Contains FCC ID: TE7WN861NV2” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions 2400.0-2483.5 MHz Country Restriction Reason/remark Bulgaria General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation Only for indoor applications Note: Please don’t use the product outdoors in France. TP-LINK TECHNOLOGIES CO., LTD TP-LINK TECHNOLOGIES CO., LTD. South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P. R. China DECLARATION OF CONFORMITY For the following equipment: Product Description: 300Mbps Wireless N Mini PCI Adapter Model No.: TL-WN861N Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives: Directives 1999/5/EC The above product is in conformity with the following standards or other normative documents: ETSI EN 300 328 V1.7.1: 2006 ETSI EN 301 489-1 V1.8.1:2008 & ETSI EN 301 489-17 V1.3.2:2008 EN60950-1:2006 EN62311:2008 Person is responsible for marking this declaration: Yang Hongliang Product Manager of International Business CONTENTS Package Contents.................................................................................................... 1 Chapter 1 Introduction........................................................................................... 2 1.1 Overview of the Product.......................................................................................... 2 1.2 Features.................................................................................................................. 2 Chapter 2 Installation Guide.................................................................................. 3 2.1 Software Installation................................................................................................ 3 2.1.1 Overview.................................................................................................... 3 2.1.2 Software Installation for Windows XP......................................................... 3 2.1.3 Software Installation for Windows Vista..................................................... 8 Chapter 3 Configuration...................................................................................... 13 3.1 Current Status....................................................................................................... 13 3.2 Profile Management...........................................................…

Text truncated - open the document above for the full version.

Date: 2010-2-23 Federal Communications Commission Authorization and Evaluation Division FCC ID: TE7WN861NV2 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

Modular Approval Request Letter Dear Application Examiner, TP-LINK Technologies Co., Ltd.，Our device 300Mbps Wireless N Mini PCI Adapter , FCC ID： TE7WN861NV2,would like to have your authorization as a full modular approval specific to the computer device such as desktop/laptop computer.The requirements of section 15.212 have been met and shown on the following statements. 1, “The modular transmitter must have it’s own RF shielding.” The radio portion of this module has been shielded,please see exhibition External Photo. 2, “The modular transmitter must have buffered modulation data inputs.” The EUT has buffered data inputs, it is integrated in chip AR9223 3，“The modular transmitter must have it’s own power supply regulation.” The mini PCI interface provides 3.3V DC,the on board power IC MP2104DJ convert 3.3V DC to 1.2V DC 4，“The modular transmitter must comply with antenna requirements of section 15.203 and 15.204(c).” The EUT meets the FCC antenna requirements,it’s have I-PEX antenna connector that no antenna other than that furnished by the responsible party shall be used with the device,The spurious emissions are shown in the test report. 5, “The modular transmitter must be tested in a stand-alone configuration.” The EUT was tested in a stand-alone configuration via a PCB to Notebook,please see section photographs of test configration in the test report. 6, “The modular transmitter must be labeled with it’s own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. 7, “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instructions along with module to explain any such requirement.” The EUT is compliant with all applicable FCC rules,detail instructions for maintaining compliance are given in the users Manual. 8, “The modular transmitter must conply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements.RF exposure is addressed in the test report. Best Regarts! Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

Attestation for FCC Declaration of Conformity FCC ID: TE7WN861NV2 Date: 2010-2-24 Please be notified that we, the undersigned, TP-LINK TECHNOLOGIES CO., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM-F990142 , with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

AGENCY AUTHORIZATION LETTER FCC ID：TE7WN861NV2 Date: 2010-2-23 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd （No. 6, Ke Feng Rd., 52 Block， Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China） to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

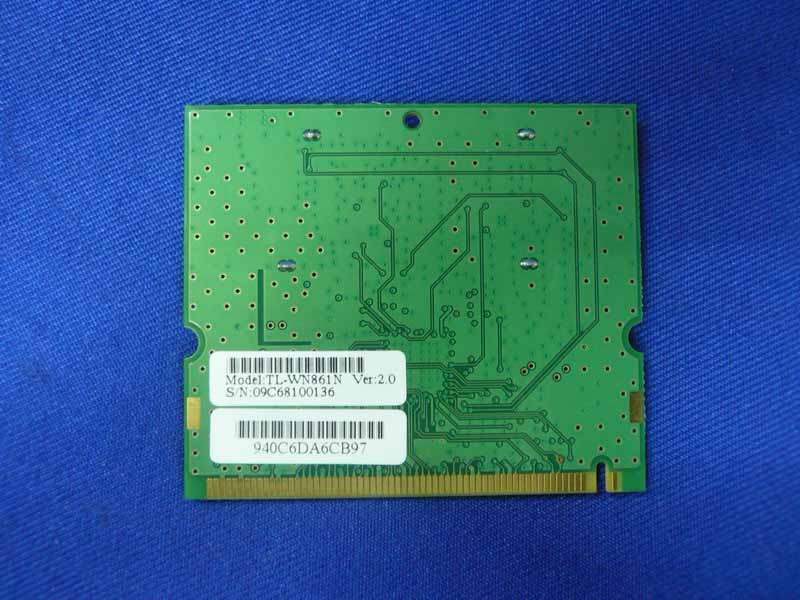

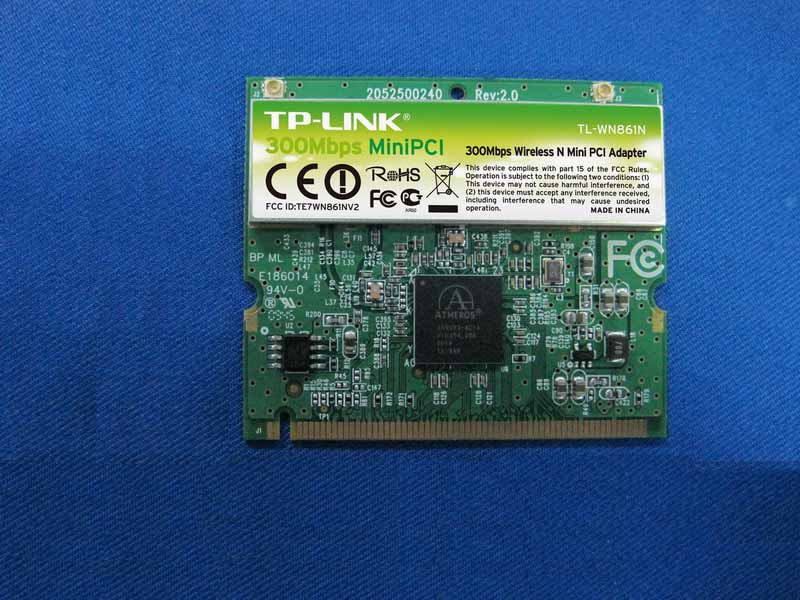

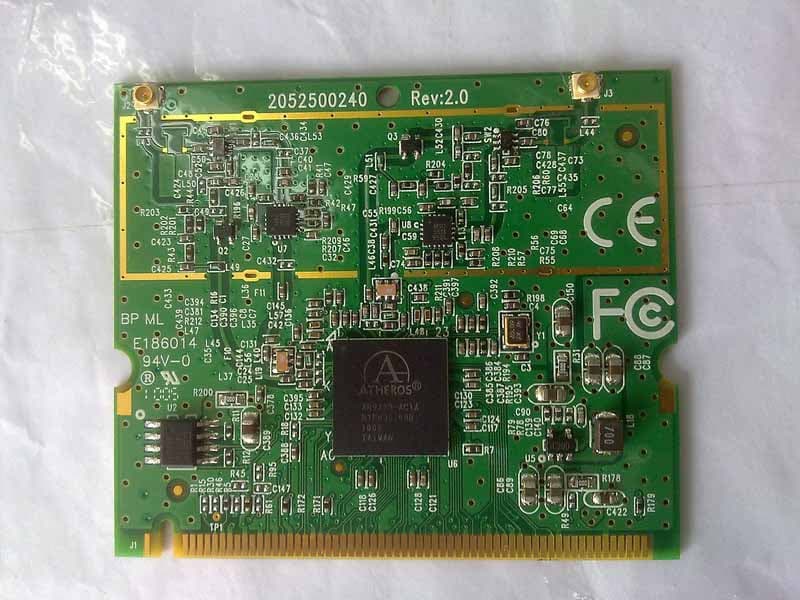

FCC ID:TE7WN861NV2 Page 14-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10037 14. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT FCC ID:TE7WN861NV2 Page 14-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10037 Figure 3 General Appearance of the EUT Figure 4 Components Side of the PCB

12 E D C B A 12 3456789 E D C 345678 B A 9 料号： 设 计 审 核 颜 色 名 称 版 本 材 质 模 具 机型版本号 完成日期 logo 底色 文字 其它 记 录 与上一版的区别 300Mbps Wireless N Mini PCI Adapter FCC ID:TE7WN861NV2 TL-WN861N 300Mbps MiniPCI This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN CHINA Label Location

FCC ID:TE7WN861NV2 Page 14-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10037 14. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT FCC ID:TE7WN861NV2 Page 14-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10037 Figure 3 General Appearance of the EUT Figure 4 Components Side of the PCB

FCC ID:TE7WN861NV2 Page 11-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10037 11.MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2.Estimation Result Mode CH Frequency (MHz) PK Output power (dBm) Output power (mW) Antenna Gain (dBi) Antenna Gain(linear) MPE (mW/ cm2 ) 1 2412 17.08 51.0521.580.0161 6 2437 18.23 66.5321.580.0210 11b 11 2462 17.11 51.4021.580.0162 1 2412 20.78 119.6721.580.0378 6 2437 22.12 162.9321.580.0514 11g 11 2462 22.05 160.3221.580.0506 1 2412 22.69 185.7821.580.0586 6 2437 25.04 319.1521.580.1007 11n HT20 11 2462 23.28 212.8121.580.0671 1 2422 18.91 77.8021.580.0245 4 2437 25.98 396.2821.580.1250 11n HT40 7 2452 18.28 67.3021.580.0212 Note: The estimation distance is 20cm

FCC ID:TE7WN861NV2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10037 APPLICATION FOR CERTIFICATION On Behalf of TP-LINK Technologies Co., Ltd. 300Mbps Wireless N Mini PCI Adapter Model Number: TL-WN861N FCC ID: TE7WN861NV2 Prepared for : TP-LINK Technologies Co., Ltd. Building 7, Second Part, Honghualing Industrial Zone, Xili town, Nanshan, Shenzhen, P.R. China Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F10037 Date of Test ： Jan.06~ Feb.08, 2010 Date of Report ： Feb.22, 2010 FCC ID:TE7WN861NV2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10037 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS................................................................... 1-1 1.1. Description of Standards and Results ............................................................................................1-1 2. GENERAL INFORMATION .................................................................................................. 2-1 2.1. Description of Device (EUT) .........................................................................................................2-1 2.2. Test information .............................................................................................................................2-2 2.3. Date rate VS power ........................................................................................................................2-3 2.4. Tested Supporting System Details .................................................................................................2-4 2.5. Test Facility ...................................................................................................................................2-5 2.6. Measurement Uncertainty (95% confidence levels, k=2) ..............................................................2-5 3. POWER LINE CONDUCTED EMISSION TEST ................................................................ 3-1 3.1. Test Equipments.............................................................................................................................3-1 3.2. Block Diagram of Test Setup .........................................................................................................3-1 3.3. Power Line Conducted Emission Test Limits................................................................................3-1 3.4. Configuration of EUT on Test .......................................................................................................3-2 3.5. Operating Condition of EUT..........................................................................................................3-2 3.6. Test Procedure................................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results ..............................................................................3-2 4. RADIATED EMISSION TEST ............................................................................................... 4-1 4.1. Test Equipment ..............................................................................................................................4-1 4.2. Block Diagram of Test Setup .........................................................................................................4-1 4.3. Radiated Emission Limit................................................................................................................4-2 4.4. EUT Configuration on Test............................................................................................................4-3 4.5. Operating Condition of EUT..........................................................................................................4-3 4.6. Test Procedure................................................................................................................................4-3 4.7. Radiated Emission Test Results .....................................................................................................4-4 5. CONDUCTED SPURIOUS EMISSIONS............................................................................... 5-1 5.1. Test Equipment ..............................................................................................................................5-1 5.2. Limit...............................................................................................................................................5-1 5.3. Test Procedure................................................................................................................................5-1 5.4. Test result .......................................................................................................................................5-1 6. BAND EDGE COMPLIANCE TEST ..................................................................................... 6-1 6.1. Test Equipment ..............................................................................................................................6-1 6.2. Limit...............................................................................................................................................6-1 6.3. Test Produce ...................................................................................................................................6-1 6.4. Test Results ....................................................................................................................................6-1 7. 6dB Bandwidth Test.................................................................................................................. 7-1 7.1. Test Equipment ..............................................................................................................................7-1 7.2. Limit..........................…

Text truncated - open the document above for the full version.

FCC ID:TE7WN861NV2 Page 13-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10037 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test FCC ID:TE7WN861NV2 Page 13-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10037 13.2.Photos of Radiated Emission Test 30-1000MHz FCC ID:TE7WN861NV2 Page 13-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10037 Above 1000MHz
