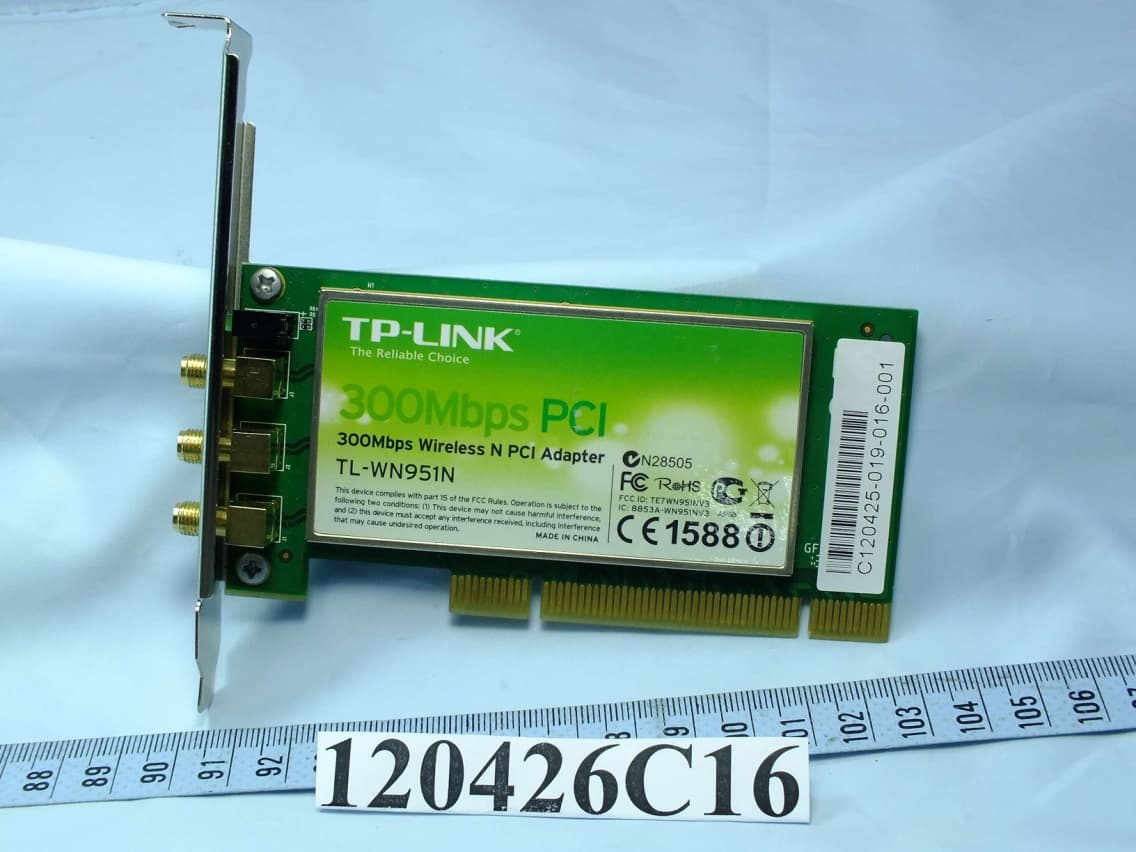

TE7WN951NV3300Mbps Wireless N PCI Adapter

TP-Link Technologies Co., Ltd.
300Mbps Wireless N PCI Adapter - FCC ID TE7WN951NV3 - TP-Link Technologies Co., Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 08, 2012
Application Purpose
Original Equipment
Date of Application
Jun 07, 2012
Equipment Note
300Mbps Wireless N PCI Adapter
Frequency Range
2422.00000000 - 2452.00000000
Company
TP-Link Technologies Co., Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

TP-Link Technologies Co., Ltd. Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan, Shenzhen,China Date: 2012-05-18 A U T H O R I Z A T I O N L E T T E R To whom it may concern: We, the undersigned TP-Link Technologies Co., Ltd., hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required in FCC approval and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Name: Yongquan Wang TP-Link Technologies Co., Ltd. Tel.: +86-755-26502509 Fax.: +86-755-26508930 E-mail: [email protected]

Cover Letter(s)

TP-Link Technologies Co., Ltd. Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan, Shenzhen,China Date: 2012-05-18 FCC ID: TE7WN951NV3 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Name: Yongquan Wang TP-Link Technologies Co., Ltd. Tel.: +86-755-26502509 Fax.: +86-755-26508930 E-mail: [email protected]

Cover Letter(s)

Attestation for FCC Declaration of Conformity FCC ID: TE7WN951NV3 Date: May 16, 2012 Please be notified that we, the undersigned, TP-LINK TECHNOLOGIES CO., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is FD120426C16 , with is issued by an accredited lab, Bureau Veritas Consumer Products Services(H.K.)Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan,Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

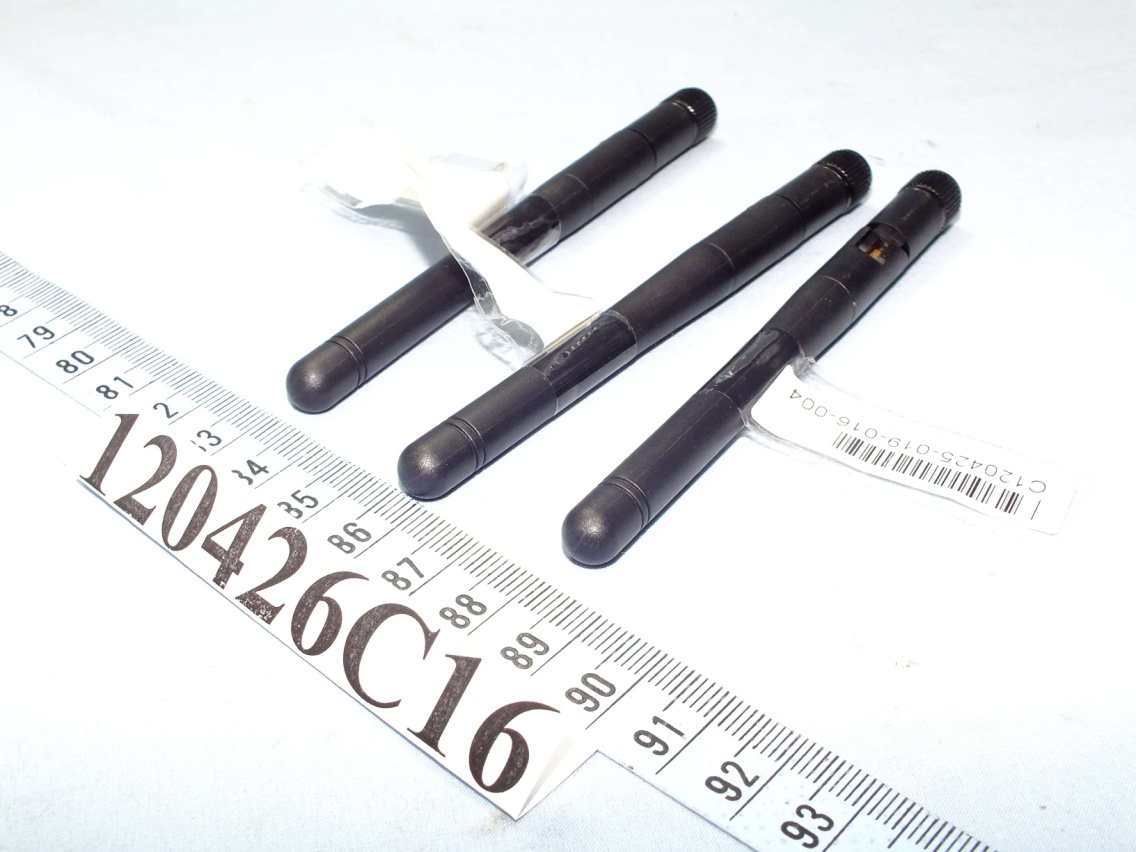

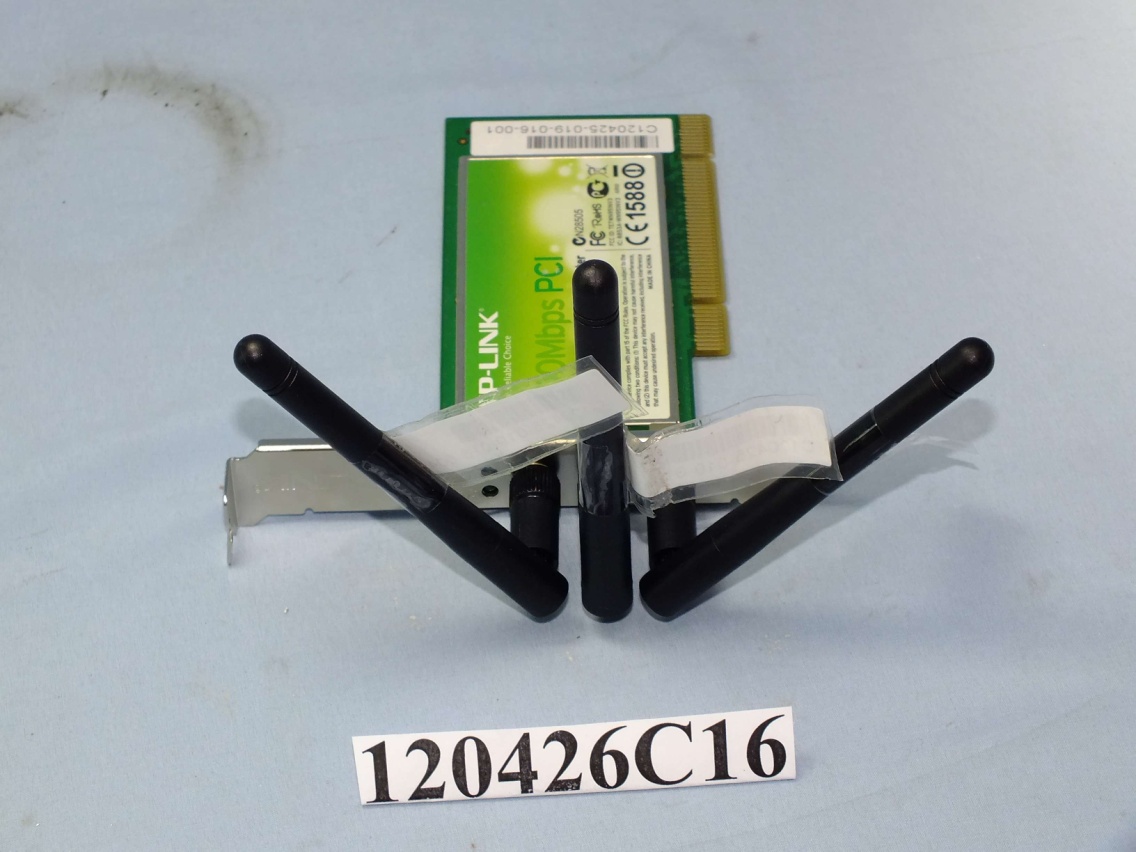

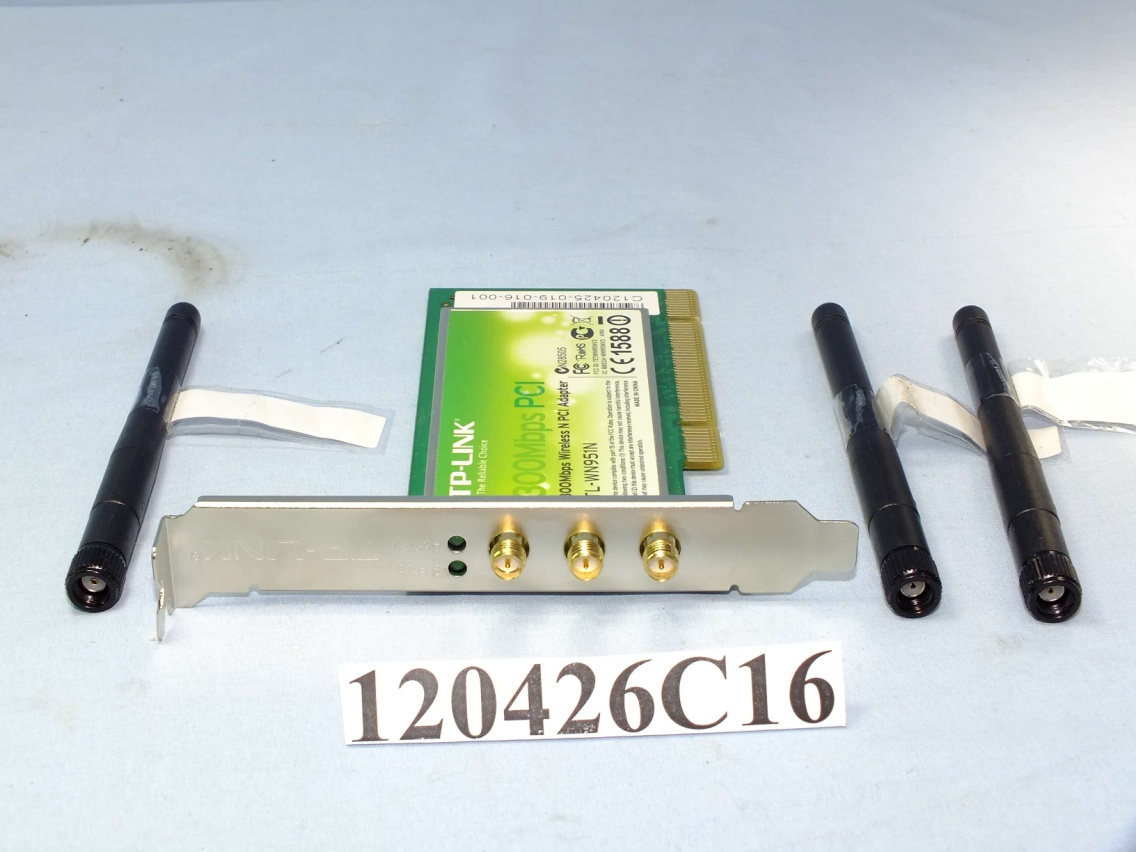

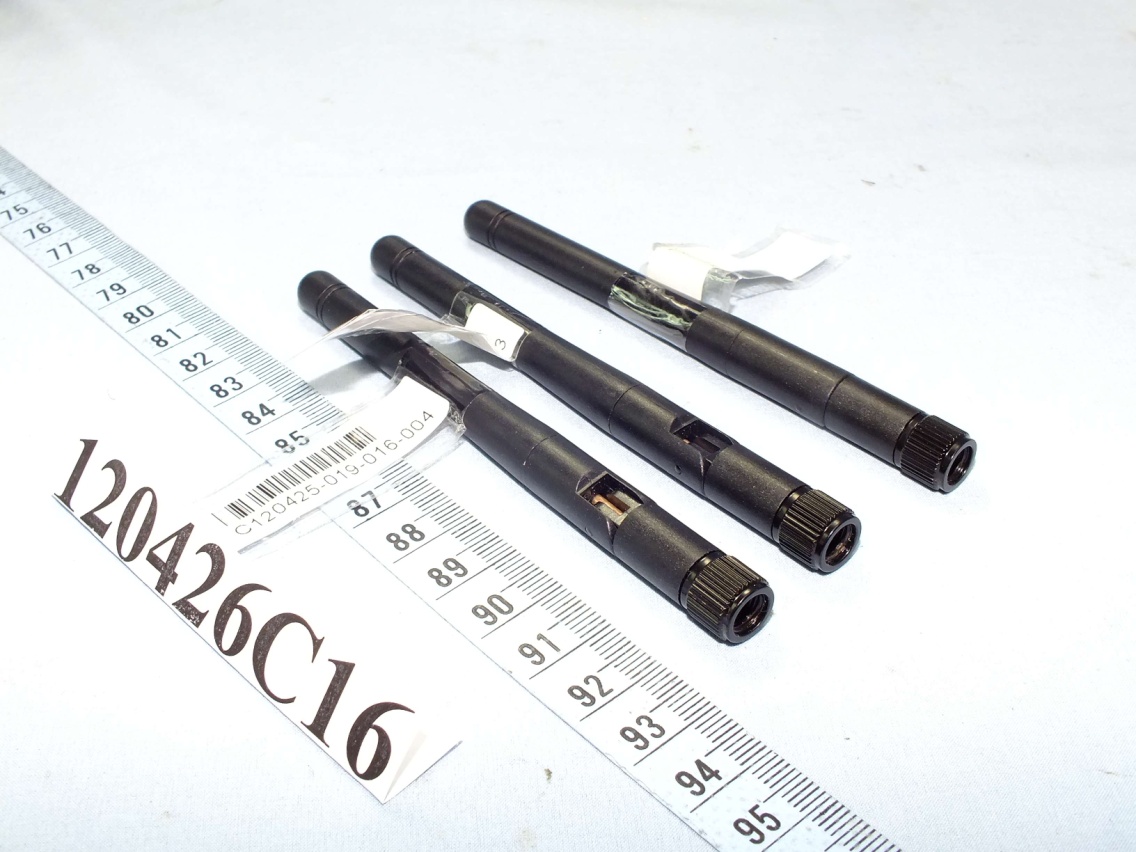

External Photos

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

ID Label/Location Info

12 E D C B A 12 3456789 E D C 345678 B A 9 料号: 设 计 审 核 颜 色 名 称 版 本 材 质 模 具 机型版本号 完成日期 logo 底色 文字 其它 记 录 与上一版的区别 TL-WN951N(UN)3.0彩印标贴 A2 80g艾利铜版纸+光膜 TL-WN951N(UN)3.0.0 2012-2-27 增加IC number,修改PCT认证 四色印刷 林如君 文字转曲线

Internal Photos

Page 4 Page 5

RF Exposure Info

Report No.: SA120426C16 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA120426C16 MODEL NO.: TL-WN951N FCC ID: TE7WN951NV3 RECEIVED: Apr. 26, 2012 TESTED: May 14, 2012 ISSUED: May 25, 2012 APPLICANT: TP-LINK TECHNOLOGIES CO., LTD. ADDRESS: Building 24 (floors 1,3,4,5) and 28 (floors1-4) Central Science and Technology Park,Shennan Rd, Nanshan, Shenzhen,China ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This test report consists of 6 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by any government agency. The test results in the report only apply to the tested sample. Report No.: SA120426C16 Report Format Version 4.0.0 2 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT .............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. ANTENNA GAIN....................................................................................................... 5 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ........................... 6 Report No.: SA120426C16 Report Format Version 4.0.0 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120426C16 Original release May 25, 2012 Report No.: SA120426C16 Report Format Version 4.0.0 4 1. CERTIFICATION PRODUCT: 300Mbps Wireless N PCI Adapter BRAND NAME: TP-LINK MODEL NO.: TL-WN951N TEST SAMPLE: PROTOTYPE APPLICANT: TP-LINK TECHNOLOGIES CO., LTD. TESTED: May 14, 2012 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: TL-WN951N) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Mar. 07, 2012 ( Lori Chung, Specialist ) APPROVED BY : , DATE: Mar. 07, 2012 ( May Chen, Deputy Manager ) Report No.: SA120426C16 Report Format Version 4.0.0 5 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r= distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 5. ANTENNA GAIN The antennas provided to the EUT, please refer to the following table: Transmitter Circuit Brand Model Antenna Type Peak Gain (dBi) Connecter Type Chain (0) Cortec AN2400-5505RS Omni-Directional 2 RP-SMA female Chain (1) Cortec AN2400-5505RS Omni-Directional 2 RP-SMA female Report No.: SA120426C16 Report Format Version 4.0.0 6 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 413.104 5.01 20 0.260 1.00 Directional gain = gain of antenna element + 10 log (# of TX antenna elements) Effective Legacy Gain (dBi)=5.01 --- END ---

Test Report

Report No.: RF120426C16 1 Report Format Version 4.2.0 RF TEST REPORT REPORT NO.: RF120426C16 MODEL NO.: TL-WN951N FCC ID: TE7WN951NV3 IC: 8853A-WN951NV3 RECEIVED: Apr. 26, 2012 TESTED: May 08 to 17, 2012 ISSUED: May 25, 2012 APPLICANT: TP-LINK TECHNOLOGIES CO., LTD. ADDRESS: Building 24 (floors 1,3,4,5) and 28 (floors1-4) Central Science and Technology Park,Shennan Rd, Nanshan, Shenzhen,China ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This test report consists of 57 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF120426C16 2 Report Format Version 4.2.0 Table of Contents RELEASE CONTROL RECORD ........................................................................................ 4 1. CERTIFICATION .................................................................................................... 5 2. SUMMARY OF TEST RESULTS ............................................................................ 6 2.1 MEASUREMENT UNCERTAINTY .......................................................................... 7 3. GENERAL INFORMATION ..................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ....................................................................... 8 3.2 DESCRIPTION OF TEST MODES ....................................................................... 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................ 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 13 3.4 DESCRIPTION OF SUPPORT UNITS .................................................................. 14 3.5 CONFIGURATION OF SYSTEM UNDER TEST ................................................... 14 4. TEST TYPES AND RESULTS .............................................................................. 15 4.1 CONDUCTED EMISSION MEASUREMENT ........................................................ 15 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................... 15 4.1.2 TEST INSTRUMENTS .......................................................................................... 15 4.1.3 TEST PROCEDURES .......................................................................................... 16 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 16 4.1.5 TEST SETUP ....................................................................................................... 17 4.1.6 EUT OPERATING CONDITIONS ......................................................................... 17 4.1.7 TEST RESULTS ................................................................................................... 18 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................ 20 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 20 4.2.2 TEST INSTRUMENTS .......................................................................................... 21 4.2.3 TEST PROCEDURES .......................................................................................... 23 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 23 4.2.5 TEST SETUP ....................................................................................................... 24 4.2.6 EUT OPERATING CONDITIONS ......................................................................... 24 4.2.7 TEST RESULTS ................................................................................................... 25 4.3 6dB BANDWIDTH MEASUREMENT .................................................................... 39 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................. 39 4.3.2 TEST INSTRUMENTS .......................................................................................... 39 4.3.3 TEST PROCEDURE ............................................................................................. 39 4.3.4 DEVIATION FROM TEST STANDARD ................................................................. 39 4.3.5 TEST SETUP ....................................................................................................... 39 4.3.6 EUT OPERATING CONDITIONS ......................................................................... 39 4.3.7 TEST RESULTS ................................................................................................... 40 4.4 OCCUPIED BANDWIDTH MEASUREMENT ........................................................ 41 4.4.1 TEST INSTRUMENTS .......................................................................................... 41 4.4.2 TEST PROCEDURE ............................................................................................. 41 4.4.3 DEVIATION FROM TEST STANDARD ................................................................. 41 Report No.: RF120426C16 3 Report Format Version 4.2.0 4.4.4 TEST SETUP ....................................................................................................... 41 4.4.5 EUT OPERATING CONDITIONS ......................................................................... 41 4.4.6 TEST RESULTS ....................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: 120426C16 1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 120426C16 2 RADIATED EMISSION TEST

Contact Information

Applicant

Jing Huang(Regulatory Compliance Manager)
[email protected]75521534921Fax: 75526508930

Technical Contact

Bureau VeritasGary Chang
[email protected]886 3 318 3232

81-1 Lu Laio Keng, 9th Ling, Wi Lung Tsuen Chiung · Hsinchu Hsien · Taiwan

Test Firm

Bureau Veritas CPS (H.K.) Ltd., Taoyuan BranchRichard Chen
[email protected]+886-3-2600884Fax: +886-3-2115834

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz377.00 mW
Confidentiality
Long Term
Grant Notes
Power Output listed is conducted. Device is an 802.11b/g/n device in a 2x2 Spatial Multiplexing MIMO configuration as described in this filing.The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
