TE7WR1043NXWireless N Gigabit Router

TL-WR1043N TL-WR1043ND Wireless N Gigabit Router Rev: 2.0.1 1910010263 I COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2010 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. II FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France. TP-LINK TECHNOLOGIES CO., LTD DECLARATION OF CONFORMITY For the following equipment: Product Description: Wireless N Gigabit Router Model No.: TL-WR1043N/TL-WR1043ND Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives: Directives 1999/5/EC The above product is in conformity with the following standards or other normative documents ETSI EN 300 328 V1.7.1: 2006 ETSI EN 301 489-1 V1.8.1:2008& ETSI EN 301 489-17 V2.1.1:2009 EN60950-1:2006 Recommendation 1999/519/EC EN62311:2008 Directives 2004/108/EC The above product is in conformity with the following standards or other normative documents EN 55022:2006 +A1:2007 EN 55024:1998+A1:2001+A2:2003 EN 61000-3-2:2006 EN 61000-3-3:1995+A1:2001+A2:2005 Directives 2006/95/EC The above product is in conformity with the following standards or other normative documents EN60950-1:2006 Directive（ErP） 2009/125/EC Audio/Video, information and communication technology equipment- Environmentally conscious design EN62075:2008 Person is responsible for marking this declaration: Yang Hongliang Product Manager of International Business TP-LINK TECHNOLOGIES CO., LTD. 深圳市南山区西丽镇红花岭工业园区二区7栋 TL-WR1043N/TL-WR1043NDWireless N Gigabit Router I CONTENTS Package Contents.......................................................................................................................... 1 Chapter 1. Introduction................................................................................................................. 2 1.1 Overview of the Router................................................................................................. 2 1.2 Conventions................................................................................................................. 3 1.3 Main Features..........................................…

Text truncated - open the document above for the full version.

AGENCY AUTHORIZATION LETTER FCC ID：TE7WR1043NX Date: Dec 15,2009 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd （No. 6, Ke Feng Rd., 52 Block， Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China） to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

Date: Dec 15,2009 Federal Communications Commission Authorization and Evaluation Division FCC ID: TE7WR1043NX Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

Attestation for FCC Declaration of Conformity FCC ID:TE7WR1043NX Date: Dec 15,2009 Please be notified that we, the undersigned, TP-LINK TECHNOLOGIES CO., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM-982481, with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

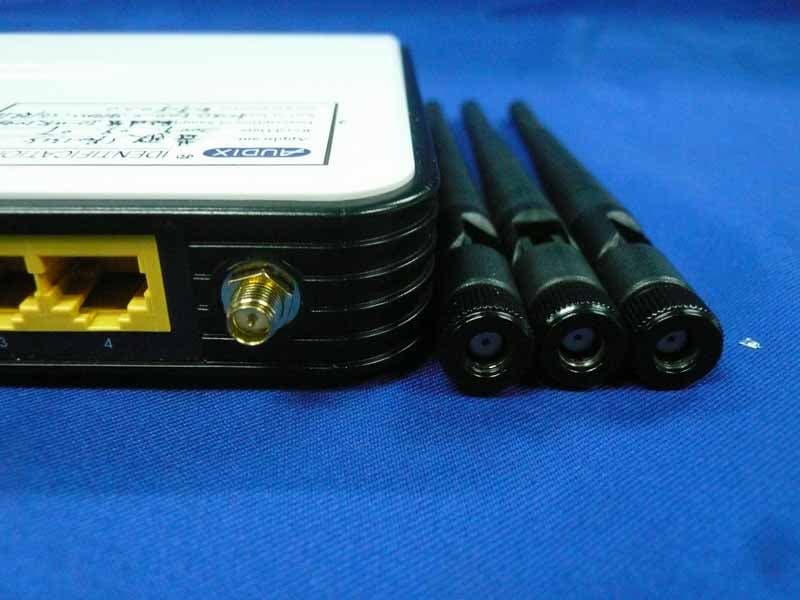

FCC ID:TE7WR1043NX Page 14-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09247 14. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT FCC ID:TE7WR1043NX Page 14-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09247 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT FCC ID:TE7WR1043NX Page 14-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09247 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT

1 2 E D C B A 1 2 3 4 5 6 7 8 9 E D C 3 4 5 6 7 8 B A 9 料号： 设 计 审 核 颜 色 名 称 版 本 材 质 模 具 机型版本号 完成日期 logo 底色 文字 其它 记 录 与上一版的区别 TL-WR1043ND产品规格标贴（英文） 第三版 80g艾利铜版纸+雾膜 TL-WR1043ND 1.0欧 2008-10-24 2010-1-5周树叶增加FCC警语 白色 同我司标准PANTONE 533/536C 白色 PANTONE 533C 廖景燕 92.5*37.5mm, 2.5R 文字转曲线 Model No.: Power: Wireless N Gigabit Router PIN M A C Address Serial Number FCC ID:TE7WR1043NX This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location

FCC ID:TE7WR1043NX Page 14-4 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09247 Figure 7 Inside of the EUT Figure 8 Inside of the EUT FCC ID:TE7WR1043NX Page 14-5 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09247 Figure 9 Inside of the EUT Figure 10 Inside of the EUT FCC ID:TE7WR1043NX Page 14-6 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09247 Figure 11 Power Adapter Figure 12 Power Adapter

FCC ID:TE7WR1043NX Page 11-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09247 11.MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2.Estimation Result Mode CH Frequency (MHz) PK Output power (dBm) Output power (mW) Antenna Gain (dBi) Antenna Gain(linear) MPE (mW/ cm2 ) 1 2412 17.36 54.45 3 2.00 0.0216 6 2437 18.38 68.87 3 2.00 0.0273 11b 11 2462 17.61 57.68 3 2.00 0.0229 1 2412 20.36 108.64 3 2.00 0.0431 6 2437 22.41 174.18 3 2.00 0.0692 11g 11 2462 20.56 113.76 3 2.00 0.0452 1 2412 24.84 304.79 3 2.00 0.1210 6 2437 26.81 479.73 3 2.00 0.1905 11n HT20 11 2462 25.28 337.29 3 2.00 0.1340 1 2422 17.79 60.12 3 2.00 0.0239 4 2437 23.83 241.55 3 2.00 0.0959 11n HT40 7 2452 17.44 55.46 3 2.00 0.0220 Note: The estimation distance is 20cm

FCC ID:TE7WR1043NX Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09247 APPLICATION FOR CERTIFICATION On Behalf of TP-LINK Technologies Co., Ltd. Wireless N Gigabit Router Model Number: TL-WR1043ND FCC ID: TE7WR1043NX Prepared for : TP-LINK Technologies Co., Ltd. Building 7, Second Part, Honghualing Industrial Zone, Xili town, Nanshan, Shenzhen, P.R. China Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F09247 Date of Test ： Sep.22~Nov.23, 2009 Date of Report ： Dec.03, 2009 FCC ID:TE7WR1043NX Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09247 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS................................................................... 1-1 1.1. Description of Standards and Results ............................................................................................1-1 2. GENERAL INFORMATION .................................................................................................. 2-1 2.1. Description of Device (EUT) .........................................................................................................2-1 2.2. Test information .............................................................................................................................2-2 2.3. Date rate VS power ........................................................................................................................2-3 2.4. Tested Supporting System Details .................................................................................................2-4 2.5. Test Facility ...................................................................................................................................2-5 2.6. Measurement Uncertainty (95% confidence levels, k=2) ..............................................................2-5 3. POWER LINE CONDUCTED EMISSION TEST ................................................................ 3-1 3.1. Test Equipments.............................................................................................................................3-1 3.2. Block Diagram of Test Setup .........................................................................................................3-1 3.3. Power Line Conducted Emission Test Limits................................................................................3-1 3.4. Configuration of EUT on Test .......................................................................................................3-2 3.5. Operating Condition of EUT..........................................................................................................3-2 3.6. Test Procedure................................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results ..............................................................................3-2 4. RADIATED EMISSION TEST ............................................................................................... 4-1 4.1. Test Equipment ..............................................................................................................................4-1 4.2. Block Diagram of Test Setup .........................................................................................................4-1 4.3. Radiated Emission Limit................................................................................................................4-2 4.4. EUT Configuration on Test............................................................................................................4-3 4.5. Operating Condition of EUT..........................................................................................................4-3 4.6. Test Procedure................................................................................................................................4-3 4.7. Radiated Emission Test Results .....................................................................................................4-4 5. CONDUCTED SPURIOUS EMISSIONS............................................................................... 5-1 5.1. Test Equipment ..............................................................................................................................5-1 5.2. Limit...............................................................................................................................................5-1 5.3. Test Procedure................................................................................................................................5-1 5.4. Test result .......................................................................................................................................5-1 6. BAND EDGE COMPLIANCE TEST ..................................................................................... 6-1 6.1. Test Equipment ..............................................................................................................................6-1 6.2. Limit...............................................................................................................................................6-1 6.3. Test Produce ...................................................................................................................................6-1 6.4. Test Results ....................................................................................................................................6-1 7. 6dB Bandwidth Test.................................................................................................................. 7-1 7.1. Test Equipment ..............................................................................................................................7-1 7.2. Limit...................................…

Text truncated - open the document above for the full version.

FCC ID:TE7WR1043NX Page 13-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09247 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test FCC ID:TE7WR1043NX Page 13-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09247 13.2.Photos of Radiated Emission Test 30-1000MHz FCC ID:TE7WR1043NX Page 13-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09247 Above 1000MHz
