TE7WR340G54M Wireless Router

TP-Link Technologies Co., Ltd.
54M Wireless Router - FCC ID TE7WR340G - TP-Link Technologies Co., Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Aug 29, 2007
Application Purpose
Original Equipment
Date of Application
Aug 19, 2007
Equipment Note
54M Wireless Router
Frequency Range
2412.00000000 - 2462.00000000
Company
TP-Link Technologies Co., Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

↗
↗

External Photos

↗

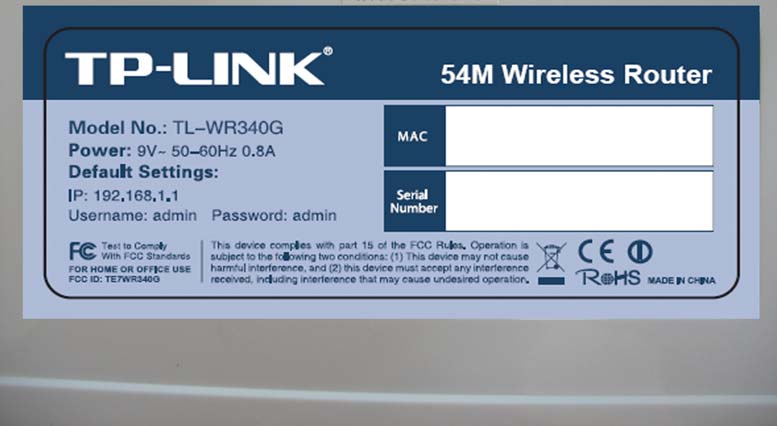

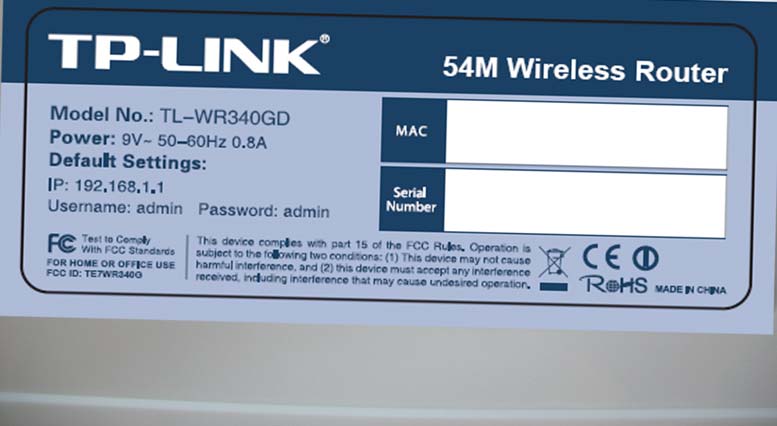

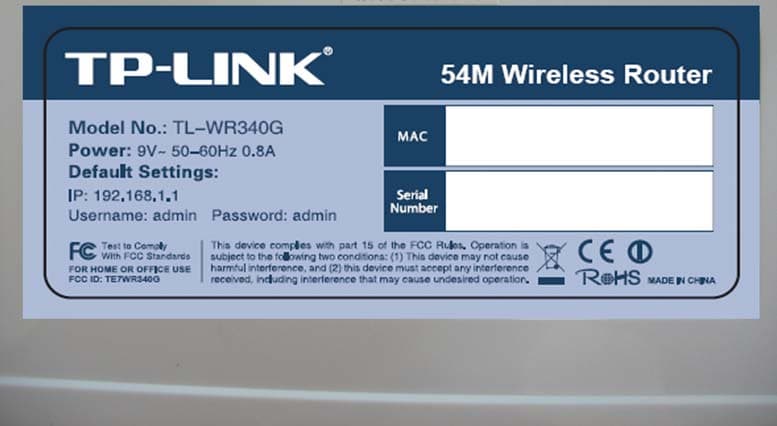

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 August 19, 2007 RE: ATCB005300 FCC ID: TE7WR340G I have a few comments on this application. Depending on your responses, kindly understand there may be additional comments. 1. User manual It is required to place the information to user to your user manual under FCC part 15.21 Below please see the statement copied from FCC part 15.21 for your reference: “The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.” 2. Test report The reading level on RF radiated measurement at page 99 of the test report is -1.666 dBuV. It should not be such low level. Please clarify it. 3. Test report It is not clear to see if the emission level of marker2 has 20dB below that of marker 1 from page 94 ~97 on conducted band edge emission measurement.. Please provide spectrum plots that show better band edge point. 4. Short of MPE report It is required to provide a MPE (Maximum Permissible Exposure) report for the wireless 802.11b/g device operating distance from body is greater than 20cm. 5. Form 731 Your external photos provided for this application is a “54M wireless router” device. Please check if “54M wireless cardbus adapter” filled at 4(a) on “TE7WR340G_731 form” is correct? ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~ George Chen ~ mailto:[email protected] ~ Taiwan Mobile: +886 930600123 ~ SKYPE: georgeshirley ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. z Page 2 August 19, 2007 Any questions about the content of this correspondence should be directed to the sender.

External Photos

54M Wireless Router(TL-WR340G,TL-WR340GD) EUT Photograph-External Photographs (1) EUT Photo (TL-WR340G) (2) EUT Photo (TL-WR340G) (3) EUT Photo (TL-WR340G) (4) EUT Photo (TL-WR340G) (5) EUT Photo (TL-WR340G) (6) EUT Photo (TL-WR340GD) (7) EUT Photo (TL-WR340GD) (8) EUT Photo (TL-WR340GD) (9) EUT Photo (TL-WR340GD) (10) EUT Photo (TL-WR340GD) (11) EUT Photo (12) EUT Photo (13) EUT Photo

Internal Photos

54M Wireless Router(TL-WR340G,TL-WR340GD) EUT Photograph-Internal Photographs (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo

Test Report

RF Exposure Evaluation declaration Product Name : 54M Wireless Router Model No. : TL-WR340G, TL-WR340GD FCC ID : TE7WR340G Applicant : TP-LINK Technologies Co., Ltd Address : Building 7, Section 2, Honghualing Industrial Park, Xili, Nanshan District, Shenzhen, P.R.C. Date of Receipt : 2007/07/03 Issued Date : 2007/07/27 Report No. : 077S010-RF-US The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by CNLA, NVLAP, NIST or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 077S010-RF-US Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No: 077S010-RF-US Page: 3 of 3 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78% RH. 1.3. Test Result of RF Exposure Evaluation Product : 54M Wireless Router Test Item : RF Exposure Evaluation Test Site : AC-3 Test Mode : Mode 1: Transmitter Antenna Gain: Antenna Gain: The maximum Gain measured in fully anechoic chamber is 5.0dBi or 3.16 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 132.1296 0.083125 6 2437.00 146.2177 0.091988 11 2462.00 182.3896 0.114744 Note: The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm2.

Test Report

Test Report Product Name : 54M Wireless Router Model No. : TL-WR340G, TL-WR340GD FCC ID : TE7WR340G Applicant : TP-LINK Technologies Co., Ltd Address : Building 7, Section 2, Honghualing Industrial Park, Xili, Nanshan District, Shenzhen, P.R.C. Date of Receipt : 2007/07/03 Issued Date : 2007/07/26 Report No. : 077S010-RF-US-P05V01 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by CNLA, NVLAP, NIST or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 077S010-RF-US-P05V01 Page: 2 of 111 Test Report Certification Issued Date : 2007/07/26 Report No. : 077S010-RF-US-P05V01 Product Name : 54M Wireless Router Applicant : TP-LINK Technologies Co., Ltd Address : Building 7, Section 2, Honghualing Industrial Park, Xili, Nanshan District, Shenzhen, P.R.C. Manufacturer : TP-LINK Technologies Co., Ltd Model No. : TL-WR340G, TL-WR340GD FCC ID : TE7WR340G Rated Voltage : AC 120V/60Hz EUT Voltage : AC 9V, 0.8A Trade Name : TP-LINK Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2007 ANSI C63.4: 2003 Test Result : Complied Performed Location : SuZhou EMC laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration number: 800392 Documented By : ( Any Liu ) Reviewed By : ( Dream Cao ) Approved By : ( Murphy Wang ) Report No: 077S010-RF-US-P05V01 Page: 3 of 111 Laboratory Information We , QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited by the following accreditation Bodies in compliance with ISO 17025, EN 45001 and Guide 25: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://tw.quietek.com/modules/myalbum/ The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, DGT, CNLA Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC, NVLAP Japan : VCCI 0914 1313 1596 Report No: 077S010-RF-US-P05V01 Page: 4 of 111 TABLE OF CONTENTS Description Page 1. General Information .................................................................................................... 6 1.1. EUT Description...................................................................................................... 6 1.2. Mode of Operation .................................................................................................. 8 1.3. Tested System Details ............................................................................................ 9 1.4. Configuration of Tested System............................................................................ 10 1.5. EUT Exercise Software......................................................................................... 11 2. Technical Test ........................................................................................................... 12 2.1. Summary of Test Result........................................................................................ 12 2.2. Test Environment .................................................................................................. 13 3. Conducted Emission................................................................................................. 14 3.1. Test Equipment .....................................................................................................14 3.2. Test Setup............................................................................................................. 14 3.3. Limit.... .................................................................................................................15 3.4. Test Procedure ..................................................................................................... 15 3.5. Uncertainty ........................................................................................................... 15 3.6. Test Result ............................................................................................................ 16 3.7. Test Photograph ................................................................................................... 28 4. Radiated Emission .................................................................................................... 30 4.1. Test Equipment .....................................................................................................30 4.2. Test Setup............................................................................................................. 30 4.3. Limit..... ................................................................................................................31 4.4. Test Procedure ..................................................................................................... 32 4.5. Uncertainty ......................................…

Text truncated - open the document above for the full version.

Test Setup Photos

54M Wireless Router(TL-WR340G,TL-WR340GD) Test Photographs Test Mode: Mode 1: Transmit by 802.11b Description: Front View of Radiated Test (Under 1GHz) Test Mode: Mode 1: Transmit by 802.11b Description: Back View of Radiated Test (Under 1GHz) Test Mode: Mode 1: Transmit by 802.11b Description: Front View of Radiated Test (Above 1GHz) Test Mode: Mode 1: Transmit by 802.11b Description: Back View of Radiated Test (Above 1GHz) Test Mode: Mode 2: Transmit by 802.11g Description: Front View of Radiated Test (Under 1GHz) Test Mode: Mode 2: Transmit by 802.11g Description: Back View of Radiated Test (Under 1GHz) Test Mode: Mode 2: Transmit by 802.11g Description: Front View of Radiated Test (Above 1GHz) Test Mode: Mode 2: Transmit by 802.11g Description: Back View of Radiated Test (Above 1GHz)

Contact Information

Applicant

Jing Huang(Regulatory Compliance Manager)
[email protected]75521534921Fax: 75526508930

Test Firm

DEKRA Testing and Certification (Suzhou) Co., Ltd.Jerry Pan
[email protected]86-512-62515088Fax: 86-512-62515098

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz409.26 mW
Confidentiality
Long Term
Grant Notes
Power Output listed is Conducted. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
