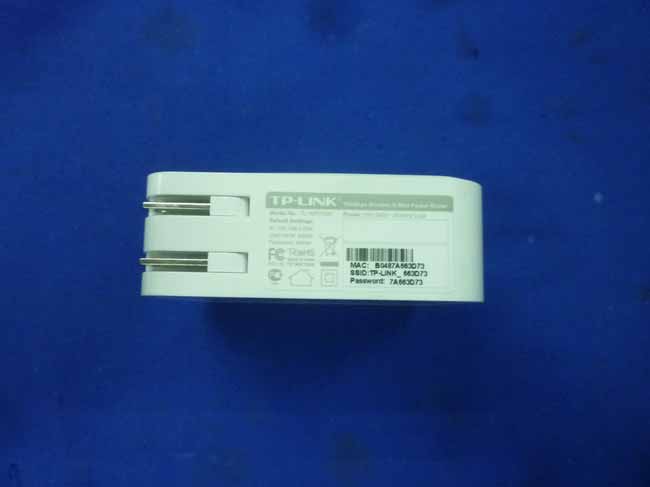

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR700N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11239 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR700N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11239 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR700N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11239 14-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT

TL-WR700N 1.0产品规格标贴 第一版 80g艾利铜版纸+雾膜 TL-WR700N（US） 1.0 2011-8-8 42.3*22mm, 1R 文字转曲线（2：1） 白色 PANTONE COOLGRAY 6C、白色 白色 PANTONE COOLGRAY 6C 赵娣 1 2 E D C B A 1 2 3 4 5 6 7 8 9 E D C 3 4 5 6 7 8 B A 9 料号： 设 计 审 核 颜 色 名 称 版 本 材 质 模 具 机型版本号 完成日期 logo 底色 文字 其它 记 录 与上一版的区别 Power: Model No.: Default Settings: FCC ID:TE7WR700N MAC:B0487A663D6C SSID:TP - LINK _ 663D6C Password:7A663D6C MAC地址条码、SSID、PASSWORD都是变化的，需要供应商打印。标贴中现有 条码仅为示意； 编码规则 SSID：TP-LINK_XXXXXX(MAC后六位)、PASSWORD：XXXXXXXX(MAC后八位)； 序列号条码为工厂打印并贴上去，使用23*5mm的空白标贴。 S/N:XXXXXXXXXXXX 备注： 150Mbps Wireless N Mini Pocket Router Label

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR700N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11239 14-4 Figure 7 Inside of the EUT Figure 8 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR700N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11239 14-5 Figure 9 Component side of the PCB Figure 10 Component side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR700N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11239 14-6 Figure 11 Component side of the PCB Figure 12 Component side of the PCB

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR700N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11239 11-1 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2.2, Estimation Result Cable loss: 1 dB Attenuator loss: 20 dB Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE 11b CH1 2412 14.84 30.48 0 1.00 0.0061 CH6 2437 16.15 41.21 0 1.00 0.0082 CH11 2462 17.37 54.58 0 1.00 0.0109 11g CH1 2412 19.93 98.40 0 1.00 0.0196 CH6 2437 24.88 307.61 0 1.00 0.0612 CH11 2462 19.34 85.90 0 1.00 0.0171 11n HT20 CH1 2412 18.47 70.31 0 1.00 0.0140 CH6 2437 24.78 300.61 0 1.00 0.0598 CH11 2462 18.72 74.47 0 1.00 0.0148 11n HT40 CH1 2422 18.77 75.34 0 1.00 0.0150 CH4 2437 23.77 238.23 0 1.00 0.0474 CH7 2452 19.70 93.33 0 1.00 0.0186 Note: The estimation distance is 20cm

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR700N Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11239 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of TP-LINK TECHNOLOGIES CO., LTD. 150Mbps Wireless N Mini Pocket Router Model No.: TL-WR700N FCC ID: TE7WR700N Prepared for : TP-LINK TECHNOLOGIES CO., LTD. Building 24(floors 1,3,4,5) and 28 (floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F11239 Date of Test ： Aug.09~Oct.28, 2011 Date of Report ： Oct.29, 2011 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR700N Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11239 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-1 1.1. Description of Standards and Results ................................................................................... 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Test Information ................................................................................................................... 2-2 2.3. Tested Supporting System Details ....................................................................................... 2-3 2.4. Block diagram of connection between the EUT and simulators .......................................... 2-3 2.5. Test Facility .......................................................................................................................... 2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-4 3. POWER LINE CONDUCTED EMISSION TEST ...................................................... 3-1 3.1. Test Equipments ................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits ...................................................................... 3-1 3.4. Configuration of EUT on Test ............................................................................................. 3-2 3.5. Operating Condition of EUT ................................................................................................ 3-2 3.6. Test Procedure ...................................................................................................................... 3-2 3.7. Power Line Conducted Emission Test Results ..................................................................... 3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-1 4.3. Radiated Emission Limit ...................................................................................................... 4-2 4.4. EUT Configuration on Test .................................................................................................. 4-3 4.5. Operating Condition of EUT ................................................................................................ 4-3 4.6. Test Procedure ...................................................................................................................... 4-3 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit ..................................................................................................................................... 5-1 5.3. Test Procedure ...................................................................................................................... 5-1 5.4. Test result ............................................................................................................................. 5-1 6. BAND EDGE COMPLIANCE TEST ............................................................................ 6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit ..................................................................................................................................... 6-1 6.3. Test Produce ......................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-1 7. 6dB Bandwidth Test ........................................................................................................ 7-1 7.1. Test Equipment .................................................................................................................... 7-1 7.2. Limit ..................................................................................................................................... 7-1 7.3. Test Procedure ........................................................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR700N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11239 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR700N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11239 13-2 13.2.Photos of Radiated Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR700N page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11239 13-3 (Above 1000MHz)
